.30-06 212gr ELDX- Pressure concern?

Undertow

Private
Full Member
Minuteman
Oct 23, 2011
15
2
40
Lehigh Valley,PA
I’m trying to help my brother ensure he is safe on pressure for his hunting loads he is developing.

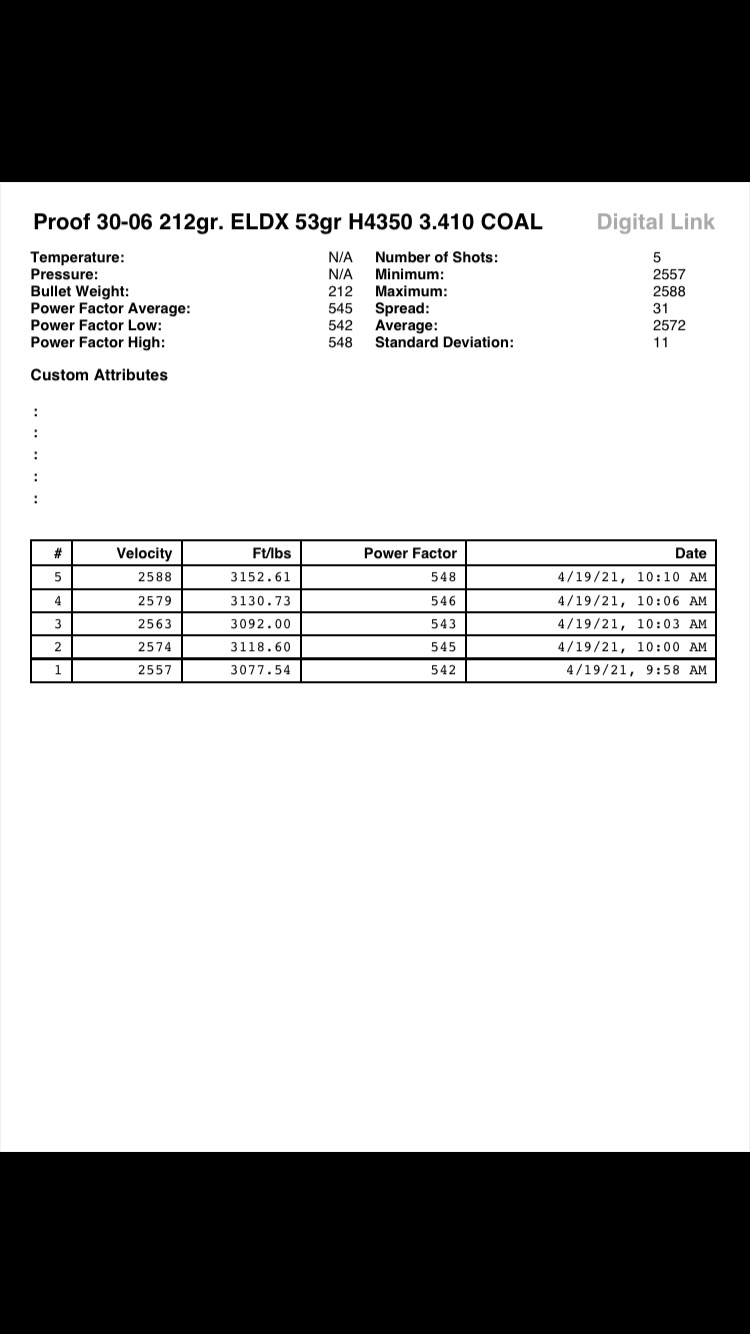

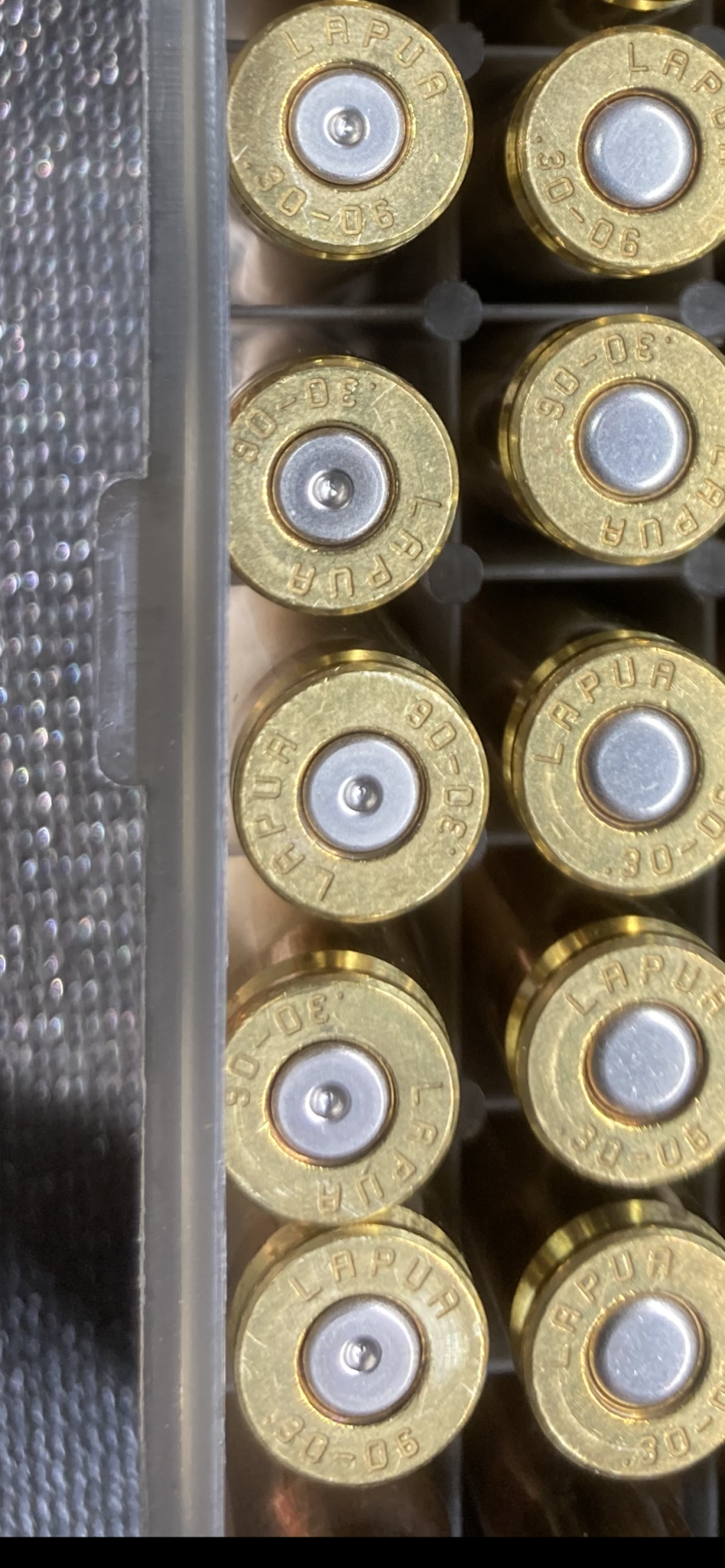

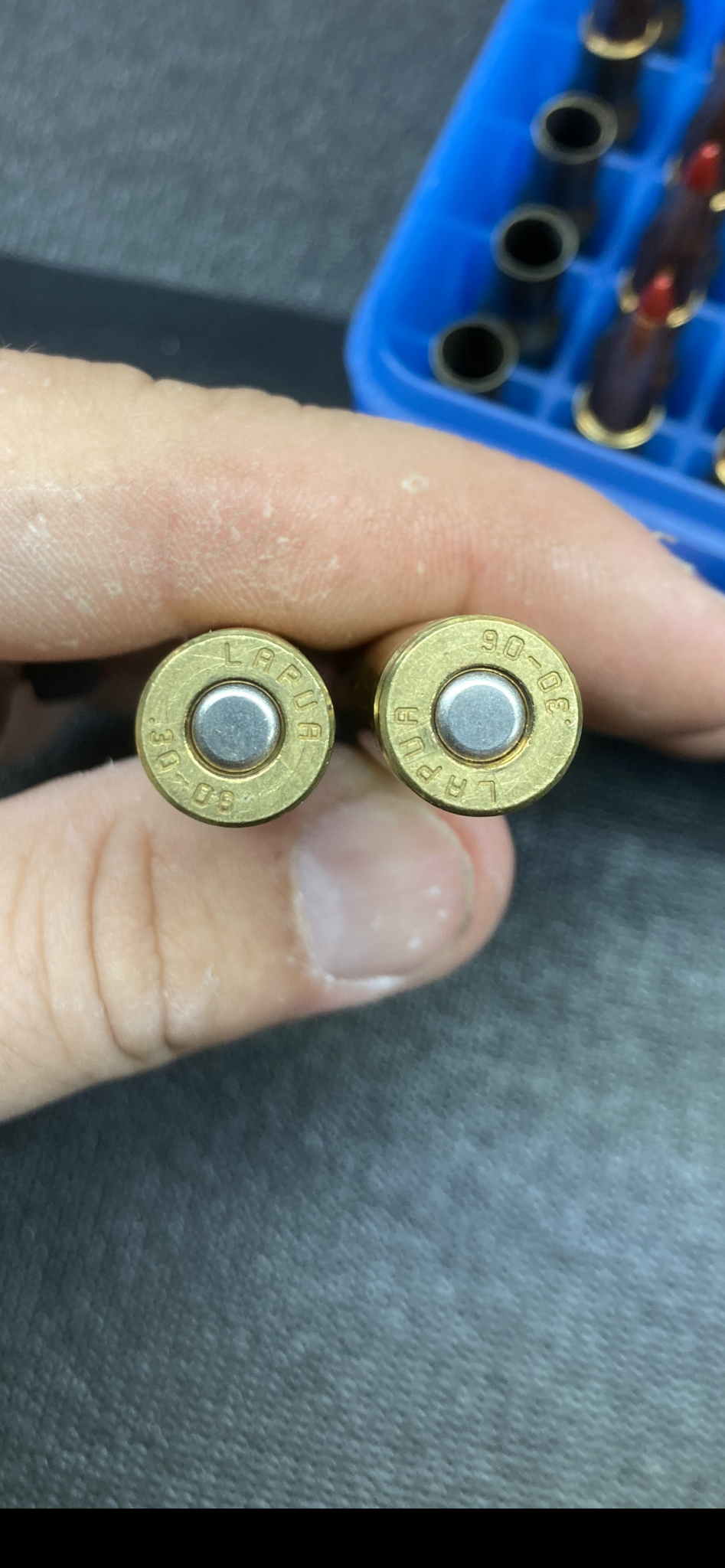

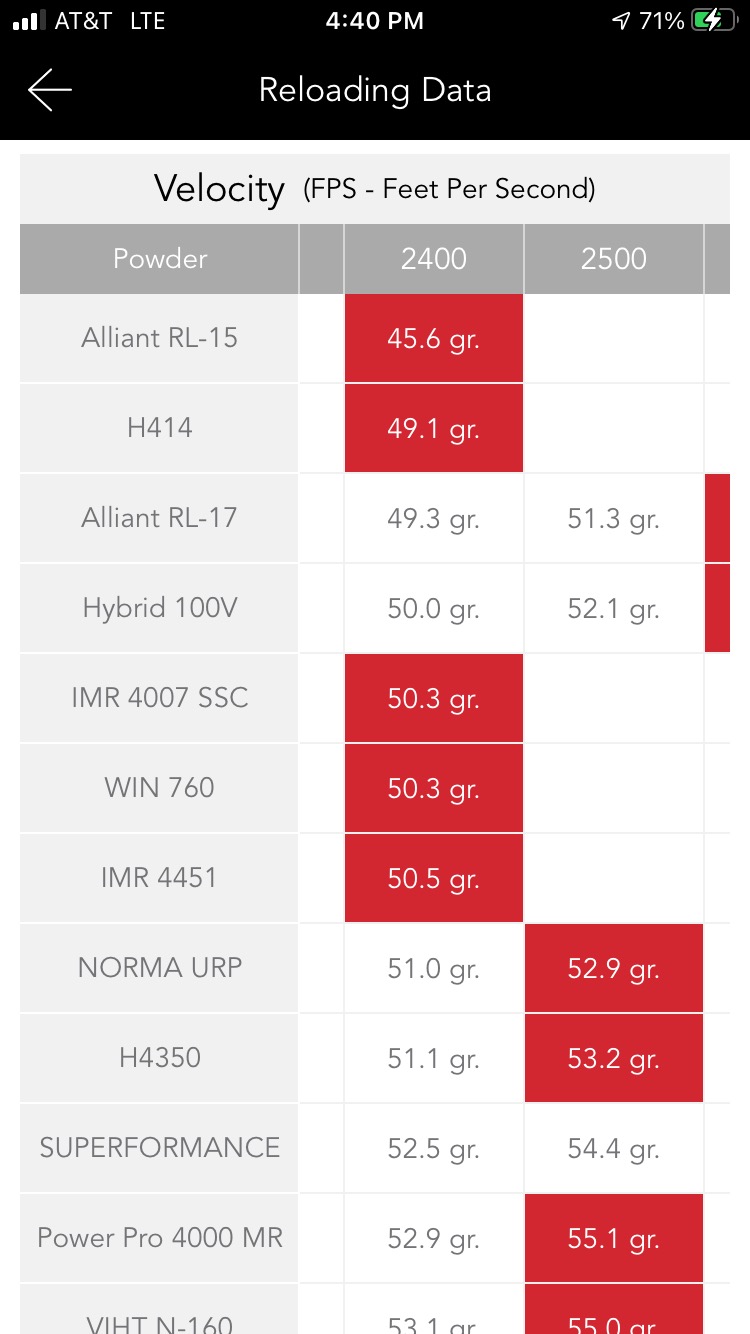

He is within a hair of the max load, and has very minimal of any pressure signs on the brass ( to my eyes at least). However in a conversation with) Hornady they feel his velocity increase over book value (roughly 85 FPS) indicates a pressure concern. I feel this is within tolerance for firearm and brass / component differences. Based on the below data and pics, what do you think?

Rifle: Proof Elevation 30-06 ( Origin LA)
Brass : Lapua , once fired
Bullet: 212gr Hornady ELD-X
Primer: CCI Large Rifle
Powder: 53.0 gr H4350
.020” off lands
F172EE1E-6E2C-4236-8CC8-5DE177CD2C09.jpeg4B6531C3-D6A4-4DEA-9E6A-811435577F9E.jpeg9DE94EC9-6D2A-4EBA-948C-D502527B8B25.png


Attachments

  • 87731738-4E7F-42DC-B027-D7017DB22577.png
    2.1 MB · Views: 127

mtang45

Tangbladicus Maximus
Full Member
Minuteman
Supporter+
  • Apr 14, 2006
    830
    147
    Kansas City, Missouri
    I don't see anything in your fired cases that would raise a pressure concern in my opinion. Nothing in the primer and no marks on the brass

    • Like
    Reactions: Undertow

    pabrousseau

    Sergeant of the Hide
    Full Member
    Minuteman
    Dec 18, 2018
    154
    48
    Take a single case or two and load and shoot several times. If the pressure is too high case head expansion will show up after a number of firings.

    • Like
    Reactions: Undertow

    Undertow

    Private
    Full Member
    Minuteman
    Oct 23, 2011
    15
    2
    40
    Lehigh Valley,PA
    Take a single case or two and load and shoot several times. If the pressure is too high case head expansion will show up after a number of firings.
    He is going to give this a try, thank you. It’s funny how we have been reloading all these years and never ran into velocities much higher than the book.


    mtang45

    Tangbladicus Maximus
    Full Member
    Minuteman
    Supporter+
  • Apr 14, 2006
    830
    147
    Kansas City, Missouri
    He is going to give this a try, thank you. It’s funny how we have been reloading all these years and never ran into velocities much higher than the book.
    Having velocities significantly off from a publishers "book" value is not unusual. It happens all the time. Actually I am surprised that Hornady would have a concern while the load weight was still within the recommended min and max.
