I have a 20 MOA base with Burris XTR signature rings that add another 40 MOA for a total of 60 MOA.
I have the Burris extreme tactical 25moa (steel) rail on mine. I can dial out to 300y no problem. that's the farthest I've taken it so far.
If you set it up for more moa then you will typically use then you'll give up clarity in your optic. Matches I'll be shooting in my area run from 50 -250 & I've got another 20 mil holdover in the scope if I run out of turret.
Depends on what avoid you are running. 30 to 40 moa is my opinion.
LaRue Tactical 20 moa on mine and all my 700 style actions.
I hope that was supposed to have something in front of that zero.
There is no reason not to have a minimum of 20 MOA scope rail with even a cheap scope in my opinion.
Wrong
I have a 20moa base on mine and shoot all the time at 25 yards in my back yard. I can get out to 100 plus at my local range.

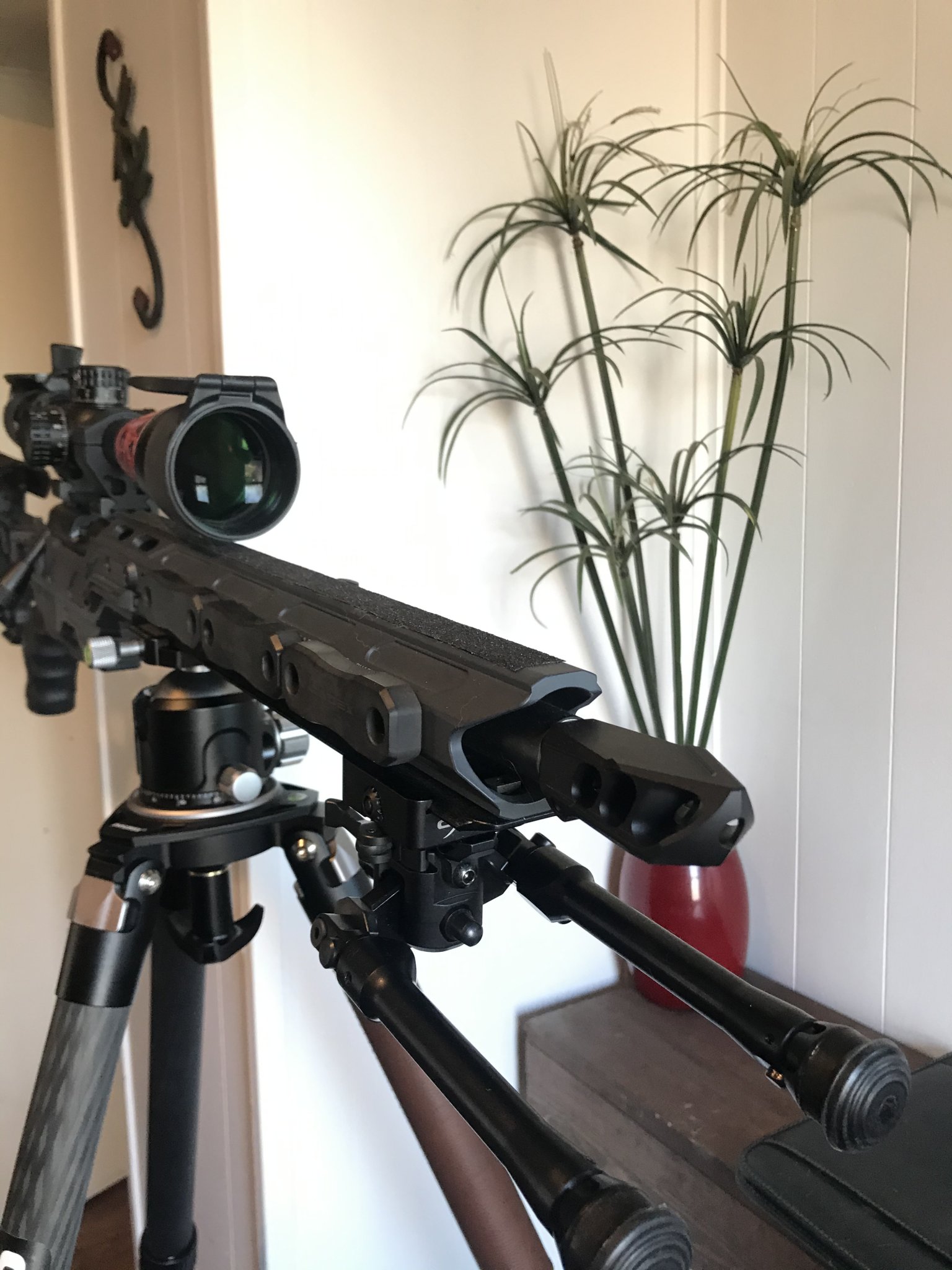

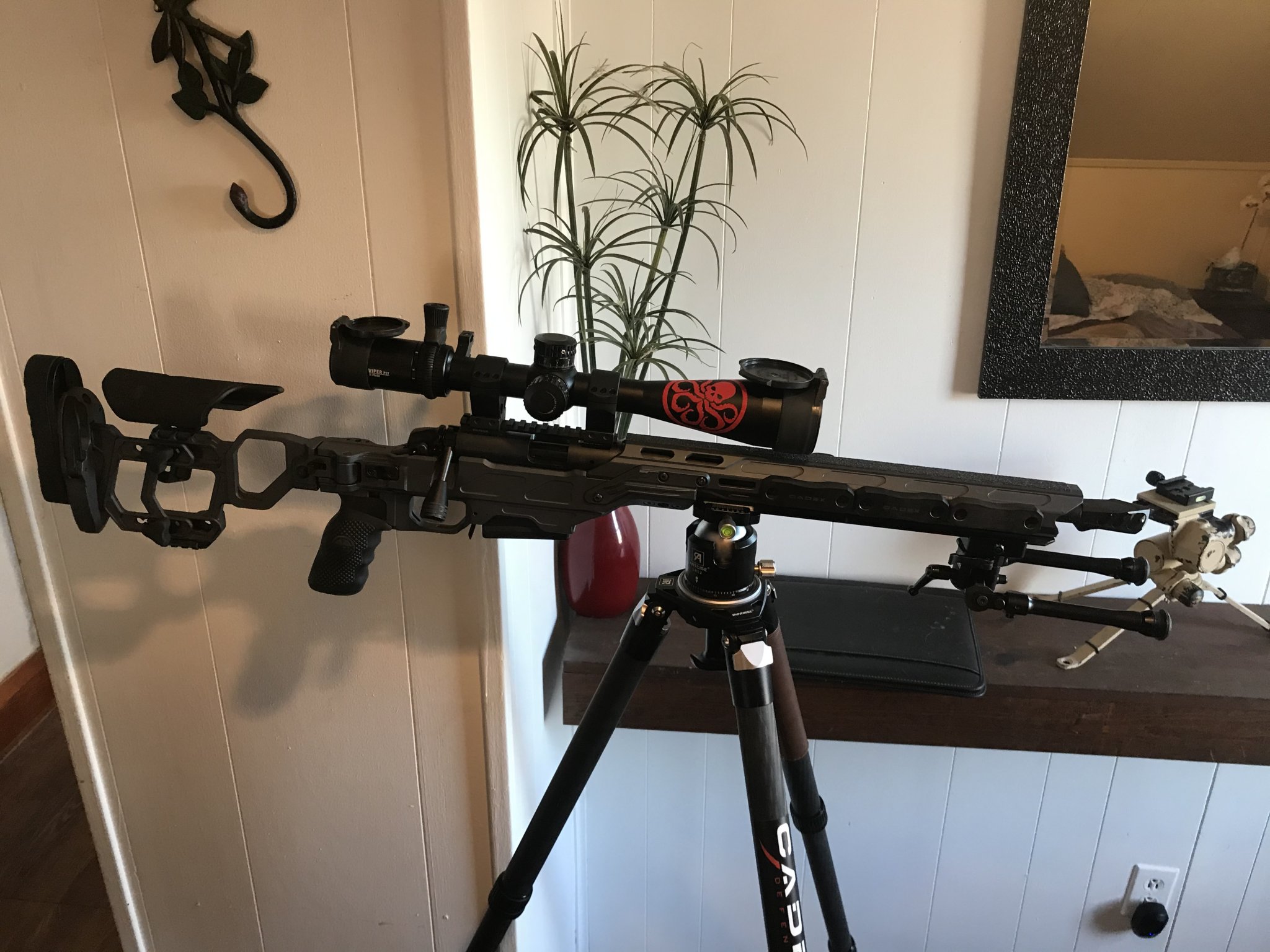

My bergar b14r in my Cadex LCP chassis and Falcon lite single pivot
Itll be worth the wait.
I absolutely love mine.
currently saving for an atlas bipod and either a zco or NF scope to go with it.
The humble .22lr is an expensive addiction that's for sure
AssuieDan, ZC are just incredible. I have a friend in our NRL22 league with one. The glass is so sharp.
Itll be worth the wait.
I absolutely love mine.
currently saving for an atlas bipod and either a zco or NF scope to go with it.
The humble .22lr is an expensive addiction that's for sure
Changed out my factory bolt handle/knob to the AO swept w/ ball. Feels a little better, but thinking Im going to sell this and upgrade to the new Vudoo 360.
That is “bad ass” man!!!
Changed out my factory bolt handle/knob to the AO swept w/ ball. Feels a little better, but thinking Im going to sell this and upgrade to the new Vudoo 360.
I was able to get a B14r steel barrel rifle a couple weeks ago and finally able to shoot it yesterday. This will be a gopher getter and all-around fun range gun. I put an Athlon Midas HMR 2.5-15 x 50 scope on it, which I thought would be perfect for my purposes. It is second focal plane, so the reticle will be easy to see and find at low power when scanning for critters. There are tick marks on both the axes, making holdover quick and easy. Finally, the glass is amazingly bright and clear for a sub $500 scope. I’m really impressed with it.
I tried about 8-9 different types of ammo in it. Everything functioned perfectly. The trigger on mine is amazing to me. I can’t see myself spending money to try to find something better. I really like it. It was pretty windy at the range and it was causing my target to flop around quite a bit, so I’m pretty sure I can shoot better groups than I did yesterday. Anyway, Federal Auto-Match is terrible, but almost everything else I tried was pretty good. I didn’t give any one type of ammo a real thorough test. I just shot two, five-shot groups with everything I had.
Out of an assortment of SK, CCI, Wolf extra match, and Lapua pistol king, everything was under an inch at 50 yards. Several times one group would be pretty nice, like in the .5’s, then the second group would be in the .8’s or .9’s. I also had several groups where 3-4 shots would be in one big hole but then 1-2 would be a bit outside. I feel confident that with less windy conditions and some more practice with the rifle I’ll be able to shoot some nice groups.
The only thing I could find to complain about was how hard the bolt closes. It’s hard enough that it would pull me off target quite a ways every time I cycled it. I’m hoping that will lighten up a bit as it breaks in.
All in all, I’m really happy with the rifle so far. 100 rounds is hardly a test, but so far it is reliable and shows promising accuracy.
I tried about 8-9 different types of ammo in it. Everything functioned perfectly. The trigger on mine is amazing to me. I can’t see myself spending money to try to find something better. I really like it. It was pretty windy at the range and it was causing my target to flop around quite a bit, so I’m pretty sure I can shoot better groups than I did yesterday. Anyway, Federal Auto-Match is terrible, but almost everything else I tried was pretty good. I didn’t give any one type of ammo a real thorough test. I just shot two, five-shot groups with everything I had.
Out of an assortment of SK, CCI, Wolf extra match, and Lapua pistol king, everything was under an inch at 50 yards. Several times one group would be pretty nice, like in the .5’s, then the second group would be in the .8’s or .9’s. I also had several groups where 3-4 shots would be in one big hole but then 1-2 would be a bit outside. I feel confident that with less windy conditions and some more practice with the rifle I’ll be able to shoot some nice groups.
The only thing I could find to complain about was how hard the bolt closes. It’s hard enough that it would pull me off target quite a ways every time I cycled it. I’m hoping that will lighten up a bit as it breaks in.
All in all, I’m really happy with the rifle so far. 100 rounds is hardly a test, but so far it is reliable and shows promising accuracy.
X-Ring just did a nice review of the Bergara B14R. Amazing how much the suppressor ruins the accuracy.
While true for you, I think for most it would be the opposite. X-Ring did another video where he looked at variations in muzzle velocity with and without a suppressor and it concluded that the suppressor affected the muzzle velocity and the ES was affected. But yeah I think it’s important to test your equipment and see what works for you. In this case, no question the suppressor affected the accuracy and opened up the groups.
I have a 77/22 that is an absolute hammer with a can.
My Bergara hates my can. But it does shoot well with a friend of mine's can.
My Bergara hates my can. But it does shoot well with a friend of mine's can.
I don't have a can but a fellow shooter put his can on mine last Sunday. We were only shooting at 25 yards using SK Magazine and it made a tiny ragged hole, just like without the suppressor.

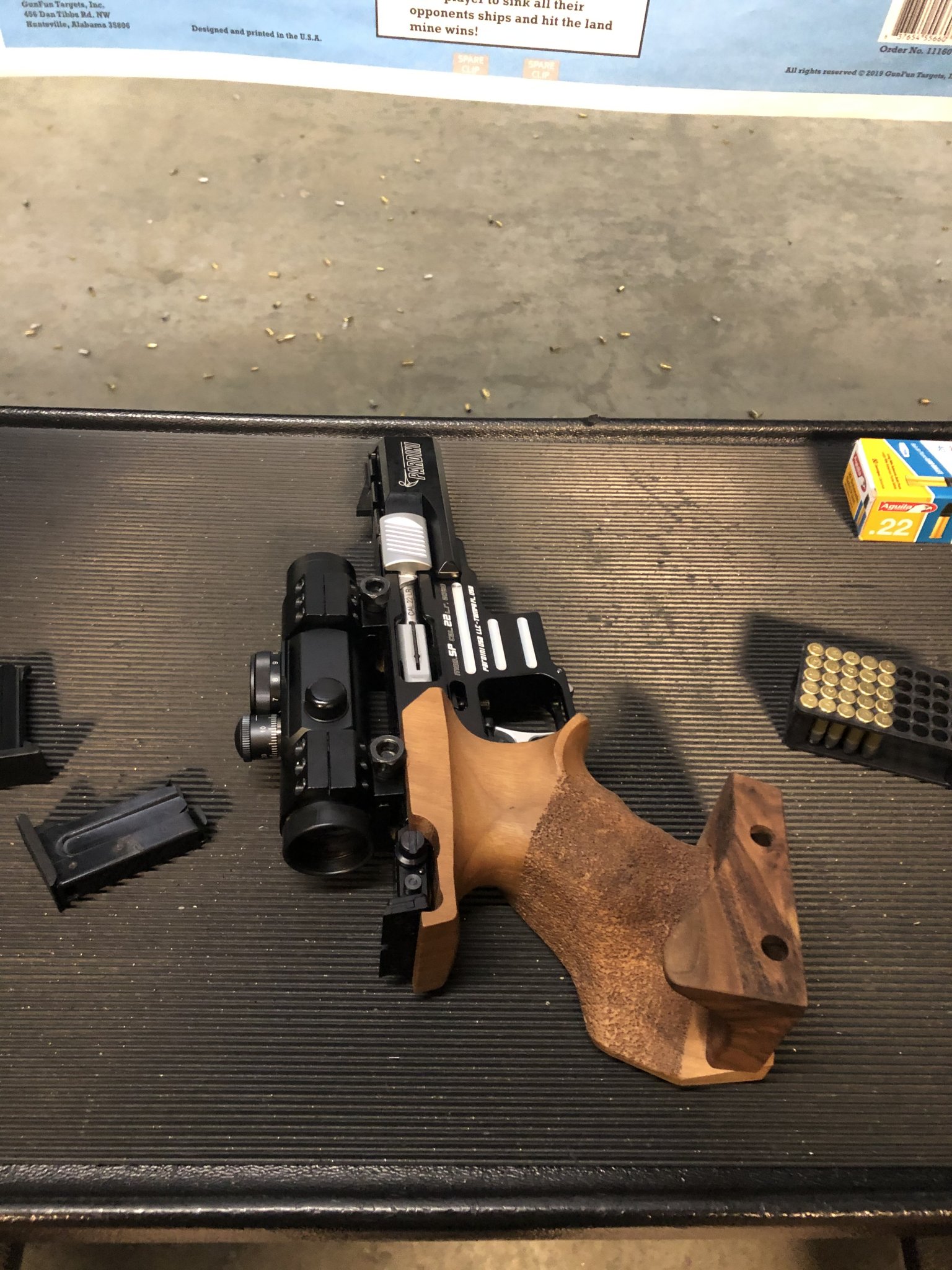

I don’t think ES with velocity is going to show up at 25 yards. This is a 5 shot group with this pistol at 15 yards You should be able to do a ragged hole at 25 yards with just about any rifle at that distance. You can make out some of my other groups in the target and some of those are at 25 yards and others at 15. This is with a 5” barrel. If I were competing and I would Chrono my shots with and without a suppressor with your best ammo for your gun and go with whatever produced the least ES. That
Will get you yet most reliable hits at distance. If that’s with a suppressor then great.
Last edited:
The B-14R lefty versions are starting to show up- I ordered mine yesterday!
Should I order a 30moa or 45moa base? I will likely be using a Vortex PST Gen II.
Should I order a 30moa or 45moa base? I will likely be using a Vortex PST Gen II.
OK, thanks. That's where I was leaning.
You could always get the rings that have moa you can put in too if you have more adjustment you aren't using down.OK, thanks. That's where I was leaning.
I sincerely hope they never sticky it.
Thieves should never be rewarded, no matter how big or popular they are.
Thieves should never be rewarded, no matter how big or popular they are.
Huh?
Huh? too, we definitely need to know about thievery....
What he said!
Berry, Where did you order from?
Just curious, does anyone know which chamber the B14R is?

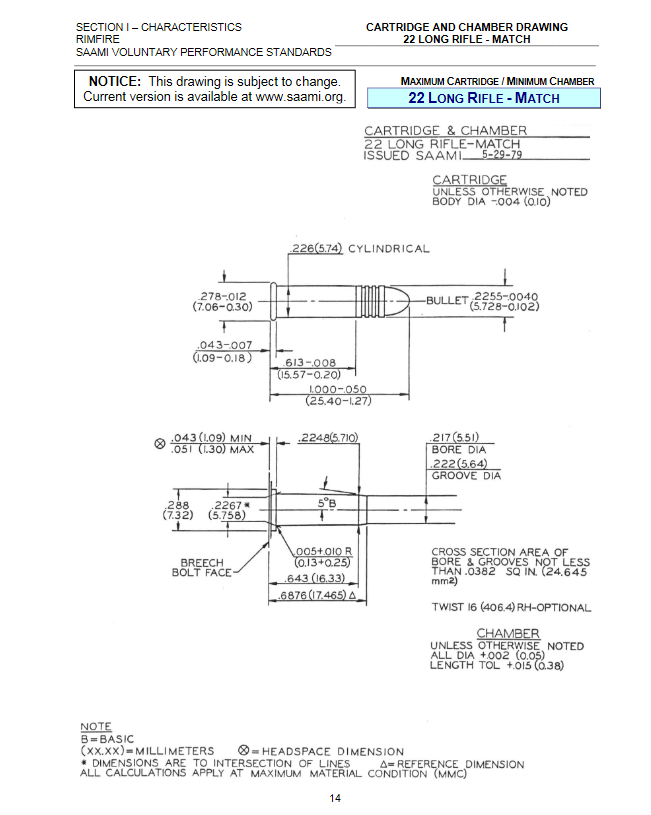

There was one pretty in depth article I read about the B14R that said it was a Saami Match chamber.

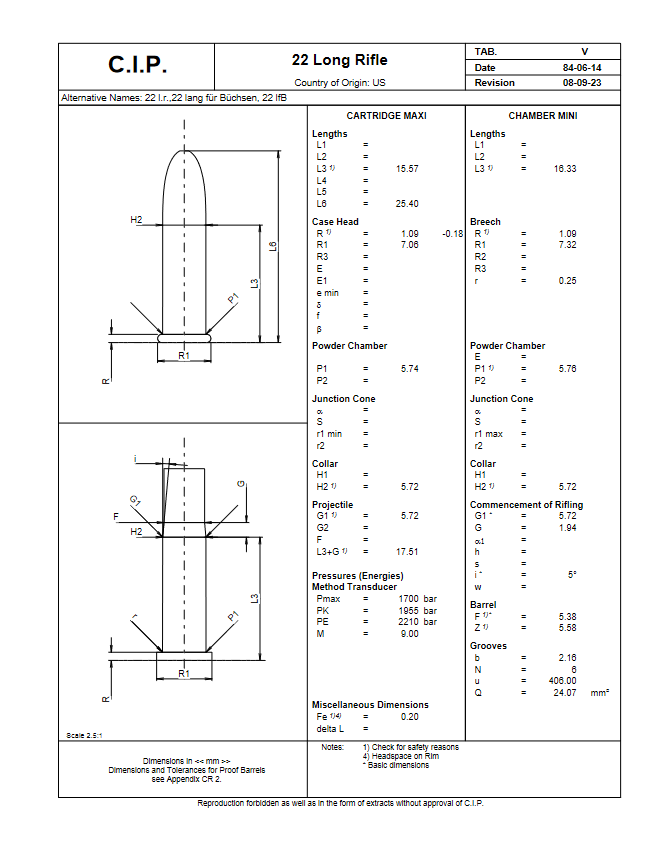

CIP is very close to Saami Match. It appears to be throated a little longer, but that is miss-leading since (F = .2118") & therefore G measures longer.
CIP is very close to Saami Match. It appears to be throated a little longer, but that is miss-leading since (F = .2118") & therefore G measures longer.
Last edited:

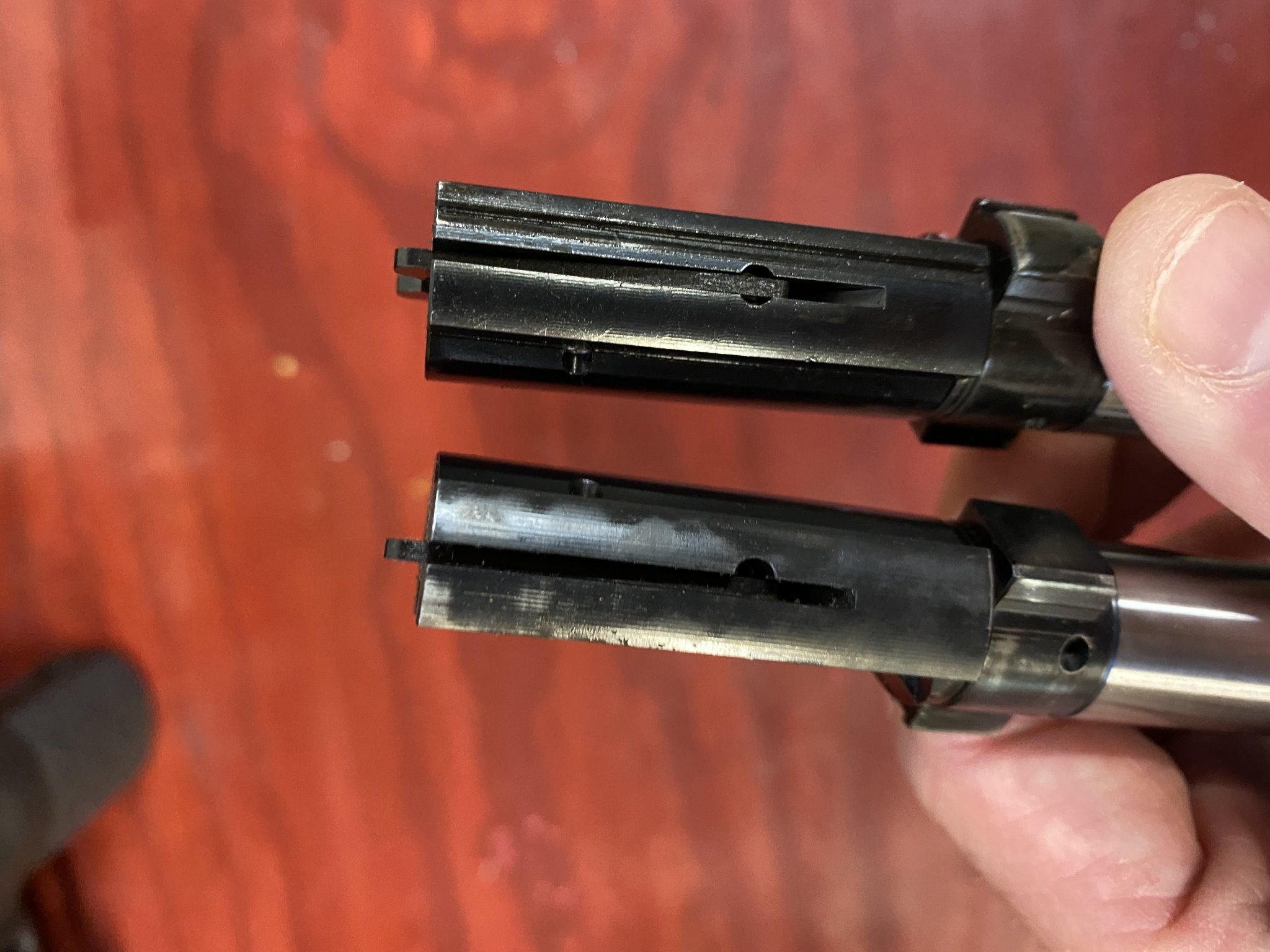

I am posting a picture of two bolts for a Bergara B14R. The top one is from a B14R that was purchased back in October. The other is a replacement bolt Bergara sent for a bad bolt that looked like the top one. Did Bergara enter a design change for their bolts at some point? Which bolt is the more recent design? Thanks.
Last edited:
No there was not a design change.
The bolt pictured on top is showing the ejector side of the bolt.
The picture on bottom is showing the opposite/tensioner side of the other bolt.
Flip either one of them over and they will look the same!

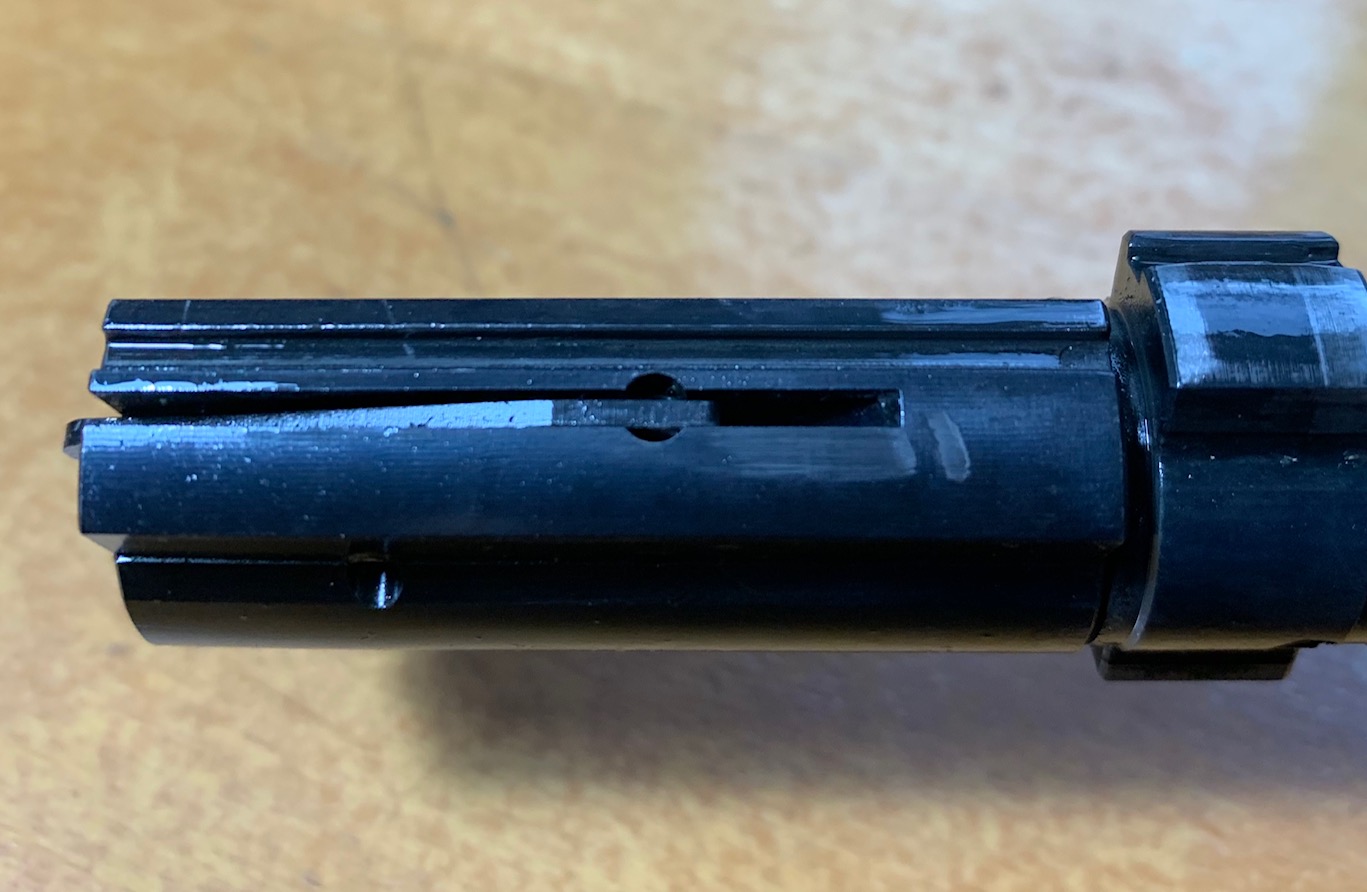

Ejector side.

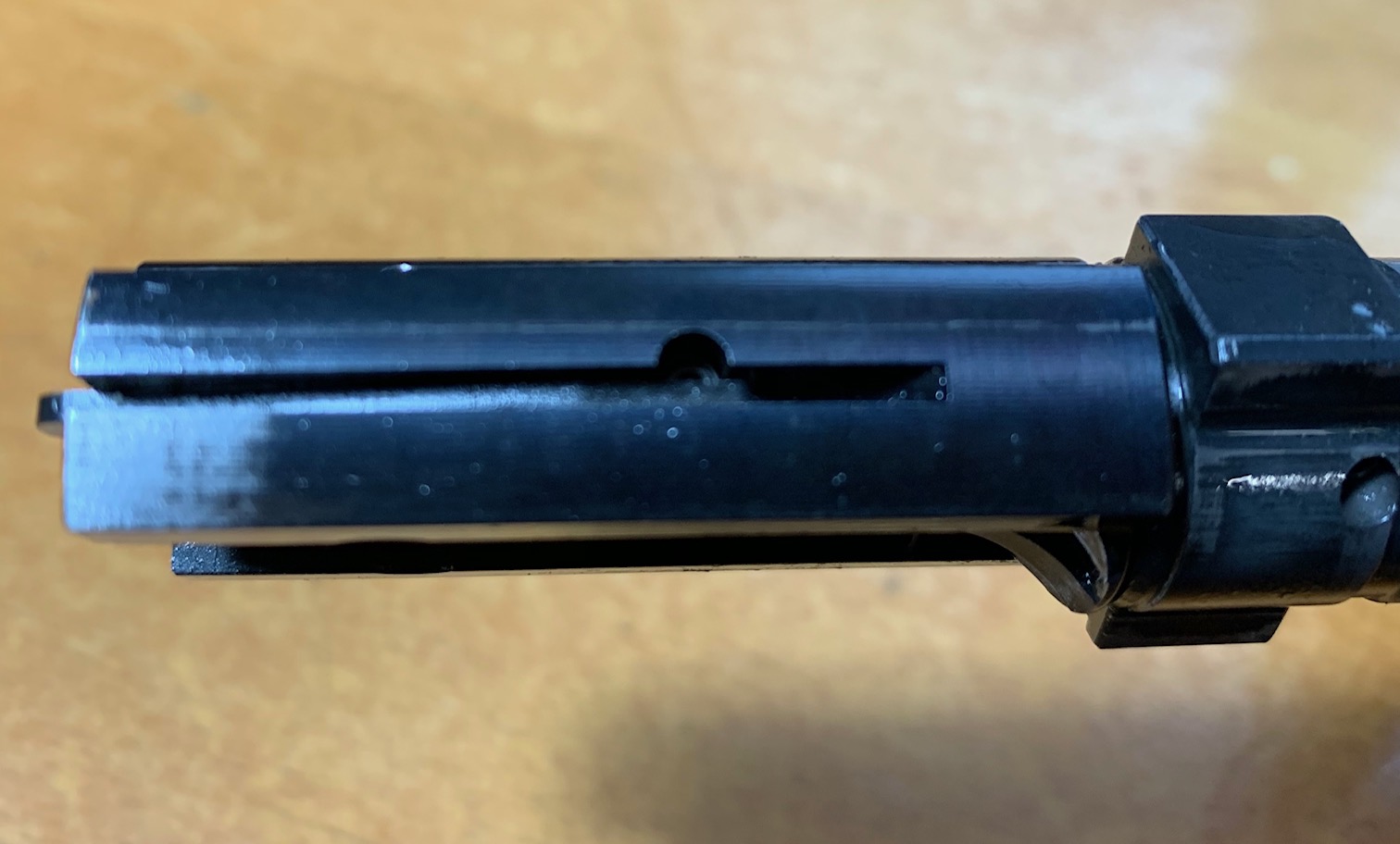

Tensioner side
Last edited:
Ok thanks. I don’t have them with me so I couldn’t even check that. They just looked like they were positioned the same. Thanks for clarifying for me.
Posted this elsewhere when a question about weights came up. Thought it would be useful reference info to include in this B14R thread.
Bergara B14R carbon barrelled action weight: 4lbs 1oz
Bergara HMR stock w/ AICS bottom metal included weight: 3lb 13oz
Hope that helps.
Bergara B14R carbon barrelled action weight: 4lbs 1oz
Bergara HMR stock w/ AICS bottom metal included weight: 3lb 13oz
Hope that helps.
I just got my lefty B14R on Saturday. Found one on Gunbroker at a shop within driving distance.
I've only put a few rounds through it, but it's dancing circles around my heavily modified 10/22--it's like comparing a Pinto to a Porsche, and that's with Blazer 40gr bulk. If my LGS still has it in stock, I'm picking up a few boxes of Eley to see what it can do with good ammo.
I've only put a few rounds through it, but it's dancing circles around my heavily modified 10/22--it's like comparing a Pinto to a Porsche, and that's with Blazer 40gr bulk. If my LGS still has it in stock, I'm picking up a few boxes of Eley to see what it can do with good ammo.
As a new B14R owner I've read about the inability of the current rifles to accept the very nice and readily available Vudoo 10 round polymer mags.
They apparently work for a few and absolutely do not work for others. Anecdotally it seems like the newer rifles do not allow them to work as manufactured.
Figured I'd give it a shot and order a three pack of Vudoo mags to mod. If I ruined them I wasn't going to be too upset. Impression upon receipt was they have a substantially better build quality and are overall a much more solid mag that reminds me of the Smith & Wesson MP22 mags, very nice.
The mags locked in to what appeared an appropriate depth and fit in my B14R action in a Cadex Strike Nuke Evo chassis. The bolt was open when I inserted the mag. Upon bolt close attempt, the bolt stopped forward motion within millimeters. Looking in the receiver it was apparent that the aft, left corner of the magazine feed lip was in contact with the ejector.
My first attempt was to file a bit from the rear bolt catch on the magazine in an effort to reduce the feed lip overall height relative to the action. After pulling a few millimeters off it would cycle but the angle was now incorrect and it would not feed, it would lock up the bolt/dummy round when the round tried to enter the chamber at too steep an angle. I used two part Apoxie black sculpting epoxy to recreate the missing magazine latch ledge material and let it cure until morning.
The next approach was to just remove material from the mag in the vicinity of the offending rifle ejector. I noticed when the Vudoo mag was inserted it would kick the ejector up just enough to prevent bolt forward motion. See below for ejector location and empty/mag inserted action views. Pardon the plastic dust in the action making it look like I am a nasty slob that never cleans his hardware, it was taken during this mag mod filing work.
I started slowly filing material away to create a small notch and radius on that back left corner to clear the ejector. Within a few minutes the mag would not only seat but I could run the bolt although it was a bit difficult to get the initial motion.
A few more minutes of filing to remove material and it worked. The bolt moved freely, the mag no longer contacted the ejector and I was able to feed, cycle and eject 10 A-zoom snap cap dummy rounds continuously with no issues.
I replicated that same change on a second Vudoo mag is a test and once again it allowed the Vudoo mag to seat properly and feed perfectly. Shown below is the modified mag. The best solution would be to cleanly mill out the required notch but this works and is simple to do.
Not saying this alone will work for every rifle and chassis set up (mag latch height could be another issue depending on chassis latch geometry/action relation) but I would imagine this addresses the primary reason Vudoo mags won't work out of the box in most B14R rifles.
With this simple mod you should be able to run these awesome mags. I would even be interested to see if a modded mag makes any difference ina Vudoo action, my guess is that it would not and they would run just fine in a Vudoo as well.
They apparently work for a few and absolutely do not work for others. Anecdotally it seems like the newer rifles do not allow them to work as manufactured.
Figured I'd give it a shot and order a three pack of Vudoo mags to mod. If I ruined them I wasn't going to be too upset. Impression upon receipt was they have a substantially better build quality and are overall a much more solid mag that reminds me of the Smith & Wesson MP22 mags, very nice.
The mags locked in to what appeared an appropriate depth and fit in my B14R action in a Cadex Strike Nuke Evo chassis. The bolt was open when I inserted the mag. Upon bolt close attempt, the bolt stopped forward motion within millimeters. Looking in the receiver it was apparent that the aft, left corner of the magazine feed lip was in contact with the ejector.
My first attempt was to file a bit from the rear bolt catch on the magazine in an effort to reduce the feed lip overall height relative to the action. After pulling a few millimeters off it would cycle but the angle was now incorrect and it would not feed, it would lock up the bolt/dummy round when the round tried to enter the chamber at too steep an angle. I used two part Apoxie black sculpting epoxy to recreate the missing magazine latch ledge material and let it cure until morning.
The next approach was to just remove material from the mag in the vicinity of the offending rifle ejector. I noticed when the Vudoo mag was inserted it would kick the ejector up just enough to prevent bolt forward motion. See below for ejector location and empty/mag inserted action views. Pardon the plastic dust in the action making it look like I am a nasty slob that never cleans his hardware, it was taken during this mag mod filing work.
I started slowly filing material away to create a small notch and radius on that back left corner to clear the ejector. Within a few minutes the mag would not only seat but I could run the bolt although it was a bit difficult to get the initial motion.
A few more minutes of filing to remove material and it worked. The bolt moved freely, the mag no longer contacted the ejector and I was able to feed, cycle and eject 10 A-zoom snap cap dummy rounds continuously with no issues.
I replicated that same change on a second Vudoo mag is a test and once again it allowed the Vudoo mag to seat properly and feed perfectly. Shown below is the modified mag. The best solution would be to cleanly mill out the required notch but this works and is simple to do.
Not saying this alone will work for every rifle and chassis set up (mag latch height could be another issue depending on chassis latch geometry/action relation) but I would imagine this addresses the primary reason Vudoo mags won't work out of the box in most B14R rifles.
With this simple mod you should be able to run these awesome mags. I would even be interested to see if a modded mag makes any difference ina Vudoo action, my guess is that it would not and they would run just fine in a Vudoo as well.
Last edited:
Expense and look cool?
I tried out Vudoo mags because I was clutching my single, proprietary B14R mag in hand with no availability online for additional ones.
Vudoo benefits:
1. Readily available
2. Widely adopted
3. Round visualization
4. Better build quality
5. Cheaper
I'm on half a dozen different waitlists for B14R mags and have only gotten a few in the last month. Every place is out of stock. When they arrive, they are $40.
Can find Vudoo plastic mags in stock for $33.
Your mileage may vary. Just trying to provide information and options.
