Curtis Custom Actions (Vector)

Covertnoob5

Supporter
Supporter
Full Member
Minuteman
Supporter+
  • Feb 12, 2017
    2,497
    1,553
    SoCal
    Anybody else receive one/get it built and care to share their impressions?

    Got mine about 2 weeks ago. Super smooth, cycled it a few hundred times already. Lift is smooth and not bad at all. Lighter than my AXMC. Put the cadex trigger on it. Absolutely love it. I’ll post some pics tonight.


    b6graham

    MMPRL
    Full Member
    Minuteman
    Supporter+
  • Jul 29, 2014
    6,872
    5,868
    Colorado
    What is the role of the set screws? Is there something else that holds the barrel in position?
    The threads. Without knowing more details it's like an AI, Barloc, switch lug, just a different mechanism


    Covertnoob5

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 12, 2017
    2,497
    1,553
    SoCal
    Anybody else receive one/get it built and care to share their impressions?

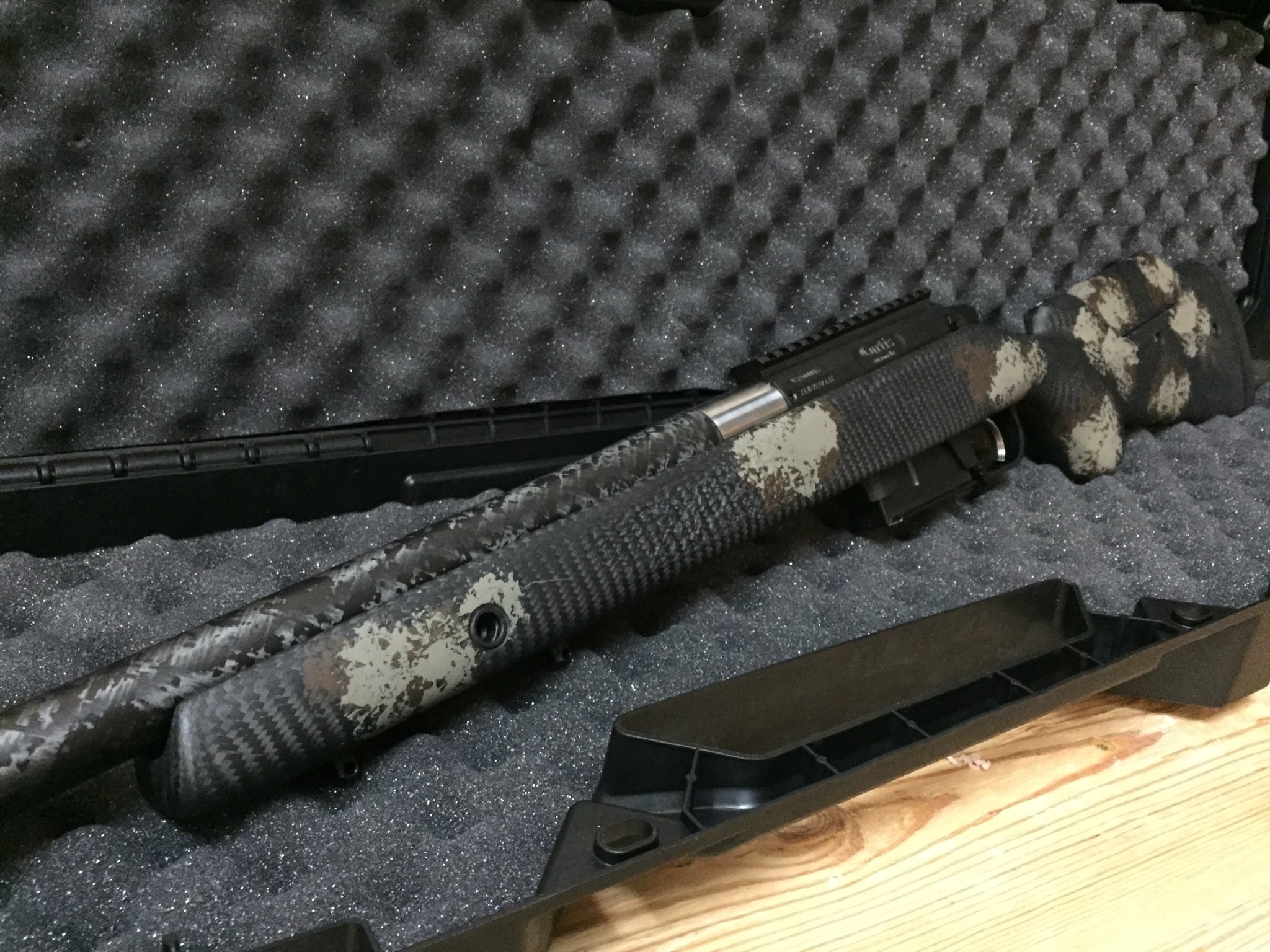

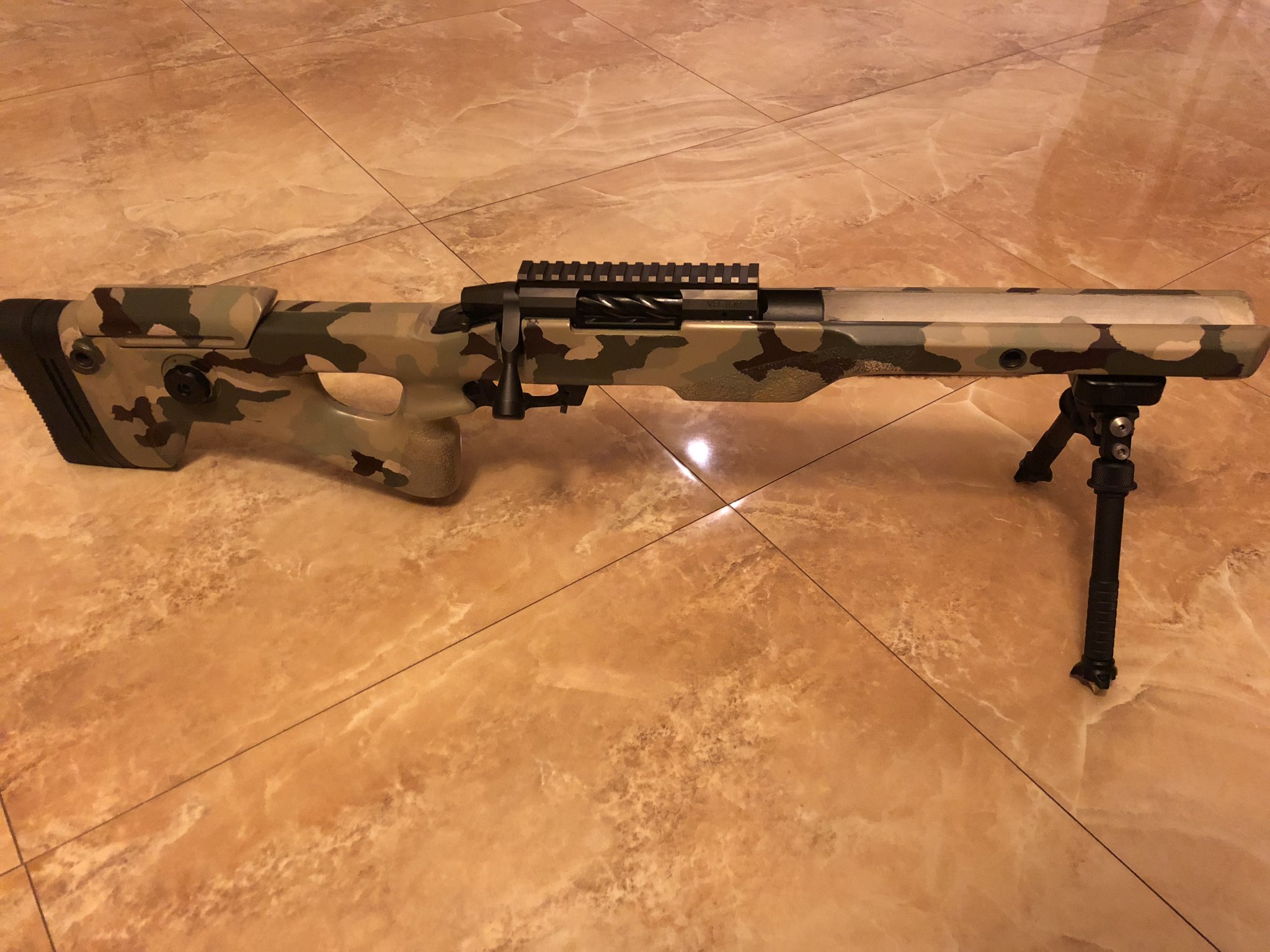

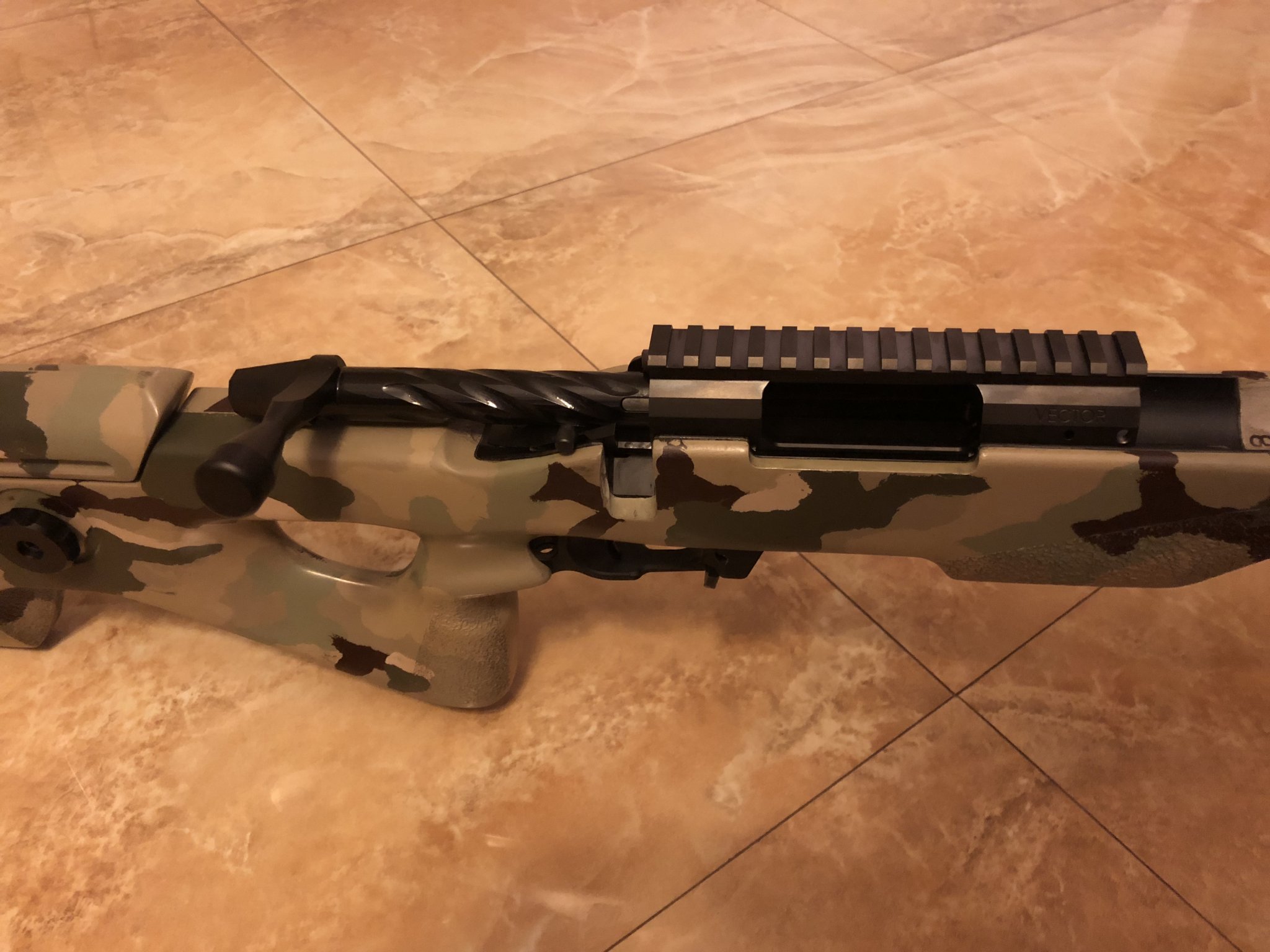

    Here’s some pics and a quick video. I’ll do a full review as soon as my barrel gets here and I get some shots down range.




    Attachments

    • 1EC3A1AF-0DB1-4299-AF12-7CD2E3C8E3A2.jpeg
      418.2 KB · Views: 28
    • A48CB213-CE5F-4642-B977-181E1395C376.jpeg
      306.7 KB · Views: 23

    bgavin

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Mar 19, 2018
    646
    292
    AL
    Nice!

    Thanks for the vid. I have an axiom on a mpa 6.5 and really like it. My next rifle will be with the vector.


    DangerRanger

    Major Hide Member
    Full Member
    Minuteman
    Mar 9, 2018
    1,157
    1,038
    East
    Good stuff, if price is in line with PVA axiom prefits that will be sweet. I believe straight jacket is doing prefits as well now/soon....

    Wonder how a sporter will look in my m24 manners. I could buy 2 prefits for the price of a chambered proof.

    • Like
    Reactions: rymart

    b6graham

    MMPRL
    Full Member
    Minuteman
    Supporter+
  • Jul 29, 2014
    6,872
    5,868
    Colorado
    Good stuff, if price is in line with PVA axiom prefits that will be sweet. I believe straight jacket is doing prefits as well now/soon....

    Wonder how a sporter will look in my m24 manners. I could buy 2 prefits for the price of a chambered proof.
    all the customs are at the $525/$650 pricepoint so i'd be hard to think it would be more


    Covertnoob5

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 12, 2017
    2,497
    1,553
    SoCal
    Any updates? Mine is at my smith being bedded and chambered now.

    I've used it in about 5 matches now and it's amazing. I intend to do the full review after the AZ national match next weekend, but so far so good. Very smooth and I'm running AW mags. Took some slight bending of the feed lips outward but they run flawlessly. So nice to use AW rather than standard AICS.


    DangerRanger

    Major Hide Member
    Full Member
    Minuteman
    Mar 9, 2018
    1,157
    1,038
    East
    I've used it in about 5 matches now and it's amazing. I intend to do the full review after the AZ national match next weekend, but so far so good. Very smooth and I'm running AW mags. Took some slight bending of the feed lips outward but they run flawlessly. So nice to use AW rather than standard AICS.

    Good deal I look forward to it.

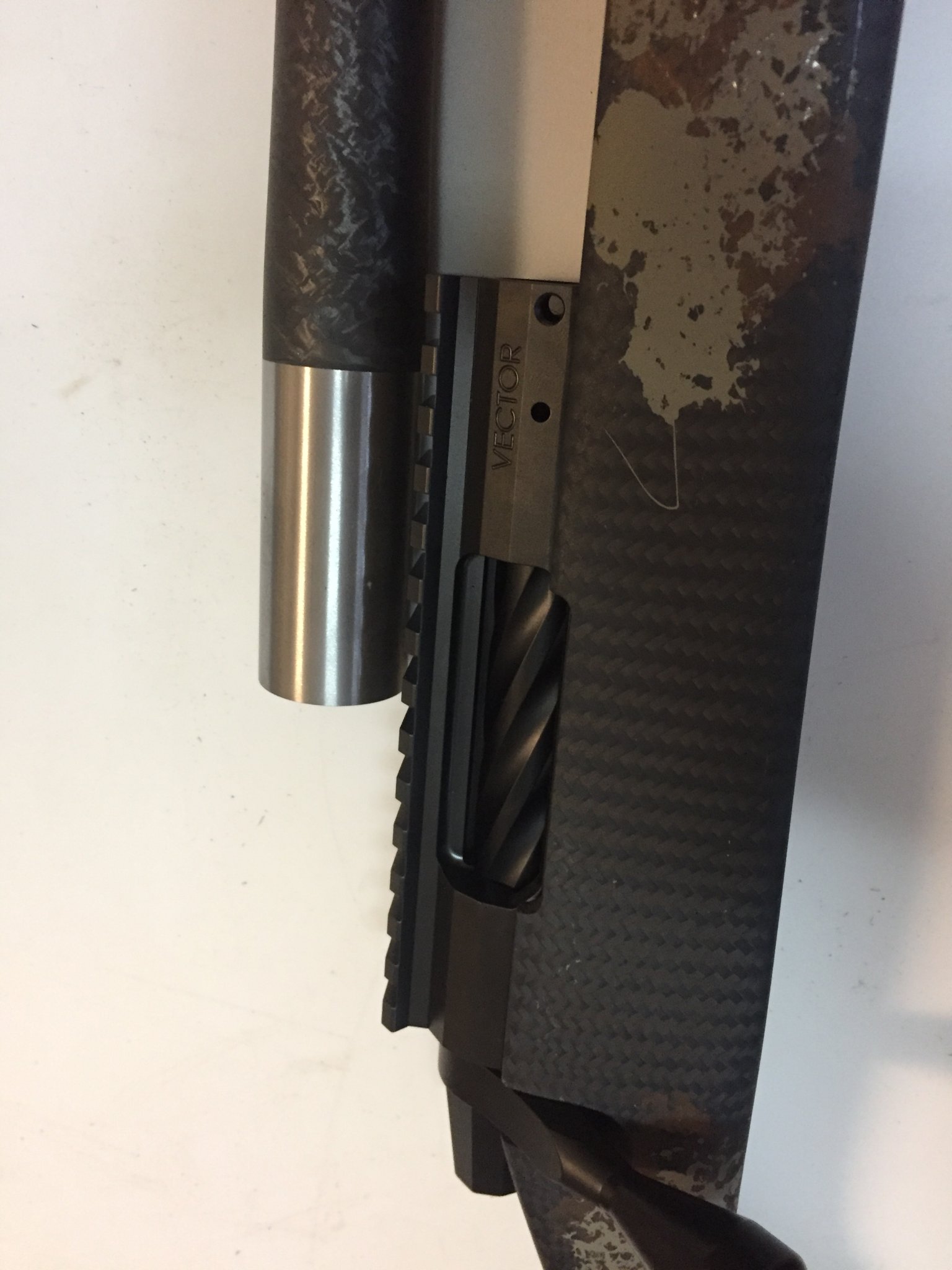

    Here’s a teaser pic while I wait impatiently


    Covertnoob5

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 12, 2017
    2,497
    1,553
    SoCal
    Have you ever used/felt an Axiom? If so, what is your opinion between the two?

    They feel the same when you run them. They also use the same bolt so very similar. Basically it’s the switch barrel capability, integrated recoil lug, integrated rail, and styling differences. Those are just my observations, not sure if there are more differences or not.


    Covertnoob5

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 12, 2017
    2,497
    1,553
    SoCal
    Bolt lift once the firing pin is dropped appears to require quite a bit more than a one finger lift. How would you compare the lift to an AI etc? any idea?

    It was lighter than my AXMC. I installed an aftermarket bolt knob and it improved things as well.


    AXMC

    short-throw aficionado
    Full Member
    Minuteman
    Apr 24, 2017
    486
    207
    It looked like on early versions of the Axiom at least, they were trying to save material by having their bolt knobs thread INTO the bolt handle. Have they changed that to a male threaded shank on the bolt handle that you can thread a typical aftermarket knob ONTO ?
    Thanks


    DangerRanger

    Major Hide Member
    Full Member
    Minuteman
    Mar 9, 2018
    1,157
    1,038
    East
    It looked like on early versions of the Axiom at least, they were trying to save material by having their bolt knobs thread INTO the bolt handle. Have they changed that to a male threaded shank on the bolt handle that you can thread a typical aftermarket knob ONTO ?
    Thanks

    My vector bolt knob threads into handle


    Sogan

    Sergeant
    Full Member
    Minuteman
    Jun 11, 2013
    1,312
    460
    I remember reading (prior to them coming out) that if you didn't want to do the hand tight and set screw route, you could instead torque the barrel on as a normal action. Is this still correct with the production run models?


    DangerRanger

    Major Hide Member
    Full Member
    Minuteman
    Mar 9, 2018
    1,157
    1,038
    East
    I remember reading (prior to them coming out) that if you didn't want to do the hand tight and set screw route, you could instead torque the barrel on as a normal action. Is this still correct with the production run models?

    Yes, my smith asked me which way I wanted it set up.


    ThisGuy

    Third Eye
    Supporter
    Full Member
    Minuteman
    Sep 13, 2018
    178
    70
    Socialist Republic of Maryland
    I remember reading (prior to them coming out) that if you didn't want to do the hand tight and set screw route, you could instead torque the barrel on as a normal action. Is this still correct with the production run models?

    Yes, can just use regular remington threaded barrel and use barrel nut. Just have to set the barrel dept.


    Praeger

    Gunny Sergeant
    Full Member
    Minuteman
    May 17, 2017
    573
    302
    Maryland
    I remember reading (prior to them coming out) that if you didn't want to do the hand tight and set screw route, you could instead torque the barrel on as a normal action. Is this still correct with the production run models?

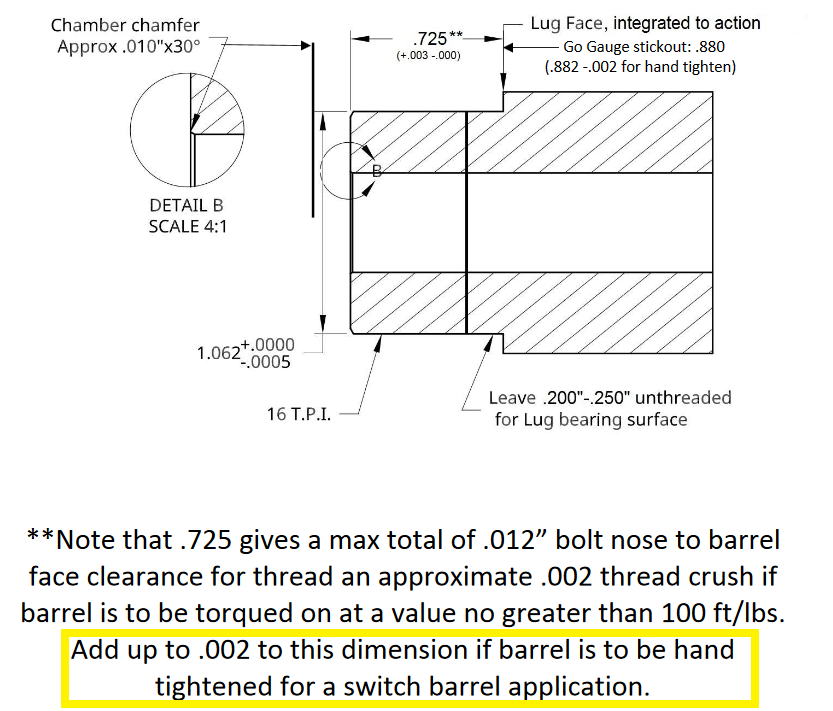

    Curtis Cusom Tenon Drawing.png

    • Like
    Reactions: Sogan

    jb41291

    Bobby
    Full Member
    Minuteman
    Supporter+
    Jul 24, 2017
    541
    140
    31
    Colorado springs, CO

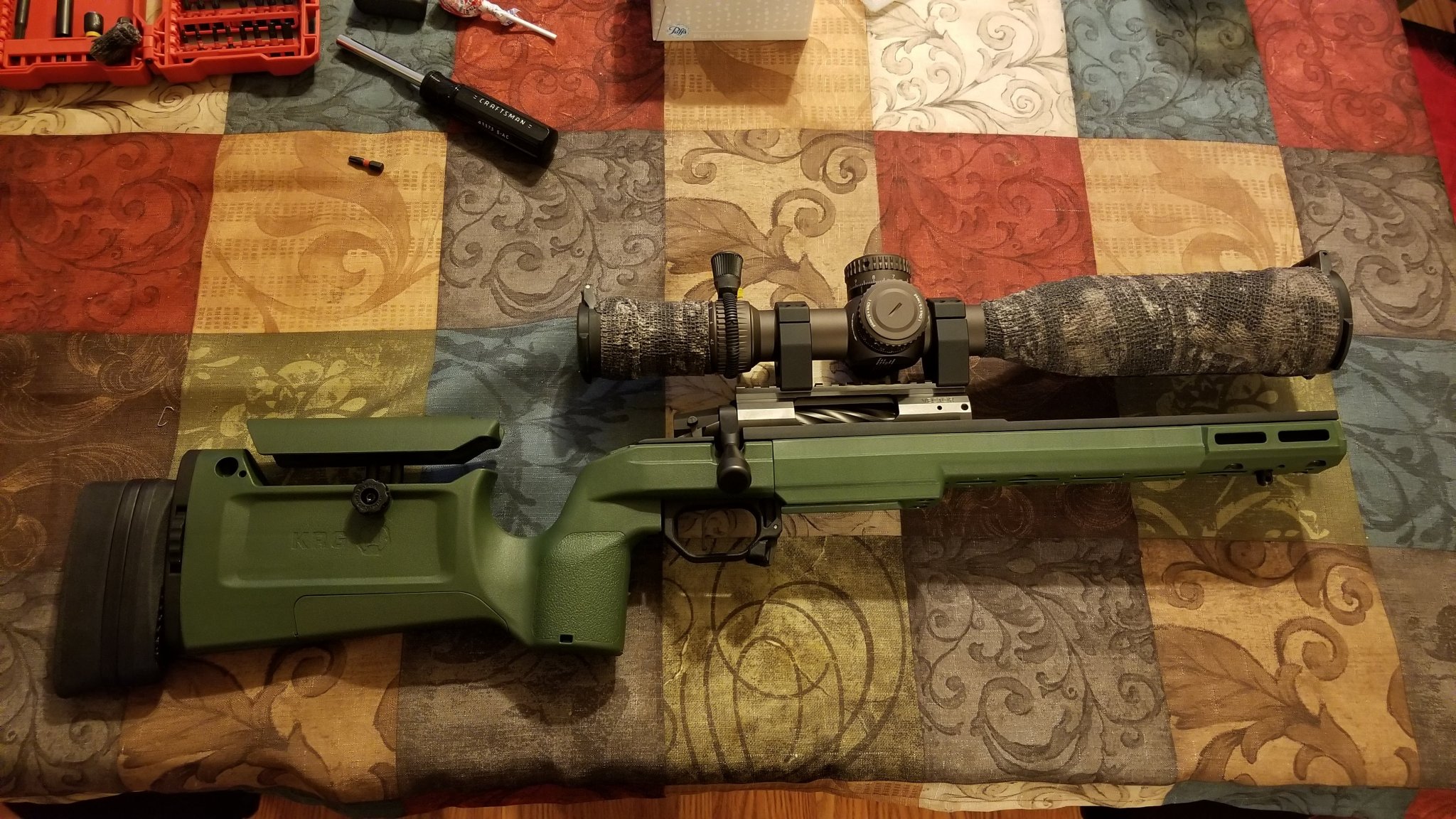

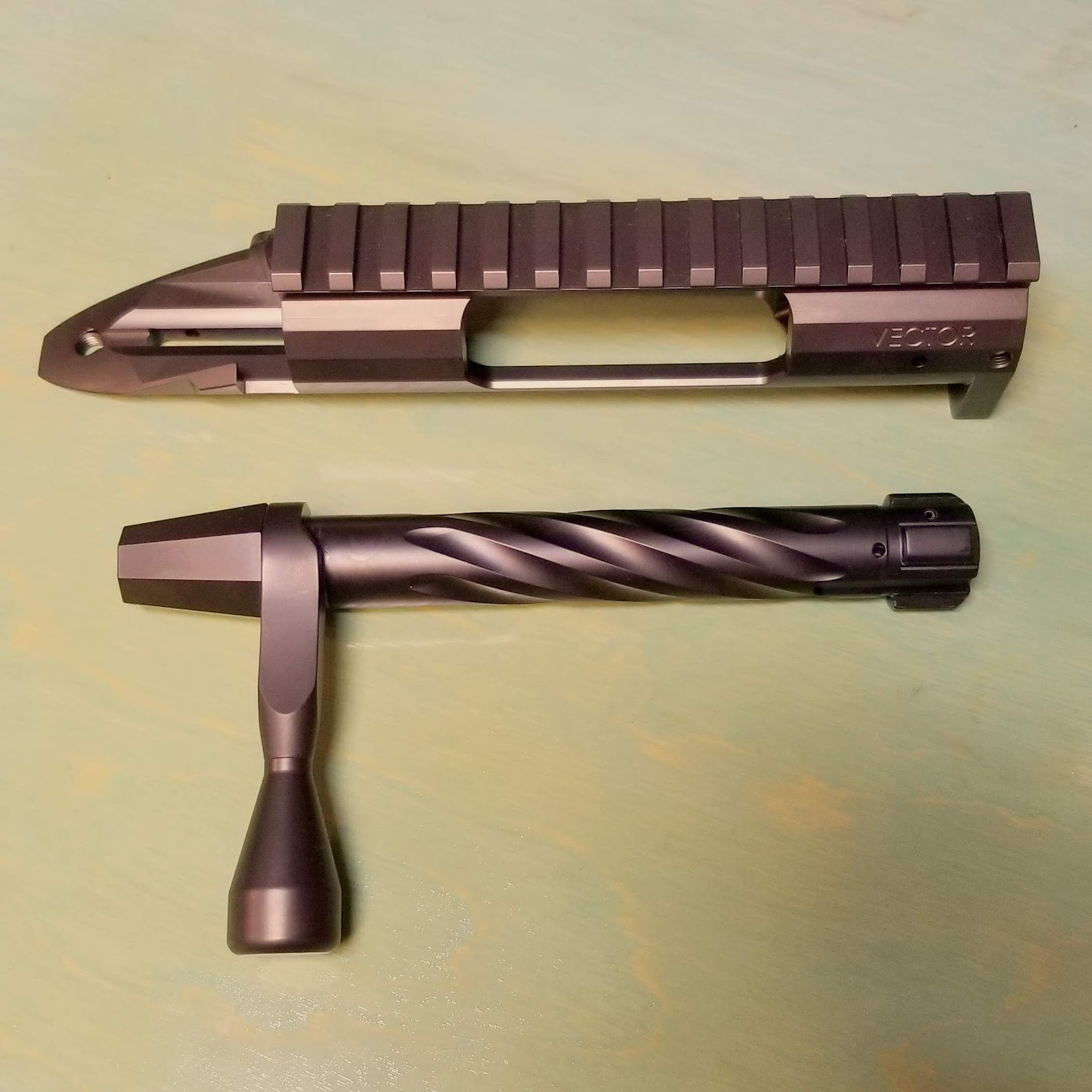

    Vector came in today. Nice redeployment present. Got 1 barrel in 6.5 creedmoor and the other in 223 wylde. Got to trim down my mag latch on my chassis so the bolt doesnt drag on the magazines lips. Other than that Can't wait to shoot this thing this weekend. And start load development.


    Attachments

    • 20190212_180526.jpg
      240.3 KB · Views: 95

    DangerRanger

    Major Hide Member
    Full Member
    Minuteman
    Mar 9, 2018
    1,157
    1,038
    East
    Awesome, I think you’ll love it. Mine gets better and better. Just picked up a .308 bolt for maybe a 6bra or something snazzy

    • Like
    Reactions: jb41291

    DangerRanger

    Major Hide Member
    Full Member
    Minuteman
    Mar 9, 2018
    1,157
    1,038
    East
    Not sure, disassembled it for the first time last weekend and haven’t shot again. I will say it’s extremely easy to remove/reinstall and seems rock solid.


    Covertnoob5

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 12, 2017
    2,497
    1,553
    SoCal
    Hey all, finally got my video review done on the Vector. I know it’s a little long but I tried to cover a few different aspects including the return to zero repeatability for the quick barrel change.



    kthomas

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jun 17, 2009
    4,781
    5,940
    34
    Tucson, AZ
    Hey all, finally got my video review done on the Vector. I know it’s a little long but I tried to cover a few different aspects including the return to zero repeatability for the quick barrel change.


    Have you tested the resistance to POI change with impacts/forces acted upon the barrel? Be curious to see what the results would be. Shoot a control group, then subsequently test any potential POI change by giving the barrel a whack with a rubber mallet (or similar non-damaging smashing device) at 0 o'clock, 3 o'clock, 6 o'clock and 9 o'clock.

    I know some PRS shooters who have been using quick change barrel setups have gone back to 100 ft-lb shouldered barrels because of the above. Be curious to see if the Curtis Actions are resilient to this or not.


    Covertnoob5

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 12, 2017
    2,497
    1,553
    SoCal
    Have you tested the resistance to POI change with impacts/forces acted upon the barrel? Be curious to see what the results would be. Shoot a control group, then subsequently test any potential POI change by giving the barrel a whack with a rubber mallet (or similar non-damaging smashing device) at 0 o'clock, 3 o'clock, 6 o'clock and 9 o'clock.

    I know some PRS shooters who have been using quick change barrel setups have gone back to 100 ft-lb shouldered barrels because of the above. Be curious to see if the Curtis Actions are resilient to this or not.

    I haven’t hit it with a rubber mallet, but I’ve definitely inadvertently hit the barrel on a few portholes, and other obstacles with no issues. I can definitely test for it if that’s something people would be interested to see.

    • Like
    Reactions: Dooby and bgavin

    bgavin

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Mar 19, 2018
    646
    292
    AL
    I haven’t hit it with a rubber mallet, but I’ve definitely inadvertently hit the barrel on a few portholes, and other obstacles with no issues. I can definitely test for it if that’s something people would be interested to see.

    Thanks for the video.

    I would be interested in the poi test.


    DangerRanger

    Major Hide Member
    Full Member
    Minuteman
    Mar 9, 2018
    1,157
    1,038
    East
    I’m not sure how in depth the setup was but I’ll add that straight jacket tuned my manners and vector to run AICS mags. It runs great with no pressure and runs with a touch of resistance with pressure/rifle sitting on the mag.

    I haven’t tried an AW mag in it, we will see if that works well, or if whatever they did will make it AICS only.
