CZ 457

BuckeyeSniper

Private
Minuteman
Aug 25, 2020
50
15

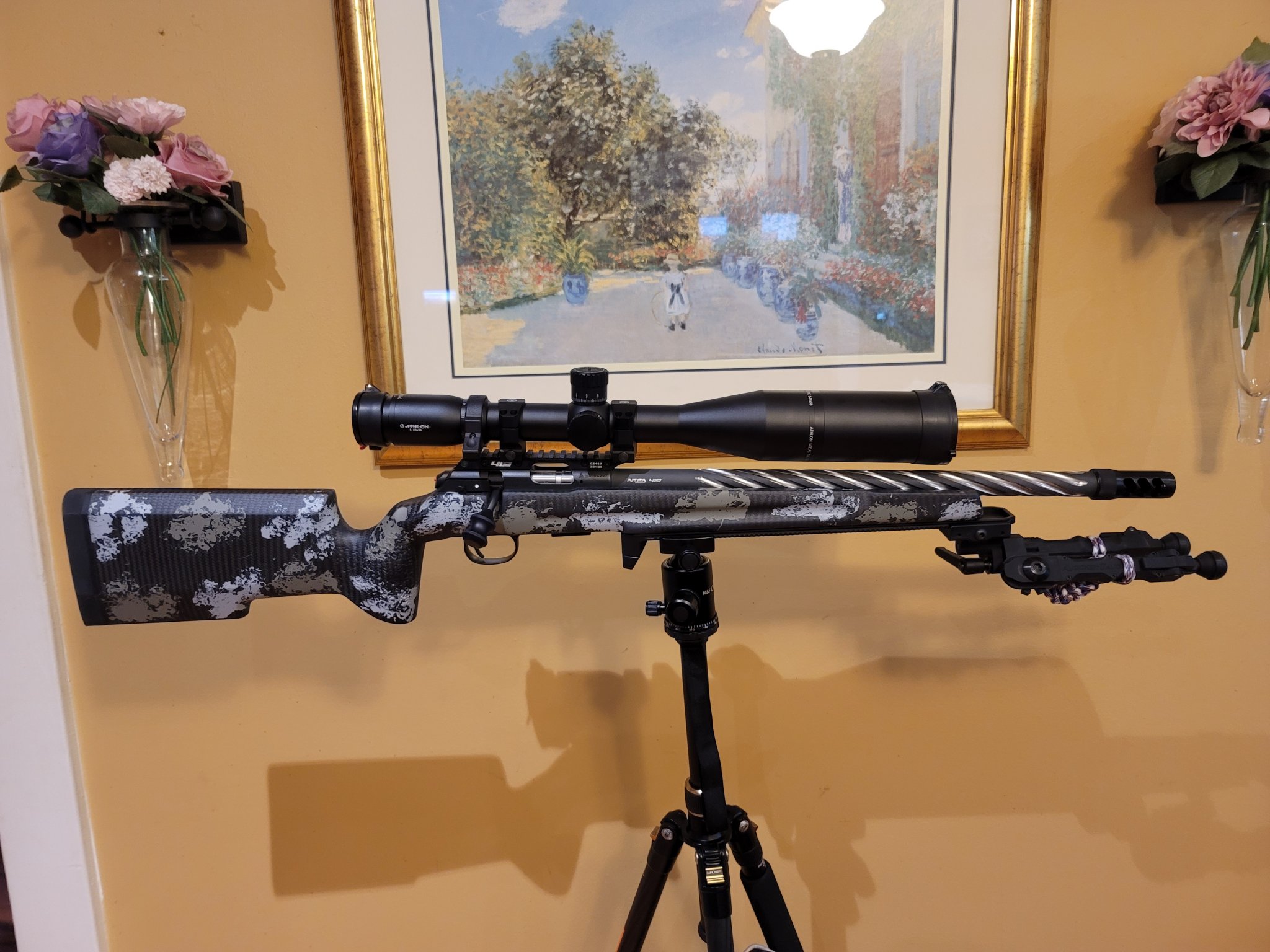

My new Area 419 modded CZ 457 with a Athlon Midas Tac 5-25x56 scope. Looking to have stockdoc mod the comb on it before taking it out for some competition.

View attachment 7428990
That's a thing of beauty. I've thought of going that route. How much to you think you save by buying it set up versus buying the bare precision trainer and doing it up yourself? I ask because I like to tinker on stuff myself and I read somewhere the other day that a guy's stock pro varmint barrel shoots as good as his Bartlein so if I got lucky and got a good shooter, I'd save a lot by not buying the barrel.


goodtill

Private
Minuteman
Dec 31, 2019
3
12
Tough to say. I had enough projects on my bench so I just ordered this one. It seems like to tuned the trigger on it before they sent it out. I bought is for NRL22 unlimited class as you can't get a Vudoo V22 anywhere.

You probably would save a few bucks ordering the parts and putting it together yourself. My CZ 457 Pro Varmint just came in and I am picking it up today. That one will be for NRL22 stock class with a Diamondback Tac 4-16x44 to meet the $1050.00 requirement.


BuckeyeSniper

Private
Minuteman
Aug 25, 2020
50
15
Tough to say. I had enough projects on my bench so I just ordered this one. It seems like to tuned the trigger on it before they sent it out. I bought is for NRL22 unlimited class as you can't get a Vudoo V22 anywhere.

You probably would save a few bucks ordering the parts and putting it together yourself. My CZ 457 Pro Varmint just came in and I am picking it up today. That one will be for NRL22 stock class with a Diamondback Tac 4-16x44 to meet the $1050.00 requirement.
I'm having a hard time choosing between the pro varmint and the precision trainer. Most matches around here aren't NRL22 sanctioned so the class is a mute point as of now. I assume you are having an adjustable comb added. Do you mind if I ask what that runs?


goodtill

Private
Minuteman
Dec 31, 2019
3
12
Fantastic set up, 10/10 on the cool factor.

How well does the spiral fluted barrel group?

Thanks for sharing.

Cheers,
I have not fired it yet. Probably wait until I get the stock modified, but who knows!

I'm having a hard time choosing between the pro varmint and the precision trainer. Most matches around here aren't NRL22 sanctioned so the class is a mute point as of now. I assume you are having an adjustable comb added. Do you mind if I ask what that runs?
Sent him a PM, waiting for him to reply with the details


Huskerhunter

Private
Belligerents
Minuteman
Jan 30, 2012
104
66
58
Lincoln, Nebraska 68512

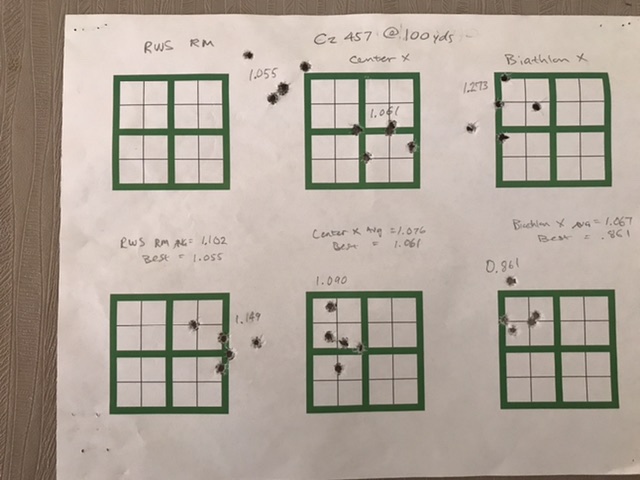

No, the rifle was shot by a person using a scope. The “proof”sheet shows the shooter’s personal number and also shows that the rifle was fired using a scope (remarks on the bottom of the page). Interesting to note that function tests are done on rifles that do not have sights. Could this explain some of the CZ barrel lottery people talk about?
View attachment 7427341

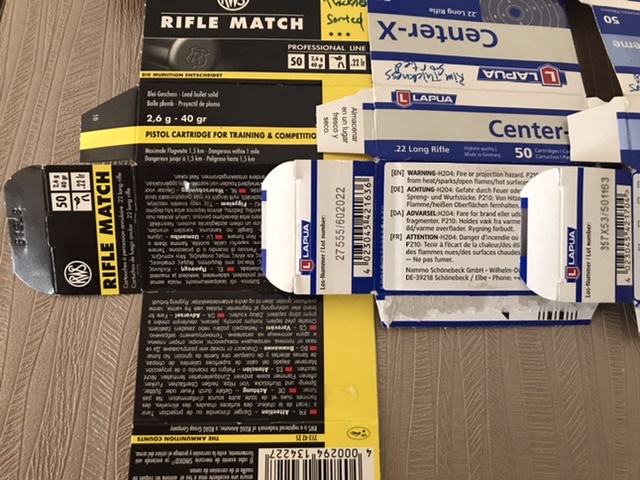

I wish it listed which RWS ammo to take more of the guesswork out of it.

Off to the range today to finish breaking in and the beginning of the side to side comparison with the Savage B22.

YMMV, happy shooting.
Dear Sir,

I apologize--probably should have used the "sarcasm" emoji--I was just (trying) to be humorous...I also have some CZ's that shoot beyond their capability. For example, this little skinny barreled 452 (although it has been bedded and has an aftermarket trigger)...and that's with cheap ammo. Center X is even more amazing.



Attachments

  • Like
Reactions: Mr. Wolf

BuckeyeSniper

Private
Minuteman
Aug 25, 2020
50
15
Dear Sir,

I apologize--probably should have used the "sarcasm" emoji--I was just (trying) to be humorous...I also have some CZ's that shoot beyond their capability. For example, this little skinny barreled 452 (although it has been bedded and has an aftermarket trigger)...and that's with cheap ammo. Center X is even more amazing.

View attachment 7429041View attachment 7429042
Did you have that barrel cut down in length. Looks just like my 452 American except mine has the 20" barrel. I've not bedded mine but I did the Yodave trigger swap to the tune of 13 oz. It shoots very well.

  • Like
Reactions: Appalachian

Mr. Wolf

Private
Minuteman
Feb 27, 2013
95
72
SE bayous
Dear Sir,

I apologize--probably should have used the "sarcasm" emoji--I was just (trying) to be humorous...I also have some CZ's that shoot beyond their capability. For example, this little skinny barreled 452 (although it has been bedded and has an aftermarket trigger)...and that's with cheap ammo. Center X is even more amazing.

View attachment 7429041View attachment 7429042
Huskerhunter-
Sir, no offense taken and sorry if the response was brusque as I was packing up to get out to the range.
Thank you for the follow up and that is a nice set up you have there and great shooting with the Aguilla.

My 1st NRL22 match coming up this weekend, I'll provide a range report afterwards.

YMMV, happy shooting.

  • Like
Reactions: Huskerhunter

Huskerhunter

Private
Belligerents
Minuteman
Jan 30, 2012
104
66
58
Lincoln, Nebraska 68512
Did you have that barrel cut down in length. Looks just like my 452 American except mine has the 20" barrel. I've not bedded mine but I did the Yodave trigger swap to the tune of 13 oz. It shoots very well.
Yes, trimmed to 16" by the previous owner. Timney trigger. All the work done by the previous owner. Bought it from a gent over on rimfirecentral. A real find! You always wonder when someone else has cut and threaded a barrel. In this case it was obviously well done. On another note, that group pictured was shot with the Sparrow can on.

  • Like
Reactions: BuckeyeSniper

Huskerhunter

Private
Belligerents
Minuteman
Jan 30, 2012
104
66
58
Lincoln, Nebraska 68512
Huskerhunter-
Sir, no offense taken and sorry if the response was brusque as I was packing up to get out to the range.
Thank you for the follow up and that is a nice set up you have there and great shooting with the Aguilla.

My 1st NRL22 match coming up this weekend, I'll provide a range report afterwards.

YMMV, happy shooting.
Good luck on the NRL match! I've been shooting ARA Rimfire Factory Class targets with the CZ452. It will consistently shoot 2000 + and occasionally even better (best has been 2325). It shoots almost as well as my 457 Varmint MTR.


Taqwin

Private
Minuteman
Sep 21, 2020
1
0
Hi , newbie questions here
I have new 457 varmint , no mods . But i am seeing a lot of after market barrels to improve accuracy for bench-rest shooting and competition.
So i got few questions,
Would you add a muzzle break ? What benefits would it give you?
I read that the normal 457 Varmint doesnt come with match grade chamber (i don't know what that means ) so If you replace the barrel with an IBI, MPA or Bartlein Barrel, would it come with match grade chamber ? What is a match grade chamber?
Thanks in advance


Huskerhunter

Private
Belligerents
Minuteman
Jan 30, 2012
104
66
58
Lincoln, Nebraska 68512
Hi , newbie questions here
I have new 457 varmint , no mods . But i am seeing a lot of after market barrels to improve accuracy for bench-rest shooting and competition.
So i got few questions,
Would you add a muzzle break ? What benefits would it give you?
I read that the normal 457 Varmint doesnt come with match grade chamber (i don't know what that means ) so If you replace the barrel with an IBI, MPA or Bartlein Barrel, would it come with match grade chamber ? What is a match grade chamber?
Thanks in advance
My first question is, how good does it shoot now?

No on muzzle break. Thread if you're running a suppressor, but I don't think a "break/brake" will do much for a Varmint weight gun, but I'll defer to others with more experience.

Match Chambers are a rabbit hole...lots of info out there, generally, it means a chamber cut to tighter tolerances and in some cases optimized for a certain specific brand/type of ammo. Others may be able to speak to specifics of various manufacturers and their options. I have 455 I bought used, it has a Lilja 2 groove barrel and match chamber cut to the specs of DJ Dillion. Previous owner won some pretty high level NRL matches with it. It is indeed very accurate.

A lot of this comes down to your ambitions, type of competition, budget (rifle, optics, AMMO), skill level, willingness to tinker, etc....

  • Like
Reactions: Taqwin

NES_tacticool

Private
Minuteman
Jul 17, 2020
9
3
Massachusetts
I found a strike eagle 5-25x56 at a good price. What throw lever are you using? Seems Vortex doesn't make one for this scope...at least that i could find.
Mine came with the throw lever- which was awesome. Also comes with a long sun shade. I’m assuming all of them come with the lever? Sorry I just saw this question- late response.


Mr. Wolf

Private
Minuteman
Feb 27, 2013
95
72
SE bayous

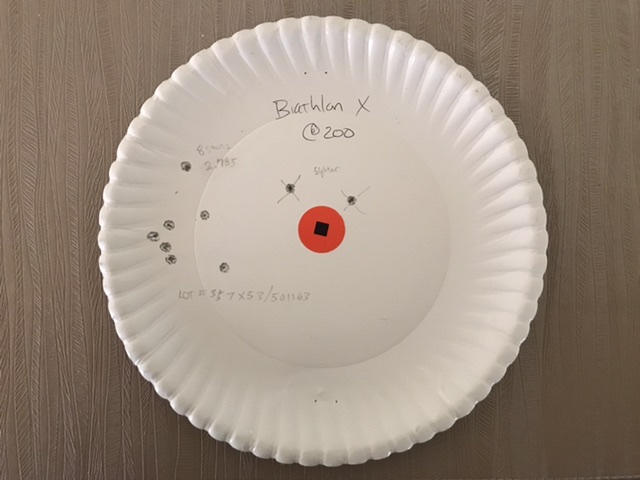

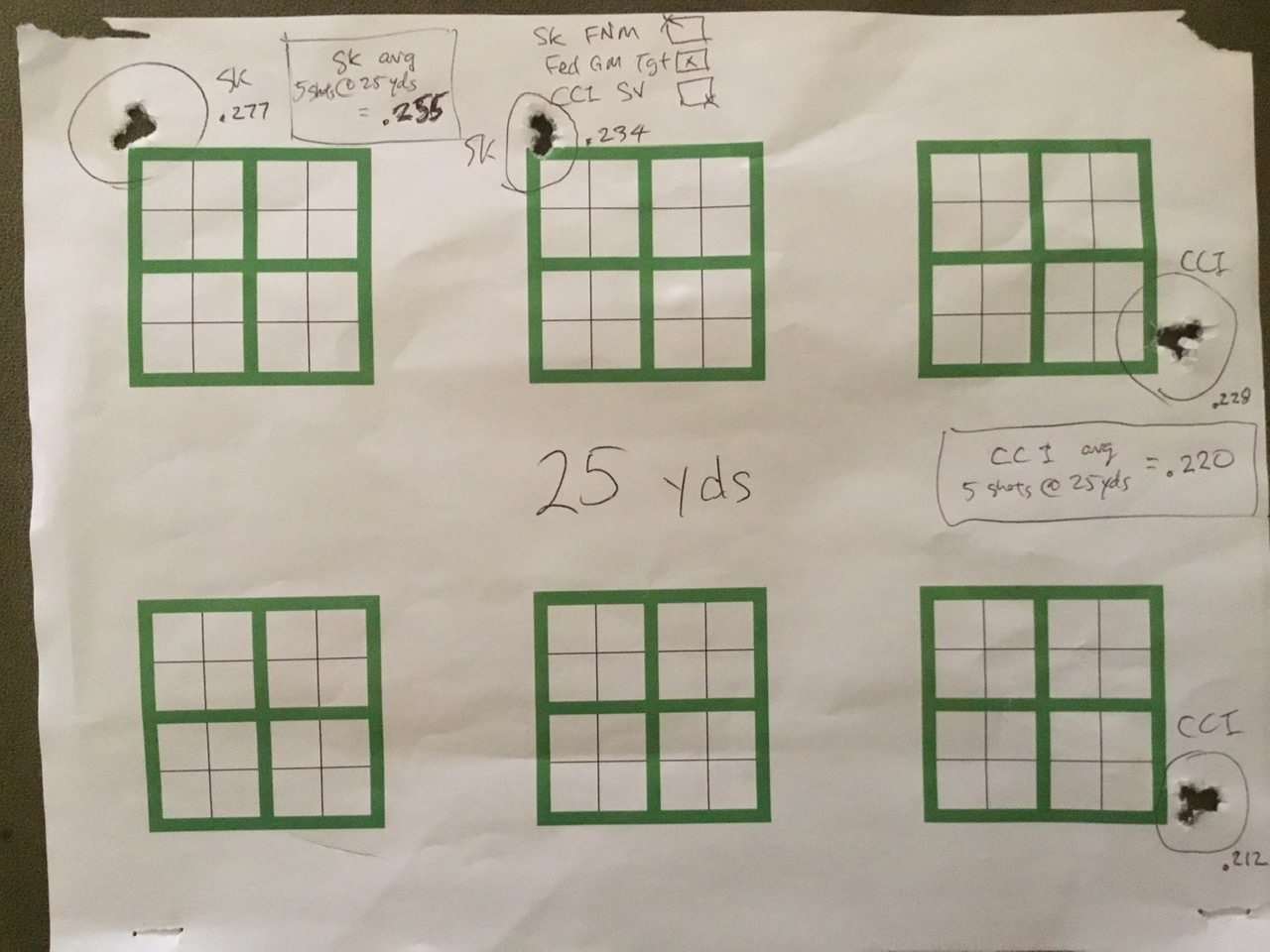

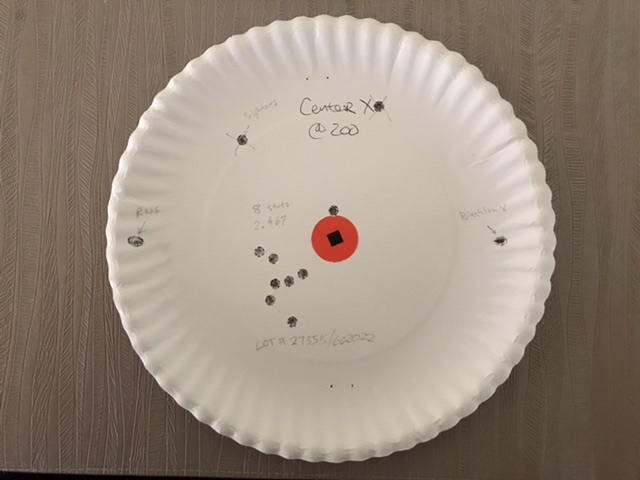

Quick range report for the CZ 457 Pro Varmint:
Zeroing in and breaking in the rifle at an indoor range today as the storms are hanging around the Gulf coast.
I had 1 hour to set up, shoot, clean up, and pack out, so these groups (5 shot groups, 30 groups, at 25 yards) were what I’d consider rapid fire. It was shot off a wobbly table with a wobbly homemade bean bag propped up vertically and no rear support. (I’m not going prone without a mat at an indoor range, I need all the brain cells I have.)

My observations:
1. Aguilla Rifle Match, CCI SV, and Fiocchi SV functioned 100%.
2. The CZ 457 cycled best when racked with a bit of authority. On a scale of 1-10, with 1 being the slowest/most gentle, I found a balance of function and minimally disturbing the sights at 2.5.
3. Aguilla rifle match shot a bit higher than others with an average group size of .427” and a best group size of .209”. The 2 groups in the .6” range showed obvious high flyers. This ammo will be used for 10/22 plinking.
4. CCI SV shot the worst out of the 3 tested today. First 10 shots were strung laterally. Might be seasoning, but the Aguilla and Fiocchi didn’t need seasoning. Average group size of .522”with a best group of .306". This lot of CCI SV shoots well in my Savage B22, but so-so in the CZ.
5. Fiocchi SV shot very consistent groups and seemed to have the lowest dispersion from the best group .320” to the worst group .466” (flyer but decided to keep for consistency). Average group size was the best of the bunch at .391"
6. Phone camera based measuring apps are definitely useful, but it takes quite a bit of time to record the data. Calipers are much faster and easier.
7. A note of thanks to KissOfDeath on using paper plates and document hole protector stickers. 100 coated plates cost ˜$3 and the stickers $2 for 500 at Walmart.

I seem to be shooting the Fiocchi best and now have rudimentary data with it and I feel that the rifle and I are getting used to each other. Ran out of time so not worth wasting good ammo if I don’t have dope at a match. More to come after my first NRL22 outing on Sunday.

Shooting is fun, YMMV, happy shooting.
C277EBDA-1E85-4E94-8F3C-EE6889F42C6D.jpegB91F7BCB-8A72-4AF3-A461-9CEEC252F24E.jpegF538EF3B-8022-4BE0-B827-69EF48CDC95D.jpeg

Last edited:

Merlin O

Private
Belligerents
Minuteman
Sep 2, 2006
231
108
68
Friendswood TX
Stockdoc? What is the cost of doing the comb modification?

Boyds has the Pro Varmint stock with the adjustable comb for 212.00 and in laminate for ~15.00 more. 227. for a Pepper black with the adjustable comb. For around 250.00 shipped you can get a range of colored laminates and have a nice stock.

Last edited:

BuckeyeSniper

Private
Minuteman
Aug 25, 2020
50
15
Quick range report for the CZ 457 Pro Varmint:
Zeroing in and breaking in the rifle at an indoor range today as the storms are hanging around the Gulf coast.
I had 1 hour to set up, shoot, clean up, and pack out, so these groups (5 shot groups, 30 groups, at 25 yards) were what I’d consider rapid fire. It was shot off a wobbly table with a wobbly homemade bean bag propped up vertically and no rear support. (I’m not going prone without a mat at an indoor range, I need all the brain cells I have.)

My observations:
1. Aguilla Rifle Match, CCI SV, and Fiocchi SV functioned 100%.
2. The CZ 457 cycled best when racked with a bit of authority. On a scale of 1-10, with 1 being the slowest/most gentle, I found a balance of function and minimally disturbing the sights at 2.5.
3. Aguilla rifle match shot a bit higher than others with an average group size of .427” and a best group size of .209”. The 2 groups in the .6” range showed obvious high flyers. This ammo will be used for 10/22 plinking.
4. CCI SV shot the worst out of the 3 tested today. First 10 shots were strung laterally. Might be seasoning, but the Aguilla and Fiocchi didn’t need seasoning. Average group size of .522”with a best group of .306". This lot of CCI SV shoots well in my Savage B22, but so-so in the CZ.
5. Fiocchi SV shot very consistent groups and seemed to have the lowest dispersion from the best group .320” to the worst group .466” (flyer but decided to keep for consistency). Average group size was the best of the bunch at .391"
6. Phone camera based measuring apps are definitely useful, but it takes quite a bit of time to record the data. Calipers are much faster and easier.
7. A note of thanks to KissOfDeath on using paper plates and document hole protector stickers. 100 coated plates cost ˜$3 and the stickers $2 for 500 at Walmart.

I seem to be shooting the Fiocchi best and now have rudimentary data with it and I feel that the rifle and I are getting used to each other. Ran out of time so not worth wasting good ammo if I don’t have dope at a match. More to come after my first NRL22 outing on Sunday.

Shooting is fun, YMMV, happy shooting.
View attachment 7431659View attachment 7431660View attachment 7431661

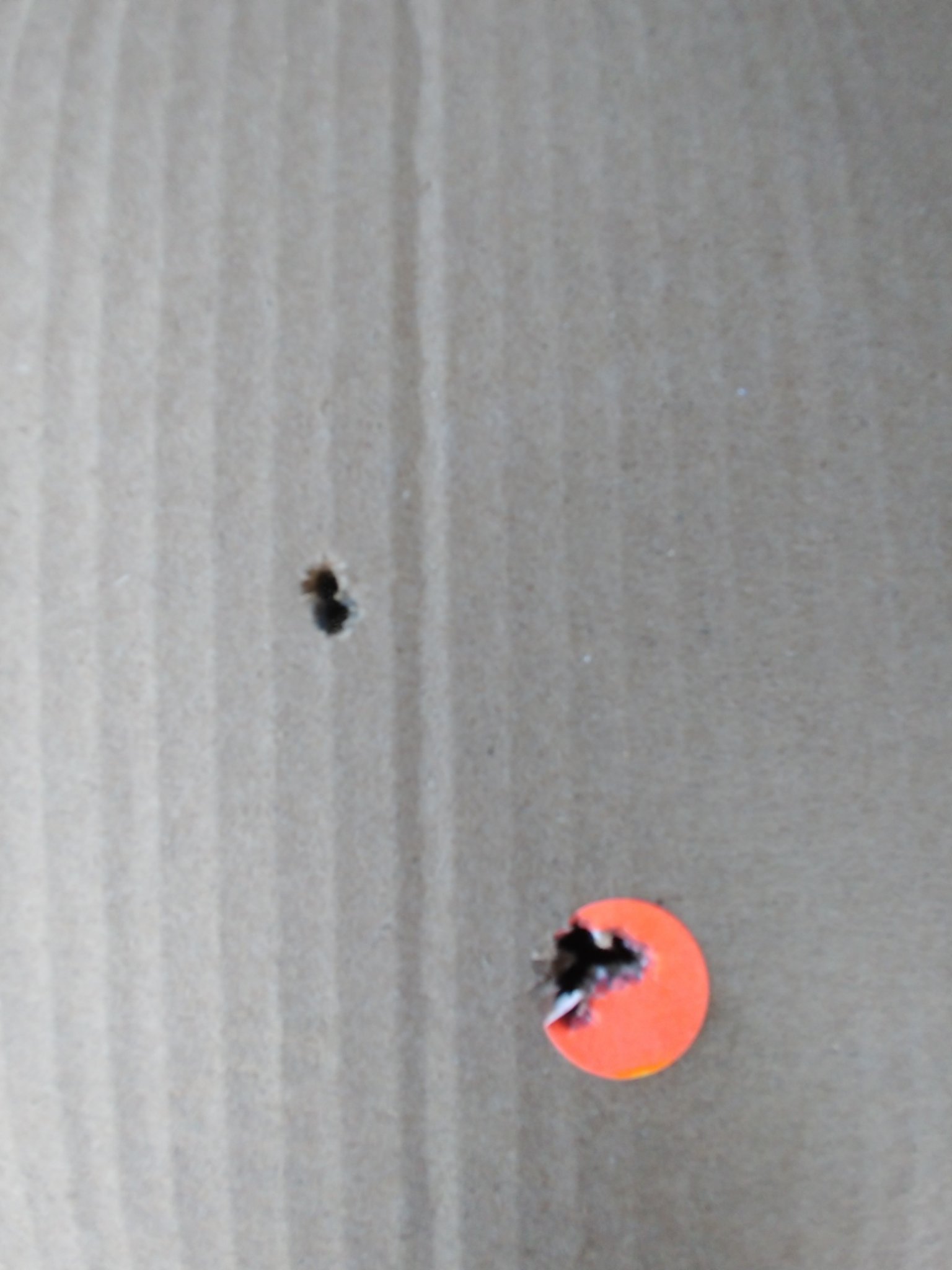

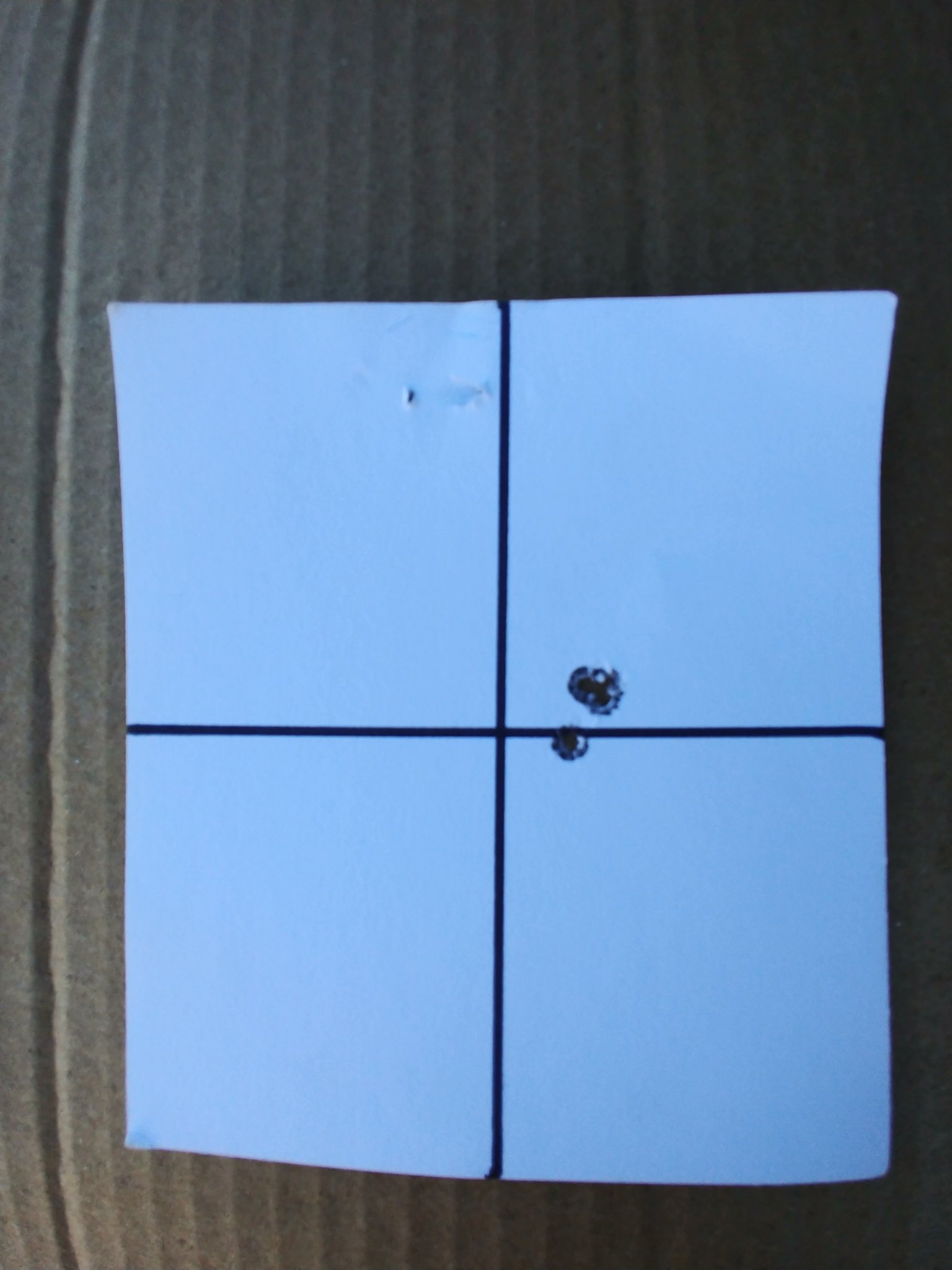

I find that target stickers don't give a very precise, repeatable spot to hold on. I use a target I made myself with a grid pattern with a darker center cross to line my crosshairs up on. Helps make sure you are holding on the same exact spot every time instead of eyeballing whether you are in the center of the circle. Even just drawing a cross with a sharpie works good. Try to get the lines level so you can level your scope when sighting in. Attached is the target I use. It has a 1/2" grid so you can tell how far off you are without going to the target to measure. The green is dark enough to see but light enough to show small bullet holes. These won't cost any more than your paper and ink. If your gun shoots as good as mine, you can shoot several groups at one grid without overlap by aiming at the corners and other intersections instead of just using the center.


Attachments

  • Like
Reactions: STex and Mr. Wolf

308pirate

Gunny Sergeant
Belligerents
Minuteman
  • Apr 25, 2017
    12,830
    16,703
    I find that target stickers don't give a very precise, repeatable spot to hold on. I use a target I made myself with a grid pattern with a darker center cross to line my crosshairs up on. Helps make sure you are holding on the same exact spot every time instead of eyeballing whether you are in the center of the circle. Even just drawing a cross with a sharpie works good. Try to get the lines level so you can level your scope when sighting in. Attached is the target I use. It has a 1/2" grid so you can tell how far off you are without going to the target to measure. The green is dark enough to see but light enough to show small bullet holes. These won't cost any more than your paper and ink. If your gun shoots as good as mine, you can shoot several groups at one grid without overlap by aiming at the corners and other intersections instead of just using the center.
    Great target thanks for posting it


    Mr. Wolf

    Private
    Minuteman
    Feb 27, 2013
    95
    72
    SE bayous
    I find that target stickers don't give a very precise, repeatable spot to hold on. I use a target I made myself with a grid pattern with a darker center cross to line my crosshairs up on. Helps make sure you are holding on the same exact spot every time instead of eyeballing whether you are in the center of the circle. Even just drawing a cross with a sharpie works good. Try to get the lines level so you can level your scope when sighting in. Attached is the target I use. It has a 1/2" grid so you can tell how far off you are without going to the target to measure. The green is dark enough to see but light enough to show small bullet holes. These won't cost any more than your paper and ink. If your gun shoots as good as mine, you can shoot several groups at one grid without overlap by aiming at the corners and other intersections instead of just using the center.
    Very much appreciated, I'll have to print it out and test it next time at the range.
    Today, I put another 100 rounds through it and got the dope with the Fiocchi SV 40 gr in order to have something to go off of at the NRL 22 shoot.
    Appreciate all the shared knowledge and help.
    Cheers and happy shooting.

    • Like
    Reactions: BuckeyeSniper

    smh77

    Living is dangerous-there's a 100% fatality rate*.
    Minuteman
    Apr 9, 2020
    33
    17
    46
    Elkhorn, WI
    $250 included the KMW Loggerhead kit and Atlas pic rail installed and shipping both ways.
    And more importantly reassurance that it would be done right.
    Do you have a link for him? Funny, I just bought the KMW Loggerhead and was going to have my local carpenter do the mods for me. I need someone to do the work for me-want to install the KMW, shorten the LOP to 13-13.25" and install an adjustable (vertically) butt pad on my CZ 527 Varmint MTR Stock (for my 6.5 Grendel). If it turns out good, I may do the same with my factory CZ 457 Varmint MTR stock too (in a Bravo chassis at the moment).

    Interesting: I'm from WI also...

    Sean

    Last edited:

    smh77

    Living is dangerous-there's a 100% fatality rate*.
    Minuteman
    Apr 9, 2020
    33
    17
    46
    Elkhorn, WI
    Stockdoc is @jducos

    I looked back, $250 didn’t include the trip there. But if I remember right that was like $20
    Thanks for the information. Can you post a photo of the rail, installed too? Also, are you using an Atlas Bipod? If so, what are you using to convert from the Anschutz rail to a Pic mount to mount the Atlas?

    Do you find yourself using the lateral offset of the KMW at all, or just the vertical part of it? I like that the mechanism has the option for both to perfectly align your eye, as needed.


    Mr. Zick

    Quando Omni Flunkus Moritati
    Belligerents
    Minuteman
  • Feb 20, 2017
    1,154
    1,934
    32
    Wisconsin
    Yeah, BT47-LW17 (PSR tall). The rail is just an Atlas pic rail. If I did it over I would go Arca.

    Haven’t used the lateral offset. May find myself trying it shooting indoor this winter.

    Showings at my house all weekend. No pics until Monday if you still want them at hat point.

    • Like
    Reactions: smh77

    Mr. Wolf

    Private
    Minuteman
    Feb 27, 2013
    95
    72
    SE bayous
    NRL 22 report:

    I participated in my first rifle match at a local NRL 22. This writeup is not about how I performed at the match, rather it is about how the CZ 457 functioned during the event.
    My CZ 457 is the Pro Varmint model with the following: Triggers by Scar 25 MOA rail, Yo Dave trigger kit, Harris bipod, Athlon Argos Gen 2 6-24x50, Amazon scope level, Weaver medium rings, Beartooth comb raising kit.

    1. During pre-match practice at home, setting up the scope eye relief was challenging due to the magnification adjust ring binding on the rail when attempting to mount it on a set of low scope rings. Recommend using the medium rings and setting it up for a functional and comfortable eye relief.
    2. The rifle was 100% during match conditions. No FTF, FTE, nothing at all related to the equipment. Zero confirmed at 50 yard, 5 shots into one ragged hole.
    3. The trigger breaks cleanly at 1 lbs 3 oz. While it was very good for shooting groups, I may need to increase the pull weight for practical shooting.
    4. The rifle is thick, short, and stout and balances nicely at the leading edge of the magazine well.
    5. In my squad of 6, there were 4 CZ 457s. The match winner won with score around 850 using a base class CZ 457. He beat out RimX and a couple of Voodoos.

    My take aways:
    1. It's always best to improve the nut behind the trigger for best results.
    2. Test the equipment and ammo thoroughly before competitions.
    3. The rifle's accuracy, function, and handling is very competitive for NRL22 base class (and beyond).

    YMMV, happy shooting.


    Kisssofdeath

    House of Yates
    Belligerents
    Minuteman
  • May 9, 2018
    1,722
    1,147
    South Carolina
    I agree, shooter is the most important part. The most accurate gun in the world is only as accurate as the person pulling the trigger. Just to note for anyone else who reads this, my 457 has never had a malfunction either.

    BTW, did you cuss much when installing the Beartooth cheek riser?

    • Like
    Reactions: BuckeyeSniper

    Mr. Wolf

    Private
    Minuteman
    Feb 27, 2013
    95
    72
    SE bayous
    I agree, shooter is the most important part. The most accurate gun in the world is only as accurate as the person pulling the trigger. Just to note for anyone else who reads this, my 457 has never had a malfunction either.

    BTW, did you cuss much when installing the Beartooth cheek riser?
    KOD,
    Yes, much sweating and cursing when installing the Beartooth cheek riser.
    My trick was to put on the sleeve without the foam insert, then peel the sleeve back inside out from the muzzle end, slip about 1" of the foam insert under the now doubled over sleeve, then un-invert the sleeve.

    I now understand the term 5 lbs sausage in a 2 pound casing.
    YMMA, happy shooting.


    Kisssofdeath

    House of Yates
    Belligerents
    Minuteman
  • May 9, 2018
    1,722
    1,147
    South Carolina
    LMAO, I'm with ya, that's why I asked. The Beartooth works good and stays in place but what a PITA to get on. I can safely say that mine is a one and done deal for me.

    • Like
    Reactions: Mr. Wolf

    BuckeyeSniper

    Private
    Minuteman
    Aug 25, 2020
    50
    15
    LMAO, I'm with ya, that's why I asked. The Beartooth works good and stays in place but what a PITA to get on. I can safely say that mine is a one and done deal for me.

    I had an ammo carrier on the buttstock of a 12 ga. slug gun that was similar to that beartooth cheek riser. I think they are definetely intended to be installed from the muzzle end before you mount a scope. That's the only thing that makes sense to me as hard as they are to install. Of course my gun already had a scope and was sighted in and I didn't want to remove it.


    Kisssofdeath

    House of Yates
    Belligerents
    Minuteman
  • May 9, 2018
    1,722
    1,147
    South Carolina
    The problem really isn't getting the neoprene part on, it's getting the foam pad underneath afterwards. Probably sounds easy for someone who hasn't done it but people need to remember the foam pad has to be in the right place when inserted and the bottom of the neoprene part should align with the sling stud.

    But you are right, installing over the trigger guard is the easiest way.

    • Like
    Reactions: BuckeyeSniper

    Mr. Wolf

    Private
    Minuteman
    Feb 27, 2013
    95
    72
    SE bayous
    I had an ammo carrier on the buttstock of a 12 ga. slug gun that was similar to that beartooth cheek riser. I think they are definetely intended to be installed from the muzzle end before you mount a scope. That's the only thing that makes sense to me as hard as they are to install. Of course my gun already had a scope and was sighted in and I didn't want to remove it.
    BuckeyeSniper-
    Doh! (forehead slap) I should have thought of that!
    With the low rings, the comb height was perfect but the eye box was not working. With the medium rings eye box was good but, I needed to raise the comb a bit.

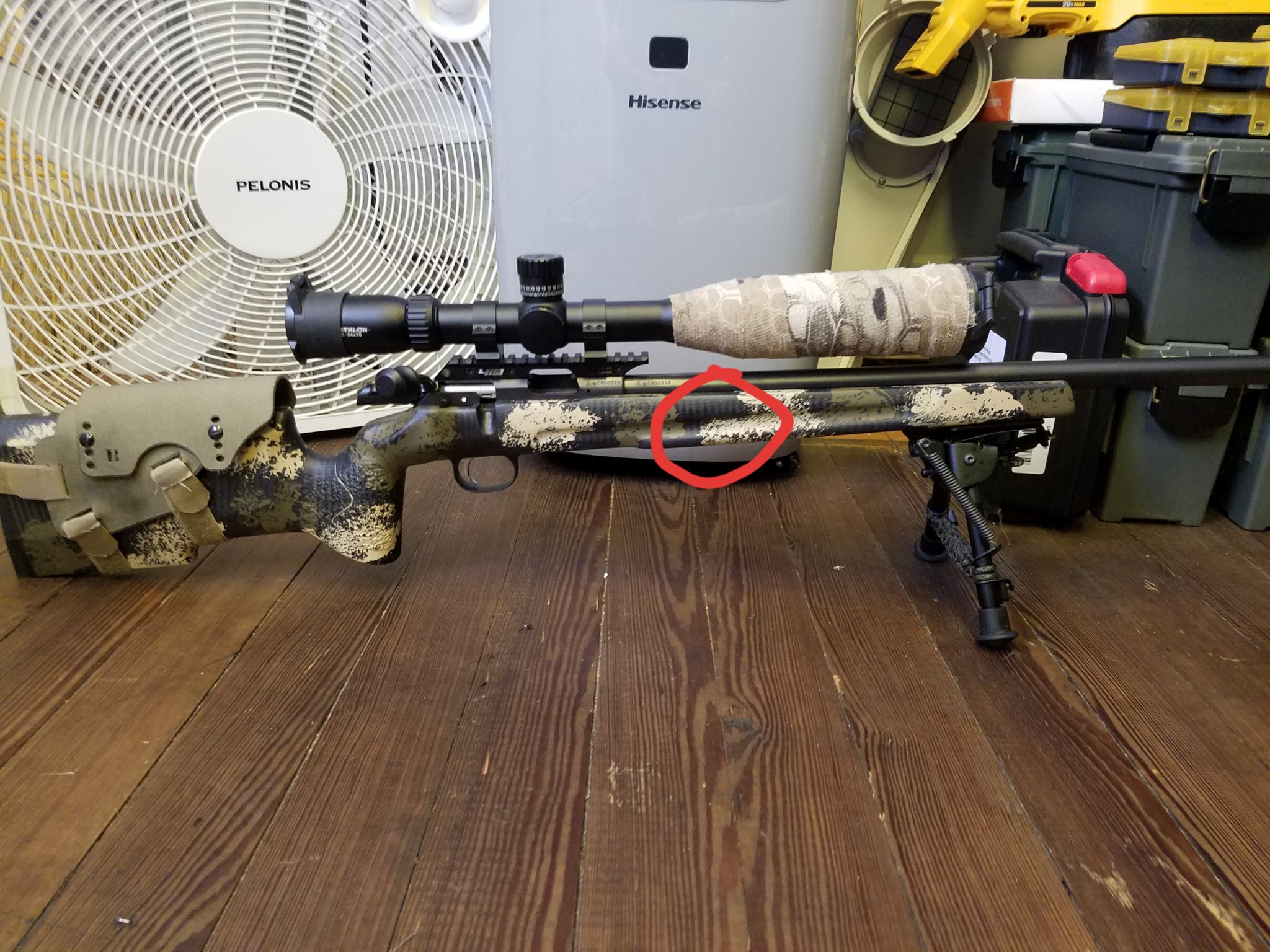

    Nevertheless, getting the sleeve over the Pro Varmint stock's raised comb and relatively wide paddle like dimentions had my cardio going.

    Not certain about your shotgun, but for most bolt action guns, wouldn't it make sense to remove the action and trigger before installing?
    Cheers, happy shooting.


    BuckeyeSniper

    Private
    Minuteman
    Aug 25, 2020
    50
    15
    BuckeyeSniper-
    Doh! (forehead slap) I should have thought of that!
    Nevertheless, getting the sleeve over the slightly raised comb and relatively wide paddle like dimentions of the Pro Varmint stock had my cardio going.

    Not certain about your shotgun, but for most bolt action guns, wouldn't it make sense to remove the action and trigger before installing?
    Cheers, happy shooting.

    I'm sure it would help. Plus you wouldn't have to remove your scope. Cause you never know how much rise you need until your scope is mounted anyway. With my shotgun, I could have taken the buttstock off and made it a lot simpler. Of course, it didn't occur to me to do that until I sat back to admire my work after a lot of frustration and cursing.


    Panther

    Private
    Belligerents
    Minuteman
    Jun 21, 2009
    13
    7
    65
    I got a 457 AT-ONE 22LR a few weeks ago for a new match series starting at our local club (www.PrecisionRimfire.net) and really like the gun. It's my first CZ rifle. I tried it with several different types of match ammo, found that it had the potential to shoot well, and then pillar-and-glass bedded it. I then added a strip of rubber under a section of the otherwise free-floating barrel to dampen some of the barrel movement, and adjusted the position until it seemed optimal, like you would with a barrel tuner. Here are the results with Eley Match at 50 yards, Vortex Diamondback scope.

    EleyMatch_9_22_2020_CZ - w_notes.jpg


    Mr. Wolf

    Private
    Minuteman
    Feb 27, 2013
    95
    72
    SE bayous
    I got a 457 AT-ONE 22LR a few weeks ago for a new match series starting at our local club (www.PrecisionRimfire.net) and really like the gun. It's my first CZ rifle. I tried it with several different types of match ammo, found that it had the potential to shoot well, and then pillar-and-glass bedded it. I then added a strip of rubber under a section of the otherwise free-floating barrel to dampen some of the barrel movement, and adjusted the position until it seemed optimal, like you would with a barrel tuner. Here are the results with Eley Match at 50 yards, Vortex Diamondback scope.

    View attachment 7437196
    Very nice shooting and amazing groups!

    Your use of the rubber strips is new to me in barrel tuning, but it could be a good excuse to spend more time testing at the range.

    How did the rifle shoot before the stock was glass and pillar bedded? Do you think the same tuning could be achieved with the rubber strip minus the bedding?

    Thank you.


    Panther

    Private
    Belligerents
    Minuteman
    Jun 21, 2009
    13
    7
    65
    How did the rifle shoot before the stock was glass and pillar bedded? Do you think the same tuning could be achieved with the rubber strip minus the bedding?

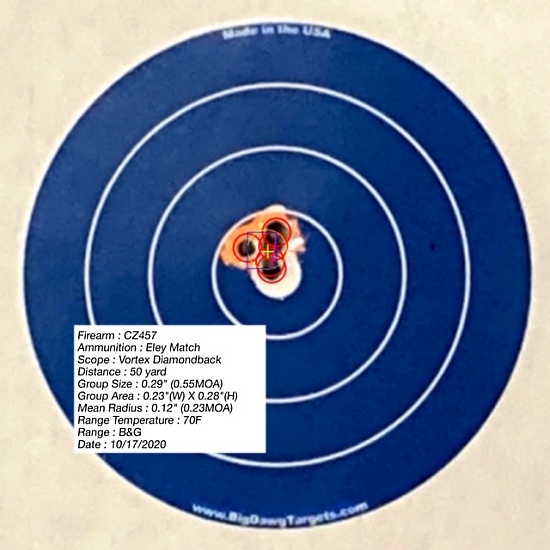

    Here is the rifle with Eley Match before bedding:

    After bedding, the horizontal grouping was about the same, but got more vertical stringing, so I really don't think I got much -- if any -- benefit from the bedding. Vertical stringing is typically caused by the bullets not being released at the peak (anti-node) during normal ballistic barrel whip, so any variation in velocity gets magnified by the time it reaches the target.


    I'm not against an Ezell PDT or Harrell barrel tuner, but I wanted to do something less obvious to have the same effect on the physics of barrel vibration. Here's the simple solution that made such a consistency difference for me :)



    Mr. Wolf

    Private
    Minuteman
    Feb 27, 2013
    95
    72
    SE bayous
    Panther-
    Thanks for answering my questions. I just might have to give it a go with the "rubber strip barrel tuning."
    Also, it was the first I'd heard of the vertical stringing relationship velocity and anti-node. In my noobness, I always equated vertical stringing to breathing control, but I suppose there are other factors as you've pointed out.
    Happy shooting.


    Tiger_Shilone

    Private
    Belligerents
    Minuteman
    Jan 2, 2018
    304
    218
    Breathing control and vertical stringing go hand in hand, fundamentals still count. Panther has made very good use of barrel harmonics for his set up. Very nice groups. It is however a wood stock, a laminated stock, but still wood and is potentially susceptible to humidity and temp changes that may change the pressure exerted on the barrel at this point Due to wood warp. Hopefully those changes are small and he keeps notes for any changes.

    This is not a new concept as ruger and magpul have pressure point areas built into their stock systems in the form of a barrel band and plastic insert respectively in this area of the barrel. You will have to experiment with your set up to see what performs best, a free floater, pressure band 1” out or pressure band further out in the stock. This is a very frustrating part of rimfire shooting as there are so many variables in play. Other materials used for pressure bands include cut up bicycle tires and inner tubes, aluminum tape strips, bedding material or I’ve even seen a large diameter machine screw used for a variable adjustment.

    • Like
    Reactions: Mr. Wolf

    Panther

    Private
    Belligerents
    Minuteman
    Jun 21, 2009
    13
    7
    65
    Panther has made very good use of barrel harmonics for his set up. Very nice groups. It is however a wood stock, a laminated stock, but still wood and is potentially susceptible to humidity and temp changes that may change the pressure exerted on the barrel at this point
    That's a good point. When I said I "didn't get much, if any, benefit from the bedding", that of course relates to immediate benefit as far as group size. The bedding does gives me the intended long-term benefit of stability where the action contacts the stock, without any effect from possible wood warp or swelling. As you mention, that is potentially a future issue at the point of barrel contact with the dampening strip. If I do get a harmonics shift over time, I would have to move the strip to re-tune, or remove it and go back to a fully free-floating barrel and do something else to get back to the optimal harmonic, such as a barrel tuner.

    By the way, I do have an Ezell PDT tuner here with a 1/2-28 adapter so I can thread it right onto the end of the barrel, but since the dampening strip worked so well for now, I haven't tried it on the CZ.

    • Like
    Reactions: Mr. Wolf
