Looking for Excel help in plotting avg velocity w/ error bars.

[Wheres-Waldo]

Preface: Is this even possible in Excel online?

Looking for a premade spreadsheet or help formatting a spreadsheet to plot avg velocity on y-axis vs. charge weight on x-axis and add in error bars representing either stdev or extreme spread (figured out how to format that).

I'm not sure if its possible to incorporate error bars on the online version of Excel, as highlighting the graph does not give the option to incorporate error bars.

Thanks in advance!



[_Windrider_]

Try this from the 65 guys

http://www.65guys.com/wp-content/uploads/2018/06/Load-Analysis-Model-V2.xlsm



[_Windrider_]

This video explains it



[Wheres-Waldo]

Exactly what I was looking for. Thank you.



[buggz]

Why did the 6.5 guys site stop?
Looks like it was going good, then?



[_Windrider_]

Why did the 6.5 guys site stop?
Looks like it was going good, then?

Basically just life. There was an update a while back in the FB page. Nothing bad. Just life gets in the way sometimes.



[buggz]

Understand that, thanks.



[memilanuk]

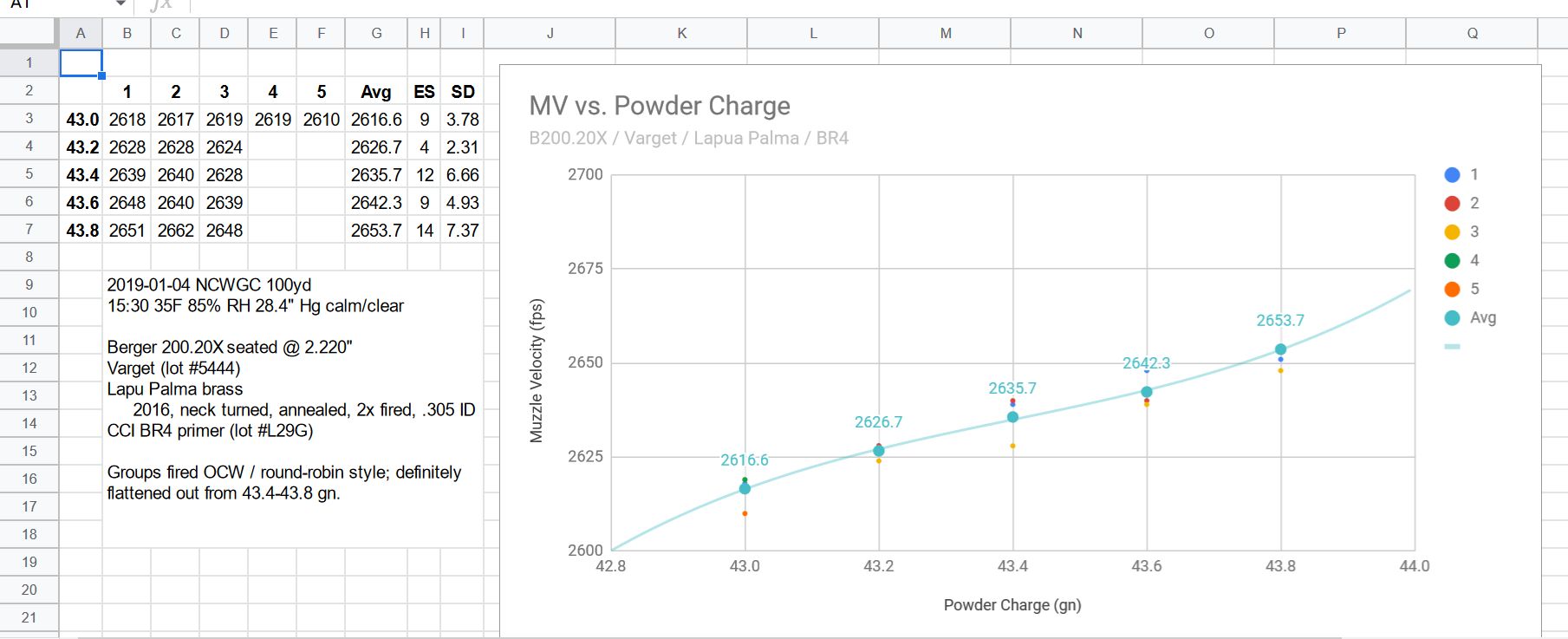

I went thru some similar pains trying to create error bars in Google Sheets (spoiler alert: you can't, unless they've added that feature recently / since I post this). What I ended up doing was kind of cheating, by plotting each velocity for each charge weight as a 'point', but only plotting a *line* for the average MV.

...which actually worked out pretty slick, actually. Not quite the same as error bars, but it gives a good-enough simulation of the same kind of information.

Or nowadays you can just use ChronoPlotter and it'll do it all up for you nice and neat
