M40A1 or M40A3 or M40A5

deltawiskey

DILIGAF
Belligerents
Minuteman
Feb 13, 2017
690
294
Wisconsin

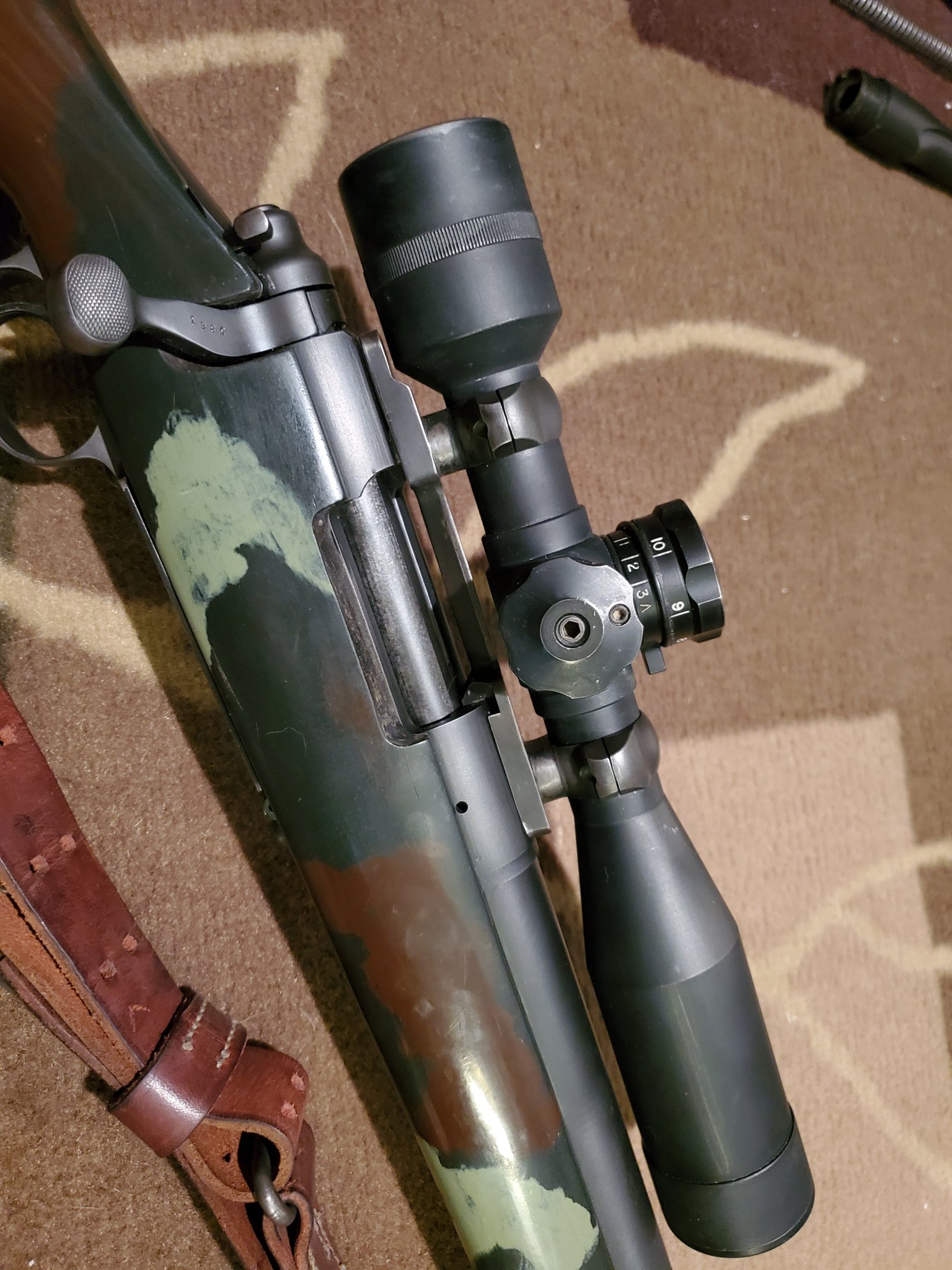

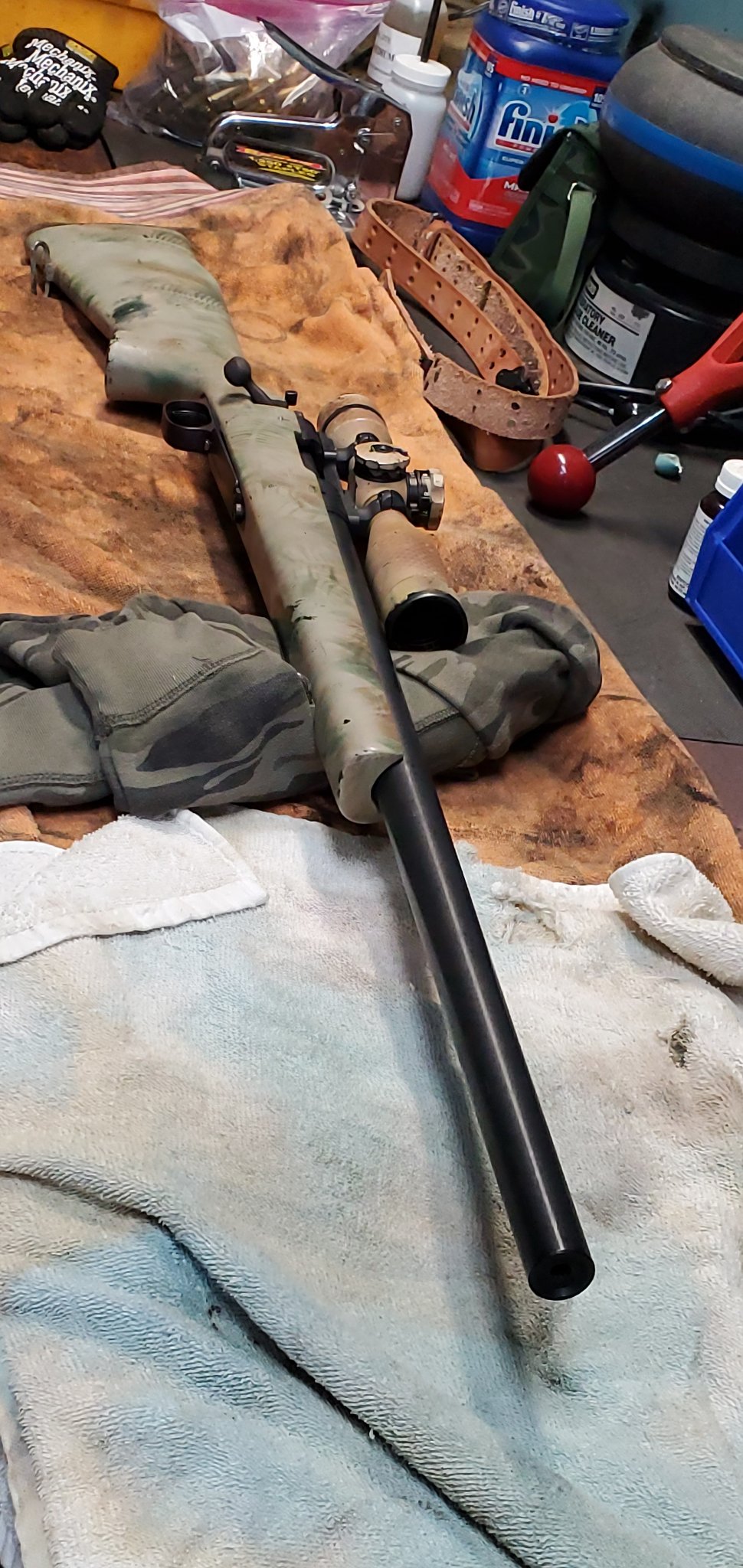

I will build one later on
Its not perfect, but this has been tempting me for months... you could throw it in that stock and keep me from thinking I need to buy it : )
DW

  • Like
Reactions: pmclaine

Charlie112

Private
Belligerents
Minuteman
Feb 28, 2017
185
126
I hope this is the correct place to ask this question concerning M40A1 scope mounting issue.
I received my M40A1 from Raven yesterday, very happy about that!!!
I am mounting a Weaver T-10 in a TWOMAN ATTACK base and rings, or attempting to. The front bell is touching the barrel, looks like I will have to shim a little.
Where would be the correct place to add a shim, under the front of the base, or both front and rear bases ??? Cut my shim stock and lay out the screw patterns and install??[ I am thinking shim both front and rear base]
I saw a picture of a T-10 installed on another M40A1,it looked nice, What am I missing??
Thanks, Charlie 112


rth1800

Two Star General
Belligerents
Minuteman
  • Sep 16, 2009
    7,669
    3,512
    Shimming is not really a precise operation even with shim stock. If you shim I would suggest you shim both. Also consider other options first.


    pmclaine

    Gunny Sergeant
    Belligerents
    Minuteman
  • Nov 6, 2011
    19,984
    28,662
    52
    MA
    The T-10 when mounted on the M40A1 was mounted in a Redfield base and I believe low rings. Its likely a higher ring set up than the Unertl clone. The T-10 was prior to the exostence of the Unertl MST.

    When I ran a T-10 on my M40 it was mounted in the Badger M40 clone set up they sell.

    Buy a Redfield junior base with low rings and you will be fine.

    Actually due to the extra girth of the A1 barrel over the M40 varmint barrel you may need medium rings.

    Anyway the cost will not be crushing. Ebay should have options for you.

    If you want to try to be totally clone correct with 66 marked rings and period base you may be hunting.

    • Like
    Reactions: deltawiskey

    pmclaine

    Gunny Sergeant
    Belligerents
    Minuteman
  • Nov 6, 2011
    19,984
    28,662
    52
    MA
    PS.......That rifle from Raven will be a hammer and the T10 is a fantastic scope.


    pmclaine

    Gunny Sergeant
    Belligerents
    Minuteman
  • Nov 6, 2011
    19,984
    28,662
    52
    MA
    A1!!!!!!!!!!!!!!!!!!!!

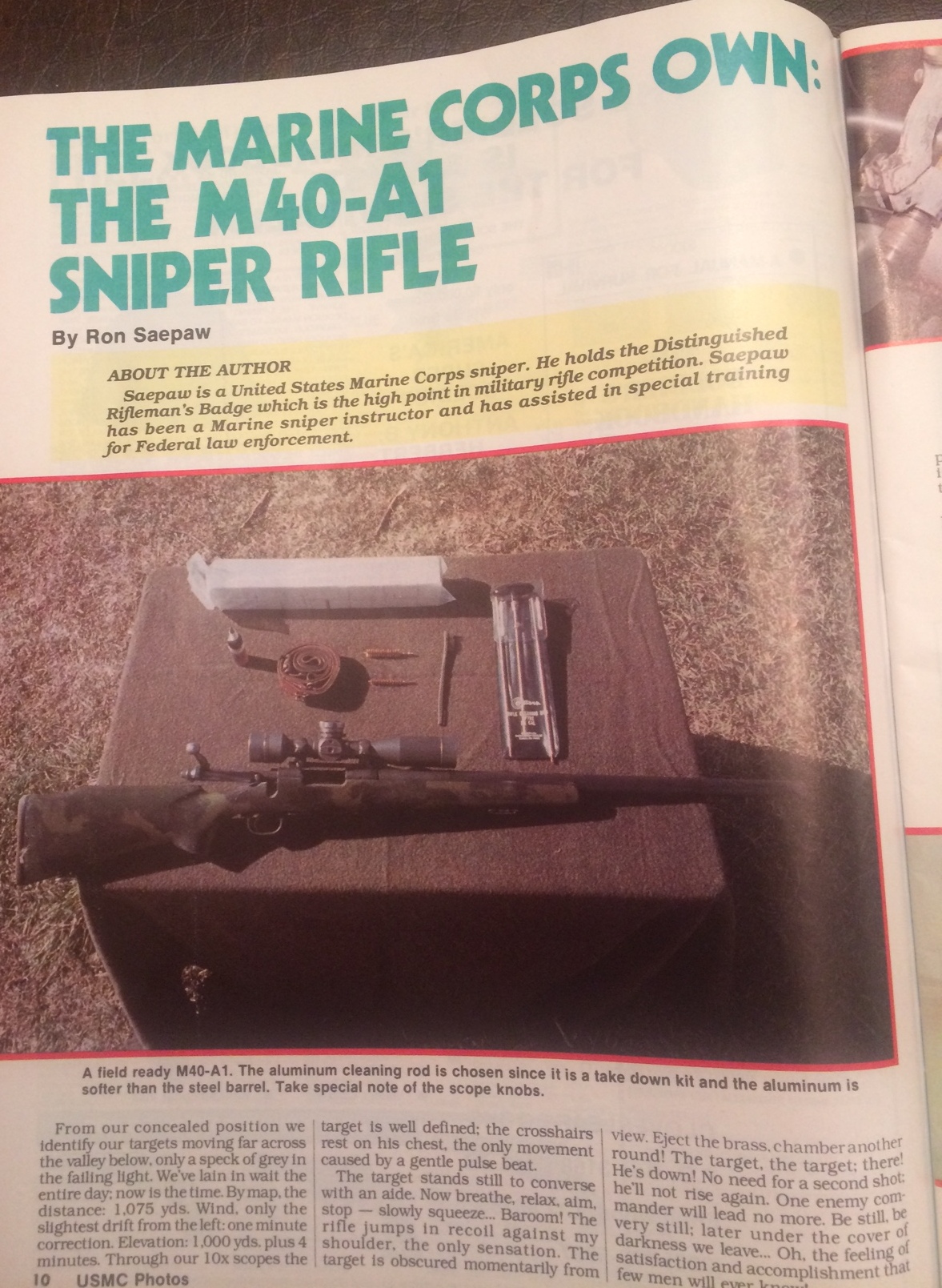

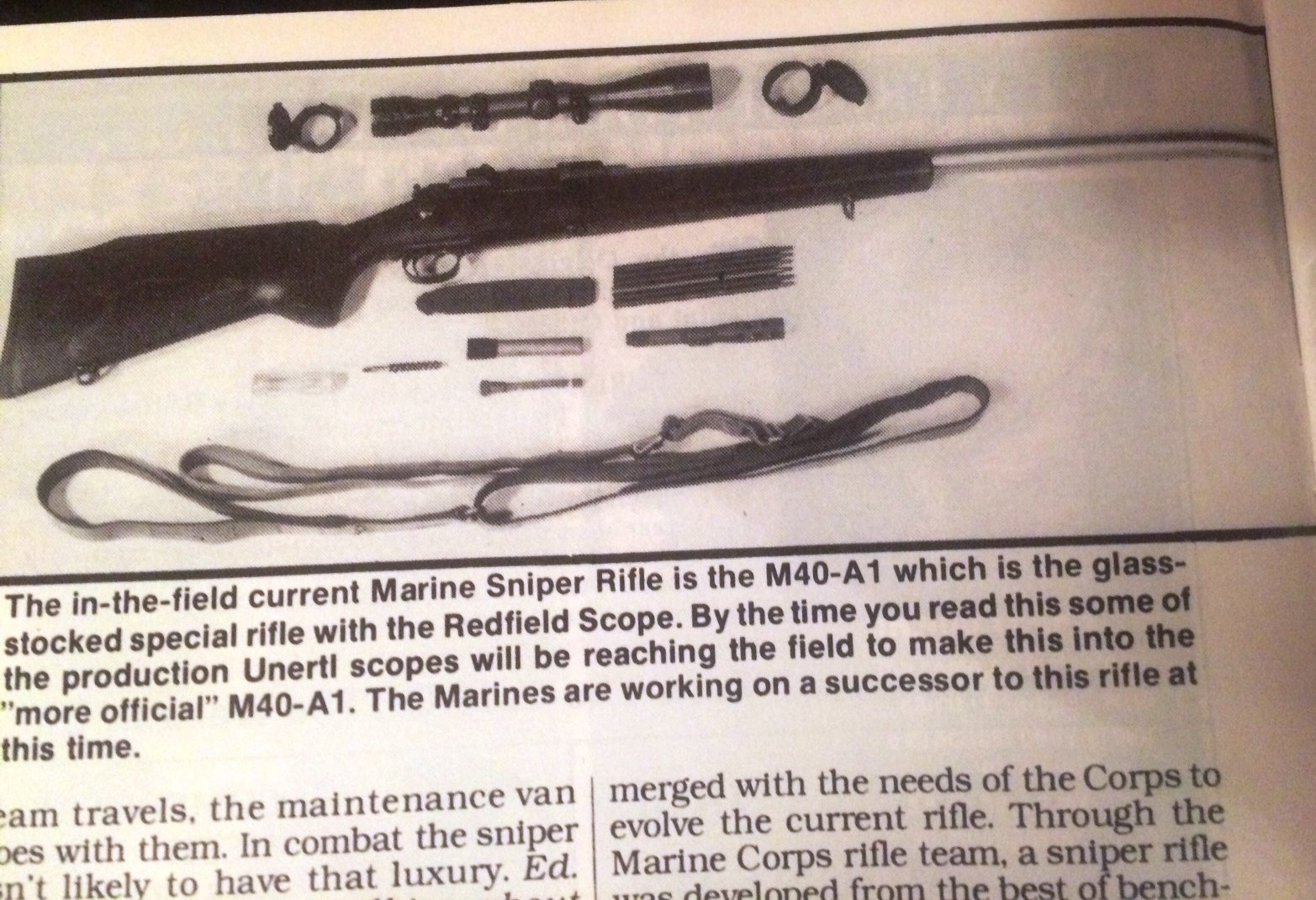

    Yep Second Recon had a half dozen or so A1s mounted with the T-10. Legit scope.

    They didnt use the Unertl base and rings though.

    Likely they recycled bases/rings from the original 40 series.

    They also welded them up real funky.

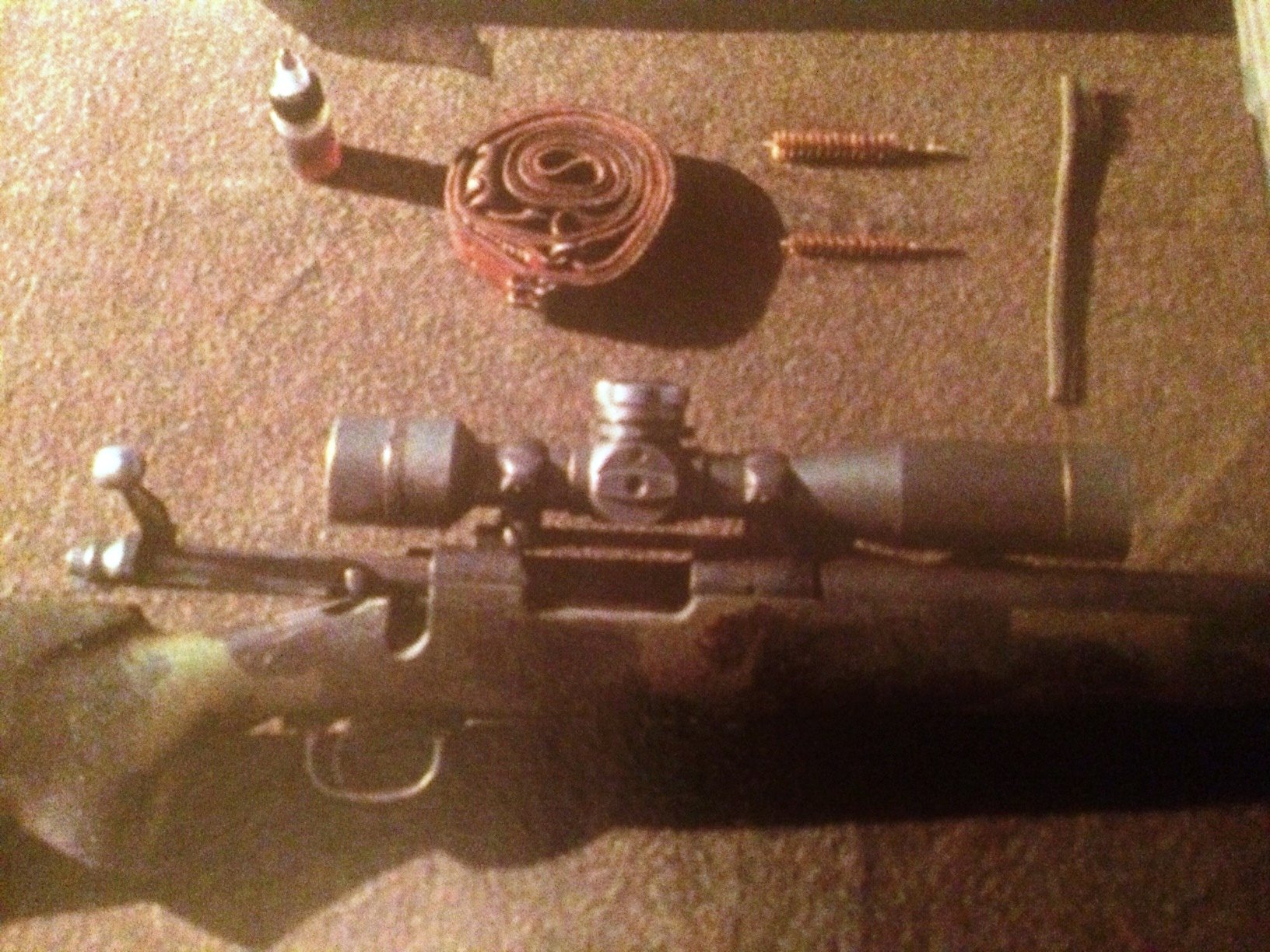

    Note not Unertl base rings.




    Charlie112

    Private
    Belligerents
    Minuteman
    Feb 28, 2017
    185
    126
    Yep Second Recon had a half dozen or so A1s mounted with the T-10. Legit scope.

    They didnt use the Unertl base and rings though.

    Likely they recycled bases/rings from the original 40 series.

    They also welded them up real funky.

    Note not Unertl base rings.

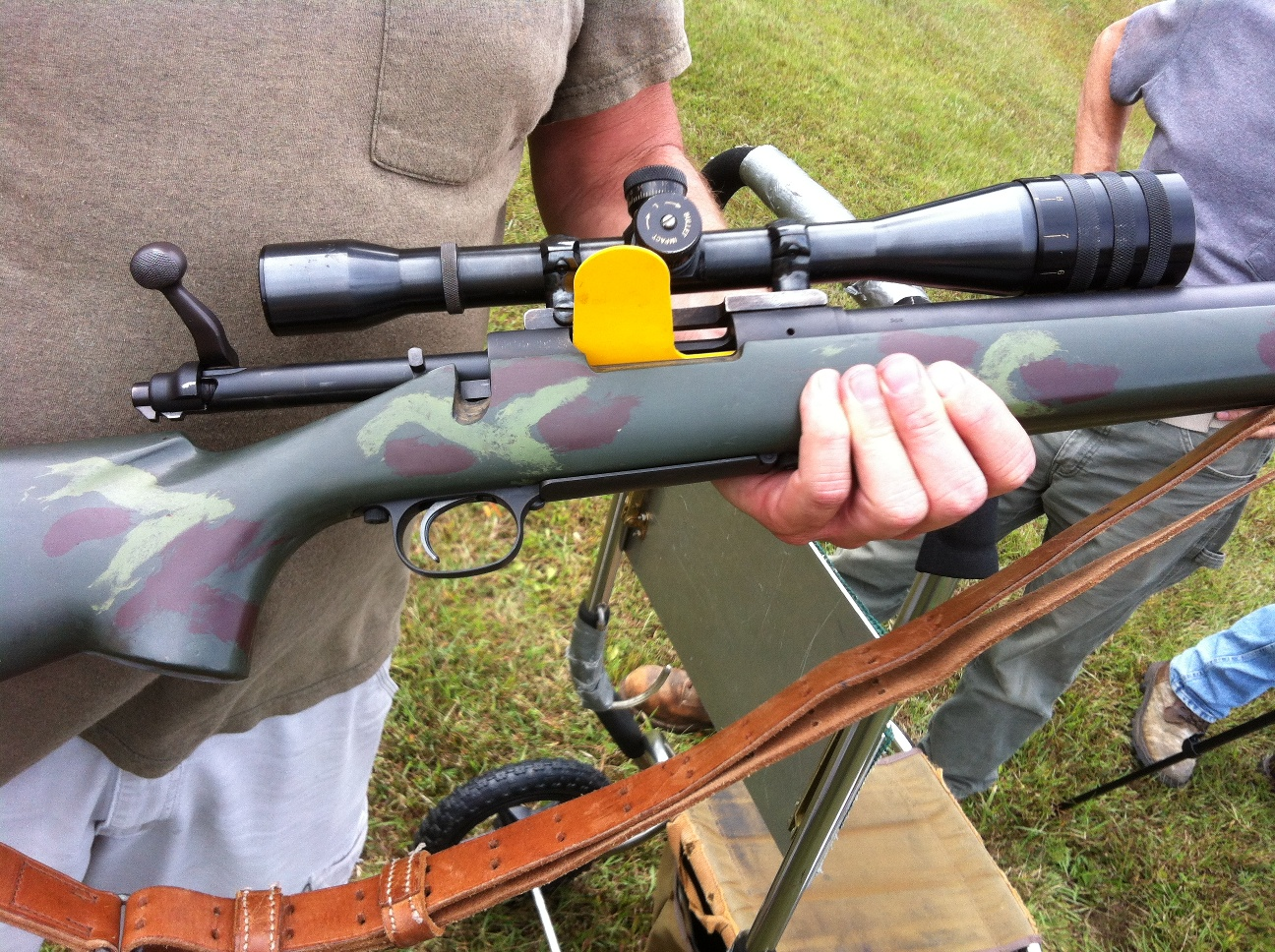

    View attachment 7344097

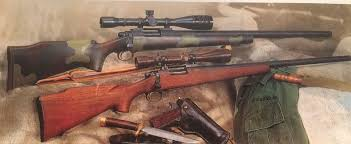

    View attachment 7344098
    Thanks for the reply!! I have the Redfield base and rings, Raven just welded and cut the front access slot , I will try that set up, I held them up to the other set on the rifle, looked close, might have to get the med rings. I might have some Mediums now that my brain is working, will follow with some pics when I get it figured out.....

    • Like
    Reactions: pmclaine

    Charlie112

    Private
    Belligerents
    Minuteman
    Feb 28, 2017
    185
    126
    Well,

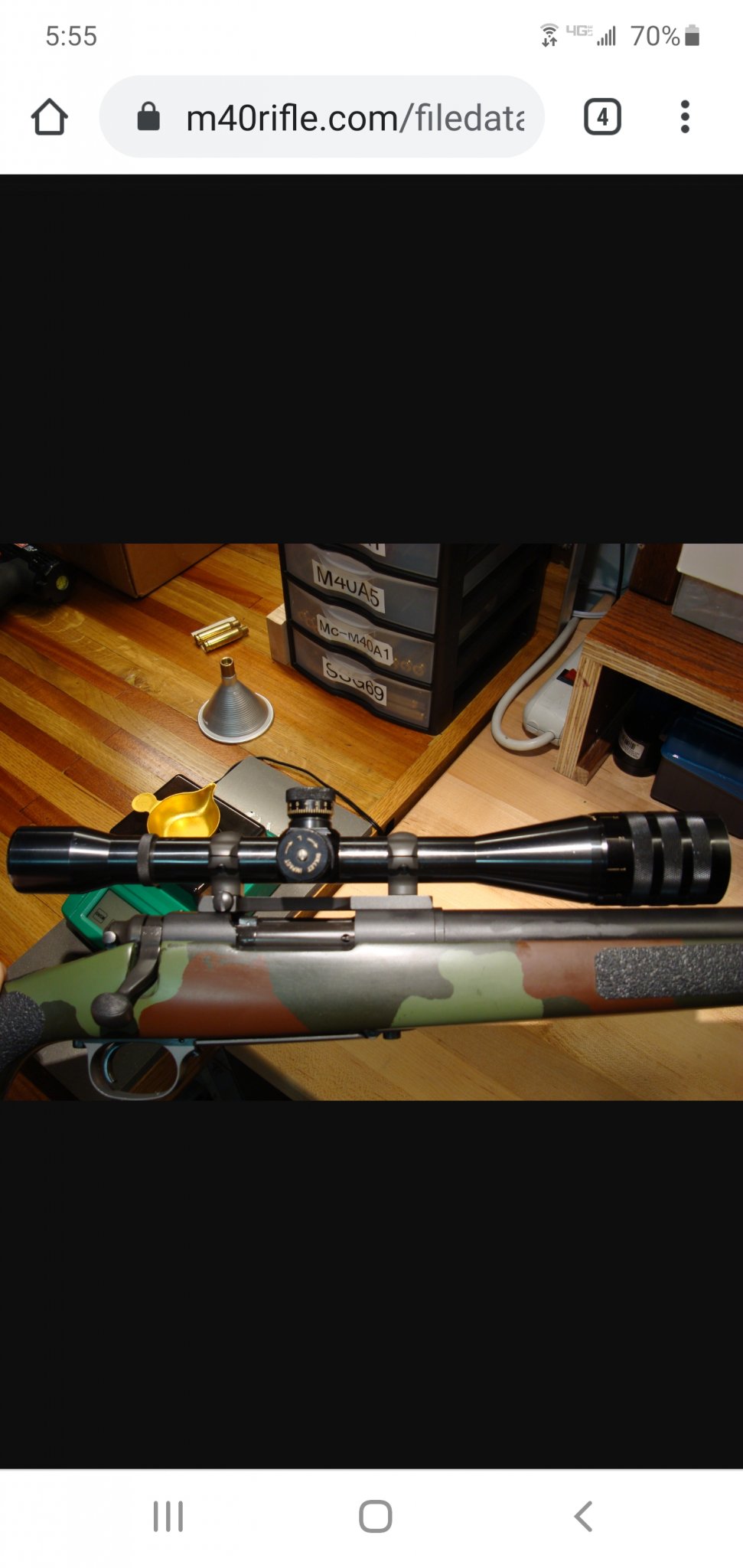

    Something doesn't seem right. I have what appears to me as two sets of medium Redfield rings, one welded up and the other new in the box. The box is marked 1", spilt [MEDIUM], 522605, these match the other pair I had welded up and the notch cut for access. When I in stalled them back on the rifle, there is no difference. The scope is still hitting the barrel.
    Looking at the picture above and knowing I am not getting a complete side view, the scope looks close, just like mine except mine is contacting the barrel.
    I placed my machine squares along side the Unertl Base and rings, Redfield base and rings, both sets of Redfields, they are all really close to being the same.
    I am be fkeled,,,, is there a taller Redfield ring than the Medium??
    Thanks


    mcm308

    Sergeant
    Belligerents
    Minuteman
    Mar 2, 2008
    810
    153
    43
    Bloomfield, NJ
    Well,
    Something doesn't seem right. I have what appears to me as two sets of medium Redfield rings, one welded up and the other new in the box. The box is marked 1", spilt [MEDIUM], 522605, these match the other pair I had welded up and the notch cut for access. When I in stalled them back on the rifle, there is no difference. The scope is still hitting the barrel.
    Looking at the picture above and knowing I am not getting a complete side view, the scope looks close, just like mine except mine is contacting the barrel.
    I placed my machine squares along side the Unertl Base and rings, Redfield base and rings, both sets of Redfields, they are all really close to being the same.
    I am be fkeled,,,, is there a taller Redfield ring than the Medium??
    Thanks
    The only thing I can think of... your setup requires the earlier M40 profile barrel? Which wasn't as heavy for fat as an A1 barrel?


    Charlie112

    Private
    Belligerents
    Minuteman
    Feb 28, 2017
    185
    126

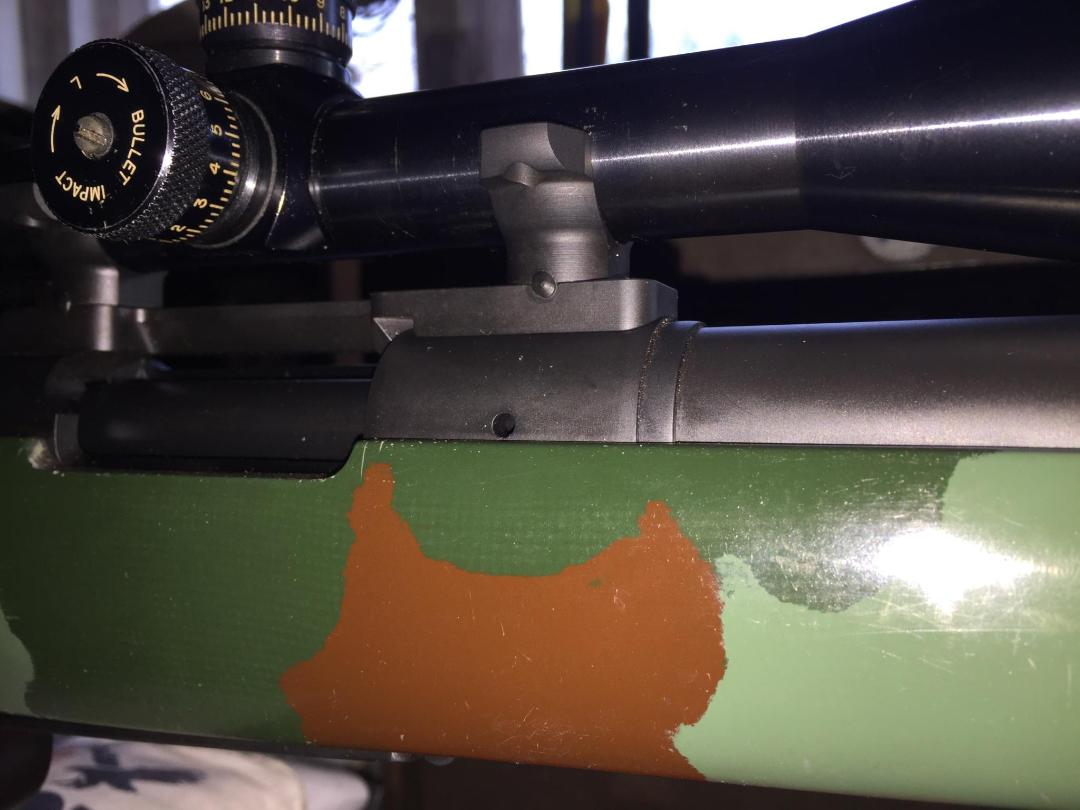

    Well, pictures don't lie.,I believe it must be the barrel, my barrel is a spec, HART barrel. Mark[RAVEN] started with the blank and I know that this is correct. I have set the bases up with the rings, checked and re-checked.... but I am not going to get the clearance I need with what I have here... beer time now... maybe tomorrow...


    deltawiskey

    DILIGAF
    Belligerents
    Minuteman
    Feb 13, 2017
    690
    294
    Wisconsin
    Your problem has me baffled... Im pretty sure that I used low rings to mount that scope. I have a different scope on that rifle currently but maybe I can get a measurement for you.
    DW


    mcm308

    Sergeant
    Belligerents
    Minuteman
    Mar 2, 2008
    810
    153
    43
    Bloomfield, NJ
    How much interference are you talking about here? Was the top of the action machined down or anything? You said the Smith started with a Hart blank, did he turn the profile on the lathe and maybe its not correct? Just thinking of possibilities that could cause your problems...


    Charlie112

    Private
    Belligerents
    Minuteman
    Feb 28, 2017
    185
    126
    How much interference are you talking about here? Was the top of the action machined down or anything? You said the Smith started with a Hart blank, did he turn the profile on the lathe and maybe its not correct? Just thinking of possibilities that could cause your problems...

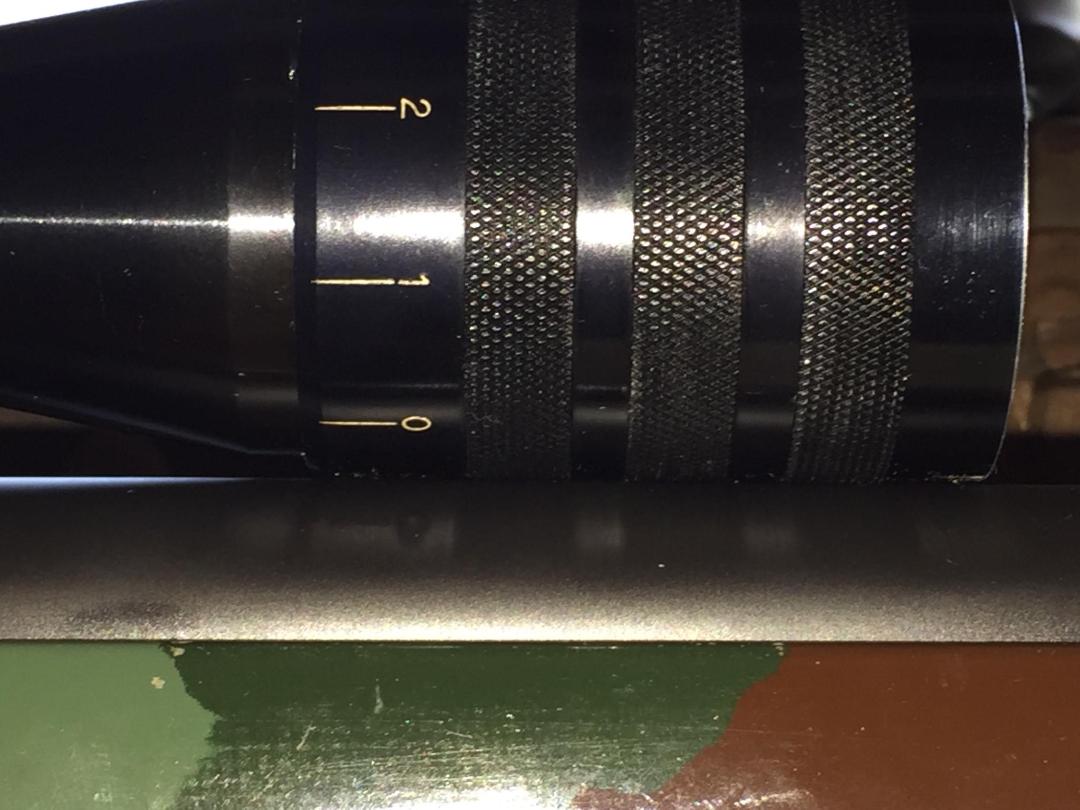

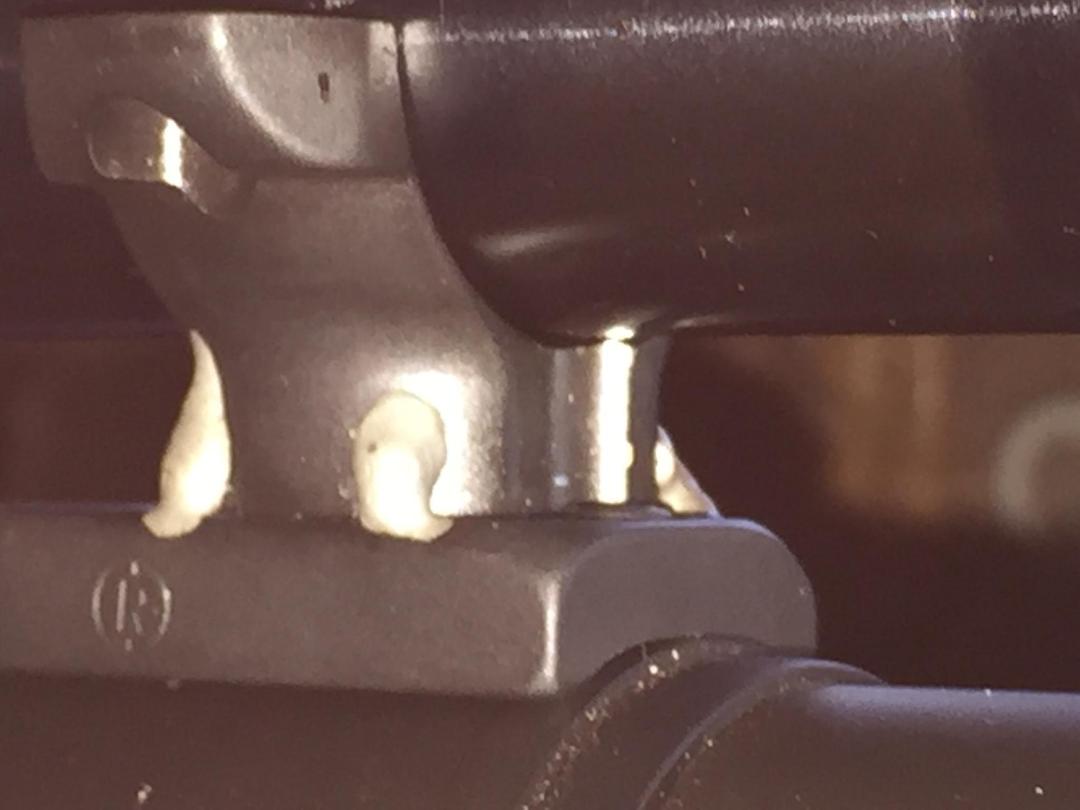

    As far as interference, I will have some .010 shim stock in the mourning and check that. When I set the scope down in both
    rings, before I even tighten them, it is contacting the barrel, the bell will not turn and it put a slight mark on my barrel.
    I will try and get pics up tomorrow a.m. Charlie 112


    mcm308

    Sergeant
    Belligerents
    Minuteman
    Mar 2, 2008
    810
    153
    43
    Bloomfield, NJ
    As far as interference, I will have some .010 shim stock in the mourning and check that. When I set the scope down in both
    rings, before I even tighten them, it is contacting the barrel, the bell will not turn and it put a slight mark on my barrel.
    I will try and get pics up tomorrow a.m. Charlie 112
    Thats a tough one. .010 is close..lol


    Charlie112

    Private
    Belligerents
    Minuteman
    Feb 28, 2017
    185
    126
    Thats a tough one. .010 is close..lol
    Copy on close, lol, I will have to layer up to clear. This is just the material I have to work with. The knurls on the bell are hitting my barrel,,,,,


    pmclaine

    Gunny Sergeant
    Belligerents
    Minuteman
  • Nov 6, 2011
    19,984
    28,662
    52
    MA
    Copy on close, lol, I will have to layer up to clear. This is just the material I have to work with. The knurls on the bell are hitting my barrel,,,,,
    That won't work.

    There are tall Redfield rings.

    I doubt there is anything screwed with your barrel coming from Hart.

    There may be some issues with the rear receiver pad as there is a little difference I guess between early Remington's and later Remington's. I don't know when the difference occurs but I understand 6 digit and earlier vary from say a G prefix.

    I say your solution is a Redfield base made contemporary with your receiver and than either medium or tall rings.............and a Triad Tactical stock pack with the riser kit.


    mcm308

    Sergeant
    Belligerents
    Minuteman
    Mar 2, 2008
    810
    153
    43
    Bloomfield, NJ
    He said his guy started with a barrel blank so not sure if its a factory Hart taper or the smith put the taper on it. If the smith turned it, its possible its oversize I suppose. Hes only .010, if the barrel was .020 over where the bell sits, theres his problem and it would be hard to tell by eye. There is an old thread on here and it was said the transition rifles were switched from low to medium rings. The medium rings would be correct so in theory everything should work. Nothing else should be different on the rifles with the Redfield and the ones that got the Weavers. I suppose maybe there could be a slight difference in old rings compared to new? Its not like its .125 off.


    pmclaine

    Gunny Sergeant
    Belligerents
    Minuteman
  • Nov 6, 2011
    19,984
    28,662
    52
    MA
    He said his guy started with a barrel blank so not sure if its a factory Hart taper or the smith put the taper on it. If the smith turned it, its possible its oversize I suppose. Hes only .010, if the barrel was .020 over where the bell sits, theres his problem and it would be hard to tell by eye. There is an old thread on here and it was said the transition rifles were switched from low to medium rings. The medium rings would be correct so in theory everything should work. Nothing else should be different on the rifles with the Redfield and the ones that got the Weavers. I suppose maybe there could be a slight difference in old rings compared to new? Its not like its .125 off.
    My best guess is he bought M40 profile and Raven cut he shank and finished muzzle.

    Raven will likely do whatever you ask but for something Hart would consider a bread and butter product why put the unnecessary wear and tear on your machine/tooling.


    mcm308

    Sergeant
    Belligerents
    Minuteman
    Mar 2, 2008
    810
    153
    43
    Bloomfield, NJ
    My best guess is he bought M40 profile and Raven cut he shank and finished muzzle.

    Raven will likely do whatever you ask but for something Hart would consider a bread and butter product why put the unnecessary wear and tear on your machine/tooling.
    My thoughts as well and only mentioned the possibility because the OP said a blank was used.

    • Like
    Reactions: pmclaine

    Charlie112

    Private
    Belligerents
    Minuteman
    Feb 28, 2017
    185
    126
    First, Thanks to all of you for taking time to help me.
    My receiver is a 6 digit, first numbers, 32....
    I will get these pics loaded in an hour or so.. Charlie 112


    Charlie112

    Private
    Belligerents
    Minuteman
    Feb 28, 2017
    185
    126

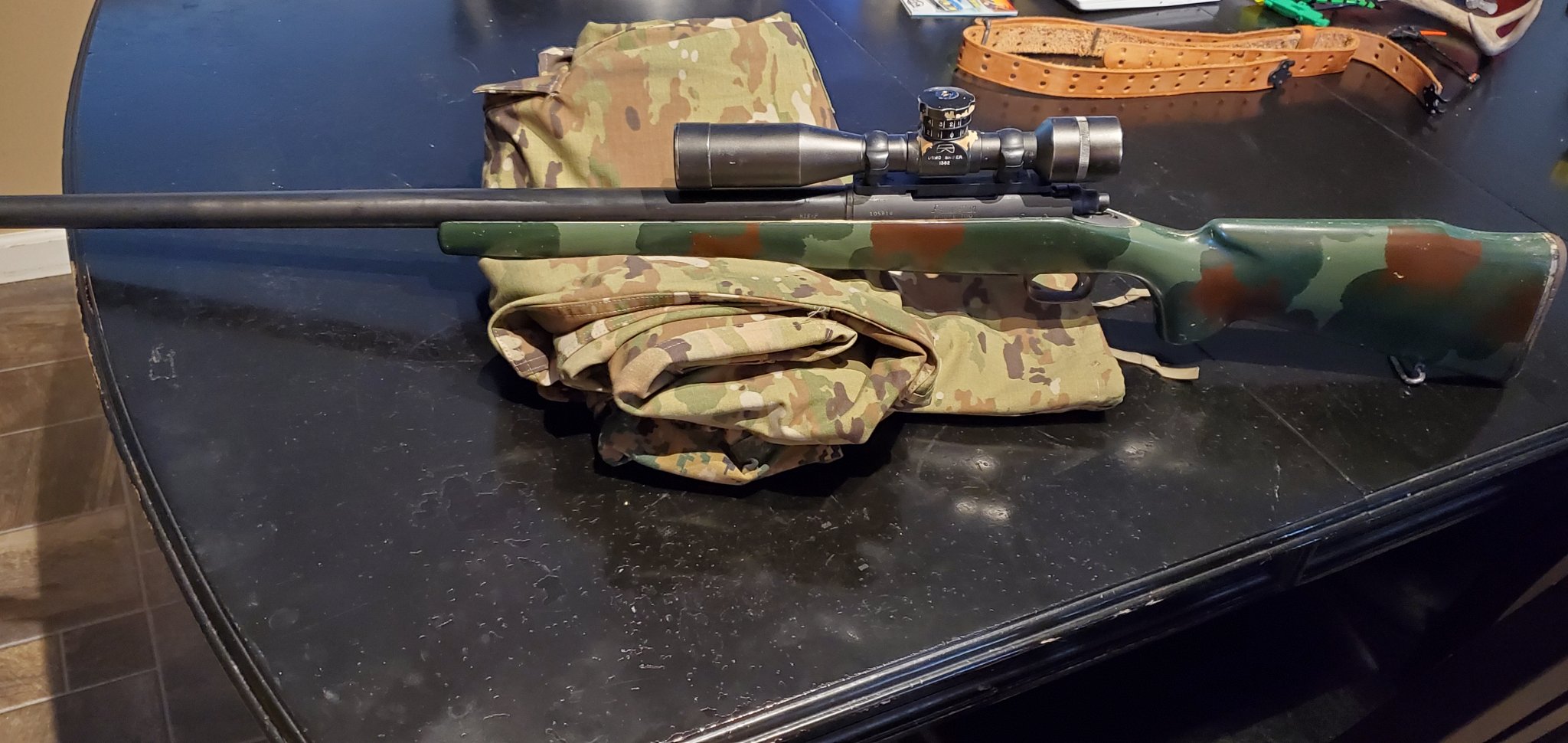

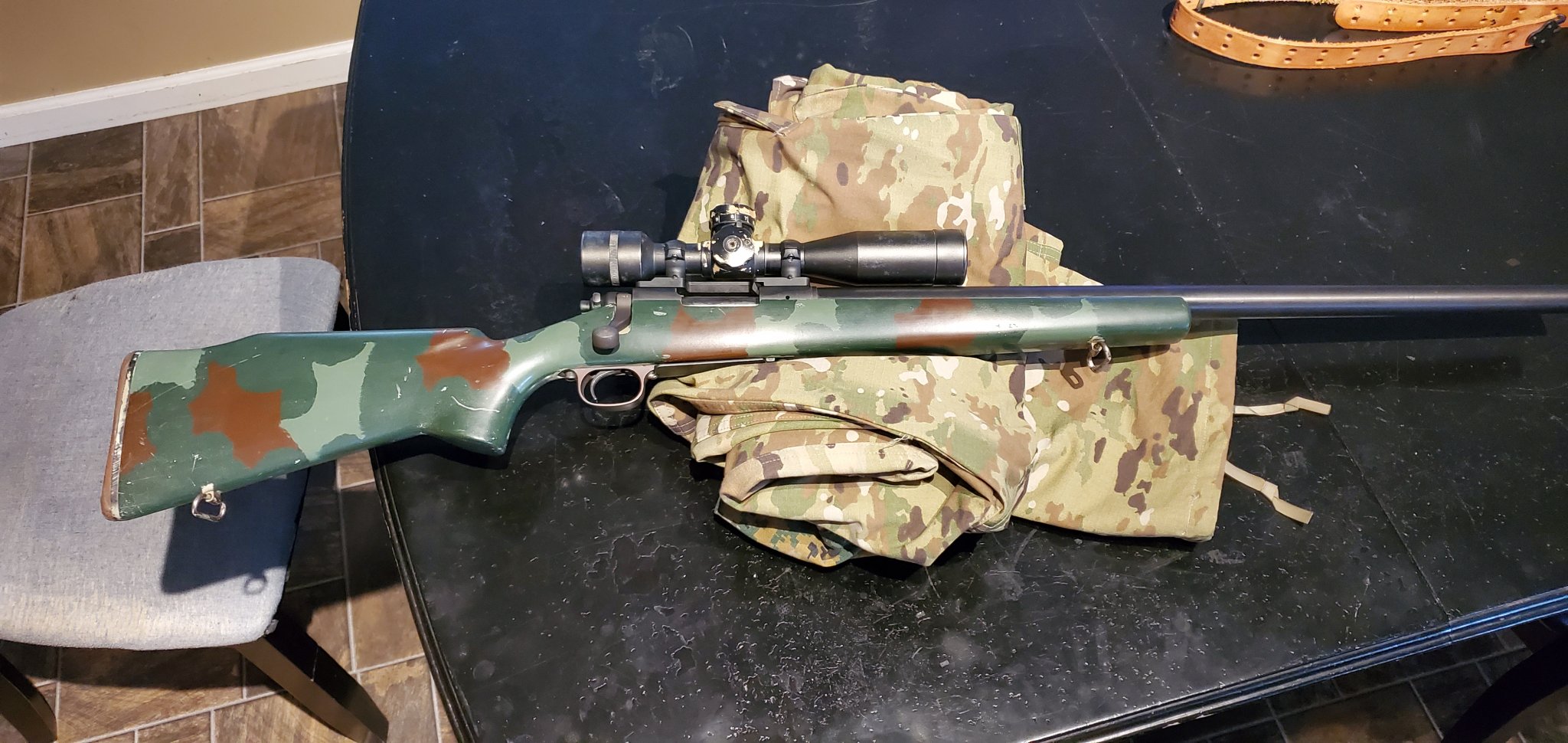

    I have been wanting to get my new rifle to the range using the Weaver T-10 scope, a little impatient but moving on with mounting issue.
    I did locate some " high" Redfield mounts, so, when those arrive, I will get to the range with weather permitting, and post what this scope and rifle combo will do.
    The main reason I am starting out with the T-10 is that I had this M40A1 built in memory off my father in law . He was in the USMC in Korea with the 1ST Marine Division, 7th Regiment, 2nd Battalion, Easy Company, that is all he told me about his outfit. He was fighting at a place called Boulder City, they were talking at the truce table then.
    He was a machine gunner and after the war ended, they sent him back to machine gun schooling Korea, he said they always kept them busy, but he had a big laugh when told to report to school after being in combat. I do not have this piece of paper, but will have one of his boys send me a pic of the card, but after machine gun school in Korea, he said that Chester Puller signed his card, I thought that was pretty neat.
    Funny thing he told me one day" The first thing you learn in the Marine Corp is to KEEP YOUR MOUTH SHUT!! We had a lot of good times together, he passed last spring, God Bless Him!! Hell of a man....

    • Like
    Reactions: deltawiskey

    pmclaine

    Gunny Sergeant
    Belligerents
    Minuteman
  • Nov 6, 2011
    19,984
    28,662
    52
    MA
    I have been wanting to get my new rifle to the range using the Weaver T-10 scope, a little impatient but moving on with mounting issue.
    I did locate some " high" Redfield mounts, so, when those arrive, I will get to the range with weather permitting, and post what this scope and rifle combo will do.
    The main reason I am starting out with the T-10 is that I had this M40A1 built in memory off my father in law . He was in the USMC in Korea with the 1ST Marine Division, 7th Regiment, 2nd Battalion, Easy Company, that is all he told me about his outfit. He was fighting at a place called Boulder City, they were talking at the truce table then.
    He was a machine gunner and after the war ended, they sent him back to machine gun schooling Korea, he said they always kept them busy, but he had a big laugh when told to report to school after being in combat. I do not have this piece of paper, but will have one of his boys send me a pic of the card, but after machine gun school in Korea, he said that Chester Puller signed his card, I thought that was pretty neat.
    Funny thing he told me one day" The first thing you learn in the Marine Corp is to KEEP YOUR MOUTH SHUT!! We had a lot of good times together, he passed last spring, God Bless Him!! Hell of a man....

    Lewis Burwell Puller nickname "Chesty".


    308pirate

    Gunny Sergeant
    Belligerents
    Minuteman
    Apr 25, 2017
    12,764
    16,618

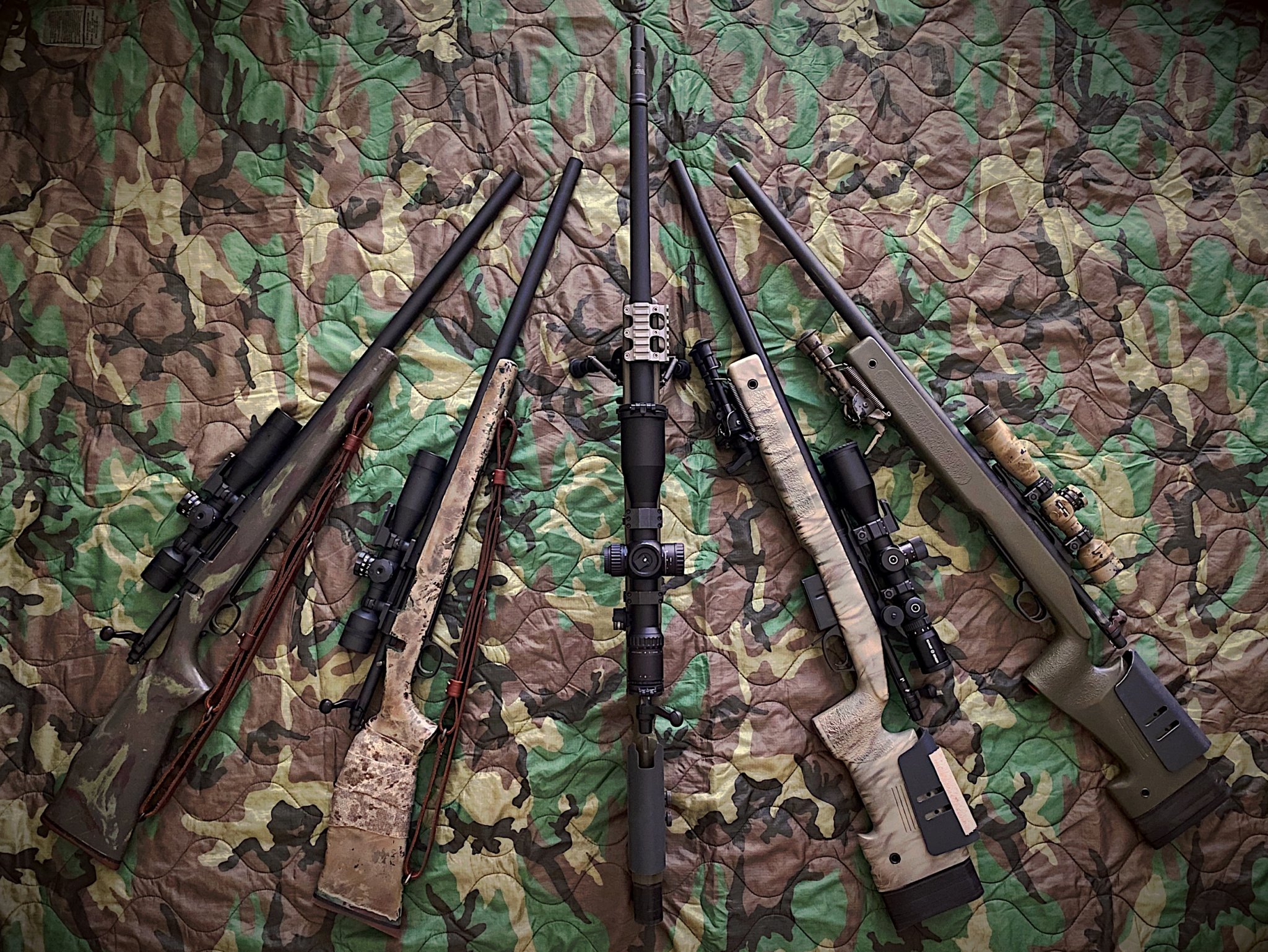

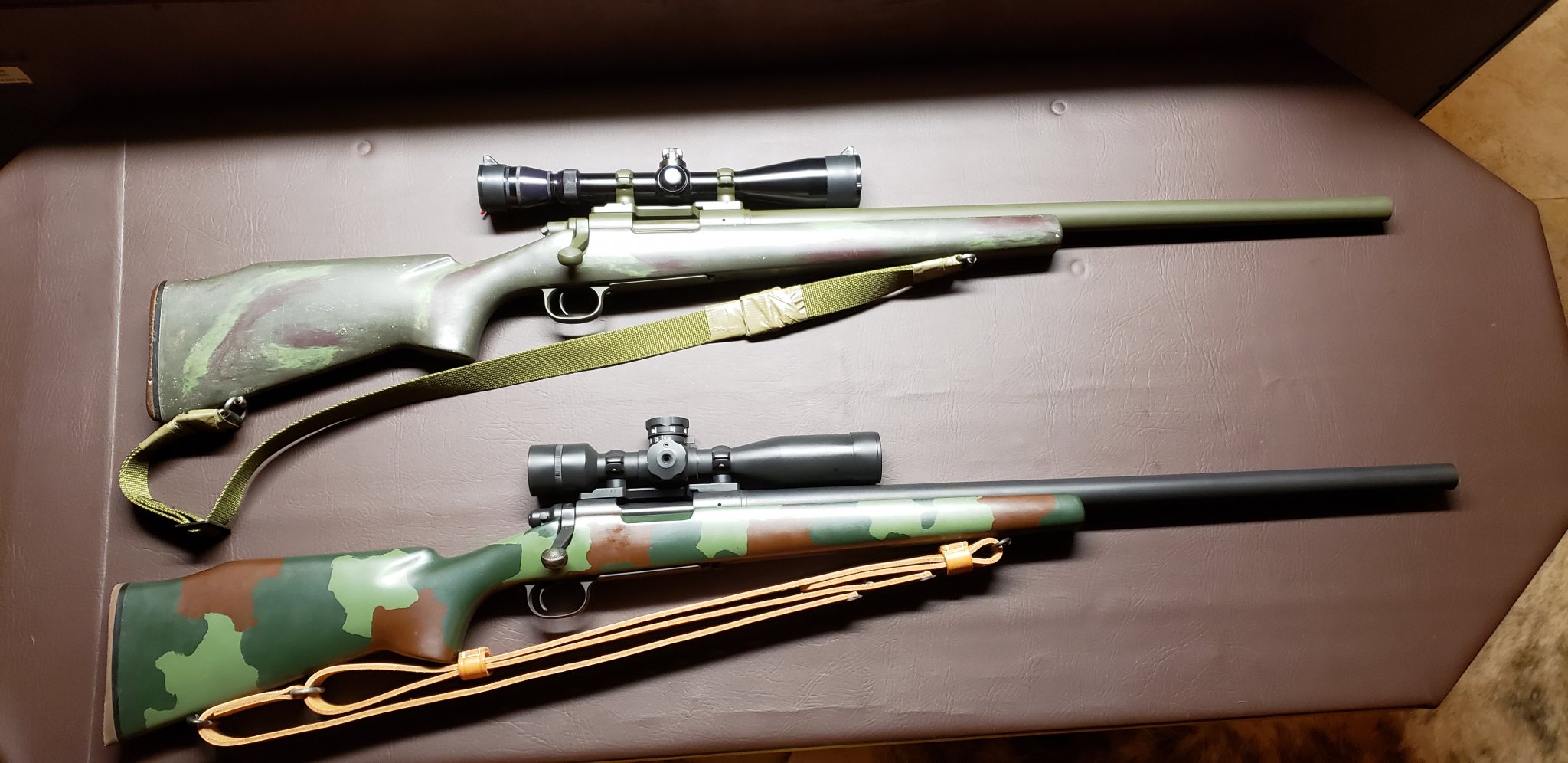

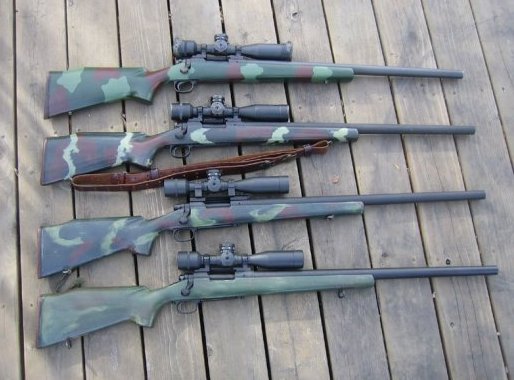

    Gorgeous rifles all over this place

    Don't have any of them but the A5 is my choice for the first one.


    Quarter Horse

    Sergeant
    Belligerents
    Minuteman
  • Apr 17, 2010
    1,117
    317
    73
    Astoria, Or.
    You guys are putting together some great stuff. The cost of a build is an obvious concern. The effort to get everything as correct as possible can add considerable dollars. This link to the sale prices at Rock Island Armory might soothe your angry wallets.
    https://www.rockislandauction.com/catalog/79/1/?keywords=sniper%20rifles

    The aforementioned M-40A1 realized $10,350.00 and I don't know whether that included any upcharges like an 18.5% buyer's premium. I was pretty much stunned by the prices across the board.

    Last edited:

    kft101

    Sergeant
    Belligerents
    Minuteman
    Nov 1, 2009
    418
    51
    NY
    You guys are putting together some great stuff. The cost of a build is an obvious concern. The effort to get everything as correct as possible can add considerable dollars. This link to the sale prices at Rock Island Armory might soothe your angry wallets.
    https://www.rockislandauction.com/catalog/79/1/?keywords=sniper%20rifles

    The aforementioned M-40A1 realized $10,350.00 and I don't whether that included any upcharges like an 18.5% buyer's premium. I was pretty much stunned by the prices across the board.
    That price is just what the winning bid was. The buyer's premium and any taxes are tacked on to that. So the final total, not factoring in taxes, would have been at least $12k.


    mcm308

    Sergeant
    Belligerents
    Minuteman
    Mar 2, 2008
    810
    153
    43
    Bloomfield, NJ
    You guys are putting together some great stuff. The cost of a build is an obvious concern. The effort to get everything as correct as possible can add considerable dollars. This link to the sale prices at Rock Island Armory might soothe your angry wallets.
    https://www.rockislandauction.com/catalog/79/1/?keywords=sniper%20rifles

    The aforementioned M-40A1 realized $10,350.00 and I don't know whether that included any upcharges like an 18.5% buyer's premium. I was pretty much stunned by the prices across the board.
    Forget the 40... thats a peanut compared to some of those others. 😆 That PSG-1...


    Quarter Horse

    Sergeant
    Belligerents
    Minuteman
  • Apr 17, 2010
    1,117
    317
    73
    Astoria, Or.
    Like many, if I were to pick a favorite it would be from my era which would be the M-40. I was over there in '68, '69 and '70 and I don't know whether any of the A1s had made it over yet. The most interesting item for me was the the Dragunov with capture papers from RVN. While in school we were briefed by Langley on the capture bounty program. The Dragunov was on the list in '68. The mis-identification could have been an atttempt to get the papers approved. Tokarev handguns and the SKS were the most common bringbacks when I was there. As for the Major and his associations, who knows. You needed a score card to keep track of who was who.

    • Like
    Reactions: mcm308

    Random Guy

    Private
    Belligerents
    Minuteman
