Rifle Scopes  March 1-10 Shorty Dual Focal - Reviews?

smarcus

Private
Minuteman
May 16, 2018
85
58
I have to mimic what DL32 said above. I have been using a shorty 1-10 with capped turrets for a couple of weeks now and have been impressed. I have it mounted on an sub-moa sbr in 6.5 Grendel that I shoot to 700+. I really wanted a 10x LPVO with parallax adjustment for this rifle. The glass is great. The dot is not as bright as the Vortex or NF NX-8 or Atacr but I had no problem seeing it during bright mid-day sun on targets of differing color, from white to black. I really like how easy the reticle is to use at 1x without the illumination turned on. The NF Atacr and Vortex reticles were not as easy to use to me without illumination. The scope is very easy to get behind, even at 10x. Close range presentation drills are fast, but I haven't done them on the shot timer yet to compare times using a T2. The reticle is usable. It is a sort of tree reticle in that it has a 4 degree taper but I like the tree on the Vortex and Atacr better. 2 ring mounting options are limited right now to the uni mount, that I can't find in stock, or using the Burris rings with the inserts that the importer sells, which is what I did. I put in 10 moa of slope with the inserts and that has been working well so far. So far I really like the scope. The only thing I liked better about the Vortex and NF Atacr was illumination and the tree portion of the reticle, however, I like the March center better than the center on those. The dual focal plane design really shines here. I did not like the Nx-8 at all, sorry. Over all, I'm really digging this scope. Ask me again in a year and we will see if I still feel the same.


Can someone explain the 4 degree taper of the hash marks on the vertical cross hair? are they supposed to line up with windage to be used as a hold? Does anyone know the actual widths? I have seen a bunch of diagrams but nothing that gives the width. I'm thinking of this optic for a 16 inch Proof barreled 556.


gxer

Private
Minuteman
May 15, 2021
8
6
CA
Has anyone tried a Scalarworks Mount for their 1-10 Shorty?

@freedom71
I asked him via PM regarding his experience, he said no POI shifts.


Glassaholic

Send it!
Full Member
Minuteman
  • Nov 30, 2012
    5,457
    4,518
    Black Forest, CO
    @freedom71
    I asked him via PM regarding his experience, he said no POI shifts.
    That is good to know with normal use, would be curious if his rig gets banged around a lot or if it got whacked against something would it lose zero then, I suppose time will tell.


    gxer

    Private
    Minuteman
    May 15, 2021
    8
    6
    CA
    That is good to know with normal use, would be curious if his rig gets banged around a lot or if it got whacked against something would it lose zero then, I suppose time will tell.
    The good thing about that mount is you can take it off quickly when not in use, for bench rest I think this is OK, but I would not try it for anything requires a lot of movement.

    • Like
    Reactions: Glassaholic

    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    I have been eyeballing this scope for a Run n Gun rifle. It has some very interesting features I desire that make it unique to the LPVO category:

    Adjustable Parallax-Why no one else does this is beyond me. This is 2021. And while I get that lower-end optics users don't understand parallax, these are $2000+ scopes in some cases. The high-end optic users likely to purchase these Alpha-class LPVOs have advanced significantly on their understanding and capabilities, so why all the manufacturer continue to roll with fixed parallax on even high-end scopes just makes no sense.

    Weight- At 17ish oz, this is significantly lighter than my current Razor 1-6. The only scopes in this category that compete in weight are the Kahles, and they seem to have some durability issues, among other shortcomings. Not sure how this March will hold up, but I can tell you that RnG will expose any fragility. Just ask the Strike Eagle owners that seem to have 1-2 failures per event.

    Size-The short OAL length contributes significantly to its weight advantage. Now how March is managing to both shorten the OAL AND putting a 10x erector AND still keeping parallax, CA, etc under control.........Well if they are truly managing it, I need to see it for myself.

    FFP & SFP- What a great solution. At least in theory. I understand why SFP is used on my current scope, but I don't care for it. I much prefer FFP. Now this March setup takes advantage of both options.

    0.1mil Adjustment-The 0.2mil adjustment steps on my Razor is one of my biggest gripes about it.

    1-10x-If March is pulling this off well, and the reviews from reasonably trusted people indicate that they are, this is a big advantage over my Razor. Even the 1-10 Razor, while technically HAVING 10x, suffers from a deterioration in performance much over 7-8x. If March can produce a legitimate, quality 10x optical picture, then they are doing something none of the others are currently accomplishing. If they are managing this with a short-bodied scope, then they are REALLY doing something. And my aging eyes will appreciate it.




    What I Don't Get:

    30 & 33mm scope ring mounts. Why? I understand that the design of the scope forced them to make one end of the scope larger to accommodate the 24mm lens. And I understand that had they made the scope the same diameter across its length it would add unnecessary weight. But why, WHY did they not make the 33mm end 34mm instead? The weight added would be negligible, and then we would at least have the option of using single rings commonly available on the market. I just don't get the logic on this one. This engineering/marketing decision by March WILL cost them lots of sales. It has kept me from pulling the purchase trigger to this point.

    Proprietary Mount-Good for March, if they can sell lots of scopes. But they are going to lose a lot of sales because of this. And $500? Come on, that is about $200 over what this mount should cost. Plus, at over 7oz, it is a bit of a tank. That is more than 1.5oz (and $100 more) compared to my current Scalarworks. I spent a lot of money on my rifle to take 1.5oz off of it. Spending $2700 to buy this scope in order to save 4oz, then having to turn around and give 1.5oz of it back on an overpriced, overweight scope mount does not motivate me to buy this scope. I am already looking at how I can take this $500 bulky, overpriced scope mount and chuck it in my CNC mill to take off some of the weight that should have been taken off in the first place.

    A Proprietary Scope That No One Can Buy-This is the most ridiculous part of it all. You make a scope, so oddball in the market that only the OEM makes a scope mount. Then the OEM can't/don't/won't guarantee that they can supply the market with their bespoke mount. So you have scopes to sell, but can't really sell them because no one can actually mount it properly to their rifle and use it. Absolutely ludicrous.


    gxer

    Private
    Minuteman
    May 15, 2021
    8
    6
    CA
    I think the engineers at March specifically designed the objective lense to be 33mm instead of 34mm to discourage people from using two differently sized scope rings. Much like the FFP+SFP design of the scope, the center alignment is critical for this scope. If someone used a pair of cheapo rings with slight offset of center height it would probably harm the scope and force the two retiles off alignment. I'm not saying you can't find a pair of quality rings with little offset but I don't think March want to be responsible for warranty claims if the scopes were harmed due to mounting error.

    You can get the unimount from March UK, it costs around 350 USD shipped. Not that much more expensive than comparable mounts IMO.

    Speaking of the scope rings, if you use 34mm ring with something like a 0.5mm thick sheet of aluminum as spacer, won't that make the ring 33mm? Maybe the hardest part is to somehow bend the aluminum to the desired shape.


    Denys

    Turbulent Optics Student
    Full Member
    Minuteman
    Mar 26, 2012
    977
    276
    Spring, TX
    I have just been in touch with Lou Murdica @ calshootingsupplies.com. He is now selling March rings including this fancy unimount for the 1-10X28 Shorty. He is expecting them in stock any day now and he sells to for $498 plus shipping.


    He answers his emails very quickly [email protected]

    Tell him I sent you. :cool:

    • Like
    Reactions: Glassaholic

    Denys

    Turbulent Optics Student
    Full Member
    Minuteman
    Mar 26, 2012
    977
    276
    Spring, TX
    Yes, he does. So it seems there are several solutions now, with varying price points.


    st1650

    Private
    Full Member
    Minuteman
    Aug 13, 2009
    501
    257
    34
    Soooo can't you just use the Scarlarworx aimpoint 30mm mount solution ? Seems like it solves the light weight mount rings issues .... Or does it not put the scope far forward enough ?


    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    I think the engineers at March specifically designed the objective lense to be 33mm instead of 34mm to discourage people from using two differently sized scope rings. Much like the FFP+SFP design of the scope, the center alignment is critical for this scope. If someone used a pair of cheapo rings with slight offset of center height it would probably harm the scope and force the two retiles off alignment. I'm not saying you can't find a pair of quality rings with little offset but I don't think March want to be responsible for warranty claims if the scopes were harmed due to mounting error.
    Maybe that was their thinking, I don't know. But if it was, it was flawed thinking. A good mixed set of high-quality rings would have solved the problem. Would/could there have been users trying to do the job with sub-par solutions? Sure thing. But guess what? People trying sub-par stuff is going to happen either way. What the 33mm dimension has done is to eliminate all the readily-available good solutions, and leave only sub-par options.


    You can get the unimount from March UK, it costs around 350 USD shipped. Not that much more expensive than comparable mounts IMO.

    Speaking of the scope rings, if you use 34mm ring with something like a 0.5mm thick sheet of aluminum as spacer, won't that make the ring 33mm? Maybe the hardest part is to somehow bend the aluminum to the desired shape.
    Good to know. Now why a country like the UK, with a mere fraction of the potential customers, has them not only in stock but at prices 30% cheaper than here is a mystery.

    Speaking of the scope rings, if you use 34mm ring with something like a 0.5mm thick sheet of aluminum as spacer, won't that make the ring 33mm? Maybe the hardest part is to somehow bend the aluminum to the desired shape.
    I already thought about this one. 0.020" shims would solve the problem. But 0.010" is generally about the upper limit of elastic shim stock material. At 0.020", sheet is thick enough that it won't just curve and follow the shape needed. So to do this, it would need to be either 0.020" sheet rolled or formed to the curve, or multi-layers (like two 0.010" sheets, this is what I would try first). Both of these methods would introduce issues that need to be overcome. Neither is straight-forward and as easy as it seems on its surface.

    A ring could be machined, but making something with an unsupported 0.020" wall thickness in no easy task. It can be done, but not at a hobbyist level.


    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    Soooo can't you just use the Scarlarworx aimpoint 30mm mount solution ? Seems like it solves the light weight mount rings issues .... Or does it not put the scope far forward enough ?
    You could do this, but it is not going to be very stable. If this scope is on any rifle that gets beat and banged around, it is not going to stay in position.


    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    Don at Long Range Supply also has a solution using Burris XTR adjustable rings at $179.
    How does this application work? Is it just taking the thicker of the offset 34mm inserts and using that to close up the gap? There are so many issues with that approach I have to be missing something.


    gxer

    Private
    Minuteman
    May 15, 2021
    8
    6
    CA
    Good to know. Now why a country like the UK, with a mere fraction of the potential customers, has them not only in stock but at prices 30% cheaper than here is a mystery.
    This is because the March unimount is actually made by Audere somewhere in Italy, when you factor in multiple 3rd parties to get the hardware shipped to you the markup will make more sense (so far I have concluded ordering from March UK directly will be the cheapest option). Audere do have USA dealers including MKM but I don't see this mount listed on their website, if I had to guess why, it is probably because March isn't a well established brand in the US like they are in Europe and Australia. Bulk importing a unique mount designed to only accept a couple scopes from a niche brand may not pay off to the dealer.

    • Like
    Reactions: Glassaholic

    Denys

    Turbulent Optics Student
    Full Member
    Minuteman
    Mar 26, 2012
    977
    276
    Spring, TX

    RayDBonz

    Sergeant
    Full Member
    Minuteman
    Jan 16, 2006
    242
    62
    60
    Scottsdale, AZ

    Glassaholic

    Send it!
    Full Member
    Minuteman
  • Nov 30, 2012
    5,457
    4,518
    Black Forest, CO
    • Like
    Reactions: gnochi

    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    March just posted an update about a tree reticle for this riflescope at their website.

    I guess they heard you; they're designing one.

    Now I'm sure the next question is "when?"
    That is good for them to do this. A tree, if done well and not overly complex, would be better than the current reticle. Though TBH I don't know that a tree is a big upgrade for me on this type of scope. Realistically it is for a carbine-type rifle, and the distances being shot don't really need that much holdover anyway. I hope they don't go all crazy with the tree and end up blocking too much of the FOV with it.

    If I were going to request a reticle change, I would find a semi-circle for CQB on the SFP reticle to be more useful. Figuring out the correct size so that it doesn't interfere on max magnification would be the trick. Such a change would be far more useful to me than a tree.


    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    And thinking a bit more about my above comment, maybe it would make more sense to put the semi-circle on the FFP, and size it where it would totally disappear at max (or near max) power. Maybe even have it turn off the illumination to the circle once it gets past a certain magnification setting as to not wash out the view.

    Not really sure what would be the best setup as I have never used any of the current dual plane scopes, so I only have theoretical thoughts about what would work. But I suspect this one would be better.

    • Like
    Reactions: gnochi

    Glassaholic

    Send it!
    Full Member
    Minuteman
  • Nov 30, 2012
    5,457
    4,518
    Black Forest, CO
    @koshkin has experience with both the March dual focal plane and the Schmidt dual focal plane design, I'd be curious to hear his thoughts. I agree NC_L, doing a tree reticle right and making something more usable for CQB might be just what the doctor ordered.

    • Like
    Reactions: gnochi

    LRRPF52

    Sergeant
    Full Member
    Minuteman
    Mar 13, 2012
    1,208
    864
    SLC, Utah
    March just posted an update about a tree reticle for this riflescope at their website.

    I guess they heard you; they're designing one.

    Now I'm sure the next question is "when?"

    I hope they get the reticle right because I’m ready to pay now. I would really like super low profile capped turrets with minimal snag hazard too. No need to dial if it has a great reticle. For an optic this size, there is zero reason for target turrets with the tree reticle.

    If anyone wants to dial, they have the existing Mil hash already with exposed turrets.

    This will be sick on little compact blasters that are chambered in something that can actually reach out.

    My 12” Grendel is ready.

    • Like
    Reactions: Glassaholic

    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    I hope they get the reticle right because I’m ready to pay now. I would really like super low profile capped turrets with minimal snag hazard too. No need to dial if it has a great reticle. For an optic this size, there is zero reason for target turrets with the tree reticle.

    If anyone wants to dial, they have the existing Mil hash already with exposed turrets.

    This will be sick on little compact blasters that are chambered in something that can actually reach out.

    My 12” Grendel is ready.
    I agree with this. I hope March understands that the market for this type of optic is different from the typical scope user. These scopes are primarily going to be fitted to carbines, and will operate from CQB to maybe 600yds in most cases. Dailing is not needed, especially with a tree, and thus should be capped.

    They also need to be willing to make certain design concessions to operate well at 1x. Though if they do it well, I believe the dual focal gives them the opportunity to do what no other manufacturer has been able to do, and that is to cover both the CQB and the longer range with almost no concessions. If they make the right design choices here, they may have something very successful. But at the price, it had better be right. My Gen II Vortex at $1300 does a decent job, but far from perfect. If I am going to pay double, it needs to check every box. The current model comes close, but isn't quite there for me.


    LRRPF52

    Sergeant
    Full Member
    Minuteman
    Mar 13, 2012
    1,208
    864
    SLC, Utah
    The current model seems to have broken into the combined space of a CQM red dot bright LPVO, mixed with a TGT turret dial-based LR rifle optic. That’s a huge accomplishment in and of itself, but the trend for practical LR has been really strong in the tree-based reticles.

    A little Grendel or 6mm AR-15, suppressed, with this on-top takes a Mk.18-sized package with all the CQM capability, and adds on better performance downrange than an SPR, with comparable performance to M118LR but with half the recoil/better TGT tracking through the shot so you can see your own hits even with a light little blaster.

    I’ve had surprising results even with 1-4x24 with wide FOV at 800yds with the 12” Grendel.

    I got the 1-10x Razor G3, which I’m still not sure which Grendel it will settle on, but I really like the feature set and compactness on the March 1-10x. They need to do something with their US distribution scheme too, as I’m having a hard time finding any normal order/support interface. They would sell these well among the upper tier buyers if there was a better online retail end. I was looking at one site that required some weird money order or bank wire payment, which seemed really odd.

    • Like
    Reactions: Denys

    Glassaholic

    Send it!
    Full Member
    Minuteman
  • Nov 30, 2012
    5,457
    4,518
    Black Forest, CO
    The current model seems to have broken into the combined space of a CQM red dot bright LPVO, mixed with a TGT turret dial-based LR rifle optic. That’s a huge accomplishment in and of itself, but the trend for practical LR has been really strong in the tree-based reticles.

    A little Grendel or 6mm AR-15, suppressed, with this on-top takes a Mk.18-sized package with all the CQM capability, and adds on better performance downrange than an SPR, with comparable performance to M118LR but with half the recoil/better TGT tracking through the shot so you can see your own hits even with a light little blaster.

    I’ve had surprising results even with 1-4x24 with wide FOV at 800yds with the 12” Grendel.

    I got the 1-10x Razor G3, which I’m still not sure which Grendel it will settle on, but I really like the feature set and compactness on the March 1-10x. They need to do something with their US distribution scheme too, as I’m having a hard time finding any normal order/support interface. They would sell these well among the upper tier buyers if there was a better online retail end. I was looking at one site that required some weird money order or bank wire payment, which seemed really odd.
    You can buy them “normally” from eurooptic. March is a boutique manufacturer and hand builds every scope so unless a dealer buys a bunch you’re going to wait 40-60 days depending on model.


    Denys

    Turbulent Optics Student
    Full Member
    Minuteman
    Mar 26, 2012
    977
    276
    Spring, TX
    I got the 1-10x Razor G3, which I’m still not sure which Grendel it will settle on, but I really like the feature set and compactness on the March 1-10x. They need to do something with their US distribution scheme too, as I’m having a hard time finding any normal order/support interface. They would sell these well among the upper tier buyers if there was a better online retail end. I was looking at one site that required some weird money order or bank wire payment, which seemed really odd.
    That last one was probably longrangesupply.com. That's a legitimate site and Don provides exemplary customer service. You can be confident dealing with Don.

    • Like
    Reactions: chase723

    smarcus

    Private
    Minuteman
    May 16, 2018
    85
    58
    Anyone know the weight of the Audere/March Unimount for the 1-10X28 Shorty? Just ordered the optic and deciding on mounting options. Either this or 2 NF LW 4 bolt 1.5 inch high rings. Don quoted me 8-12 weeks on the scope so I have time.....


    smarcus

    Private
    Minuteman
    May 16, 2018
    85
    58
    OK. I used a food scale that is usually pretty accurate. Need batteries for my better scale.
    Oh I didn’t know that was an actual measurement. I believe you. Eurooptics must be incorrect. FYI The Audere website says 200g


    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    Anyone know the weight of the Audere/March Unimount for the 1-10X28 Shorty? Just ordered the optic and deciding on mounting options. Either this or 2 NF LW 4 bolt 1.5 inch high rings. Don quoted me 8-12 weeks on the scope so I have time.....
    How do you plan to deal with the 33mm size in a 34mm ring with the Nightforce?


    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    Ooof. A bit heavier than I had hoped.
    Me too. This is one of my concerns, as expressed above, with this oddball mounting method March has chosen to use. This is just way too heavy for the application.

    On a side note, I considered buying one and seeing how much I can lighten it in my CNC mill. I manufacture parts for motorsports, so I have gotten weight-savings down to a bit of a science. Though I am somewhat limited by not be able to design the entire mount from scratch, there is not as much to be saved when I have to work with an existing design. I still bet I can shave 25-30% off of it.

    • Like
    Reactions: Glassaholic

    NC_Libertarian

    Private
    Minuteman
    Apr 6, 2020
    46
    23
    No. The base, both ring tops and all the screws.
    Weight is about the same as a Geissele mount. And lighter than a Spuhr mount.
    I was hoping you would say the pic adapter was included in that weight, it would be more reasonable then.

    My Scalarworks weighs under 5.5oz for comparison.

    CORRECTION: I believe it might actually be about 5.6oz. I need to go weight it again, but it has a scope on it now.


    gxer

    Private
    Minuteman
    May 15, 2021
    8
    6
    CA
    Anyone know the weight of the Audere/March Unimount for the 1-10X28 Shorty?

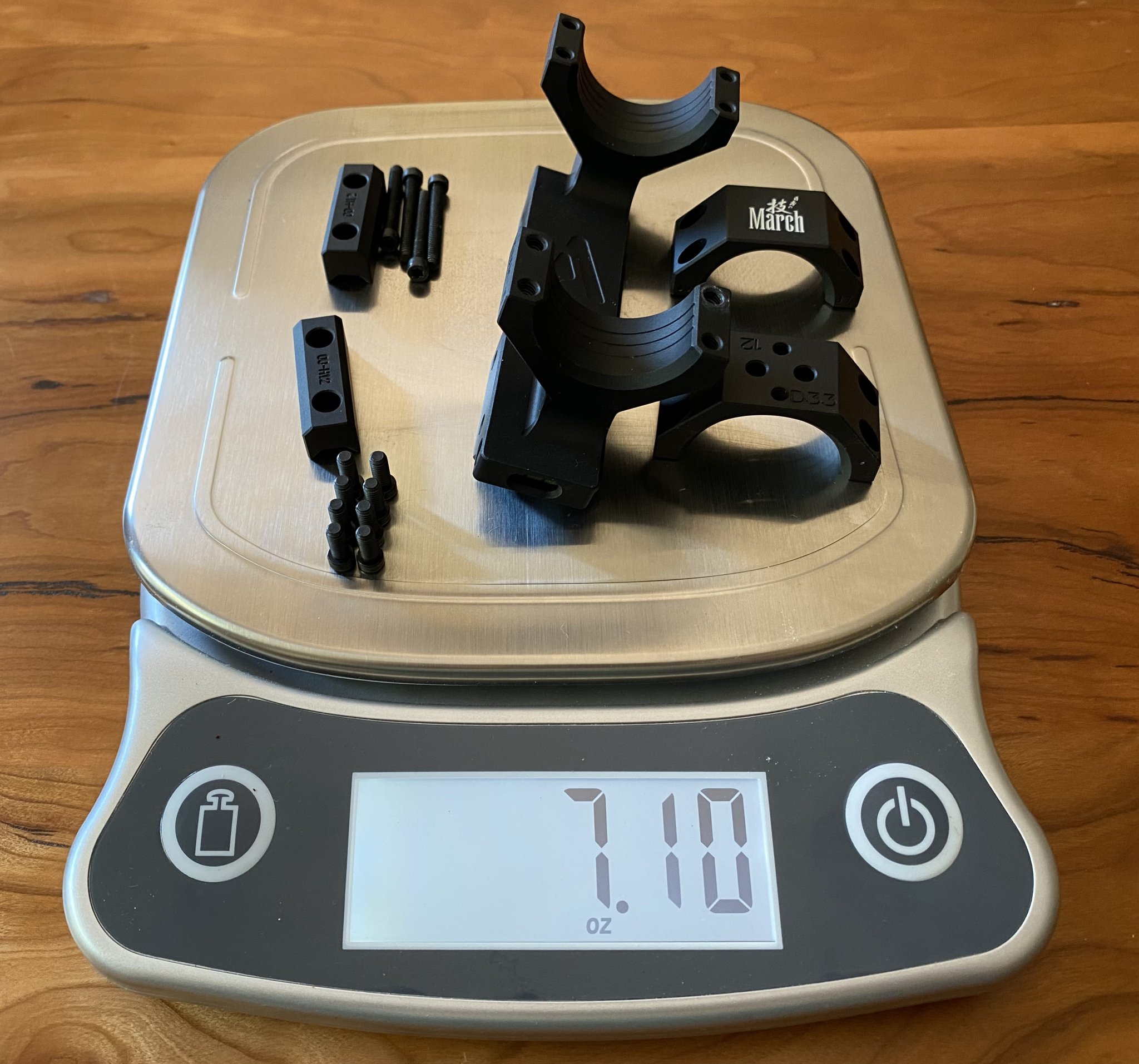

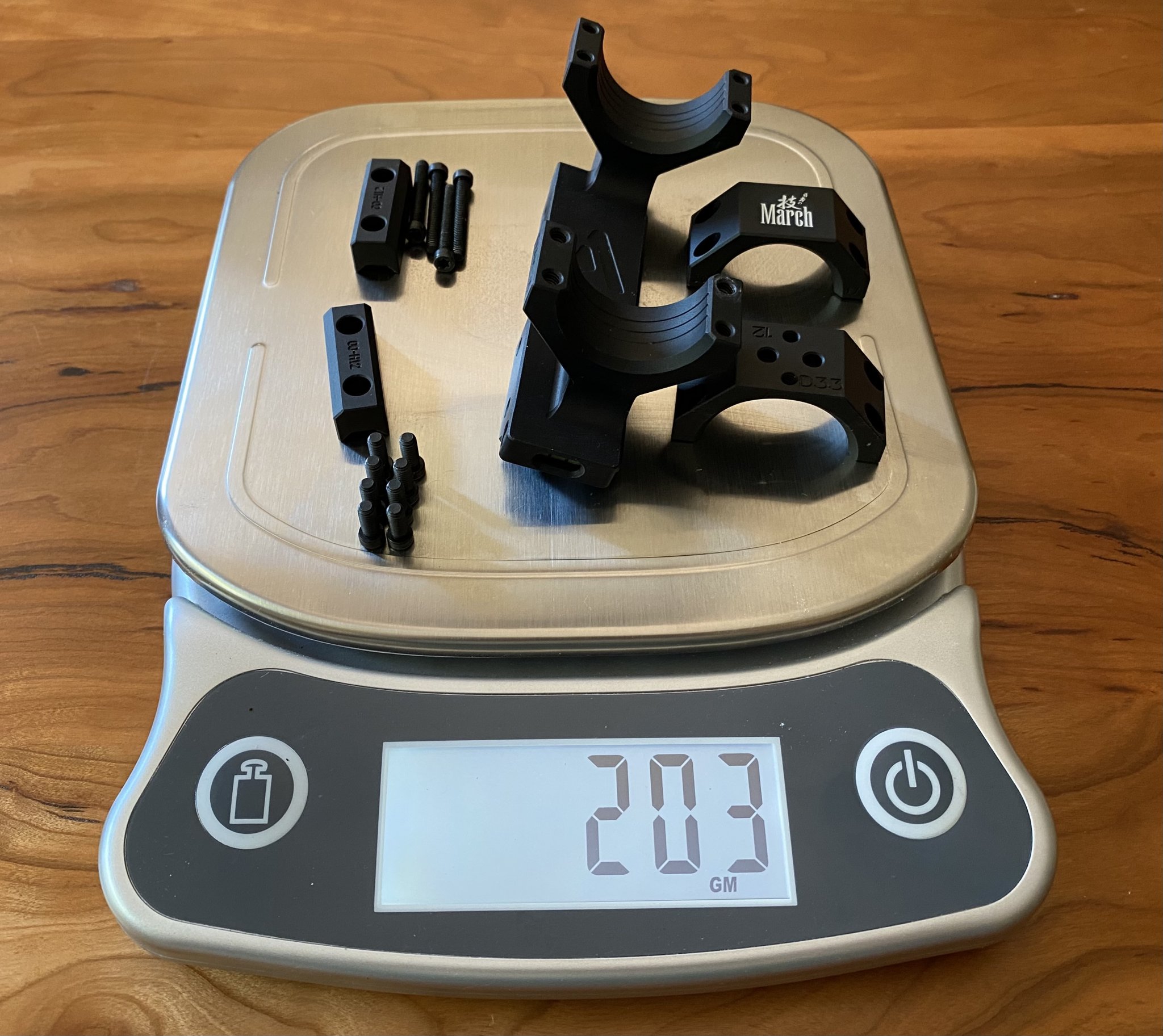

    I measured 203 grams or 7.1 oz with all the hardware included, Audere official data is about correct


    Just want to mention that the craftsmanship of this mount is excellent, a worthy mount for the March Shorty.


    smarcus

    Private
    Minuteman
    May 16, 2018
    85
    58

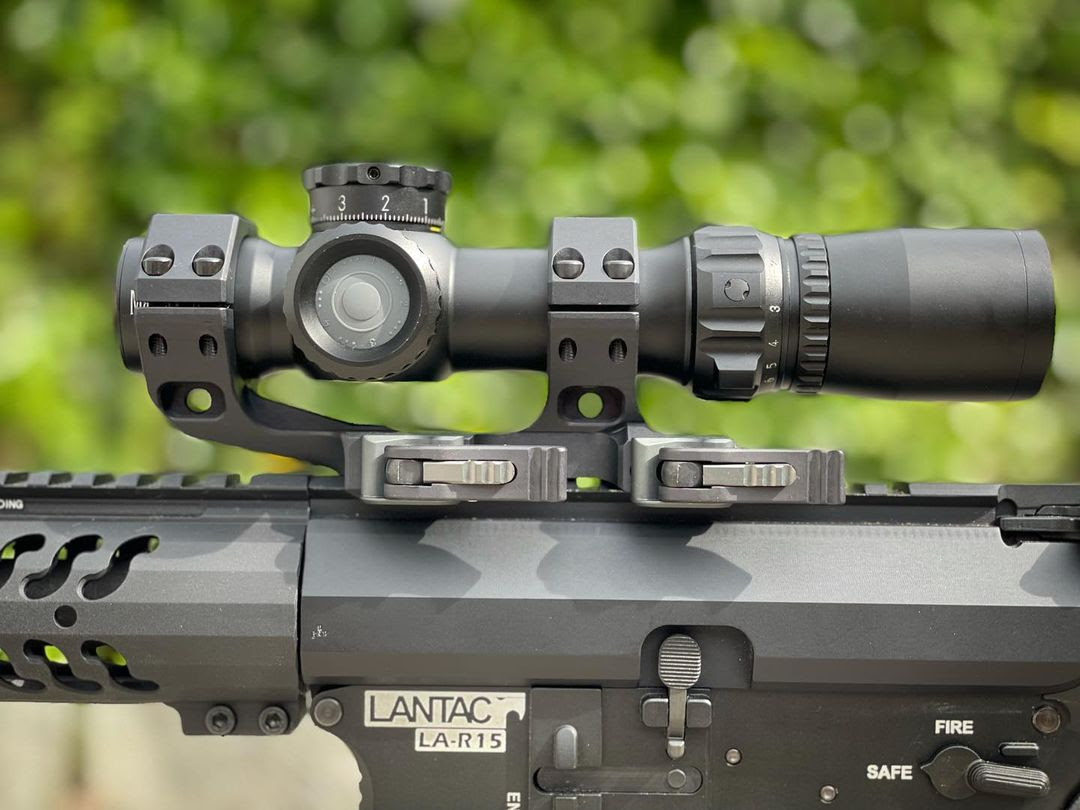

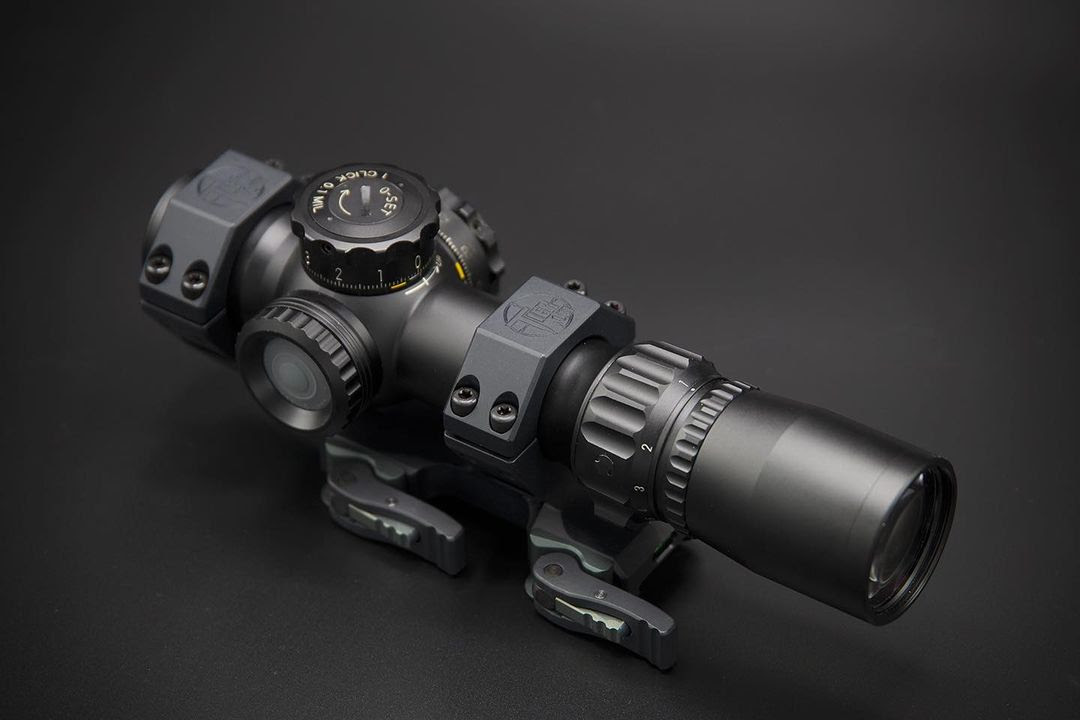

    I got this picture in my in box today from Tier1. My 1-10 is on the way and I emailed to see if the mount is real or vaporware. Added better pics.


    Attachments

    • 8A3C2362-CE2F-445A-BDA0-5F8DFBDDDFDF.jpeg
      141.2 KB · Views: 49
    • B2A8C9AB-50A1-48EF-A0F8-0D8316CDC486.jpeg
      68.1 KB · Views: 47
    Last edited:
