Scope and rail are too close, problem?

LongRange98

Private
Minuteman
Feb 20, 2022
24
7
California

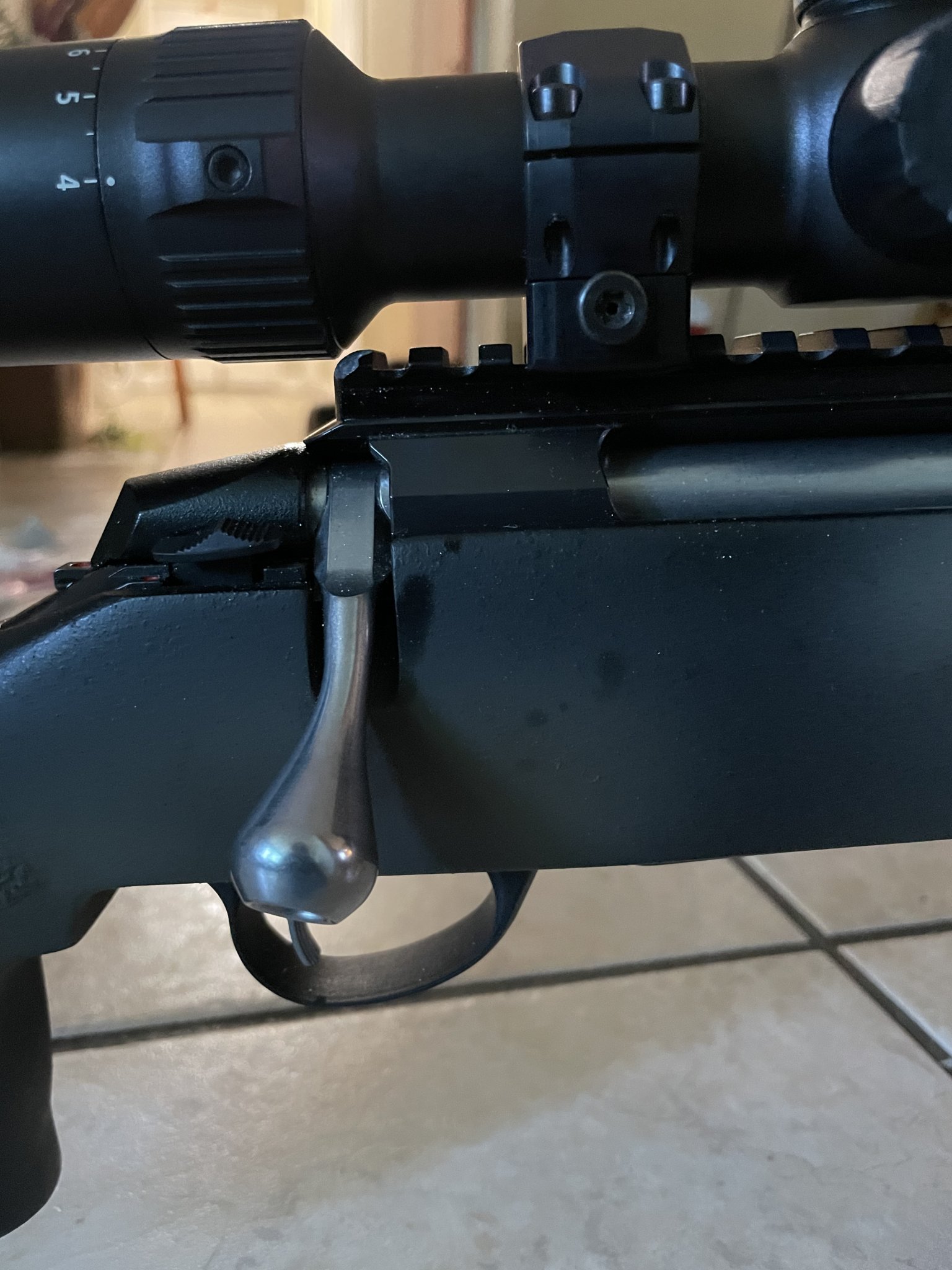

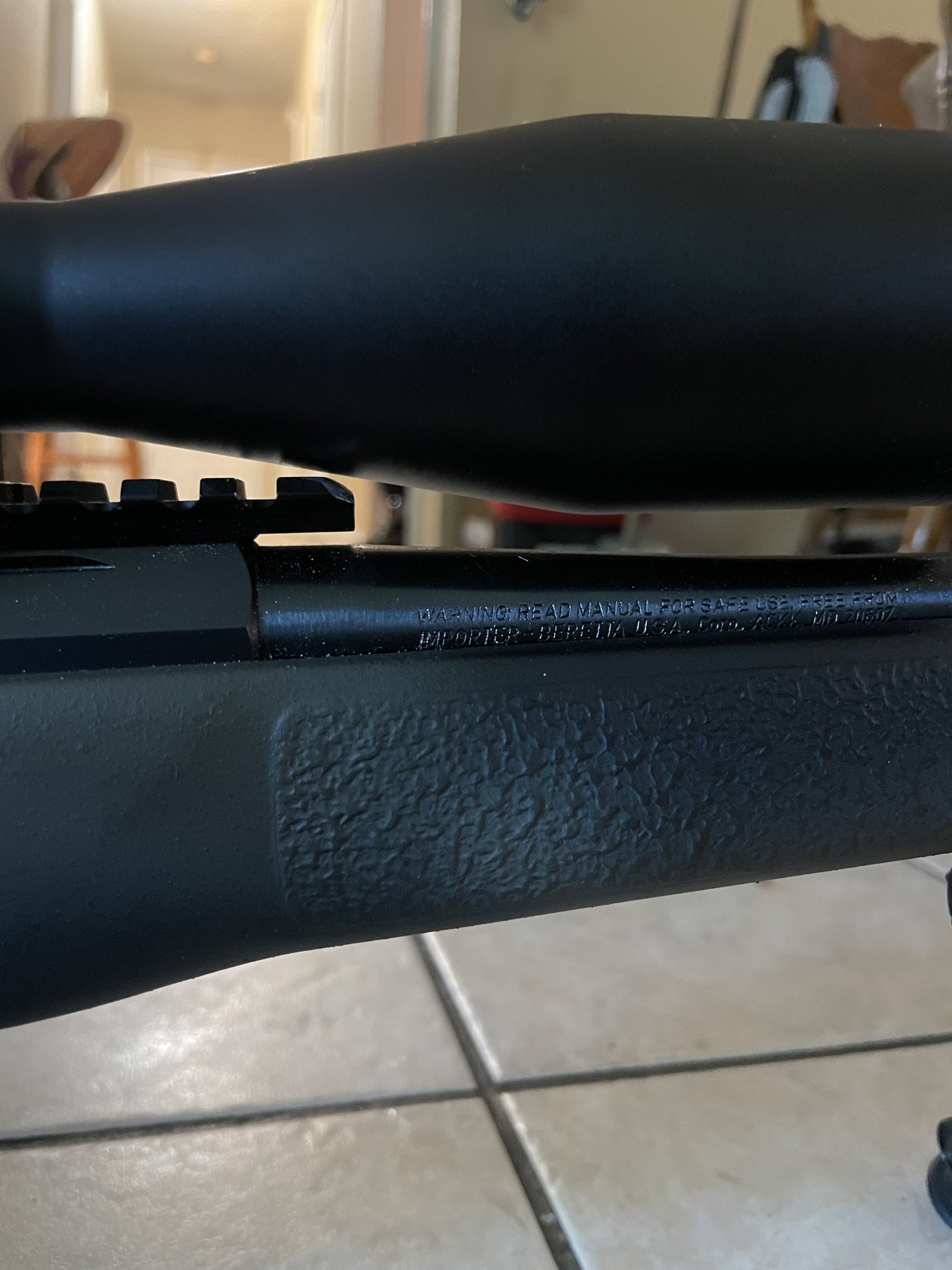

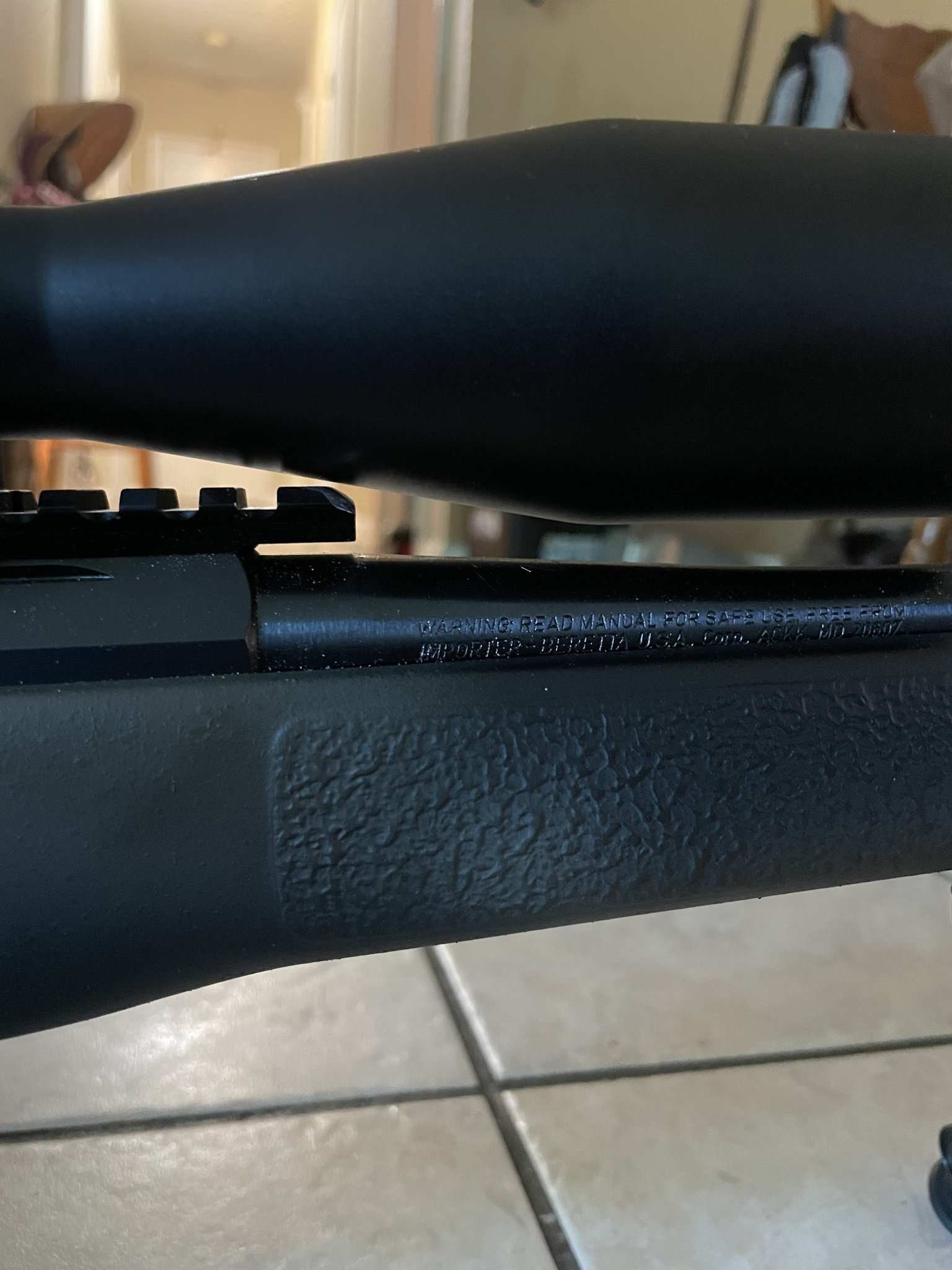

Hello all! ,I mounted a Zeiss V4 to my ext mountain tactical rail but the objective comes bloody close to the rail. I Filed off some material so I’m able to get a thick sheet of paper through. Is that good enough? Or will the recoil cause them to touch? Cartridge is .308, thank you.


Attachments

  • B4E45A7E-5B68-474D-8735-3920B1D52BAF.jpeg
    350.7 KB · Views: 92
  • 3699BF17-E78A-425B-84F9-EC5BA9EA5A5D.jpeg
    360.1 KB · Views: 94
  • 1204F085-455A-4F39-86DB-551BA532930A.jpeg
    380.9 KB · Views: 99
  • Like
Reactions: stanley_white

acudaowner

Two Star General
Full Member
Minuteman
Dec 26, 2018
8,132
6,544
ours is like that and while it all works fine I do notice as the barrel heats up I do see more and more mirage through the scope you could add a heat shield or what ever they are called . to deflect the hot air rising into the view of the scope or you could shoot slower and keep the barrel from heating up pretty much at all .

  • Like
Reactions: LongRange98

LongRange98

Private
Minuteman
Feb 20, 2022
24
7
California
You'll probably be ok with that clearance. Keep an eye on it for any signs of contact, in which case plan b is to cut the front portion of the rail off and slide the scope back a little more in the rings for some extra space.
That’s good to hear! I’ll keep an eye on it for any contact.


LongRange98

Private
Minuteman
Feb 20, 2022
24
7
California
ours is like that and while it all works fine I do notice as the barrel heats up I do see more and more mirage through the scope you could add a heat shield or what ever they are called . to deflect the hot air rising into the view of the scope or you could shoot slower and keep the barrel from heating up pretty much at all .
I didint think of that. Did you end up getting a part or making something to help?

  • Like
Reactions: acudaowner

Rob01

Cool Moderator
Staff member
Moderator
Full Member
Minuteman
Jul 9, 2001
14,019
7,820
NC
I didint think of that. Did you end up getting a part or making something to help?

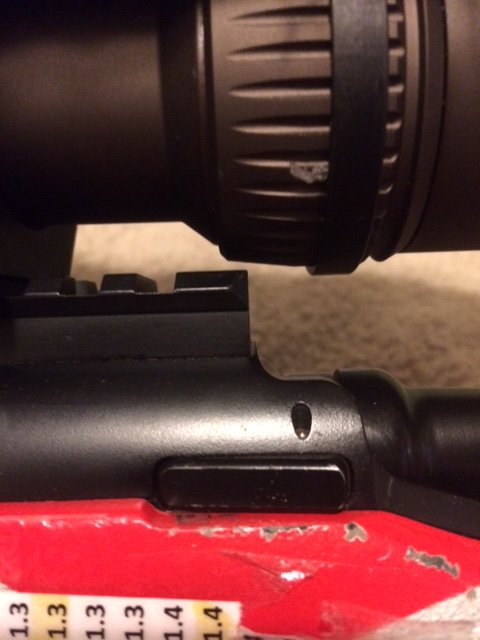

Mirage can be an issue if your scope objective is close to your barrel. Not your scope near the mount that you are asking about. Your objective is a good ways off the barrel. If you are concerned with the mount then cut the last rail section off as mentioned and you can grind down the back near the power ring. You shouldn't have an issue though with either. Here is one of my rifles and no issues.


  • Like
Reactions: LongRange98

LongRange98

Private
Minuteman
Feb 20, 2022
24
7
California
Mirage can be an issue if your scope objective is close to your barrel. Not your scope near the mount that you are asking about. Your objective is a good ways off the barrel. If you are concerned with the mount then cut the last rail section off as mentioned and you can grind down the back near the power ring. You shouldn't have an issue though with either. Here is one of my rifles and no issues.

View attachment 7963552
At least mine isn't the only one, Thanks for sharing and the info!


Pappasniper

Sergeant
Full Member
Minuteman
Nov 13, 2011
1,002
213
61
AZ
That is not even close IMHO. My 300WM can barely get a cleaning Rem wipe under it. Just barely and zero issues. You will be fine.

PB
