Back in the 2014 I got kinda similar wind roses from one scandinavian sniper. He said they got it from Ruag.

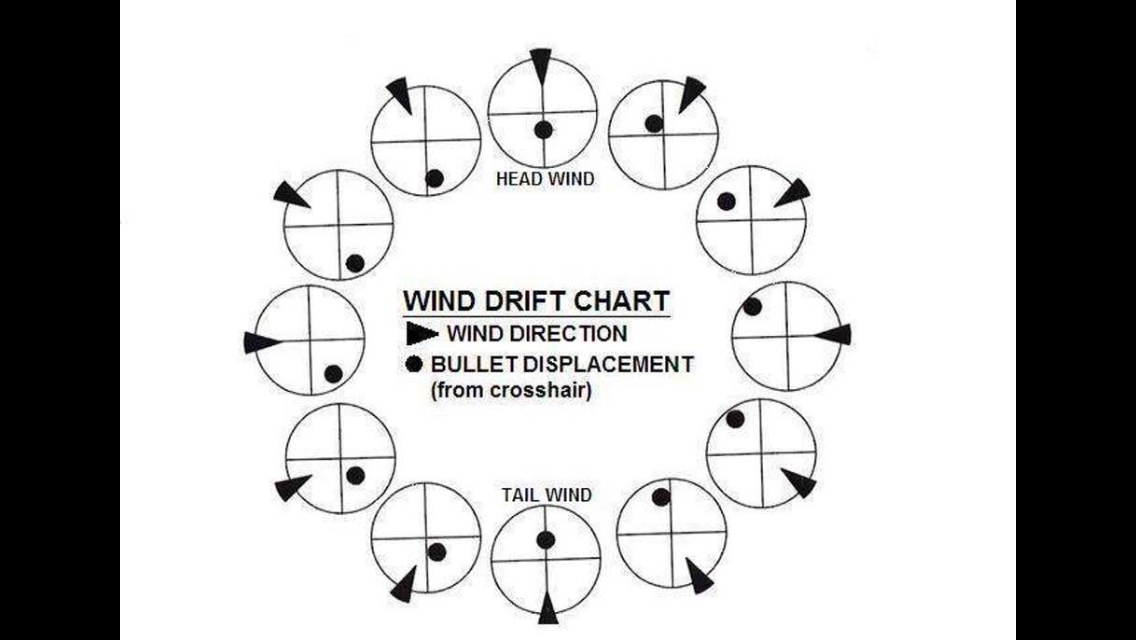

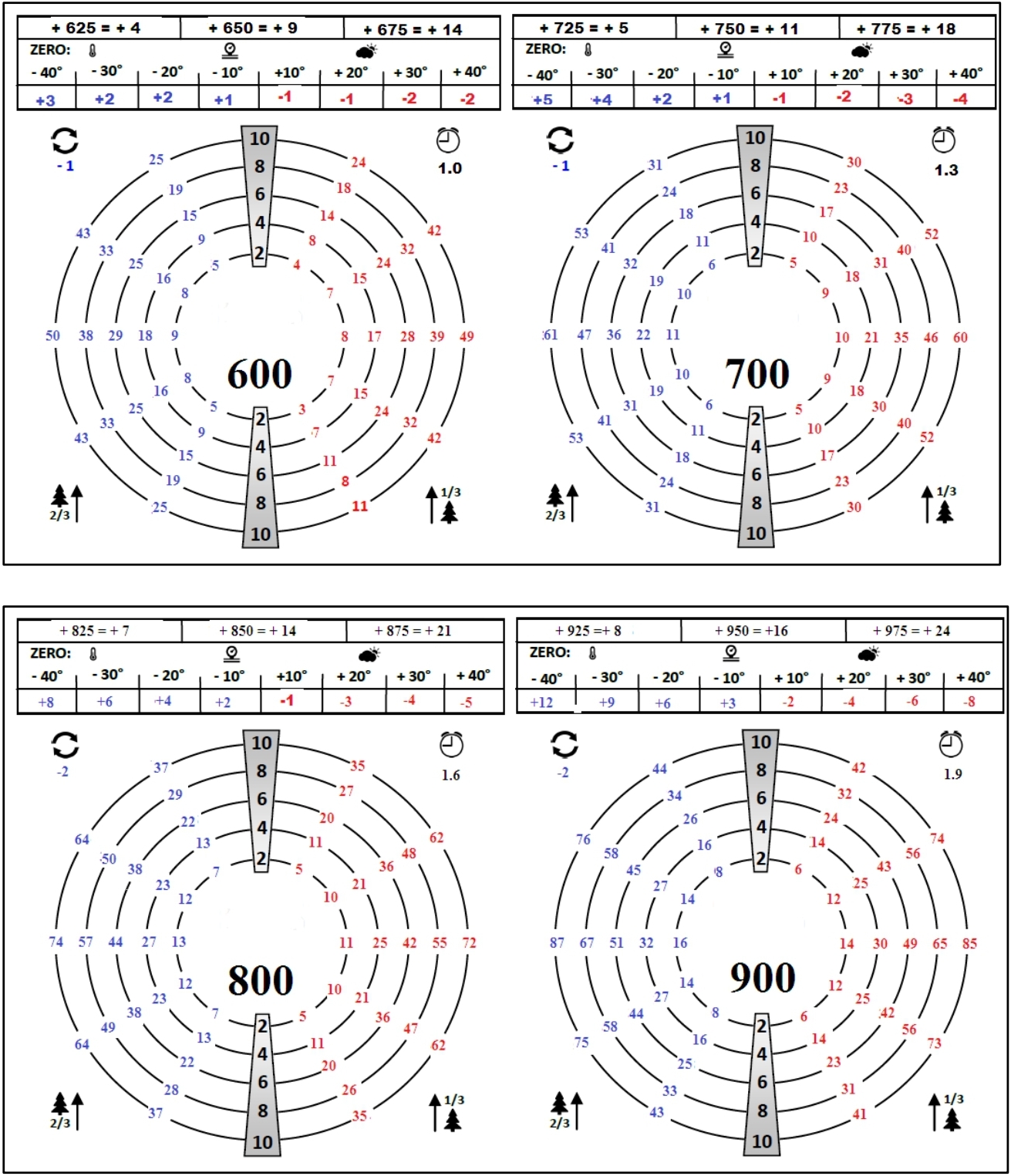

This one I made for 7,62×51 mm M80 round (147 grains if I’m not wrong).
So basicaly its almost the same. In grey area we have a wind speed in m/s. Around it we have corrections in clicks or if you divide it from 10, it will be in mils.
In the center shooter can insert they DOPE for that distance and on top you have corrections for none even distances and temperature.
Its kinda handy for new marksmen training.
This one I made for 7,62×51 mm M80 round (147 grains if I’m not wrong).
So basicaly its almost the same. In grey area we have a wind speed in m/s. Around it we have corrections in clicks or if you divide it from 10, it will be in mils.
In the center shooter can insert they DOPE for that distance and on top you have corrections for none even distances and temperature.
Its kinda handy for new marksmen training.
Last edited:
HP shooters have had versions of this for years (probably got it from the military). Usually it is something handed down for a particular ammo, unless one makes their own (made my own in Excel about 10 years ago). This is by far one of the nicest versions - and definitely the best presentation & explanation - that I've ever seen. Very cool 👍
Thanks for sharing!
I looked at these when I was making the corrected wind rose. I didn't like this idea because it only works for one rifle at these distances. Plus it was not broken into enough angles to get accurate holds. I understand they work, they were just to narrow and could not be applied across many platforms. Even in this one rifle, If you change bullet, powder or even elevation you're back at square 1 making new data that only works for 4 yardages. I just wasn't a fan.
A prime example is the 800m ring - 6mps wind coming from 11pm is 2.2 mils and 10pm is 3.8 mils. What do you do when the wind is 5mps at 10:30? It becomes to much mental math to do this quickly with these numbers. Even if you did do it, (mental process: 38-22 = 16__/2=8 __ +22 = 30, 23-13=10__/2=5__+13=18. Now i have to decide between 3.0mils and 1.8 mils. This leaves a pretty big guessing game after the mental math. What the hell do you do if the target is at 860m? I have to do this process at 800 and at 900 an then do it a 3rd time for between them.
These have merit in a place and time. (beware of the man with one gun) but they just didn't give me the precision I needed for multiple ranges with multiple guns with multiple bullets. The corrected wind rose with the Gum Mph system does this for me.
Great chart. My mind looks at it a bit off so maybe this may make sense...or not. I changed the degrees on the first ring outside of the shooter on my copy to reflect 180 degrees directly behind the shooter. As I don't intend to memorize the chart and will direct reference the chart when needed, if I turn my head past 90 degrees to the right or left, the next indicator would read 105 degrees instead of 75 degrees. As noted in the article, it may be easier for folks to memorize the 15 degree increments from behind starting at zero, the same as the front. I know, it might sound a bit off but it makes more sense to me that way as it's more positional on the perspective of the shooter.
Thanks. I thought about changing the degrees several times. I thought of what you mentioned as well. I also thought about doing 0 to 360 like a compass since that is how some ballistic apps enter it into their program. In the end I just stuck with the number needed for the math. To each thier own.
No worries. Just a comment and not trying to change anything. I like how it is divided equally down each side and I simply carried it down instead of reversing past 90 degrees. It all works and I suppose most won't pay much attention to it as the data that affects the shot begins in the next ring where the percent of wind value comes into play. As long as I know what direction I am pointing and what direction the wind is from, the specifics of what I changed on that first ring don't really matter.
