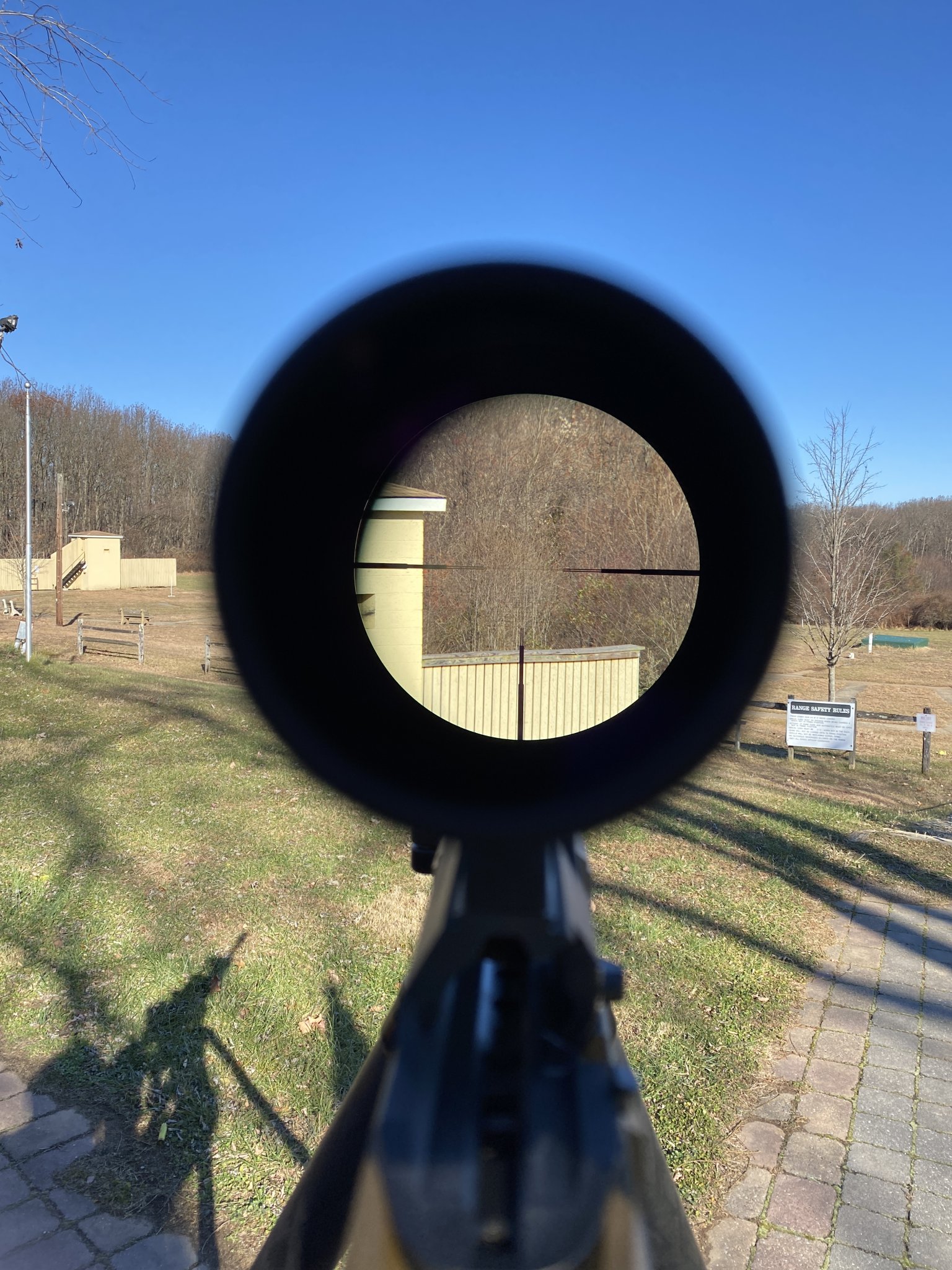

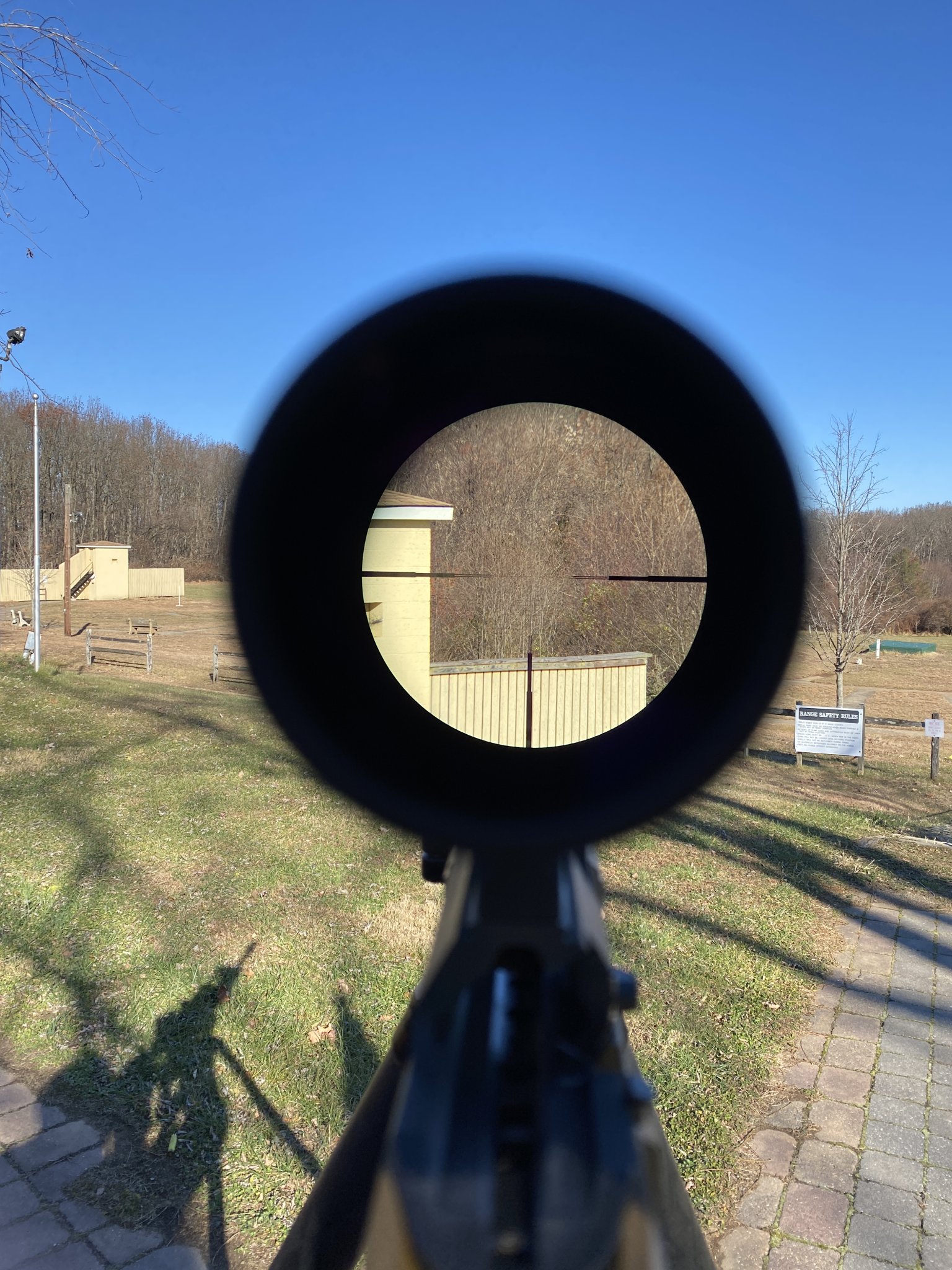

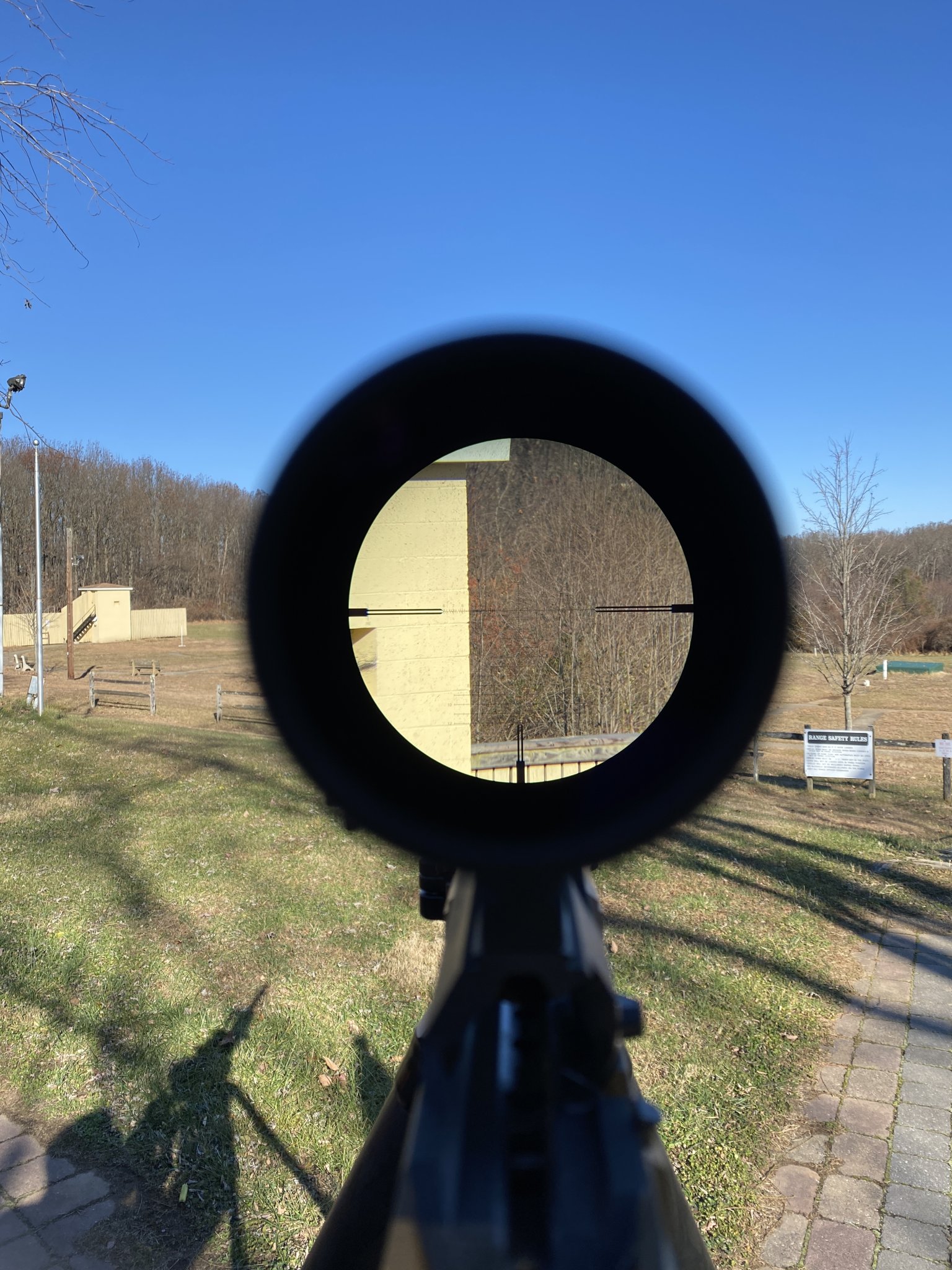

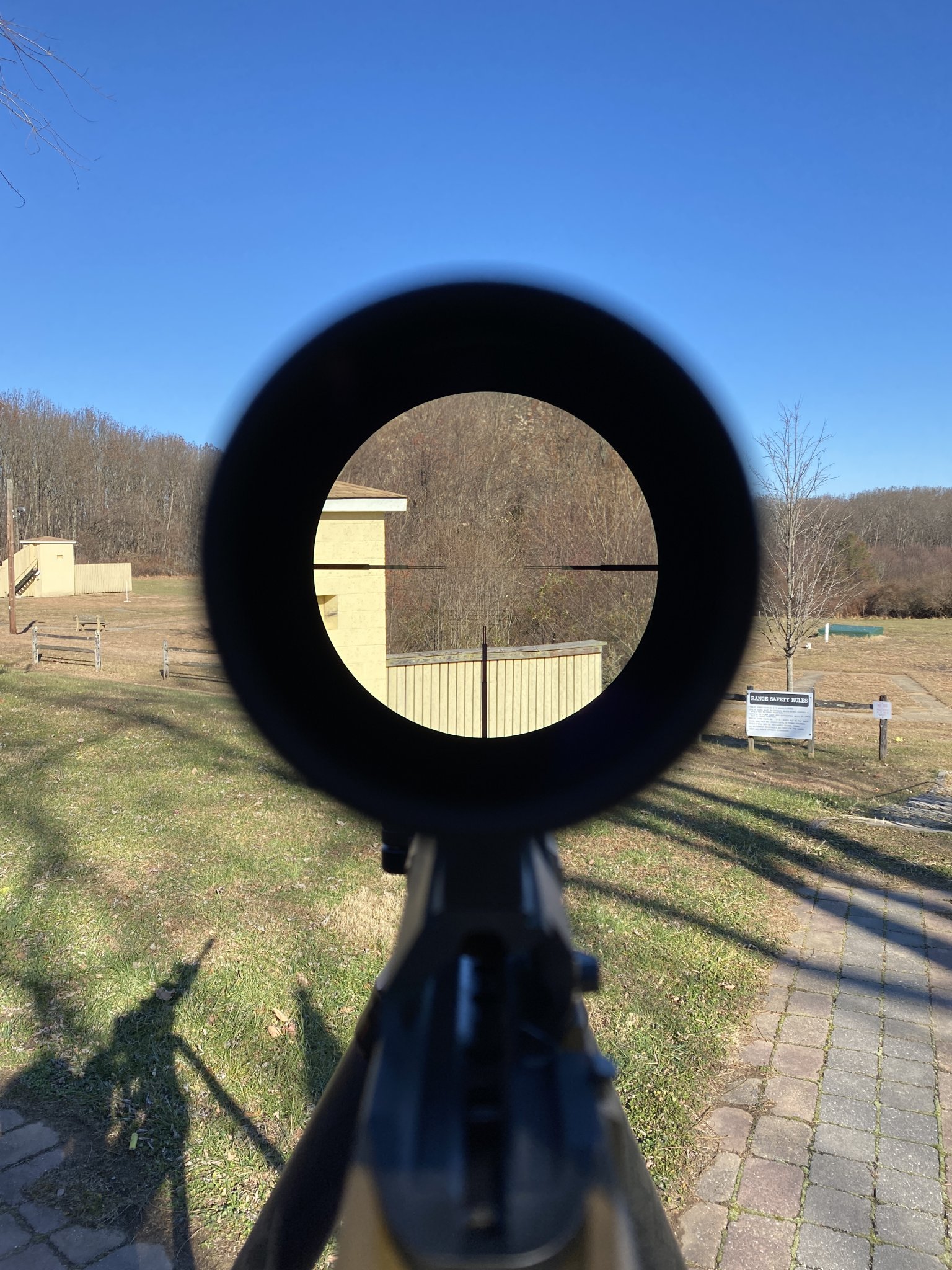

    An other set…. 9333B5FA-D199-454C-9E4B-3C5BF4A01460.jpeg1BF30CDA-6FDD-45A6-A8EE-6DA319E8A3E2.jpeg8F771497-CD7E-4B81-A45E-7C5B2CC221BB.jpeg78DDA1B8-0143-4823-A6AA-92A5DF707238.jpegCEF1D48D-B8C8-4948-8B6F-7728E9EFAF7F.jpeg3319AB86-E123-4227-87D1-18A5E88B0664.jpegF0C5FCC3-A7D5-4C4F-AAF0-1A4F3A6BCD60.jpeg45252539-4789-4113-9D08-6A7A8D4B9D04.jpeg


    TheOE800

    Supporter
    Supporter
    Full Member
    Minuteman
  • Feb 14, 2017
    1,984
    948
    USA
    What’s interesting is the pictures on posting or not coming in as clean as they actually are on the phone itself. So the compressions kind of screwing up the clarity of the pictures…
    Unavoidable unless you buy your own hosting for uncompressed images.


    GBMaryland

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 24, 2008
    2,689
    2,628
    Maryland, US

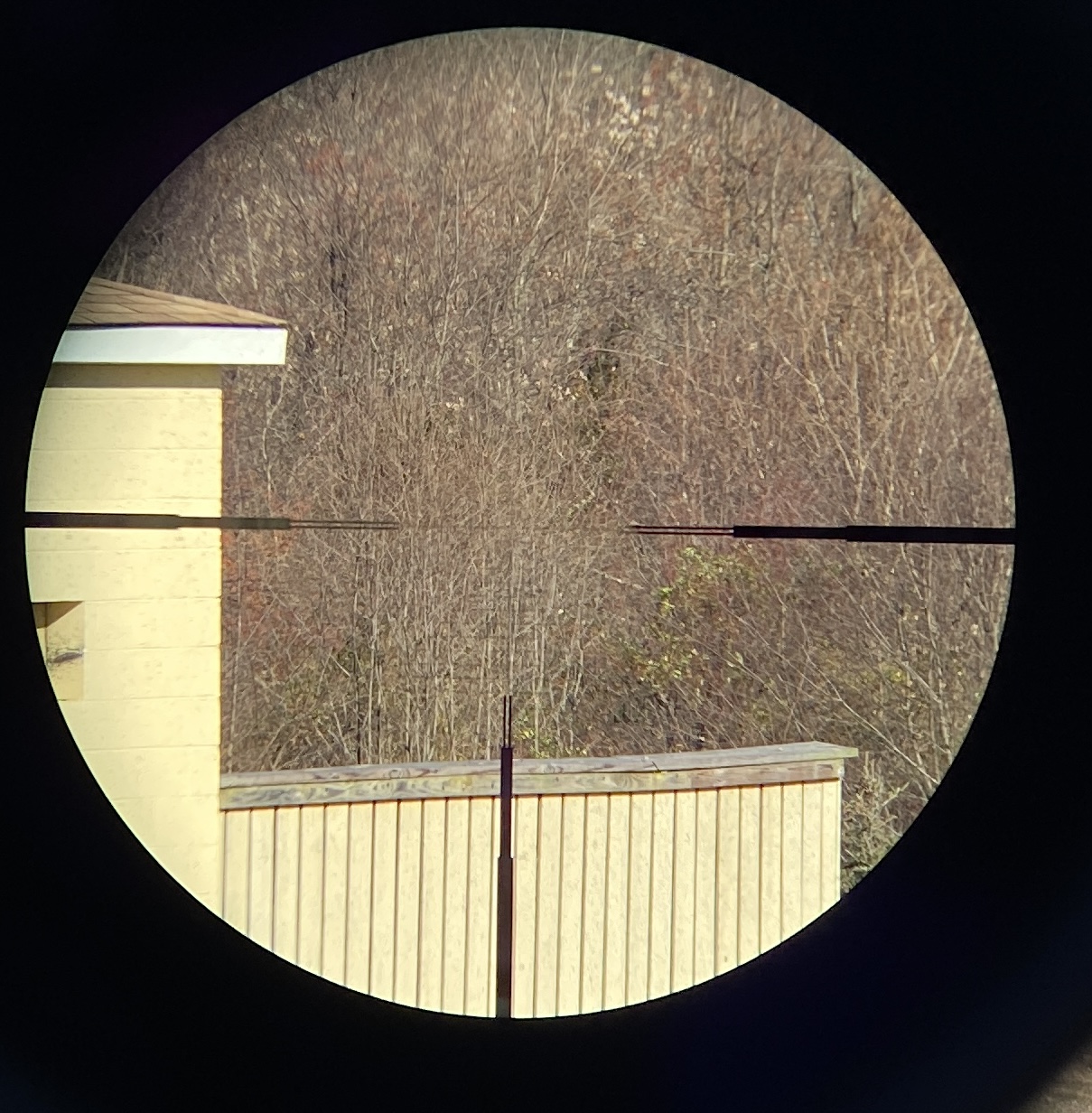

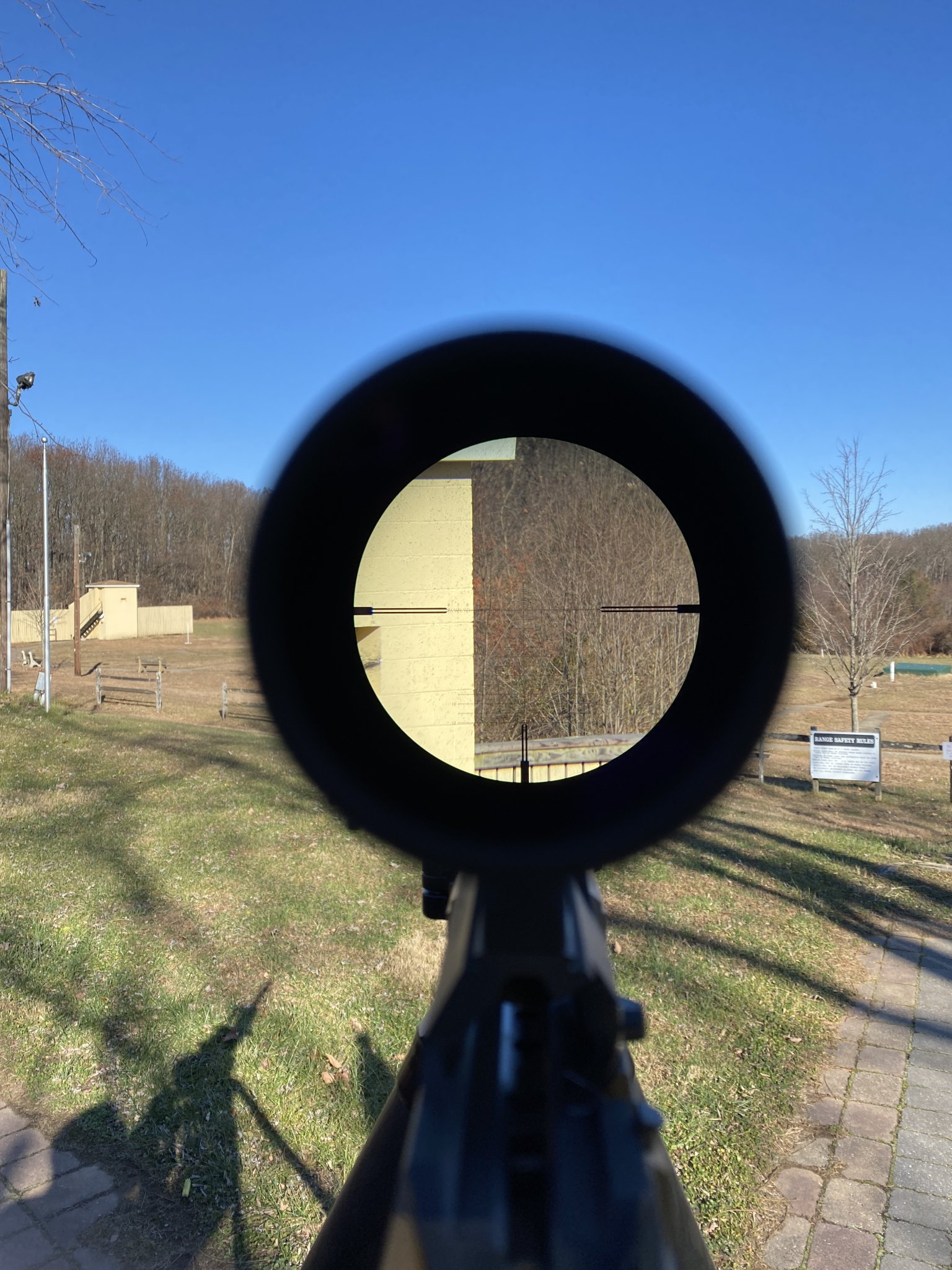

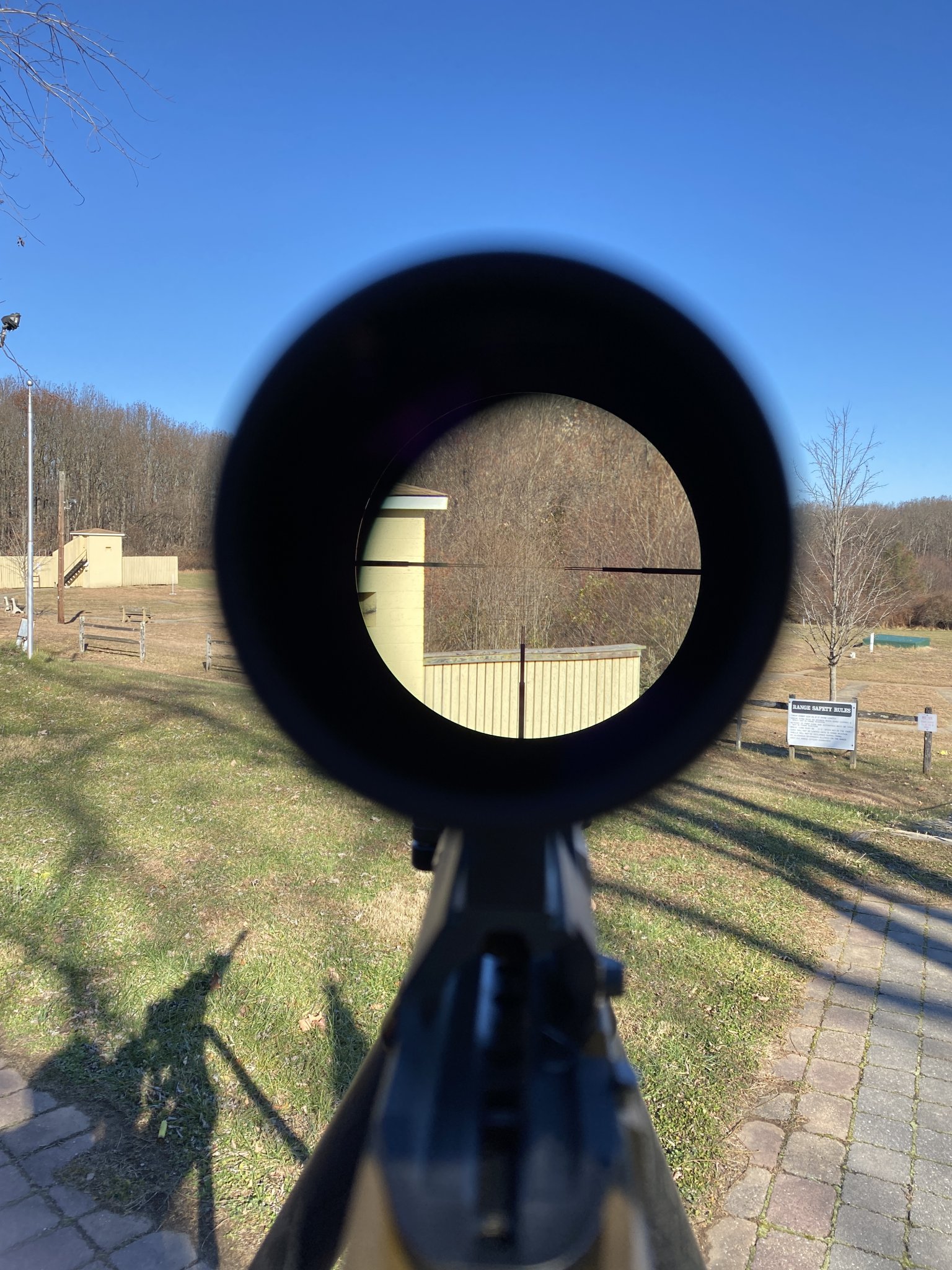

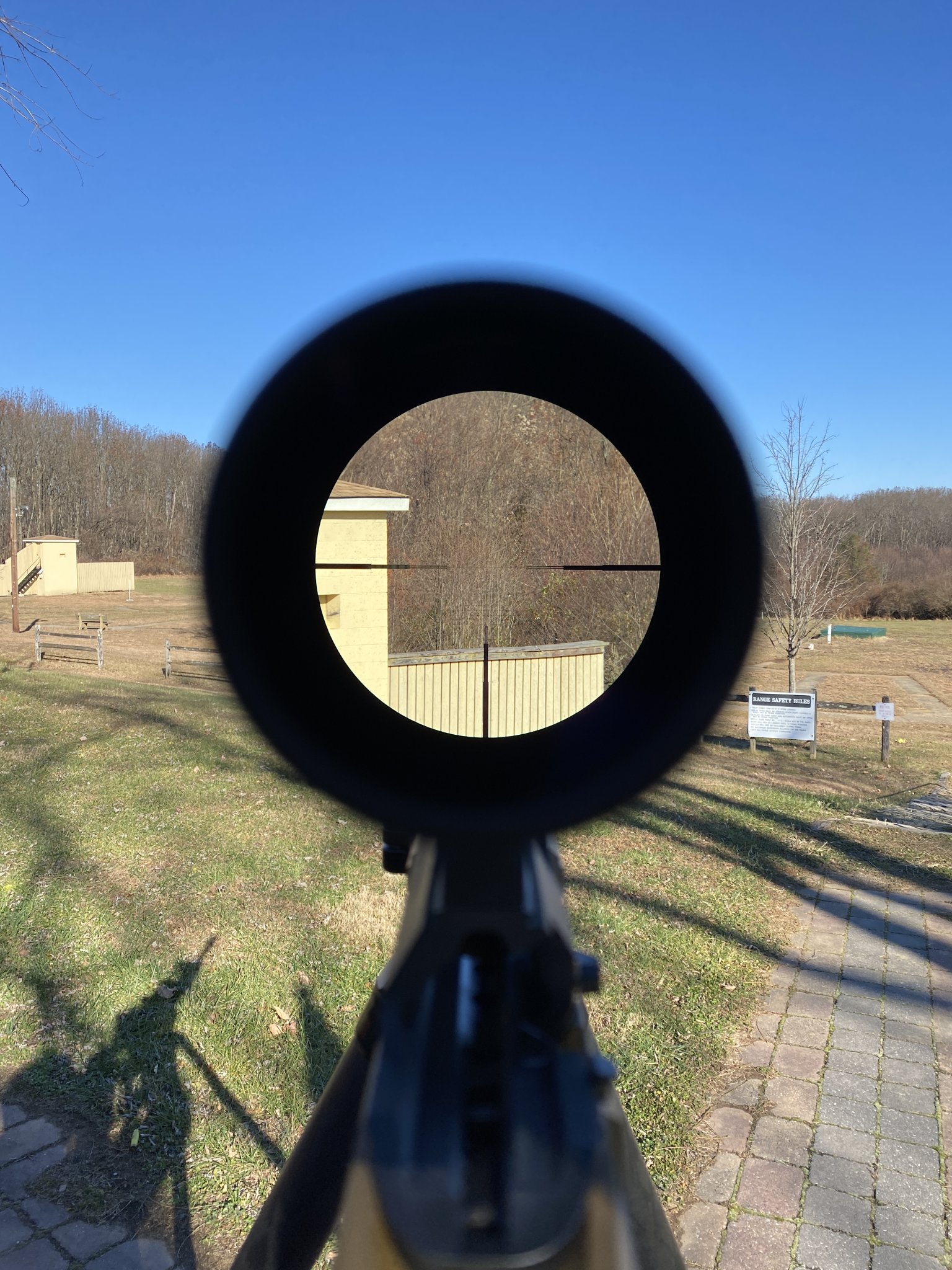

    So I did pictures through the S5, an S&B 5-25 (PM II), 4-16 (ultra clear), and 5-20 (ultra short).

    The S5 and the classic PM II are on par with each other.

    What really surprised me was that the ultra clear at magnification had some purple on the edges that was very noticeable. Don’t get me wrong, the picture was very clean, just the ultra clear glass was not as nice as the S5 subjectively due to the CA. Which makes me wanna try the S5 scope with the lower magnification… especially given that the 4-16x56 ultra clear is a big scope.

    The 5-20x56 ultra short at full magnification did not have as nice picture as the S5.

    It was definitely easier to get clean pictures through the Schmidt and bender 5-25x56 PM II.

    However, the eye box was much more forgiving on the S5, even though the eye relief on both scopes is the same according to the manuals.

    I did find that both of the 5-25 scopes appear to have comparable glass.

    • Like
    Reactions: boomslang

    GBMaryland

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 24, 2008
    2,689
    2,628
    Maryland, US
    It was mentioned by somebody in a PM to me that they understood the central body of the scope was a little on a large side and what rings had I used?

    I was able to use a sphur QDP-4006 with 1 mm on the backside and 2 mm on the front side of clearance…



    Mrhyne

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jun 25, 2014
    215
    63
    can you guys describe the turrets?
    I have been told that’s a little
    But of a let down. Only complaint I have been seeing though is that they are large.


    Tyler Kemp

    Print Daddy
    Commercial Supporter
    Full Member
    Minuteman
    Aug 23, 2008
    1,713
    1,304
    MO
    mkmachining.com
    can you guys describe the turrets?
    I have been told that’s a little
    But of a let down. Only complaint I have been seeing though is that they are large.
    I don't know how the turrets could possibly be considered a letdown?

    Real nice feel and every mil has a "more tactile click". Having felt them all, I think the Zeiss and Tangent have the best feel, and the MTC is noticeable and awesome.

    I have a video I posted in a thread I made over the LRP, if you can't find it let me know and I can link it.

    • Like
    Reactions: Mrhyne and lash

    GenericBadGuy

    Gunny Sergeant
    Full Member
    Minuteman
    Supporter+
    Dec 5, 2020
    910
    341
    Minnesota
    can you guys describe the turrets?
    I have been told that’s a little
    But of a let down. Only complaint I have been seeing though is that they are large.
    Yeah, I echo Tyler's comments. The only issue with the turrets is the sheer size. The actual function is very good, very distinct tactile click. Not spongy at all.

    Some people get stuck on the turret having 12 mils instead of 10 mils per rotation but that really is a personal thing and several high end scopes don't have 10 mils per revolution anyway so 🤷‍♂️.

    • Like
    Reactions: Mrhyne and lash

    Sgp12345

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 17, 2021
    379
    143
    CA
    I think this is one of the nicest looking scopes!


    Glassaholic

    Send it!
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Nov 30, 2012
    6,031
    5,672
    Panhandle, FL
    So I did pictures through the S5, an S&B 5-25 (PM II), 4-16 (ultra clear), and 5-20 (ultra short).

    The S5 and the classic PM II are on par with each other.

    What really surprised me was that the ultra clear at magnification had some purple on the edges that was very noticeable. Don’t get me wrong, the picture was very clean, just the ultra clear glass was not as nice as the S5 subjectively due to the CA. Which makes me wanna try the S5 scope with the lower magnification… especially given that the 4-16x56 ultra clear is a big scope.

    The 5-20x56 ultra short at full magnification did not have as nice picture as the S5.

    It was definitely easier to get clean pictures through the Schmidt and bender 5-25x56 PM II.

    However, the eye box was much more forgiving on the S5, even though the eye relief on both scopes is the same according to the manuals.

    I did find that both of the 5-25 scopes appear to have comparable glass.
    I am unfamiliar with the ultra “clear”, 4-16x56 sounds more like the ultra bright, is that what you meant? If so I didn’t know the ultra bright struggled so much with CA.

    Sounds like Zeiss went all out with their entry into FFP long range scopes, hopefully Swaro, Leica and Blaser will follow suit. Been hoping and praying for the Blaser 4-20x58 to come out with effective Christmas tree reticle and full travel tactile turrets - with Minox being a sister company (to Blaser) it wouldn’t be too hard.

    I kind of wish this Zeiss LRP was a 3.6-18x56, there’s just too much competition in the 50mm market in this mag range. ZCO 4-20, Schmidt 3-20 US, March 4.5-28 and Kahles 3.5-18 all deliver alpha class quality.

    Curious to see how ILya’s upcoming review of 50mm scopes turns out and how this LRP stacks up.

    • Like
    Reactions: lash

    GBMaryland

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Feb 24, 2008
    2,689
    2,628
    Maryland, US
    Whoops. Yep, ultra bright.

    Heh. Old brain ain’t what it used to be while posting from the road!

    I think the CA is because of the extra light transmission… it wasn’t horrible, but I suspect it’s the trade off with having 96% transmission glass.

    • Like
    Reactions: Glassaholic

    ma smith

    Major Hide Member
    Full Member
    Minuteman
  • Sep 29, 2020
    1,249
    800
    Man if those turrets dont work better than they look, somebody at zeiss HQ ... 🤡🤔


    Glassaholic

    Send it!
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Nov 30, 2012
    6,031
    5,672
    Panhandle, FL
    Time to test out Zeiss warranty

    How does the zero set work? Any way to micro adjust alignment after loosening the set screws?

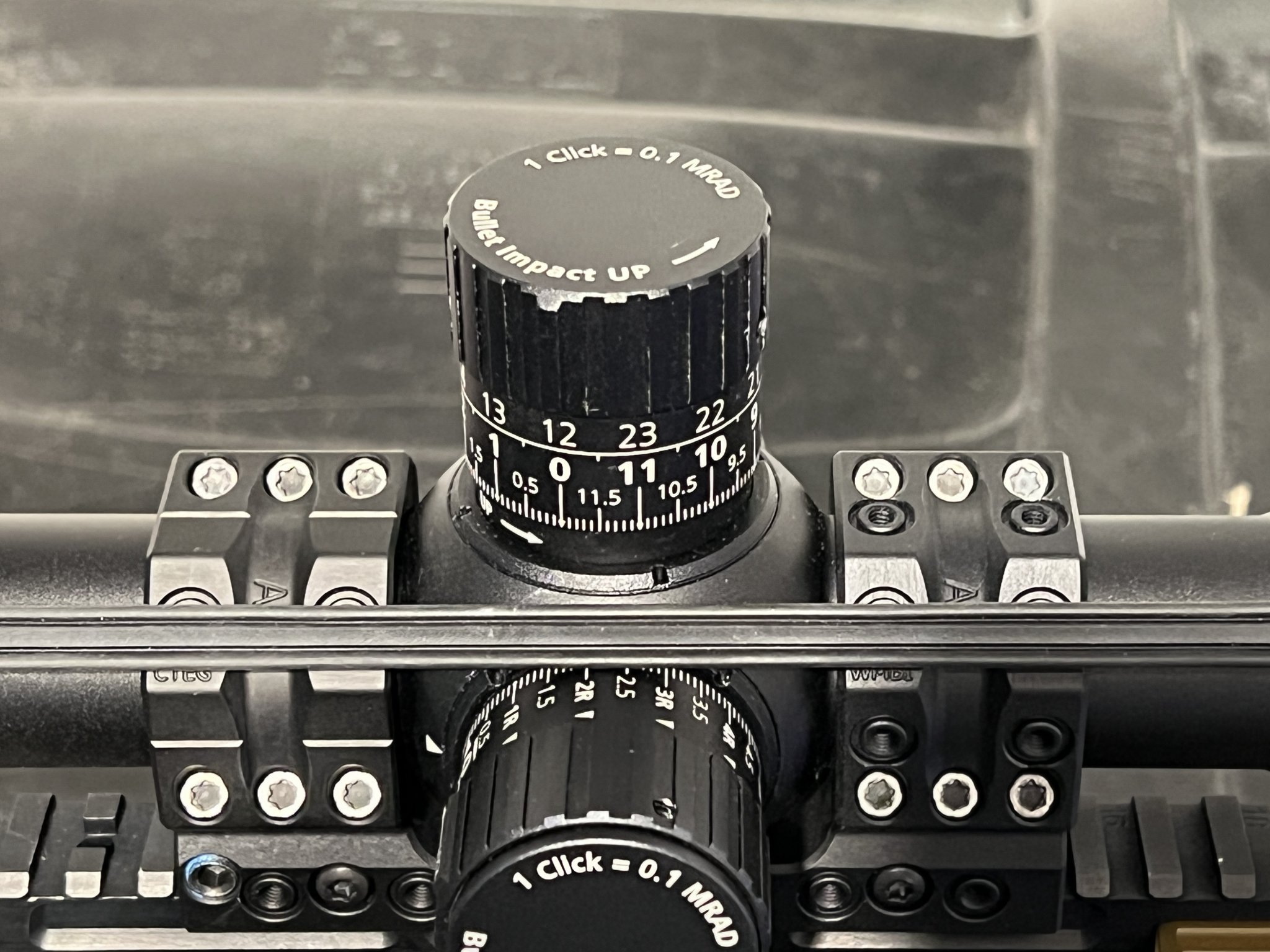

    PS - I'm not a fan of tall turrets, but I do like how they printed their numbers with bold full mil values and thin 1/2 mil marks and 2nd rev numbering, just wish they would have shaved off half of the knurling up top.


    Tritiumdials

    Sergeant of the Hide
    Full Member
    Minuteman
    Aug 29, 2020
    446
    489
    CONUS
    How does the zero set work? Any way to micro adjust alignment after loosening the set screws?

    PS - I'm not a fan of tall turrets, but I do like how they printed their numbers with bold full mil values and thin 1/2 mil marks and 2nd rev numbering, just wish they would have shaved off half of the knurling up top.

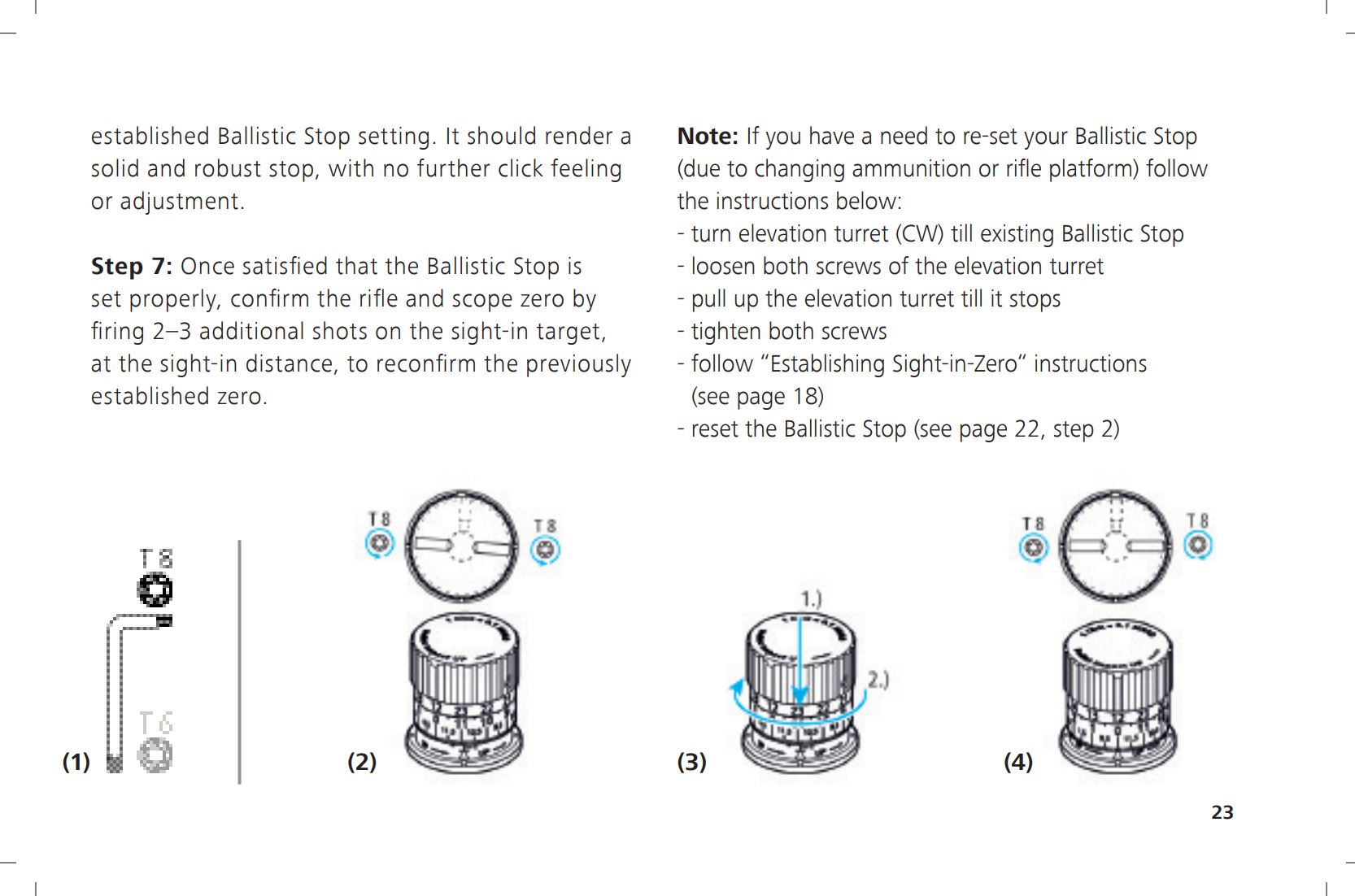

    Negative, the cap rests into a machined channel exactly at 0 (that's what it feels like).

    Aaaand the warranty department is observing a holiday schedule.


    Attachments

    • turddets.JPG
      175.8 KB · Views: 76
    • Haha
    Reactions: Huskydriver

    Glassaholic

    Send it!
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Nov 30, 2012
    6,031
    5,672
    Panhandle, FL
    Negative, the cap rests into a machined channel exactly at 0 (that's what it feels like).

    Aaaand the warranty department is observing a holiday schedule.
    I see now, at 0 it is fine, but after moving it beyond zero it seems to be off. I'm assuming you just received the scope, you should contact the dealer and ask for an exchange, many Hide dealers give about 14 days to return, just a thought instead of going through Zeiss warranty.

    • Like
    Reactions: Nik H and lash

    Nik H

    Constantly Learning
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 22, 2014
    9,768
    11,614
    Small town New England
    I see now, at 0 it is fine, but after moving it beyond zero it seems to be off. I'm assuming you just received the scope, you should contact the dealer and ask for an exchange, many Hide dealers give about 14 days to return, just a thought instead of going through Zeiss warranty.
    I would be doing exactly that

    • Like
    Reactions: lash

    Huskydriver

    Not here for a long time but here for a good time
    Supporter
    Full Member
    Minuteman
    Apr 17, 2018
    6,159
    11,376
    SLC, Utah
    I see now, at 0 it is fine, but after moving it beyond zero it seems to be off. I'm assuming you just received the scope, you should contact the dealer and ask for an exchange, many Hide dealers give about 14 days to return, just a thought instead of going through Zeiss warranty.
    I dunno of a single vendor that will let you return a scope once it's been mounted in rings* if they can tell 🤣


    ma smith

    Major Hide Member
    Full Member
    Minuteman
  • Sep 29, 2020
    1,249
    800
    Good reason too check your zero alignment right away 😐

    Do zeiss scopes caps just not allow fine correction? That would be annoying.


    jinxx4ever

    Just Cruising
    Supporter
    Full Member
    Minuteman
  • Sep 26, 2013
    2,072
    4,696
    Nebraska
    I see now, at 0 it is fine, but after moving it beyond zero it seems to be off. I'm assuming you just received the scope, you should contact the dealer and ask for an exchange, many Hide dealers give about 14 days to return, just a thought instead of going through Zeiss warranty.
    other than taking mine out of the box to take a look at it, haven't had a chance to use it. Looked to day, sure enough , lands smack dab in the middle of the marks to each side. I'll b giving tyler a holler later today


    GenericBadGuy

    Gunny Sergeant
    Full Member
    Minuteman
    Supporter+
    Dec 5, 2020
    910
    341
    Minnesota

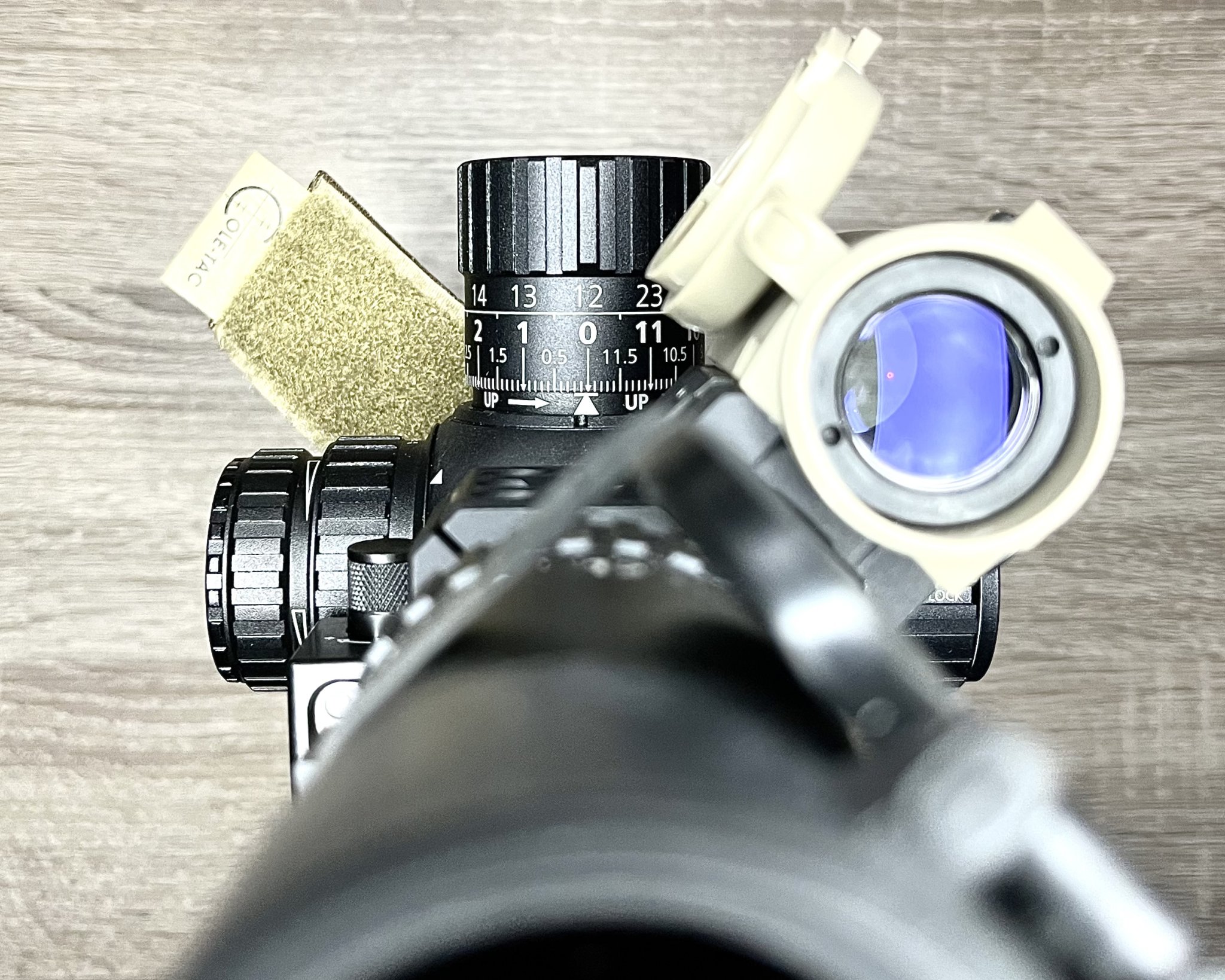

    Unfortunately my windage turret has that problem sitting offset in the middle of the turret indication marks.

    Gonna need to hit up Zeiss Sporting division to let them know someone is fucking up quality control.


    Bangin

    Sergeant of the Hide
    Full Member
    Minuteman
    Feb 23, 2020
    126
    47
    Kyle brown says when you go
    To zero it, you can line the marks up. You loosen the screws, pull the cap all the way up, then push the turret all the way down while turning it clockwise till you hit the stop. Then you should be able to line them up. Tighten the screws. You have to hold the turret while doing so. I received this after I sent the scope back.

    • Like
    Reactions: Secant

    secondofangle2

    Online Training Member
    Full Member
    Minuteman
    Jul 3, 2017
    830
    450
    I really like mine. Taking it to the West Desert Sunday, will report back.


    ma smith

    Major Hide Member
    Full Member
    Minuteman
  • Sep 29, 2020
    1,249
    800

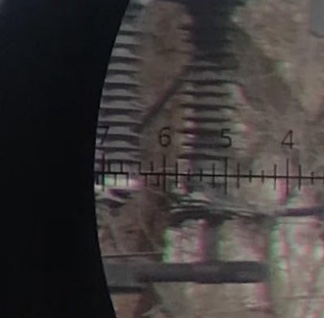

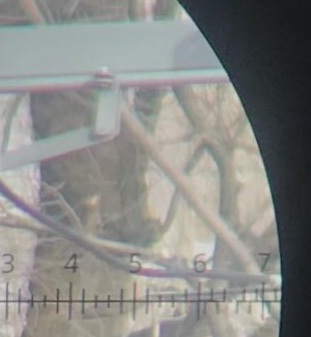

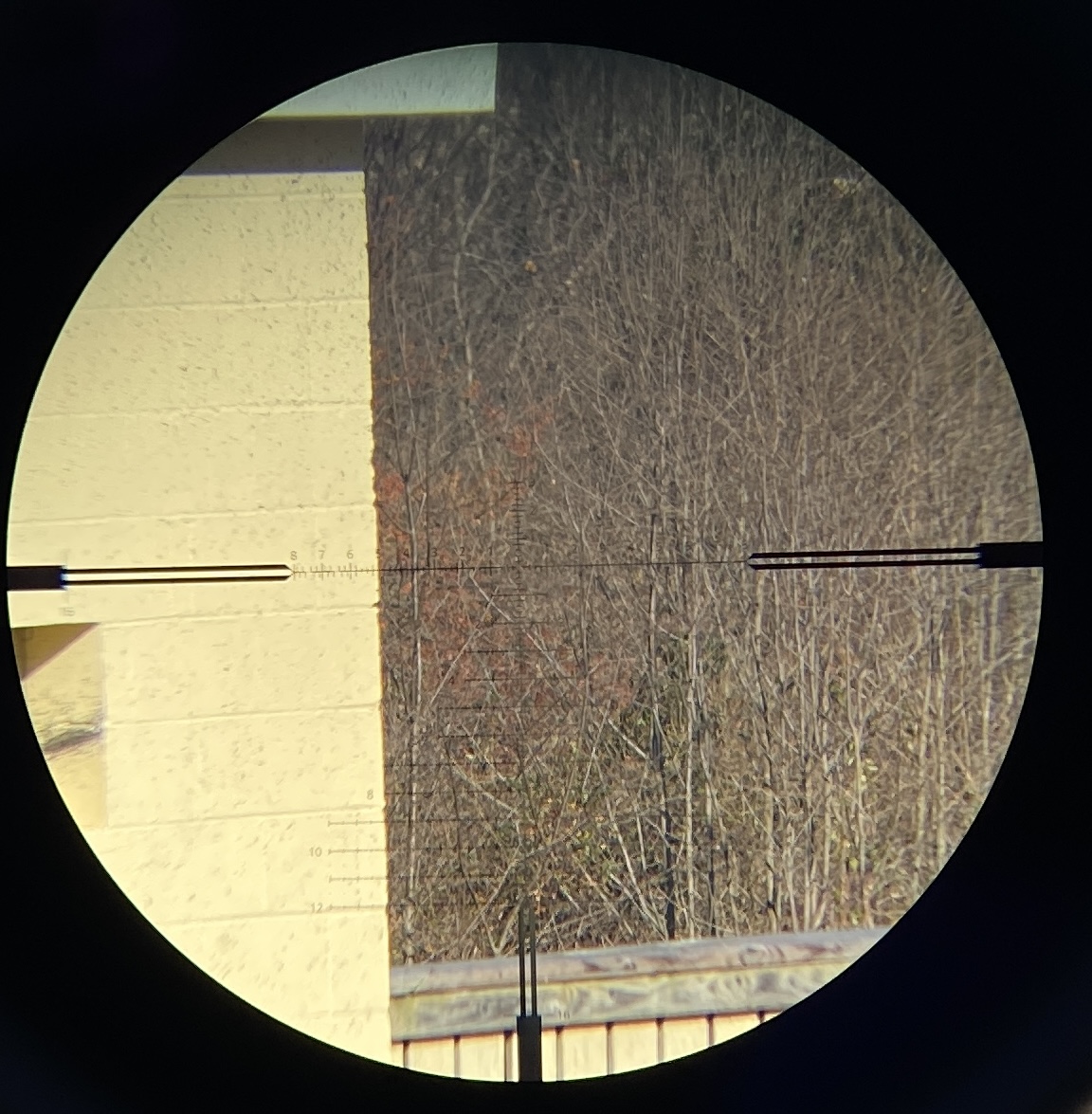

    I really like mine. Taking it to the West Desert Sunday, will report back.View attachment 7778890
    Edge clarity looks remarkable, what power is this at?

    Zeiss rendition here has v good viewability out 6-7 mill off centre.

    True the tiniest bit of color fringing, but this just belies the high IQ.

    the overall rendition is excellent.

    Looking forward to more real world testing. 👍


    secondofangle2

    Online Training Member
    Full Member
    Minuteman
    Jul 3, 2017
    830
    450

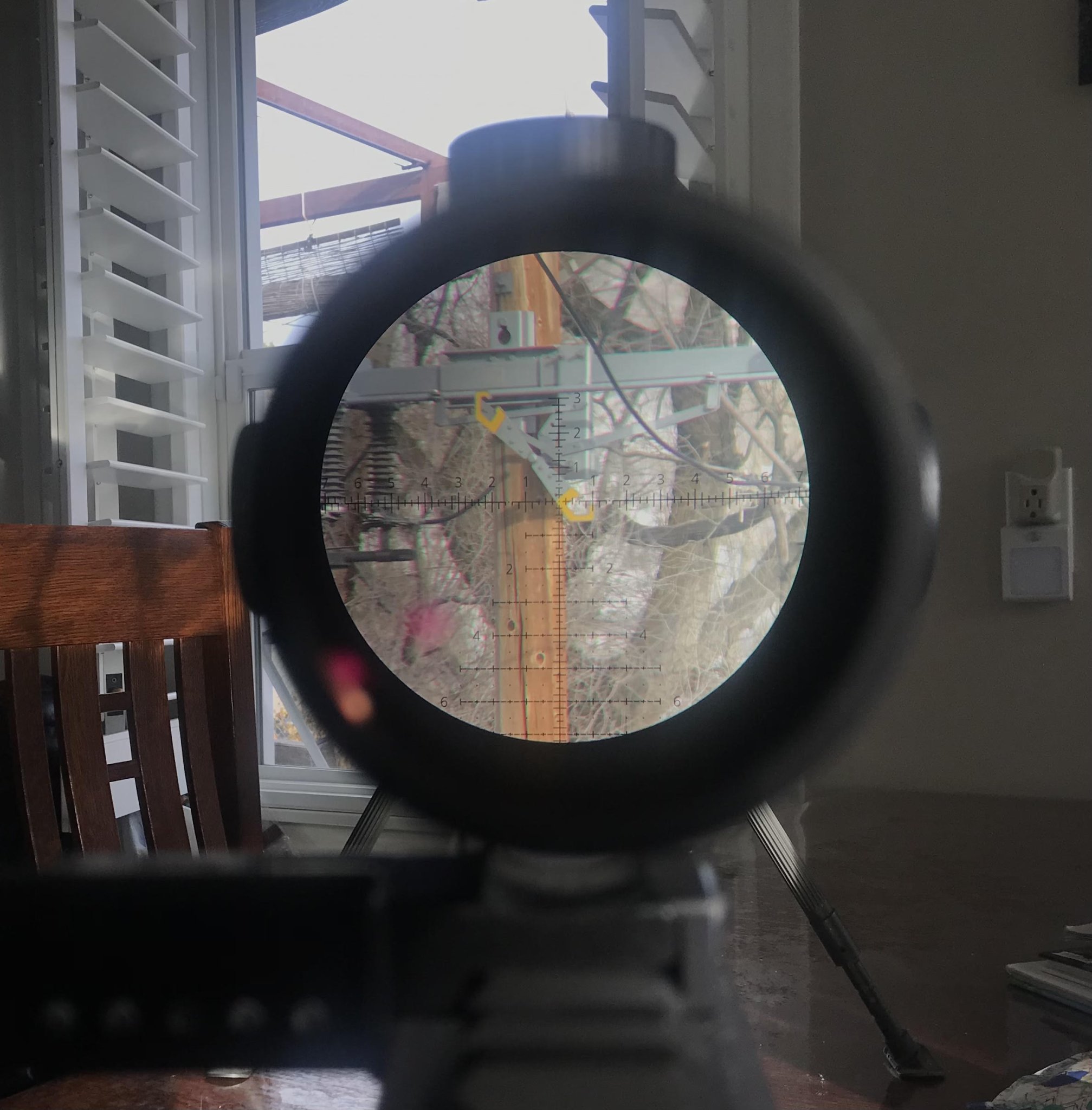

    full power, telephone pole about 150 yards away. Photo is blurry a bit b/c it was hard to hold, center the phone while focusing and touching for the picture

    • Like
    Reactions: ma smith

    Pinkes

    Private
    Full Member
    Minuteman
    Sep 26, 2013
    11
    4
    I am unfamiliar with the ultra “clear”, 4-16x56 sounds more like the ultra bright, is that what you meant? If so I didn’t know the ultra bright struggled so much with CA.

    Sounds like Zeiss went all out with their entry into FFP long range scopes, hopefully Swaro, Leica and Blaser will follow suit. Been hoping and praying for the Blaser 4-20x58 to come out with effective Christmas tree reticle and full travel tactile turrets - with Minox being a sister company (to Blaser) it wouldn’t be too hard.

    I kind of wish this Zeiss LRP was a 3.6-18x56, there’s just too much competition in the 50mm market in this mag range. ZCO 4-20, Schmidt 3-20 US, March 4.5-28 and Kahles 3.5-18 all deliver alpha class quality.

    Curious to see how ILya’s upcoming review of 50mm scopes turns out and how this LRP stacks up.
    Also wondering when his (Ilya) review of this scope will be completed?!🤞🏻


    sharac

    Sergeant
    Full Member
    Minuteman
    Dec 8, 2008
    530
    295
    46
    Slovenia
    In Hensoldt manual it says miss-alignment is normal and expected... So i guess for the amount of $$$ its not a deficency but a feature :)....

    /sarcasm off


    secondofangle2

    Online Training Member
    Full Member
    Minuteman
    Jul 3, 2017
    830
    450
    Can somebody explain to me why they use oddball Torx sizes and DIFFERENT ONES FOR WINDAGE AND ELEVATION (T6 and T8 respectively)?

    The different sizes make no sense, and I didn't have T6 or T8 in my range bag the other day.


    Baron23

    Check 6
    Supporter
    Full Member
    Minuteman
  • Mar 19, 2020
    3,616
    4,089
    69
    Maryland
    Can somebody explain to me why they use oddball Torx sizes and DIFFERENT ONES FOR WINDAGE AND ELEVATION (T6 and T8 respectively)?

    The different sizes make no sense, and I didn't have T6 or T8 in my range bag the other day.
    On the Zeiss???
