223 Ackley Improved

doorgunner6

Private
Full Member
Minuteman
Feb 13, 2017
1
0
27in.krieger,stiller tac30 action,calvin elite trigger,MDS chassis,,lapau virgin brass,cci450 primer...
fire forming @ 24.0 varget using 75 AMAX and 80 berger VLD...both look promicing ,same loads now @ once fired cases !!!!
only 75 rnds.down new weapon...time will tell...now going to 25g. 0f Varget...


knockemdown

suburban redneck
Full Member
Minuteman
Apr 10, 2007
1,228
25
Deviant Tactical 223AI
26",1:7.7 Bartlein
by Stuteville Precision

FF load
75Amax @ 2.450"
25.0gr TAC
WSR primers
virgin Win brass

3015fps and VERY accurate



  • Like
Reactions: Huckleberry75

Geno C.

Dirty Carnie
Full Member
Minuteman
  • Oct 24, 2007
    6,877
    15,770
    39
    Wautoma, WI
    I run 2, 223ai and they both shoot 80 amax and 80 vlds over 25.0gr Varget. One is a 30" Brux and the other is a 20" Krieger. I've run them up to 25.7 when I found pressure and they both shot best at 25.0

    .100" free bore
    Laupa brass
    Rem 7 1/2

    • Like
    Reactions: DIBBS and nrspence

    Dogsniper

    Full Member
    Full Member
    Minuteman
  • Jul 25, 2014
    1,780
    198
    Wyoming
    I run 2, 223ai and they both shoot 80 amax and 80 vlds over 25.0gr Varget. One is a 30" Brux and the other is a 20" Krieger. I've run them up to 25.7 when I found pressure and they both shot best at 25.0

    .100" free bore
    Laupa brass
    Rem 7 1/2


    What differece in velocity between the two barrel lengths?

    • Like
    Reactions: 502Chevelle

    Geno C.

    Dirty Carnie
    Full Member
    Minuteman
  • Oct 24, 2007
    6,877
    15,770
    39
    Wautoma, WI
    I'll have to check when I get home in August but it pretty sure they're both in a node 25fps apart. The short one runs 2875ish and the long one 2900ish. I have a 75lbs of brass and I've have thought about hammering on it to see what itll take but haven't yet.

    • Like
    Reactions: Redfisher60

    Dogsniper

    Full Member
    Full Member
    Minuteman
  • Jul 25, 2014
    1,780
    198
    Wyoming
    16" bartlien barrel
    1-8 twist
    25.5 gr. Varget
    fire formed Lapua brass
    suppressed
    2740 fps
    sd- 12
    forgot to say 75 amax


    Moose

    Sergeant
    Full Member
    Minuteman
  • Jul 3, 2005
    2,297
    1,118
    NJ
    Dogsniper,Have you shot that 16" barrel out to 500 yds or more yet.Im just wondering how the 75 gr amax does at 500 yds with a 16" barrel.Im having a 16" 223ai built and i was curious.


    Dogsniper

    Full Member
    Full Member
    Minuteman
  • Jul 25, 2014
    1,780
    198
    Wyoming
    223 ackley
    16" bartlien 1-8
    65 gr. Game king
    27.5 varget
    lc brass

    this is my favorite pelt saving load for cat, coyote , fox and badger.

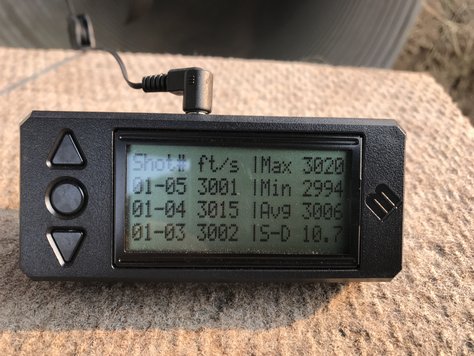

    Attachments

    • IMG_1121.JPG
      44.8 KB · Views: 498
    Last edited:
    • Like
    Reactions: nrspence

    redd0311

    Sergeant
    Full Member
    Minuteman
    Oct 29, 2010
    601
    42
    50
    oklahoma
    Huckleberry75 that’s your FF load? If so what is your regular load. I’m trying out that 8208 too


    Seandradamus

    Sergeant
    Supporter
    Full Member
    Minuteman
    Jun 6, 2013
    728
    208
    Illinois
    LRI built 7.7 twist 5R Bartlein at 23"
    80 JLKS over 26.8 of h4895 in lapua brass at 2.53
    Which is 10 off shoots 3070 .
    Substitute 80 Berger Vld same load 3110 same accuracy consistent .2s and .3s
    53 vmax over 29.4 of H335 goes 3600ish jumping a lot, maybe 100 thou
    These are likely to be Too Hot in your rifle, In my last AI I was maxing out at least a grain less and it would just touch 3030 with a 75 amax.
    So I guess this barrel is FAST. I use lapua brass with these loads and have loaded the 50 pieces 6 times plus fire forming with no loose pockets.

    • Like
    Reactions: Subhunter2

    stalwart300

    Sergeant of the Hide
    Full Member
    Minuteman
    Apr 14, 2018
    445
    38
    Thanks. Appreciate the link. Now to figure out if I really want to go down that path or keep it plain jane.


    BurnOut

    DDOJSIOC
    Full Member
    Minuteman
    Nov 24, 2013
    1,826
    790
    Dallas
    Tagging in on this... my gun is a Howa mini action with a 26" 7-twist heavy Palma (sorta) K&P done by LRI.

    Anyhow, my FF load in once-fired Fiocchi brass was 22.5 gr of 8208 under a Hornady 73 gr ELD-M seated ~.010 into the lands (1.910 base-to-ogive, 2.346 OAL) lit by CCI 450 primers. I was seeing 2850-ish FPS at 59 degree ambient temps, and it seemed to be about a 1 MOA load on average with a best group of right at 1/2 MOA. Not terribly impressed, but not too upset considering that I just pulled that load more or less out of my ass.

    Anyhow, the primary goal of this gun for me is to find a load that shoots the Hornady 53 gr V-Max really well; the intent is exploding prairie dogs. First load out of the gate with the 53 gr projectiles has them ~.010 in the lands (1.873 base-to-ogive, 2.305 OAL) over CFE 223 and lit by CCI 450s. Starting charge is 28.5 gr, and I'm going up from there in .2 gr increments. At this point, I am only loading two at each charge to get average velocity and check for pressure.

    I also have some H4895 and BL-C(2) to play with, as well, and may pick up some Varget if I can't find something to work with what I've got.

    • Like
    Reactions: cessna928

    BurnOut

    DDOJSIOC
    Full Member
    Minuteman
    Nov 24, 2013
    1,826
    790
    Dallas
    Got to the range yesterday with some of my loads, and got the following results with Hornady 53 V-max:

    CFE 223:
    28.5 - 3473
    28.7 - 3476
    28.9 - 3453
    29.1 - 3490
    29.3 - 3533
    29.5 - 3578
    29.7 - 3576
    29.9 - 3652
    30.1 - 3640
    30.3 - 3679

    VV N135:
    27.0 - 3561
    27.2 - 3594
    27.4 - 3632
    27.6 - 3638 (slight ejector mark)
    27.8 - 3659 (defined ejector mark/swipe)
    28.0 - 3691 (slightly sticky extraction)

    All velocities stated above are the average of two shots at an ambient temp of 59 degrees. I also played around with some Sierra 90 gr projectiles (1.922 base-to-ogive, 2.428 OAL), and got the following results:

    Superformance:
    28.0 - 2681 (light ejector swipe)
    28.2 - 2675 (defined ejector swipe)
    28.4 - 2709 (slightly sticky extraction)

    H414:
    26.1 - 2676 (defined ejector swipe)
    26.3 - 2703 (defined ejector swipe)
    26.5 - 2730 (slightly sticky extraction)

    CFE 223:
    24.6 - 2708
    27.8 - 2723 (slight ejector mark)
    25.0 - 2738 (slight ejector swipe)

    As with the 53gr projectiles, these are two-shot averages at 59 degrees ambient temp. Obviously, with only two rounds at each charge there isn't really any data regarding grouping, but I can at least say that there was no sign of key-holing with these projectiles at these speeds out of a 7-twist barrel (at 100 yards). At this point I am prepared to at least tentatively say that the .223 AI can run with the .224 Valkyrie (at least with factory loads).


    BurnOut

    DDOJSIOC
    Full Member
    Minuteman
    Nov 24, 2013
    1,826
    790
    Dallas
    Back to the range today to test some 53 V-max loads with Ramshot TAC (ambient temp was 57 degrees):

    28.0 - 3523
    28.2 - 3522
    28.4 - 3529
    28.6 - 3565
    28.8 - 3582
    29.0 - 3617

    Will likely continue to play with this and CFE 223 with this projectile.

    I also did some testing with the 90 gr Sierra and some 2000-MR (again, ambient temp was 57 degrees):

    26.4 - 2800
    26.6 - 2792
    26.8 - 2820
    27.0 - 2836
    27.2 - 2875
    27.4 - 2896 (slight ejector swipe)

    • Like
    Reactions: MarshallDodge

    Huckleberry75

    Gunny Sergeant
    Full Member
    Minuteman
  • Huckleberry75 that’s your FF load? If so what is your regular load. I’m trying out that 8208 too

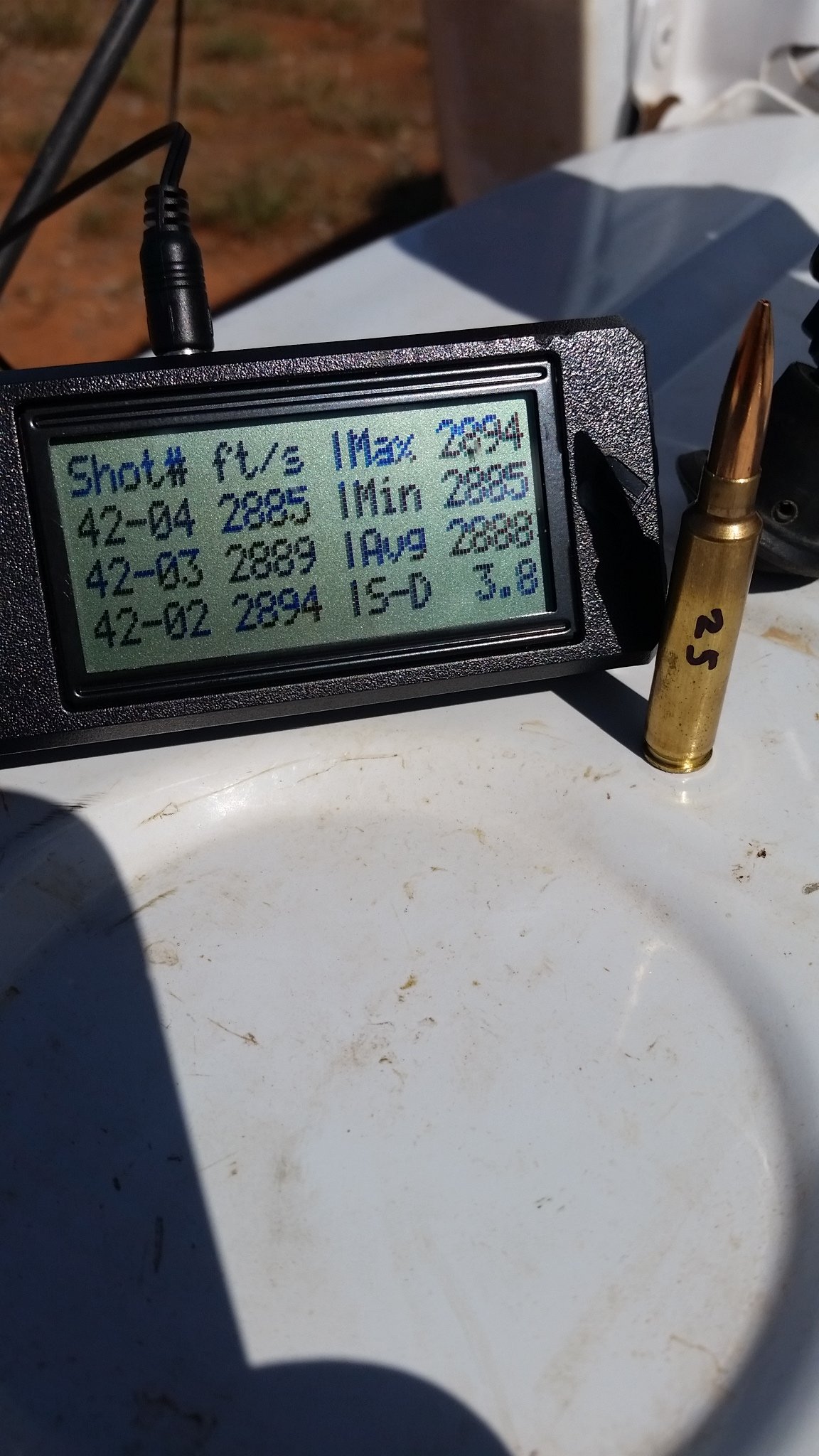

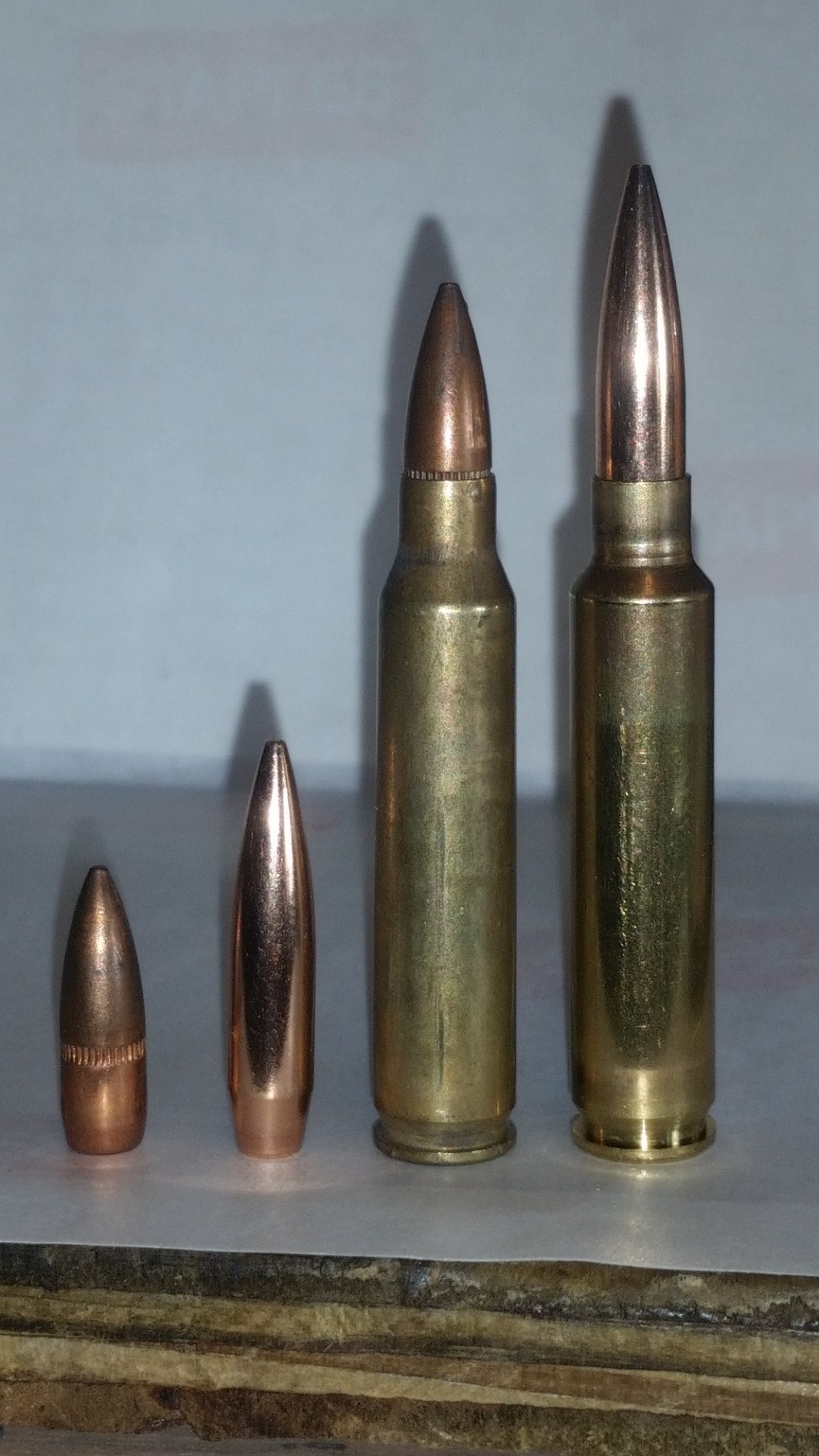

    25.0gns of IMR8208 with the 80.5's. Crazy accurate at 2888 fps. Could probably get more speed from H4895, but meh, it aint broke. First pic is a comparison of 55gn ball 223 next to the 80.5 AI's.
    20181107_213628.jpg223ai 80.5's.jpg


    Campguy308

    Major Hide Member
    Full Member
    Minuteman
    Jun 26, 2018
    1,036
    797
    Texas
    Anyone have a good starting load for the 80gr eld-m?
    I am loading the 80-ELDm with 24.8 of H4895, .020 from the lands. I'd start around 24.0 and work up. Using GBW brass (midsouth shooters), and a CCI450. Runs 2950 from a 24" Rock Creek 7 Twist chambered with a Manson reamer. OAL is 2.393, but I have a short throat.

    • Like
    Reactions: Hondo1

    Hondo1

    Sergeant USMC
    Supporter
    Full Member
    Minuteman
  • Jun 2, 2014
    1,675
    578
    Colorado
    I am loading the 80-ELDm with 24.8 of H4895, .020 from the lands. I'd start around 24.0 and work up. Using GBW brass (midsouth shooters), and a CCI450. Runs 2950 from a 24" Rock Creek 7 Twist chambered with a Manson reamer. OAL is 2.393, but I have a short throat.

    Any luck with Varget?


    Campguy308

    Major Hide Member
    Full Member
    Minuteman
    Jun 26, 2018
    1,036
    797
    Texas
    Any luck with Varget?
    Yes, my old load was 25.3 Varget with a Berger 80 VLD, .010 off. Shot bugholes. But H4895 gives me about 50-75 FPS more speed, with a little less powder compression. The 80 bergers shot slightly tighter for me, but they are $15 a box higher, so I started shooting the ELD.

    • Like
    Reactions: Hondo1

    Moose

    Sergeant
    Full Member
    Minuteman
  • Jul 3, 2005
    2,297
    1,118
    NJ
    25gr RL-15 with 75gr amax, also run 25gr of H335 with 75gr amax and find both loads very nice.The 223AI has become my favorite round.


    steve123

    Lt. Colonel
    Full Member
    Minuteman
    Mar 16, 2008
    9,426
    2,107
    none of your business
    2.613 OACL with 88's, 24.6 grains Varget, cci 450, starline formed brass, 28" 7 twist 6r, 2814 fps, a light-ish load. During the ladder test I went up to 26.3 grains without a sticky bolt.

    Last edited:

    yakstone

    Sergeant of the Hide
    Full Member
    Minuteman
    May 7, 2017
    365
    301
    Colorado
    204 is great for shooting those light Bullets!
    Not so much for pushing an 80gr out there.


    Subhunter2

    Where da varmints?
    Full Member
    Minuteman
    Feb 14, 2017
    191
    37
    ETX
    If you are chasin Speed try a .204!
    4120 FPS is speed.
    Already got a 20 vartarg and working on a 20-220swift, , i got 20’s covered!
    I still love the 223ai though Perfect kid hunting gun under 200yds good medicine on coyotes and hogs


    RTH1800

    Supporter
    Supporter
    Full Member
    Minuteman
  • Sep 16, 2009
    9,893
    6,243
    Midwest
    I am just getting one going on a Lone Peak Arms/Proof set up that LRI did last week. Should receive tomorrow! Going to shoot 80 grain Amax.


    RTH1800

    Supporter
    Supporter
    Full Member
    Minuteman
  • Sep 16, 2009
    9,893
    6,243
    Midwest
    I have found my Proof CF barrel likes this load.
    .223 AI
    CCI 400
    Fire formed brass.
    80 grain Amax.
    27 grains n540
    3050 with good accuracy and case life.
    Barrel is 22” IIRC.


    T-Hoe

    Sergeant
    Supporter
    Full Member
    Minuteman
    Oct 25, 2010
    624
    119
    Marion, IL
    Subhunter2, I found a good load for the 40 grn nosler bt. 29.0 of benchmark in my 24” ackley improved ar. Mv is 3920. That load is tough on prairie dogs. That was my first ai in a ar. It made it to 4400 rnds before I pulled the barrel. It ran flawless. I have a pile of load data with the ai.


    Jbova

    Supporter
    Supporter
    Full Member
    Minuteman
    Mar 31, 2018
    235
    37
    Hannibal MO
    Anybody have a good pet load for fireforming?

    I’ll be using Lapua brass, 75gr eldm with Varget, 8208 or H4895.
