308 AR10 Build Info/Picture Thread

green338XFirst Sergeant
Rating: 3.1/5 this site
1034 posts this site
308 AR/AR10 Build Info/Picture Thread
10/13/2014 Last edited 10/13/2014 by green338
(2 votes)
[HR][/HR]
Let's see your gassers!



Here's one of my ex's


Mega Maten Monolithic receiver sets

GA Precision GAP-10 barrel 20" w/ BO Brake

Magpul PRS stock w/ JP SCS

Geissele SDE Trigger

Spuhr Mount

Schmidt & Bender 5-25 MRAD DT CCW XR



[IMG2=JSON]{"alt":" photo DSC03524_zps477a6cdd.jpg","data-align":"none","data-size":"full","src":"http:\/\/i892.photobucket.com\/albums\/ac129\/green122\/DSC03524_zps477a6cdd.jpg"}[/IMG2]

Rate now:
wareagle700

XFirst Sergeant
Rating: 3.7/5 this site
1317 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
10/14/2014 Last edited 10/29/2014 by wareagle700
(2 votes)
[HR][/HR]
Very nice sir.

My .308:

MEGA MA-10 Receivers
JP 15" Handguard
Badger Brake
Syrac Adjustable Gas Block
Lilja barrel cut to 17.5" from 20" (rifle length gas)
JP LMOS bolt carrier group
JP SCS recoil system
Geissele SSA-E Trigger
Magpul ACS stock
Nightforce 3.5-15x50 in a Nightforce Unimount

This is the smoothest shooting .308 I have ever shot. Accuracy is as good as I can ask for.

JerkeeJoeXSergeant
Rating: 0.0/5 this site
276 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
11/11/2016
[HR][/HR]
My first large frame AR build. 6.5cm built on a Maten set. Should get it out tomorrow morning to give it a test drive.





Rate now:
BLUERUBIXPrivate
Rating: 0.0/5 this site
8 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
11/17/2016
[HR][/HR]

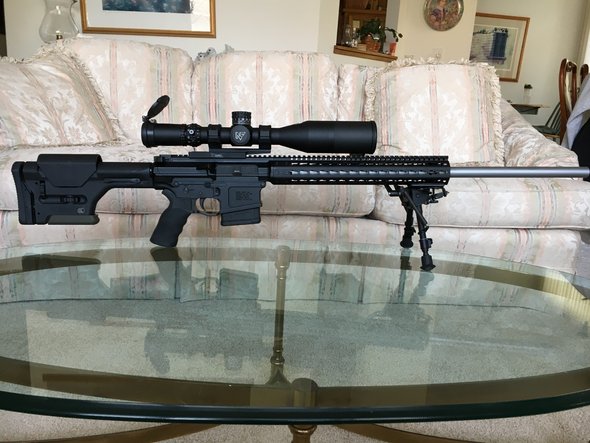

Just posted this in the new members section, but figured it made sense to add to the thread. Haven't tried it yet, but I have high hopes!



- Aero precision enhanced upper and grip

- Technical machining lower

- JP supermatch heavy contour 20" barrel with matched bolt

- Aero precision nickel boron BCG

- VG6 Gamma muzzle break

- Geissele DMR trigger

- Magpul PRS stock

- Atlas PSR bipod

- JP adjustable gas block

- JP silent capture heavy buffer

- Leupold Mark 4 rings

- Vortex Viper PST FFP



Rate now:
HemiPowrdXPrivate
Rating: 3.0/5 this site
6 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
12/25/2016
(1 vote)
[HR][/HR]
A very merry Christmas in 6.5 Creedmore





Rate now:
MRADSHOOTERX30 MONTHS
Premium Member
Private
Rating: 0.0/5 this site
3 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
12/29/2016
[HR][/HR]
5RWill wrote:
Blackfoot, great pics and an awesome rifle. Looks great, be sure to post some groups.



Don't have everything together yet but here is my build list. Just ordered a Geissele SD-E for 25%..couldn't resist.



Aero Precision Upper - owned

Aero Precision Lower - owned

Aero Precision LPK

Aero Precision rifle length buffer tube - owned

Fortis 14" Switch rail

Aero Precision Mid Length gas tube

JP 16" Supermatch 308 barrel

JP HP bolt

JP buffered carrier

SLR industries Sentry 7 Adj gas block

Geissele SD-E - owned

Magpul MIAD

Magpul PRS Gen 3

ARC QD-L 34mm mount - owned

Bushnell ERS - owned​
Love the color man. I too have an LMT-MWS but it came in factory burned bronze which I'm reluctant to blast off. What was your hardener mix on it? Looks satin finish which I like. If I may ask, is that the 18SS barrel which you cut down or is it a 16? Did Marvin Pitts do the work on that barrel? Mine came with the 16CL barrel and I have a 18SS which I might send for work.

Great looking beastie.

Rate now:
KimberGuyXSergeant
Rating: 3.1/5 this site
250 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
01/04/2017
[HR][/HR]


Rate now:
Otero51XSergeant
Rating: 3.1/5 this site
171 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
01/16/2017 Last edited 01/16/2017 by Otero51
[HR][/HR]

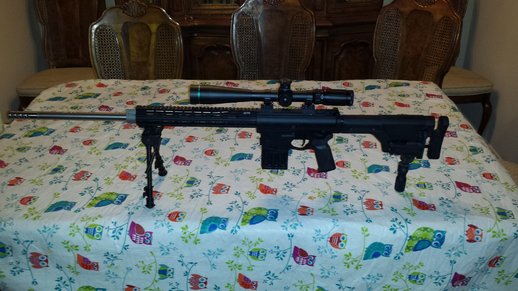

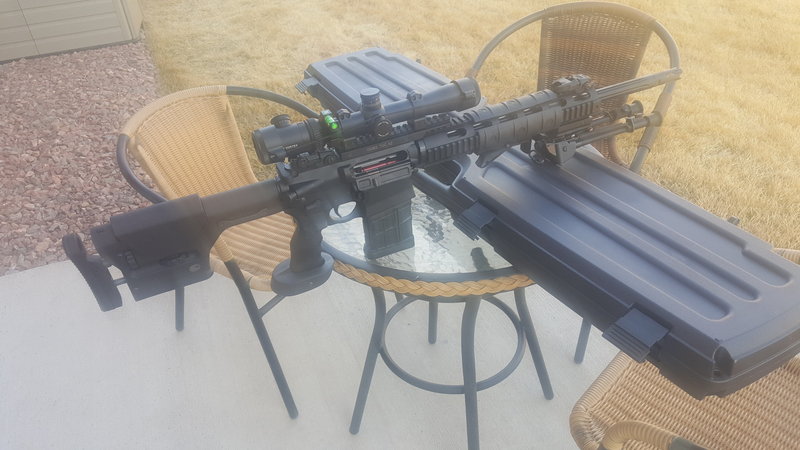

Here's my budget build. First time building anything AR related.


Nothing fancy:
-PSA blem lower/upper (upper bedded with some jbweld to take out the slack).
-Ballistic advantage ss 22" 6.5cm
-JL Billet 308/AR10 15" Angle Cut M-Lok Handguard Low Profile
-aero precision black nitrided bcg
-schuller brake
-superlative arms adj clamp on GB
-armalite ar10 buffer
-rifle length buffer tube and spring
-magpul moe fixed rifle stock
-PSA EP trigger
-Ergo tactical deluxe grip
-Strike industries UDC
-American Defense AD-RECON-S 20 MOA 34 STD scope base
-Burris xtr-II 5-25×50

Showing some promise with Hornady eld-x 140gn factory ammo (5 shots at 106 yds while prone on top of 16"of snow and this monkey behind it)


BravoSector1XFirst Sergeant
Rating: 3.0/5 this site
1308 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
01/18/2017
[HR][/HR]
Meat Hammer



Rate now:
tbugher62XSergeant
Rating: 3.1/5 this site
364 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
Wednesday at 10:41 AM
[HR][/HR]
BravoSector1 wrote:
Meat Hammer

Now that is nice!!!!!

Rate now:
Tahoe333XSergeant
Rating: 3.0/5 this site
364 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
10:58 AM Last edited 11:17 AM by Tahoe333
[HR][/HR]

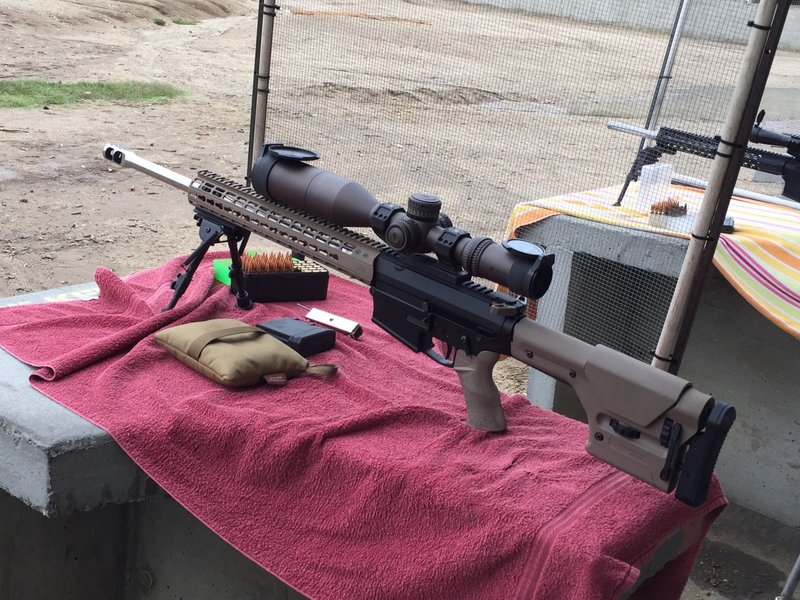

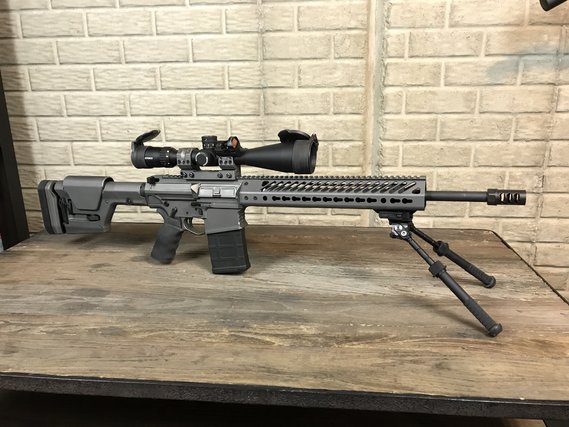

Just finished this California Compliant build.

I put 100 rounds through it yesterday and it ran great after I got the gas block dialed in. The SLR gas block is set to the 7th click open. The groups were @ .6 mils at 100yds, (2-ish inch)

All day long it would put 2 rounds on top of each other and then throw a flier. I hope that once I get a good copper base inside the barrel the groups will tighten up.





Aero M5 lower/upper.

Lantac BCG.

Proof carbon 18" 308 10-twist.

APA Lil bastard brake.

SLR adj gas block.

Gieselle SSAE FCG.

API carbon 12" rail. I had to go 85lbs on the barrel nut to get it lined up for the gas tube. It was either 85lbs or 35lbs, I went with 85lbs.

Vintage A1 stock.

Bullshit CA compliant kydex wrapped pistol grip.

Rifle buffer spring with Standard buffer.

KAC Micro BUIS.

Armalite dust cover rod (longer). The DPMS rod was too short.

Pivot pin was very tight. I had to do a bit of sanding on the pin and hole.

Vickers sling with MASH hooks.

Atlas B10 bipod. I will probably go with a Harris 6-9.

I am still looking for an optic. Probably go with a 12 or 16 power.





Edit due to spelling.......

Rate now:
tbugher62XSergeant
Rating: 3.1/5 this site
364 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
12:16 PM
[HR][/HR]
Sure wish I could come up with a reason too spend $$$ on one of those Proof Carbon barrel's.

Rate now:
Tahoe333XSergeant
Rating: 3.0/5 this site
364 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
1:51 PM Last edited 2:05 PM by Tahoe333
[HR][/HR]
It was on sale over the holidays ---- Sale-bwahhh - thats what I told my wife!

Considering it was shooting 2" at 100yds, I am not so happy with it right now.





Edit = added text.

Rate now:
Tahoe333XSergeant
Rating: 3.0/5 this site
364 posts this site
Re: 308 AR/AR10 Build Info/Picture Thread
1:53 PM
[HR][/HR]
It weighs in at 12.3lbs without mag or ammo.

Rate now:


Rory_Fritz

Thing 1
Belligerents
Minuteman
Feb 11, 2017
191
42
Aero m5 receivers
Ballistic advantage match grade 16"
Slr sentry 7 gas block
Slr solo lite 14" mlok rail
Geissele SDE
Magpul ACS
Pst 2.5-10x32 ffp in badger unimoint
Griffin Flashcomp for my recce 7


  • Like
Reactions: wmfirefighter

Wyzrd

Harder than a coffin nail
Belligerents
Minuteman
  • Feb 13, 2017
    2,267
    317
    Cheyenne, Wyoming
    Here's one of my old AR10 rifles, built by RW Snyder... Badger brake, Brux barrel, Seekins AGB and tube, Apex Gator Grip handguard, SI Defense billet receiver set, Gieselle NM 2 stage trigger, JP SCS, Magpul STR, JP Bolt, wore a Steiner T5XI 5-25x56 in a QD mount, etc...


    Attachments

    Madagain

    Private
    Minuteman
    Feb 15, 2017
    1
    0

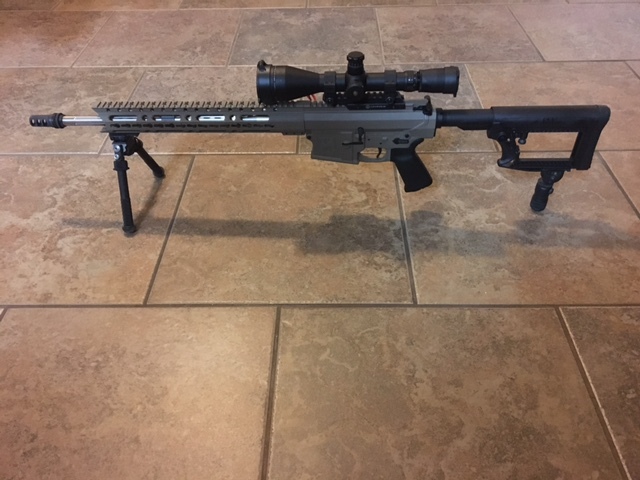

    My lr-308 build.

    Colfax tactical lower
    Dpms upper
    Fulton bcg
    Black hole weaponry 24" bull barrel 1:11 twist
    geissele ssa-e trigger
    Jp Ben cooley comp
    Jp modular hand rail
    Slr adjustable gas block
    Accu-tac Sr-5 bipod
    Accu-shot mono pod
    Standard buffer and spring
    Phase5 battery assist lever
    Bsa ffp 4x14 scope
    Vortex scope level
    Weaver 20moa riser
    Custom machining on the upper for a side charging handle
    Fulton armory side charging handle into the left side of the bcg.
    Sniper gray cerakote

    Took me about 3 years to get it all together, buying pieces when they went in sale. I know the scope is cheap I'll get a better one in the future.

    .65" is the best 3 shot group I've had with 168gr PPU at 100 yards. I really need to get out more and get a good 5 shot group.



    Sent from my SM-G935P using Tapatalk



    Tahoe333

    Sergeant
    Belligerents
    Minuteman
    Oct 4, 2012
    372
    16
    51
    Northern Utah
    It looks like the SLR adj. gas block is hitting the rail causing random fliers.
    I was thinking about trimming a small groove into the fat butter section of the rail.
    I haven't been able to find a smaller gas adj. gas block.

    My question is;
    1-If I trim a u-groove into the end of the carbon rail, will this give me enough room between the gas block and the rail?
    2- Can the carbon rail be trimmed without it splintering?





    Tahoe333

    Sergeant
    Belligerents
    Minuteman
    Oct 4, 2012
    372
    16
    51
    Northern Utah
    Update - I just found out that the thick end of the rail has an aluminum sleeve on the inside the. I will cut a u-groove about half way through the aluminum sleeve.


    Otero51

    Sergeant
    Belligerents
    Minuteman
    Nov 4, 2012
    111
    1
    41
    Oregon
    I've been wondering how much impact does the gas block clearance really has. It's been common practice on bolt actions to check free float by running a dollar between the barrel and the stock. It makes me think now if such clearance is really not sufficient.

    • Like
    Reactions: Lawless

    AMP!

    Three sheets to the wind
    Belligerents
    Minuteman
    Feb 17, 2017
    739
    134
    Missouri
    Testing out the "old" site. My JP LRP-07. Has the dual charging upper. I picked it up from another hide member from the scout site. SAS suppressor, Burris XTR II 4-20 in AD mount.

    [IMG2=JSON]{"data-align":"none","data-size":"full","src":"http:\/\/i28.photobucket.com\/albums\/c208\/amphotericzenki\/IMG_0819_zpsswwbub9b.jpg"}[/IMG2]


    I havent had time to really test accuracy, but I did shoot a quick MOA group out of the back of the truck off the cheap bipod when sighting it in. Smoothest AR platform I've shot yet.

    Last edited:
    • Like
    Reactions: Billiam1211

    quicklx

    Private
    Belligerents
    Minuteman
    Feb 13, 2017
    18
    4
    Michigan

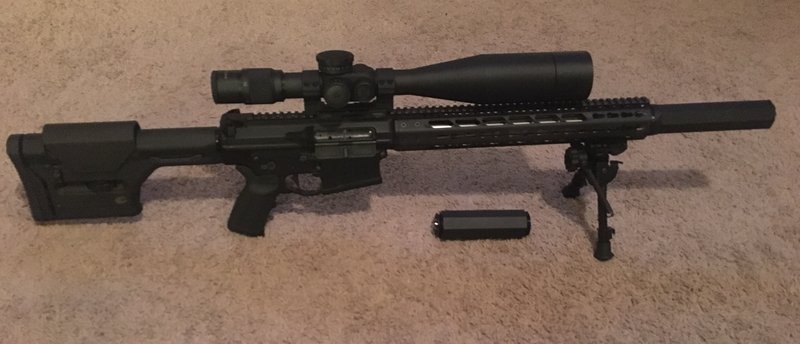

    Here's my AR10T.

    PRS stock
    MDT recoil pad
    God-A-Grip cheek pad
    ergo grip
    Elftmann trigger
    JP rifles silent captured recoil spring
    SLR Sentry adjustable gas block
    TBAC brake
    thunder beast ultra 9 30 cal
    Accushot monopod
    harris bipod
    Spuhr mount
    Viper PST 6-24x50 (now has a 4.5-30x50 XRS)


    Attachments

    ballisticdaddy

    Deplorable
    Belligerents
    Minuteman
    Feb 14, 2017
    444
    48
    Colorado Springs, CO
    Lower:H&H Billet DPMS style .308 receiver 80%
    Upper:Aero Precision M5E1 Forged receiver complete
    Handguard:Aero Precision 15" Keymod
    Trigger:Geissele Super Tricon
    Barrel:JP Supermatch 22" Stainless 1:10 twist / medium contour
    BC Group:JP Supermatch LMOS with QPQ finish
    Gas Block:JP low profile adjustable gas block (.936")
    Spring:JP Silent captured spring system
    Mount:JP 34mm one-piece billet scope mount
    Buffer Tube:Aeroprecision rifle length extension
    Stock:Magpul PRS
    Grip:Larue A-Peg
    Cerakote:Hand guard, grip and stock in FDE
    Optic:Vortex Viper PST 4-24 x 50



    unclemoak

    The BCG Guru
    Belligerents
    Minuteman
    Jan 13, 2008
    24
    27
    Oshkosh, WI
    Aero M5 receiver set
    KAC URX 3.1 rail
    CMMG 16" barrel with a rifle length gas system
    SLR gas block
    Magpul MBUS Pros with the LR rear
    One of the Nitride and NiB BCG that I manufacture
    Geiselle SSA-E
    Griffin Taper Mount
    KAC 30mm scope mount
    Nightforce NXS 3.5-15x50 - recently changed to a 5-25x56 ATACR
    Vltor Bipod
    Some standard Magpul furniture
    Form 1 30 Cal can



    kingzero

    Sergeant of the Hide
    Belligerents
    Minuteman
    Apr 4, 2014
    271
    113
    Crack Town, AZ
    My election panic buy.

    Predator Technology Group billet receivers (my buddies company)
    Mcgowen 20" Hbar
    SLR gas block and 16" SOLO rail
    Geissele 2 stage
    MOE rifle stock
    Houge grip
    Bushnell LRS 3-12 G2


    [IMG2=JSON]{"data-align":"none","data-size":"full","src":"http:\/\/i.imgur.com\/VHV3lCX.jpg"}[/IMG2]

    After Cerakote.......



    Last edited:

    Otero51

    Sergeant
    Belligerents
    Minuteman
    Nov 4, 2012
    111
    1
    41
    Oregon
    What hand guard is that?
    It's a JL Billet 308/AR10 15" Angle Cut M-Lok Handguard Low Profile. They also make a high profile to match uppers that require it. I was planning on going with their 17.2" model but wasn't sure if I would then have issues accessing the gas block.

    Last edited:

    JW329

    Guy
    Belligerents
    Minuteman
    Mar 2, 2017
    81
    18

    My newest AR-10 in 308 20" Krieger Barrel and Bolt JP Bolt and silent capture USO ER-25 Geissele trigger Mega Maten OSS can Upper was assembled by Krieger

    Last edited:
    • Like
    Reactions: Billiam1211

    JW329

    Guy
    Belligerents
    Minuteman
    Mar 2, 2017
    81
    18

    First AR-10 I built Full Mega gun with Geissele trigger and Vortex glass

    Last edited:
    • Like
    Reactions: TheChief

    MSTN

    Sergeant
    Belligerents
    Minuteman
    Jan 31, 2010
    913
    813
    MIDDLE OF ARIZONA
    MSTN.BIZ
    A customer requested a lightweight .308 gas gun. So, here it is coming in at 7 LB 13.7 OZ: 40 ounce16" Bartlein 5R barrel with KAC length gas system; JD Machine billet upper & lower; Fortis Switch rail; JP FMOS BCG; Larue MBT; Vltor A5 with H2 buffer; everything V Seven makes in titanium, to include muzzle brake, push pins, grip screw, mag release, etc; SLR titanium adjustable gas block. Shapeshifter Finishing, as usual, did the excellent Cerakote.









    Xinarin13

    Private
    Belligerents
    Minuteman
    Mar 7, 2017
    46
    0
    photo49516.jpgphoto49517.jpg My humble DPMS G2 SASS and her first 5 shot group at 100 yards. I wasn't done sighting in, but the range officer called 2 minutes till close of range for the day, so I quickly put 5 down range on my only fresh target. I am now certain that the gun shoots straighter than I do LOL


    Attachments

    Last edited:

    Stugots

    Private
    Belligerents
    Minuteman
    Mar 13, 2014
    30
    24
    Mega MKM MATEN Mega Extended Rifle Length 16" Key Mod Set
    -Geissele Hi-Speed National Match Trigger
    -JP BCG with an HP bolt
    -JP Silent Captured Spring (Heavy) W/Tungsten Weights
    -Magpul AR 10 specific PRS stock
    -Krieger 26" Heavy Match Contour 6.5CM 1 in 8" Sans Muzzle Break
    -Nightforce 5.5-25 ATACR Enhanced MOAR-T Reticle
    -Superlative Arms Adj. Gas Block


    Attachments

    • Like
    Reactions: Billiam1211

    black max

    Sergeant
    Belligerents
    Minuteman
    Jul 2, 2012
    1,064
    271
    40
    world wide
    Here is my contribution.
    -Mega ambi set
    -Fortis 15" switch rail
    -Seekins adj gas block
    -20" Mega Arms barrel
    -Aim nib BCG
    -Geissele SD-E trigger
    -Silencerco Saker
    -Leupold mk8 in Spuhr sp4026 (I love that damn scope) [IMG2=JSON]{"data-align":"none","data-size":"full","src":"http:\/\/i.imgur.com\/2uBRJAw.jpg"}[/IMG2]

    She shoots like this with 178amx [IMG2=JSON]{"data-align":"none","data-size":"full","src":"http:\/\/i.imgur.com\/1qKiwSY.jpg"}[/IMG2]

    Pretty decent speed for 42.2 grains of varget in a LC LR case out of a 20" barrel [IMG2=JSON]{"data-align":"none","data-size":"full","src":"http:\/\/i.imgur.com\/flrLKbX.jpg"}[/IMG2]

    Last edited:

    danatkins

    Private
    Belligerents
    Minuteman
    Mar 28, 2017
    118
    30
    My humble DPMS G2 SASS and her first 5 shot group at 100 yards. I wasn't done sighting in, but the range officer called 2 minutes till close of range for the day, so I quickly put 5 down range on my only fresh target. I am now certain that the gun shoots straighter than I do LOL
    Wish my g2 recon shot that good

    Sent from my LG-H901 using Tapatalk



    Xinarin13

    Private
    Belligerents
    Minuteman
    Mar 7, 2017
    46
    0
    Wish my g2 recon shot that good

    Sent from my LG-H901 using Tapatalk
    Lol, I wish my SASS was as light as your g2 recon!

    I'm extremely happy with it! I just worked up the FGMM 175 grain clone load I found on here and she is extremely happy with them :D

    Now I just have to work on me and my accuracy ;)


    Griz44Mag

    Load 'Em Up!
    Belligerents
    Minuteman
    Once again, I am drooling over so much super nice hardware. Wish my budget would allow such elaborate builds. On the fly, and on the cheap (not according to my wife) I put together a pig gun because I could not afford to buy a new one. I had a shot out Bushmaster LR-308 that had a whole lot of round through it, stripped it down to it's smallest parts and refined, rebuilt, replaced everything I could afford to to create my Super Bushie! I took it down from a .308 to a 6.5 Creedmoor, and will never look back, I love it!
    The link to the complete rebuild is kind of long, so here's a link to the whole story: image_53113.jpg

    Last edited:

    DAFCOP

    Private
    Belligerents
    Minuteman
    Apr 21, 2017
    4
    4
    I've fired most SASS platforms and she's definitely a keeper.
    SF Edition 18" OBR in 308
    Magpul PRS
    Larue bipod
    NF ATACR F1 5-25x w Tremor 3
    M118LR hushed up w the Surefire can
    Manfrotto tripod
    (Missing clip on NVD,
    Silencerco Radius / PEQ15 dep on mission requirements, sorry guys)
    Right tool for the job gents.


    Sent from my SM-G930V using Tapatalk



    rcnut

    Private
    Belligerents
    Minuteman
    Mar 11, 2009
    50
    12
    My first build, 6.5 Creedmoor,
    Aero upper
    Alexandria lower
    Ballistic Advantage 18 " barrel
    superlative adj gas block
    D Wilson BCG
    Luth-AR stock
    I did the hydro dip myself, first time don't think it turned out bad
    now saving up for a Leupold scope 4-12x50 wind plex


    Attachments

    winmagshooter

    Private
    Belligerents
    Minuteman
    Sep 6, 2013
    4
    1
    Tacoma,WA
    Here's my first build as well.

    Aero M5E1 upper
    Aero M5 Lower
    Magpul PRS gen 3 stock
    Ergo Tactical Deluxe Grip
    Giessele SDE trigger
    BCM Large gunfighter charging handle
    Criterion 22" hybrid contour 6.5 creedmoor barrel
    Sentry 8 adjustable gas block
    JP High Pressure bolt
    Thunderbeast Arms Muzzle Brake
    Atlas BT10 Bipod

    I just have to fatten my wallet a bit before putting a scope on it, looking at either the Vortex PST Gen 2 5-25 or Bushnell DMR ii with the G3 reticle.


    Attachments

    • Like
    Reactions: Forgetful Coyote

    alexander66

    Private
    Belligerents
    Minuteman
    Jan 27, 2004
    138
    10
    Fernley, Nevada 89408
    I am getting ready to take the dive and build my own AR 10, the information provided here will make my build a lot easier, there are a few things that you can get wrong, and then you find yourself chasing one thing after the other to get the rifle to run correctly; especially if the rifle is suppressed.


    Lightning Torpedo

    Private
    Minuteman
    May 26, 2017
    15
    4
    Diamondback
    DB10FDE

    Parts added
    -Leupold Mark 4 4.5-14 scope
    -EGW HD rings
    -Leupold riser
    -Luth AR stock, so I could use a B&T monopod
    -Atlas bipod
    -Giessele, Hi speed national match trigger

    The rifle looks great! and shots even better.

    The first time at the range (after I sighted it in) I shot four consecutive groups at 100 yards with Federal Match 175 grain Sierra bullets. The first group was in the center, then top left. I put my Silencer Co Omega on and shot the only group not under an inch on the top right and the last group was bottom right.



    Attachments

    Scorch95

    Private
    Belligerents
    Minuteman
    Jan 14, 2010
    1
    0
    Here's my .308 I've been working on and finally close to finishing. Getting ready to actually go test her at the range to see that she actually shoots.

    Mega Maten receiver set
    Mega 20" rifle gas barrel
    SLR adjustable gas block
    SLR Solo Rail
    AAC Brake Out 2.0
    Aero NiB BCG
    A5SR RE
    Magpul ACS stock

    Parts on order:
    atlas bipod and unipod with magpul adaptor

    Still need to order:
    Giessele SSA-E
    Scope and mount
    -between NF and S&B. Was set on a 4-16x42 but the amount of 5-25x56 I see here has me reconsidering.
    -mount wise I believe it will be a Spuhr mount just need to figure out what MOA base the scope I end up with needs.

    - Current scope and rings were borrowed from friend for photo and use while test firing.

    Under consideration:
    Looking into suppressor options. At the moment I'm leaning towards a TBAC Ultra 9 with CB mount.
    BI SAPR attachment
    <a href="http://s177.photobucket.com/user/WittieM/media/BA75091F-BBE8-4F0B-A123-020F65BB8A06.jpg.html" target="_blank"><img src="http://i177.photobucket.com/albums/w227/WittieM/BA75091F-BBE8-4F0B-A123-020F65BB8A06.jpg" border="0" alt=" photo BA75091F-BBE8-4F0B-A123-020F65BB8A06.jpg"></a>

    Last edited:

    gunfixer

    Private
    Belligerents
    Minuteman
    Jan 24, 2010
    13
    0
    'burbs of Savannah, Ga.
    My New Shop Sample POF Revolution, AR-15 sized .308.
    'Hated the shallow angled grip and Butt Stock so changed them
    out, but this rifle is Awesome beyond that.
    Presently setting it up for Mid-Georgia Wild Boar.


    Attachments
