Wow Sam, you really did all the work on this one and I'm super happy you did. This is what an AI should have always been. You really went the whole nine on every aspect of this thing, thank you! Now we don't have to put up with an old shitty chassis anymore.

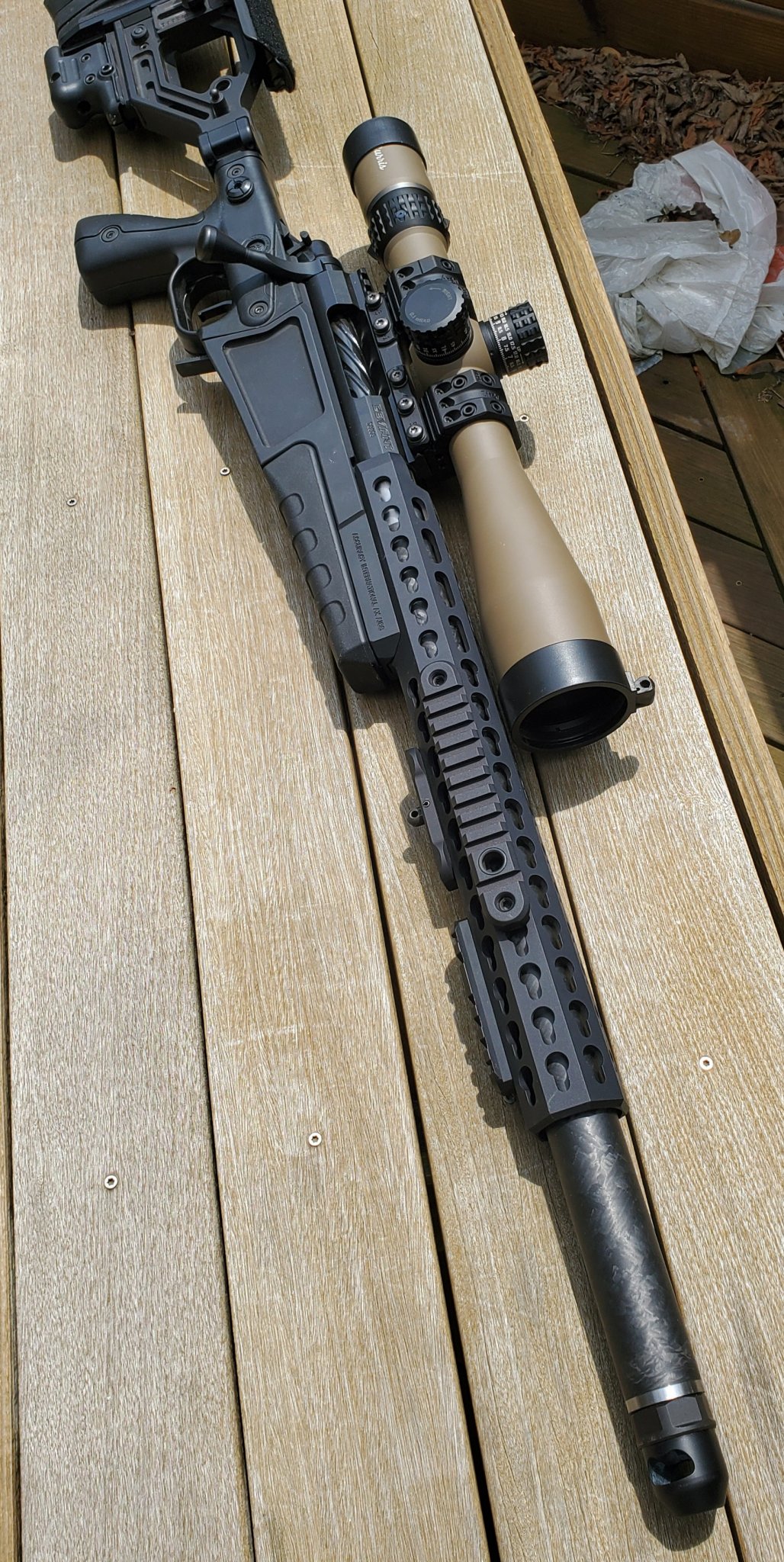

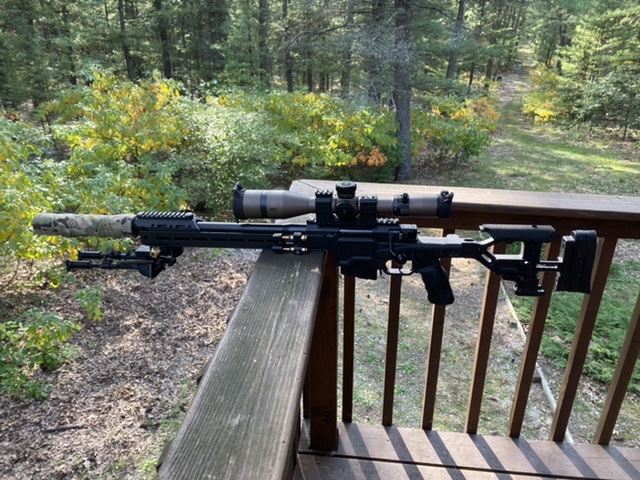

19 lbs 7.0 oz as it sits, no weights installed.





samb300

Accuracy Obsession, Anarchy Outdoors
PX Member
Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    It looks like everyone from this first batch of shipping has received their chassis kit! It's looking good that I'll have the rest of them in hand this weekend, so I'm hopeful that I'll be able to ship them out early next week.

    Sam

    • Like
    Reactions: RS14

    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    Wow Sam, you really did all the work on this one and I'm super happy you did. This is what an AI should have always been. You really went the whole nine on every aspect of this thing, thank you! Now we don't have to put up with an old shitty chassis anymore.

    19 lbs 7.0 oz as it sits, no weights installed.

    View attachment 7420480

    View attachment 7420481

    View attachment 7420482
    Wow man, that build looks incredible! @BLKWLFK9 is gonna be kicking himself now that he didn't get his in black haha

    • Like
    Reactions: RS14 and BLKWLFK9

    BLKWLFK9

    Just F'n Send It..
    PX Member
    Minuteman
    Online Training Access
  • Feb 13, 2017
    2,333
    3,356
    Yea, that black is pretty much tits.


    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    96
    149
    West of the Rocky's

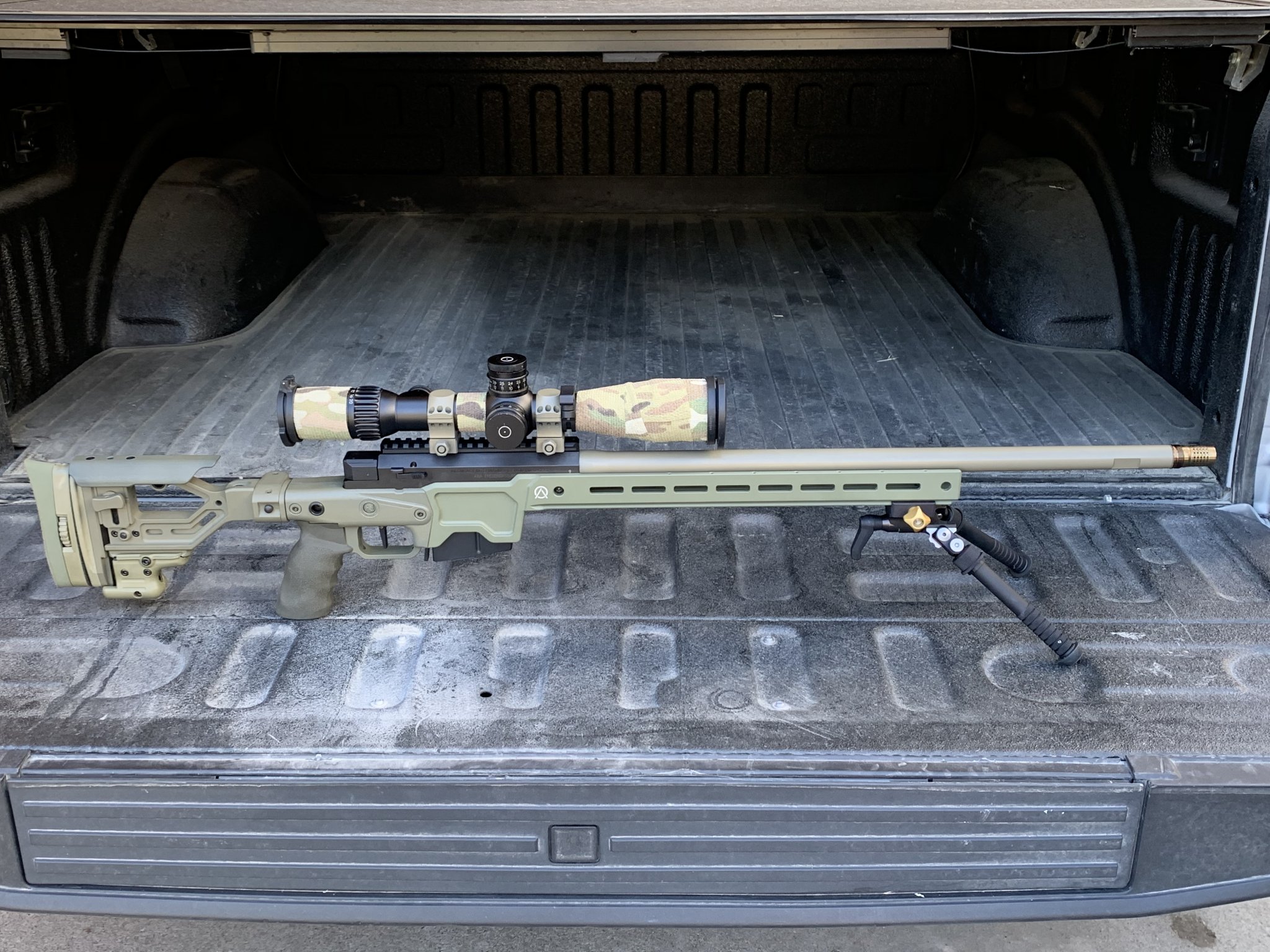

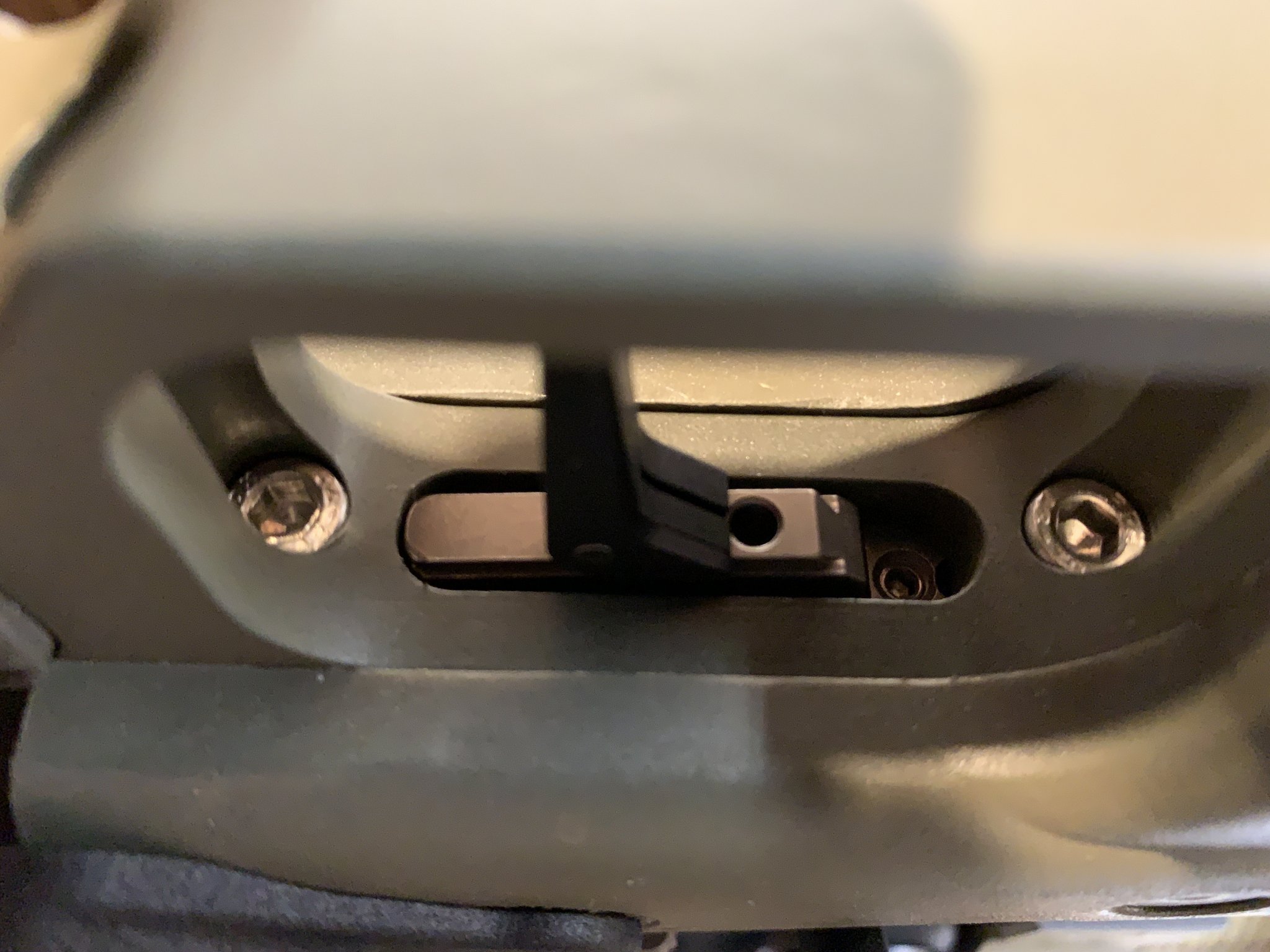

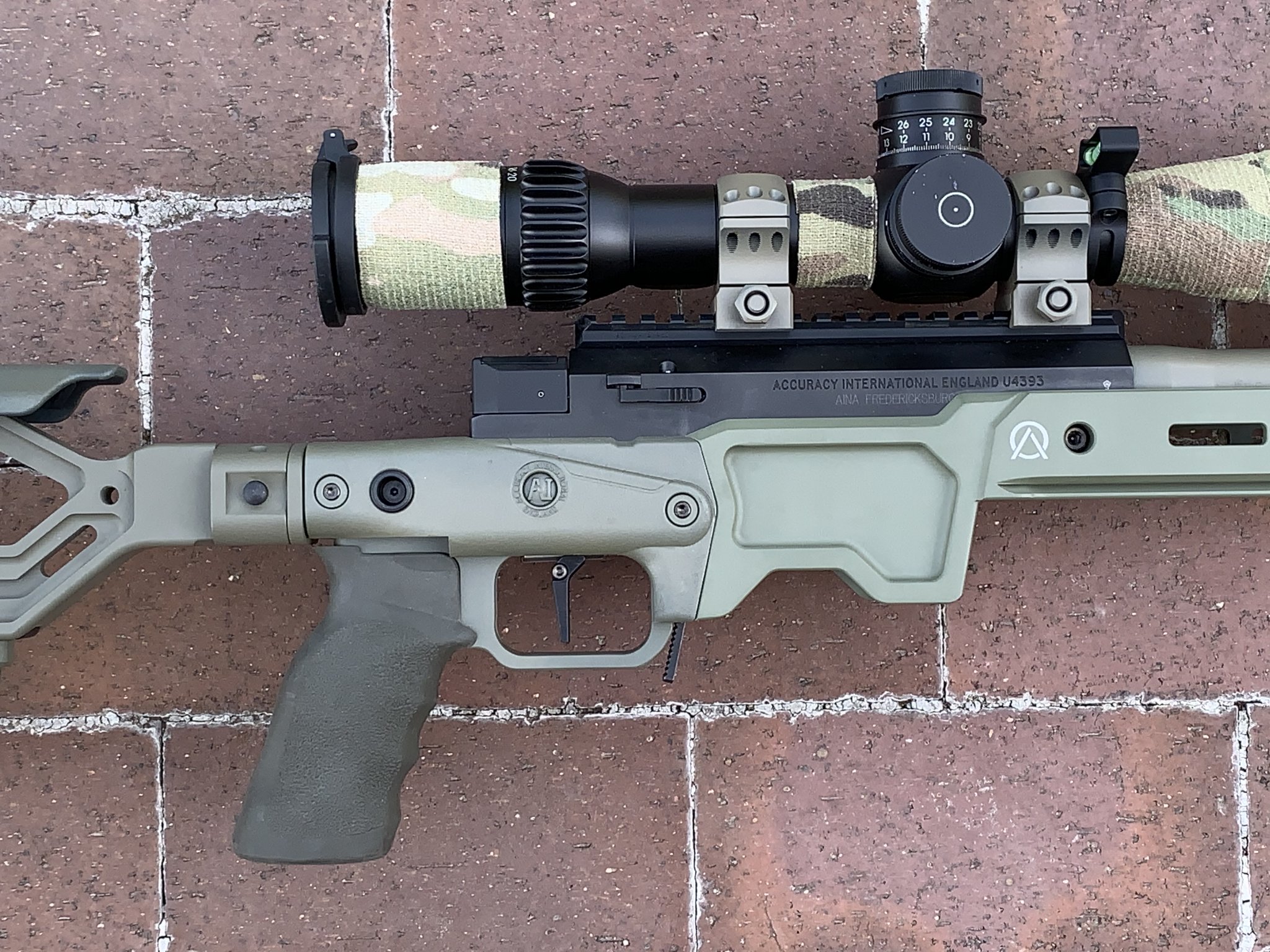

    Epoxy has finally cured. That magazine catch spring was probably the most difficult part and yes I did use the assembly pin. Your videos on the assembly were very valuable. Rifle is exactly 17 pounds with no weights. Thanks again Sam for putting this project together. When are you going to build your version of the AR-15 grip conversion? That is the only thing this rifle needs. This has turned out great! Thanks


    Attachments

    EmanP

    Private
    PX Member
    Minuteman
    May 7, 2005
    567
    81
    WA
    Who cares about an AR grip, those already suck. An OBi grip is what it needs.


    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    Epoxy has finally cured. That magazine catch spring was probably the most difficult part and yes I did use the assembly pin. Your videos on the assembly were very valuable. Rifle is exactly 17 pounds with no weights. Thanks again Sam for putting this project together. When are you going to build your version of the AR-15 grip conversion? That is the only thing this rifle needs. This has turned out great! Thanks
    Looks great, thanks for sharing pictures of the completed build!

    Hey, why does your weak-side QD mount (above the grip) stick out so far? Is it not screwed in all the way, or are you maybe using the incorrect QD cup?



    Last edited:

    AXMC

    short-throw aficionado
    PX Member
    Minuteman
    Apr 24, 2017
    239
    74
    Looks great! Did you leave the pins in your area 419 clamp though?


    AXMC

    short-throw aficionado
    PX Member
    Minuteman
    Apr 24, 2017
    239
    74
    I believe the OBi grip uses MDT's vertical grip core and just adds a slightly different 3d printed outer shell (little shorter and fatter)


    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    Couldn't see any any reason to remove them because the pins are not screwed out so they don't interfere with a non locking ARCA rail. Did I miss something?
    I believe if the pins are left in, the clamp will not work properly on non-Arca-Lock rails. I removed the pins on mine, but kept the screws in place.



    EmanP

    Private
    PX Member
    Minuteman
    May 7, 2005
    567
    81
    WA
    I guess you're right, I never had to install mine since the vertical portion was already attached. In that case make it up Sam and I'll buy it!

    • Like
    Reactions: FMJ

    AXMC

    short-throw aficionado
    PX Member
    Minuteman
    Apr 24, 2017
    239
    74
    Yeah, the pins on the arcalock clamp are designed to interface with notches cut into the edge of an arcalock rail. If left in and used with a non arcalock rail, when tightened down enough, they start to create their own notches. I've seen a MPA rail marked up pretty badly by one (though MPA rails aren't exactly RRS spec and seem to be more easily damaged). Either way I'd hate to see that gorgeous AO chassis marked up prematurely!

    • Like
    Reactions: FMJ

    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    96
    149
    West of the Rocky's
    Looks great, thanks for sharing pictures of the completed build!

    Hey, why does your weak-side QD mount (above the grip) stick out so far? Is it not screwed in all the way, or are you maybe using the incorrect QD cup?

    View attachment 7421375

    View attachment 7421376
    I had the inside part that has threads on both ends reversed, I was so excited to get this thing together I didn't even notice. Thanks.


    Attachments

    • Like
    Reactions: samb300

    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    96
    149
    West of the Rocky's
    Yeah, the pins on the arcalock clamp are designed to interface with notches cut into the edge of an arcalock rail. If left in and used with a non arcalock rail, when tightened down enough, they start to create their own notches. I've seen a MPA rail marked up pretty badly by one (though MPA rails aren't exactly RRS spec and seem to be more easily damaged). Either way I'd hate to see that gorgeous AO chassis marked up prematurely!
    Got it! Thanks


    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    96
    149
    West of the Rocky's
    Hi Guys, I just wanted to pass this along. I decided before hand that I would split the epoxy in half. In watching Sam's videos when he gets to the butt stock it's obvious that the epoxy is starting to set up. Yes you can still use it but it's harder to spread around and rather then having to rush along I wanted all the time I could use. When I finished the receiver I still had lots of epoxy left over as seen in the photo of the larger pile on the right side. When I got to the butt stock I cut the half that was left in the jars in half again and still had some left over as seen in the pile on the left side. You can see I still have approximately 1/4 of the epoxy in the jars and two large piles of hardened epoxy. Take your time and make it nice because you're probably going the have this beautiful rifle for a long time. Thanks


    Attachments

    • Like
    Reactions: Red Pill and RS14

    Rodney_6

    Sergeant of the Hide
    Hessian
    PX Member
    Minuteman
    Online Training Access
    May 29, 2017
    353
    112
    Texas
    Sam this chassis is fantastic! Machining and finish work is exceptional!

    Will get it out to the range this weekend to shoot it.

    Built this from an AT in an MPA and Adam at Mile High set me up with the shims, rear bolts, mag catch, spring and pin And he even had to machine the rear bolts since they were not available. Great support from Mile High!

    Your instructions were great. Came out fantastic. Set-up as pictured is 20.2 lbs with no front weights installed. Barrel is a 28” 6BR Benchmark from TS Customs in their MTU+ contour (Similar in profile to a Proof comp contour). I know I kicked the tires a few times with you on the purchase, but now have the perfect rifle!

    Thank you Sam!


    Attachments

    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    Hi Guys, I just wanted to pass this along. I decided before hand that I would split the epoxy in half. In watching Sam's videos when he gets to the butt stock it's obvious that the epoxy is starting to set up. Yes you can still use it but it's harder to spread around and rather then having to rush along I wanted all the time I could use. When I finished the receiver I still had lots of epoxy left over as seen in the photo of the larger pile on the right side. When I got to the butt stock I cut the half that was left in the jars in half again and still had some left over as seen in the pile on the left side. You can see I still have approximately 1/4 of the epoxy in the jars and two large piles of hardened epoxy. Take your time and make it nice because you're probably going the have this beautiful rifle for a long time. Thanks
    I will say, I don’t recommend doing this unless you measure it out with a very accurate scale. The ratio of the aluminum putty is exactly 9:1, and I measured both out to 0.1g, so if you just wing it it’s highly likely that your ratio is off and the epoxy won’t cure as well as it should.

    Yes, if you take your time during the action install the epoxy will be starting to harden when you get to the buttstock, but I haven’t found that to be an issue over many installs. If you’re worried you can always buy the Devcon plastic-steel epoxy that comes with the AX buttstock kit (or use that if you bought a new buttstock). Or I can send you another pre-measured portion of the aluminum putty.

    Sorry to rain on your parade @FMJ, I just want to make sure everyone’s epoxy job is cured per the Devcon ratio.

    Sam


    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    Sam this chassis is fantastic! Machining and finish work is exceptional!

    Will get it out to the range this weekend to shoot it.

    Built this from an AT in an MPA and Adam at Mile High set me up with the shims, rear bolts, mag catch, spring and pin And he even had to machine the rear bolts since they were not available. Great support from Mile High!

    Your instructions were great. Came out fantastic. Set-up as pictured is 20.2 lbs with no front weights installed. Barrel is a 28” 6BR Benchmark from TS Customs in their MTU+ contour (Similar in profile to a Proof comp contour). I know I kicked the tires a few times with you on the purchase, but now have the perfect rifle!

    Thank you Sam!
    You’re more than welcome, thanks for your business and supporting this project. I’m looking forward to your range report!

    I’m glad Mile High was willing and able to get you setup with the parts you needed. Adam is a good guy, and has known about this project for a long time. I don’t think Mile High can officially endorse this project due to the business relationship with AI proper, but they have helped me and other customers with whatever parts I’ve needed along the way.

    • Like
    Reactions: MCHOG

    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    96
    149
    West of the Rocky's
    I will say, I don’t recommend doing this unless you measure it out with a very accurate scale. The ratio of the aluminum putty is exactly 9:1, and I measured both out to 0.1g, so if you just wing it it’s highly likely that your ratio is off and the epoxy won’t cure as well as it should.

    Yes, if you take your time during the action install the epoxy will be starting to harden when you get to the buttstock, but I haven’t found that to be an issue over many installs. If you’re worried you can always buy the Devcon plastic-steel epoxy that comes with the AX buttstock kit (or use that if you bought a new buttstock). Or I can send you another pre-measured portion of the aluminum putty.

    Sorry to rain on your parade @FMJ, I just want to make sure everyone’s epoxy job is cured per the Devcon ratio.

    Sam
    No Problem. If the ratio is correct to begin with, and I'm sure that it is ... it's not that hard to split it in half.
    What I want t know is if you're going to make an AR-15 grip conversion for the AI? That's got to be an easier job than all the work you did for the chassis.

    Last edited:
    • Like
    Reactions: RS14

    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    96
    149
    West of the Rocky's
    Sam this chassis is fantastic! Machining and finish work is exceptional!

    Will get it out to the range this weekend to shoot it.

    Built this from an AT in an MPA and Adam at Mile High set me up with the shims, rear bolts, mag catch, spring and pin And he even had to machine the rear bolts since they were not available. Great support from Mile High!

    Your instructions were great. Came out fantastic. Set-up as pictured is 20.2 lbs with no front weights installed. Barrel is a 28” 6BR Benchmark from TS Customs in their MTU+ contour (Similar in profile to a Proof comp contour). I know I kicked the tires a few times with you on the purchase, but now have the perfect rifle!

    Thank you Sam!
    Rodney_6 I know exactly how you feel! Your rifle looks great!

    • Like
    Reactions: Rodney_6

    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    No Problem. If the ratio is correct to begin with, and I'm sure that it is ... it's not that hard to split it in half.
    What I want t know is if you're going to make an AR-15 grip conversion for the AI? That's got to be an easier job than all the work you did for the chassis.
    As of right now I’m not planning on making an AI AR grip conversion. I looked at it in depth year or two ago and for my own reasons decided it wasn’t something I wanted to pursue. It looks like there is a good option on the market now and I have no intention of ripping that idea off or trying to undercut it on price.

    • Like
    Reactions: MysizeisMAGNUM

    Dthomas3523

    Hall Monitor
    Staff member
    Moderator
    Hessian
    Commercial Supporter
    PX Member
    Minuteman
    Online Training Access
  • Jan 31, 2018
    9,880
    13,065
    South Texas
    The price he's charging at $380 is crazy.
    Isn’t it two pieces of machined aluminum? It’s not cheap when you’re a small company making things like that.


    MysizeisMAGNUM

    I'm still gonna send it.
    PX Member
    Minuteman
    May 23, 2014
    924
    465
    Arizona
    As of right now I’m not planning on making an AI AR grip conversion. I looked at it in depth year or two ago and for my own reasons decided it wasn’t something I wanted to pursue. It looks like there is a good option on the market now and I have no intention of ripping that idea off or trying to undercut it on price.
    Class act 🍻


    EmanP

    Private
    PX Member
    Minuteman
    May 7, 2005
    567
    81
    WA
    Lol, we are literally ripping apart rifles worth thousands of dollars and dudes bitch about 380.00. Support the company they’re producing a great product.
    You have $400 for a grip go for it, I'm not so affluent to be able throw away my good senses. The chassis's were well worth their cost.


    EmanP

    Private
    PX Member
    Minuteman
    May 7, 2005
    567
    81
    WA

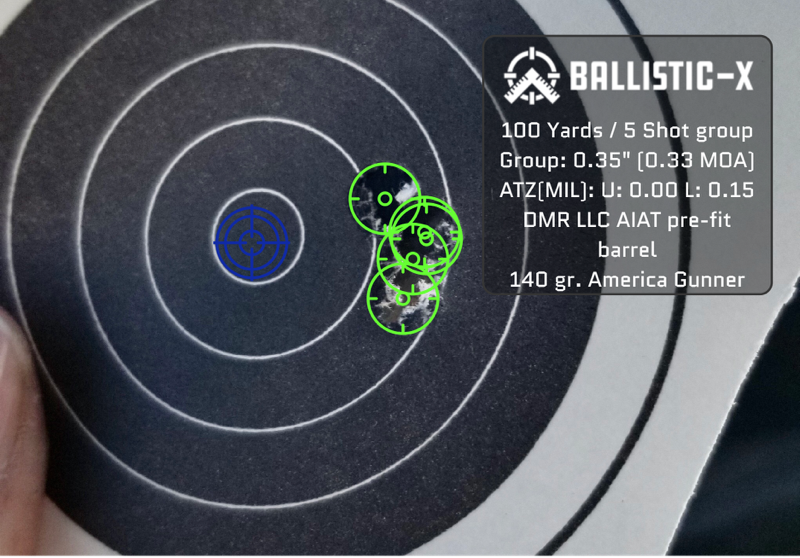

    Put on the 308 barrel and went out to zero today. 1 rd at 50 yds to see if it's on paper still, make an adjustment and fired 5 rds at 100 yds. I'm good for next week's match.


    • Like
    Reactions: J-Fonz and RS14

    tturedraiders325

    Private
    PX Member
    Minuteman
    Sep 28, 2013
    13
    11
    Lubbock, TX

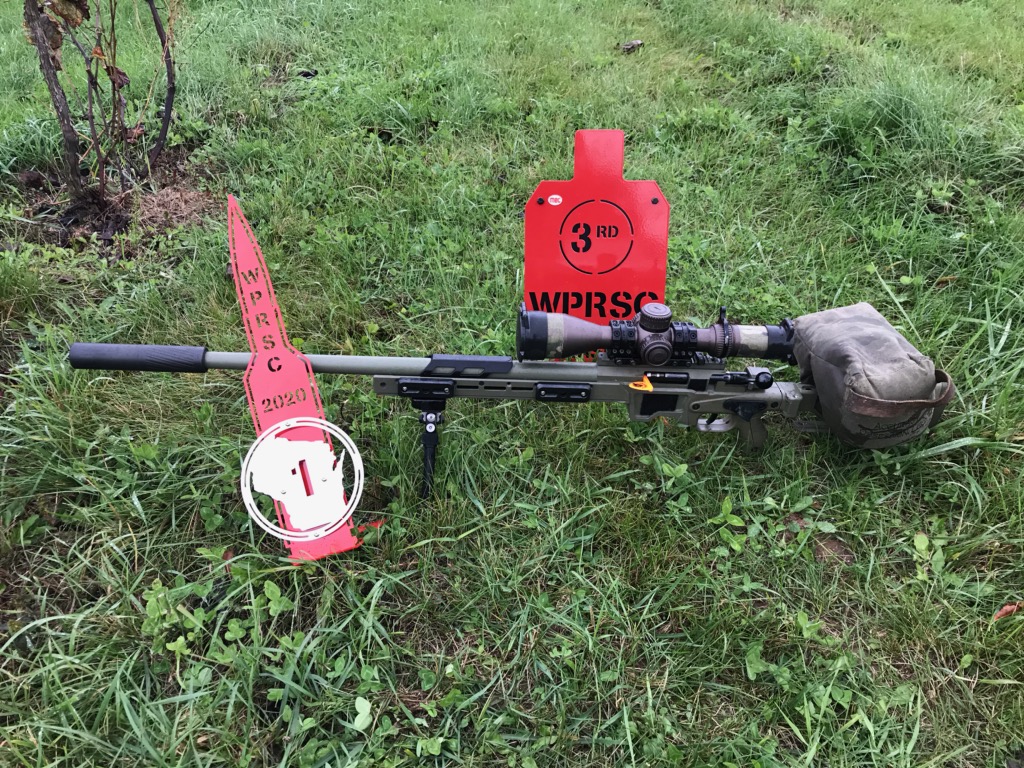

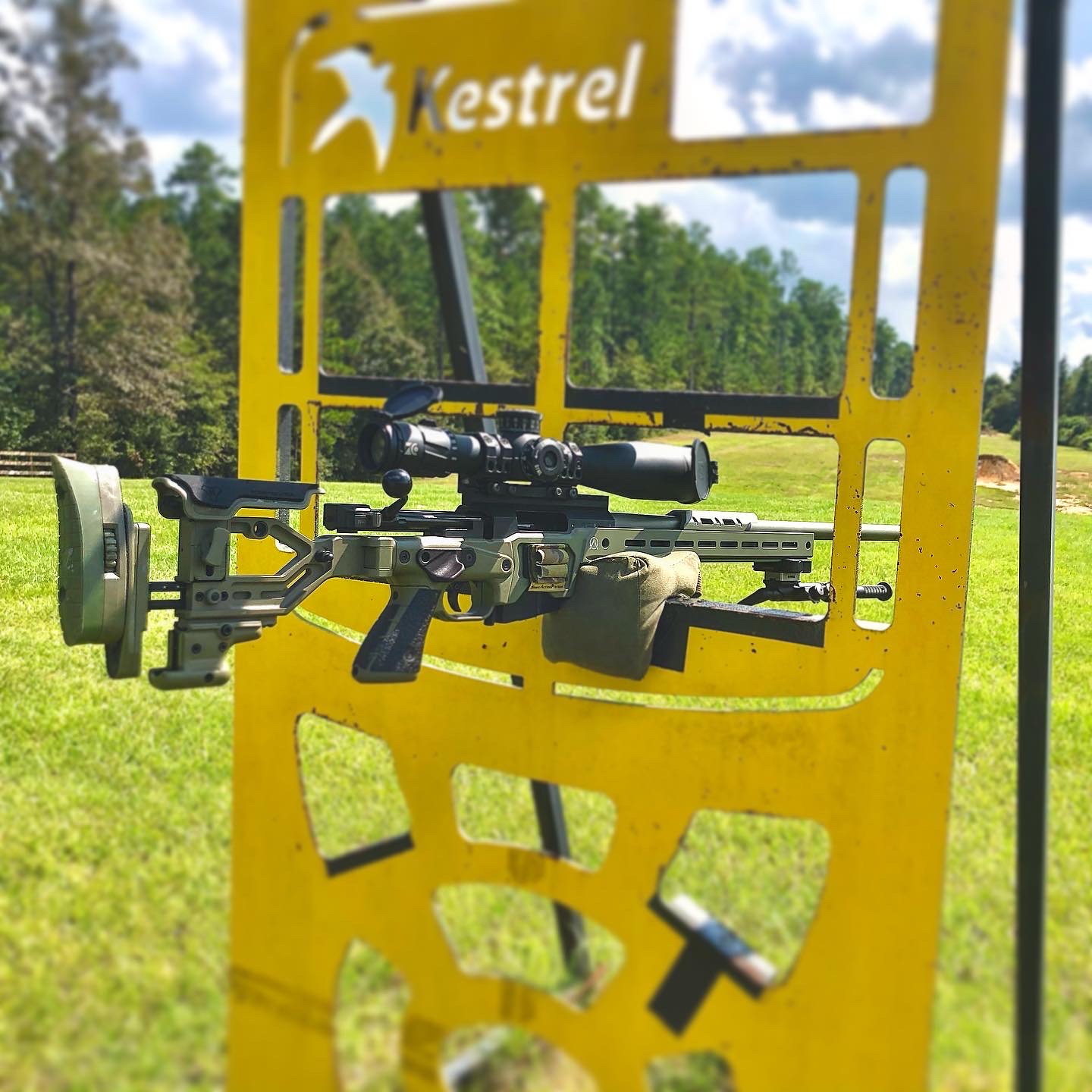

    To get ready for a match today, I shot the Obsession chassis yesterday for the first time. After having it all torn apart and putting it back together, windage was dead on and elevation was only .2 mils high, but that’s likely more from switching from a can to a brake. Was really amazed at the repeatability after reassembling it.
    The match today went great and I couldn’t have been happier with how the chassis felt and performed. The stability on a bag was far and away better than the original AT chassis and the balance with the 2 lb. weight felt great as well. I didn’t win the match but at my current level I didn’t expect to, but I did have a personal best which is awesome in my book! I’m going to love shooting this thing for a long time!


    Attachments

    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    To get ready for a match today, I shot the Obsession chassis yesterday for the first time. After having it all torn apart and putting it back together, windage was dead on and elevation was only .2 mils high, but that’s likely more from switching from a can to a brake. Was really amazed at the repeatability after reassembling it.
    The match today went great and I couldn’t have been happier with how the chassis felt and performed. The stability on a bag was far and away better than the original AT chassis and the balance with the 2 lb. weight felt great as well. I didn’t win the match but at my current level I didn’t expect to, but I did have a personal best which is awesome in my book! I’m going to love shooting this thing for a long time!
    Damn dude, that’s awesome, congrats on the personal best at your match! Thanks for supporting this project, and thanks for sharing your initial experiences from your first couple sessions with the new chassis.

    My experience has been similar with re-assembling; my zero barely moved, even with the barrel and scope being removed along with the re-bonding the chassis. I think more than anything it’s a testament to the repeatability and consistency of the AI platform, especially since my chassis simply replicates the action/chassis interface. Over the past 5 years of shooting an AI exclusively I have enjoyed not having to re-torque action screws or chase wandering zeroes, or worrying about barrel swaps.

    • Like
    Reactions: RS14

    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    96
    149
    West of the Rocky's
    Love the look of that short barrel and suppressor. What is the weight with a short barrel in that configuration? I assume you have no weights attached.


    RS14

    Sergeant of the Hide
    PX Member
    Minuteman
    May 7, 2019
    446
    521
    Panama City Florida
    Love the look of that short barrel and suppressor. What is the weight with a short barrel in that configuration? I assume you have no weights attached.
    I have the 2 pound weight installed. Didn’t put it on the scale to check. But it balanced right where I have the tripod attached. Almost the exact same spot as my 26” barrel with the break installed.


    samb300

    Accuracy Obsession, Anarchy Outdoors
    PX Member
    Minuteman
  • Feb 22, 2013
    1,868
    2,918
    Milwaukee, WI
    Anybody that got their chassis last week do the install and take any pics?

    Anyone shoot a match this weekend?


    EmanP

    Private
    PX Member
    Minuteman
    May 7, 2005
    567
    81
    WA
    I shoot a 2 day this weekend and it was soooo much better. Just handling it and getting it moved around and manipulated was noticeably improved. I'm not that great of a shooter but I felt it was a lot more stable in positions and I was able to handle the recoil better (shooting 308 this weekend) to see my impacts. I've got guys that will be getting on your list if you do another run.

    • Like
    Reactions: RS14 and samb300

    RS14

    Sergeant of the Hide
    PX Member
    Minuteman
    May 7, 2019
    446
    521
    Panama City Florida
    I shoot a 2 day this weekend and it was soooo much better. Just handling it and getting it moved around and manipulated was noticeably improved. I'm not that great of a shooter but I felt it was a lot more stable in positions and I was able to handle the recoil better (shooting 308 this weekend) to see my impacts. I've got guys that will be getting on your list if you do another run.
    Got any pics man?


    Idk when I’ll be able to shoot another centerfire match. Doing a rimfire this weekend and bring the AI to do a little practice with after the match


    EmanP

    Private
    PX Member
    Minuteman
    May 7, 2005
    567
    81
    WA
    No, there wasn't any time for that. We had tee times that were aggressive to keep everyone safe with Covid. 🙄 But it was pretty awesome to be done in like 2 hours.

    • Like
    Reactions: RS14

    MysizeisMAGNUM

    I'm still gonna send it.
    PX Member
    Minuteman
    May 23, 2014
    924
    465
    Arizona

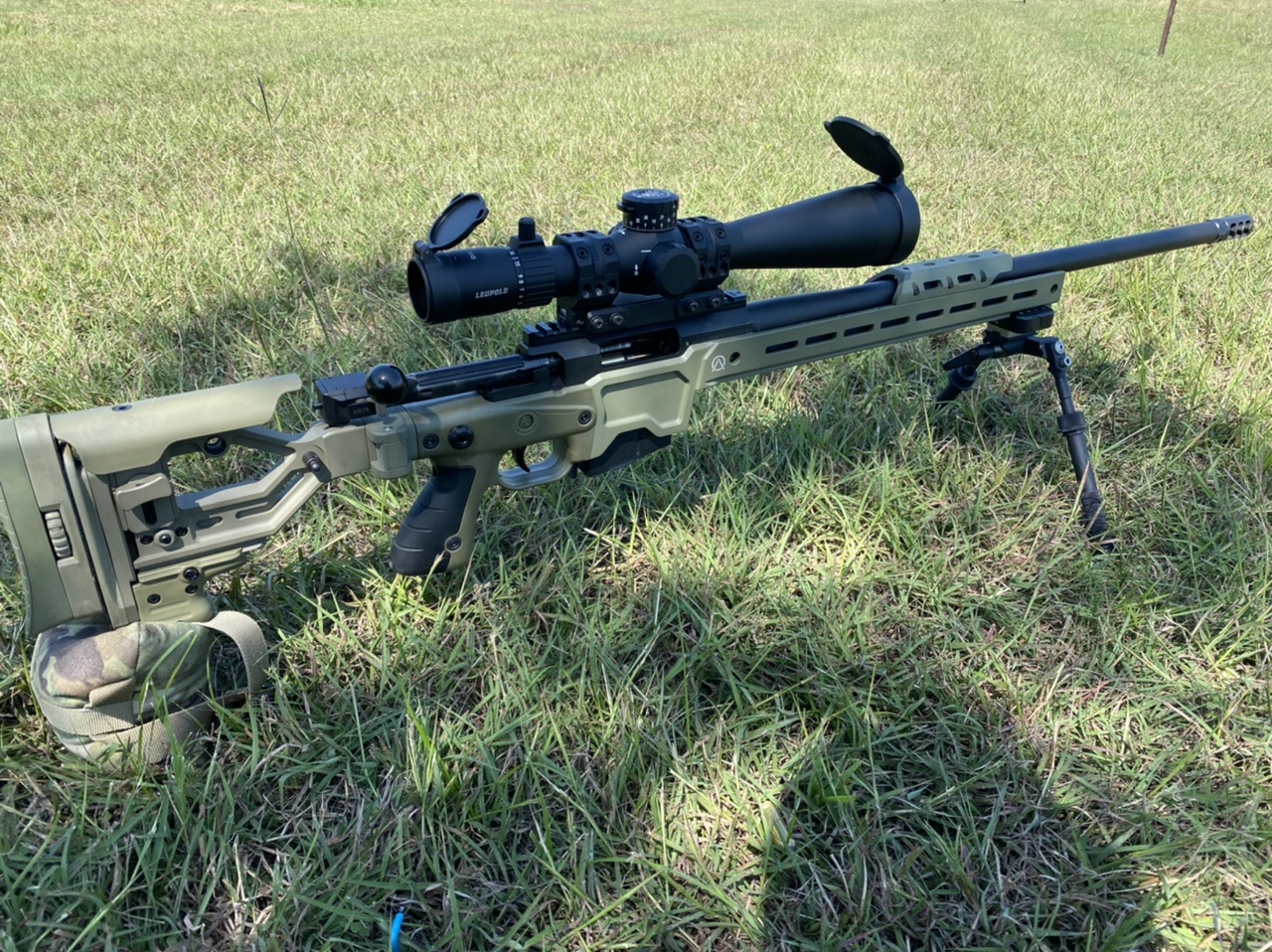

    I’ll get some better pictures in the daylight, might wait until I get it down range. This might be one of the most molested AI’s. Poor girl...

    Started its life as a 2014 AIAT, bolt was sent to LRI to Bush for small firing pin. Then AX stocks became available so she got round 1 of the torch treatment. I shot and enjoyed the setup for awhile but always hated the height over Bore. I’ve been following Sams progress with this chassis since he first posted his drawing for a competition AI. So naturally as soon as the production model was available I was in, thanks again Sam for your commitment to the project I couldn’t be happier with the quality and factory fit and finish. So she got torch treatment two this evening and Install was really straight forward. I also installed the GTAC AI grip modification and I can’t recommend that enough, what a fantastic product, I’m excited to try a couple different grips and settle it in just right.

    I finally feel like this rifle is perfect, the ultimate AI in my opinion. Sam great work!
