AR-15 barrel extension pin

supercorndogs

Ham Fisted Gorilla
Belligerents
Minuteman
Feb 17, 2014
5,987
4,806
Colorado

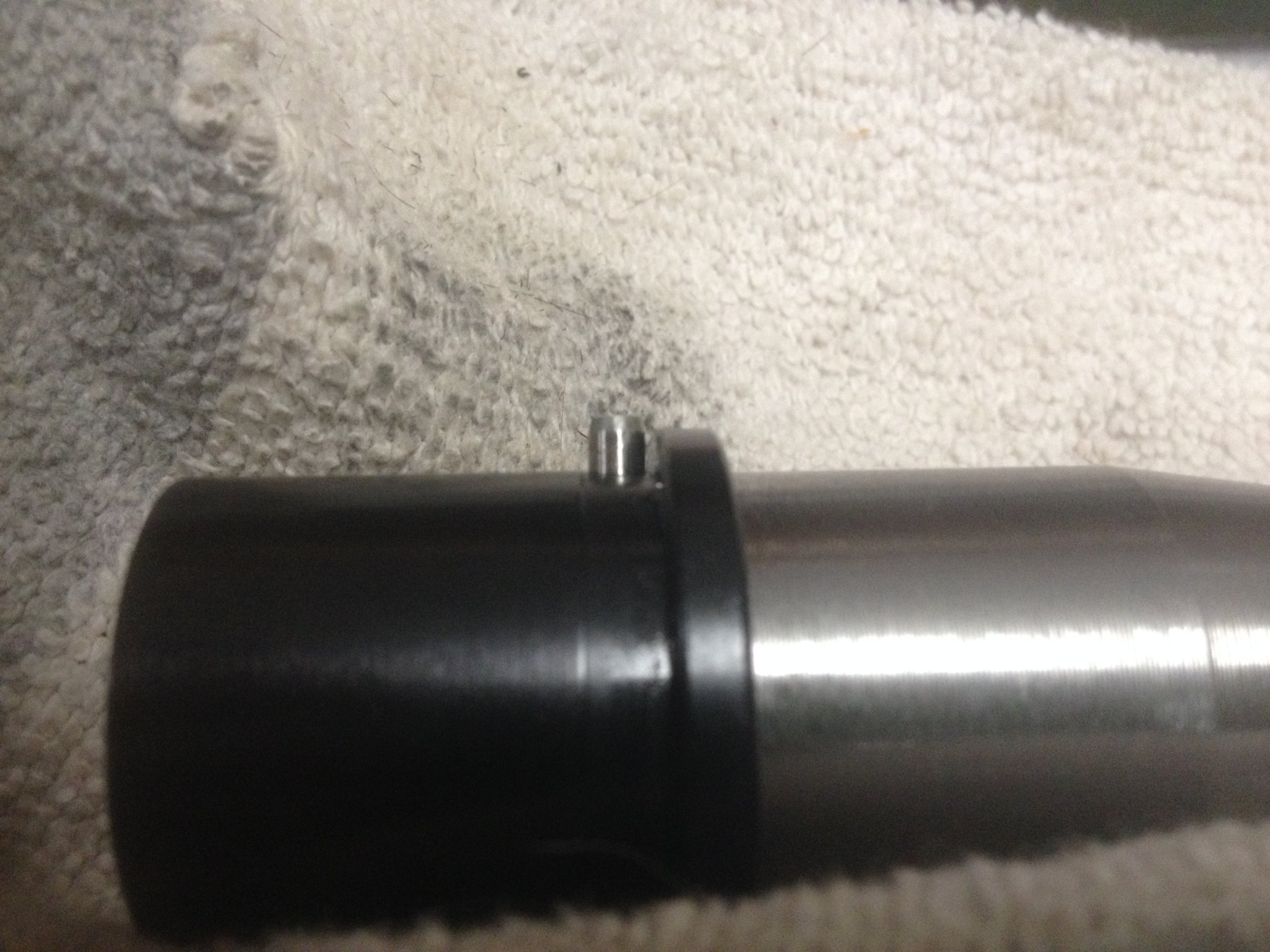

I just got a barrel in and the pin that keeps the barrel from spinning in the receiver is so tall it sticks up above the threads on the receiver. Can i just file it down? I assume that is a step they missed in building the barrel. Can I pull it out with vice grips or something and file down so as not to effect the hole it lives in? Or should I just run a few passes with a file as it sits? I contacted the builder but I bet I don't hear from him until Monday.


myers129

Private
Hessian
Minuteman
Jul 26, 2020
64
40
Have you tried a few light taps to see if the pin will drive in where it belongs? Sometimes they are nice and tight and other times not so much. Pretty much a universal size so not likely a missed step by the barrel smith.


supercorndogs

Ham Fisted Gorilla
Belligerents
Minuteman
Feb 17, 2014
5,987
4,806
Colorado
I already pulled it out and ground it down so it would fit. It did interfere with the barrel nut. Now the upper is put together. It sat tall enough i noticed it as soon as I unpacked it LOL. Thanks for taking the time to give advice.


Attachments

supercorndogs

Ham Fisted Gorilla
Belligerents
Minuteman
Feb 17, 2014
5,987
4,806
Colorado
The Taper did not effect the depth, but it was put in upside down from how I put it back. The taper was much less on the other end that i ground down a little.
