I'm thinking about doing a 284win build either in a Defiance XM action or a Tikka 30-06 long action donor.
Can you confirm the chassis would work with AICS long action magazine on a Tikka ?
Any plans for a XM length with MDT XM magazine ?


samb300

GCP Rifle Co. Accuracy Obsession Vision Products
Supporter
Commercial Supporter
Full Member
Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    I'm thinking about doing a 284win build either in a Defiance XM action or a Tikka 30-06 long action donor.
    Can you confirm the chassis would work with AICS long action magazine on a Tikka ?
    Any plans for a XM length with MDT XM magazine ?
    Yes to the Tikka long action with AICS LA mags.

    No to the Defiance XM intermediate action inlet.

    • Like
    Reactions: st1650

    st1650

    Private
    Full Member
    Minuteman
    Aug 13, 2009
    589
    377
    35
    What magazine length is supported for the Tikka AICS LA ? 3.715” ? Just looking at what are the 5rnd and the 10 options. I only see 5 rnd in Single stack accurate 30:06 or 308 LA. Would be nice to get a DSSF option for LA.

    I wonder if this would work:


    Cause if so ... id totally go with the Tikka, 284 win and Vision chassis. The only hold out is the lack of >5 round AICS mags.

    Last edited:

    gnochi

    Gunny Sergeant
    Full Member
    Minuteman
    May 6, 2019
    994
    716
    Orange County, CA
    What magazine length is supported for the Tikka AICS LA ? 3.715” ? Just looking at what are the 5rnd and the 10 options. I only see 5 rnd in Single stack accurate 30:06 or 308 LA. Would be nice to get a DSSF option for LA.

    I wonder if this would work:


    Cause if so ... id totally go with the Tikka, 284 win and Vision chassis. The only hold out is the lack of >5 round AICS mags.
    The Tikka action itself only supports 3.560 magazines without serious rework, at ~3.44 COAL.

    • Like
    Reactions: samb300

    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    What magazine length is supported for the Tikka AICS LA ? 3.715” ? Just looking at what are the 5rnd and the 10 options. I only see 5 rnd in Single stack accurate 30:06 or 308 LA. Would be nice to get a DSSF option for LA.

    I wonder if this would work:


    Cause if so ... id totally go with the Tikka, 284 win and Vision chassis. The only hold out is the lack of >5 round AICS mags.
    The 3.56 mags will work. That 10-rd T3 mag will not work, unfortunately.


    JasonPaul

    Competitor, Hunter, Mechanic and Family Man.
    Full Member
    Minuteman
    Oct 27, 2020
    117
    51
    NJ
    Ordered the vision chassis!Was going to get a mdt vertical grip to try and was sure if I should get chassis version or ar10/15.Couldn't find the difference on there website.
    Post some pics when you get it! I’m trying to slowly smuggle funds into my PayPal account to pick one up. (the wife is on to my addiction) 😂


    BuildingConceptsllc

    Don't Start None, won't be none.
    Supporter
    Full Member
    Minuteman
  • Nov 13, 2020
    1,760
    867
    Alabama
    So are you guys going to make a true left hand folder with this chassis?


    Also, I'm not clear on exactly what is being offered for an existing KRG chassis???


    BLKWLFK9

    Just F'n Send It..
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    3,012
    5,262
    So are you guys going to make a true left hand folder with this chassis?


    Also, I'm not clear on exactly what is being offered for an existing KRG chassis???
    Forend.



    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    Ordered the vision chassis!Was going to get a mdt vertical grip to try and was sure if I should get chassis version or ar10/15.Couldn't find the difference on there website.
    Thank you for your business! The chassis MDT vertical grip will work just fine 👍🏻

    • Like
    • Love
    Reactions: Pav67 and BLKWLFK9

    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    So are you guys going to make a true left hand folder with this chassis?


    Also, I'm not clear on exactly what is being offered for an existing KRG chassis???
    The center section is available in LH for the R700 short action configuration. The folding hinge is ambidextrous, simply flip the orientation to change from RH to LH fold. There is only one buttstock frame but it will work in either direction.

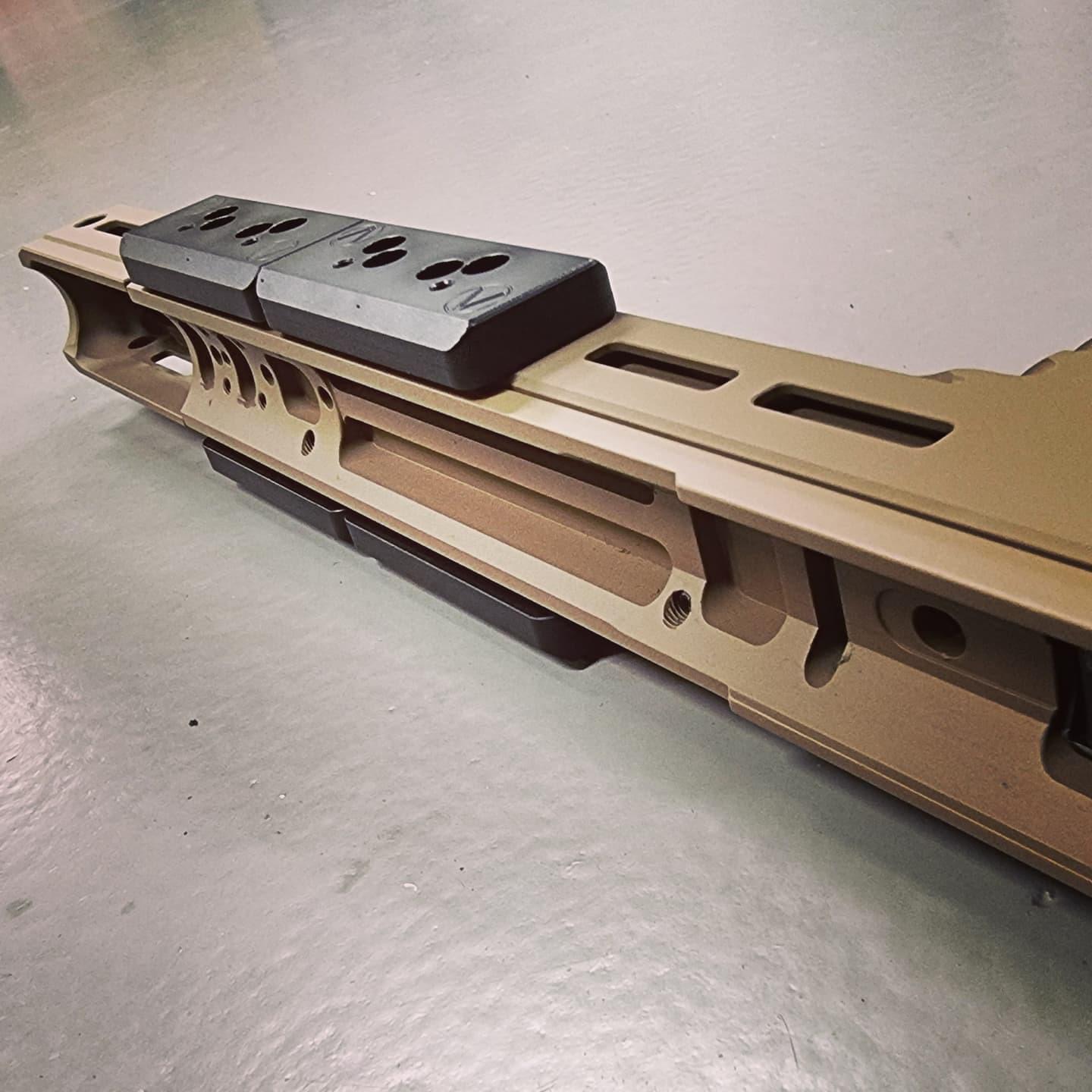

    The KRG product is one piece forend and front handguard, which is offered in both short and long action. It will work with the KRG Whiskey, Bravo, and X-Ray.

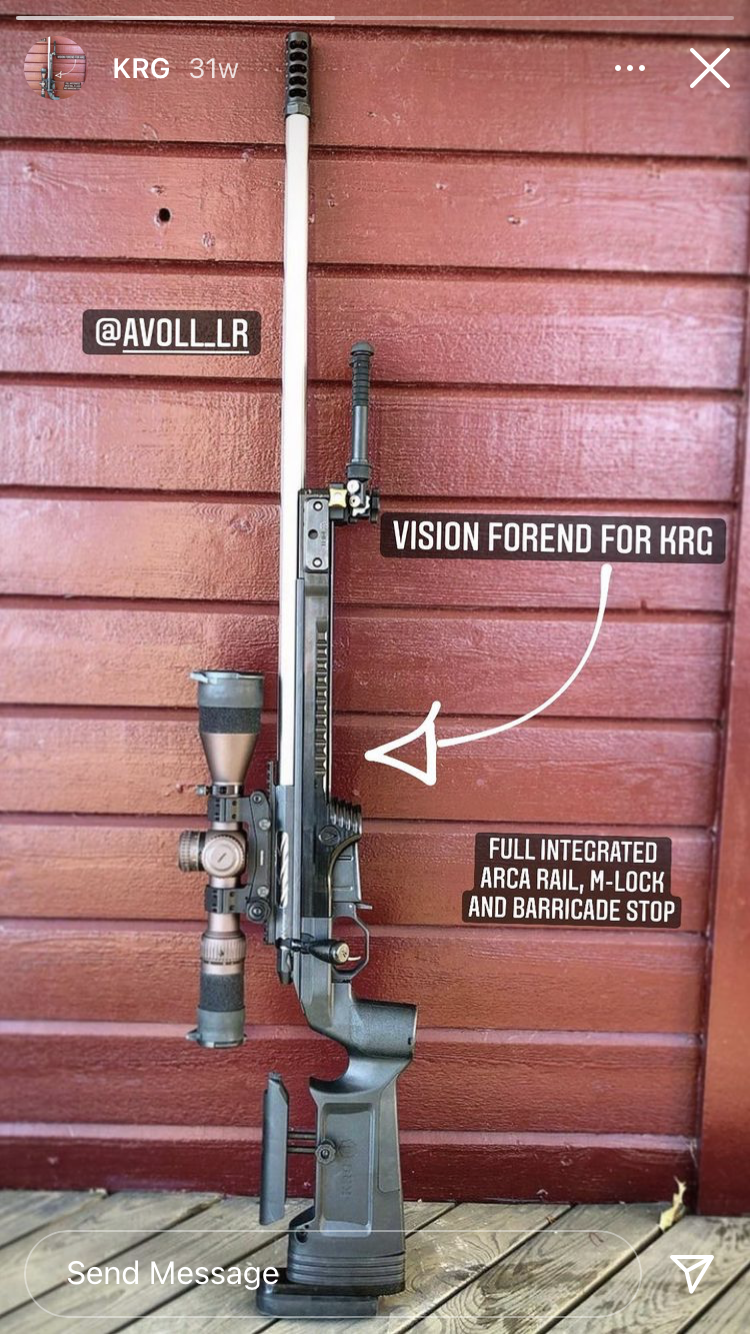

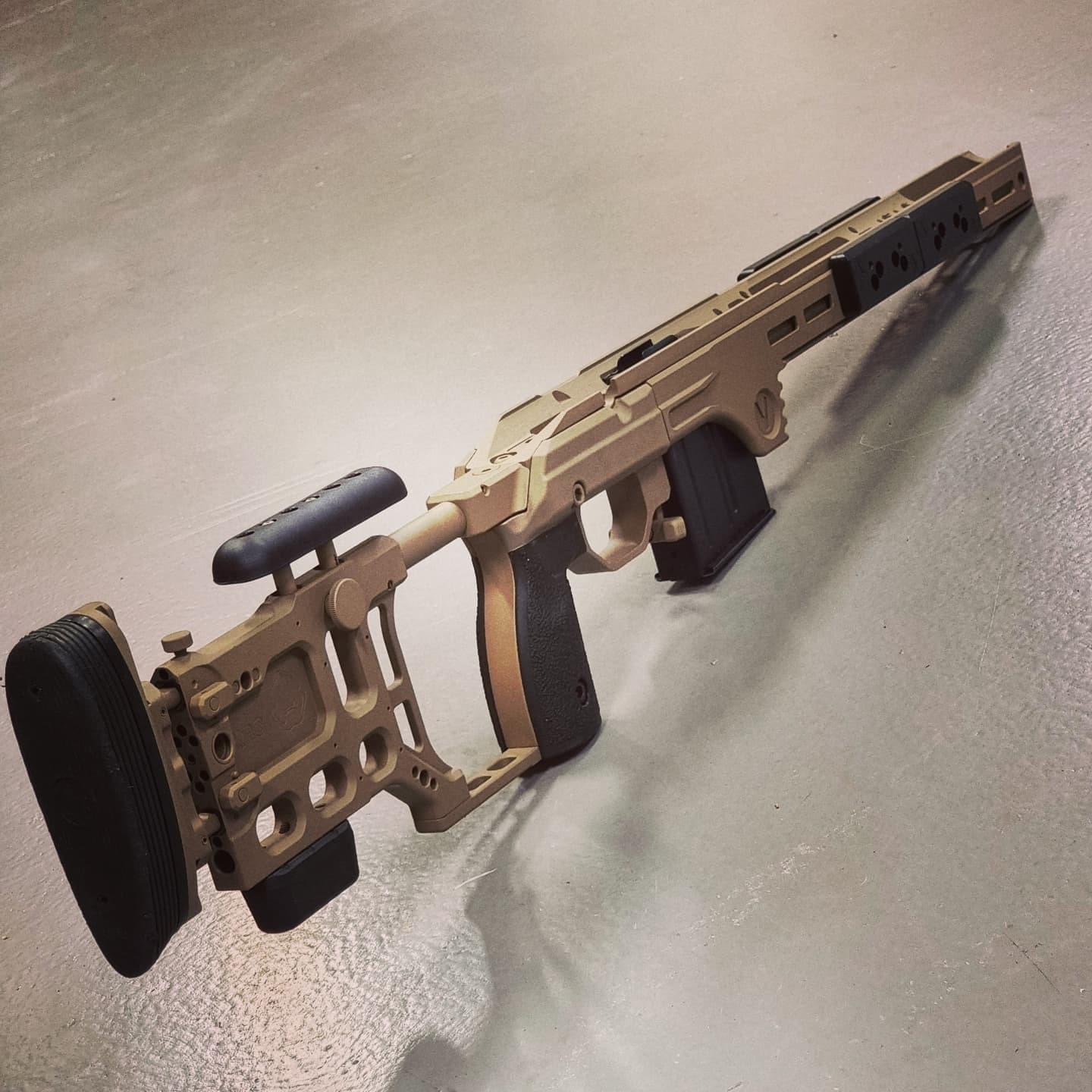

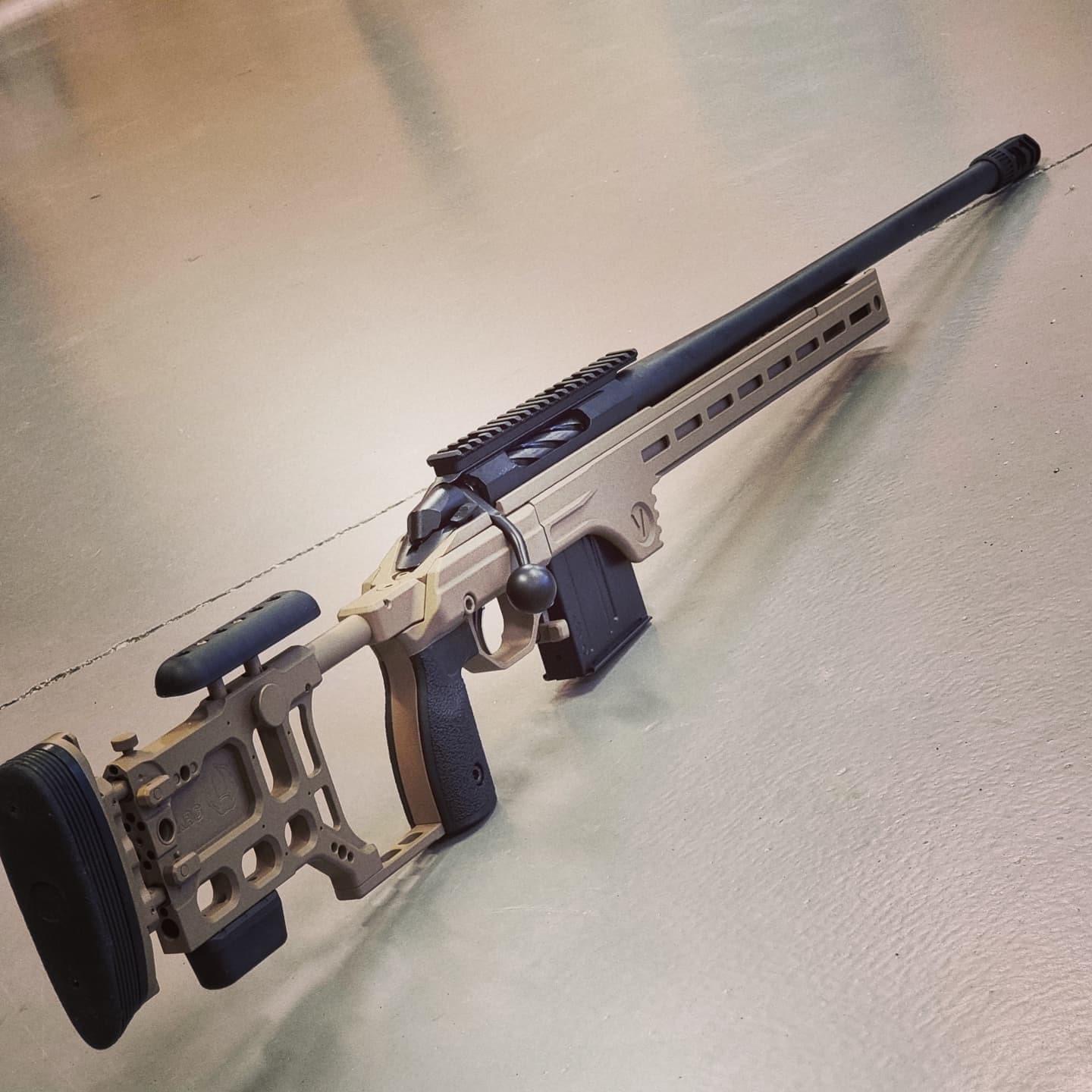

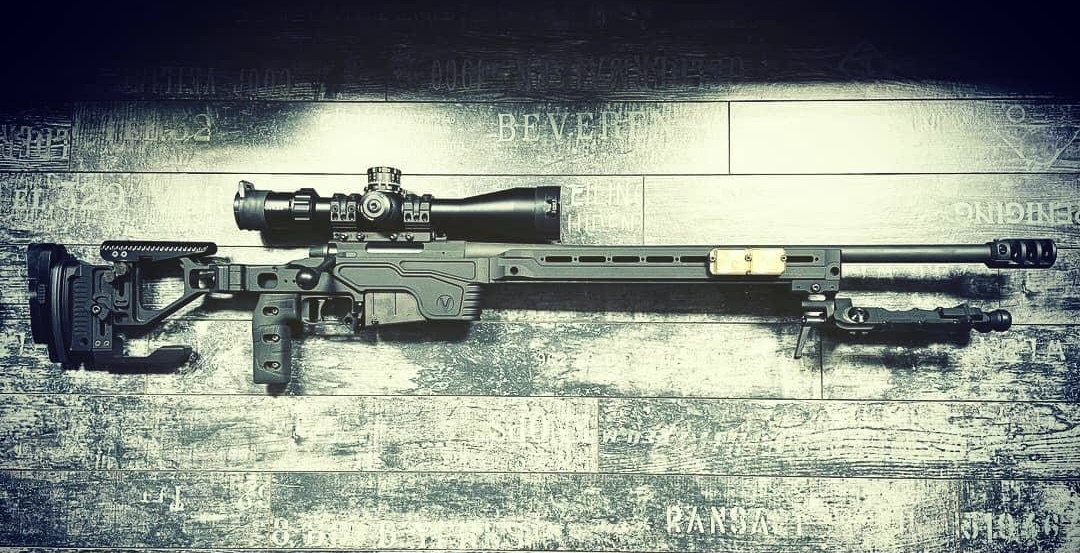

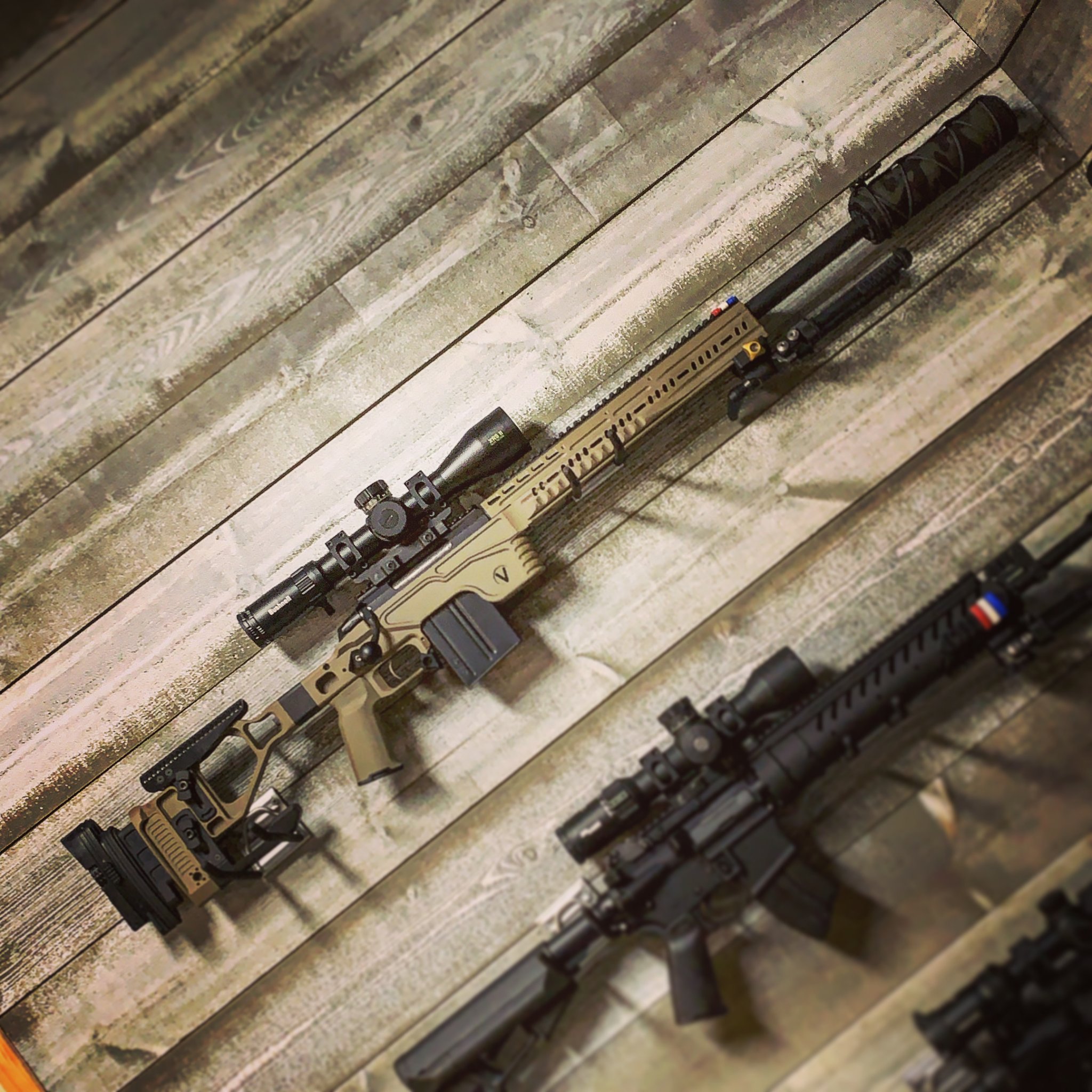

    There is the regular version shown above by @BLKWLFK9 , and a new competition version shown below.



    BLKWLFK9

    Just F'n Send It..
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    3,012
    5,262
    Damn that would look mighty fine on an AI.


    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    I got a PM with a good question that I thought I would share the answer to. He asked if the long action Vision Chassis would accept CIP-length magazines.

    The answer…hell yes! Oh, and it also accepts non-CIP length mags. And 300WM length mags!

    Christian being the mad scientist he is, created an internal spacer system that allows the user to swap out whatever long action and mag length they want. And the spacer kit is included with the long action chassis!

    • Like
    Reactions: Stoweit and gnochi

    BLKWLFK9

    Just F'n Send It..
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    3,012
    5,262
    You’re in luck, Wiebad makes a mini stock pad for both the AT and AX cheek pieces 😘
    Good thing they now carry one for the Vision cheek piece. It will be the tits on my AI when I get one


    BuildingConceptsllc

    Don't Start None, won't be none.
    Supporter
    Full Member
    Minuteman
  • Nov 13, 2020
    1,760
    867
    Alabama
    The center section is available in LH for the R700 short action configuration. The folding hinge is ambidextrous, simply flip the orientation to change from RH to LH fold. There is only one buttstock frame but it will work in either direction.

    The KRG product is one piece forend and front handguard, which is offered in both short and long action. It will work with the KRG Whiskey, Bravo, and X-Ray.

    There is the regular version shown above by @BLKWLFK9 , and a new competition version shown below.

    View attachment 7719950View attachment 7719951View attachment 7719952View attachment 7719953
    Man yall have a sweet set up here fellas.... thank you

    • Like
    Reactions: samb300

    ma smith

    Gunny Sergeant
    Full Member
    Minuteman
  • Sep 29, 2020
    839
    479
    The center section is available in LH for the R700 short action configuration. The folding hinge is ambidextrous, simply flip the orientation to change from RH to LH fold. There is only one buttstock frame but it will work in either direction.

    The KRG product is one piece forend and front handguard, which is offered in both short and long action. It will work with the KRG Whiskey, Bravo, and X-Ray... and a new competition version shown below.
    Modified tikka w3+ competition rig looks... :love:

    • Like
    Reactions: samb300

    gunjunkie45

    Major Hide Member
    Full Member
    Minuteman
  • Nov 28, 2009
    1,462
    4,677
    43
    Wisconsin

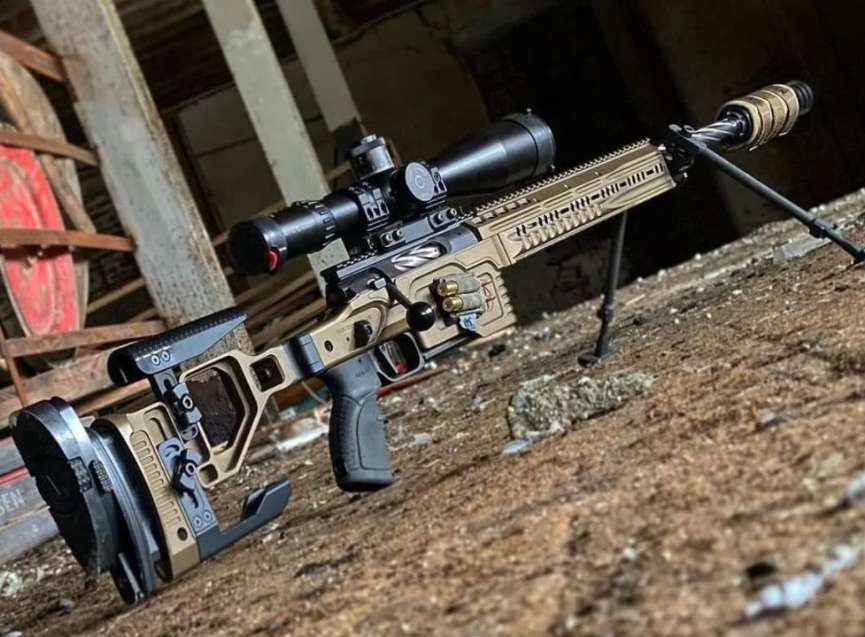

    The color in the top pic is 🔥🔥🔥
    I think the top one is tungsten? If so I want it. I'm also confused on the rails. They have one picture to show the difference in length, but none if the three rails are on a rifle. Hard to tell which one to buy. I'd suggest a picture of a 24" or 26" barrel in each of the rail lengths for scale.


    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    • Like
    Reactions: Familydude

    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    I think the top one is tungsten? If so I want it. I'm also confused on the rails. They have one picture to show the difference in length, but none if the three rails are on a rifle. Hard to tell which one to buy. I'd suggest a picture of a 24" or 26" barrel in each of the rail lengths for scale.

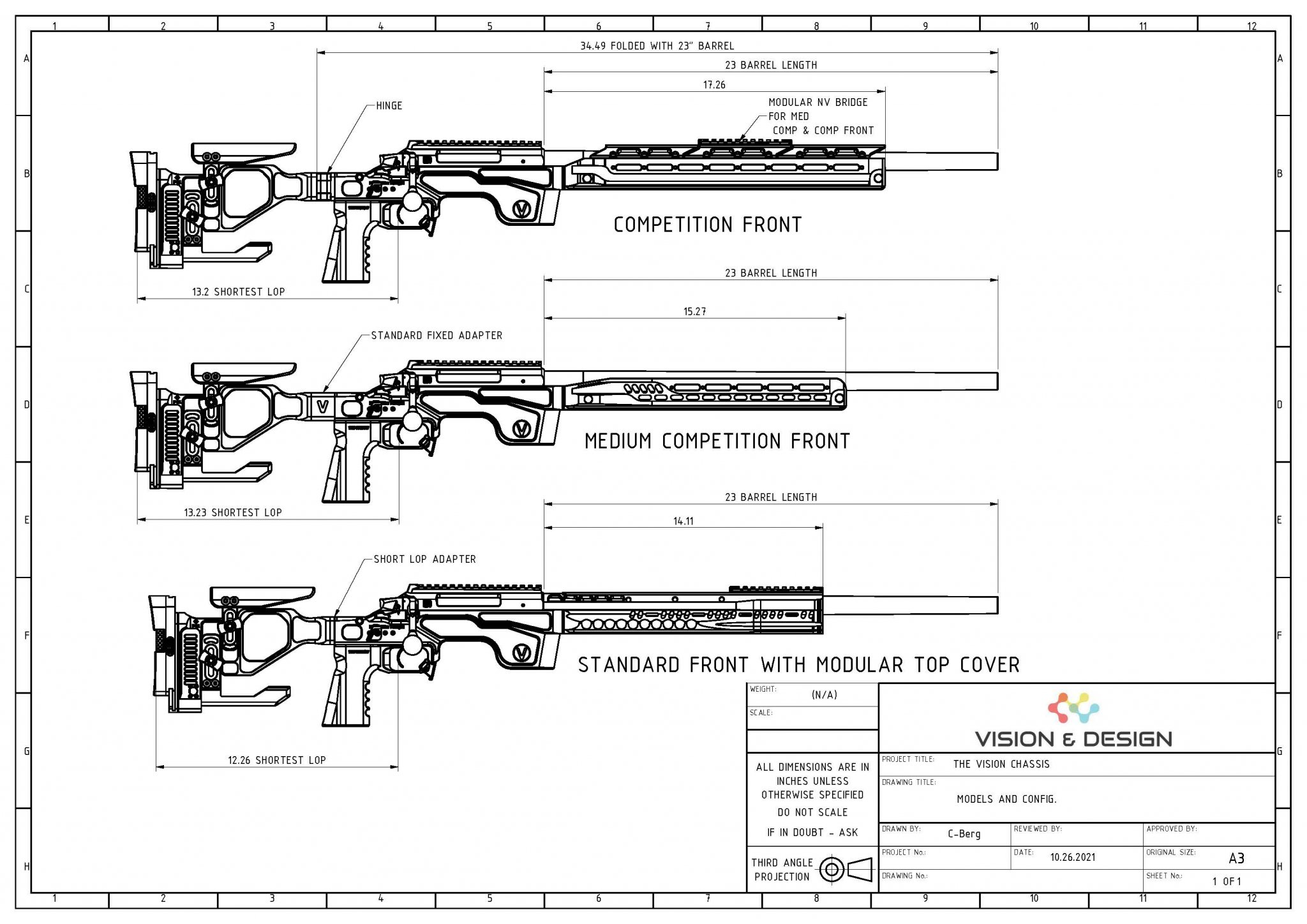

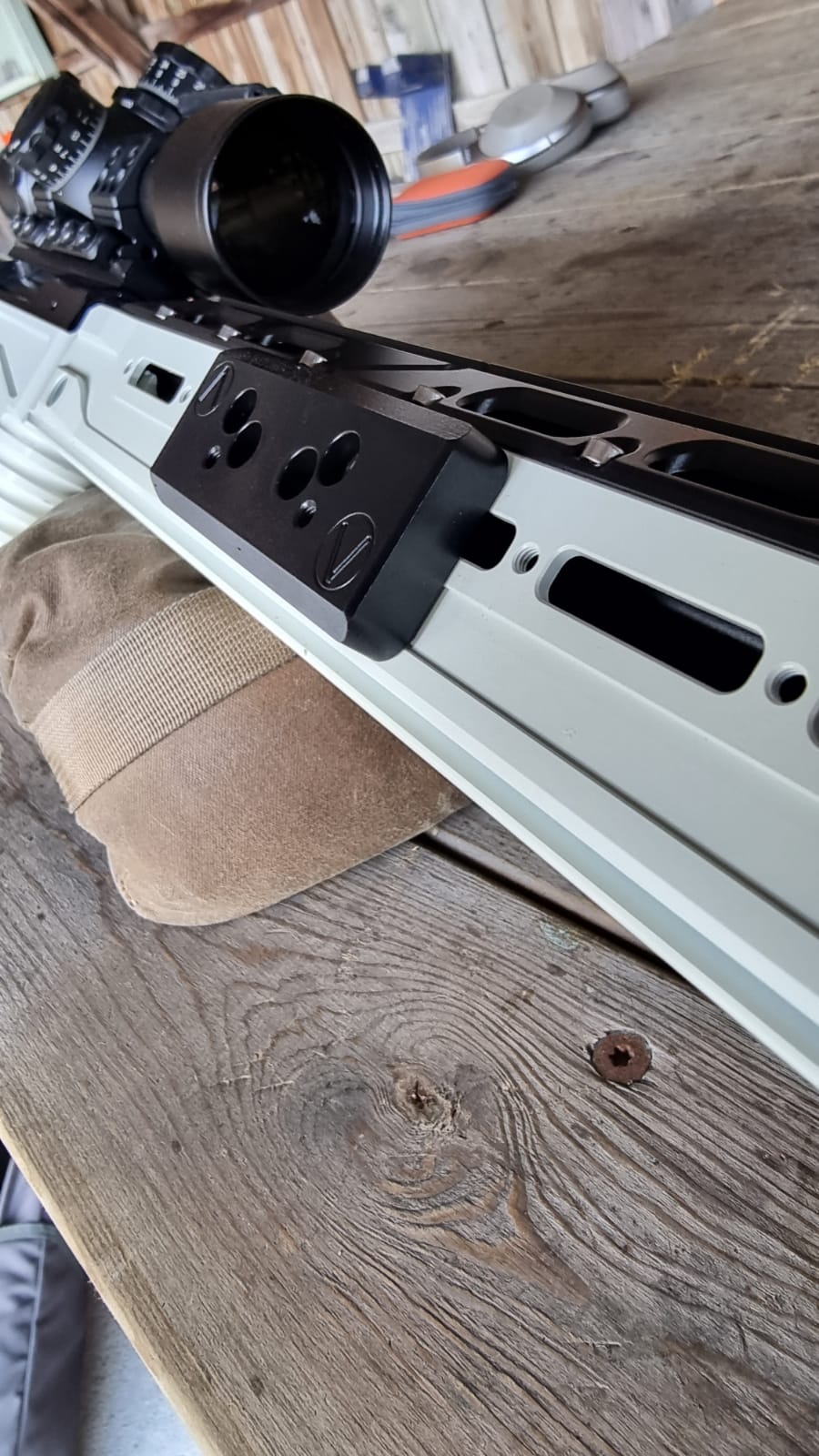

    There are the three forends:
    1- Long competition
    2- Mid competition
    3- Standard

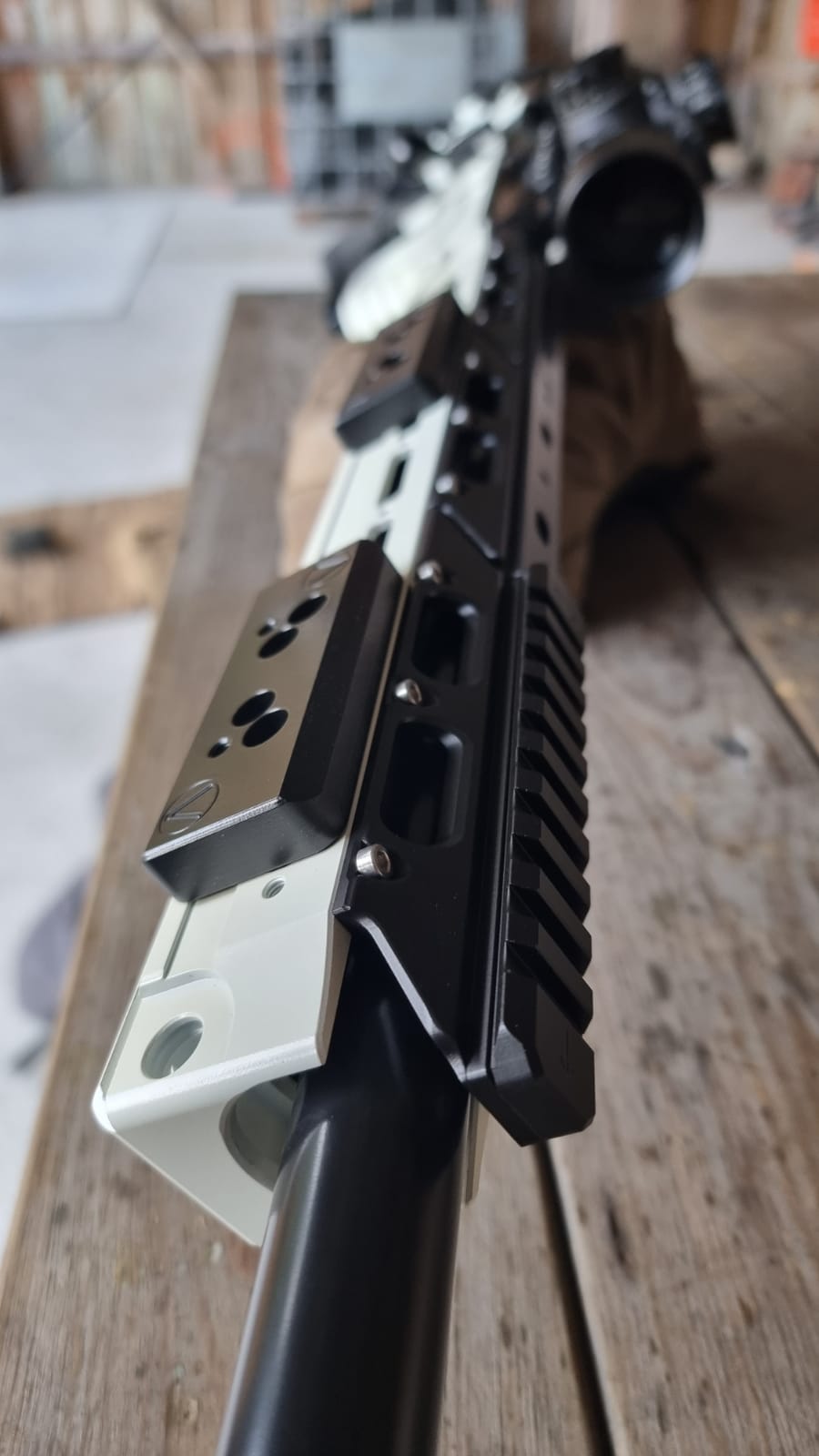

    The Long comp forend is compatible with the "stackable" top cover sections, where you can use 1, 2, or 3 of them.


    The mid comp forend, I don't believe has provisions for the top cover.

    The standard forend is available with the 1-piece full length top cover.


    gunjunkie45

    Major Hide Member
    Full Member
    Minuteman
  • Nov 28, 2009
    1,462
    4,677
    43
    Wisconsin
    This picture should have the same barreled action in every rail section for scale. And show the full length of the rifle. Pick an easy length for reference. 24" Tikka C.T.R. for example.


    Attachments

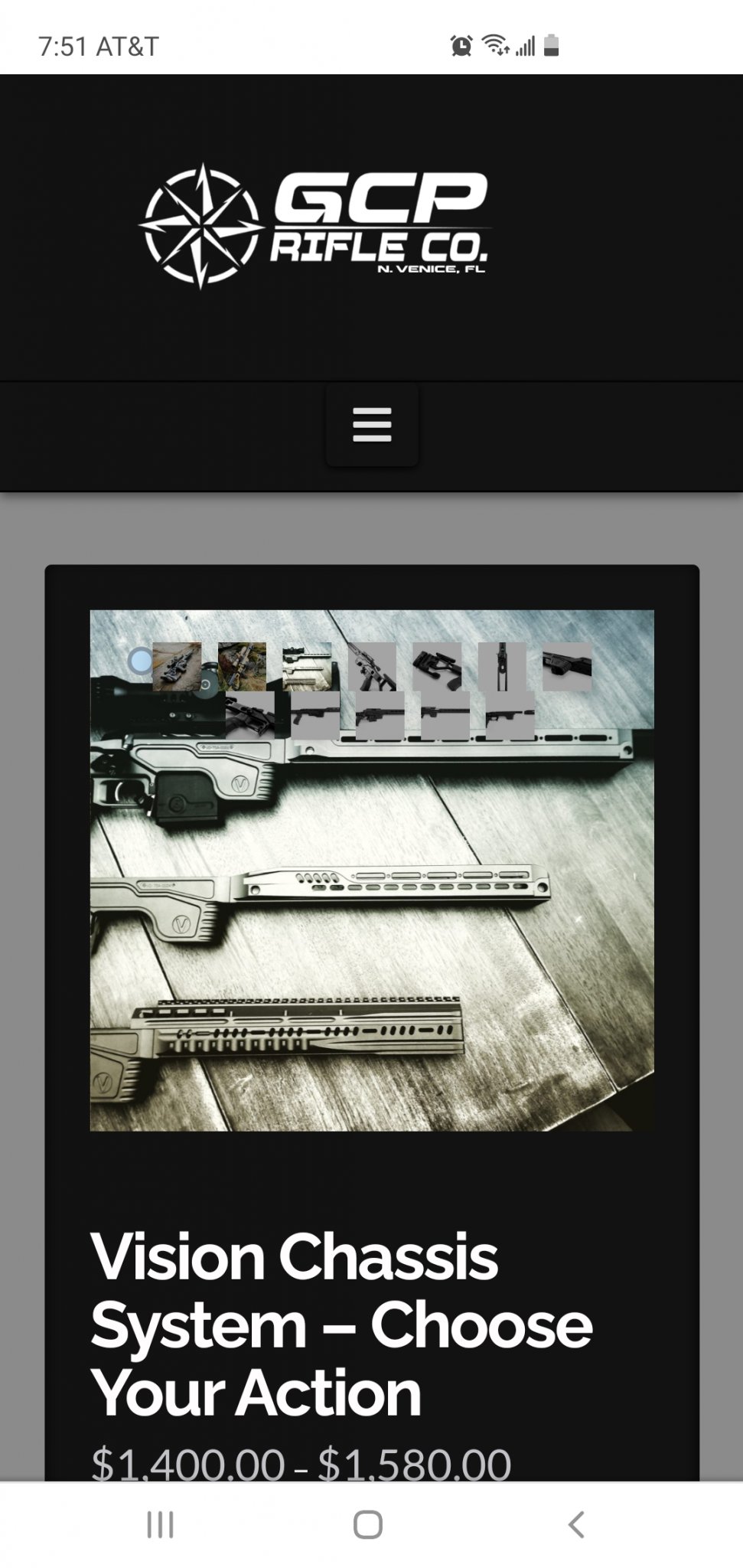

    • Screenshot_20211013-195135_Chrome.jpg
      208.7 KB · Views: 32

    gunjunkie45

    Major Hide Member
    Full Member
    Minuteman
  • Nov 28, 2009
    1,462
    4,677
    43
    Wisconsin
    I like the competition and mid length but there isn't an image that shows me the difference on an actual barreled action.


    Familydude

    Spending my kids’ paltry inheritance on hobbies
    Supporter
    Full Member
    Minuteman
  • May 14, 2020
    951
    343
    California
    I will get back to you on the exact colors, I sent a message to Christian to find out.

    Regardless, Rick at GCP Rifle Co is a certified Cerakote applicator, so he can do any Cerakote color you want!
    Thank you. Both look great. I’d like to know what color to specifically ask for when I purchase. Leaning more towards the blue-grey, whatever it’s called.

    • Like
    Reactions: samb300

    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    Thank you. Both look great. I’d like to know what color to specifically ask for when I purchase. Leaning more towards the blue-grey, whatever it’s called.

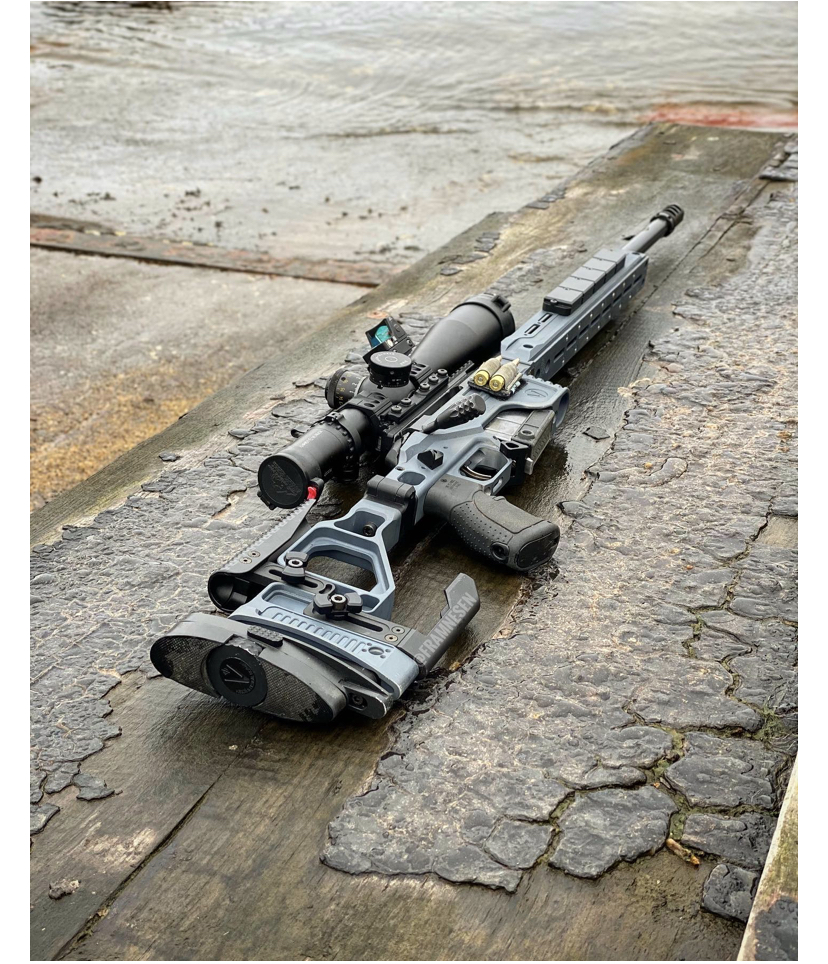

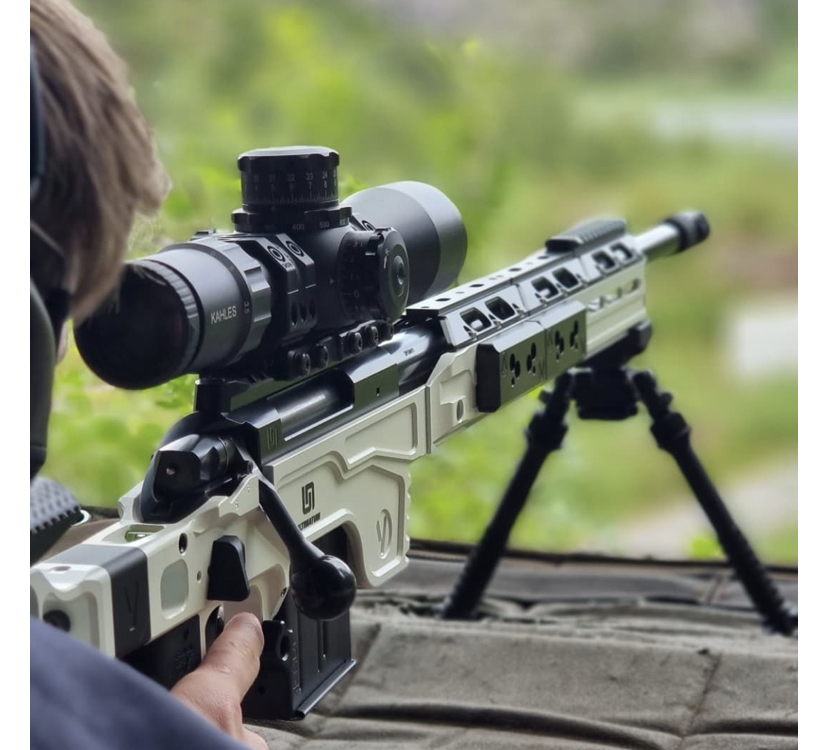

    Ok, the top chassis is H-295 Cobalt Kinetics Slate.

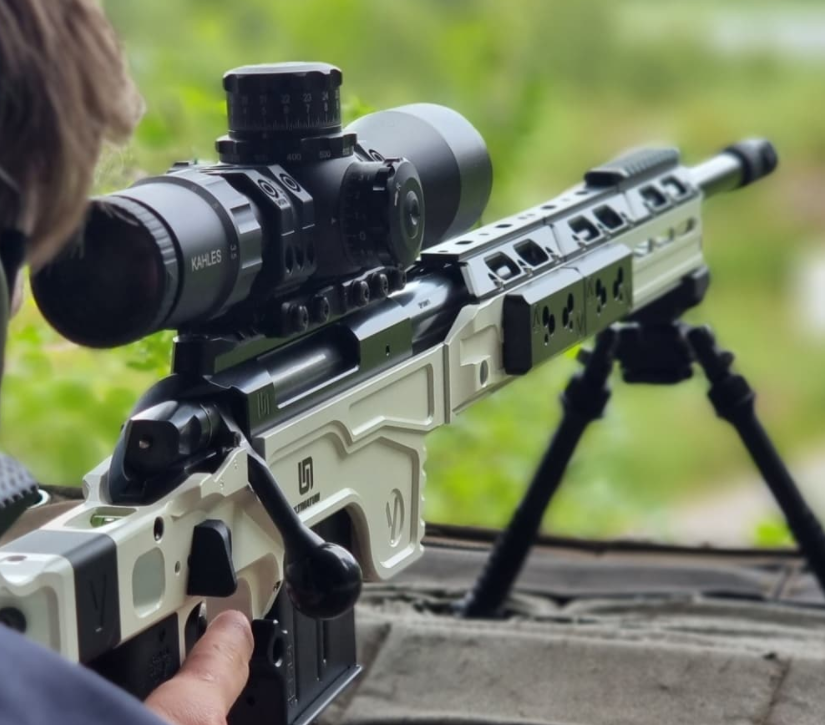

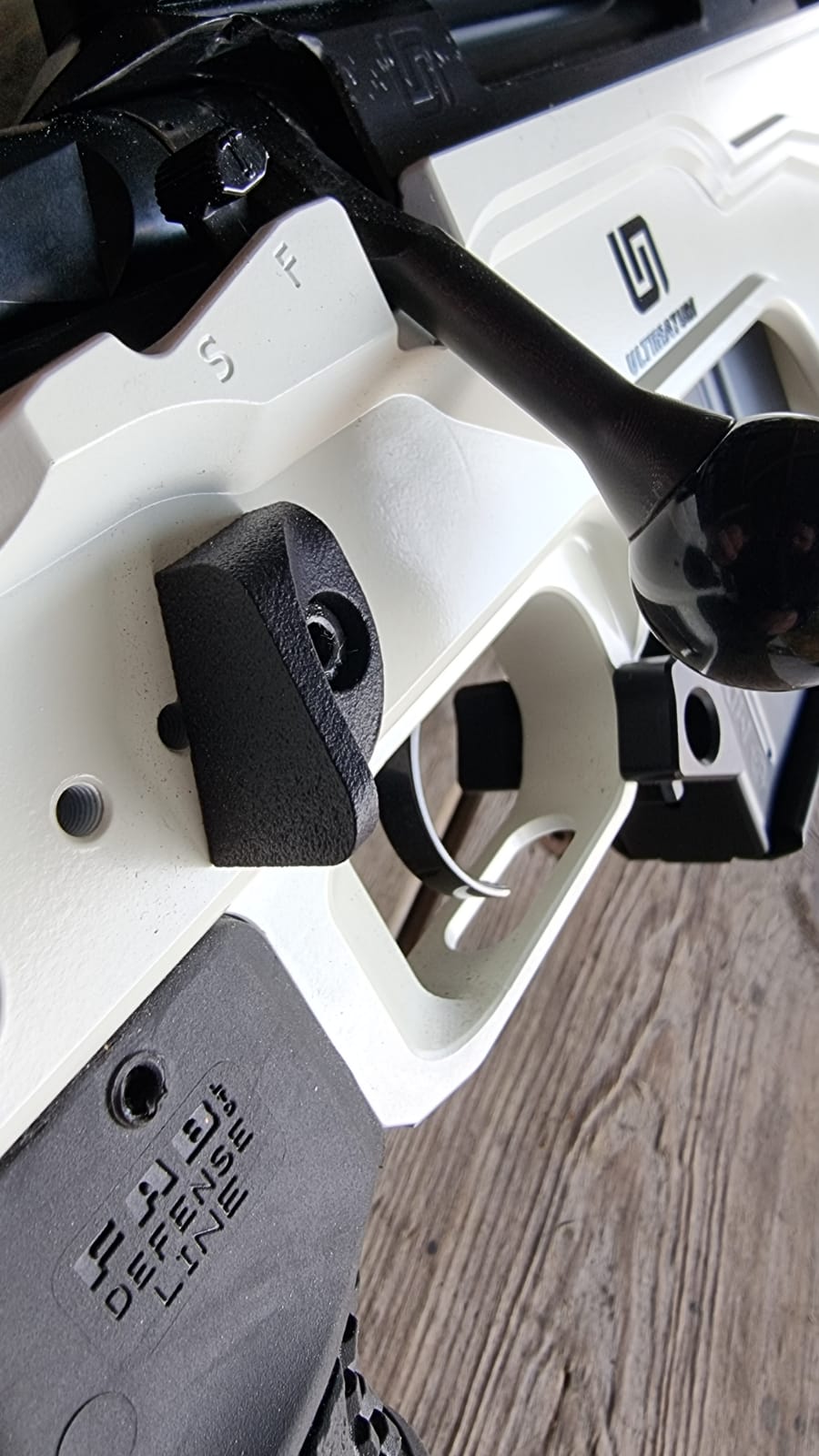

    The bottom chassis is H-297 Stormtrooper White.


    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    Is there a thought or plan to come out with a AIAE MK 3 chassis footprint? Asking for a friend.
    No plans. The AE series of rifles has been discussed many times in the past on SH regarding aftermarket options, and the truth is, there just isn't a market that would justify the time & money investment to make a chassis.

    Being completely honest, my opinion would be to pick up a used AT and AO/V chassis, and either keep the AE for fun, or sell it to help offset the cost of a new build.

    Sam

    • Like
    Reactions: Eric32

    samb300

    GCP Rifle Co. Accuracy Obsession Vision Products
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Feb 22, 2013
    2,191
    3,906
    Milwaukee, WI
    Any word on chassis’s making it thru customs?Anxiously awaiting a folder in tungsten.
    Honestly don’t know 100% where everything is, but there are packages held up by UPS, en route, and about to leave Norway. My apologies for not knowing exact details but I think sometimes UPS doesn’t even know.

    If you haven’t given Rick at GCP a call yet, that’s your best bet for both getting your name on the chassis you want when it arrives, and finding out a timeline.
