I had the same issue with my 6.5 CM sizing die yesterday. At least with mine it didn't just pull right out. Push the tip of the collet sideways and when it starts to move to the side rock it a little bit side to side perpendicular to the initial push direction and maintain the original sideways pressure and it will pop out. Not an intuitive process. SAC really should have instructions posted on their website.
Short Action Customs Sizing & Seating Dies - Evaluation & Discussion
- Thread starter orkan
- Start date
Thanks, I’ll give this a try after dinner tonight. Yes, instructions with a link to a quick YouTube video would be very helpful.
If you're having a problem with the decapping pin getting pushed up it is likely either...
1). The top cap needs to be tightened down a little bit with a wrench. We do make a 7075 Aluminum Anodized wrench to do this and fit the Hornady style lock ring.
2). A larger ER11 collet got installed than what should have been. This is unlikely, but let us know what you find out and we can get you taken care of.
Mark.
Guys, just checking in to give an update. We now have 3 "Mill/Turn" style lathes to support the products. One machine is dedicated to die body production, another is dedicated to Neck Sizing Bushings, Neck/Shoulder Bushings, and the last is for everything else. Now finding a quality machinist to help me has proven to be the most difficult task of all.
Be as it is, we are going to be trying to answer the call for the Short Magnum dies, and some long action magnum dies. We are investing in some new custom tooling from Guhring to help with production, but the biggest bottle neck is getting material, and being in front of the machine, tracking every part that comes out. There are a few critical tolerances that are pretty tight, so I personally have been running production on these dies among everything else. So the wheels have been turning a little slower than what I like.
Be as it is, we are going to be trying to answer the call for the Short Magnum dies, and some long action magnum dies. We are investing in some new custom tooling from Guhring to help with production, but the biggest bottle neck is getting material, and being in front of the machine, tracking every part that comes out. There are a few critical tolerances that are pretty tight, so I personally have been running production on these dies among everything else. So the wheels have been turning a little slower than what I like.
Anyone having issues seating 6.5 Creedmoor to the lands? I have adjusted as much as possible (without moving shell holder and die worlds apart) and I am at a max of 2.84" with 140gr ELDMs.
You can try the Model 2 bullet seating stem that should have come with the bullet seating die. Shoot us an E-mail at [email protected] if you have any problems.
Mark.
loved the pics that's a nice neat reloading area while drooling in envy . so what really is the difference between custom dies and factory dies I am guessing closer tolerances but figure it has to be more if to only justify the cost differences .either way it sounds like you got a lot a head of you shooting and reloading wise thanks for this post will keep an eye on others .
Any idea when different caliber bushings will be available? Mainly for a 22GT? My GT die has been sitting idle for quite some time. But my 6BRA die works flawlessly as does the seating die!
I’m happy to preorder and prepay for the short mag dies, whenever you open it up!

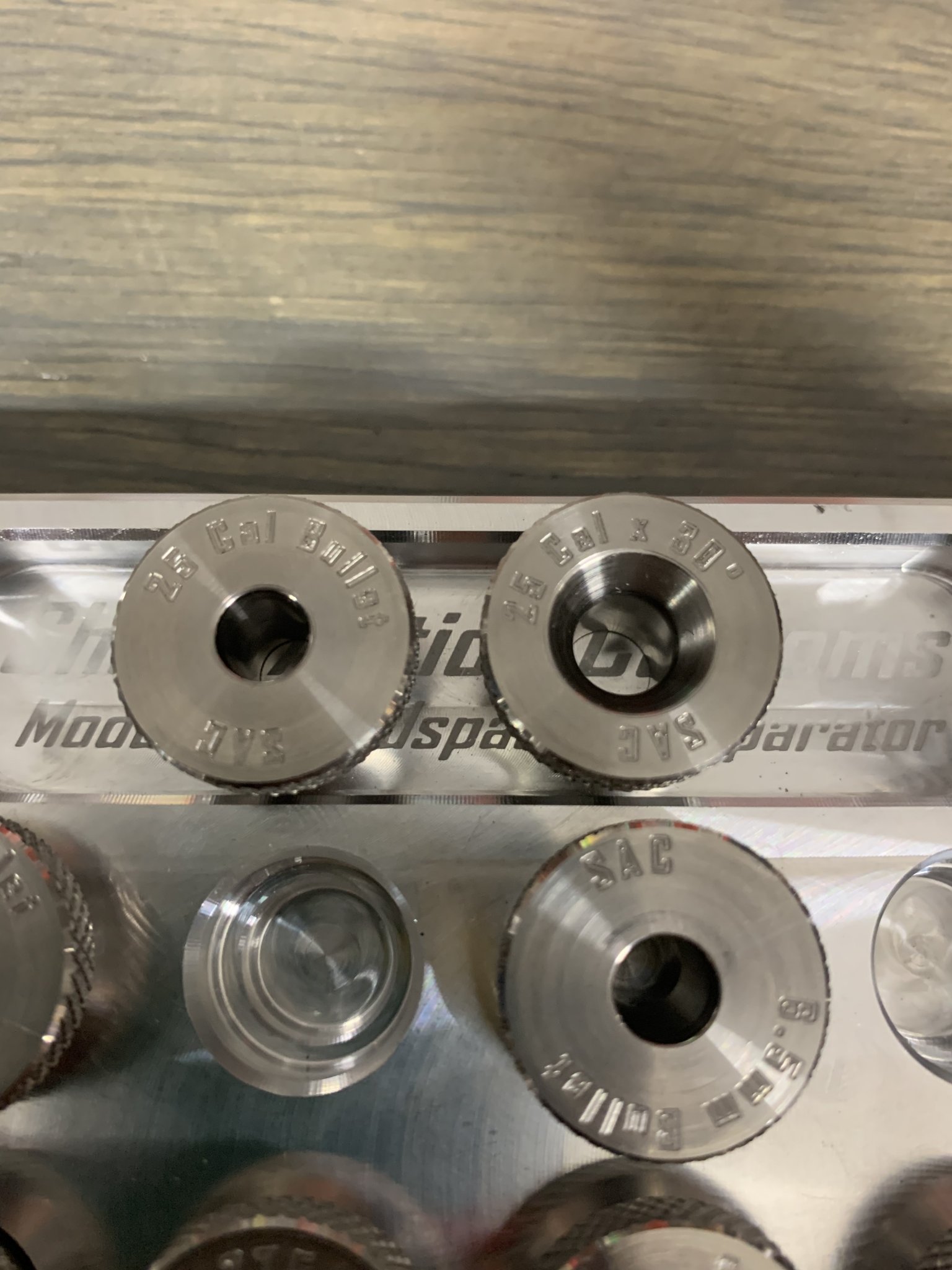

I have a comparator and bump gauge insert. They don't make .25 cal sized mandrels for the size die, yet.
I have a Sinclair mandrel already. I think maybe you haven't seen the SAC mandrel, and how it functions with the size die? It replaces the decapping stem (I don't decap during size operation anyway), and both saves you a step, and theoretically ensures neck to case body concentricity and straightness.
For me, there's two big reasons to switch to this die, and the integrated mandrel is one of them. The other is the bushing being neck/shoulder, so theoretically no more donuts (plus easier control over shoulder bump via shims).
What neck bushing have any of you used for Alpha OCD Dasher brass? Will be using the mandrel so want to slightly undersize the neck.
Thanks
Thanks
Is there an option for a 22GT sizing die with these SAC set ups? Been working on a 22GT project and have everything but the dies.
While it's a tiny fraction of the user base, I would love to see .25 cal mandrels to accompany the .25 cal Creed neck/shoulder bushings.
It also strikes me that... couldn't turning a BRA die into a BR die just be a matter of a different bushing? Really, seems like you could maybe make a single die and service all the BR based cases just by swapping bushings. I'm probably missing some detail that prevents that, but...
I haven't looked recently but I believe they were selling those mandrels. I currently use their mandrel with my 6GT die and can't use anything else anymore without complaining...
I haven't looked recently but I believe they were selling those mandrels. I currently use their mandrel with my 6GT die and can't use anything else anymore without complaining...
Mandrels are available for 22, 6mm, 6.5, .30... but not .25
Definitely don’t want to speak for @Mgordon but I think the answer is no. The seating stems might happen to touch a given bullet at the ogive but they’re not designed to only make contact at that point. The stems are a set size for a range of bullets and diameters (think like a funnel shape going over the bullet); for 6mm bullets the stem I use touches well above the ogive. On 6.5 it would contact closer to the ogive. 30 cal even closer.
And no 7mmMandrels are available for 22, 6mm, 6.5, .30... but not .25
If I understand correctly, the case (case neck already large from firing) slides past the mandrel on the way to the bushing. The bushing sizes the neck down and then the mandrel does its thing as the case leaves the die.
The detail is having the mandrel come into play immediately as the case neck leaves the bushing. Great idea from SAC.
I bet most of us already have Redding (or other similar brands) of FL bushing dies on the reloading table. Maybe as an experiment move a Redding ID sizer "mandrel" closer to the bushing (shoulder/neck junction) ? Would this accomplish the same thing?
I'm going to try it on my Redding FL bushing die in 22-250rem. I'll shorten the threads on the rod that holds the "mandrel" to move it closer to the should/neck junction.
Of course there is no substitute for the higher quality die and attention to detail that SAC provides in their products. But the concept of the bushing/mandrel setup might be workable in other dies we all have on hand.
The detail is having the mandrel come into play immediately as the case neck leaves the bushing. Great idea from SAC.
I bet most of us already have Redding (or other similar brands) of FL bushing dies on the reloading table. Maybe as an experiment move a Redding ID sizer "mandrel" closer to the bushing (shoulder/neck junction) ? Would this accomplish the same thing?
I'm going to try it on my Redding FL bushing die in 22-250rem. I'll shorten the threads on the rod that holds the "mandrel" to move it closer to the should/neck junction.
Of course there is no substitute for the higher quality die and attention to detail that SAC provides in their products. But the concept of the bushing/mandrel setup might be workable in other dies we all have on hand.
Hornady dies have the same setup preventing damage to the pin. Main thing is to make sure the inside of the neck is properly lubed and as long as the rod is tightened sufficiently to the main body there should not be any problems.
To the OP: thanks! I have not experienced this company but it will be in my box soon enough. I love it when a company goes the extra mile to create a work of beauty with a focus on quality.I'm not calling this a "review." I don't really have the measuring tools to properly proof a reloading die. Frankly, I don't think the vast majority of the reloading die "reviews" I've seen had anyone qualified enough to do it either. In my estimation, it would take about $250,000 worth of measuring equipment to properly certify and compare reloading dies. It isn't as if there is any consensus among high end machinists about how anything is to be done. All these different machinists, working on super high end aerospace and medical parts... and none of them agree. It's really odd. So in that aspect, I'm not qualified to discuss the dimensional capabilities of any reloading die. I just wanted to get that out of the way before we start. I'll mention the tolerances I've seen when working with the die I have here, just so we have a baseline to work from... but under no circumstances will I defend any of my numbers. So don't even engage with me on it. Take it, leave it, or print it out and go outside and burn it if you like. Detractors, trolls, and anonymous internet personalities will be ignored. Only respectful posters will be engaged.
What I am qualified to talk about is the features and usability of a reloading die. I've experienced dies from essentially every major manufacturer of dies at some point in my career. I fire thousands of rounds per year and in a wide array of cartridges. I was originally going to do a comparison between this die, and several other dies in the same chambering. However, upon reflection... the only thing that will cause is a bunch of people getting all upset because their pet brand doesn't do as well. In light of peoples inability to remain objective, and despite having already started down that path, I suspended all testing with other dies. This isn't a comparison. This is simply the sharing of the experiences I've had with this singular 6mm Dasher resizing die from Short Action Customs. I have 8 more dies on order with them, and after you read this article, you'll understand why. I'll use this thread to update my experiences as time progresses, but the 6mm Dasher sizer comes first.
First off, the die looks amazing. The finish is next level by any definition, but certainly for a reloading die. The treatment the dies receive to achieve their amazing finish is a proprietary method SAC uses which provides exceptional hardness, but also has enhanced lubricity. This is something that you can see when inspecting the die and is something you can definitely feel when running the die. It doesn't feel like any other sizing die I've used before. The lower friction created by the surface finish is a real thing, and its something I will definitely be looking for from any other dies I evaluate in the future.
There are a few primary things that a good sizing die must prove it can do for me. First is that it must prove it can produce properly sized brass, with minimal runout on the neck, with solid coaxial alignment, that doesn't over-work the brass, and doesn't scar it up needlessly. There are other requirements, but the bulk of what it must do is described therein. This die shipped with a .266" bushing, a decapping assembly, and a .2410" expanding assembly. I didn't order a "custom" die, but instead told Mark to shoot from the hip and send me what he thought might work. This was out of sheer laziness, as I was quite busy with other projects at the time and I didn't have time to dive into my dasher brass. I ended up a little light on neck tension, with a .263-.264 bushing probably ending up being right. I should have a few bushings arriving soon and will update with some accuracy/precision performance results when I get it dialed in. So for the purposes today, I decided to just go with the decapping assembly and not run expansion, as there wasn't going to be any expansion with a .266 anyway.
One of the major problems I've experienced with many other die manufacturers is their persistent insistence on over-working my brass. I've seen dies squeeze the body/shoulder junction by over 6 thousandths. That's like throwing a hot dog down a hallway when you go to chamber that thing. I won't even start on the problems I've seen in the neck and shoulder angle. I've seen dies torture brass so badly that it couldn't even be fired after a pass through the die. Those same manufacturers have sent that same die back to me, claiming "we checked it over and it's in spec." Suffice it to say, I came into this experience with the expectation of being disappointed, as has happened so many times before. Those of you that have spoken with me on such matters, know that I am fanatical in my bolt operation ergonomics. I simply will not tolerate the tiniest bit of brass hanging up my bolt operation. NPA absolutely must be maintained during bolt cycles, and improperly sized brass can be a common cause of cycling issues. I do not take it lightly.
Oh how I do enjoy my loading area. I've got a real cuddly load with this Dasher. 34gr of H4350 behind a 105gr Berger Hybrid. Right there in the 2925fps territory. It's a monster wide node that has provided predictable 1/3moa performance or better across over 1500rnds of barrel life. I'll be staying in that load for the purpose of this testing.
The first order of business was to size a few pieces of brass, and across multiple firings, to determine if the die could produce straight ammo. My current batch of 6mm Dasher brass is fire-formed Lapua which had 6 firings on it, and has been sized by a custom Whidden FL sizer for all of those firings. The control cases were fired, and in need of sizing. I started by taking some measurements from 5 cases and pulling an average with a tolerance as close as I could call. The neck diameter ran .271 +.0005. Across the neck/shoulder junction was .4595, web diameter was .4695, and the headspace with a .350 body ran 1.2495. Average runout on these fired cases measured .0015. (one and a half thousandths) All of the measurements other than the neck were a very low variance, to the point where neither my mitutoyo caliper or micrometer could measure the difference.
Setting the die up to begin sizing operations was a breeze! There is some incredibly innovative tech buried in these sizers. Take a look at that unique expander/decapping assembly. The decapping rod is a nice .2355 dimension, so it's not letting the brass just flop around all over the place. It has a nice contoured bottom to ensure you won't smash the case mouth on your brass if for some reason things get off center a bit. This is a nice touch. Some other dies tend to have an oversized flat bit right next to the decapping rod which conveniently bashes the top of the case mouth and ruins your brass if you aren't super careful when the case just starts to enter the die. If that isn't cool enough for you, look at the way the assemblies are held. The top of each rod is depth set by an e-clip/groove interface. Super basic, but very functional. Then the stem itself is held into the VERY center of the die body by the use of a collet/taper setup. The collet puts the squeeze on the rod when the taper is locked down against the top of the bushing. The tighter you put the top on, the more the rod is squeezed! That old problem of having your decapping pin drift off center? Yeah, that's gone with this setup. Everything is held firmly in place and perfectly aligned. I didn't have the top screwed on tightly enough and went to resize a piece of brass, and instead of knocking the primer out, the pin was pushed up through the top of the die. I could visibly see it raise and it took just a moment to unscrew the top, pop the taper loose, re-seat it, and tighten the top back up. This demonstrated that if something does go haywire, you won't mangle your decapping assembly like you would on other dies. It will just get pushed up out of the top of something goes way wrong. Excellent design!!! High marks on this for sure.
I set up for shoulder bump, which I locked into about half a thousandth. I anneal every firing, and there's a fair amount of spring to the brass when you do that... and I basically wanted to give the die opportunity to show what it could do with minimal bump. It's a really good way to lock into brass flow when you've got the headspace nice and tight. If anything goes haywire in the tiniest degree, you can feel it in bolt closure on that live round. Historically, I have not been a fan of bushing dies. Donuts, runout, alignment problems, etc. Bushings just stink. I've ran custom honed full length dies for over a decade as a result of the problems I've encountered with bushing dies. I was VERY skeptical of yet another bushing die. I was adamant that Mark send me a custom FL die... but he suggested that he'd like to have me take a look at his setup. So I reluctantly agreed. Well right away, I saw one major difference between bushing systems I've run in the past and SAC's setup. He's only sizing part of the neck! I've tried this intentionally with legacy bushing designs, with mixed effect... but in this design, there was no way for me to change it so it could get a full neck resize. Again, very apprehensive, and very skeptical. I understand the logic, as the "fire formed" neck helps keep things centered up when the live round is chambered. It also serves to keep the bullets bearing surface away from the neck/shoulder junction, where the dreaded donuts can form. However, I also enjoy the long heavy-per-caliber bullets I most often shoot having proper support by the neck.
While I intend to have a more detailed conversation with Mark regarding this setup, I went into this with an open mind and I made sure I kept that during the process. It appears that only approximately 150 thousandths of the neck was sized. This left me wondering if I had the die setup right at all! I was seeing shoulder bump behave predictably... so I had no choice but to assume it was correct. I scored the neck with a caliper in the above photo in the approximate region where the formed to sized transition takes place, so you could see a visual representation. Suffice it to say, as a function of reamer design, I have always kept the bullets bearing surface safely above the neck/shoulder junction to avoid that issue-prone area of the case. This is easily accomplished in most cases by assigning the correct freebore and lead angle for your intended bullet. The geography of this step is in the bushing itself, so it did later occur to me that I could probably flip the bushing upside down and get a full size, or have a custom bushing made... but for the purposes of this test I wanted to use the die exactly as its creator intended. Initially, I was almost certain that I would run into chambering issues due to this geography later in testing. We'll circle back to this.
The first trip through the sizing die produced some excellent results. The die squeezed .266 at the neck, which is precisely the diameter of the installed bushing. The shoulder/body datum was .4585, indicating a 1 thousandths squeeze from fired. This is much smaller movement than many dies I've worked with. The case web measured out .4690, which showed about half a thousandth of squeeze from fired. Almost immeasurable. At this moment, I was almost certain that I would have issues chambering these cases in later testing. Again, we'll circle back to this as well. The runout of the sized cases showed the same .0015 as the fired cases had measured. There was essentially zero measurable variance in any of the locations I expected to see variance. That was very interesting. The reading I got on one, was the same reading I got on them ALL. I was a bit disappointed in the runout. I had seen videos showing "0" runout.
I began firing the 5 test cases repeatedly, cycling them through the SAC sizing die, and measuring them immediately after sizing. It was after that first cycle that I realized something: The runout was gone. The fired cases, had essentially 0 runout, and after that next trip through the SAC sizer, the runout did not come back. Through 5 subsequent firings, the brass maintained less than 5 ten thousandths of runout... so small in fact that it was almost impossible to see the needle on my indicator twitch on most measurements. Obviously due to not running an expander, the neck wall thickness uniformity issues that this un-turned brass almost certainly has, was kept on the I.D. and not pushed back to the outside. However, it's noteworthy that if you're running turned necks, these dies are going to be able to produce some SILLY straight ammo! There's something very special going on here with the hardness and lubricity of the treatment this die has undergone. The brass flow is more uniform and predictable than anything I've ever seen before. It's beyond my measurement capabilities to actually quantify... but the dimensions I was seeing was unlike anything I'd seen before. The die was able to produce the most uniform and consistent measurements I've witnessed to date. Bravo SAC, bravo indeed. You folks have something here... and I mean really have something.
Next up was quite possibly the most important part of my process of proofing every new sizing die I take possession of. The stress test. This is the part where I load a single piece of brass until failure. I run the exact same minimal headspace bump, refusing to touch the setting on the die for the duration... and the exact same load, for the entire test. What we're looking for here is the point when the case web grows forward beyond the dies ability to overcome the expansion. Essentially the point at which brass flow becomes inhibited due to its grain structure changing for the worse. If you're over-working the brass in any particular way that normal loading practices will not handle, you'll see it show up in the stress test. It's an imperfect method, just as many things in shooting are... but it's a method which has proven to suffice when sniffing out a die which is putting too much strain on brass! It is also important to not run a hot rod load, or the brass will behave unfavorably anyway... just as it should when you are running beyond a cartridges actual capabilities. The load I outlined earlier in this article is as gentle and stable as they come. Despite that, it is noteworthy that at some point during this type of testing, the internal case capacity is systematically reduced due to the omission of a tumbling op. This is done for the sake of timeliness as well as to bring a bit of finality to the testing. Good brass can go on FOREVER... and I mean 80-100+ firings, if tumbled between each cycle and sized in a quality die. As the internal case volume is reduced, the same charge weight will produce a hotter and hotter load each cycle. Eventually the pressure will be felt as heavy bolt lift when the case can no longer function properly. It's as much a test for the sizing die as it is the brass quality! As I said, imperfect... but sufficient for my purposes.
Remember, we had 6 firings on this brass before we began this test, and those resizing trips were through a different die. Despite this, I went a subsequent 45 firings on this brass before any indication of heavy bolt lift surfaced. I pushed an additional 2 firings past that just to confirm the results. The fired case on the conclusion of testing had 54 total firings on it, and had a final headspace dimension of 1.2520" using the same .350 comparator. An impressive showing, by any measure. I shudder to think how many firings I could get if the brass saw nothing but this die and had a tumbling op and annealing between each firing, as is customary in my process.
Suffice it to say that this sample size of one die is not enough for me to proclaim SAC as the ultimate victor in reloading dies. I have a mountain of testing to perform yet. More dies to receive and proof. I suspect after about 10,000 rounds through a half dozen SAC dies, I might have enough experience to begin talking with authority as to their merits. However, it must be recognized that if Mark Gordon and his team at SAC can continue to produce the quality of die I have in my hands presently, then they will very soon be the 800lb gorilla of the precision reloading die world. I'd encourage those of you with a little time on your hands to go put an order in with SAC. The only way any of us are going to learn what they can do is if we get them busy doing it! It's not much of a risk at all, when you consider the up side of what we can have access to if they are successful! If you do head over to them for an order, please be aware that they are growing into this, so be sure you show some class. They are ramping up and taking on some big obligations in an attempt to make an honest go of it, and that shouldn't be taken lightly. So if you're going to go put an order in at my prompting, I expect you to treat them with professionalism... and most importantly recognize your own limitations and experience. I still haven't a clue if I'm using this die correctly... but I intend to have a few conversations with SAC to help make sure I'm doing things as they recommend. There's a lot of thought been put into this, and I want to make double sure I fully grasp the concepts at play before I condemn particular design choice on their part. The die sure does speak for itself, despite my own preconceived feelings!
Remember that partial neck sizing issue I was concerned about? Well my concerns were unwarranted. At no point during the testing did it ever become an issue, and I'm almost certain I have experienced an accuracy improvement as a result of that fire-formed neck geometry providing some support in centering the case up in the chamber during firing. I will attempt to quantify that in future testing once I've taken care of the neck tension issue with some smaller bushings. Remember that other aspect I was thinking could come up to bite me, with the case body dimensions being squeezed so little? That too did not present itself as a problem at any point during the duration of the test. The case being unable to take continued abuse which produced a headspace growth was the thing that stopped us. I can't possibly tell you how excited I am to put a few thousand rounds through this die and see what kind of down range performance I can squeak out as a result of how unbelievably straight these cases are coming out. I'm overjoyed, to put it mildly. To have found a die maker that can produce a product this unbelievably good... well the prospects have my mind swarming with ideas. I'll be sure to update this thread as time progresses and my experiences with SAC dies grow in scope and frequency.
If SAC can stay on the straight and narrow, aiming to provide the very best in die performance regardless of the costs... I think I'm going to be happy I gave them a shot at earning my business. If they head down the road of "budget" items and too much of the "one size fits all" thing, it could be disastrous. Though I sure do love what I've seen thus far!!!
by Greg Dykstra
3/6/2021
© Primal Rights, Inc. All rights reserved.
Hey I’m into it for a Type 4 “The Seating Die” and a Creedmoor Modular Sizing Die with bushing.
Yeah I was close on that too but I have a few seaters and I really can't imagine how they could do better so I held off on that one. Interested to see how the whidden click adjust compares to the sac compared to my others. I was going to get some new ones anyway because I got a 550 and will leave em set up on the tool head and leave others set up on my turret press. Good excuse to try out this sac die. Ive been wanting to for a while now. I really don't like moving my dies once they are set so if I end up loving the sac, I will probably get another
Ultimately those two dies will probably amortize themselves out to be quite cost effective once I add .22 Creed and 6mm Creed barrels to my 6.5 Creed for the AI AT-X.
I have an XL650 and a Redding T7, probably start using them on the T7.
I have an XL650 and a Redding T7, probably start using them on the T7.
personally, I didn't like the Whidden click dies. I have now been using the SAC Seating Dies since the beginning. You will like them.
Yeah I'm not sure if I will or not but at least with black friday deals I can sell em and not lose half if I don't. I have talked to several who do so maybe I will. I feel sure I will like the sac die becaus it's SAC and looks amazing honestly. I probably would have gotten a few if I hadn't dropped so much money already on setting up my loading room and tires for wife's car, and fuel pump for my truck and Christmas presents. It's a lot but so need to slow down for a bit and make some lovely tax payments to the feds before doing anymore for the year
The SAC Infinity seating die is pretty nice if you're using an arbor press.
You can spend around $850 and get every single base they make with the die (this is extreme example) and be able to seat virtually every cartridge known to man. If someone isn't already set up with all the seating dies they need, this is actually pretty convenient.
The only downside is you have to set the die up when changing cartridges. But pretty easy to just keep a dummy round and use that to set it up. Pretty fast once you get the hang of it.
You can spend around $850 and get every single base they make with the die (this is extreme example) and be able to seat virtually every cartridge known to man. If someone isn't already set up with all the seating dies they need, this is actually pretty convenient.
The only downside is you have to set the die up when changing cartridges. But pretty easy to just keep a dummy round and use that to set it up. Pretty fast once you get the hang of it.
I have to agree. The Whidden dies are great, the "click" thing not so much. The click lock ring seemed cheap and it wasn't long before the little balls were falling out. I replaced the lock ring with a standard lock ring (Hornady?) and everything works great. In their defense I never contacted Whidden about the click ring so I'm not sure what they would have done. Never gave them the chance.
Well I got the click lock ring for my giraud trimmer. I don't know what kind of lock ring the click adjust die comes with but if I have to put a Hornady lock ring on it and it doesn't click adjust then I'm going to send it back, though it seems everyone agrees the whidden dies are nice.
