    I used to have a YJ (as in, the first year, '87, when they were half AMC and half Chrysler). It was a blast to drive around the logging trails in, but was a PITA maintenance wise. It has some serious electrical and coolant issues.

    I had always pondered why no one made a bolt on turret ring, that sat above the rear seat. It'd make a perfect varminting rig (especially if the ring was flat enough to fit under the canvas top or hard top when not in use). Make an attachable/drop in via pin, rifle rest into the ring and voila! Prairie dogmobile express....


    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    4 Wheel Parts is taking forever to get my stupid gears set up in my axle, and it really starting to piss me off. I called them LAST Friday, they say they've been trying to work on it in between jobs, and it should be done by Mon, or Tues. I don't hear nothing... I call today, the next Friday... guy says let me check, and I'll call you back. So... two and a half hrs later, I end up calling them wondering why it takes so damn long to go in the back and find out... They don't have enough shims. They claim they can't get any... unless they order an entire new install kit. Guess who would be on the hook for the cost of that? The assholes already hit me for new gears claiming they will not install customer provided gears... Gears were good, it's a damn front axle from a stock truck... It probably never got used, and they never bothered to inspect them anyhow. Well, I have a shim kit, just didn't leave it with them, because I gave them a bran new never opened install kit I had ordered from Summit Racing when I dropped off the axle... didn't figured they'd need it with the new gears they made me buy...

    SO... I'm driving 2 hrs to Indy tomorrow morning to take them the shim kit, they're gonna finish the axle, and I'm bringing it home. In fact, one way or the other, it's coming home tomorrow.

    I did, however do a bit more on the sub enclosure. The sub will be down firing, and sit like this...



    That means that the center rear isolator mount had to go. the 10" sub is so big, it overlaps where the mount is. The RT 524A that goes in the mount in a military application is like a 65 pound radio, so my little sub enclosure will do fine with 4 of the isolator mounts.



    I did have to replace one of the others however. The left rear one was bad. The new one has green isolators, but no one will care. This kind of replacement happens all the time. I do have 3 more of the green, but not enough of the new bolts to do them all with. Debating if I should do them, and just have some of them with hardware store bolts...




    I also had to cut a rather large portion out of the bottom of the mount for the sub to have clearance. Starting to think I should have went with an 8" sub, but she'll fit now.



    Got some more bits coming for the outside of it, knobs, antenna hook up, speaker & mike plugs, handles top cover... should look very convincing when it's done. (Not that it will be going in for a while.)

    Started planning with how I wanted to layout the dash. Nothing set yet though. It's still a fresh, uncut panel.

    • Like
    Reactions: LeftyJason

    thejeep

    Major Hide Member
    PX Member
    Minuteman
  • Aug 30, 2008
    1,688
    1,148
    New York City
    For the life of me I can’t remember who the axle shop that jerked me around for a month getting arbs in my cruiser diffs,They were big name and low price in ga, had to get a card company involved. Ended up using Hudlow axle in Rossville tn. They were fast.


    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    Got the shim pack delivered. Got the axle home. Also got a new yoke. Seems mine was a bit boogered up, so there's an extra $50...

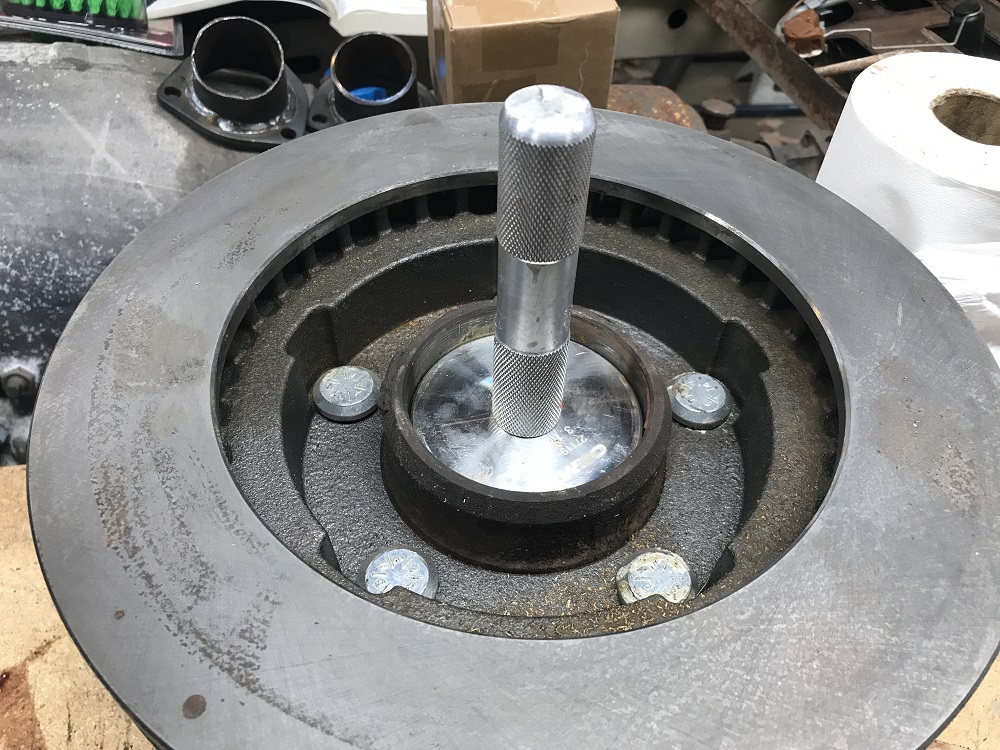

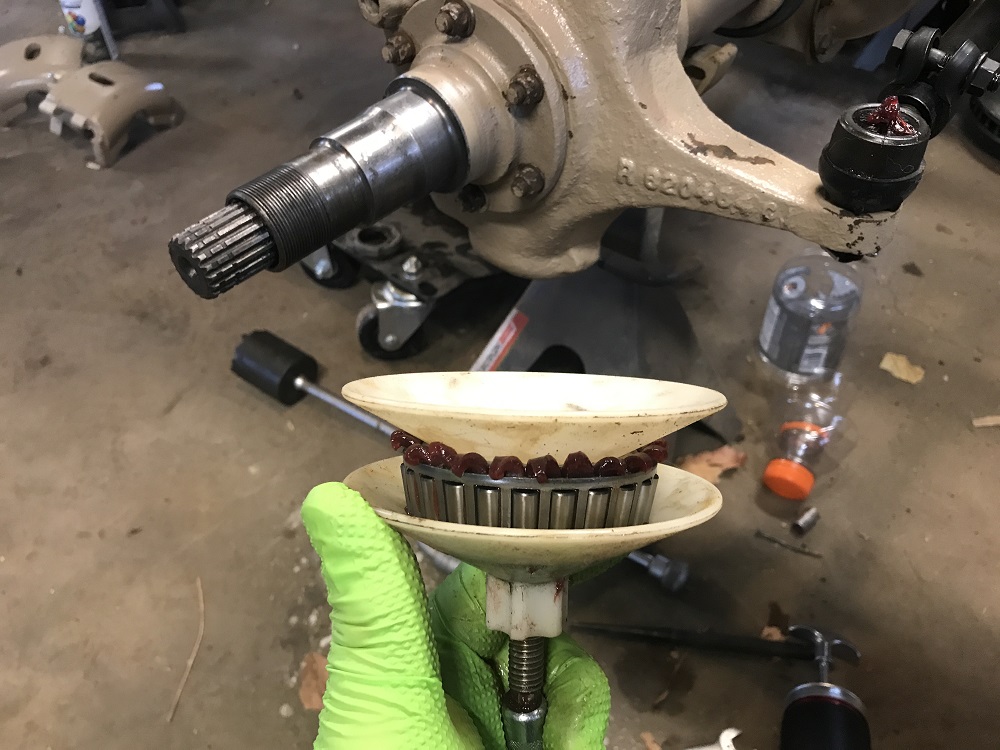

    Started in on assembly. Did the long side spindle twice seeing as I stood up to find the thrust washer on the floor behind me... Oh joy. Didn't go any farther. was getting too sore. Called it a night.






    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    What are you going to do for a winch?
    Don't know yet. I do tend to bounce around, working on things I already have parts for, or can get quickly, but I don't have the front together yet, or the bumper built yet. I do have ideas on how I want it designed, so I'll have to go shopping to see what fits one day. I haven't ruled out hydraulic, but most likely an electric just for simplicity. I'll want a reputable name like Smittybuilt or Warn. I want low profile, without a big fancy plastic hood. Has to have a somewhat military look (it will get painted) even though it won't be a PTO. I do know I want synthetic line. I'm too banged up to be wrestling with heavy-ass steel cable.


    Jgunner

    Supporter
    Supporter
    PX Member
    PX Member
    Minuteman
  • Jul 29, 2019
    1,334
    1,076
    Arizona
    Lotta hard work going on here! I would like to have seen the 2.8 cummins go into it, but its like 8k , so prob out of budget, but able to get 25+ mpg and decent power and torque in a small package is really nice. But v8 power and more easily accessible parts is prob better here.


    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    Lotta hard work going on here! I would like to have seen the 2.8 cummins go into it, but its like 8k , so prob out of budget, but able to get 25+ mpg and decent power and torque in a small package is really nice. But v8 power and more easily accessible parts is prob better here.
    I would have LOVED to have called up the Cummins repower team and ordered one of those... But yeah, $$$, and me being on that VA disability budget plan... The guy that used to give me an unofficial "veterans discount" at 4 Wheel Parts isn't even there any more, so I paid full price today. I'm gonna shop around for a shop to do the rear axle set up. There people are good, no doubt, but costly.

    Getting parts... yes, you're right. It's as simple as my local NAPA for an old Mopar 360. Even my small rural farming town of 1,300 people has a NAPA.

    Also, it you watched that video of it running... she sounds so, I mean, SO much better than some little 4 banger diesel would.

    • Like
    Reactions: Jgunner

    Ravenworks

    Semper-Fi "80-84"
    PX Member
    Minuteman
  • Feb 8, 2019
    3,070
    5,635
    North Coast
    Don't put anything but an American made winch on it,otherwise it's an insult.
    Look on CL for dead ones and fix them,they are stupid easy and relatively cheap to repair.
    Bumpers-keep it simple and what ever you do don't put one of those worthless Stingers on it.

    Seeing how you already did 99% of the work getting the seals,gears installed shouldn't be any more than $500


    Jgunner

    Supporter
    Supporter
    PX Member
    PX Member
    Minuteman
  • Jul 29, 2019
    1,334
    1,076
    Arizona
    I would have LOVED to have called up the Cummins repower team and ordered one of those... But yeah, $$$, and me being on that VA disability budget plan... The guy that used to give me an unofficial "veterans discount" at 4 Wheel Parts isn't even there any more, so I paid full price today. I'm gonna shop around for a shop to do the rear axle set up. There people are good, no doubt, but costly.

    Getting parts... yes, you're right. It's as simple as my local NAPA for an old Mopar 360. Even my small rural farming town of 1,300 people has a NAPA.

    Also, it you watched that video of it running... she sounds so, I mean, SO much better than some little 4 banger diesel would.
    Wayyyyy better sounding! But 8mpg has to get old, plus you could in theory make your own diesel fuel if the need should arise.


    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    Don't put anything but an American made winch on it,otherwise it's an insult.
    Look on CL for dead ones and fix them,they are stupid easy and relatively cheap to repair.
    Bumpers-keep it simple and what ever you do don't put one of those worthless Stingers on it.

    Seeing how you already did 99% of the work getting the seals,gears installed shouldn't be any more than $500

    NO. this will not be getting any stupid ass stinger...


    Scott037

    Private
    PX Member
    Minuteman
    Mar 13, 2017
    301
    236
    Coos bay, Oregon

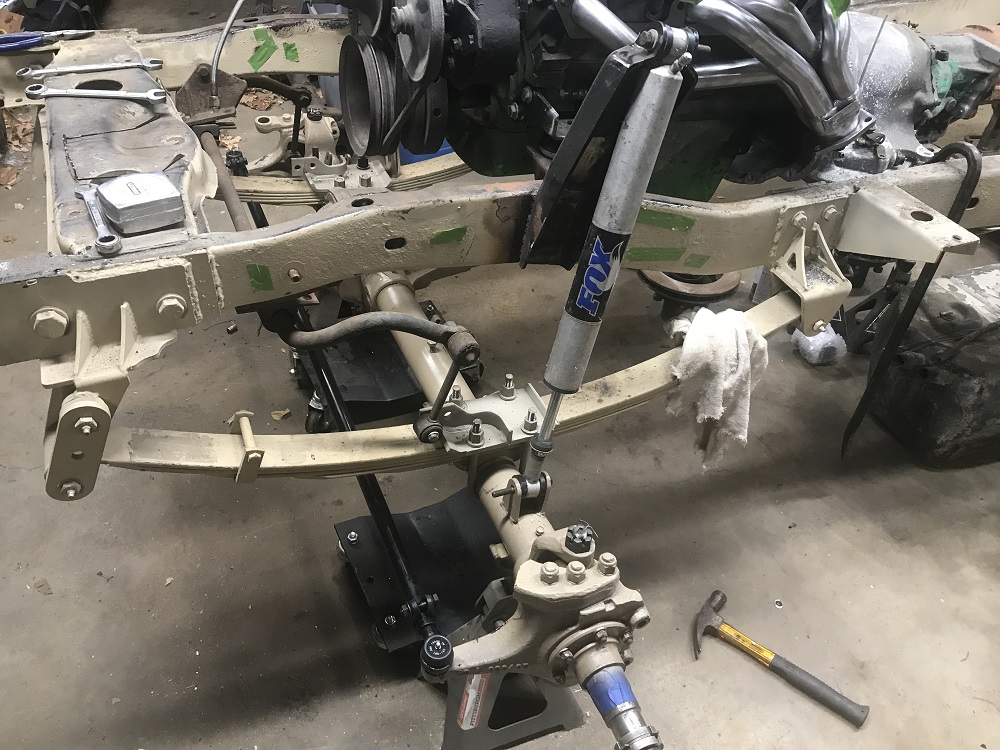

    Remember those front spring plates where I had a machine shop modify one so I could use the factory swaybar? Well, that wasn't gonna work. It did bolt up right, but on the passenger side that made it in the way of where the U-bolt comes up. Dodge truck Dana 44 too different. Had the shop weld tabs on them to move the mounting spot a bit forward, then painted them. Want to be able to mount them up once the axle comes back and goes together.



    Also trying to think ahead for once, and get ready for winter, so I took the tub out to the car wash to spray off the mud so I can work on it. Once home I set it up on my horses rather than down low on blocks. Cage almost hits the rafters... I'll be rolling it out on rims with no tires when I get done... lol.



    The old person seat is awesome. The times i could have not sat on the floor trying to figure out how much shit was broken.


    oneshot86

    Full Member
    PX Member
    Minuteman
    Jul 13, 2001
    7,578
    6,297
    citrus park ,fl
    Got the shim pack delivered. Got the axle home. Also got a new yoke. Seems mine was a bit boogered up, so there's an extra $50...

    Started in on assembly. Did the long side spindle twice seeing as I stood up to find the thrust washer on the floor behind me... Oh joy. Didn't go any farther. was getting too sore. Called it a night.





    keep up the good work, very studly


    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    Yeah, but it takes two people to go anywhere. One person to drive and the other on the fiddy.

    This vehicle will only get one seat. First off, being a cripple living on VA disability, I can't afford the fiddy... Secondly, and related to being the cripple, I have a service dog that goes everywhere with me.

    She's a magnificent animal... or as the wife calls her... (the other woman)




    There's also the matter of the wife being too scared to go off roading with me, being afraid we're gonna roll. Could be I got a bit tippy once many moons ago way up on a hill in my old Suburban with her back at Ft Lost-in-the-woods. I could go a lot of places in that thing because it just looked like a big 4 door cucv.

    This photo was at Knox.


    The "passenger seat" will be a custom made dog bed for Brandy, my dog. She's a German Shepherd, and a bit big to be comfy laying down in a bucket seat. I made one for her in the CJ5 I got the drivetrain out of for this project, but it was a rather hasty affair. I'll take that concept, and do the same thing, but better executed. I just did that real quick because were were heading out on a club run that weekend.



    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    Ordered the Tru Trac for the rear today. I also found a veteran owned shop that will do the rear axle for me for quite a bit less, so I'm dropping it off there next week. I gave Summit Racing the shop address to ship the Tru Trac directly there. I'll be set to do stuff like work on the tub, brake lines, fuel lines, and the like over the winter.

    • Like
    Reactions: LeftyJason

    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    No photos, but the rear has been done and back for a while. I got it put under the Jeep, but it isn't painted the final color yet, just black right now. Also I won't know if the pinion angle is right till I get the tub back on it and get more weight on it. It was rotated upwards on the CJ5 by the previous builder, and I'm sure it was tilted up too high, so I'll probably need to shim it down some.

    Found a fabricator to weld me up a new fuel tank. Turns out the YJ tank I got with the tub will NOT fit in the CJ7 frame. So much for having the filler on the driver side the easy way. He's coming buy Wed to take measurements.

    • Like
    Reactions: 143lrsd

    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875

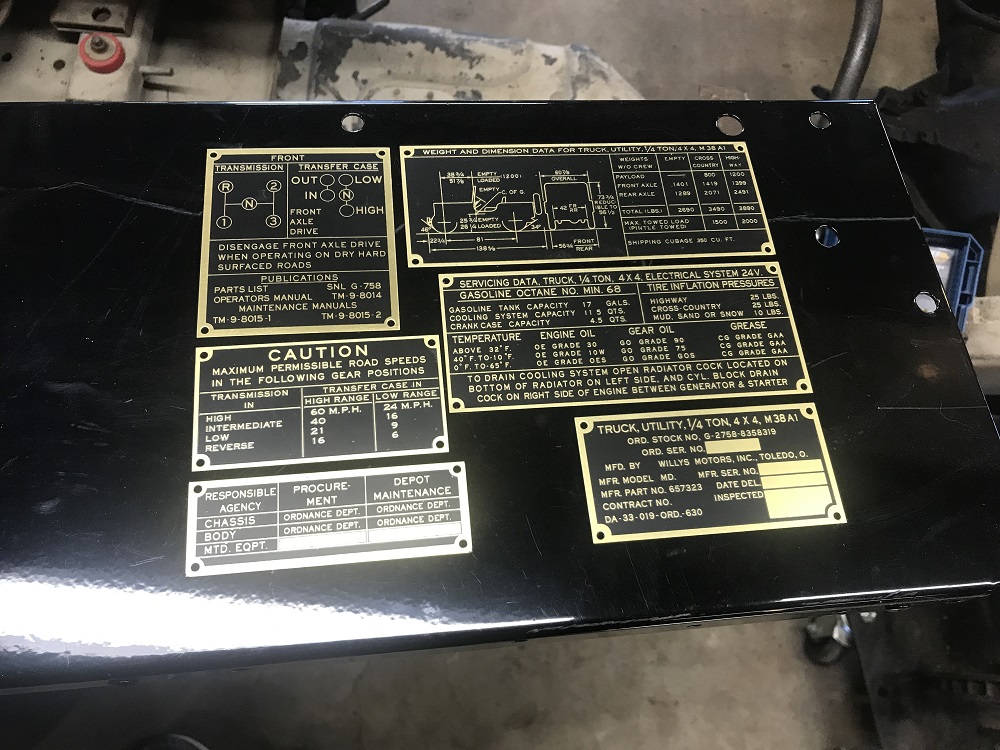

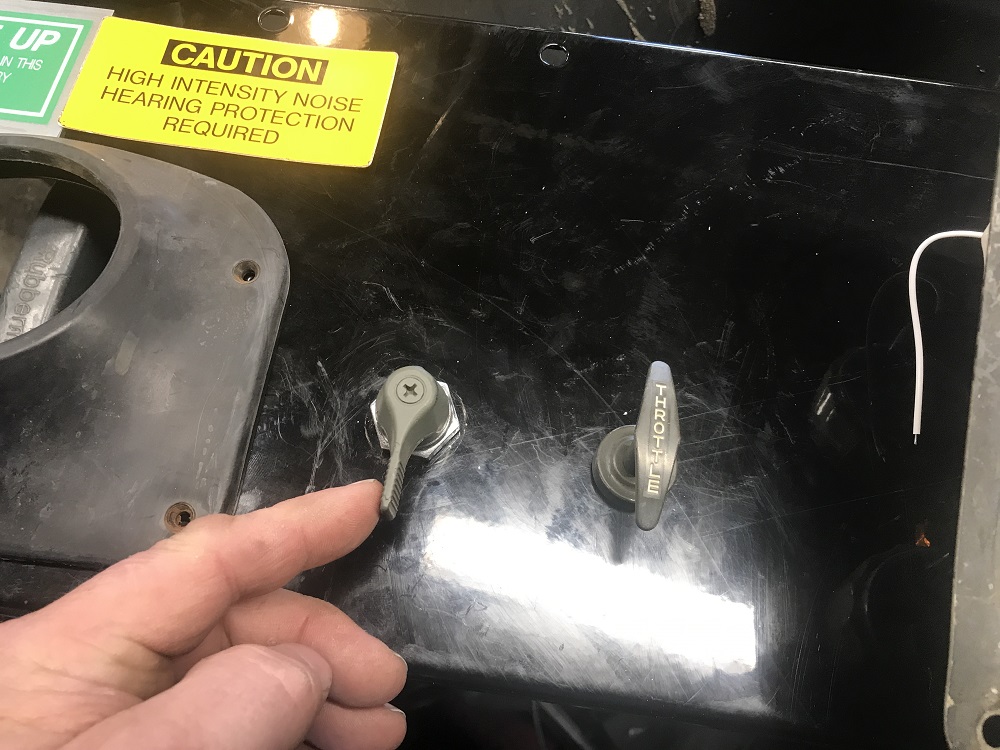

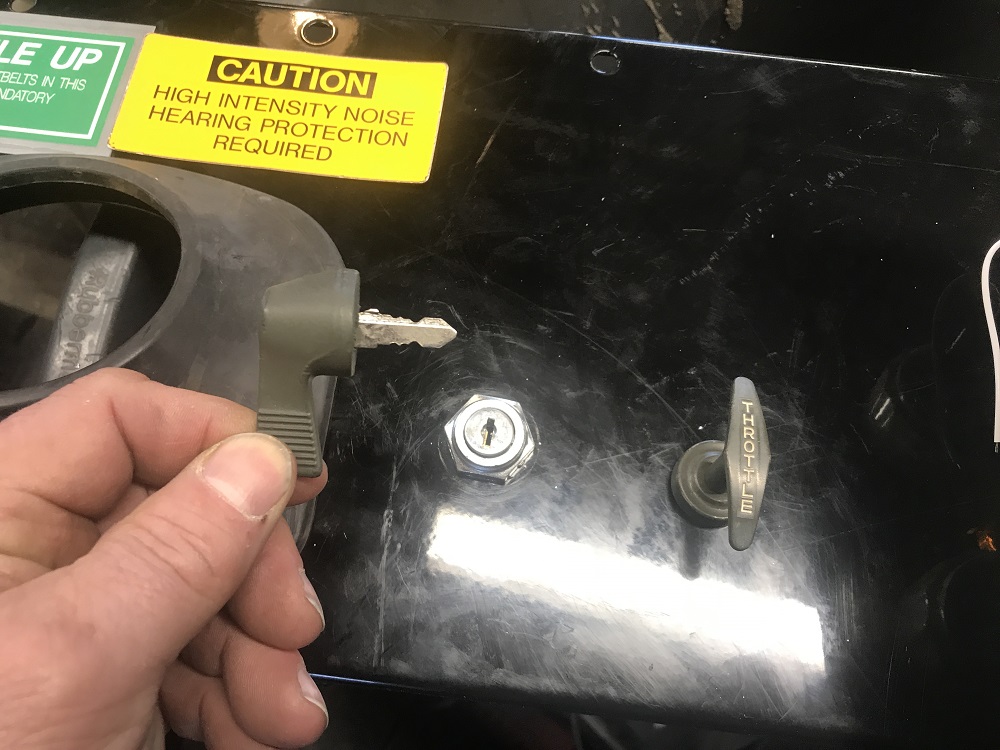

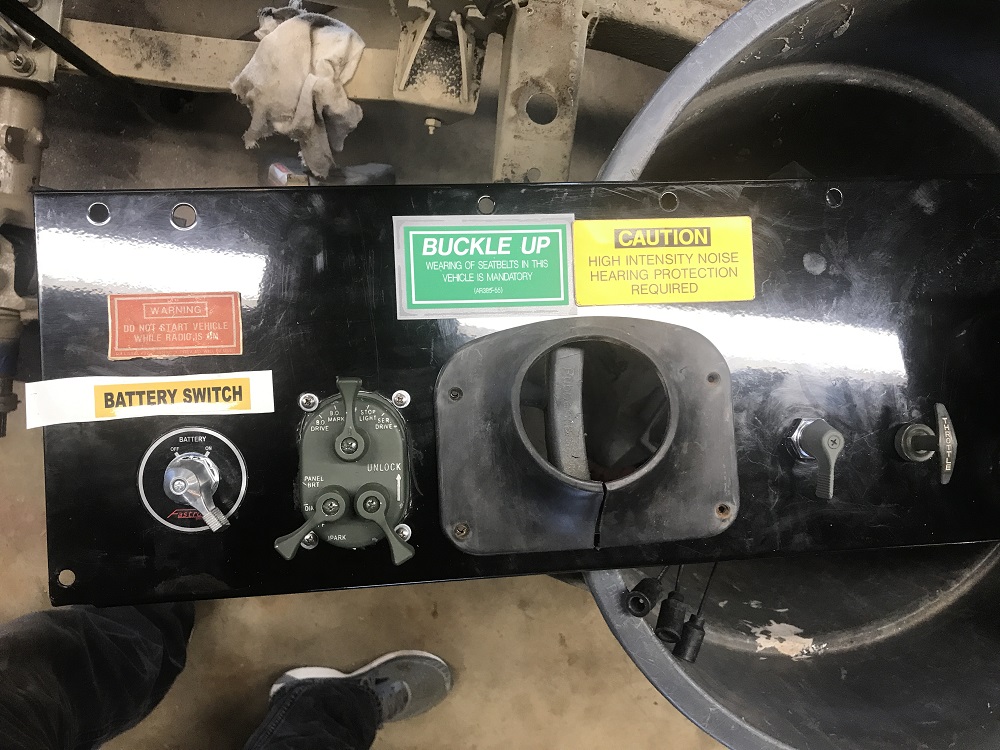

    Got steel in for the fuel tank. Man, steel has gone up almost as bad as ammo... Been playing around with laying out the dash. Not really taking after any particular model, (M151A1 & M38A1 influenced) but it will have the military vehicle flavor for sure. The outside will even have some deuce & a half cues. (you'll get to see later)


    • Like
    Reactions: sandwarrior

    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    My headers are wrong... Gonna have to go with the block hugger type. Sucks trying to engineer a Mopar 360 into a Jeep frame. I'm not staying with the old fender exit headers, that's for sure.


    • Like
    Reactions: sandwarrior

    Force_Multiplier

    Gunny Sergeant
    PX Member
    Minuteman
  • May 22, 2008
    1,074
    40
    McAlester, Oklahoma
    Enjoying this thread...

    I also have a project


    Attachments

    • How the Jeep started.jpg
      How the Jeep started.jpg
      9.5 KB · Views: 31
    • Jeep 1.jpg
      Jeep 1.jpg
      6.8 KB · Views: 15
    • Jeep 2.jpg
      Jeep 2.jpg
      11.4 KB · Views: 14
    • jeep 3.jpg
      jeep 3.jpg
      6 KB · Views: 13
    • Jeep Dash.jpg
      Jeep Dash.jpg
      9.6 KB · Views: 14
    • Jeep Drivetrain.jpg
      Jeep Drivetrain.jpg
      11.3 KB · Views: 30
    • sh even helps.jpg
      sh even helps.jpg
      11.3 KB · Views: 32

    Texasflyer

    Brass goblin
    PX Member
    Minuteman
    Mar 3, 2021
    846
    853
    Texas
    I bought mine for 300 and had to spin the distributor 180, fired right up. Worst bit so far was king pins, apparently the u.s. mail used their own parts, had to special order a reamer to make em work, but they are in and new lol.


    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875
    I bought mine for 300 and had to spin the distributor 180, fired right up. Worst bit so far was king pins, apparently the u.s. mail used their own parts, had to special order a reamer to make em work, but they are in and new lol.
    Leave it to the government to use one off parts on a commercial vehicle...

    • Like
    Reactions: Texasflyer

    MarinePMI

    Ban Cat Handler
    Staff member
    Moderator
    Commercial Supporter
    PX Member
    Minuteman
  • Jun 3, 2010
    7,230
    9,168
    San Diego, Ca
    Leave it to the government to use one off parts on a commercial vehicle...
    Meh, it limits parts walking out the back door.

    That was the big reason the CUCV's were phased out. Too many Chevy parts walking out the backdoor of all the MotorT units...

    • Like
    Reactions: Ravenworks

    Texasflyer

    Brass goblin
    PX Member
    Minuteman
    Mar 3, 2021
    846
    853
    Texas
    Leave it to the government to use one off parts on a commercial vehicle...
    Well, apparently being a postal mechanic was a thing back then.
    Meh, it limits parts walking out the back door.

    That was the big reason the CUCV's were phased out. Too many Chevy parts walking out the backdoor of all the MotorT units...
    The rear springs and suspention are basically a 2wd jeepster suspention. I have been thinking of getting one and swapping everything over for a 4x4. But that is the only vehicle it shares much with. Think i would prefer the 327 over the 232 strait six.


    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875

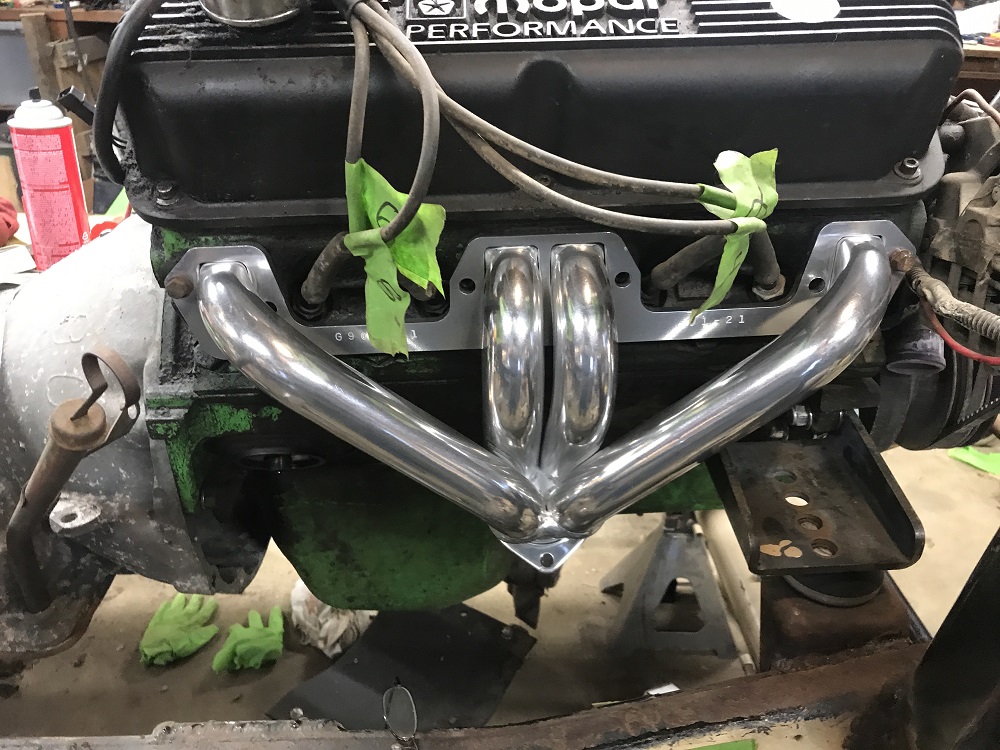

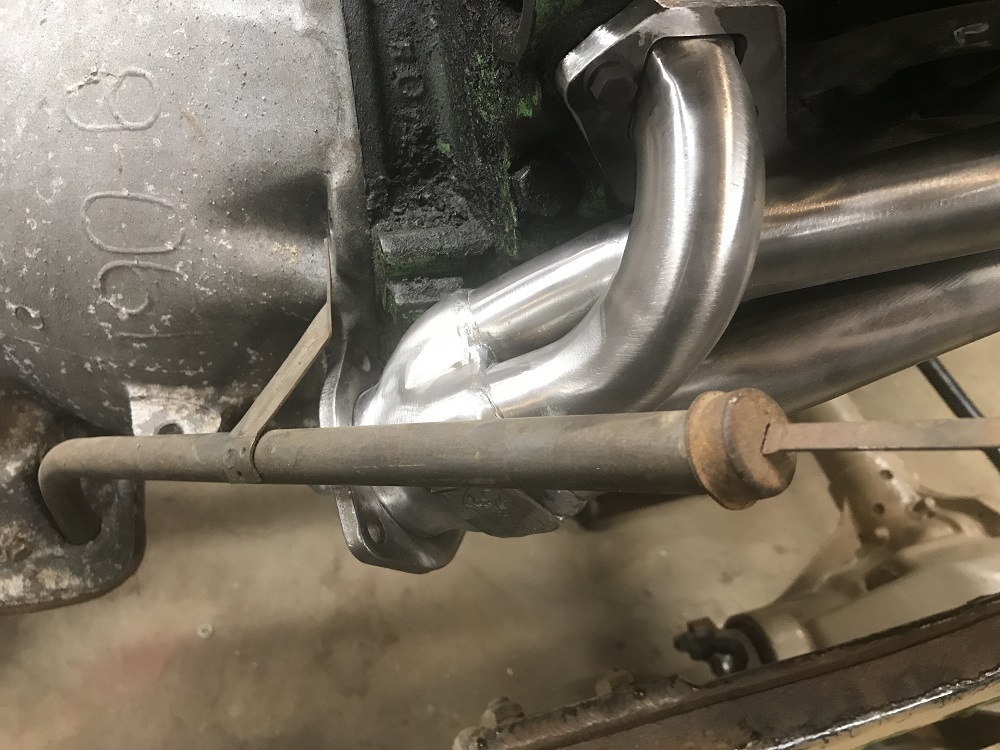

    New headers are Summit Racing brand. Better fit, less expensive, ceramic coated. I forgot to include the flanges when I sent back the old headers, so now I have the straight set that came with the Summit brand, and the angled set that came with the Sanderson headers. Whatever ones work best...


    Last edited:

    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875

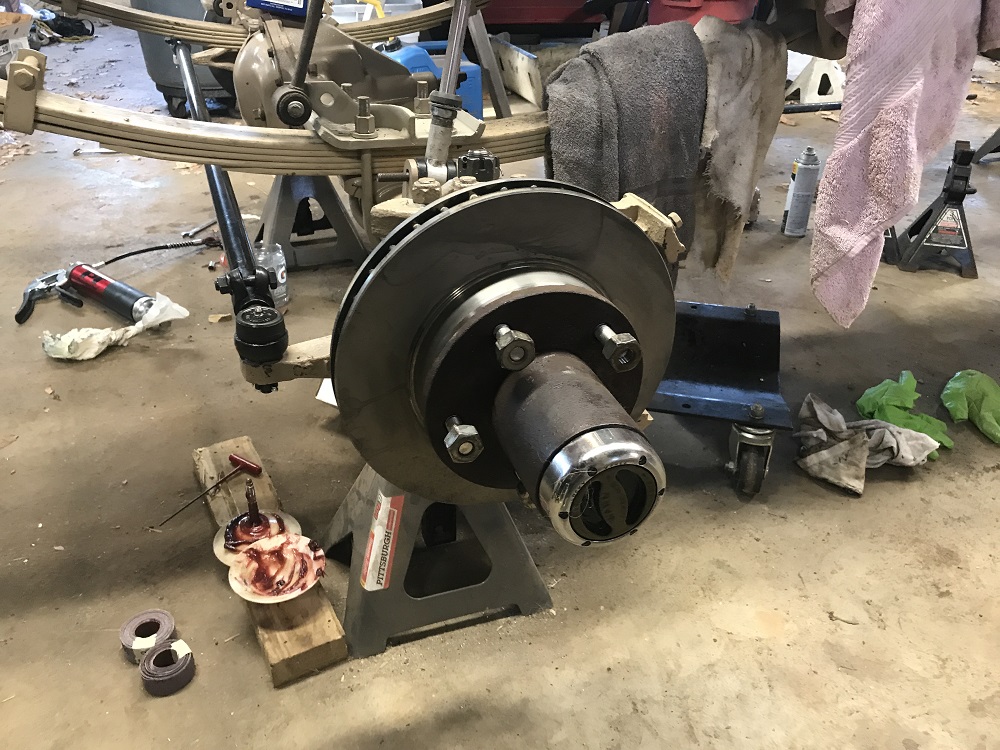

    Finished the front axle... finally. Put the outters on, and the new Warn premium locking hubs.



    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875

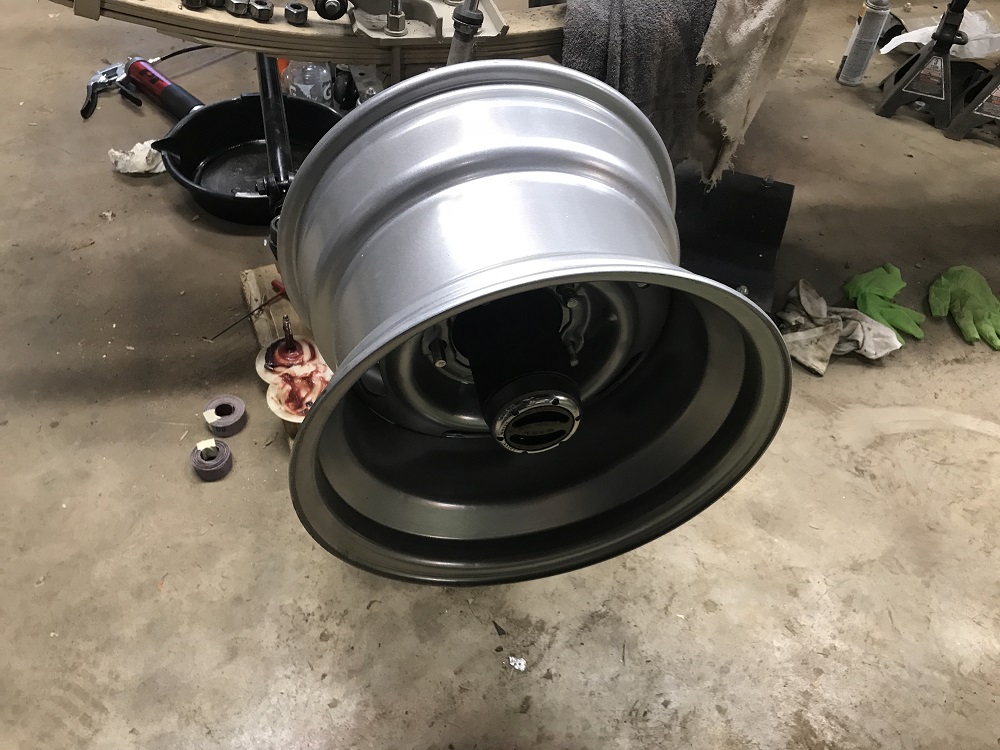

    I want to run a 15x10 wheel, but the 4.5" backspacing on them sets them a mite close. The 8" wheels that came off the old Jeep I got the axles off have 4" backspace, but damn... these look so good. I'll be running 35x12.50 tires, so maybe a 1/8 or 1/4 inch spacer...? Thing is, this baby is already a CJ with full size axles, so they're gonna be sticking out pretty far as is.




    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875

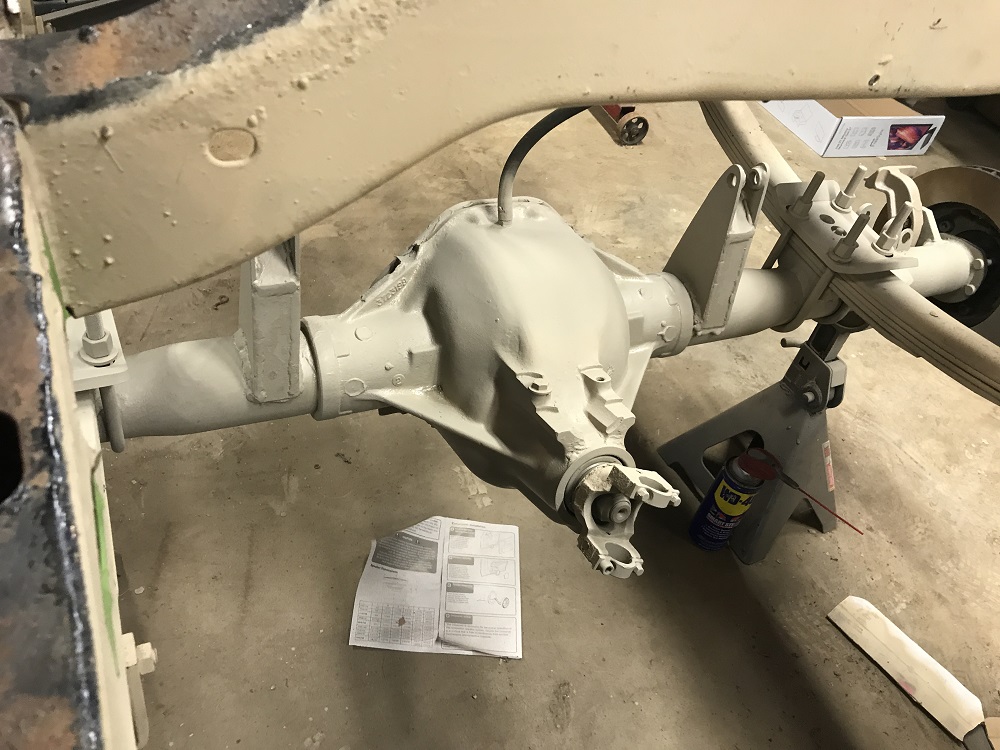

    Got around to painting the rear axle. Didn't bother to take it out and drag it out to the driveway though... Just crawled under, and sprayed the crap out of it. Getting to the point where I'm starting to take shortcuts because I want to get this thing done before the world collapses into chaos.



    Daddyusmaximus

    Gunny Sergeant
    PX Member
    Minuteman
    May 3, 2020
    586
    4,875

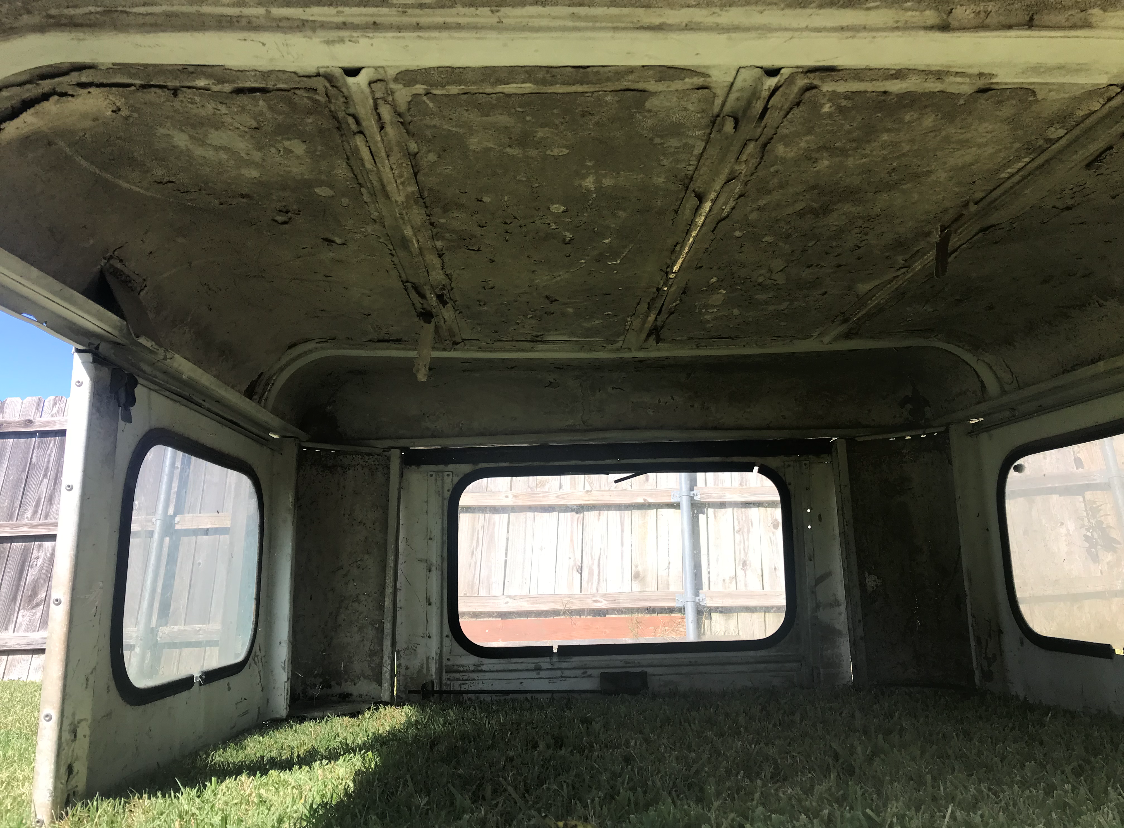

    I found one. After a little more than 2 years looking... I found my unicorn.

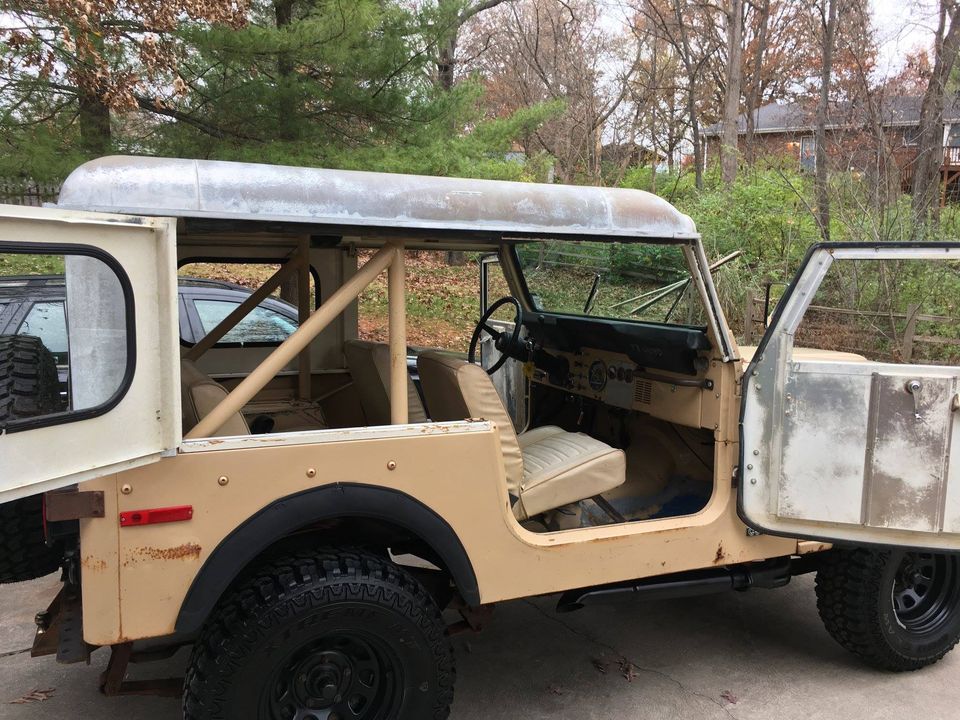

    It all started when I saw this photo on the internet.



    A Jeep top with sides that can swing open, and even be removed with the top staying on. Perfect for fat, old, crippled soldiers who don't feel like climbing over seats to grab gear out of the back, or for having that open air Jeep feel, while still having hard top shade.

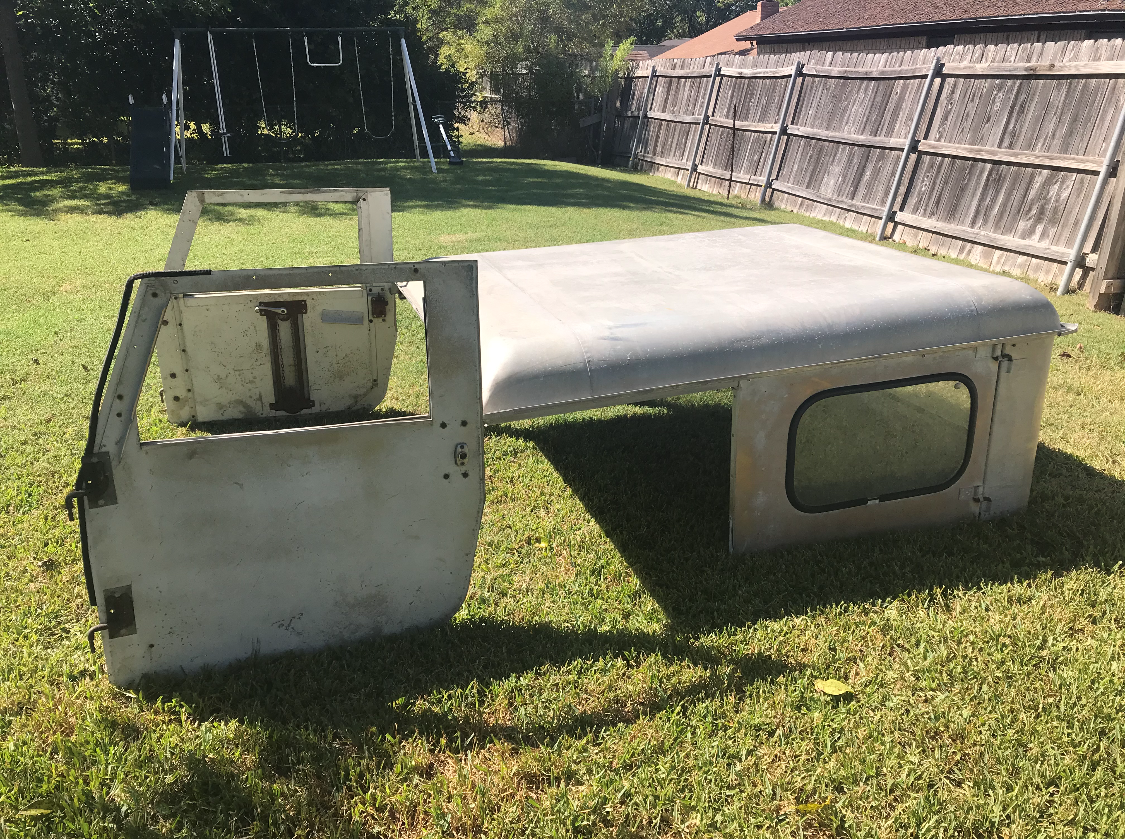

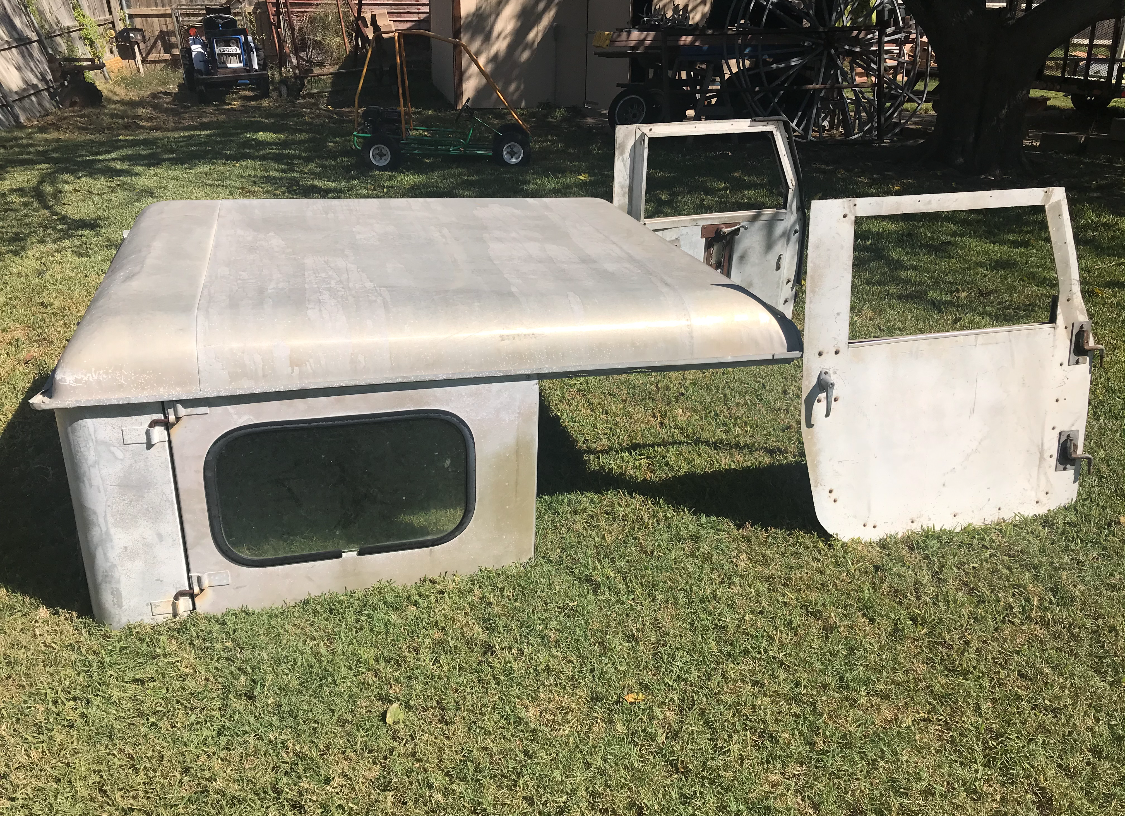

    Ladies, and gentlemen... I give you my Jeep top. Of course, I have to get to Texas to pick it up, but I'm so happy right now.

    God loves me.




    Jim Out

    Sergeant of the Hide
    PX Member
    Minuteman
    Nov 28, 2020
    195
    144
    Tucson

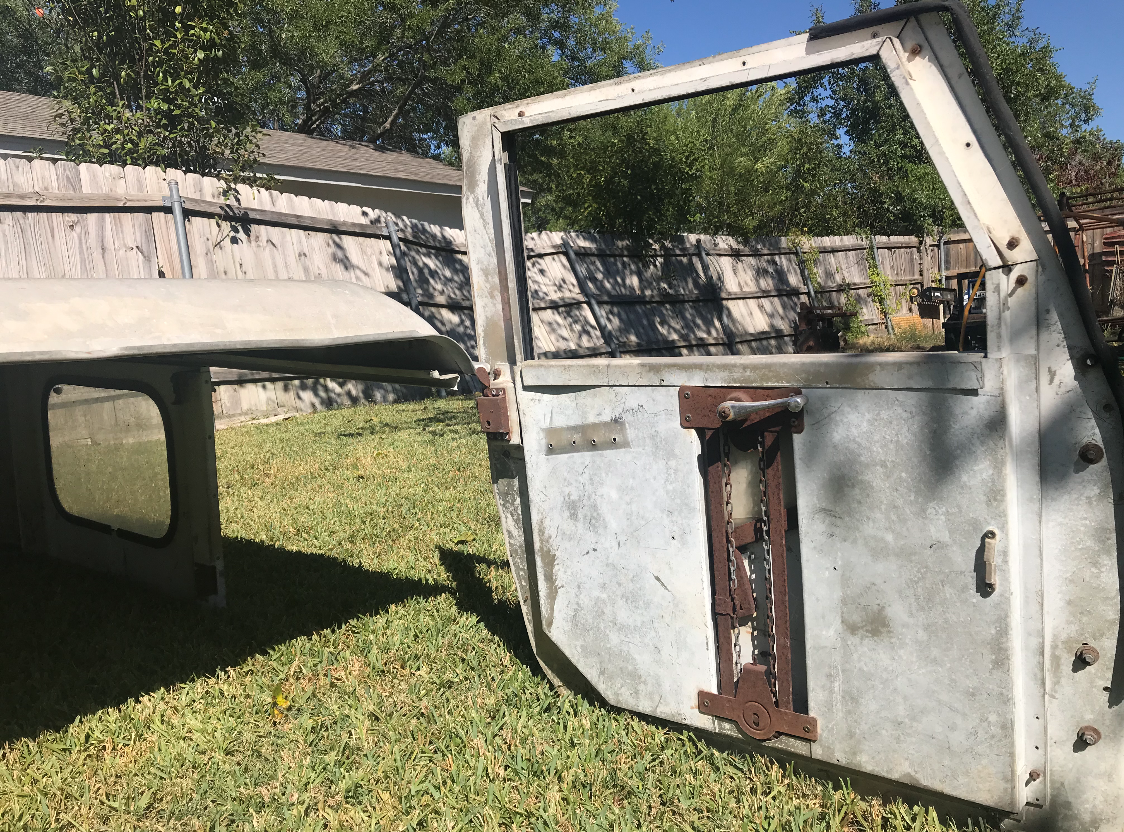

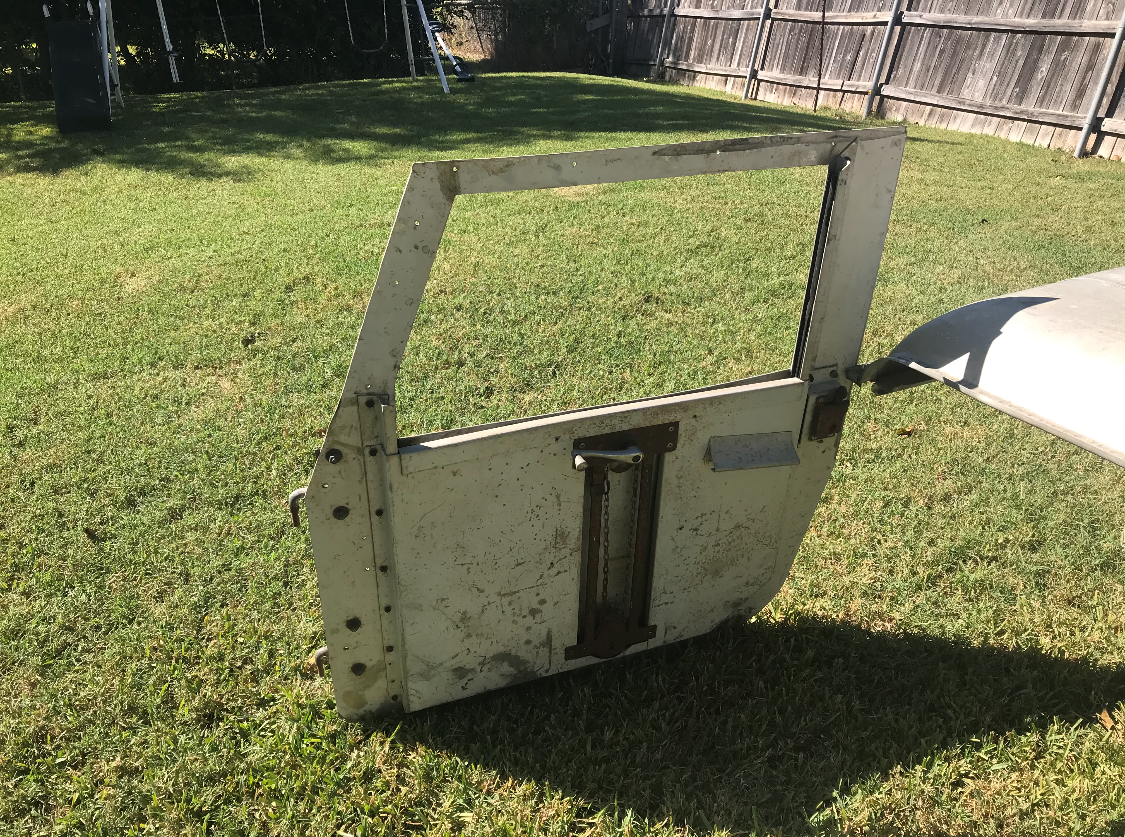

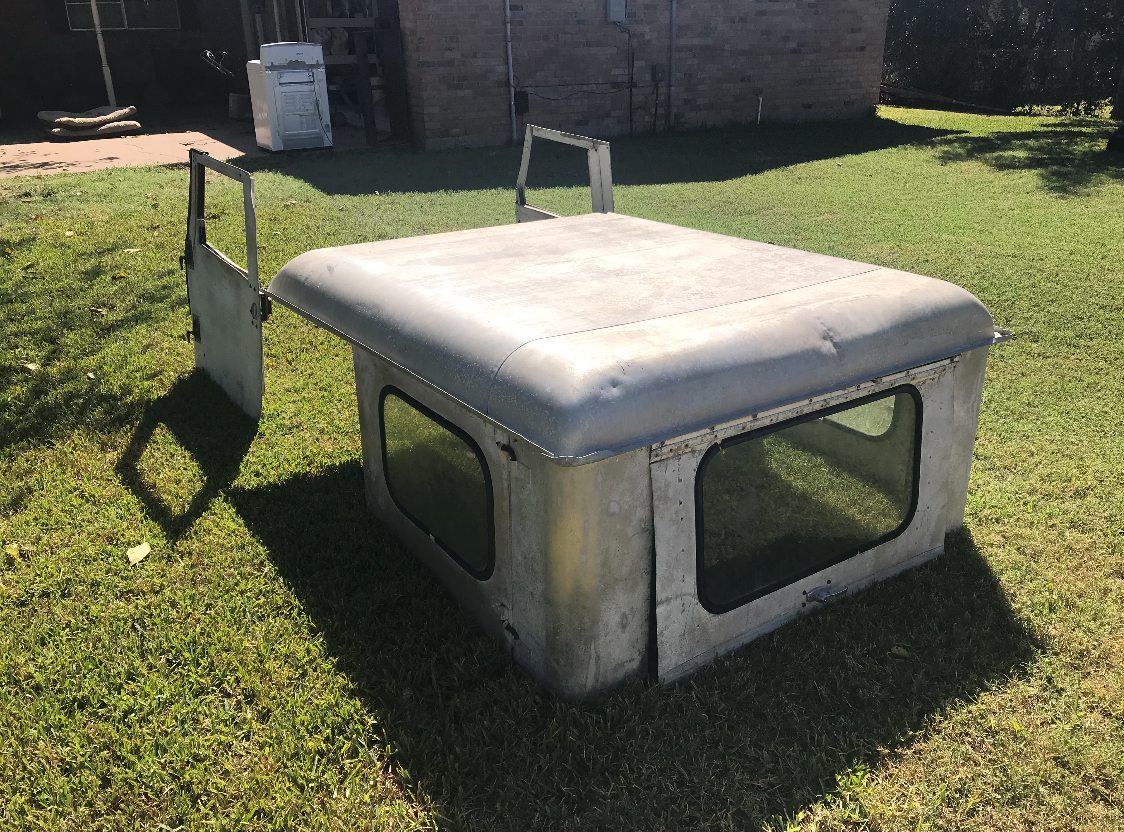

    I found one. After a little more than 2 years looking... I found my unicorn.
