Kestrel Meters Ballistics Official Thread

ceruleanblue

Alterius non sit qui suus esse potest
PX Member
Minuteman
Mar 23, 2019
128
31
Whether using True North with a declination or Magnetic North, the relationship between the DOF and WD will be the same as it is relative. Really the only issue you would have with using Magnetic is with Coriolis effects being slightly off. For example at 1000 yards, if you think you are pointing 0 degrees but are off by 21 degrees, you would incur around 0.03 mil difference in Vertical Coriolis. At 2000 yards this is around 0.07 mils. IMO unless shooting at really extended ranges, it is much easier to use Magnetic North and not worry about declination.
The real question then becomes if the VAR correction is taken into account in the ballistic computations of the Kestrel. It might not make a difference most of the time (maybe a lot in ELR) but for peace of mind it would be great to know that it has been taken into account in the displayed results of the device.


Kestrel Ballistics

Commercial Supporter
Commercial Supporter
PX Member
Minuteman
Feb 2, 2018
667
532
Boothwyn PA
kestrelinstruments.com
The real question then becomes if the VAR correction is taken into account in the ballistic computations of the Kestrel. It might not make a difference most of the time (maybe a lot in ELR) but for peace of mind it would be great to know that it has been taken into account in the displayed results of the device.
If in the weather mode you are using magnetic the ballistic calculation uses magnetic. If you change it to True the ballistic formula uses True.

  • Like
Reactions: ceruleanblue

ceruleanblue

Alterius non sit qui suus esse potest
PX Member
Minuteman
Mar 23, 2019
128
31
Friends

I just discovered that Kestrel has Zoom classes to teach you how to use your device. I wish I had found this sooner. Sign up and learn at:

Enjoy!

Migs


Tokay444

Black Rifles Matter.
PX Member
Minuteman
  • Jun 24, 2019
    1,978
    2,371
    Save it where? It exists in two places. In the app, and on the Kestrel. Is it not saved simply by existing and being able to be used?


    Paul1262

    Sergeant of the Hide
    PX Member
    Minuteman
    Jan 13, 2019
    360
    65
    Save it where? It exists in two places. In the app, and on the Kestrel. Is it not saved simply by existing and being able to be used?
    If you use the Kestrel link to enter your data then in the upper right corner you will see three little squares. If you tap those it will show save profile.
    You must save profile before sending to the unit or nothing will change.


    Paul1262

    Sergeant of the Hide
    PX Member
    Minuteman
    Jan 13, 2019
    360
    65
    If you use the Kestrel link to enter your data then in the upper right corner you will see three little squares. If you tap those it will show save profile.
    You must save profile before sending to the unit or nothing will change.
    The three little squares are located in the upper right hand corner of the Edit Profile screen.


    Alan0728

    Private
    Minuteman
    Sep 5, 2020
    13
    8
    San Antonio, TX
    Is there still a way to update Direction of Fire and Wind Info for all Targets in a target list? With the latest update I can't seem to find it again....unless I just forgot where I was doing it before.


    Tokay444

    Black Rifles Matter.
    PX Member
    Minuteman
  • Jun 24, 2019
    1,978
    2,371
    If you use the Kestrel link to enter your data then in the upper right corner you will see three little squares. If you tap those it will show save profile.
    You must save profile before sending to the unit or nothing will change.
    When I press save, and I’m able to send the profile to the Kestrel and use it, I assume it is saved.
    Are you saying there is another screen with 3 squares I need to save profiles to?



    Paul1262

    Sergeant of the Hide
    PX Member
    Minuteman
    Jan 13, 2019
    360
    65
    When I press save, and I’m able to send the profile to the Kestrel and use it, I assume it is saved.
    Are you saying there is another screen with 3 squares I need to save profiles to?

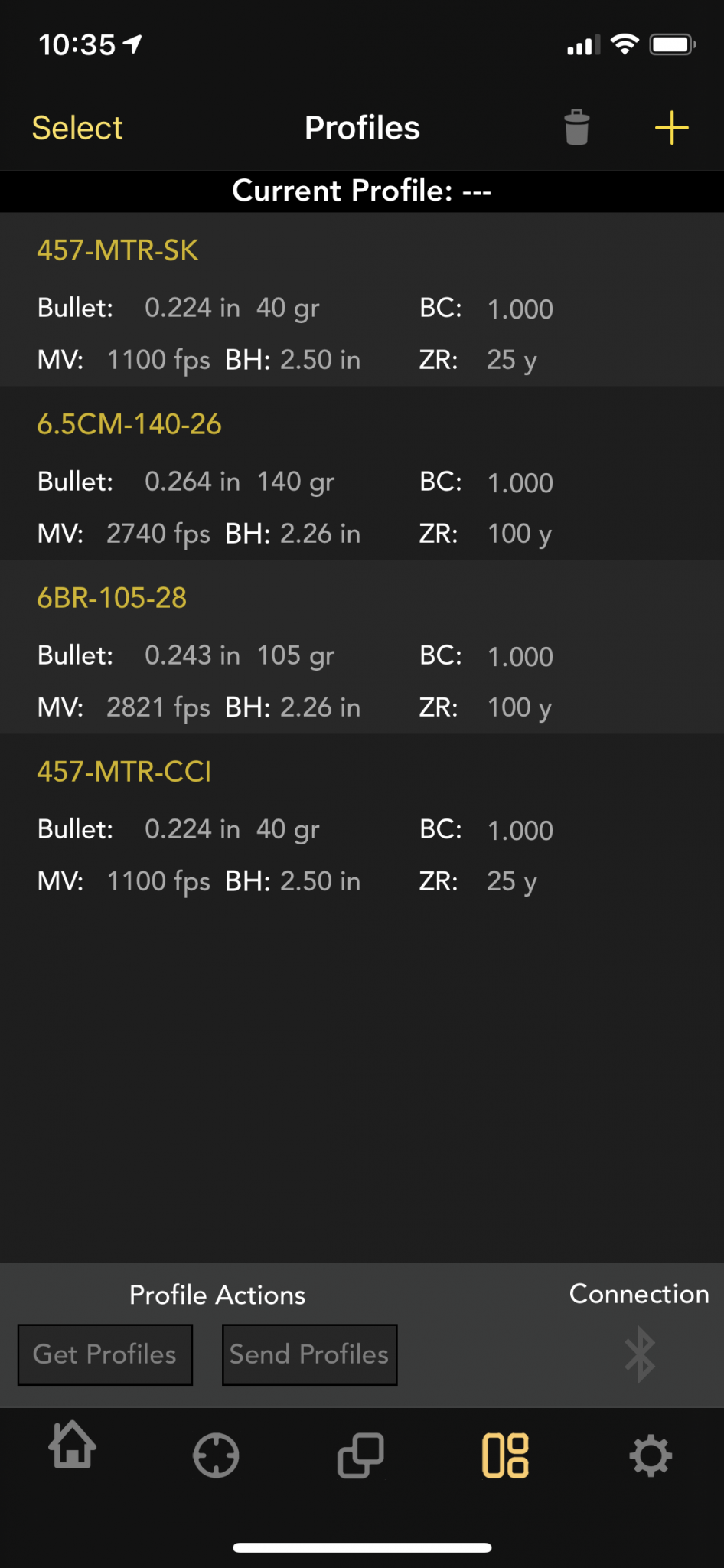

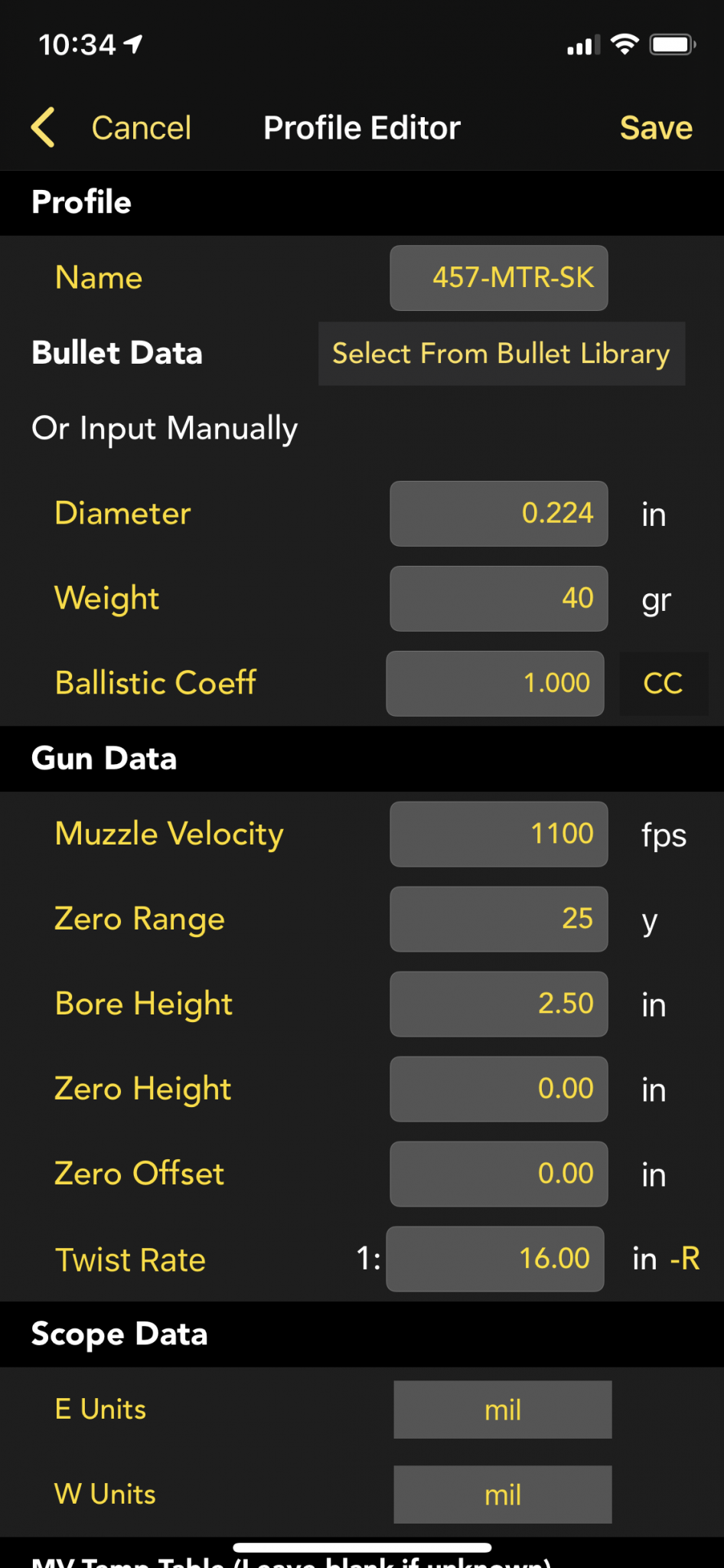

    View attachment 7602801
    View attachment 7602802
    The other screen I was referring to was for the Kestrel/Hornady 5700 4DOF. I should of ask what unit you were using first. Sorry. The key is to save the profile each time before sending it to the unit. Hope it works out ok for you.


    Tokay444

    Black Rifles Matter.
    PX Member
    Minuteman
  • Jun 24, 2019
    1,978
    2,371
    The other screen I was referring to was for the Kestrel/Hornady 5700 4DOF. I should of ask what unit you were using first. Sorry. The key is to save the profile each time before sending it to the unit. Hope it works out ok for you.
    I have always saved changes before sending a profile to the unit. The always get erased during an update.


    Paul1262

    Sergeant of the Hide
    PX Member
    Minuteman
    Jan 13, 2019
    360
    65
    I have always saved changes before sending a profile to the unit. The always get erased during an update.
    I would give Kestrel a call. I can't imagine why it would get erased. Best of luck. Sorry I couldn't be of more help.

    • Like
    Reactions: Tokay444

    Tokay444

    Black Rifles Matter.
    PX Member
    Minuteman
  • Jun 24, 2019
    1,978
    2,371
    It hasn’t seemed to matter yet as they are deleted every single time I update. Current is 1.45. I can’t say for certain what the last one on the unit was, but I’d wager a guess it was the last one before 1.45.


    tadawson

    Sergeant of the Hide
    PX Member
    Minuteman
    Jan 29, 2018
    245
    177
    Lewisville, Texas
    I've had my 5700 Elite with AB for a couple of years now, and have done at least 8 updates, and don't recall ever losing anything. For me, at least, if the profiles are on the Kestrel, on recent releases, it pulls them, updates the code, a pushes them back. On early releases, you had to have them stored in the app yourself, but that has not been the case for some time. Note, though, that right after it reboots when the fw is loaded, it is *NOT* yet done - if a few moments, it should push the profiles back, and if you play with it prior to both the app *and* the Kestrel saying "Done", you can interfere with the restore.


    tyfoon

    Private
    Minuteman
    Aug 24, 2020
    78
    20
    With the risk of asking a stupid question:

    I have an AXMC with 3 barrels and one fixed scope. The 3 barrels have a slightly different POI so when I change barrel I slightly adjust from 0 for 2 of the 3 calibers (obviously one of the three as 0/0 on the scope) . Should I use "zero height" and "zero offset" in the "gundata" for the other to calibers that are not 0/0??


    Kestrel Ballistics

    Commercial Supporter
    Commercial Supporter
    PX Member
    Minuteman
    Feb 2, 2018
    667
    532
    Boothwyn PA
    kestrelinstruments.com
    With the risk of asking a stupid question:

    I have an AXMC with 3 barrels and one fixed scope. The 3 barrels have a slightly different POI so when I change barrel I slightly adjust from 0 for 2 of the 3 calibers (obviously one of the three as 0/0 on the scope) . Should I use "zero height" and "zero offset" in the "gundata" for the other to calibers that are not 0/0??
    YES, set up separate profiles and us the ZH and ZO to indicate the variance from dead center for the two not zeroed dead center - high and left hits are + number entries and low or right hits are - number entries.


    tyfoon

    Private
    Minuteman
    Aug 24, 2020
    78
    20
    YES, set up separate profiles and us the ZH and ZO to indicate the variance from dead center for the two not zeroed dead center - high and left hits are + number entries and low or right hits are - number entries.
    Thanks for quick response.

    So just to be 100% sure: If my .308 barrel is 0/0 and my 300 norma after barrel switch is +.5/-0.2 MILS (zerood) that is also the value I enter in the profile for the 300norma barrel? And the value the Kestrel then gives -for the 300Norma gun profile- (let's say 10Mil up for 1000meters) that is 10 MIL up from 0. Correct?

    • Like
    Reactions: sled_mack

    Kestrel Ballistics

    Commercial Supporter
    Commercial Supporter
    PX Member
    Minuteman
    Feb 2, 2018
    667
    532
    Boothwyn PA
    kestrelinstruments.com
    Thanks for quick response.

    So just to be 100% sure: If my .308 barrel is 0/0 and my 300 norma after barrel switch is +.5/-0.2 MILS (zerood) that is also the value I enter in the profile for the 300norma barrel? And the value the Kestrel then gives -for the 300Norma gun profile- (let's say 10Mil up for 1000meters) that is 10 MIL up from 0. Correct?
    Correct

    • Like
    Reactions: tyfoon and seansmd

    madpat

    Private
    Minuteman
    Nov 3, 2017
    58
    5
    I use 1.43 software and cannot upgrade it to 1.45. Kestrel 5700 Elite Applied Ballistics iLink

    Model 5700AL
    FW 1.43
    BOOT 1.01
    BLE 0.06
    BAL 72
    HW Rev 11B

    Any idea how to upgrade it?

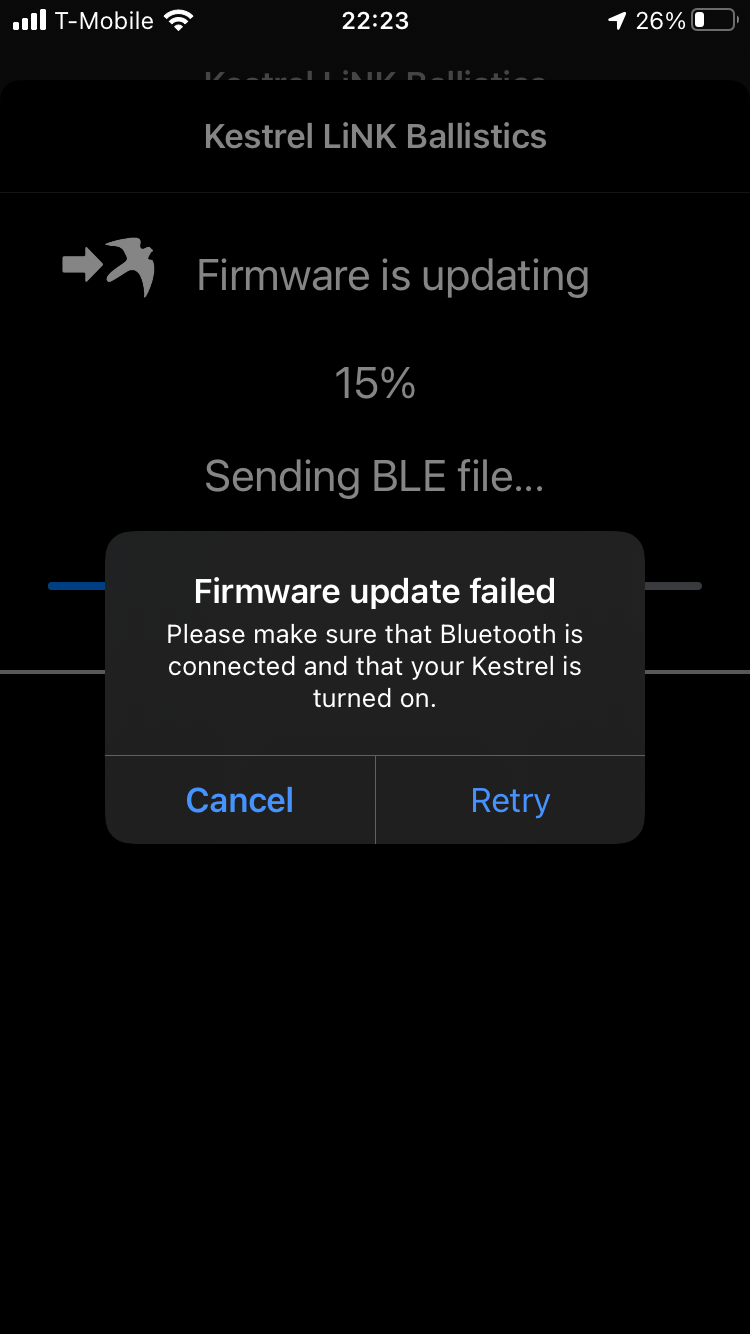

    Attachments

    • IMG_3812.PNG
      123.1 KB · Views: 8

    Kestrel Ballistics

    Commercial Supporter
    Commercial Supporter
    PX Member
    Minuteman
    Feb 2, 2018
    667
    532
    Boothwyn PA
    kestrelinstruments.com
    I use 1.43 software and cannot upgrade it to 1.45. Kestrel 5700 Elite Applied Ballistics iLink

    Model 5700AL
    FW 1.43
    BOOT 1.01
    BLE 0.06
    BAL 72
    HW Rev 11B

    Any idea how to upgrade it?
    First, there are no ballistic changes between 1.43 and 1.45, the changes impact non-ballistic meters, so upgrade is not required.
    Secondly, make sure you PIN is turned off.


    alex2x2

    Private
    Minuteman
    Dec 7, 2020
    53
    10
    Montana
    ballistics don't match AB App vs Kestrel 5700 elite with Custom drag models . Whet I set G7 BC Kestrel ballistics matches the AB application.

    I think this is due to different data on the servers Kestrel Ballistics and Applied ballistics
    Hi! Can you help me with this?


    Kestrel Ballistics

    Commercial Supporter
    Commercial Supporter
    PX Member
    Minuteman
    Feb 2, 2018
    667
    532
    Boothwyn PA
    kestrelinstruments.com
    There is only 1 bullet library and that is managed by Applied Ballistics. When you open the Kestrel app it connects to the AB library and checks if any new bullets have been added and if yes, asks if you want to download them.


    alex2x2

    Private
    Minuteman
    Dec 7, 2020
    53
    10
    Montana
    There is only 1 bullet library and that is managed by Applied Ballistics. When you open the Kestrel app it connects to the AB library and checks if any new bullets have been added and if yes, asks if you want to download them.

    then why are there differences between AB App and Kestrel device in the calculations?


    seansmd

    In a minute man
    Supporter
    PX Member
    Minuteman
  • Aug 8, 2018
    1,680
    1,231
    San Jose, CA
    I disagree with this. Calculations should be the same before truing rifle.
    I can't remember if you answered, did you try changing both to G7 to see if the data line up perfectly? This will prove the settings are the same.


    alex2x2

    Private
    Minuteman
    Dec 7, 2020
    53
    10
    Montana
    You 100% sure you’re inputs are identical?

    If both products need to be and can be trued to actuals( and they do) why do they need to match perfectly?
    Yes, I'm sure.

    When I input G7 BC output calculations are the same

    When I set CDM BC in Kestrel and AB Application, output calculations don't match each other.

    • Like
    Reactions: seansmd

    seansmd

    In a minute man
    Supporter
    PX Member
    Minuteman
  • Aug 8, 2018
    1,680
    1,231
    San Jose, CA
    His point, and it's a fair one is the cdm is returning different dope, in the kestrel vs the AB app.

    The models are different, why?

    The G7 in both returns the same dope in both, so should the CDM, this is a problem with AB, they did the same a while back with hornady eldm140, and an update radically changed the CDM. No rev control of information, several revs later it changed back.

    AB and the kestrels are awesome, but this is an area of needed improvement.


    alex2x2

    Private
    Minuteman
    Dec 7, 2020
    53
    10
    Montana
    His point, and it's a fair one is the cdm is returning different dope, in the kestrel vs the AB app.

    The models are different, why?

    The G7 in both returns the same dope in both, so should the CDM, this is a problem with AB, they did the same a while back with hornady eldm140, and an update radically changed the CDM. No rev control of information, several revs later it changed back.

    AB and the kestrels are awesome, but this is an area of needed improvement.
    you understood me correctly


    pmclaine

    Gunny Sergeant
    PX Member
    Minuteman
  • Nov 6, 2011
    23,551
    37,070
    53
    MA
    Hi Kestrel,

    I might be in error here but I thought I saw Kestrel and Magnetospeed merged which makes great sense and should mean great things going forward.

    I am a fan of both products.

    If this is true could the people on the Ballistic meter side shout over to the people in the T1000 Target indicator side and point them toward this thread....


    Please give us back the Rev 1, T1000

    Sorry if I am in error regards my assumptions will quickly delete if I am in error.


    Kestrel Ballistics

    Commercial Supporter
    Commercial Supporter
    PX Member
    Minuteman
    Feb 2, 2018
    667
    532
    Boothwyn PA
    kestrelinstruments.com
    Hi Kestrel,

    I might be in error here but I thought I saw Kestrel and Magnetospeed merged which makes great sense and should mean great things going forward.

    I am a fan of both products.

    If this is true could the people on the Ballistic meter side shout over to the people in the T1000 Target indicator side and point them toward this thread....


    Please give us back the Rev 1, T1000

    Sorry if I am in error regards my assumptions will quickly delete if I am in error.

    Hi Kestrel,

    I might be in error here but I thought I saw Kestrel and Magnetospeed merged which makes great sense and should mean great things going forward.

    I am a fan of both products.

    If this is true could the people on the Ballistic meter side shout over to the people in the T1000 Target indicator side and point them toward this thread....


    Please give us back the Rev 1, T1000

    Sorry if I am in error regards my assumptions will quickly delete if I am in error.
    Thanks for the feedback. Please keep sending us feedback. We will look into changes between Rev 1 and 2 and see what we can improve.


    pmclaine

    Gunny Sergeant
    PX Member
    Minuteman
  • Nov 6, 2011
    23,551
    37,070
    53
    MA
    Thanks for the feedback. Please keep sending us feedback. We will look into changes between Rev 1 and 2 and see what we can improve.


    Bring back the dip switches.....get rid of the App.

    Asking for this guy....who, um, err,.......is maybe not me.



    pmclaine

    Gunny Sergeant
    PX Member
    Minuteman
  • Nov 6, 2011
    23,551
    37,070
    53
    MA
    PS - Let them know the Rev B T1000 mount plates are superior.....just ordered one this AM to replace my Rev A mount.
