New 6mm Advanced Rifle Cartridge

Ledzep

Chancellor
Belligerents
Minuteman
Jun 9, 2009
2,901
2,206
NE
Still not what I'm talking about. No magic, nothing over 52ksi. No mythical velocities.

1. 223 at 73gr. Match bullet mass with the 6 ARC at say a 75gr Vmax, and the ARC will be considerably faster than the .223 in the same barrel length.

2. 73gr .223 ELDM is a BC just shy of .400. Match that with an 87gr Vmax or 90gr ELD-X in 6mm, or do a bit better with the 95gr SMK, and you're looking at similar speeds with the ARC running ~20% more mass.

3. High BC end of loadings for the ARC you're looking at the 105-110gr class which trump the .223's BC, but lag in velocity a bit.

Main point is that option 1 and 2 are going to be flatter than .223 if a flat trajectory is what you're concerned about. Option 3 is going to have less wind drift, and win out for trajectory in the long run. All three have more energy throughout the useful trajectory.

At any rate, it's no real surprise to me that within 500yd two rifle cartridges have very similar trajectories. It's why generic BDC reticles usually work out okay for 100-400 especially, and often out to 600.

  • Like
Reactions: long range sponge

thestoicmarcusaurelius

The Real Tiger King
Belligerents
Minuteman
Jun 15, 2020
433
543
Alabama Slammer
Still not what I'm talking about. No magic, nothing over 52ksi. No mythical velocities.

1. 223 at 73gr. Match bullet mass with the 6 ARC at say a 75gr Vmax, and the ARC will be considerably faster than the .223 in the same barrel length.

2. 73gr .223 ELDM is a BC just shy of .400. Match that with an 87gr Vmax or 90gr ELD-X in 6mm, or do a bit better with the 95gr SMK, and you're looking at similar speeds with the ARC running ~20% more mass.

3. High BC end of loadings for the ARC you're looking at the 105-110gr class which trump the .223's BC, but lag in velocity a bit.

Main point is that option 1 and 2 are going to be flatter than .223 if a flat trajectory is what you're concerned about. Option 3 is going to have less wind drift, and win out for trajectory in the long run. All three have more energy throughout the useful trajectory.

At any rate, it's no real surprise to me that within 500yd two rifle cartridges have very similar trajectories. It's why generic BDC reticles usually work out okay for 100-400 especially, and often out to 600.
I hope you're right haha

It will be interesting to see what speeds are realistic at 52ksi out of a 16" barrel from the 6ARC with something like a 90 grain ELD-X at .409 G1 BC compared to a 75BTHP at .395 G1 BC in a 5.56. About 17% more for bullet weight and about a 4% better BC at roughly about the same expected velocities in a 16" barrel based on what we know right know which could change as people get more experience with this.

ETA: Sierra is claiming a .490 G1 BC for their 6mm 95 grain HPBT so that may be a real sweet spot as far as velocity/BC/energy in the shorter barrels in 6ARC once people start handloading more for this https://www.sierrabullets.com/product/6mm-243-caliber-95-gr-hpbt-matchking/

If it is possible to get to 2800FPS from a 6ARC with a 16" barrel at or under 52ksi from a 95SMK at .490 G1 BC. That seems like it would be tough to beat for a 16" lightweight carbine that you didn't mind hunting with as well and something that could give you an extra few hundred yards over a 5.56.

Last edited:
  • Like
Reactions: Ledzep

Ledzep

Chancellor
Belligerents
Minuteman
Jun 9, 2009
2,901
2,206
NE

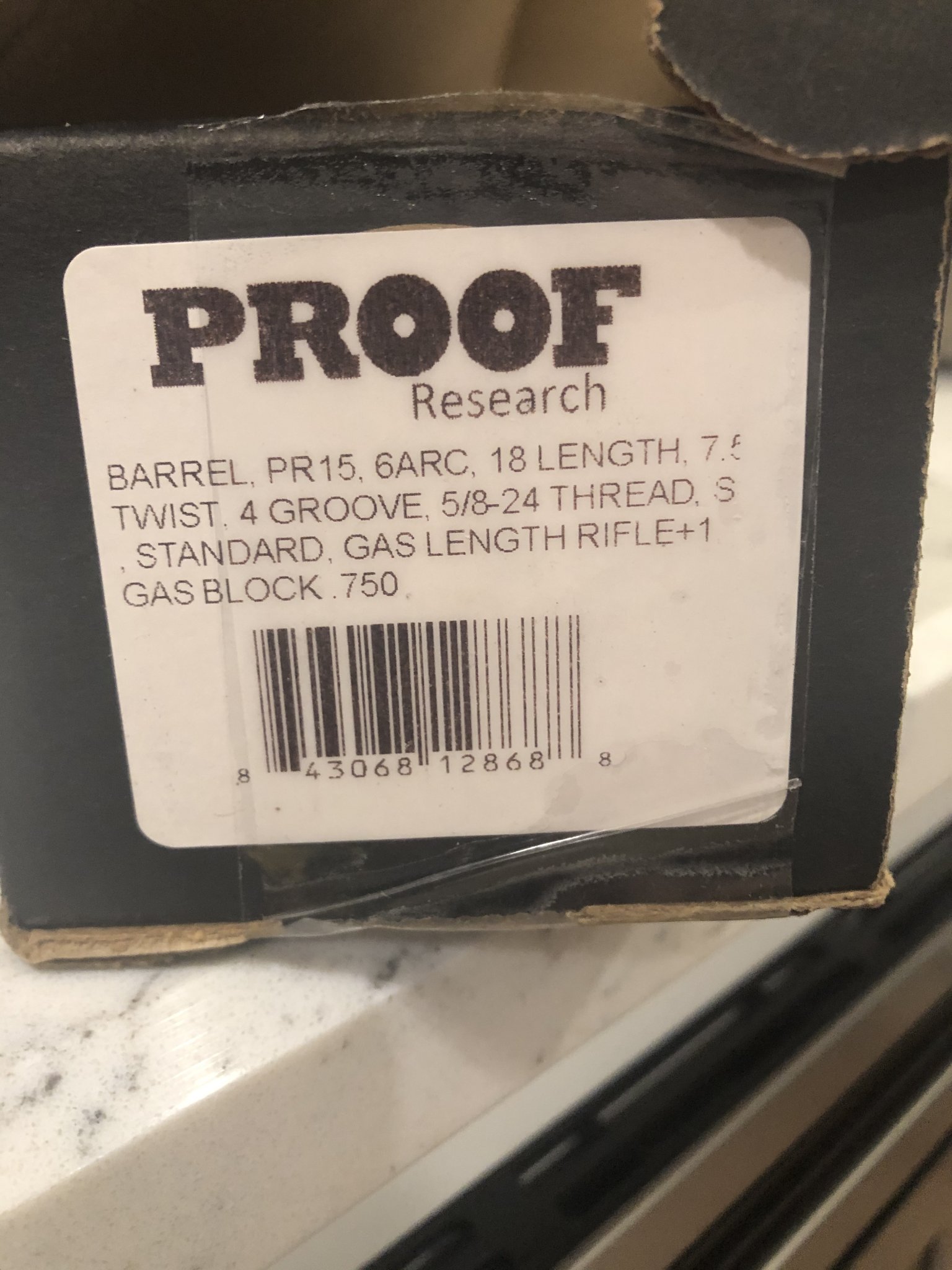

My 18" Proof AR barrel is doing 2596fps Avg with 108's. Averaging 23fps per inch difference between that and my 28" Mausingfield barrel, so I'd expect 16 inchers to be in the 2525-2550fps ballpark.

  • Like
Reactions: Trippm

Trippm

Private
Minuteman
Mar 22, 2020
98
88
My 18" Proof AR barrel is doing 2596fps Avg with 108's. Averaging 23fps per inch difference between that and my 28" Mausingfield barrel, so I'd expect 16 inchers to be in the 2525-2550fps ballpark.
How’s the AR accuracy looking? 2596 fps with how many down the pipe?


steve123

Lt. Colonel
Belligerents
Minuteman
Mar 16, 2008
8,859
1,341
Flagstaff, AZ
Personally I don't get the short barrel thing using a cartridge like this when most everyone already has their 223's, 6.5G's, 6.8's, 300BO, etc. For all except the 300BO, 500Y is pretty easy, but when getting out to 600Y and beyond, out to whatever farther distance, this is where the extra BC and speed of the 6mm is helping out.
18" minimum and enjoy less wind drift farther out, also decent energy. That's where these 6mm's shine.
The other thing I noticed in my FatRat is the 95's recoil feels more like a 223, and 105's felt heavy-ish in comparison. I really like those 95's!
It might be that the 90gr TGK would be a great bullet for 6mmARC. I think it starts out at .490G1BC, it sheds velocity quickly but would be great for 6mmARC inside 800Y or so.


Yondering

Sergeant
Belligerents
Minuteman
Mar 16, 2017
735
328
Skagit Valley, WA
Still not what I'm talking about. No magic, nothing over 52ksi. No mythical velocities.

1. 223 at 73gr. Match bullet mass with the 6 ARC at say a 75gr Vmax, and the ARC will be considerably faster than the .223 in the same barrel length.

2. 73gr .223 ELDM is a BC just shy of .400. Match that with an 87gr Vmax or 90gr ELD-X in 6mm, or do a bit better with the 95gr SMK, and you're looking at similar speeds with the ARC running ~20% more mass.

3. High BC end of loadings for the ARC you're looking at the 105-110gr class which trump the .223's BC, but lag in velocity a bit.

Main point is that option 1 and 2 are going to be flatter than .223 if a flat trajectory is what you're concerned about. Option 3 is going to have less wind drift, and win out for trajectory in the long run. All three have more energy throughout the useful trajectory.

At any rate, it's no real surprise to me that within 500yd two rifle cartridges have very similar trajectories. It's why generic BDC reticles usually work out okay for 100-400 especially, and often out to 600.
I think that's a pretty hard stretch to claim the 73gr ELD 5.56 trajectory is similar. Are you completely ignoring wind drift as well?
I shoot the 73gr as well from my 16" AR, and it doesn't match up at all to the 6mm. Granted mine is the 243 LBC but effectively the same thing as the ARC.

Your 73 ELD @ 2700 load is about right for a 20" barrel. In my 19" 243 LBC, the 105gr BTHP does 2750. It starts off faster, has much higher b.c., and more mass. That results in flatter trajectory, less drift, and more power at all ranges; they really aren't similar. If you want to drop the 6mm bullet weight down to a 90gr, I'm seeing 3,000-3,100 fps with that 19" barrel; again way faster than the 73gr and still higher b.c.


Ledzep

Chancellor
Belligerents
Minuteman
Jun 9, 2009
2,901
2,206
NE
How’s the AR accuracy looking? 2596 fps with how many down the pipe?

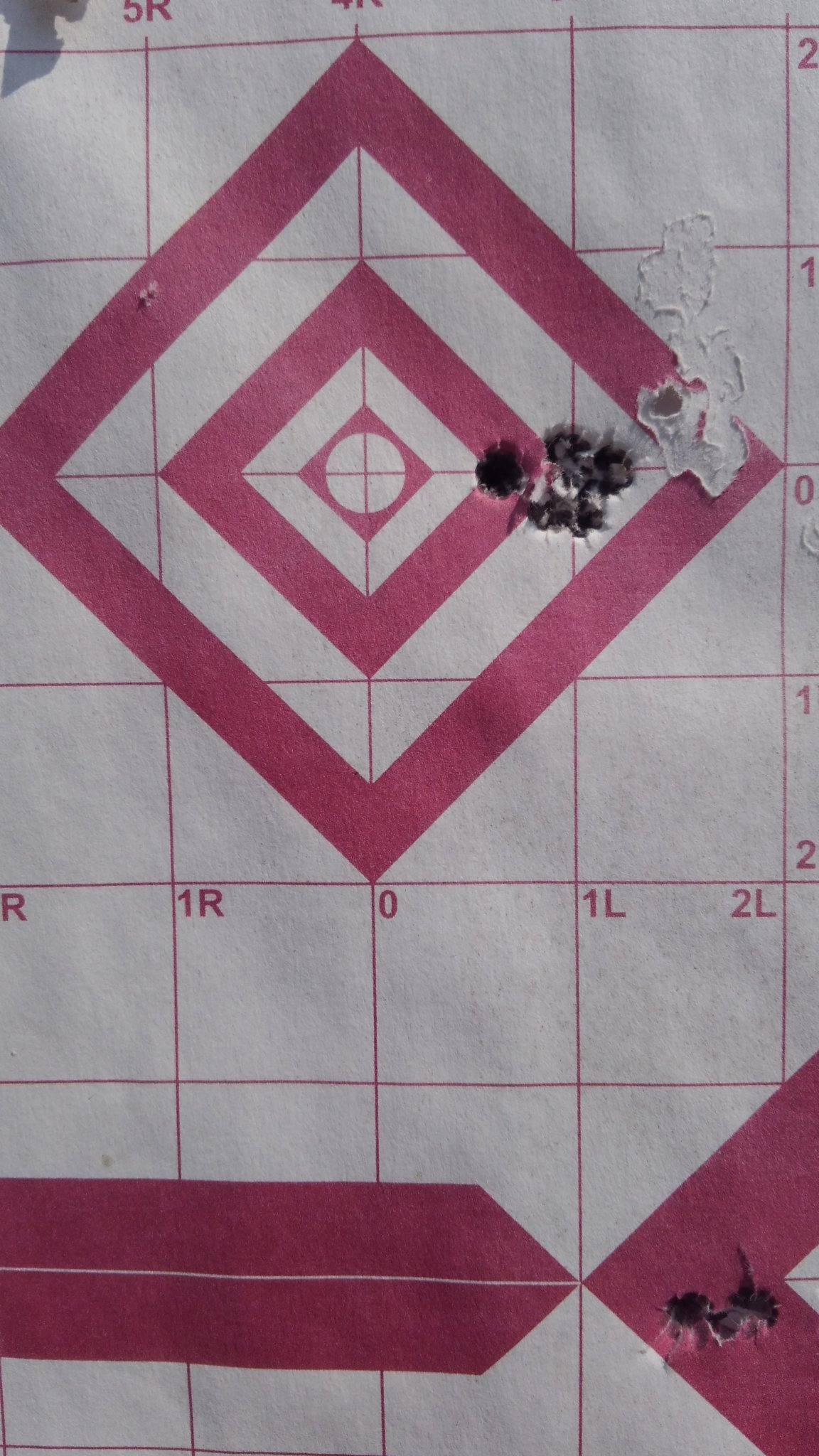

10 shot groups in the .8" to 1.1" range at 100yd. I have 70 rounds on it so far.

@Yondering yes. ignoring wind, which isn't drastically different within 400yd, drop for 100-400 is pretty similar among many calibers.


Ledzep

Chancellor
Belligerents
Minuteman
Jun 9, 2009
2,901
2,206
NE
I said similar, not the same. FWIW, .243 and .308 are within 1 MOA of each other to 400yd if you use similar class bullets... It's some master of the obvious material to say that substantially different velocities will produce different trajectories. Most stuff we shoot is in the 2700-2950 range and it's the same drill. .4 mils at 200, 1-1.2 mils at 300, 2-2.2 mils to 400, 2.5-3 to 500, etc.. I'm done entertaining this one. You can run the JBM machine and determine for yourself what "similar" means. Don't be a troll.


trdjohn

Online Training Member
Minuteman
Online Training Access
Jun 17, 2019
16
8
NE IL
on a different note... I've got 18" Odin in 6mm ARC, and their clamp-on adjustable gas block...used it yesterday in a lower with a carbine H buffer, no issues with ejecting rounds, no issues locking back on empty mag (20 round grendel duramag)...before I assembled it I could just barely get #38 bit (~0.101) in the gas port, that's how mine came from Odin. My gas block is 10 clicks out from fully closed in the H buffer lower. Swapped it over to another lower that has H3 carbine buffer, had to open the gas block about 17-18 clicks from closed (there are roughly 20 clicks from closed to open)

  • Like
Reactions: Ledzep

awpk03s

Private
Belligerents
Minuteman
Jun 17, 2017
389
216
Ohio
I got a tracking number last night for my 21” Odin Works upper. Excited to get it together.


awpk03s

Private
Belligerents
Minuteman
Jun 17, 2017
389
216
Ohio

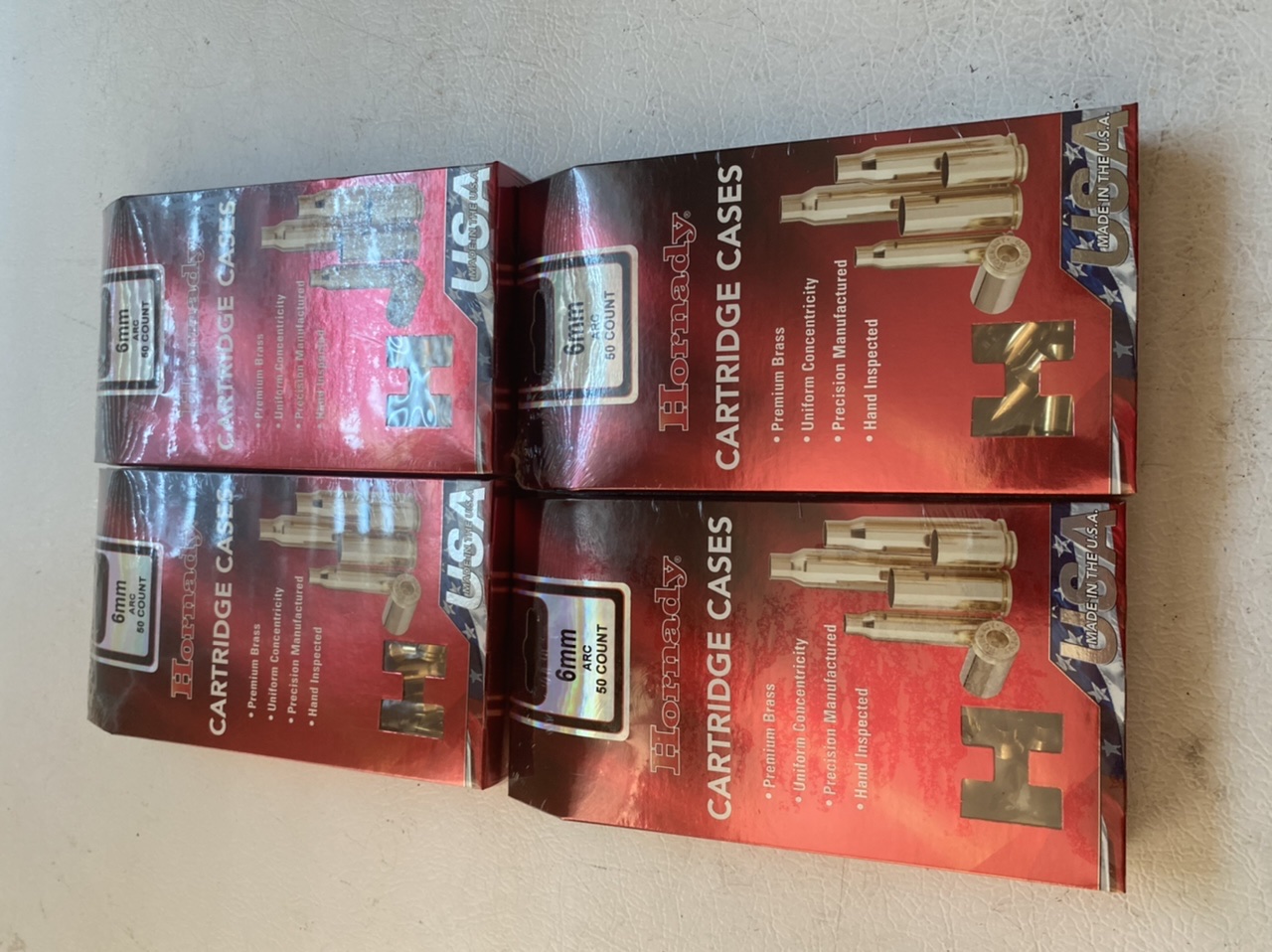

How is everyone doing for ammo? Or brass?
GA Precision looks to still have some 108gr in stock.

I got some from them recently, and some Hornady Black more than a month ago when it was out there. Haven’t seen brass for sale yet.

  • Like
Reactions: MPrimo

MPrimo

Sergeant
Belligerents
Minuteman
Nov 17, 2011
716
280
55
Orange, CT
My GAP ammo delivery is scheduled for today ... Just waiting on Craddock now! It's only been 5 weeks or so though.


tomcatfan

Sergeant
Belligerents
Minuteman
Nov 22, 2010
730
426
36
Southern MD.
I got a tracking number last night for my 21” Odin Works upper. Excited to get it together.
Same here on my 21" barrel from Odin Works. I’ll put the upper together, but unfortunately with vacation next week, I won’t be able to shoot it for a while.


NVScout

U.O.F. FanBoy!!
Belligerents
Minuteman
Feb 25, 2017
732
98
Reno,NV

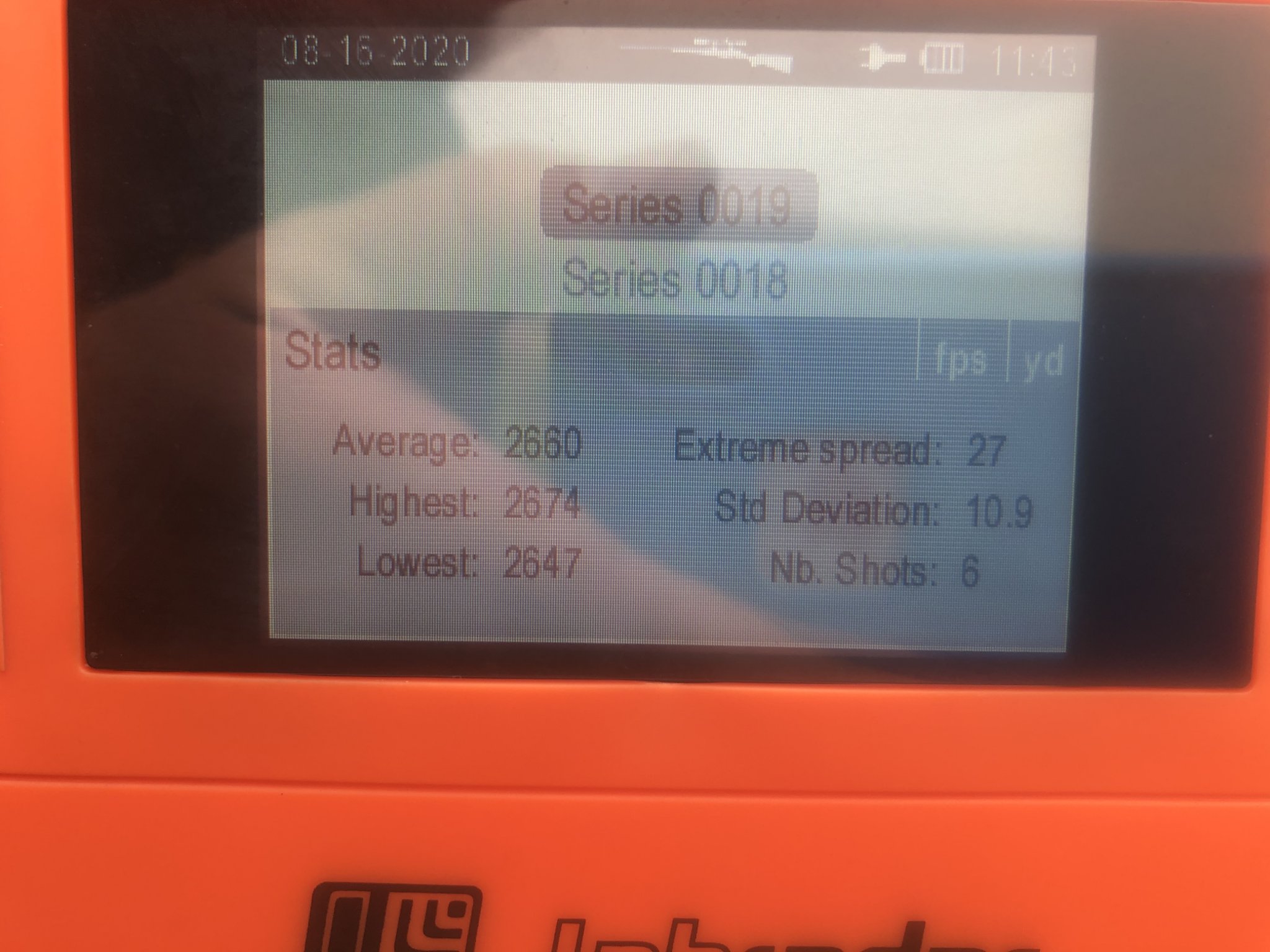

Lab radar with factory 108 to follow (next week at the earliest)View attachment 7397203
Just put the first 20 rnds down the same barrel with factory 108’s . It held 1/2 to 3/4 MOA at 300. I was pleasantly surprised with the speed but am also running a ultra 7 on it.


Attachments

ormandj

Sergeant of the Hide
Belligerents
Minuteman
Nov 5, 2009
315
180
San Antonio, TX
Anybody with Quickload and a ARC cartridge design mind running some numbers on the 108 with AR Comp? I’m trying to get an idea of max load without exceeding 52kpsi but it unfortunately does not appear to have been tested.

I’m honestly at a bit of a loss reloading for this cartridge without pressure barrels since the normal reloading signs won’t show up until well north of 52kpsi.

Last edited:

Silverjay

Full Member
Belligerents
Minuteman
Online Training Access
Sep 5, 2014
392
56
Nevada
20” with CFE 223. Using Quickload and trying to ARC capacity put the load at 52,500.


Dino11

Private
Minuteman
Nov 11, 2019
23
28
Your going to really like that barrel, my 18" shoots sub MOA all day long with out even trying very hard.


Yondering

Sergeant
Belligerents
Minuteman
Mar 16, 2017
735
328
Skagit Valley, WA
So I guess the 95 grain Berger’s I was running at 2,895 were too hot?
I'd say not if you're using Lever, but something doesn't seem right about the numbers Hornady published. Depends a lot on what powder you're using though; it'd be too hot for sure with most any other powder except maybe CFE223. Also, the Berger 95 VLD is a whole different shape than their 95-100gr bullets listed, with a lot less bearing surface; I'm not sure their data really correlates to that bullet very well in my experience.

For example, in my 243 LBC (again, almost the same thing, just a hair more case capacity) comparing Hornady's data for the 105 BTHP and Lever, using the same max charge weight, same bullet, and more case capacity, I'm seeing ~150 fps more than they show. Granted that's in my 19" barrel vs their 18", but the difference shouldn't be that much and even my 12.5" barrel is only 100 fps slower than their 18" velocity, for the exact same load. The extra capacity of my cartridge should give less velocity, not more, if all else is equal. Of course things are never equal, but their velocity numbers seem low. The charge weights appear to be right on track with what I've been using though.


Ronin_1

Private
Minuteman
Mar 14, 2018
3
1
Has anyone else noticed that many of the groups posted on YouTube exhibit vertical stringing or else are double grouping (3 and 2) even though the overall group for the 3 & 2 groups is OK.

I have also noticed a number of the close up video shots of the group showed the point of the bullet not in the middle of the bullet hole (on paper) although the holes were not badly egg shaped.

I am wondering if 1:7.7 or 1:7.5 twist barrels are fast enough for 108-110gr bullets?


MichiganMitten

Private
Minuteman
Mar 5, 2020
11
0
43
SE Michigan
I am wondering if 1:7.7 or 1:7.5 twist barrels are fast enough for 108-110gr bullets?

I'd say 7.5 would be for the vast majority of conditions. You lose a couple of percentage points on 7.7, but not enough that it should make that big of a deal.


Ledzep

Chancellor
Belligerents
Minuteman
Jun 9, 2009
2,901
2,206
NE
Bullets are plenty stable. The initial lot of 105 Black ammo was loaded a bit too long and jams into lands. I've noticed that jammed rounds tend to string vertically, which may be some of what you're seeing. I've not noticed any stringing in my AR. I do see more random fliers than with my bolt gun (nothing surprising there), but groups are generally round.

ETA: 103 Vapor Trails w/AA2520.


Last edited:

Henryrifle

Private
Belligerents
Minuteman
Mar 30, 2017
34
41
Have been reading @Ledzep and other's posts on this thread. Just put together my own 6mm ARC AR-15 and am beginning load development. Nice looking group you shot up there. Was that 100 yards with an AR or a bolt gun?

My goal is to find a 1/2 MOA or better load that feeds out of the magazine in my AR-15 platform. I'd like to be able to reach out to 1000 yards with that platform. This is for shooting steel and as I plan on using 108 ELD-Ms or 105 Berger Hybrid Targets, 2550 FPS will achieve the distance part of the goal.

I tried a Ballistic Advantage barrel but couldn't the accuracy I was looking for out of it. Interestingly, I did shoot some 108s at 900 yards using that barrel and even at 2550 FPS with Varget, it did great. I was shooting a 2 MOA steel target (18").

Just to qualify myself as someone who can reload and shoot sub MOA, I shoot F-T/R competitively and hold a current NRA High Master rank in Midrange (600 yard) F-T/R. That said, I will freely admit that I shoot a bolt gun much more comfortably than an AR-15 but am willing to learn.

I have only broken in my new 21 & 3/4" barrel. It is a 7.7 twist Wilson. I used Varget and 108 ELD-Ms to do that. After the 20 or so break-in rounds I did shoot three 5-shot groups with with a charge of 27 grains of Varget. Speed was in the 2626 FPS range as measured by Labradar but the barrel is still new and will likely speed up a little. SDs were in the high single digits with this charge. Group size of the 3 groups were .9, .7 and .3 MOA at 100 yards.

Just for comparison, I did shoot two 5-round groups with Hornady Black 105g factory ammo. I shot groups in the 1.4 and 1.1 MOA range at 100 yards with them. Speed was 2700 and 2705 FPS with SDs of 21.8 and 17.3. This ammo shot 2 MOA groups in the previous barrel.

In the previous barrel I switched to CFE223 to get more speed w/o pressure and will do that with this barrel as well.

I don't want to compare a bolt gun to a gas gun as the pressures could be significantly different. I'd like to stay near the 52000 PSI limit.

What are the best consistent group sizes you and others are getting out of an AR-platformed 6mm ARC or similar 6mm Grendel-or variant cartridge and what powder and projectile are you using to get that?

I am not asking for load data, just interested to know what is reasonable so far.

Thank you all,
Henryrifle


Ledzep

Chancellor
Belligerents
Minuteman
Jun 9, 2009
2,901
2,206
NE
My group above is out of my 18" AR-15. I have only really broken the barrel in, about 80 rounds of various stuff I've thrown together with CFE223, AA2520, and LeverEvolution. LeverEvolution and AA2520 seem to be decent for me so far in the AR, and LeverEvolution is what I also use in my bolt action.

I only expect AR's to group about 1.25 MOA. I have done it before, but usually get fed up trying to consistently get better than that with gas guns so I moved my baseline on expectations vs. happiness plot.


Bantam1

Private
Belligerents
Minuteman
Nov 18, 2008
273
211
43
USA
What velocity are you getting out of your loads for the 18"? I'm working on gathering parts and debating the barrel length right now.


Henryrifle

Private
Belligerents
Minuteman
Mar 30, 2017
34
41
I only expect AR's to group about 1.25 MOA. I have done it before, but usually get fed up trying to consistently get better than that with gas guns so I moved my baseline on expectations vs. happiness plot.
I understand expectation vs. happiness plot but suspect you are only tricking yourself for short periods of time :) That group looks like a .5 MOA group assuming 100 yards? I was not counting the one hole out of the group to the right.

Thanks for the reply!

henryrifle


Ledzep

Chancellor
Belligerents
Minuteman
Jun 9, 2009
2,901
2,206
NE
Yessir, 100yd. Everything under 1.25 MOA I attribute to luck. This rifle has frequently produced touching 3 and 5 shot groups, but also throws a few that are a touch over 1 MOA. I've found ways to bind the handguard that produce 2-2.5 MOA fliers on barricades, too. If I were to lay down and shoot a bunch of 10-shot groups I'd expect the average to be something more like 0.8-1.0" with a few in the 1.5-1.6" range which is stellar in my opinion. I used to try to get AR's to do 1/2 MOA or 3/4 MOA... 1.5 is acceptable, 1.2 is great, 1.0 or better is gravy.

The 18" barrel was shooting factory 108's at 2596fps before I ran out of them. I haven't chrono'd most of my reloads, but was in the 2600-2620fps range with LeverEvolution and 103 ELD-X's.


wrightsean

Private
Minuteman
Aug 28, 2020
7
2
I'm really excited about this new AR 15 6mm chambering. Not as a long range option, I'll stick to my 6 creed bolt rifle for long range use, but as a predator/small game option. I'm ordering the Proof 18'' carbon barrel to swap out with one of my JP SCR-11 223's. I have chosen Proof as I have 2 6mm carbons on hunting rifles that all shoot .5moa with Berger 105VLDH, so I have no doubt the Proof barrel will be a winner. Plus keeping weight down with the SCR is a priority. Ill plan to began working with the Berger 87gr VLDH. If that bullet doesn't work out for me, (poor accuracy or poor terminal performance on pigs) ill go with the 105VLDH that has been the most 6mm effective hunting bullet for me. So happy I continued to put off converting my 6.5 Grendel's to 6 Grendel. I hope we finally have the perfect AR15 for both long range shooters and predator hunters.

  • Like
Reactions: Guns&WhiteWater

Henryrifle

Private
Belligerents
Minuteman
Mar 30, 2017
34
41

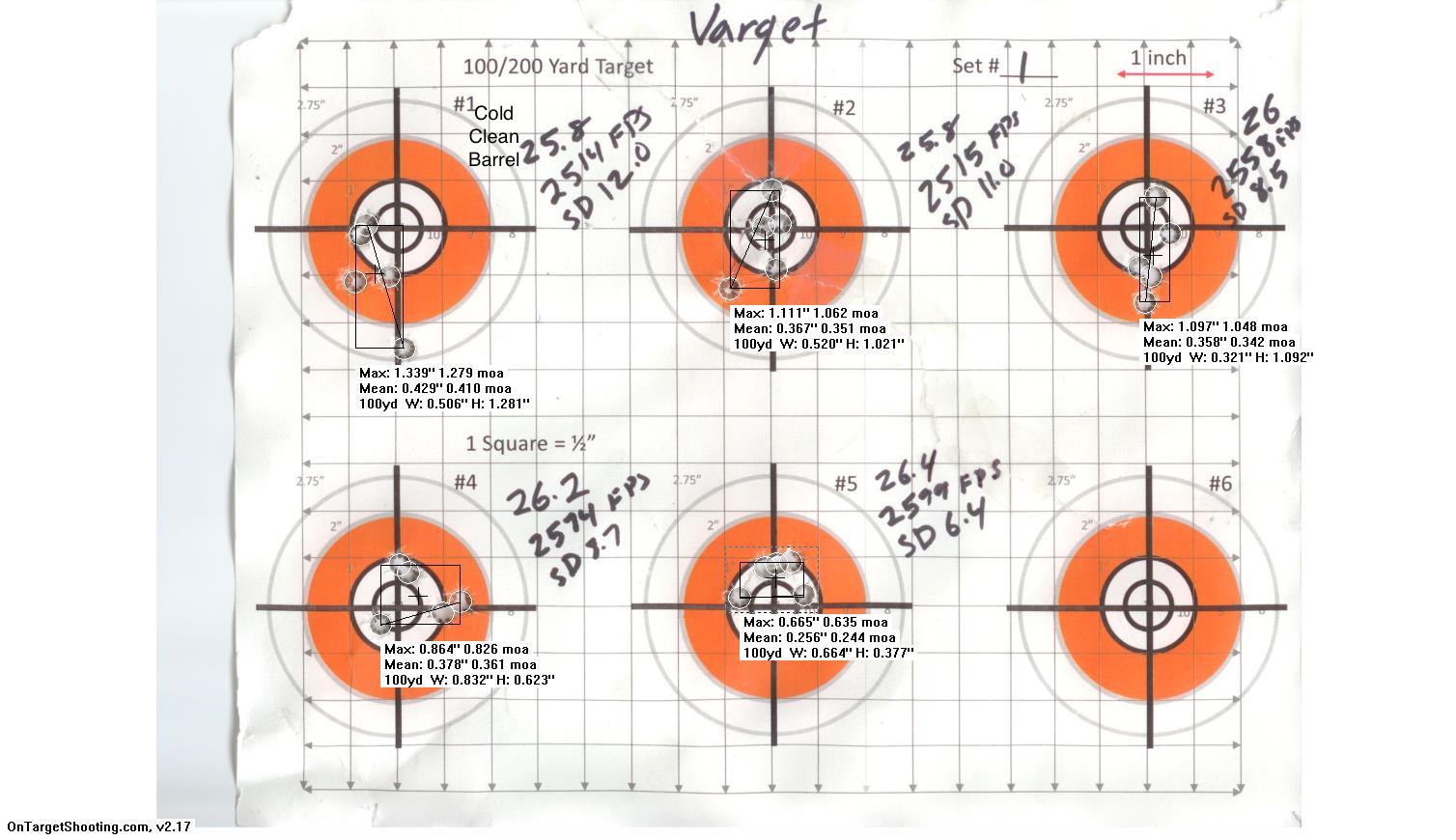

6mm ARC Target 1 Varget.jpg

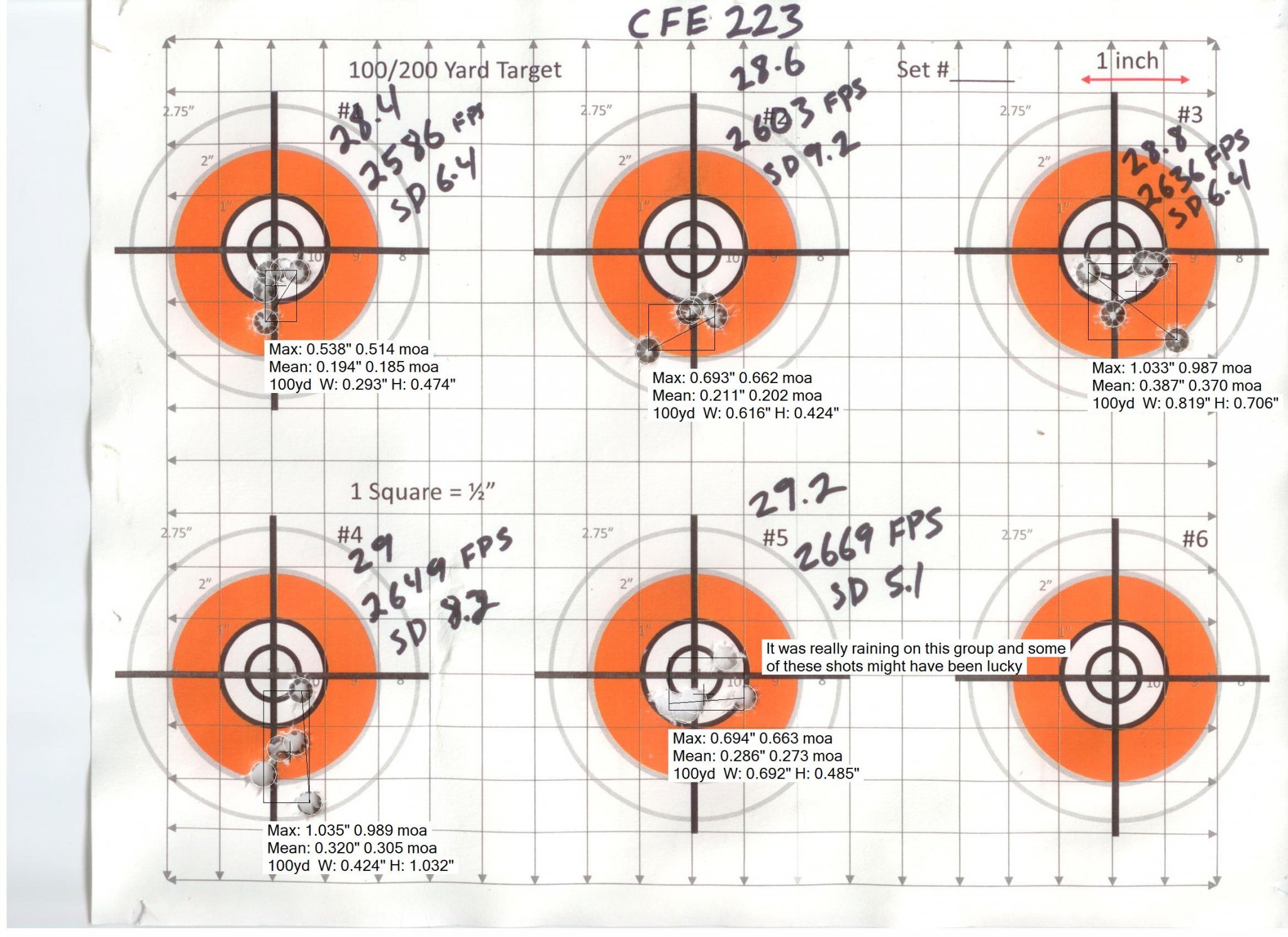

6mm ARC Target 2 CFE223.jpg

Alright. I am getting a little happier. Shot some tests today with Varget and CFE223, results above. Need to test a few increments more with Varget as it looks like the group was just starting to tighten.

CFE223 did okay today too. I need to test both a little less powder and a little more powder.

All of these groups were shot with Hornady 108 ELD-Ms loaded to a COAL of 2.260". I shot from prone with a Nightforce 5.5-22X50 scope using an F-Class bipod and rear bag and an Accu-Wedge!

It did start raining during the last few groups of the CFE223, and, to be honest, the rain was heavy enough to make the target somewhat blurry. The last target may have been somewhat lucky.


tomcatfan

Sergeant
Belligerents
Minuteman
Nov 22, 2010
730
426
36
Southern MD.
Quick range report on my 21" Odin Works barrel in 6 ARC. It has a +2 gas system and a 1-7.5 twist barrel. Only thing I can say so far is that the barrel far exceeds my expectations. With that being said, as you guys know ammo is crazy hard to find, so I only shot 14 rounds to sight in and get preliminary velocities. I want to save some ammo for long range shooting. This isn't a comprehensive review, but it certainly shows promise.

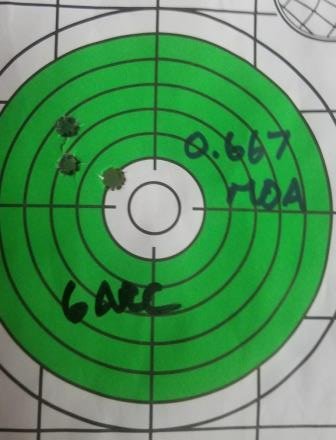

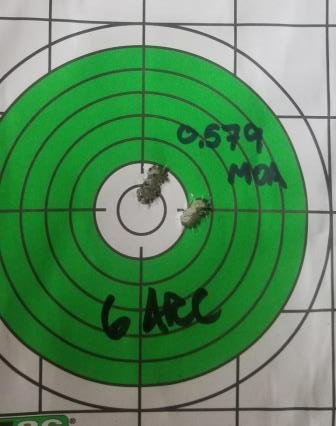

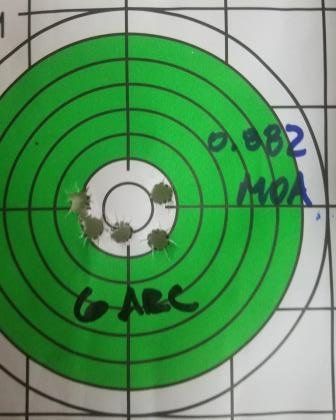

20200829_162521.jpg 20200829_162518.jpg 20200829_162515.jpg
The first two groups were with a magneto speed attached to my Omega. The first one is only a 3 shot group, the other two are 5. Over the first 9 rounds I averaged 2740 ft/sec with an ES of 36 and an SD of 12.2 with factory 108 ELD match ammo. I took the magnetospeed off and I shot the last group to confirm zero.

The velocity exceeded my expectations and the accuracy of the barrel was downright impressive. As more ammo becomes available, I'll shoot some more.


Henryrifle

Private
Belligerents
Minuteman
Mar 30, 2017
34
41
That is looking good, tomcatfan! You're barrel will likely pick up more speed as you get more rounds through it. I have not been able to get my hands on 108 ELD-M factory ammo but your velocity is awesome!

I'll go look but if you haven't posted earlier in this thread can you tell us something about your rifle and how you are shooting it?

Looking forward to your next post.

henryrifle


tomcatfan

Sergeant
Belligerents
Minuteman
Nov 22, 2010
730
426
36
Southern MD.
I'll go look but if you haven't posted earlier in this thread can you tell us something about your rifle and how you are shooting it?

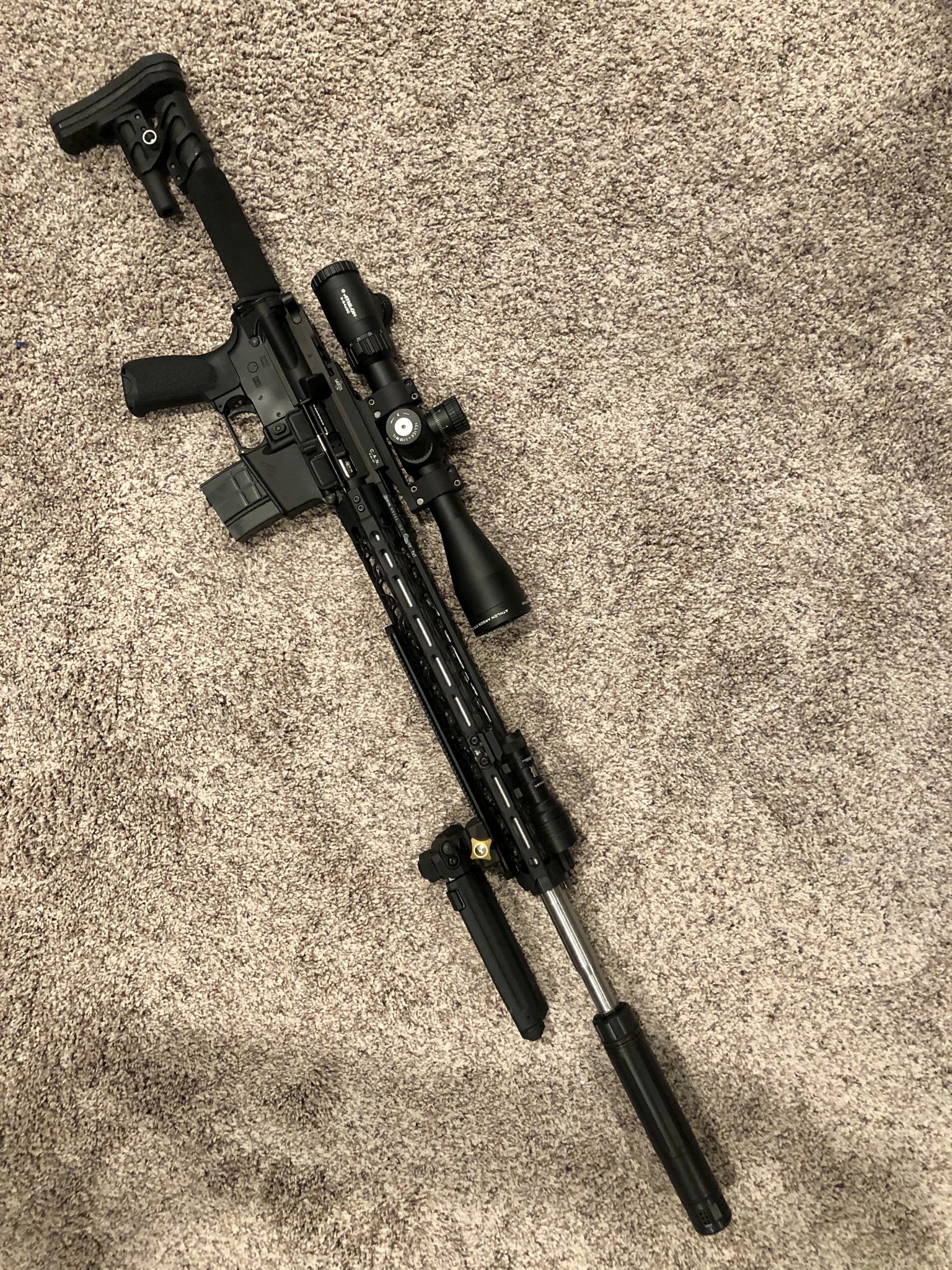

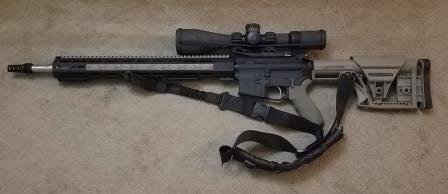

I wouldn't say there is anything special about the build.


The lower: YHM lower, ergo grip, luth AR MB1 stock, a triggertech independence special trigger, and Cproducts defense 10 round magazine. The trigger is actually incredible for the $150 I paid for it, very consistent feel.

The upper: AR Stoner upper, midwest industries 18" suppressor ready handguard, 21" odinworks barrel, odinworks adjustable gas block and tube, brownells 6.5 grendel type II BCG, ASR brake, Vortex Strike Eagle 5-25 in MOA, and a Leapers UTG 34mm scope mount.

I got the longest handguard I could find as I didn't want a lot of the barrel showing and I wanted the gas block covered. The 0.875 odinworks adjustable gas block doesn't fit under many handgards.

I was just shooting it with a LRA bipod on the front, a silencer-co omega mounted to it, and a rear bag in the back.

I shot it before and after my AR-10 in 6.5 CM, and the 6 ARC is considerably softer shooting than the AR-10. I was surprised how much difference there was. Both rifles have adjustable gas blocks for the can.

Looking at the ballistics between the two, the 6ARC takes less elevation and has the same windage hold at 1000 yds as my 6.5 CM shooting 140 grain american gunner. The 108 eld is going 2750 fps out of a 21" barrel, and 140 grain AG goes 2650 fps out of my 20" faxon barrel on the AR-10. When comparing the 6ARC to my 140 eld handloads, the 6 ARC has 0.8 moa more elevation hold than a 140 eld going 2690 fps. For something that is softer shooting and can be shot out of a small frame AR, I think the 6ARC will be very popular. Granted, I have almost no rounds down this barrel yet, so I guess time will tell.


willbird

Private
Minuteman
Aug 25, 2020
15
6
Personally I don't get the short barrel thing using a cartridge like this when most everyone already has their 223's, 6.5G's, 6.8's, 300BO, etc. For all except the 300BO, 500Y is pretty easy, but when getting out to 600Y and beyond, out to whatever farther distance, this is where the extra BC and speed of the 6mm is helping out.
18" minimum and enjoy less wind drift farther out, also decent energy. That's where these 6mm's shine.
The other thing I noticed in my FatRat is the 95's recoil feels more like a 223, and 105's felt heavy-ish in comparison. I really like those 95's!
It might be that the 90gr TGK would be a great bullet for 6mmARC. I think it starts out at .490G1BC, it sheds velocity quickly but would be great for 6mmARC inside 800Y or so.
The only 10.5" I have presently is a 5.56. A 10.5"-12" in 6mm ARC offers about the same trajectory (slightly flatter) but twice the bullet weight, with some of the current festivities in mind I'd expect a 90 grain GMX from a 6mm ARC "pistol" to do a LOT better through sheet metal and safety glass than most if not all 5.56 from an equal barrel length :). Read the whole thread up to here, took me a few days :). In a general way I am a 6mm bore devotee anyway, real world it is head and shoulders above most .224 bore stuff on varmints ;-). 6-284 with 75 vmax has been a long time favorite.

Last edited:

Henryrifle

Private
Belligerents
Minuteman
Mar 30, 2017
34
41
I wouldn't say there is anything special about the build.
You are pretty modest. That is a very nice build.

Not trying to drift off topic but do you have any concerns about the gas block hitting the hand guard when loading the bipod? I was sure this was part of an accuracy problem with a previous build and actually hacksawed off about 3" of hand guard. That sounds terrible but after some finishing and cerakote you can't tell. That did not solve the problem but I now leave the gas blocks exposed on most of my builds just in case.

Your barrel may be faster than mine as I am only getting 2700 FPS out of factory 105 Black ammo. Have not been able to purchase any 108 Match ammo yet.

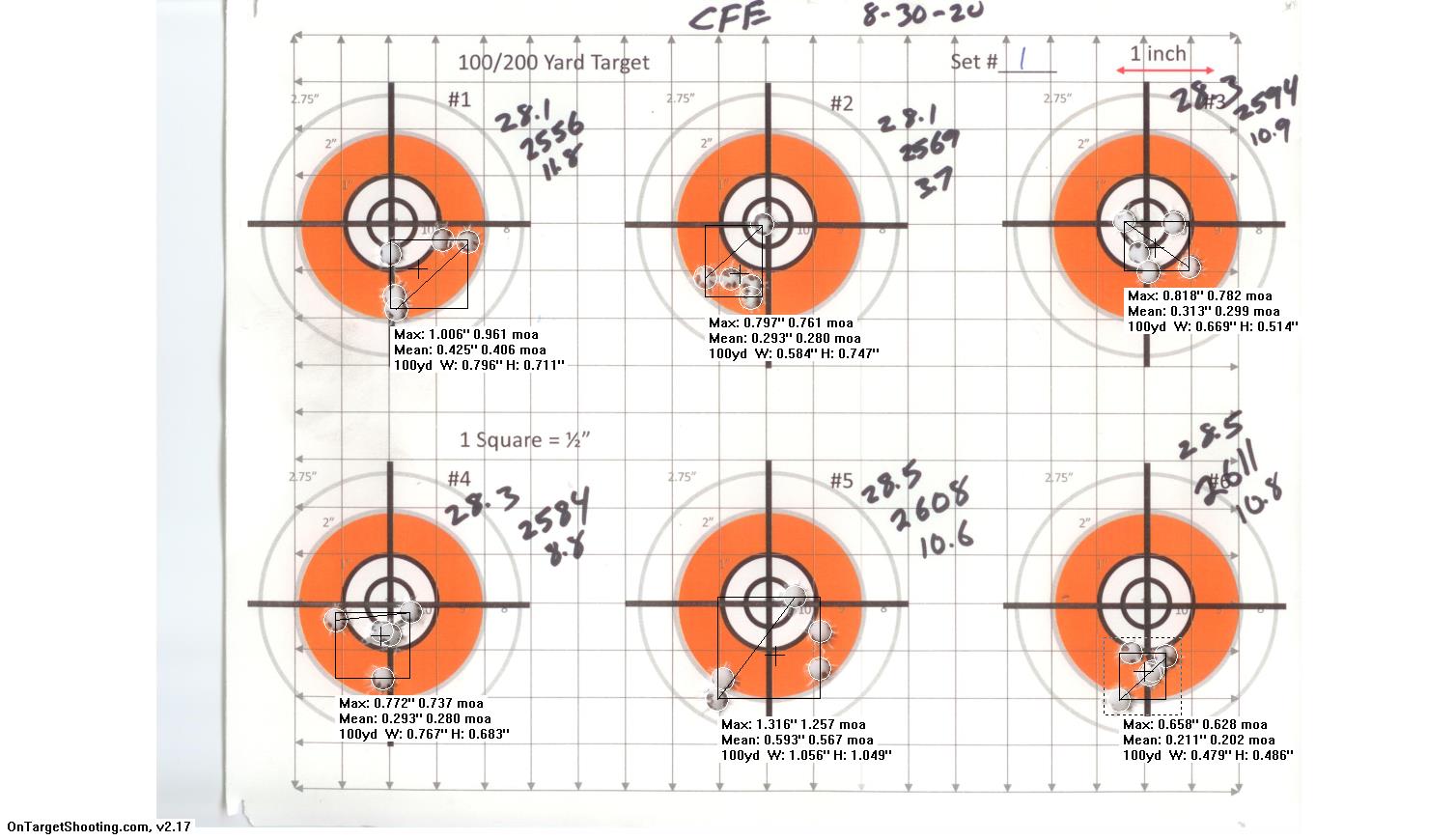

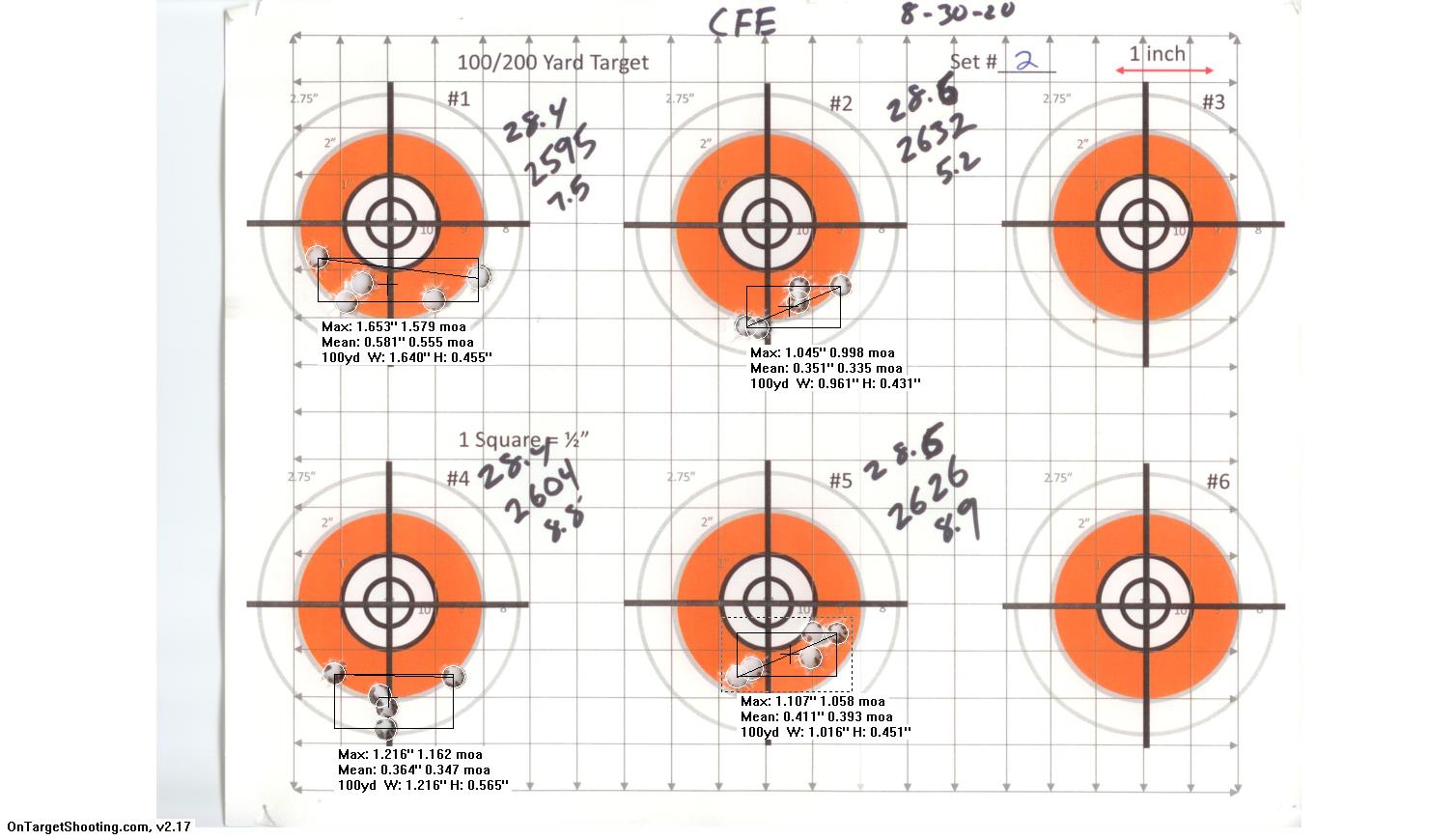

What I have found is that 29.2 grains of CFE223 behind a 108 ELD-M loaded to magazine length in my 21.75" barrel produces a MV of 2669 FPS as measured by Labradar. I believe this is very close to a maximum charge in my rifle as the brass does show the beginning of mild ejector flow.

I have been shooting converted 6.5 Grendel brass and so far have only shot virgin brass. Trying to cycle through all 200 rounds to get to a big enough stockpile of once-fired brass. My experience though is that virgin brass requires a few more tenths of powder to equal MV of fired brass.

Very interested in what you are planning for handholds for the 6mm ARC.

Henryrifle


SBRSarge

Sergeant of the Hide
Belligerents
Minuteman
Jul 9, 2019
177
291
I just took the plunge. Ordered a BCM upper and an Odin 18” barrel w/ BCG and gas system. The Odin is out of stock, but it’ll get here when it gets here. Deer season is close, so I’ll be playing with the 350 Legend for a while anyway.

I might add a carbon fiber hand guard, but I have a 12.5” Odin that I’m not using right now.

Of course, a new rife will necessitate a new suppressor and optic also. Where will it all end?


tomcatfan

Sergeant
Belligerents
Minuteman
Nov 22, 2010
730
426
36
Southern MD.
You are pretty modest. That is a very nice build.

Not trying to drift off topic but do you have any concerns about the gas block hitting the hand guard when loading the bipod? I was sure this was part of an accuracy problem with a previous build and actually hacksawed off about 3" of hand guard. That sounds terrible but after some finishing and cerakote you can't tell. That did not solve the problem but I now leave the gas blocks exposed on most of my builds just in case.

Your barrel may be faster than mine as I am only getting 2700 FPS out of factory 105 Black ammo. Have not been able to purchase any 108 Match ammo yet.

What I have found is that 29.2 grains of CFE223 behind a 108 ELD-M loaded to magazine length in my 21.75" barrel produces a MV of 2669 FPS as measured by Labradar. I believe this is very close to a maximum charge in my rifle as the brass does show the beginning of mild ejector flow.

I have been shooting converted 6.5 Grendel brass and so far have only shot virgin brass. Trying to cycle through all 200 rounds to get to a big enough stockpile of once-fired brass. My experience though is that virgin brass requires a few more tenths of powder to equal MV of fired brass.

Very interested in what you are planning for handholds for the 6mm ARC.

Henryrifle
I know many people would disagree with me, but generally I don’t load bipods. I just let the rifle sit under its own weight up front and drive it from the back with what ever bad I‘m using. I’m not a world class shooter by any means, but I’ve had good results with that method. I’ve tried the bipod loading method and it just didn’t work for me.

I’m a couple of months away from reloading. I’m off at school and all of my gear is at home. I‘m planning on trying leverevolution, and the 108 ELD. It’s going to be hard to keep pressure below 52ksi as it will really be just a guess, there shouldn’t be any pressure signs until well above that pressure. I’ve got 200 rounds of factory ammo on back order from Midwest shooters, but who knows how long that order will take. We’re living in crazy times right now.


ormandj

Sergeant of the Hide
Belligerents
Minuteman
Nov 5, 2009
315
180
San Antonio, TX
I know many people would disagree with me, but generally I don’t load bipods. I just let the rifle sit under its own weight up front and drive it from the back with what ever bad I‘m using. I’m not a world class shooter by any means, but I’ve had good results with that method. I’ve tried the bipod loading method and it just didn’t work for me.

I’m a couple of months away from reloading. I’m off at school and all of my gear is at home. I‘m planning on trying LeverEvolution, and the 108 ELD. It’s going to be hard to keep pressure below 52ksi as it will really be just a guess, there shouldn’t be any pressure signs until well above that pressure. I’ve got 200 rounds of factory ammo on back order from Midwest shooters, but who knows how long that order will take. We’re living in crazy times right now.
I personally disagree, but it all depends on the rifle, and barrel. If you're using a handguard that isn't extremely sturdy, and have a thinner barrel, and have minimal clearance, between flexing from heavy bipod loading and barrel whip you can have a bad time. Something else important to note - many people have a bad idea of what bipod loading means. It doesn't mean leaning into the bipod and forcing it into a fixed position under a lot of stress. You're literally just trying to take out any slack and no more - there should be VERY LITTLE pressure on the bipod.

Most people I see are really putting some weight into the bipod, and that's completely unnecessary and absolutely can cause issues with handguard flex. Either way, if not loading works for you, then keep at it! I just suggest a very light loading to take out any slack from the system for most shooters.

No need to guess with LeverEvolution, just use the load data. It's temperature sensitive, so watch velocity. I don't know what temperature they measured those loads at, so that's something to be aware of - but you should be able to stay around 52kpsi fairly easily that way.


tomcatfan

Sergeant
Belligerents
Minuteman
Nov 22, 2010
730
426
36
Southern MD.
No need to guess with LeverEvolution, just use the load data. It's temperature sensitive, so watch velocity. I don't know what temperature they measured those loads at, so that's something to be aware of - but you should be able to stay around 52kpsi fairly easily that way.
From what I understand, leverevolution is less temperature sensitive than cfe223. But sticking to load data is what concerned me. Hornady’ s velocities seem low based on published data. I was hoping they were being conservative.


Henryrifle

Private
Belligerents
Minuteman
Mar 30, 2017
34
41

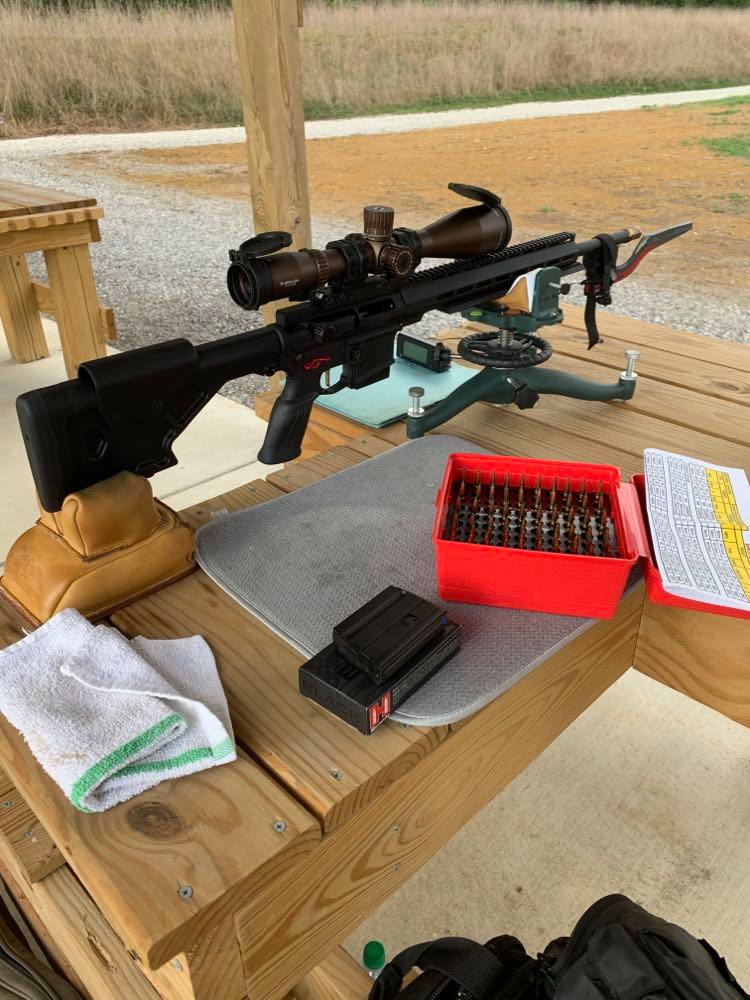

Spent some time at the range today and based on results from Friday, I thought I had a good idea of a good load. I was looking forward to posting up some pics of target pages filled with .4s and .5s.

It didn't turn out that way.

From all the data I have collected, 28.1 to 28.3 grains of CFE 223 behind the 108 ELD-M produce the most consistent groups--not the most accurate but almost always less than 1 MOA. The average, so far is .81 MOA.

In all honesty, I am struggling with consistently holding the rifle the same way from group to group. Shooting a bolt gun is much easier. I tried a few different things today and some clearly didn't work. I changed my hold to a more aggressive front bipod load on the second sheet to ill-effect. Not a smart thing do while looking for a load so, I'll have to retest some of that...

Results from the day:
