New Sierra 169gr SMK (.30)

padom

SuperMod
Staff member
Moderator
PX Member
PX Member
Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    These 169 SMK are significantly longer overall length than 175 SMK and have a longer, sleaker more secant ogive profile. They also are factory pointed like most of the newer production SMK's. Base to ogive is about the same on both bullets. I just screwed my 24" Krieger 4G 1:11.25 twist on one of my backup TL3/XLR Envy/BiX N Andy TacSport Pro 2 stage setups. The Krieger has a .308 Bisley chamber done by Keystone Accuracy.

    Here are some COAL numbers to lands in this chamber for comparison.

    155 SMK: 2.813"
    155 TMK: 2.916"
    168 TMK: 2.912"
    169 SMK: 2.883"
    175 SMK: 2.789"
    175 TMK: 2.933"
    175 M1 Ball 1955: 2.864"


    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    Got the initial OCW loaded up and shot today at 100yd with IMR4064. I tested the 175 SMK and 175 TMK's over IMR 4064 in this same brass a few months ago out of this same gun. My initial thoughts.... one weird OCW. Either it really hates this powder, which I find odd since every other 308 Sierra shoots lights out with.... or it really hates this seating depth.

    Nice flat spot between 42.6 and 42.8gr with identical velocity and SD.. One shot tight, but that 42.8 has vertical stringing.. I didnt have any pressure on any of these loads. No ejector marks or flat primers.

    24" Krieger 4G 1:11.25
    .308 Bisley chamber
    240rd down barrel
    2x Lapua .308 SRP brass
    CCI 450
    IMR 4064

    XLR Envy JV Comptetion
    MDT Cyke Pod
    Prone with Rear bag

    Loaded 0.015" off lands



    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    Just talked with the folks at Sierra they are recommending a coal of 2.850" for the 169 if that helps anyone out.

    Lol.. For what? For what chamber? Thats jammed hard in an AR.... Thats varying distances off the lands in numerous different .308 chambers..... So without any info or context this means nothing


    912drew

    Nobody
    Supporter
    Minuteman
    Feb 9, 2021
    5
    1
    Georgia
    Lol.. For what? For what chamber? Thats jammed hard in an AR.... Thats varying distances off the lands in numerous different .308 chambers..... So without any info or context this means nothing
    Do with it what you will... that's all the information they would give me... Thanks for stating the obvious though my man you're the best


    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    Do with it what you will... that's all the information they would give me... Thanks for stating the obvious though my man you're the best

    Lol. You join this site and come post info with zero important information needed to put your post in context then want to get but hurt and flap at the gums. Stay a while, read, learn a little, know who you're talking to and their experience. You'll get a lot farther around here.


    2.85 is

    Jammed .01 in my AR
    .035 off in my 308 Bisley
    .051 off in Rem700 5R


    So Sierra told you to load them 2.85 in WHAT chamber?!

    • Like
    Reactions: slowworm

    912drew

    Nobody
    Supporter
    Minuteman
    Feb 9, 2021
    5
    1
    Georgia
    Lol. You join this site and come post info with zero important information needed to put your post in context then want to get but hurt and flap at the gums. Stay a while, read, learn a little, know who you're talking to and their experience. You'll get a lot farther around here.
    Wasn't trying to get anywhere my friend, was just stating what little information they gave me... As for the rest of your post it was completely uncalled for, but hey that's cool it's the internet. I appreciate you posting your knowledge, I'm currently doing the same thing you are but have been unable to test because it's been raining a solid week here. if you feel like my post was an attack at you in some way I apologize for that, but as I said my post was not directed at you in any kind of way. I'm here to learn and help where I can, not start arguments.


    NukeMMC

    Chlanna Nan Con Thigibh A’ So ‘S Gheibh Sibh Feòil
    Supporter
    PX Member
    Minuteman
    Mar 3, 2009
    1,344
    641
    Harrisburg, PA
    Got the initial OCW loaded up and shot today at 100yd with IMR4064. I tested the 175 SMK and 175 TMK's over IMR 4064 in this same brass a few months ago out of this same gun. My initial thoughts.... one weird OCW. Either it really hates this powder, which I find odd since every other 308 Sierra shoots lights out with.... or it really hates this seating depth.

    Nice flat spot between 42.6 and 42.8gr with identical velocity and SD.. One shot tight, but that 42.8 has vertical stringing.. I didnt have any pressure on any of these loads. No ejector marks or flat primers.

    24" Krieger 4G 1:11.25
    .308 Bisley chamber
    240rd down barrel
    2x Lapua .308 SRP brass
    CCI 450
    IMR 4064

    XLR Envy JV Comptetion
    MDT Cyke Pod
    Prone with Rear bag

    Loaded 0.015" off lands

    Velocity looks about right for that charge. I was running 42.2 of 4064 under a 175 in my Maten (20" Proof) for 2550fps on a 90F day. Same barrel, same day put FGMM168 out at 2575 and FGMM175 at 2550. 42.5gr of 8208 under the 168TMK for 2735fps on the same day in my AIAX 22" (2.175" BTO) that shoots FGMM175 at 2650.

    What bullet is the Bisley chamber throated for? 155SMK? 145RG?

    • Like
    Reactions: padom

    NukeMMC

    Chlanna Nan Con Thigibh A’ So ‘S Gheibh Sibh Feòil
    Supporter
    PX Member
    Minuteman
    Mar 3, 2009
    1,344
    641
    Harrisburg, PA
    Wasn't trying to get anywhere my friend, was just stating what little information they gave me... As for the rest of your post it was completely uncalled for, but hey that's cool it's the internet. I appreciate you posting your knowledge, I'm currently doing the same thing you are but have been unable to test because it's been raining a solid week here. if you feel like my post was an attack at you in some way I apologize for that, but as I said my post was not directed at you in any kind of way. I'm here to learn and help where I can, not start arguments.
    Just to give you an idea of what Dom is getting at, Sierra ballisticians normally will tell you an OAL for a bullet based on different chamberings. If you call them back, be sure they know what chamber is cut in your rifle. Like Dom, I have a couple different 308 chamberings. My AIAX has 175SMKs touching the lands 0.036" shorter than in my Proof-barreled Mega Maten AR. I haven't measured the 169 lengths in either rifle, but the closest bullet to this for lengths is the 168TMK and my Mega is magazine length limited with that bullet to 2.850" (KAC mags) while the AX would run the 168TMK at 2.950" to be .015" off the lands.

    • Like
    Reactions: padom

    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    Velocity looks about right for that charge. I was running 42.2 of 4064 under a 175 in my Maten (20" Proof) for 2550fps on a 90F day. Same barrel, same day put FGMM168 out at 2575 and FGMM175 at 2550. 42.5gr of 8208 under the 168TMK for 2735fps on the same day in my AIAX 22" (2.175" BTO) that shoots FGMM175 at 2650.

    What bullet is the Bisley chamber throated for? 155SMK? 145RG?


    Yep velocity is where it should be. The group consistency is odd compared to all my 175 smk and 175 tmk testing.

    Here some info on the Bisley chamber. It's shot excellent for me in both a Bartlein 5R and this Krieger 4G..




    912drew

    Nobody
    Supporter
    Minuteman
    Feb 9, 2021
    5
    1
    Georgia
    Just to give you an idea of what Dom is getting at, Sierra ballisticians normally will tell you an OAL for a bullet based on different chamberings. If you call them back, be sure they know what chamber is cut in your rifle. Like Dom, I have a couple different 308 chamberings. My AIAX has 175SMKs touching the lands 0.036" shorter than in my Proof-barreled Mega Maten AR. I haven't measured the 169 lengths in either rifle, but the closest bullet to this for lengths is the 168TMK and my Mega is magazine length limited with that bullet to 2.850" (KAC mags) while the AX would run the 168TMK at 2.950" to be .015" off the lands.
    Thanks for the information I greatly appreciate it.


    NukeMMC

    Chlanna Nan Con Thigibh A’ So ‘S Gheibh Sibh Feòil
    Supporter
    PX Member
    Minuteman
    Mar 3, 2009
    1,344
    641
    Harrisburg, PA
    Yep velocity is where it should be. The group consistency is odd compared to all my 175 smk and 175 tmk testing.

    Here some info on the Bisley chamber. It's shot excellent for me in both a Bartlein 5R and this Krieger 4G..


    Hmmm ... IIRC, the 95 Palma chamber was cut for the 2155. Wonder if the Bisley is more geared to the 2156? 0.050" of additional freebore is ALOT. As you can see, it's only 0.016" away from the notorious "Lawyer-leade" in the R700 chambering.


    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    Hmmm ... IIRC, the 95 Palma chamber was cut for the 2155. Wonder if the Bisley is more geared to the 2156? 0.050" of additional freebore is ALOT. As you can see, it's only 0.016" away from the notorious "Lawyer-leade" in the R700 chambering.

    I posted distance to lands with popular bullets in this Bisley chamber. It's a shorter fb compared to other 308 clambering. 175smk hit lands at 2.79 or so


    nn8734

    nn8734
    PX Member
    Minuteman
  • Feb 26, 2013
    2,627
    2,036
    Las Vegas, NV
    I was able to get out today for some more testing posted a breakdown in a separate thread for those who are interested:


    Krob95

    Elite Sand Master Race
    Supporter
    PX Member
    PX Member
    Minuteman
  • Sep 7, 2019
    1,872
    2,213
    NoCo
    So I was mislead. I still don’t have my Bullets but the 8lbs BL-C 2 I bought for my buddy showed up 😞


    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    Just got back from the range. I ran a seating depth test from just touching to .036" off in .005" increments... will post shortly

    I also loaded up the last 10 pieces of brass left after loading the seating depth test so I could check dope to 700yd...

    Velocity with 42.6gr was 2700 on the chrono today, low single digit SD's.. 45F, 63% Humidity... 5.2mil to 700yd...not bad

    100yd Seating Depth Test




    Starting .026" off (compressed load to .001" lands (not compressed)




    Last edited:

    rijndael

    Gunny Sergeant
    PX Member
    Minuteman
    Jan 20, 2004
    990
    75
    The Krieger has a .308 Bisley chamber done by Keystone Accuracy.

    Here are some COAL numbers to lands in this chamber for comparison.

    175 SMK: 2.789"

    Interesting. I just got a Krieger barrel back from Keystone, also chambered with his Bisley reamer. My 175 numbers are about .020" greater than yours.


    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    Interesting. I just got a Krieger barrel back from Keystone, also chambered with his Bisley reamer. My 175 numbers are about .020" greater than yours.

    I wouldnt put too much stake in the numbers difference... What tool you used or method to measure, calipers, Base to Tip, Base to Ogive, bullet lot variance, how had you push, kissed, touched, into the lands.. Just work off your number. No big deal


    Bradv86

    Sergeant of the Hide
    PX Member
    Minuteman
    May 18, 2019
    261
    177
    TX
    Ordered 500 on the 22nd and still waiting. No shipment notice.

    This ice and snow in TX has also delayed a powder delivery from Midsouth for me.


    NukeMMC

    Chlanna Nan Con Thigibh A’ So ‘S Gheibh Sibh Feòil
    Supporter
    PX Member
    Minuteman
    Mar 3, 2009
    1,344
    641
    Harrisburg, PA
    Just got back from the range. I ran a seating depth test from just touching to .036" off in .005" increments... will post shortly

    I also loaded up the last 10 pieces of brass left after loading the seating depth test so I could check dope to 700yd...

    Velocity with 42.6gr was 2700 on the chrono today, low single digit SD's.. 45F, 63% Humidity... 5.2mil to 700yd...not bad

    100yd Seating Depth Test




    Starting .026" off (compressed load to .001" lands (not compressed)



    This is very interesting. The SMK is notorious for being not only jump-tolerant, but also prefers a slight jump. This bullet, in your chamber/barrel, seems to prefer being closer to the lands. Do you think that is the case or the higher velocity is the root cause? Maybe a combination?


    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    This is very interesting. The SMK is notorious for being not only jump-tolerant, but also prefers a slight jump. This bullet, in your chamber/barrel, seems to prefer being closer to the lands. Do you think that is the case or the higher velocity is the root cause? Maybe a combination?

    I personally think its a result of the sleeker, more secant ogive design. The new 169smk bullet looks nothing like the short, fat, tangent ogive SMK's we have been used to. Its long as hell, sleek and pointy..... The good news with this is, you can get more powder in the case without any pressure loaded out this long... That shortest seating depth test posted above was compressed (2.85" COAL) with 42.6gr. You arent seating much deeper with that charge, you would have to back your powder charge down to seat them deeper so this is definitely not comparable to your typical 2.80-2.81 168 and 175 smk loads.. They loved to jump a mile.


    NukeMMC

    Chlanna Nan Con Thigibh A’ So ‘S Gheibh Sibh Feòil
    Supporter
    PX Member
    Minuteman
    Mar 3, 2009
    1,344
    641
    Harrisburg, PA
    I personally think its a result of the sleeker, more secant ogive design. The new 169smk bullet looks nothing like the short, fat, tangent ogive SMK's we have been used to. Its long as hell, sleek and pointy..... The good news with this is, you can get more powder in the case without any pressure loaded out this long... That shortest seating depth test posted above was compressed (2.85" COAL) with 42.6gr. You arent seating much deeper with that charge, you would have to back your powder charge down to seat them deeper so this is definitely not comparable to your typical 2.80-2.81 168 and 175 smk loads.. They loved to jump a mile.
    Kind of like their 200gr SMK. I wonder if they scaled that 300WM bullet down for a 308?


    stewarmy01

    Reloading addict without a cause
    Supporter
    PX Member
    Minuteman
  • May 6, 2018
    169
    79
    Lubbock, TX
    They mentioned that the tip is closed point as well, and looks it from the images I have seen. Kind of like and RDF perhaps. I think it will behave similarly to the RDFs actually. I have some 168 and 175 RDF to compare it to whenever they ship me my damn boolits. I don’t need a damn label on my box just send ‘em already!!!


    padom

    SuperMod
    Staff member
    Moderator
    PX Member
    PX Member
    Minuteman
  • Mar 13, 2013
    10,321
    5,068
    Southeastern, Pennsylvania
    They mentioned that the tip is closed point as well, and looks it from the images I have seen. Kind of like and RDF perhaps. I think it will behave similarly to the RDFs actually. I have some 168 and 175 RDF to compare it to whenever they ship me my damn boolits. I don’t need a damn label on my box just send ‘em already!!!

    Tip isnt closed on these new 169 SMK's. They are factory pointed.


    stewarmy01

    Reloading addict without a cause
    Supporter
    PX Member
    Minuteman
  • May 6, 2018
    169
    79
    Lubbock, TX
    That’s what I meant, the hollow point being closed down. Not fully enclosed like a fmj.


    stewarmy01

    Reloading addict without a cause
    Supporter
    PX Member
    Minuteman
  • May 6, 2018
    169
    79
    Lubbock, TX
    If you click on the link to the Sierra page on post #1, they are referring to it as “closed nose”


    NukeMMC

    Chlanna Nan Con Thigibh A’ So ‘S Gheibh Sibh Feòil
    Supporter
    PX Member
    Minuteman
    Mar 3, 2009
    1,344
    641
    Harrisburg, PA
    Trust me, if you ever saw the "Spun Nose" 168gr Federal ammo that Uncle Sammy bought back in the 80s, this is MUCH cleaner. Those were literally like a 45deg roller was pushed on the front of the bullet. That stuff didn't shoot worth spit past 300.


    jbuck88

    Full Member
    PX Member
    Minuteman
    Oct 25, 2010
    1,212
    837
    38
    Port Angeles, WA
    My order went thru for another box. Haven't got refunded for my first order yet, but figured I would be better safe then sorry.

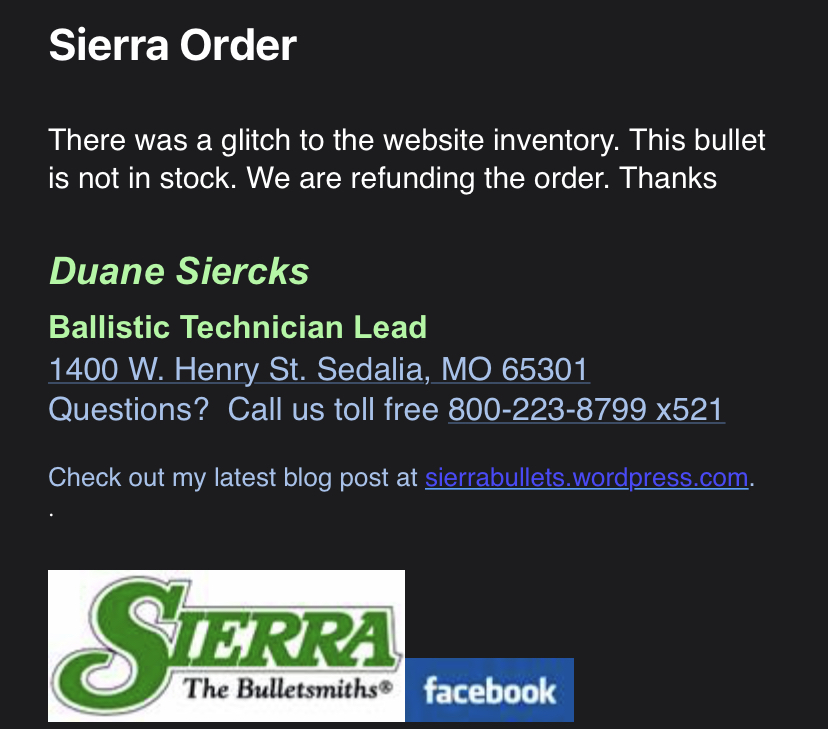

    Edit: second order was refunded and said there was a glitch in the system.

    Last edited:

    Bradv86

    Sergeant of the Hide
    PX Member
    Minuteman
    May 18, 2019
    261
    177
    TX
    Very disappointing. Mine was also just cancelled while they show the same item in stock. I'm guessing that every order that is cancelled automatically puts one more back in stock. Those will probably be cancelled as well.


    nn8734

    nn8734
    PX Member
    Minuteman
  • Feb 26, 2013
    2,627
    2,036
    Las Vegas, NV

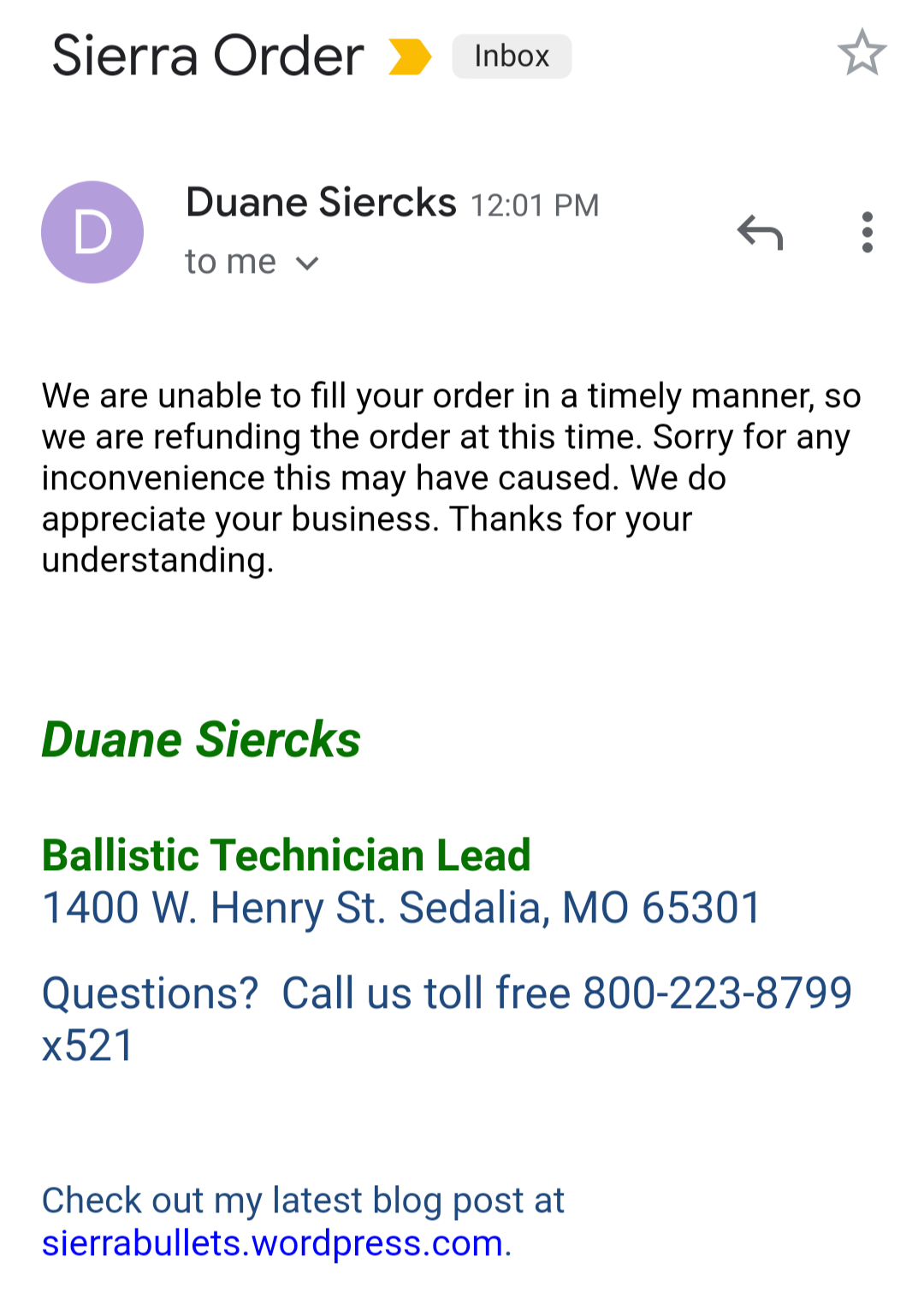

    My 500ct box order was just cancelled and money refunded. Per Duane Siercks, there is a glitch in their website’s inventory.
