New Vertical Grips-Your Input Requested

Tyler Kemp

Print Daddy
Commercial Supporter
Full Member
Minuteman
Aug 23, 2008
1,553
1,039
MO
mkmachining.com
Hello All,

Very excited to see these in some of your hands.

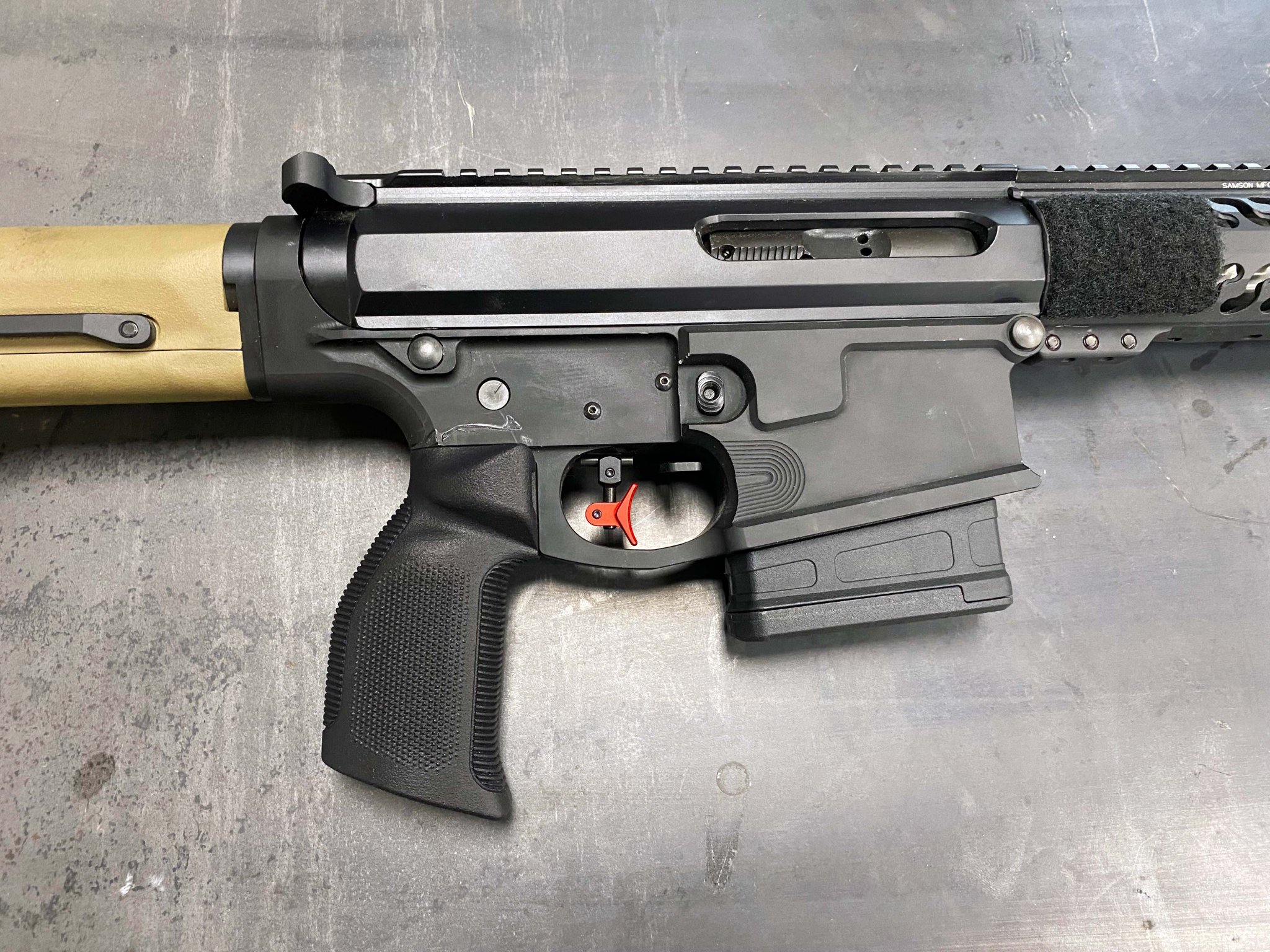

on ar10.jpg

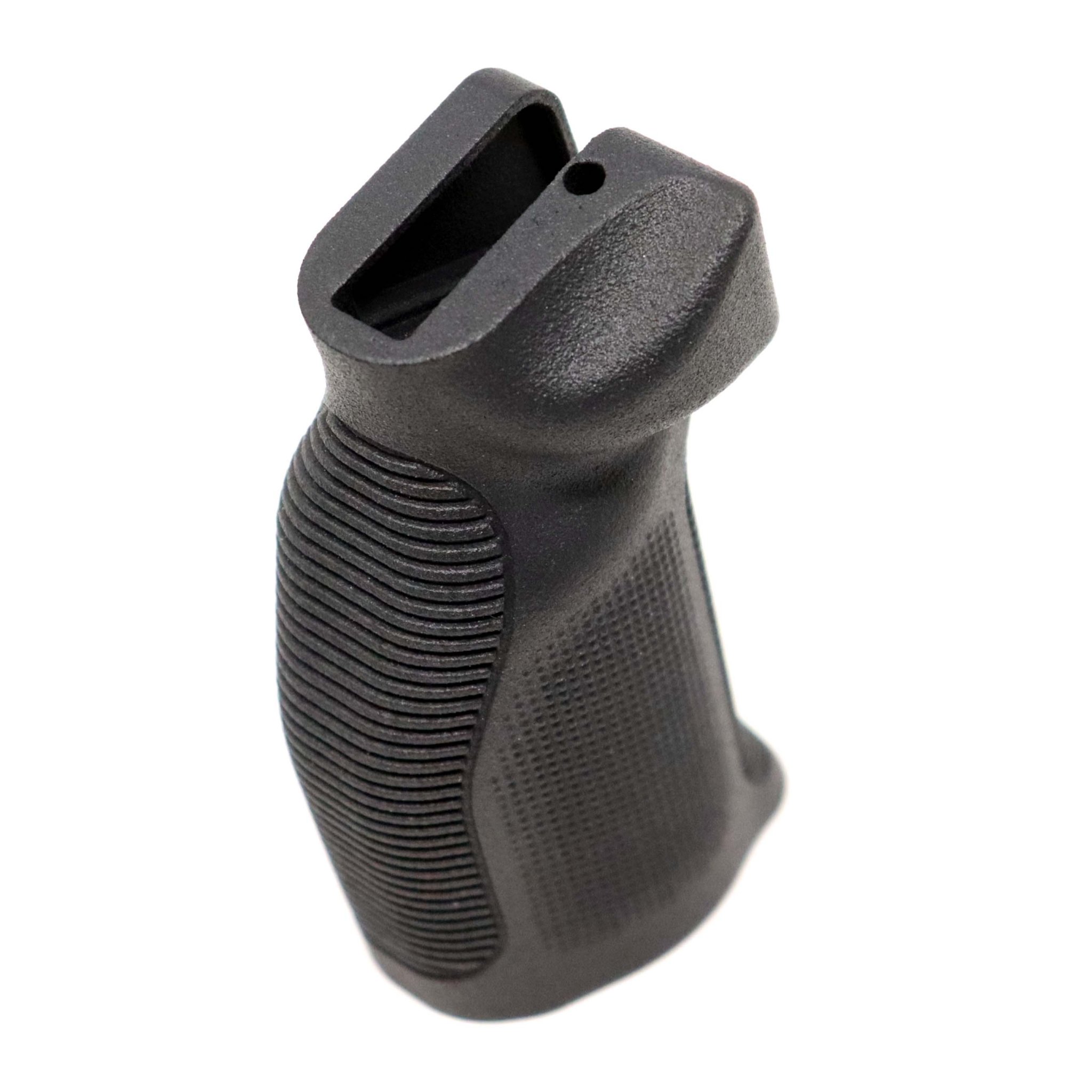

prs above.jpg

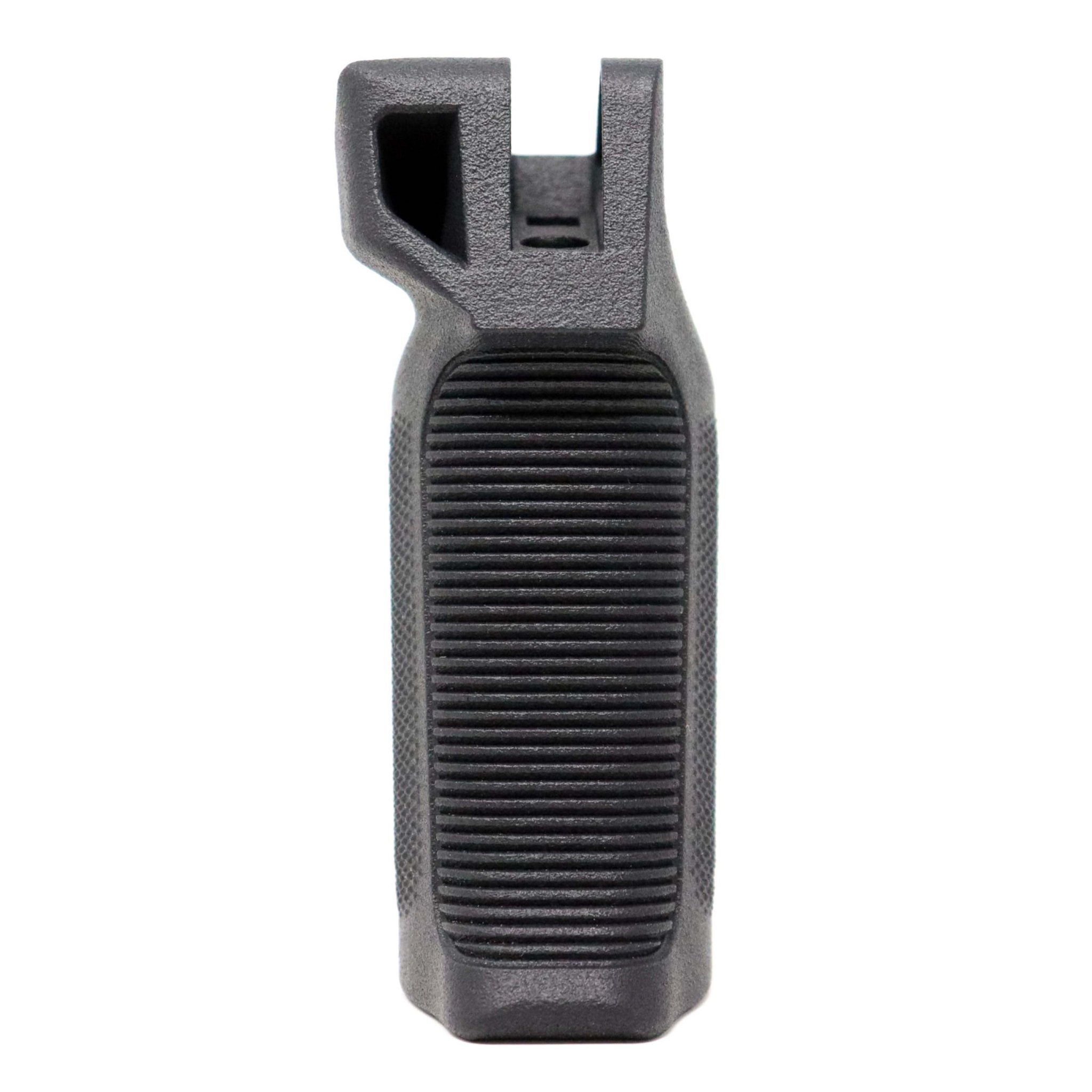

prs front.jpg

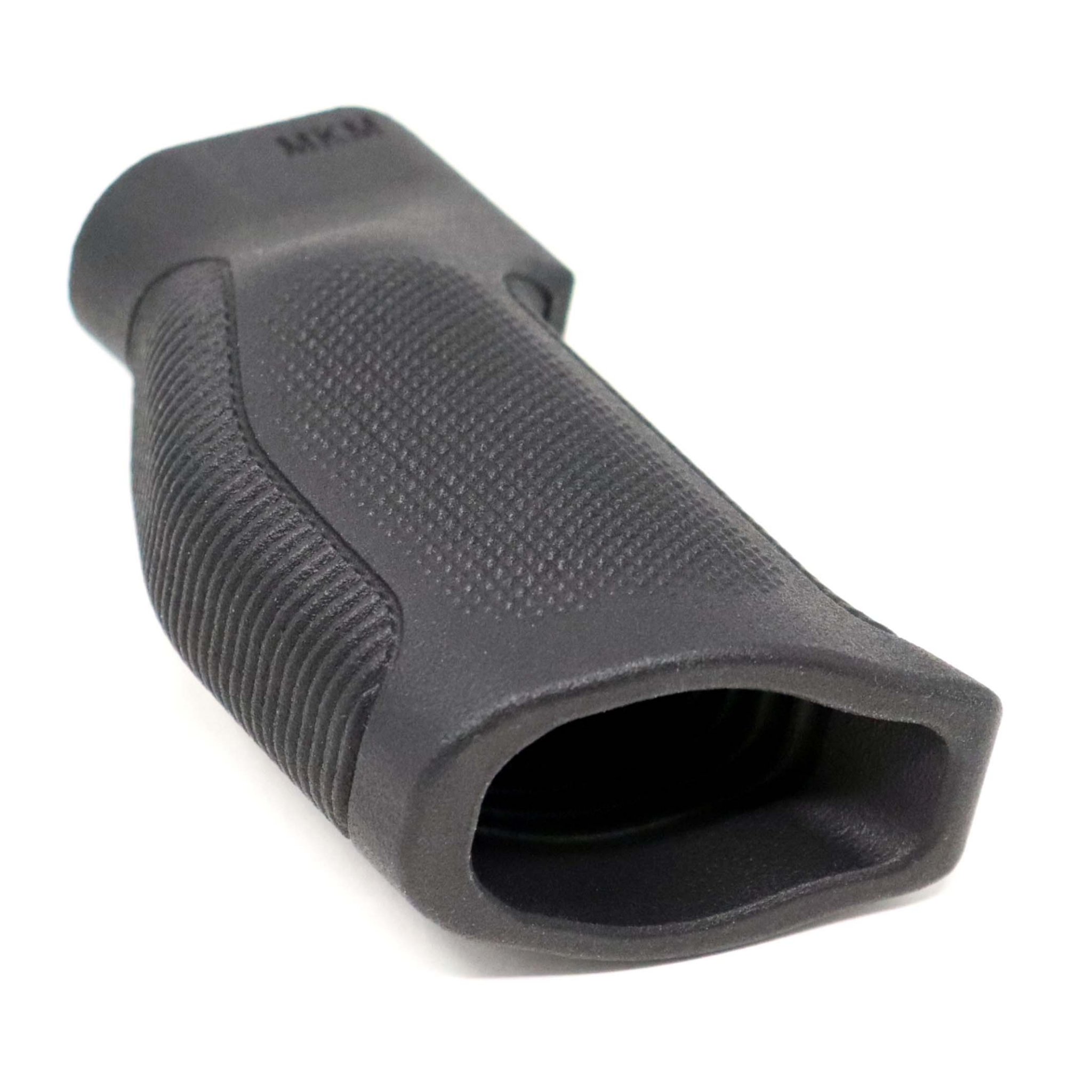

on side recce.jpg




Lots of care and testing put into the ergos of this grip, which I intend as a bridge between more common "AR" oriented grips and bolt gun "grips" which are typically chunky and useless beyond guiding the rifle.

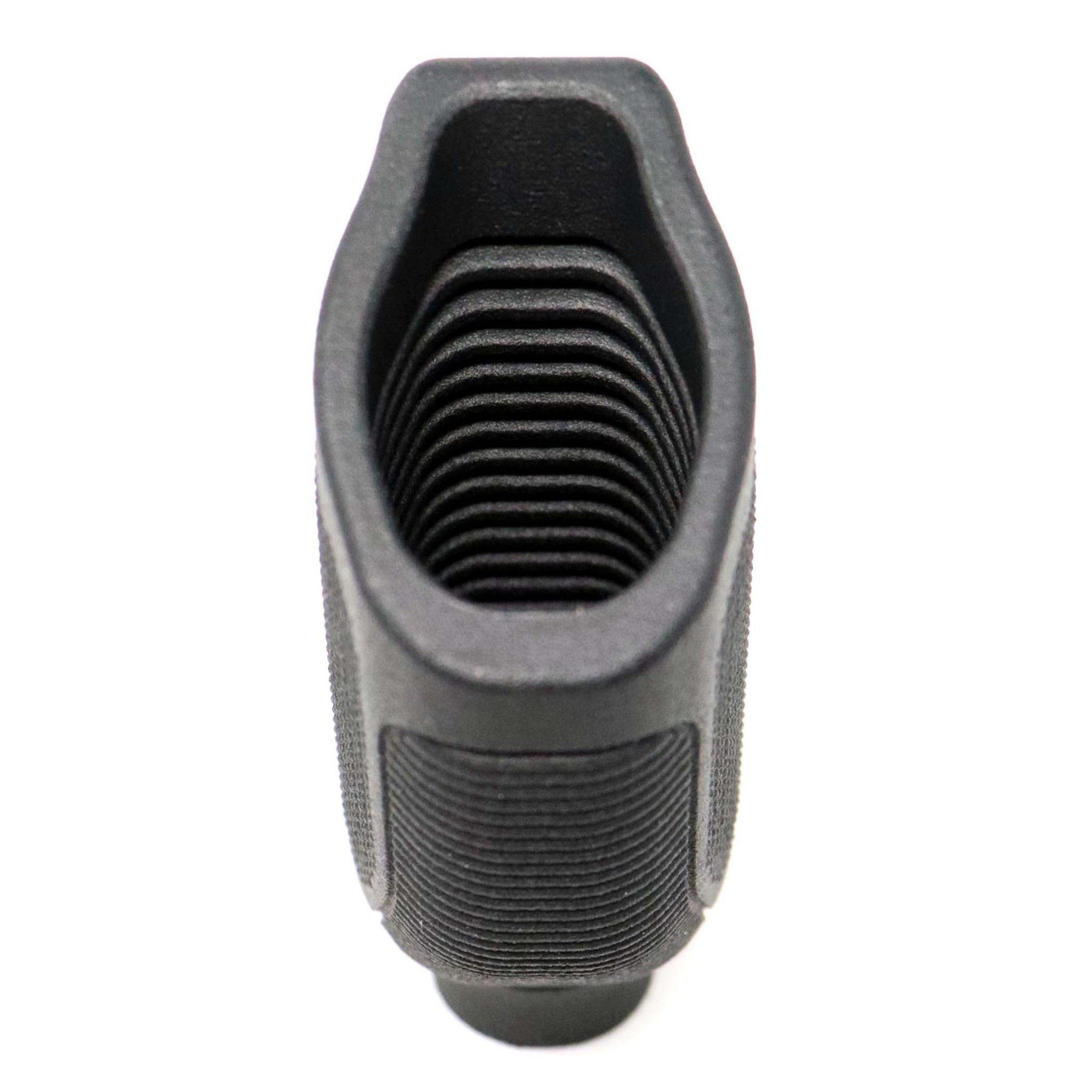

3D printed, this time from PA12 rather than my typical PA11. This allows for a lower price point and there's some unique internal geometry to keep the robustness where I like it. Available with and without a small thumb shelf and "finger pad", right now only for righties but that will be changing soon.

You can check out more below, and I welcome any and all input, requests, etc!

Vertical Crossover Grip

Tyler


Tyler Kemp

Print Daddy
Commercial Supporter
Full Member
Minuteman
Aug 23, 2008
1,553
1,039
MO
mkmachining.com
Oh, forgot an important detail. Quite lightweight, just under 2oz without the thumb shelf, just over with!


Baron23

Check 6
Supporter
Full Member
Minuteman
  • Mar 19, 2020
    2,088
    2,103
    68
    Maryland
    Hello All,

    Very excited to see these in some of your hands.

    View attachment 7696920

    View attachment 7696922

    View attachment 7696923

    View attachment 7696925

    View attachment 7696926

    Lots of care and testing put into the ergos of this grip, which I intend as a bridge between more common "AR" oriented grips and bolt gun "grips" which are typically chunky and useless beyond guiding the rifle.

    3D printed, this time from PA12 rather than my typical PA11. This allows for a lower price point and there's some unique internal geometry to keep the robustness where I like it. Available with and without a small thumb shelf and "finger pad", right now only for righties but that will be changing soon.

    You can check out more below, and I welcome any and all input, requests, etc!

    Vertical Crossover Grip

    Tyler
    Outstanding. I’m sure still loving my MK JAE grip and can’t complement enough the the quality and fit.

    I’m sure these are the same. (y)

    • Love
    Reactions: Tyler Kemp

    AirGunShawn

    Gunny Sergeant
    Full Member
    Minuteman
    Apr 2, 2019
    530
    192
    I know less than ZERO about 3D printing but I would say that your resolution looks great for the task at hand.


    Tyler Kemp

    Print Daddy
    Commercial Supporter
    Full Member
    Minuteman
    Aug 23, 2008
    1,553
    1,039
    MO
    mkmachining.com
    I know less than ZERO about 3D printing but I would say that your resolution looks great for the task at hand.

    I can tell ya I've invested heavily into the top printing technology and I'm very pleased with the results. Finish is better than molded parts much of the time, and very nice tolerances and part properties!


    atomic41

    Sergeant
    Full Member
    Minuteman
  • Apr 4, 2013
    1,655
    2,624
    Just ordered the precision model, looking forward to trying this.


    Usmcsomerville

    USMC Vet
    Supporter
    Full Member
    Minuteman
    Nov 21, 2017
    664
    194
    37
    Brighton, MI
    Any chance on a left handed thumb shelf version? I would love to compare this against the zero angle ergo grips I have on most my rigs.


    atomic41

    Sergeant
    Full Member
    Minuteman
  • Apr 4, 2013
    1,655
    2,624

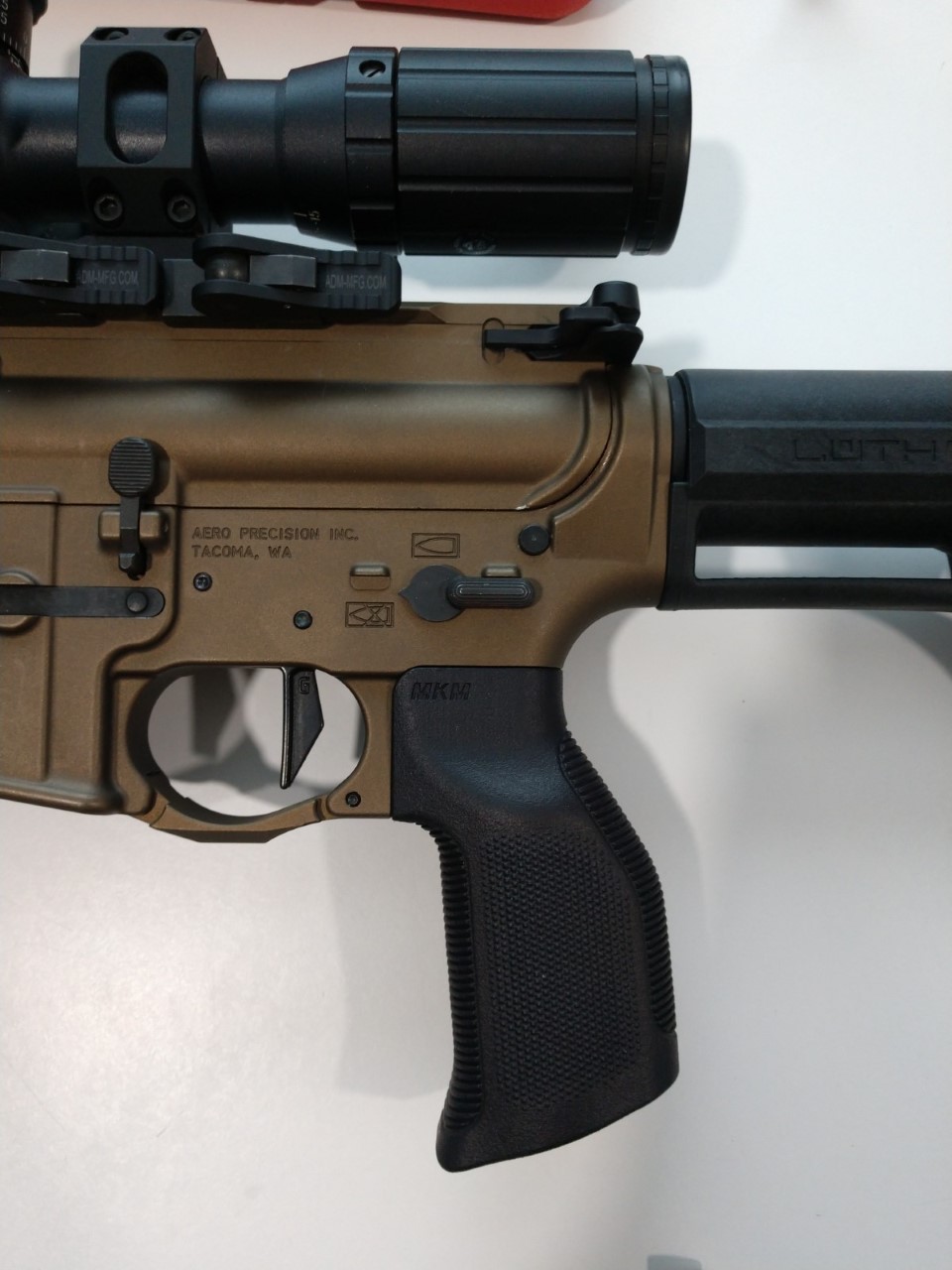

    Mounted it up and did a dryfire session. I really like this grip...a lot! I dry fired it for a bit, then got out my MPA Matrix and dry fired that for a while, then switched back and forth. I did this considering the concept is to make a precision AR feel more like a bolt gun with a vert grip. So I thought, lets see how it feels alone and then compared to a bolt gun chassis. Here are my thoughts.

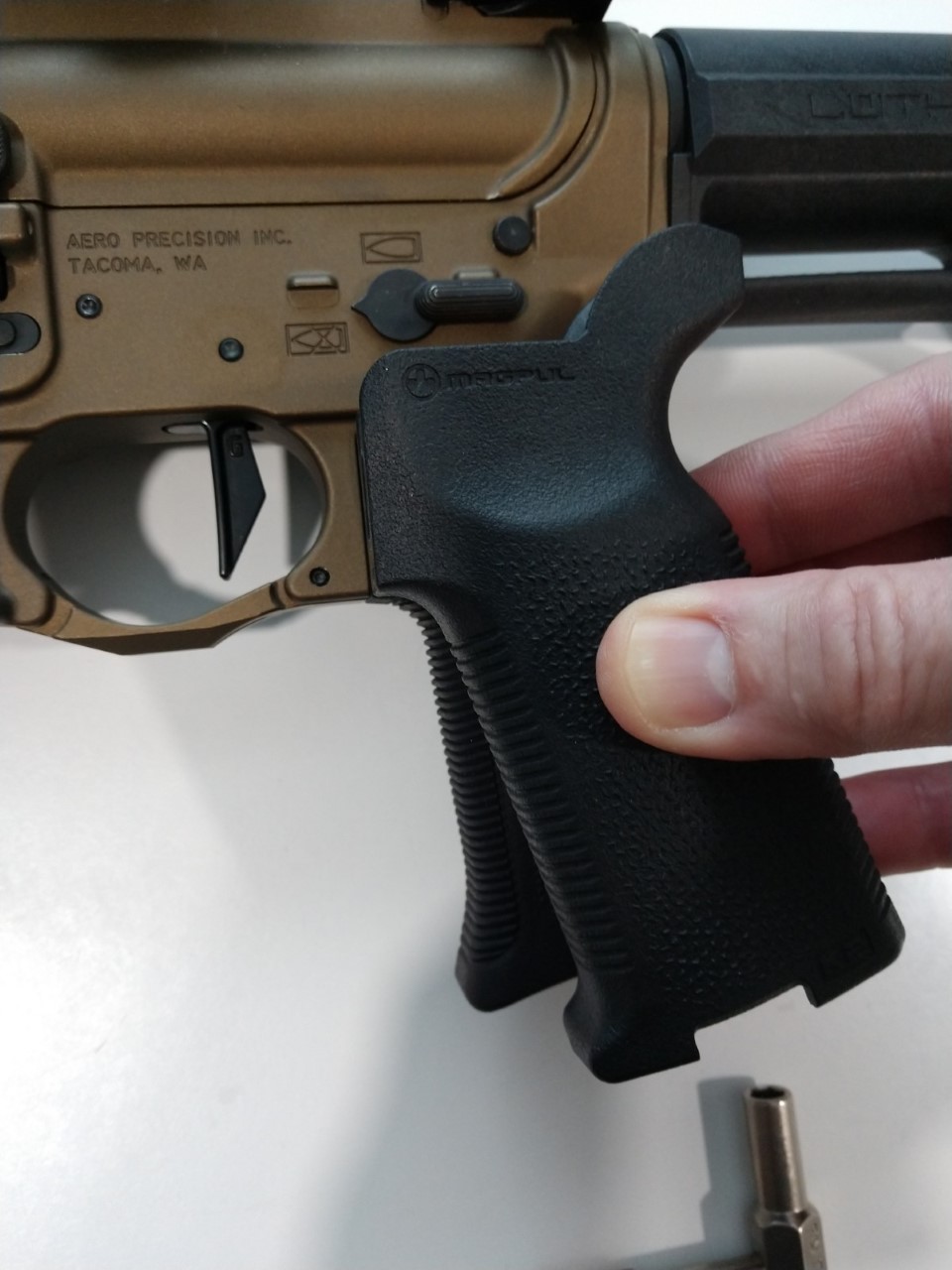

    I have XL hands, long and skinny. The ergonomics are just right to get a 90deg trigger pull and rest my thumb. The texture is perfect, grippy but not too crazy. This rifle was sporting a magpul (x3 or something like that, their straighter one). I was able to shoot it fine but it was always lacking a thumb rest and required more thought to be consistent on it. Switching to your vert grip made my hand fall into a comfortable and consistent position everytime. It really does fix that last little thing that an AR needs for precision shooting and makes the rifle complete. I just dig the consistency and since I take newer shooters out to shoot long range a lot, this is going to help them be consistent.

    The distance from front of grip to trigger is very close to the Matrix which is great for me, less to adapt to. I think you have hit the sweet spot for an AR needing a precision grip. The look is awesome too. I mean it's a tool but whatever...looks great. That's important to be competitive and I think you are going to be out in front leading the big companies with this one. I mean, you nailed it!

    I'm guessing you will expand on this and make different sizes and options, I have two thoughts for options.

    1. A fatter grip. I like this one but after comparing back to back with the Matrix, I did like the meatier one a little bit better. This is just an idea, I really like this one but would buy a fatter option for another rifle that needs a vert grip.

    2. Maybe a storage option for those people that keep a spare optic battery, tools, tactical skittles or whatever in the grip. That would add cost but maybe some people would want that. Not sure but down the road that might be something to consider.


    Attachments

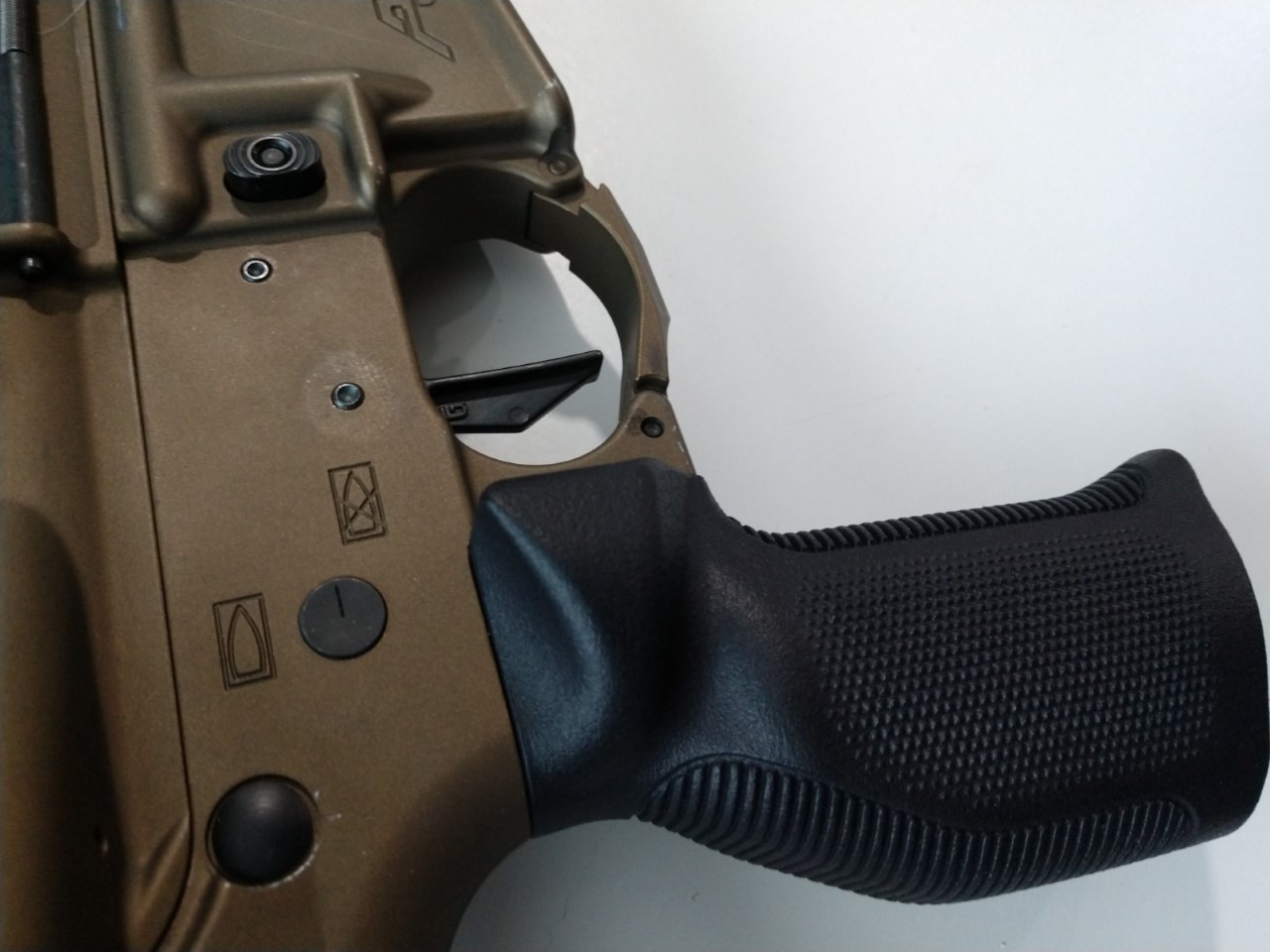

    • thumbnail_IMG_20210911_125702881.jpg
      149.2 KB · Views: 22
    • thumbnail_IMG_20210911_125630165.jpg
      152.9 KB · Views: 22

    Harman117

    Accuracy and Precision are NOT the Same
    Full Member
    Minuteman
    Feb 2, 2018
    283
    232
    Ohio
    Just got one in. I've prototyped parts at my job with a Markforged printer and a Formlabs SLA printer and I can say this grip is impressive! Good job. So far, I'm a fan.



    M77

    Private
    Full Member
    Minuteman
    Oct 17, 2012
    416
    262
    Australia
    how about a front vertical grip for pic rail , needs to be 50mm and under for service rifle discipline


    Tyler Kemp

    Print Daddy
    Commercial Supporter
    Full Member
    Minuteman
    Aug 23, 2008
    1,553
    1,039
    MO
    mkmachining.com
    Glad you are liking them guys.

    I am always open to new ideas.

    For a storage grip, probably looking at $60ish with a baseplate.

    As for a front vert grip @M77 sketch up what you're after!

    • Love
    • Like
    Reactions: M77 and Baron23

    Vodak

    Sergeant of the Hide
    Full Member
    Minuteman
    Feb 8, 2020
    210
    84
    SF Peninsula
    How about adding in a “ban state” fin version for those of us stuck one of the restricted states? With the thumb pad on both sides I think it would be an appealing option.


    Harman117

    Accuracy and Precision are NOT the Same
    Full Member
    Minuteman
    Feb 2, 2018
    283
    232
    Ohio
    I wouldn't say it warrants a change, but the second hole at the top of the grip almost lines up with the upper/lower tension screw on my Aero M4E1 lower. It would be cool if I was able to adjust that without taking the grip off.
