Terminus Actions

Sogan

Sergeant
Belligerents
Jun 11, 2013
697
189
49
Yes, you can still torque on the pre-fit bbl even if you ordered the quick change Zeus. Just make sure you order it as torqued.
For example, on Straight Jacket Armory's Pre-Fit page, you can choose, full thread torqued, hand tight, or torqued.
Thinking I might as well order the quick change action then to always have that ability

what’s the difference between torqued and full thread torqued?

  • Like
Reactions: Jmcmath

spife7980

Luchador
Belligerents
Feb 10, 2017
7,837
5,804
219
Central TX
Thinking I might as well order the quick change action then to always have that ability

what’s the difference between torqued and full thread torqued?
His post wasnt very clear.
The zeus action itself only comes in two ways, either
  1. quick change or
  2. full threads
In the quick change action you can set the barrel up to either 1A) hand tight or 1B) torqued on. There is no 2A or 2B option, full threads gets torqued every time.

VS

Last edited:

Danrobberg

Lance Criminal
Belligerents
May 31, 2017
349
187
49
Does anyone know if a barrel threaded for quick change threads but torqued will work on a full thread?


Redeye3

Sergeant of the Hide
Belligerents
Minuteman
Sep 27, 2017
269
101
49
Does anyone know if a barrel threaded for quick change threads but torqued will work on a full thread?
Switch barrel tenon will not fit on Full threaded Version (as is).....Switch barrel version will accept both.

On fully threaded Zeus the threads are all the way through the recoil lug section.. meaning it either has to be fully threaded to shoulder or recess leftovers need to be cut below threads..

  • Like
Reactions: Danrobberg

Lunchbox27

Professional whisky drinker
Belligerents
Mar 23, 2017
1,155
1,129
219
Mt. Airy, MD

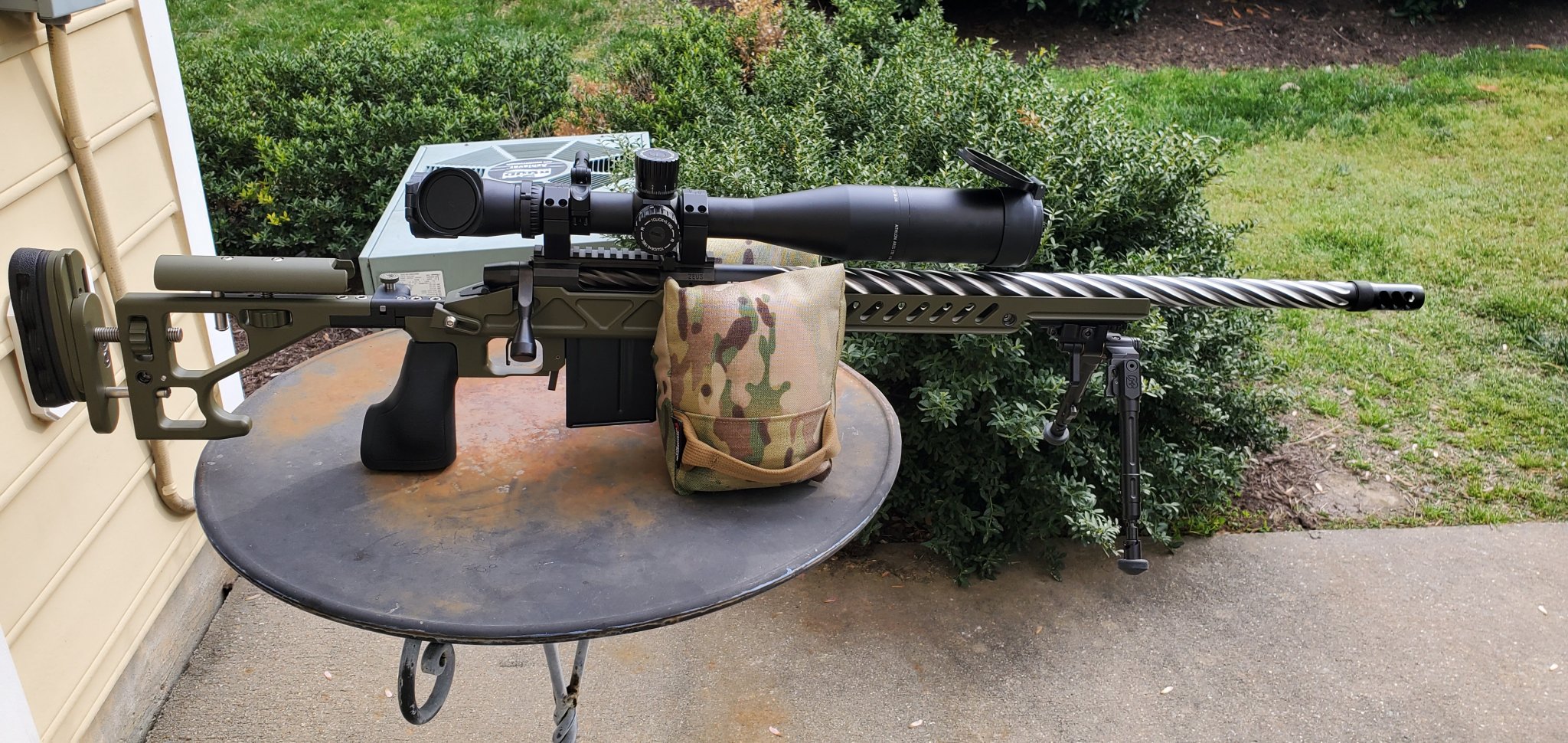

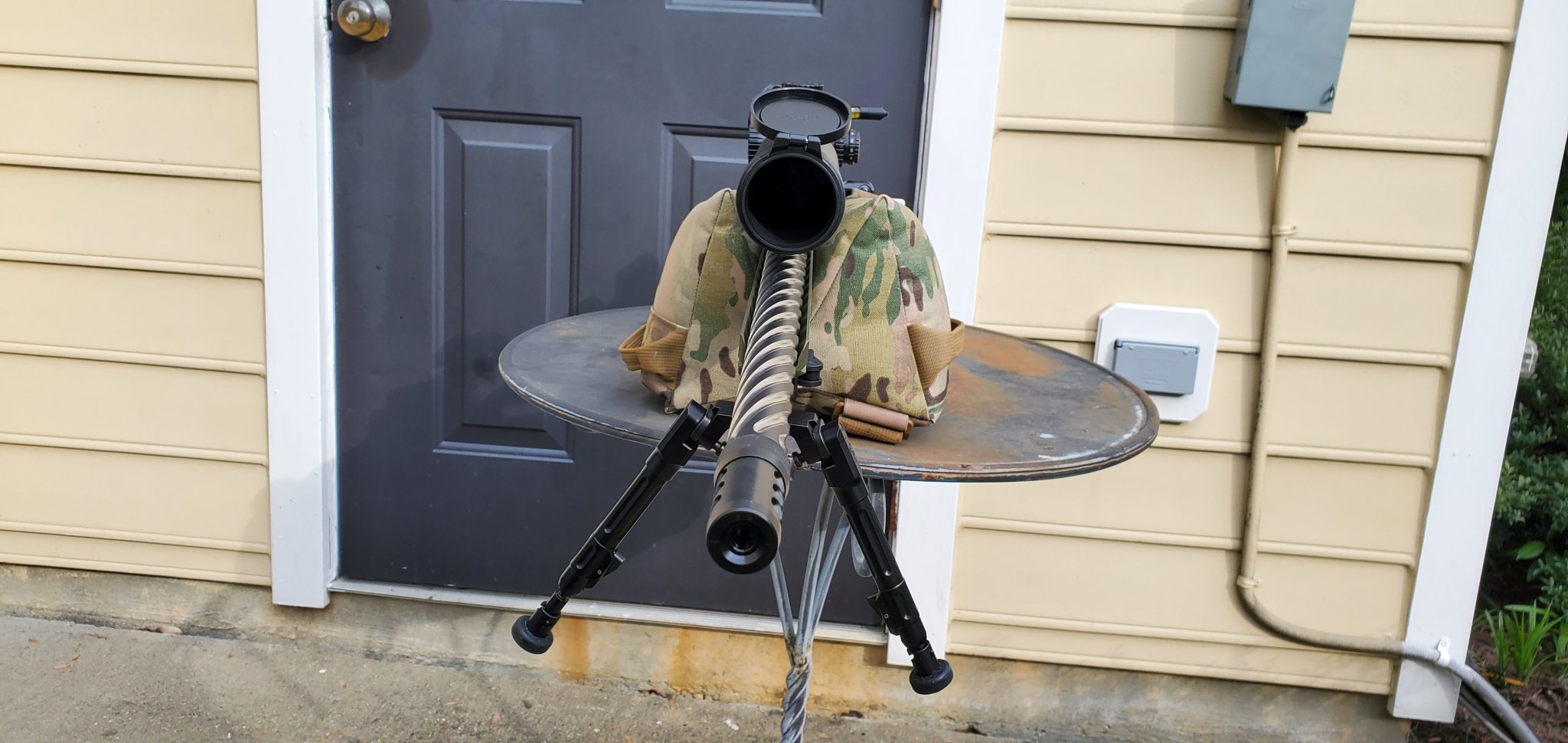

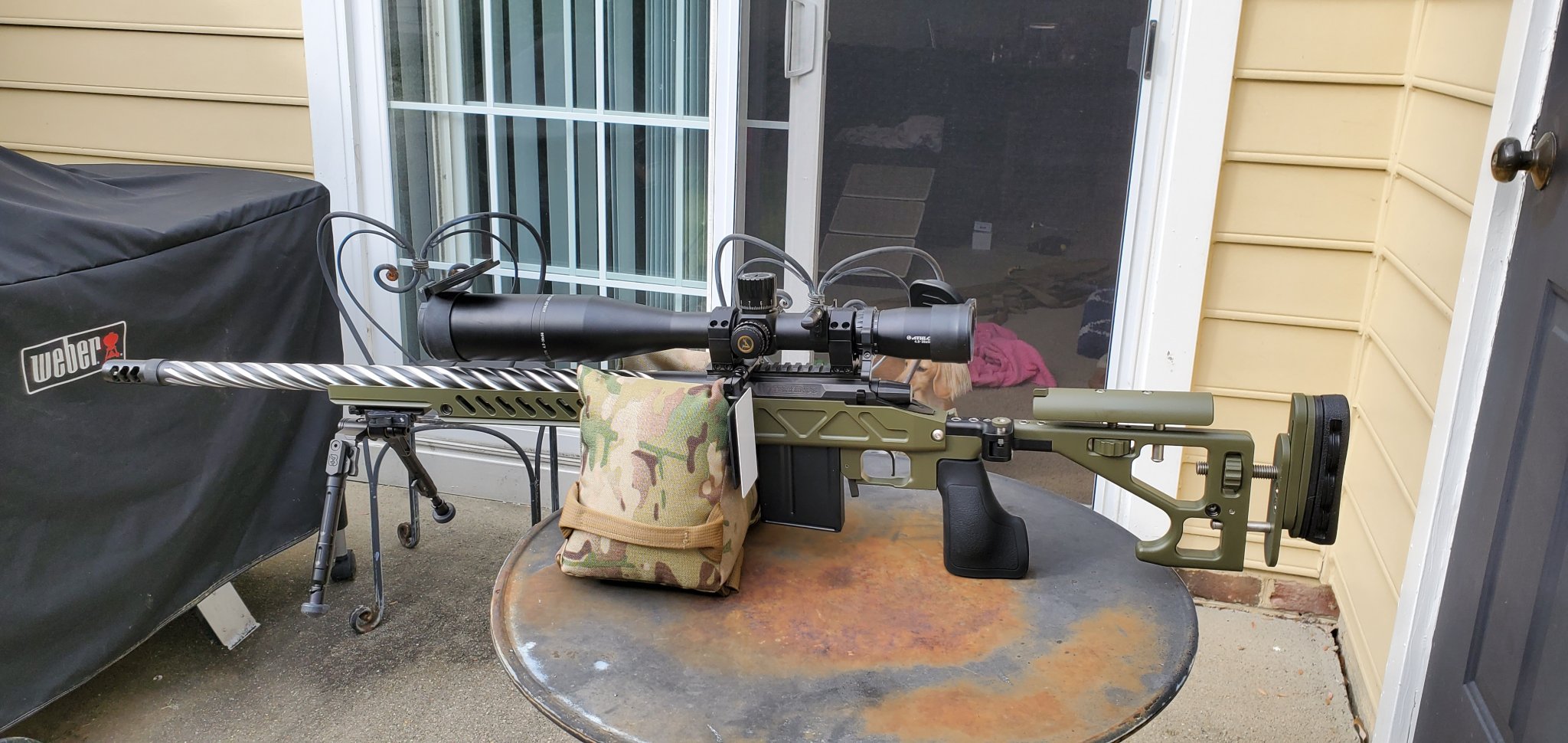

Just got my 308 barrel from StraightJacket. Took off my 6 Creed, spun on the 308 and shot the below pic. .478” group with the first 5 rounds of 175 FGMM. Didn’t even clean it before shooting it.

If you’re looking for a barrel for your Zeus, StraightJacket is good to go.



Elnino31

Sergeant
Belligerents
Oct 14, 2011
415
22
22
Toledo, Ohio
Let’s see some rifle pics.

I have a little buyers remorse that I went a different route. But I’m thinking about a another build at the end of summer


Dthomas3523

Hall Monitor
Staff member
Hessian
Commercial Supporter
Online Training Access
Belligerents
Jan 31, 2018
7,747
8,898
119
South Texas
Anyone running BR cartridges in a Zues (6br, dasher, bra, brx, etc)?

If so, what mags and/or kits are you using?


BLKWLFK9

Just F'n Send It..
Online Training Access
Belligerents
Feb 13, 2017
2,086
2,739
219
The AWs with the HRD or PVA spacer kit will both work. U may just have to play with the follower spring. If u have a problem, hit me up and I'll walk u through how to get them running on 100, homie.

  • Like
Reactions: mahlv

mahlv

Sergeant of the Hide
Hessian
Belligerents
Minuteman
Jul 6, 2018
262
103
49
My Zeus in a foundation with Hawkins bottom metal does not like the aw at all. It’s a 6x47. Round comes out on the push, comes up the feed ramp, and sends the tip clear across the chamber opening and hits the face of the breach. It’s every single time, I figured I’d mess with it eventually, I’ve been using a standard AICS with zero issues in the meantime.


sleeplz

Private
Belligerents
May 12, 2017
795
411
69
After reading about the Terminus, I've kinda lost confidence in it. Same when I started hearing issues of Curtis and watched a couple of issues in matches. I think my next action will be an Origin or deadline but I'll wait and see. Thanks god there are lots of great companies and options.


DisplacedTexan

Ornery Tech Sergeant
Belligerents
Oct 13, 2014
872
284
69
Hill AFB, UT
After reading about the Terminus, I've kinda lost confidence in it. Same when I started hearing issues of Curtis and watched a couple of issues in matches. I think my next action will be an Origin or deadline but I'll wait and see. Thanks god there are lots of great companies and options.
What negative are you gathering about Terminus? Would you like me to show you a video of it feeding? I will never touch a Bighorn with that sloppy ass bolt. Also, I don't like hitting my hand on the scope every time i rack the bolt, so fuck 90 degree actions. I don't see the downside here.


B-P-UU

Full Member
Belligerents
Feb 13, 2017
881
458
69
My Zeus in a foundation with Hawkins bottom metal does not like the aw at all. It’s a 6x47. Round comes out on the push, comes up the feed ramp, and sends the tip clear across the chamber opening and hits the face of the breach. It’s every single time, I figured I’d mess with it eventually, I’ve been using a standard AICS with zero issues in the meantime.
Reach out to Hawkins Precision.. Nick D. Will hook you up with the correct latch for the Hawkins BM for running AW's.

  • Like
Reactions: Redeye3 and mahlv

sleeplz

Private
Belligerents
May 12, 2017
795
411
69
@DisplacedTexan some of the comments above have owners with feeding issues. I do agree that actions under 90 are great but I dont wanna deal with misfeeds. Bighorn is sloppy, but I remember it being a little better than alright


Dthomas3523

Hall Monitor
Staff member
Hessian
Commercial Supporter
Online Training Access
Belligerents
Jan 31, 2018
7,747
8,898
119
South Texas
To be fair, many action/chassis combos have feeding issues that need to be tweaked.

It’s a myth that every 700 pattern action will drop into every 700 pattern chassis and feed perfectly without tweaking.

This is one of the differences between a lego build and a custom build.


_Raining

Private
Online Training Access
Belligerents
Feb 14, 2017
404
178
49
My Zeus in a foundation with Hawkins bottom metal does not like the aw at all. It’s a 6x47. Round comes out on the push, comes up the feed ramp, and sends the tip clear across the chamber opening and hits the face of the breach. It’s every single time, I figured I’d mess with it eventually, I’ve been using a standard AICS with zero issues in the meantime.
Is it with the left round only or both?


Matt_3479

Sergeant
Belligerents
Oct 12, 2009
466
97
34
39
Just got my 308 barrel from StraightJacket. Took off my 6 Creed, spun on the 308 and shot the below pic. .478” group with the first 5 rounds of 175 FGMM. Didn’t even clean it before shooting it.

If you’re looking for a barrel for your Zeus, StraightJacket is good to go.

View attachment 7273491
that’s awesome! What barrel did you get? Proof, benchmsrk? I believe I’ll order a few barrels from them


Lunchbox27

Professional whisky drinker
Belligerents
Mar 23, 2017
1,155
1,129
219
Mt. Airy, MD
that’s awesome! What barrel did you get? Proof, benchmsrk? I believe I’ll order a few barrels from them
You will not be disappointed! Mine are all Proof Research, but I’ll be going with Benchmark with my next barrel from them. I was going to order another 6Creed, then this Kung Flu shit broke out.

Call up Nick. Great guy to talk with and won’t steer yah wrong.


Matt_3479

Sergeant
Belligerents
Oct 12, 2009
466
97
34
39
You will not be disappointed! Mine are all Proof Research, but I’ll be going with Benchmark with my next barrel from them. I was going to order another 6Creed, then this Kung Flu shit broke out.

Call up Nick. Great guy to talk with and won’t steer yah wrong.
awesome! I love my benchmark barrel so was leaning that way. Was kind of thinking of trying a 6bra and a 308. Have a 25 creed coming from a smith now to try


Lunchbox27

Professional whisky drinker
Belligerents
Mar 23, 2017
1,155
1,129
219
Mt. Airy, MD
awesome! I love my benchmark barrel so was leaning that way. Was kind of thinking of trying a 6bra and a 308. Have a 25 creed coming from a smith now to try
Nick is big on Benchmark, per the last convo I had with him. Still cutting Proofs (nothing against them) but he is liking what he is seeing from Benchmark.

I can say if you go 308, you’re in luck as he doesn’t cut many in that caliber. Mine was the 4th barrel cut with his reamer and its a hammer.


Sogan

Sergeant
Belligerents
Jun 11, 2013
697
189
49
I got a 223 barrel from Nick coming at some point here. Sounds like he uses a regular 223 rem chamber


Kickin45

Deaf dumb and blind
Belligerents
Minuteman
Oct 7, 2018
1,009
571
119
I have an AI chassis in Remy LA sitting around.
Want to put a Helios in it. Will it drop in or do I need to have it cut?


Matt_3479

Sergeant
Belligerents
Oct 12, 2009
466
97
34
39
Nick is big on Benchmark, per the last convo I had with him. Still cutting Proofs (nothing against them) but he is liking what he is seeing from Benchmark.

I can say if you go 308, you’re in luck as he doesn’t cut many in that caliber. Mine was the 4th barrel cut with his reamer and its a hammer.
I’ve shot my best group at distance with my benchmark. Not necessarily saying it’s more accurate but it has been super easy to clean, crazy accurate with minor load development and 3 different bullets. Just been pleased with it.

I’ve never owned a 308, but figured it might be kind of fun to just target practice with! a buddy wants to set up a pair of 308’s just to compete against each other with


Lunchbox27

Professional whisky drinker
Belligerents
Mar 23, 2017
1,155
1,129
219
Mt. Airy, MD
I’ve shot my best group at distance with my benchmark. Not necessarily saying it’s more accurate but it has been super easy to clean, crazy accurate with minor load development and 3 different bullets. Just been pleased with it.

I’ve never owned a 308, but figured it might be kind of fun to just target practice with! a buddy wants to set up a pair of 308’s just to compete against each other with

IMO, a 308 is the perfect training round. Many gravitate towards 223, but I prefer the 308. Even if you don’t reload, match ammo can be had for less than 6.5creedmoor. 308’s barrel life is damn close to 223.

My scope is zero’d for my 6creed. Putting the 308 barrel on (same contour, same length, same suppressor) has a zero shift in .3 mils high and 1.2 mils right. Dial those changes in and I’m zero’d for 308.

And yes, it is repeatable and returns to zero when I spin the 6Creed back on. I was honestly shocked at the return to zero. Takes maybe a round or two ( off by maybe a 10th of a mil) to settle back in. I was shooting at 500 yards with my 6Creed. Spun on the 308, dialed my windage of 1.2 mils, dialed in my drop, and bang. First round a bit high, the other 4 right where they should be.


littlepod

Newbie
Online Training Access
Belligerents
Oct 16, 2012
2,009
1,121
219
Kirkland, WA
Finished reading the 8 pages of this thread... though with the quarantine going on I'm guessing not many people are getting much live fire time behind the action. I'm about to order my first custom build, and I've only really just shot my Tikka which I do enjoy, but wanted to switch over to the R700 platform for everything. I was leaning Impact, Defiance Ruckus, or Lone Peak, and now started reading about the Zeus.

I don't have any gunsmithing tools besides the basic torque wrench for action/scope installs. I guess I could get a barrel vise and a barrel torque wrench and do my own torque prefits, but it seems that this quick swap Terminus/Vector makes life a bit easier and so far no reports of any zero shifts / consistency issues.

It seems 6GT has some reports in this thread with feeding issues. I might go to 6GT in the future, but I don't handload so I'll just be ordering myself a 308 barrel and a 6cm barrel. I plan on shooting Prime 6cm and Prime 175gr 308. I'll be going for Proof Prefits as I can get them discounted.

Has anything changed with feeding issues / resolutions, or was that mainly the 6GT round/mag/chassis combo? 308/6cm seem stable to feed? I'll be running off a MDT ACC until my Manners PRS-TCS is ready. MDT AICS mags.


Redeye3

Sergeant of the Hide
Belligerents
Minuteman
Sep 27, 2017
269
101
49
Finished reading the 8 pages of this thread... though with the quarantine going on I'm guessing not many people are getting much live fire time behind the action. I'm about to order my first custom build, and I've only really just shot my Tikka which I do enjoy, but wanted to switch over to the R700 platform for everything. I was leaning Impact, Defiance Ruckus, or Lone Peak, and now started reading about the Zeus.

I don't have any gunsmithing tools besides the basic torque wrench for action/scope installs. I guess I could get a barrel vise and a barrel torque wrench and do my own torque prefits, but it seems that this quick swap Terminus/Vector makes life a bit easier and so far no reports of any zero shifts / consistency issues.

It seems 6GT has some reports in this thread with feeding issues. I might go to 6GT in the future, but I don't handload so I'll just be ordering myself a 308 barrel and a 6cm barrel. I plan on shooting Prime 6cm and Prime 175gr 308. I'll be going for Proof Prefits as I can get them discounted.

Has anything changed with feeding issues / resolutions, or was that mainly the 6GT round/mag/chassis combo? 308/6cm seem stable to feed? I'll be running off a MDT ACC until my Manners PRS-TCS is ready. MDT AICS mags.
We have (2) shooters running that cartridge (6gt) in the Zeus with no issues, one in AICS and the other in AW mags. One in MPA and one in an ACC.

Mess with the feeding lips a little bit with aw, or adjust mag catch. I've had zero issues in an MPA with 65creed, another buddy with 6XC, & another with 223. XLR/MPA hybrid and BA.

My 6gt arrives this week, I'll let u know If I see anything.


Matt_3479

Sergeant
Belligerents
Oct 12, 2009
466
97
34
39
IMO, a 308 is the perfect training round. Many gravitate towards 223, but I prefer the 308. Even if you don’t reload, match ammo can be had for less than 6.5creedmoor. 308’s barrel life is damn close to 223.

My scope is zero’d for my 6creed. Putting the 308 barrel on (same contour, same length, same suppressor) has a zero shift in .3 mils high and 1.2 mils right. Dial those changes in and I’m zero’d for 308.

And yes, it is repeatable and returns to zero when I spin the 6Creed back on. I was honestly shocked at the return to zero. Takes maybe a round or two ( off by maybe a 10th of a mil) to settle back in. I was shooting at 500 yards with my 6Creed. Spun on the 308, dialed my windage of 1.2 mils, dialed in my drop, and bang. First round a bit high, the other 4 right where they should be.
why do you feel it’s a better training round? Pure curiosity here. The reason I was leaning towards the 223 was cause I could double down for coyotes as a spare. I can’t shoot anything larger then 270 for our areas


Sogan

Sergeant
Belligerents
Jun 11, 2013
697
189
49
why do you feel it’s a better training round? Pure curiosity here. The reason I was leaning towards the 223 was cause I could double down for coyotes as a spare. I can’t shoot anything larger then 270 for our areas
More than likely for the recoil. A 308 will really show you where you are messing up with your recoil management and will force you to get in the correct position or the gun will jump.


Lunchbox27

Professional whisky drinker
Belligerents
Mar 23, 2017
1,155
1,129
219
Mt. Airy, MD
I like the added recoil. A 308 will really exploit your lack of fundamentals. Not saying it’s better than 223 ( for training purpose ), but rather my preference. Also, for this action you can run the same bolt as your 6/6.5 so more $ towards ammo/components.

  • Like
Reactions: kthomas

Matt_3479

Sergeant
Belligerents
Oct 12, 2009
466
97
34
39
I like the added recoil. A 308 will really exploit your lack of fundamentals. Not saying it’s better than 223 ( for training purpose ), but rather my preference. Also, for this action you can run the same bolt as your 6/6.5 so more $ towards ammo/components.
More than likely for the recoil. A 308 will really show you where you are messing up with your recoil management and will force you to get in the correct position or the gun will jump.
awesome thank you gentlemen, didn’t really look at it that way but totally makes sense! I agree it saves me money with the bolt face!

  • Like
Reactions: Lunchbox27

kthomas

Sergeant
Belligerents
Jun 17, 2009
2,776
3,007
219
32
Tucson, AZ
I like the added recoil. A 308 will really exploit your lack of fundamentals. Not saying it’s better than 223 ( for training purpose ), but rather my preference. Also, for this action you can run the same bolt as your 6/6.5 so more $ towards ammo/components.
I have the same feelings as @Lunchbox27, I think the .308 is a perfect practice round as it doesn't let you get sloppy. If you do, it immediately shows up on target. Any divergence from the fundamentals will be punished by the .308.

You can get away with a lot of shit with a .223, and may not even realize that you are reinforcing bad habits.

  • Like
Reactions: Lunchbox27

littlepod

Newbie
Online Training Access
Belligerents
Oct 16, 2012
2,009
1,121
219
Kirkland, WA
I am jumping in on the Terminus Zeus party. Just spoke to Joel today and will get an order placed. I get my Experticity discount with Proof, but they're backlogged until August. Was planning on a 308 and 6cm barrel.

I might have to just find another vendor to get a barrel to shoot with until I get my Proof barrels are ready.


littlepod

Newbie
Online Training Access
Belligerents
Oct 16, 2012
2,009
1,121
219
Kirkland, WA
Where are people finding the best deals on prefits? I'll place mine from Proof and wait till August, but wanted to have something by July for my class in Alaska. Right now it looks like maybe straightjacket, still comes out to $650ish which is pretty pricey compared to Experticity.


Sogan

Sergeant
Belligerents
Jun 11, 2013
697
189
49
Where are people finding the best deals on prefits? I'll place mine from Proof and wait till August, but wanted to have something by July for my class in Alaska. Right now it looks like maybe straightjacket, still comes out to $650ish which is pretty pricey compared to Experticity.
Are you getting proof prefits off Experticity? Straightjackets pricing is pretty standard. Most of the others that I found just went up from there. Keystone may be slightly cheaper? But it’s been awhile since I’ve looked


littlepod

Newbie
Online Training Access
Belligerents
Oct 16, 2012
2,009
1,121
219
Kirkland, WA
Are you getting proof prefits off Experticity? Straightjackets pricing is pretty standard. Most of the others that I found just went up from there. Keystone may be slightly cheaper? But it’s been awhile since I’ve looked
Yes. They're backed up till August. I guess I'll pay up front to have a barrel earlier.


fiveshotdot

The Mechanic
Belligerents
Aug 10, 2010
823
157
49
34
Missouri

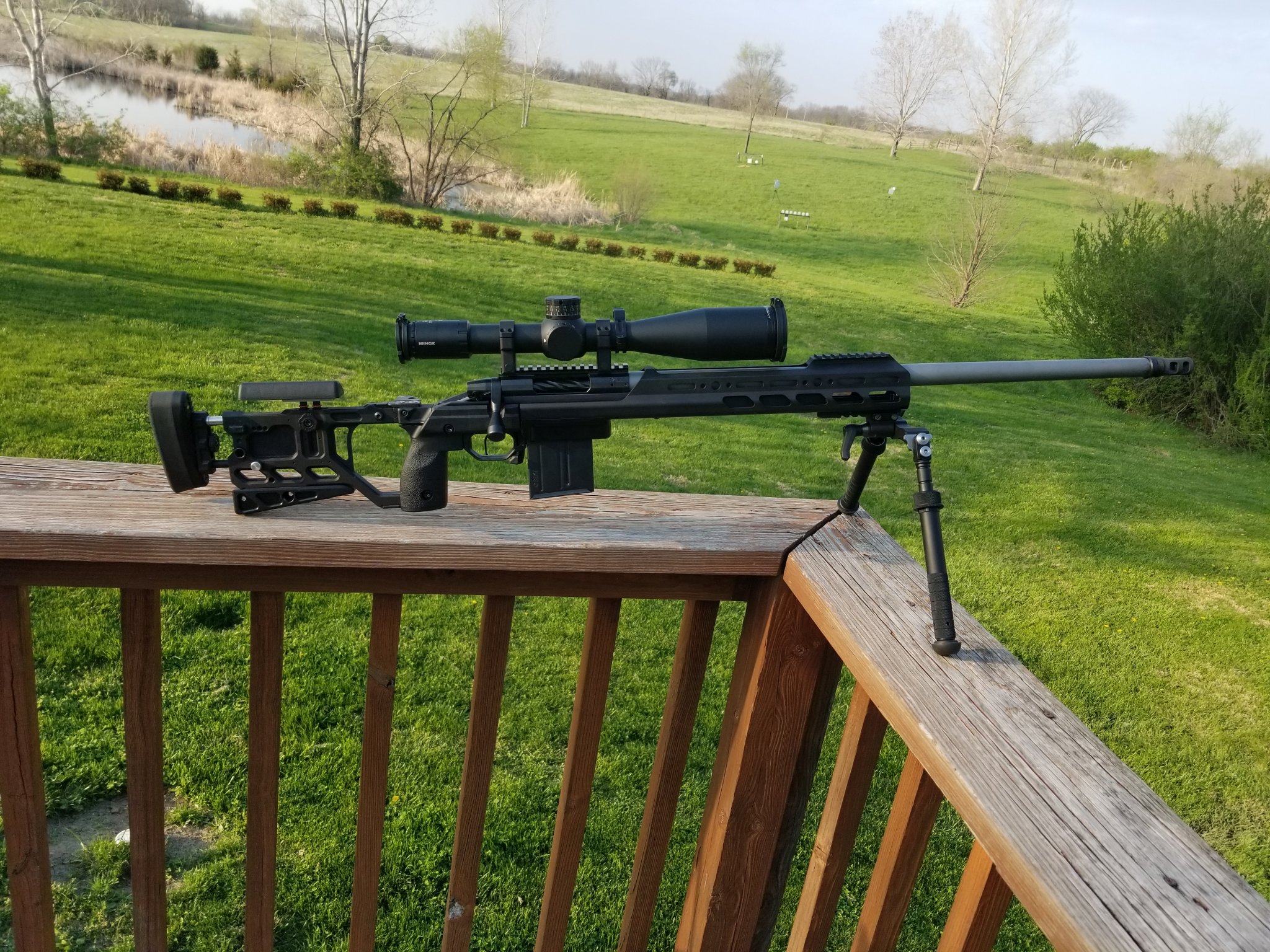

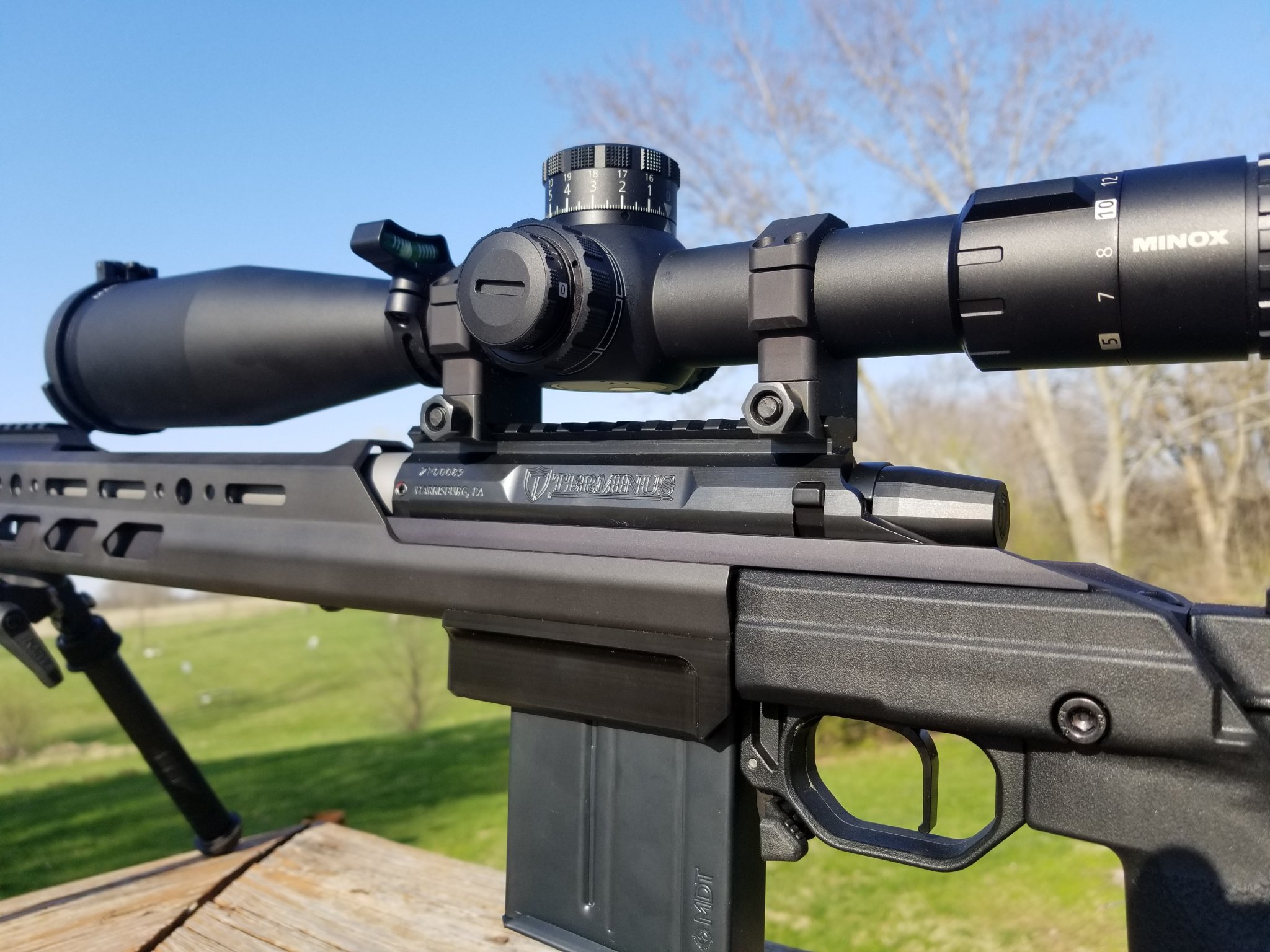

I got my rifle back from the smith. The Terminus Zeus is awesome. I love the 60* bolt. I'm running 260Ackley Improved and have experienced no feeding issues with the sharp shoulder and straight wall case. Buy with confidence. Jeff Hayes and his crew at Rivers Bend Gun Company did an amazing job on this build.


Last edited:

littlepod

Newbie
Online Training Access
Belligerents
Oct 16, 2012
2,009
1,121
219
Kirkland, WA
I have 4 AICS mags 10 rounders. 2 with the binder plate and 2 without. I was considering maybe swapping an AICS mag with an AW since the Zeus supports AW. Do the AICS mags w/o binder plates work? I bought them previously for my Tikka but never used them.

Are the MDT AICS mags more/less reliable than AW? Any reason why I should trade / swap to AW?


DisplacedTexan

Ornery Tech Sergeant
Belligerents
Oct 13, 2014
872
284
69
Hill AFB, UT
AW are very nice and I have completely switched over to them since I started using them.

Easier on your hands since you just push the round in a la AR mag and very short. I love them.

  • Like
Reactions: Redeye3

Mr Flannel

Self-Licking Icecream
Belligerents
Feb 3, 2006
125
67
34
Australia

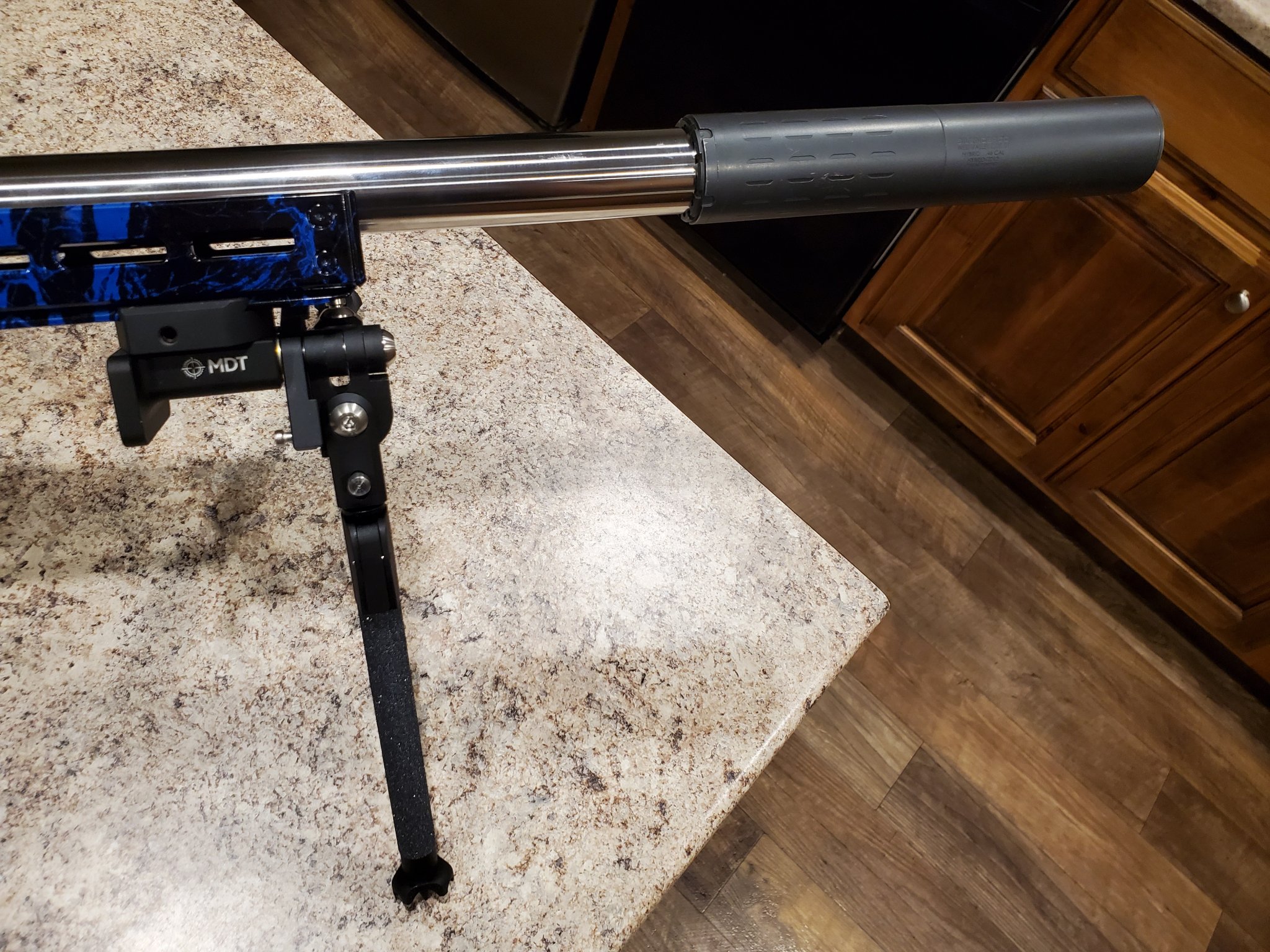

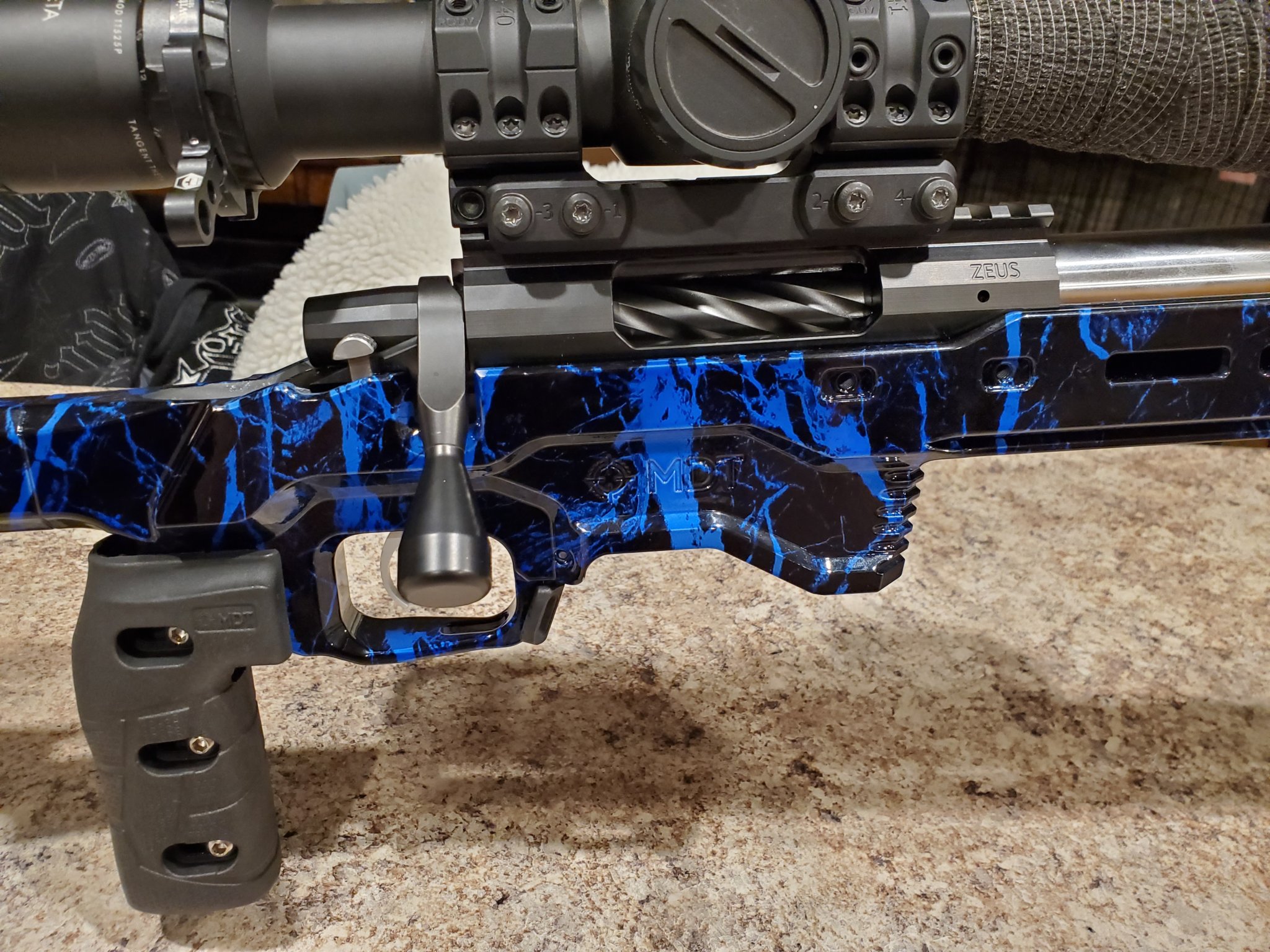

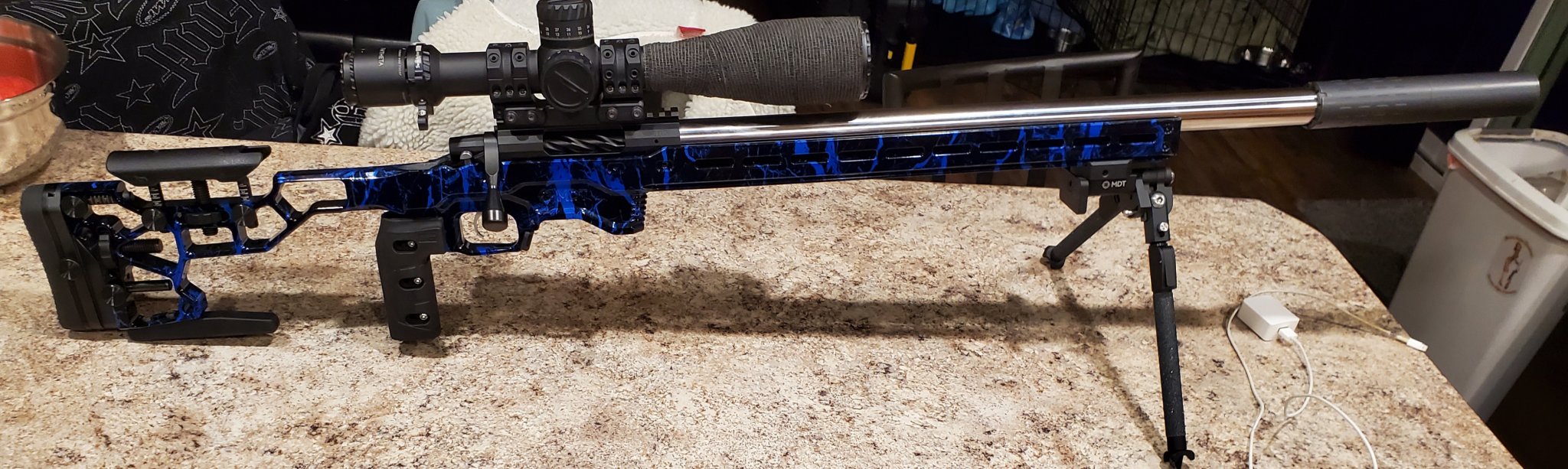

The 22BR is finished...

View attachment 7250589View attachment 7250587View attachment 7250588

Built by Brad Hiskey of Brad's Precision Rifles, Spanish Fork, Utah.

1.25 straight Bartlein 4groove 1:6.5 twist
Finished at 22" with a SilencerCo Hybrid

My TBAC 6.5 Ultra 9 should enter jail this month.

Hydrodipped by Black Ice Coatings, Spanish Fork Utah.

So far it feeds from AW mags with HRD kits but two of my three need to have the latch filed just a tad more, one works perfectly.
Hey mate - sorry for the late reply/question - but did the zeus action drop into that MDT chassis without any need for chassis modifications?


Redeye3

Sergeant of the Hide
Belligerents
Minuteman
Sep 27, 2017
269
101
49
I have 4 AICS mags 10 rounders. 2 with the binder plate and 2 without. I was considering maybe swapping an AICS mag with an AW since the Zeus supports AW. Do the AICS mags w/o binder plates work? I bought them previously for my Tikka but never used them.

Are the MDT AICS mags more/less reliable than AW? Any reason why I should trade / swap to AW?
Just remember when you swap to AW you're going to have to adjust the feedlips, If for some chance you don't it's a miracle, once you get them running right you won't go back. So far the GT takes a little bit more of an even bend in feed lips. I ordered two more brand new ones to adjust instead of the couple I have for 65/308. In the end I think it's worth it compare to AICS. Imop


DisplacedTexan

Ornery Tech Sergeant
Belligerents
Oct 13, 2014
872
284
69
Hill AFB, UT
Just remember when you swap to AW you're going to have to adjust the feedlips, If for some chance you don't it's a miracle, once you get them running right you won't go back. So far the GT takes a little bit more of an even bend in feed lips. I ordered two more brand new ones to adjust instead of the couple I have for 65/308. In the end I think it's worth it compare to AICS. Imop
I have run 6 Creed and 22BR thus far in my AWs, between a something empest and a Zeus. Some new mags, some bought second hand. I have never adjusted feed lips.

The only thing I have needed to adjust is the mag height by dremeling the catch.

I will say that my feed lips on one mag hits the action in my zeus, but I haven't messed with it too much yet because the other two mags work so well.

  • Like
Reactions: Redeye3
