    I just picked this up for my shop last week. I just got it off the trailer and it will take a minute before I can get it wired up. Then tooling and setting it up how I want will be more time but eventually I'll have a bad ass lathe set up.
    Would love to have one of those. Used to run a tl1 at 1 old job and a tl3b (25" front 4 jaw chuck with a 25" back scroll chuck both with 8" bore).


    Waorani

    Comfortably Numb
    Supporter
    Full Member
    Minuteman
    Feb 14, 2017
    2,570
    3,606
    Greenbow, AL
    I wouldn't laugh at you if you'd used 4" 1/2" wall tube.
    Except that 4" 1/2 wall would probably be almost $1k a stick! Needed 12' of 4" 1/4 wall square tube and went to local supplier yesterday hoping to find a drop. Nope, full 20' stick only - $388 + tax. I knew steel prices were up but damn!


    Kinetic Moose

    Supporter
    Supporter
    Full Member
    Minuteman
    Sep 12, 2018
    193
    99
    Margaritaville....

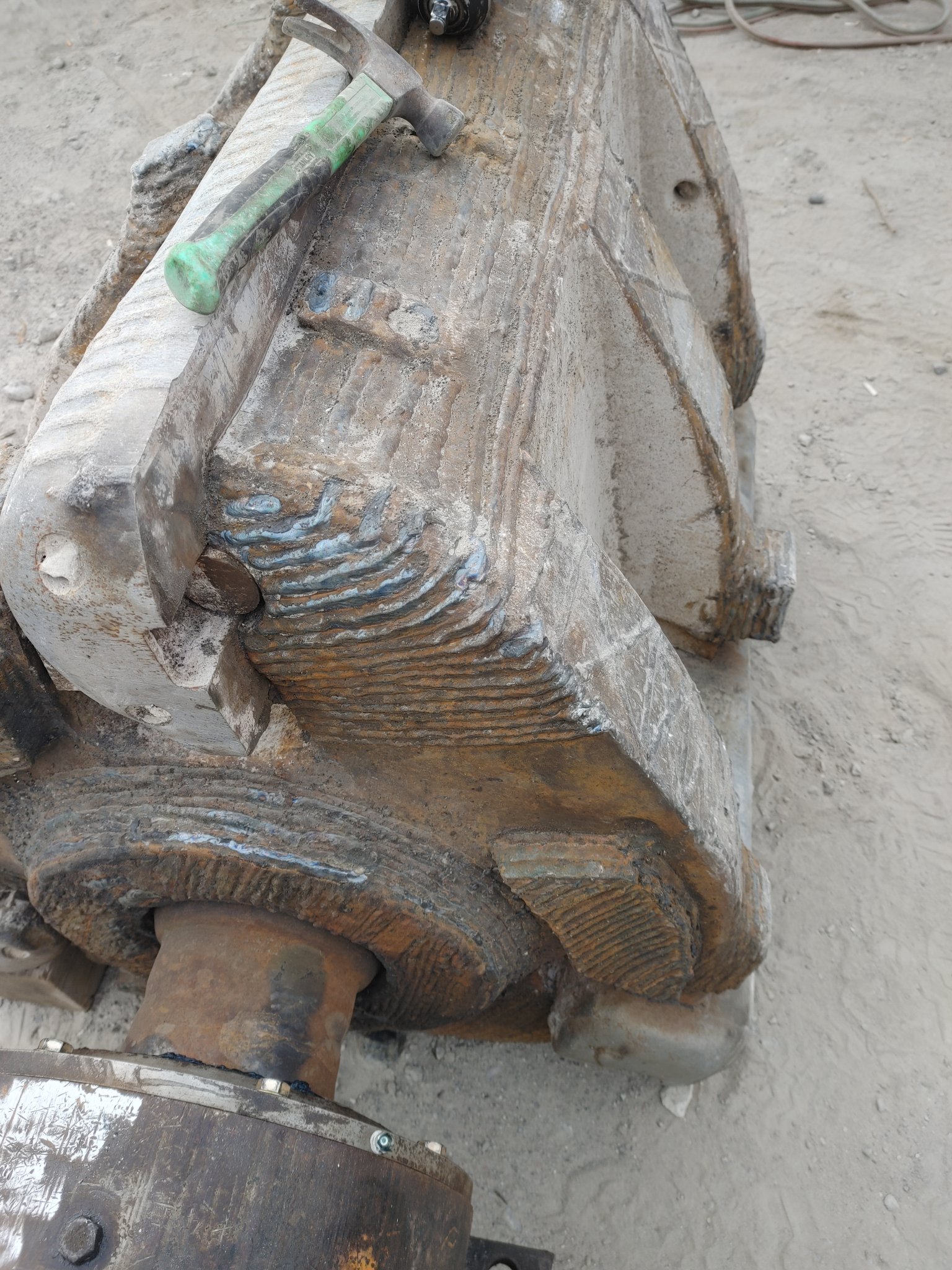

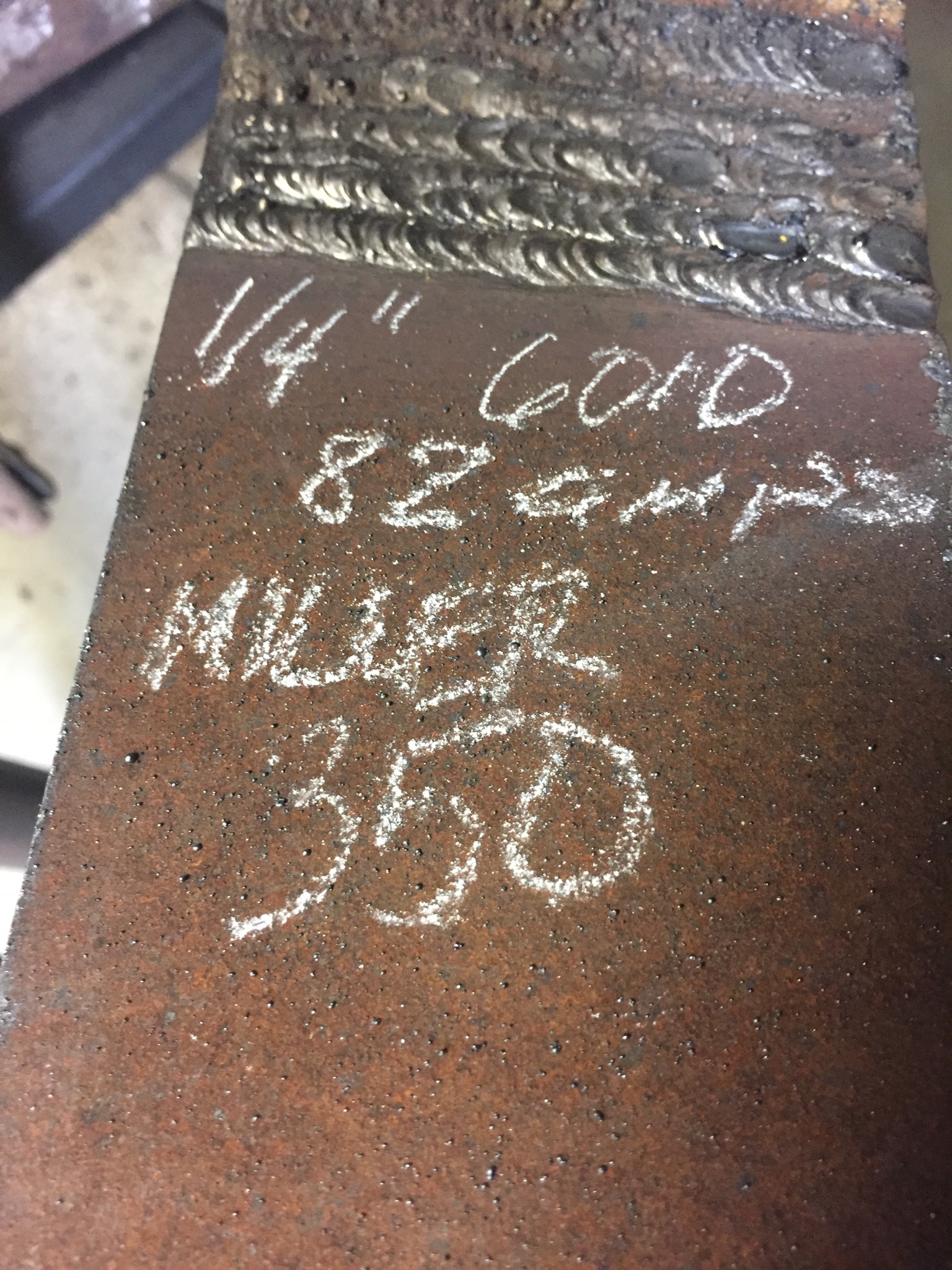

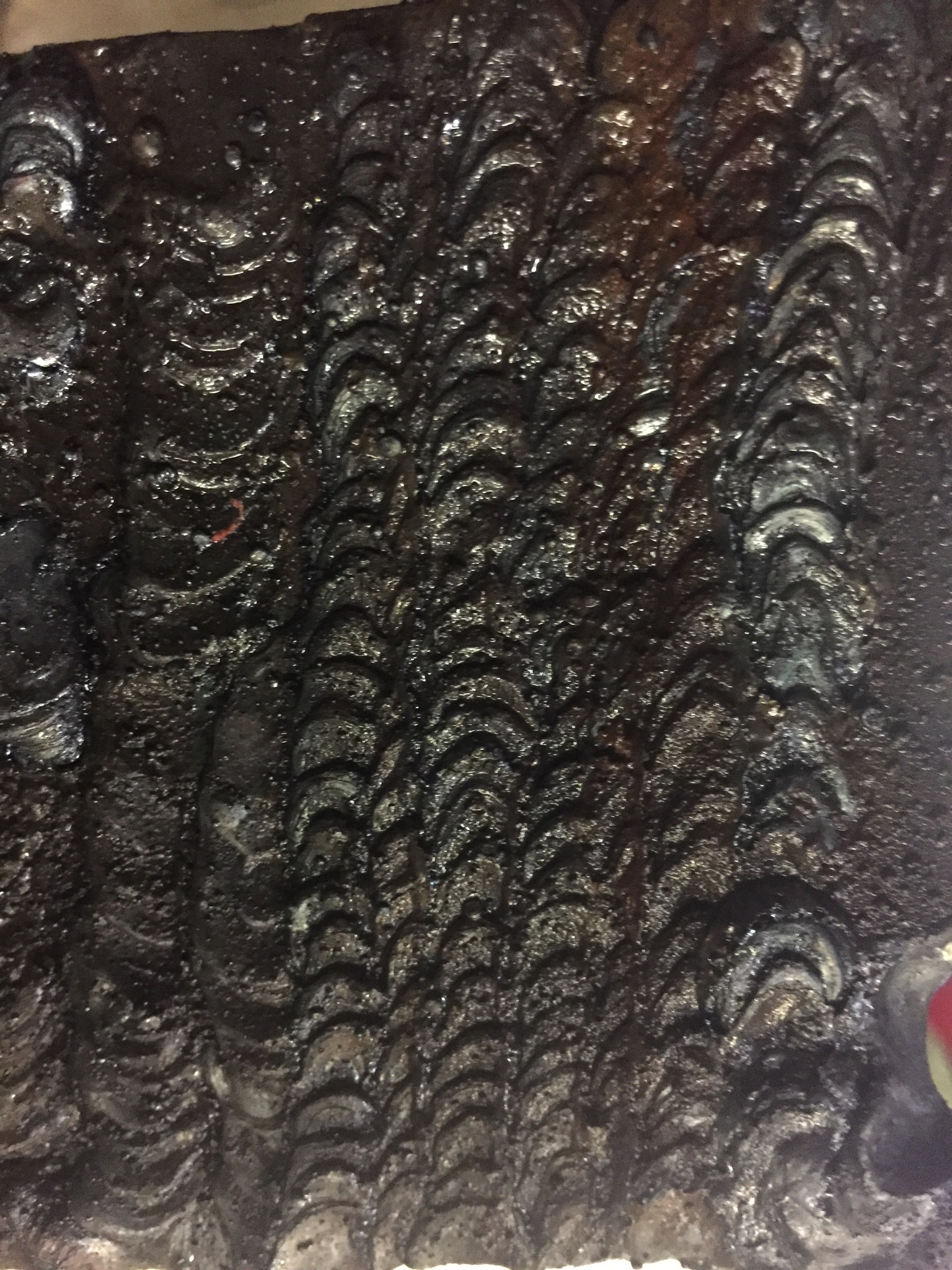

    Here's some pics from a few weeks ago learning to pad beads using stick in all positions. GhastlyView attachment 6918604View attachment 6918603

    Scaly, rusty base metal, not allowed to clean before welding and just turned loose with electrodes and told to burn them to the numbers
    want to learn 60, tilt that thing almost vertical, turn it down a little, run uphill, learn to keyhole it on a slant with two plates and you'll be money. 60 is so sweet to use but damm those sparks. your welds look fine, most important thing is to be comfortable in the position you are in prior to goign hot.


    ken226

    Gunny Sergeant
    Full Member
    Minuteman
    Sep 16, 2009
    986
    969
    45
    Washington
    I made a new control panel for my lathe last weekend.

    A peice of 1/8" aluminum stock, roughed out on the bandsaw, edges straitened on the belt grinder. Cerakoted in Cobalt to match the headstock top and engraved with a diamond drag tool. I added the 4 way joystick on the left to control fw/rev directions @ full and low rpm jog. Thought it might be a neat way to cut threads:





    It came out pretty good.


    Ankeny

    Private
    Full Member
    Minuteman
    Aug 11, 2009
    413
    572
    66
    chuck norris.jpg


    Waorani

    Comfortably Numb
    Supporter
    Full Member
    Minuteman
    Feb 14, 2017
    2,570
    3,606
    Greenbow, AL

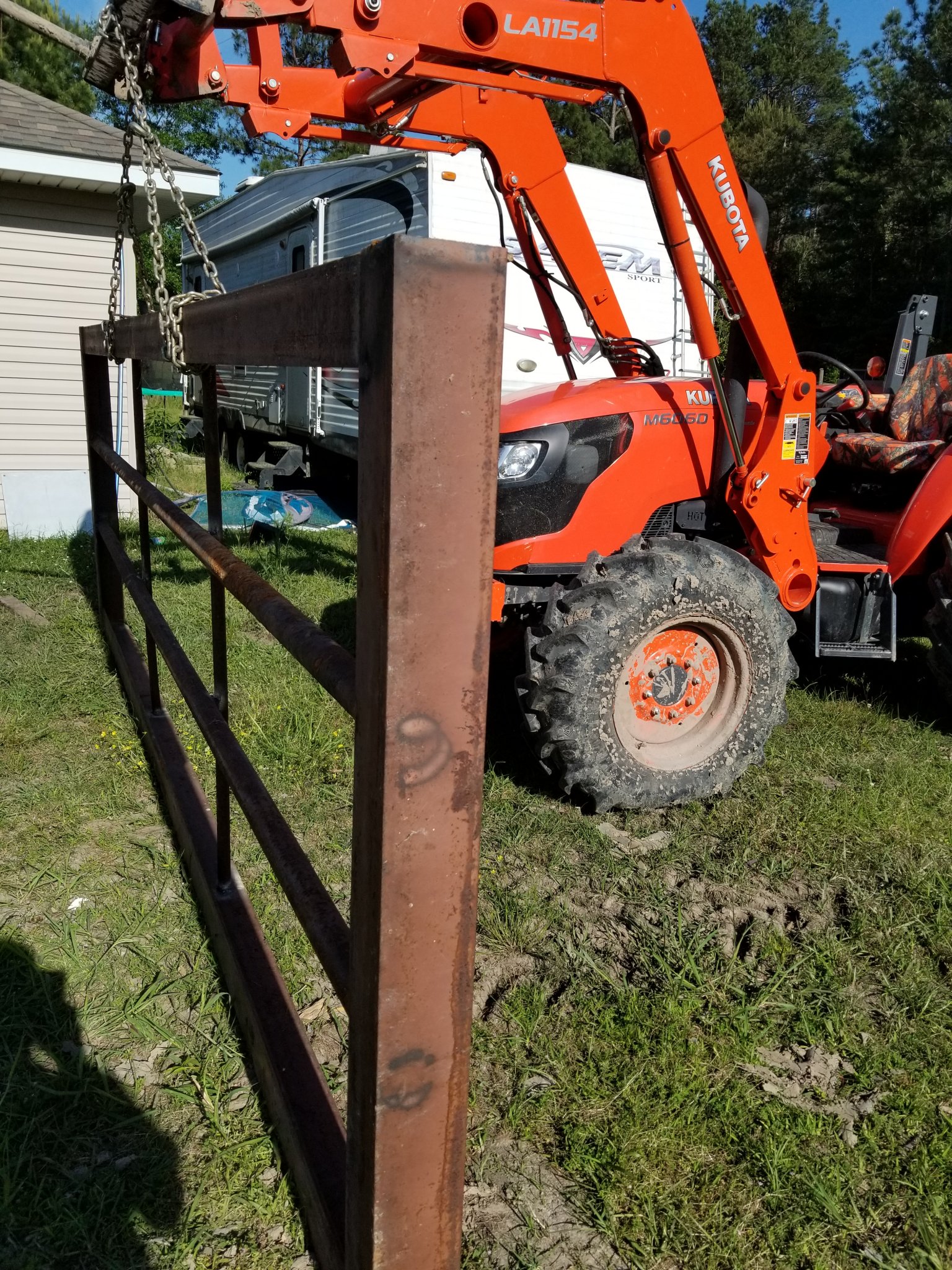

    At my old shop, I had a 20' I-beam hung from cross members with a trolley hoist. Given steel prices I took it down and brought it with me to my new place last year. But the structural steel in my new, more recent construction, shop just isn't as heavy as the old and the span is much greater so I wasn't comfortable hanging the I-beam as before. I've been missing my hoist though and a post a couple months ago on another thread about lifting mowers to replace blades got me thinking and this is what I came up with. 180deg pivot off new post that carries the weight set in front of structural beam which just provides some lateral stability. Already had all the steel except 10' of 3/16 wall 2x2 square for a brace - $100!! Not an engineer but I have stayed a lot of nights at Holiday Inn Express so I think I'm good.



    Kinetic Moose

    Supporter
    Supporter
    Full Member
    Minuteman
    Sep 12, 2018
    193
    99
    Margaritaville....

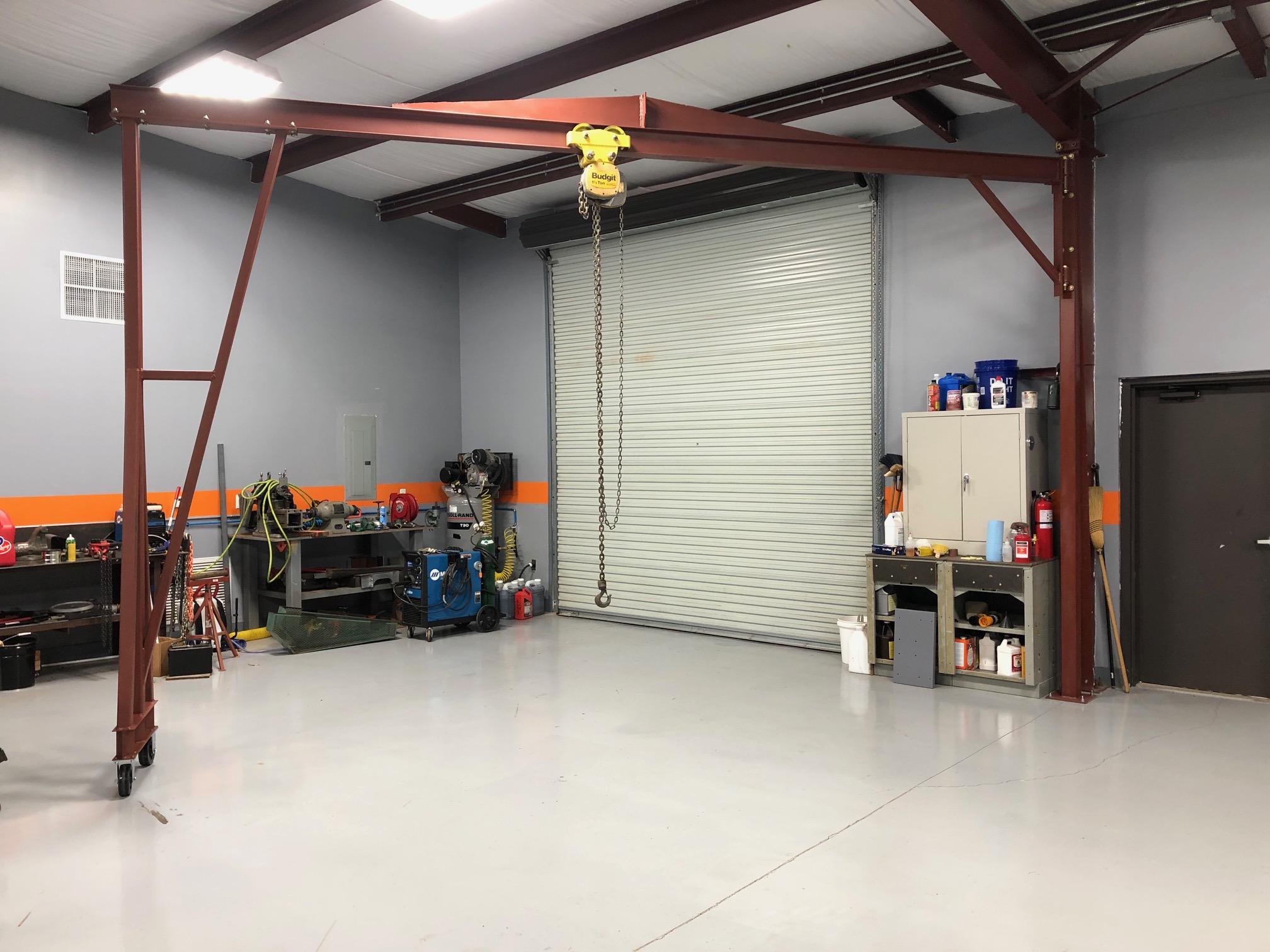

    At my old shop, I had a 20' I-beam hung from cross members with a trolley hoist. Given steel prices I took it down and brought it with me to my new place last year. But the structural steel in my new, more recent construction, shop just isn't as heavy as the old and the span is much greater so I wasn't comfortable hanging the I-beam as before. I've been missing my hoist though and a post a couple months ago on another thread about lifting mowers to replace blades got me thinking and this is what I came up with. 180deg pivot off new post that carries the weight set in front of structural beam which just provides some lateral stability. Already had all the steel except 10' of 3/16 wall 2x2 square for a brace - $100!! Not an engineer but I have stayed a lot of nights at Holiday Inn Express so I think I'm good.

    View attachment 7630653
    he even painted it, I never get that far...


    stefan73

    Sergeant
    Full Member
    Minuteman
  • Mar 6, 2006
    1,325
    761
    CENLA

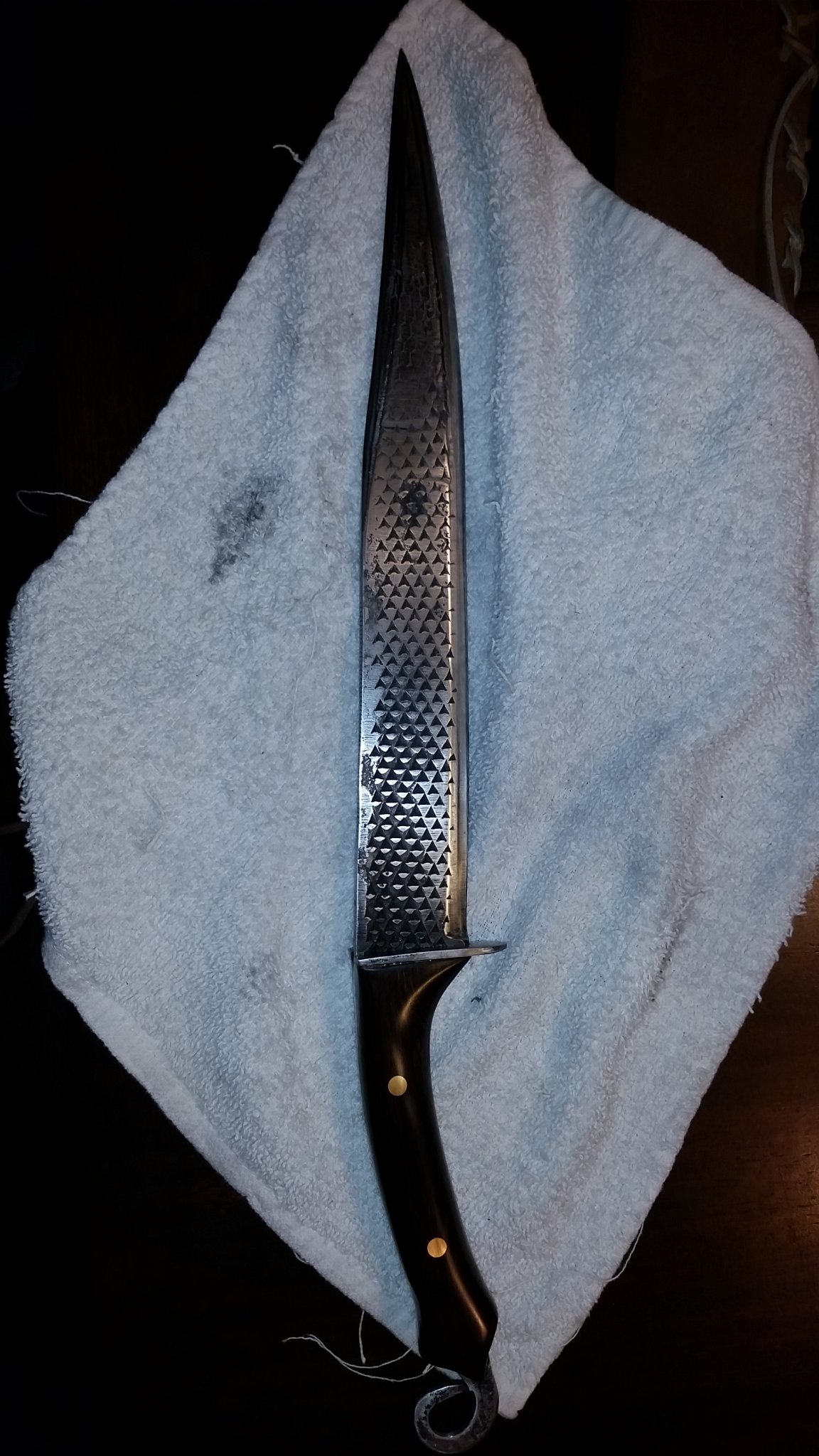

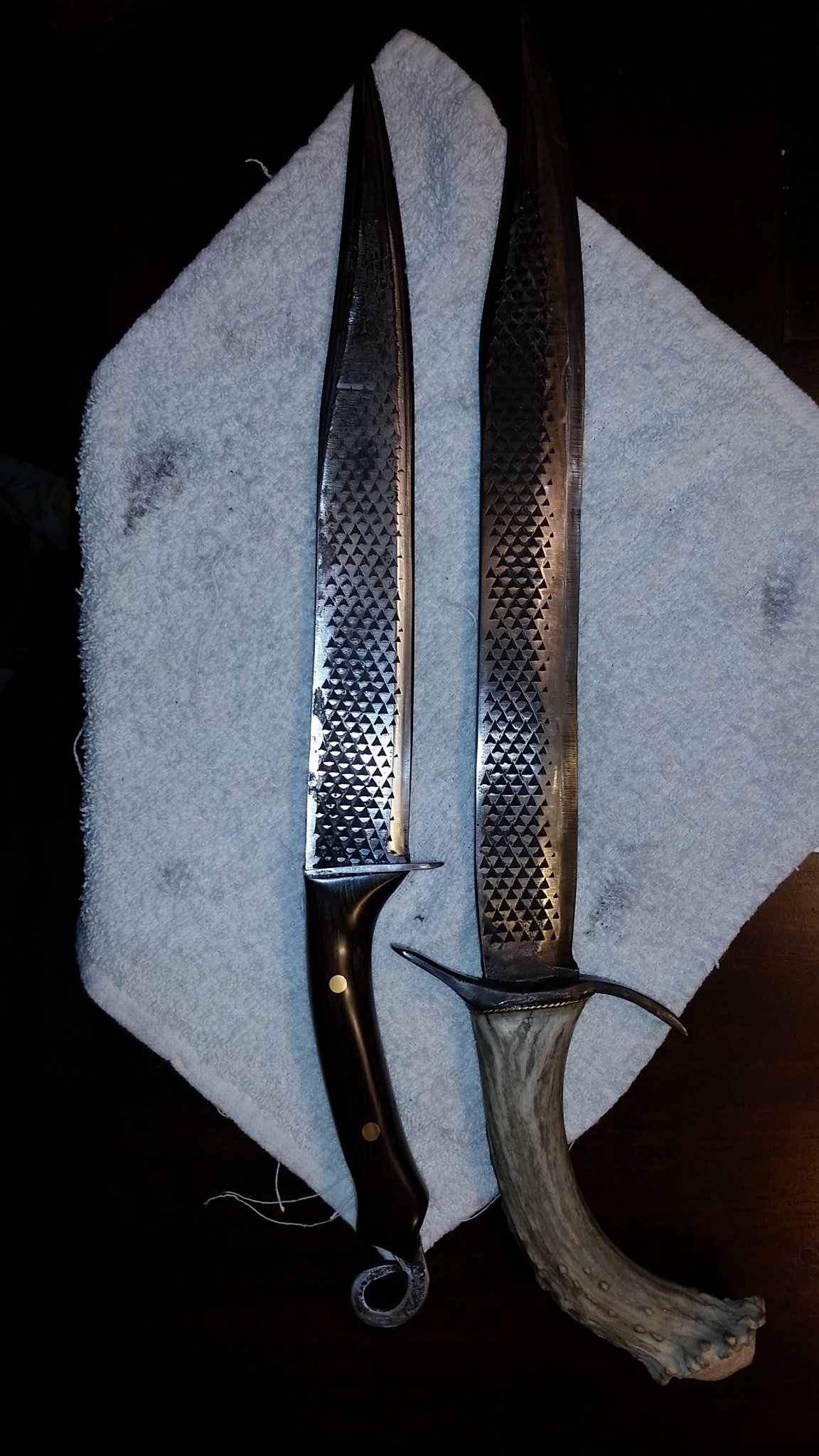

    Two farriers rasps I drew out. Right has a horseshoe guard and a shed my mom found when I was a kid. The left has an African Blackwood handle, forge welded cabled Damascus guard. Blades are roughly a foot long, lots of filing and hand sanding. I need to invest in a grinder. I need to rebuild my forge after my carport collapsed. I have a lot to learn and work on. Blades were quenched in P50 Quick Quench.


    stefan73

    Sergeant
    Full Member
    Minuteman
  • Mar 6, 2006
    1,325
    761
    CENLA
    Old Bronco rotting away?
    I had paid a guy a LOT of money to restore it while I was deployed. He had medical issues and gave it to another guy to finish. In the process an engine was stolen along with my money (a lot) by one builder to make a hotrod that he sold and my other rear axle to replace the broken axle was stolen and this is what I received after my deployment. It sucks every time I see it!


    mcfred

    Sergeant
    Full Member
    Minuteman
    Feb 17, 2011
    1,314
    584
    SW USA
    I've been fabbing up someone's science project. I gather it's some sort of heat exchanger. It's been a few different design revisions along the way, and I only ruined a couple parts when the copper grabbed onto the cutting tool and it wrenched it out of the fixture, so I count that as a win. As depicted here it just needs some solder and a couple fittings on the stainless pipe to hold some coolant.

    Copper is not my favorite material to work with, but I'm happy I got decent surface finishes where it counted.



    ken226

    Gunny Sergeant
    Full Member
    Minuteman
    Sep 16, 2009
    986
    969
    45
    Washington
    I've been fabbing up someone's science project. I gather it's some sort of heat exchanger. It's been a few different design revisions along the way, and I only ruined a couple parts when the copper grabbed onto the cutting tool and it wrenched it out of the fixture, so I count that as a win. As depicted here it just needs some solder and a couple fittings on the stainless pipe to hold some coolant.

    Copper is not my favorite material to work with, but I'm happy I got decent surface finishes where it counted.



    Fantastic work. I'd be very happy with those results. The way copper absorbs heat and aluminum sheds it, and all that surface area, I expect it's going to work quite well.


    Sean the Nailer

    Sergeant
    Full Member
    Minuteman
  • May 20, 2006
    5,650
    7,818
    Winnipeg, Mb.
    I've been fabbing up someone's science project. I gather it's some sort of heat exchanger. It's been a few different design revisions along the way, and I only ruined a couple parts when the copper grabbed onto the cutting tool and it wrenched it out of the fixture, so I count that as a win. As depicted here it just needs some solder and a couple fittings on the stainless pipe to hold some coolant.

    Copper is not my favorite material to work with, but I'm happy I got decent surface finishes where it counted.

    One would almost think that was a 'shotgun condenser' but I wouldn't know about such things.

    Nice job. I've made many a tube-sheet and baffle set for the assembly department in Industrial Refrigeration industry. Made lots of brine chillers for ice rinks, and our claim-to-fame was the Calgary '88 Olympic bobsled run. From the movie Cool Runnings.


    pmclaine

    Gunny Sergeant
    Full Member
    Minuteman
  • Nov 6, 2011
    25,542
    41,633
    53
    MA
    I've been fabbing up someone's science project. I gather it's some sort of heat exchanger. It's been a few different design revisions along the way, and I only ruined a couple parts when the copper grabbed onto the cutting tool and it wrenched it out of the fixture, so I count that as a win. As depicted here it just needs some solder and a couple fittings on the stainless pipe to hold some coolant.

    Copper is not my favorite material to work with, but I'm happy I got decent surface finishes where it counted.


    Iranian centrifuges? Sure...just a science project.......

    • Haha
    Reactions: barneybdb

    pmclaine

    Gunny Sergeant
    Full Member
    Minuteman
  • Nov 6, 2011
    25,542
    41,633
    53
    MA
    Not too much metalworking involved... so far. But found this rock while building a retaining wall. So yesterday drilled for eyes and then bedded them in molten lead. I’ll be making a wood frame to hang it... with some interesting brackets.

    View attachment 7637312
    It’ll make a good weather rock

    Sirhr


    Looks like a map of your home state......


    oneshot86

    Full Member
    Full Member
    Minuteman
    Jul 13, 2001
    8,041
    7,120
    citrus park ,fl
    Not too much metalworking involved... so far. But found this rock while building a retaining wall. So yesterday drilled for eyes and then bedded them in molten lead. I’ll be making a wood frame to hang it... with some interesting brackets.

    View attachment 7637312
    It’ll make a good weather rock

    Sirhr
    That's a great idea. That's going to look very cool.
    When I get time and if I don't forget, lol, I'd like to steal your idea. We only have limestone here, but oh well


    Ozarkcop

    Private
    Full Member
    Minuteman
    Mar 19, 2012
    149
    82
    Arkansas

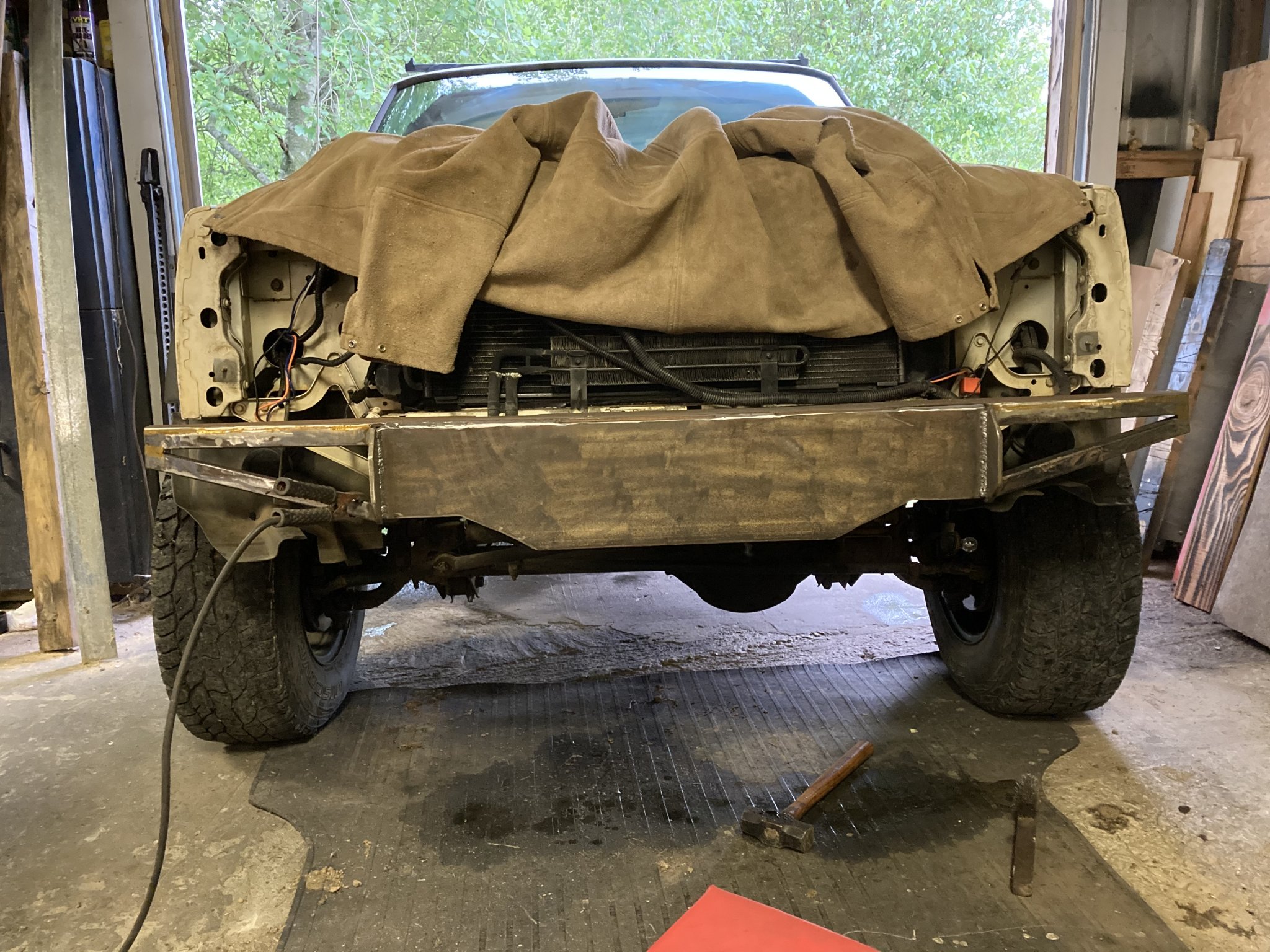

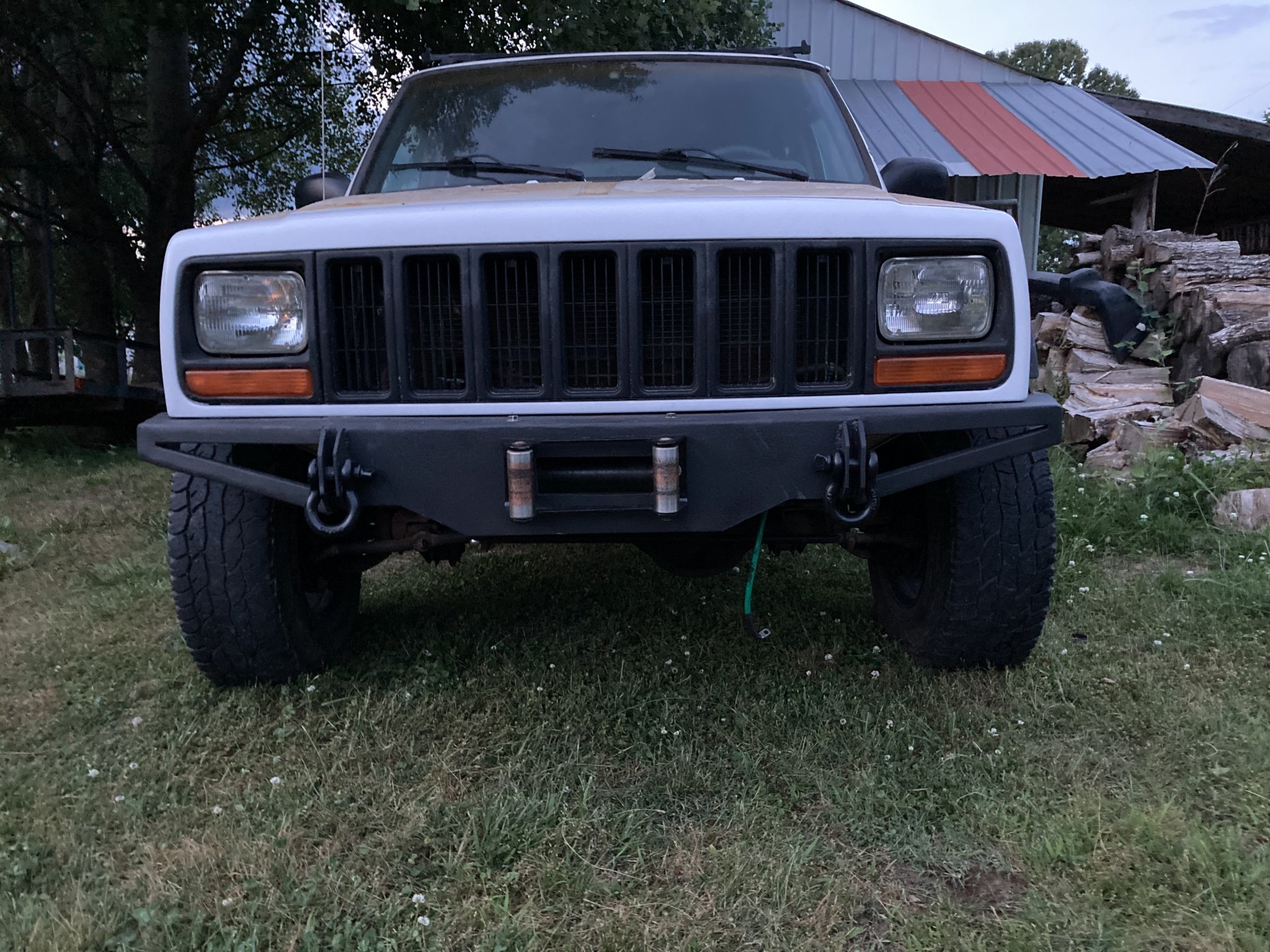

    Not much of a fab guy but been dicking around and built a winch bumper.


    Attachments

    • B2541444-4CC8-4463-BC39-59B8F0AED0C9.jpeg
      635.2 KB · Views: 30
    • E85AB24B-69BA-45F6-857E-7E57D6480679.jpeg
      629 KB · Views: 26

    JRaven

    Sergeant of the Hide
    Full Member
    Minuteman
  • Mar 4, 2013
    144
    96
    ATX

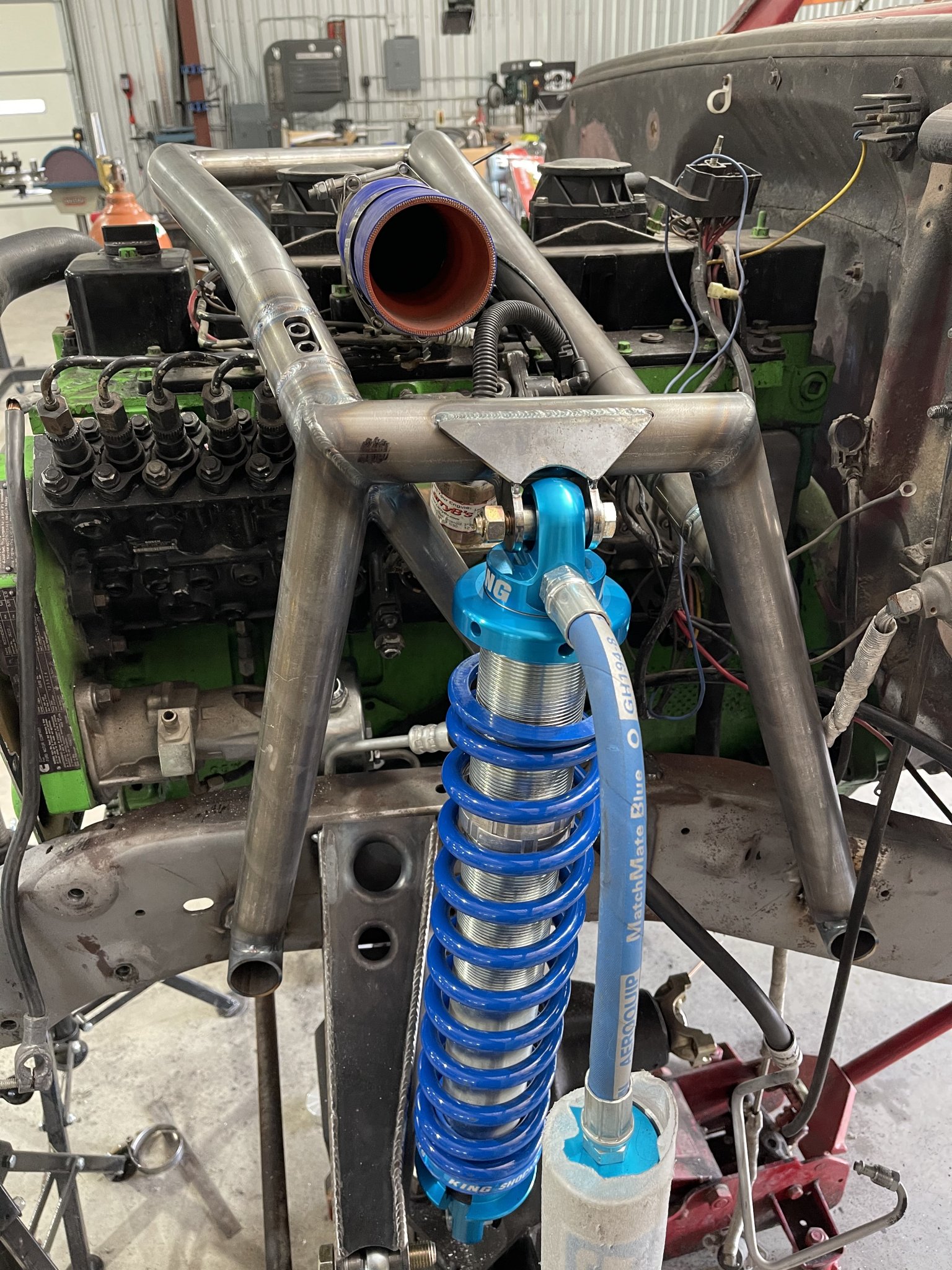

    Been working on my 79 Chevy K30 Crawler since late 2020. Got almost all the fab work done. On the list next is to pull the body off the frame and do the finish welding. Aiming for 142-143" wheelbase if I measured right. Rocking a built 12v/NV4500/205 w/ Magnum Box on 41.5s PBRs, walker evans & 4.88s.





    BullGear

    Huckleberry Dillinger
    Full Member
    Minuteman
  • Nov 29, 2017
    6,541
    11,566
    Hazzard County
    Nice start to a crawler. Wish there were places closer to me for that kind of thing. They shut everything down or idiots got the trails shut down. Take you pick.

    Good luck!


    oneshot86

    Full Member
    Full Member
    Minuteman
    Jul 13, 2001
    8,041
    7,120
    citrus park ,fl
    We've been building another business and we're just plugging along...

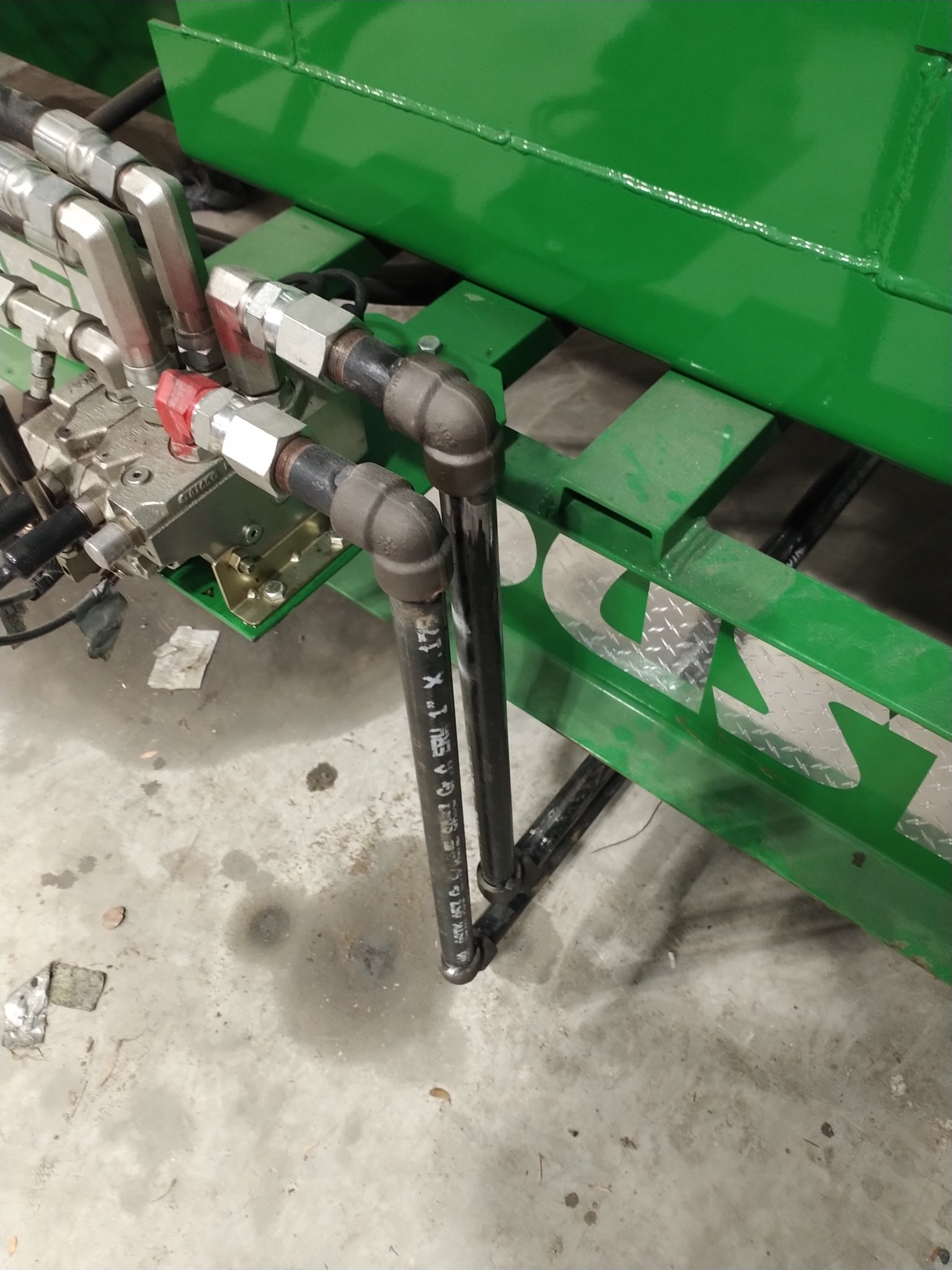

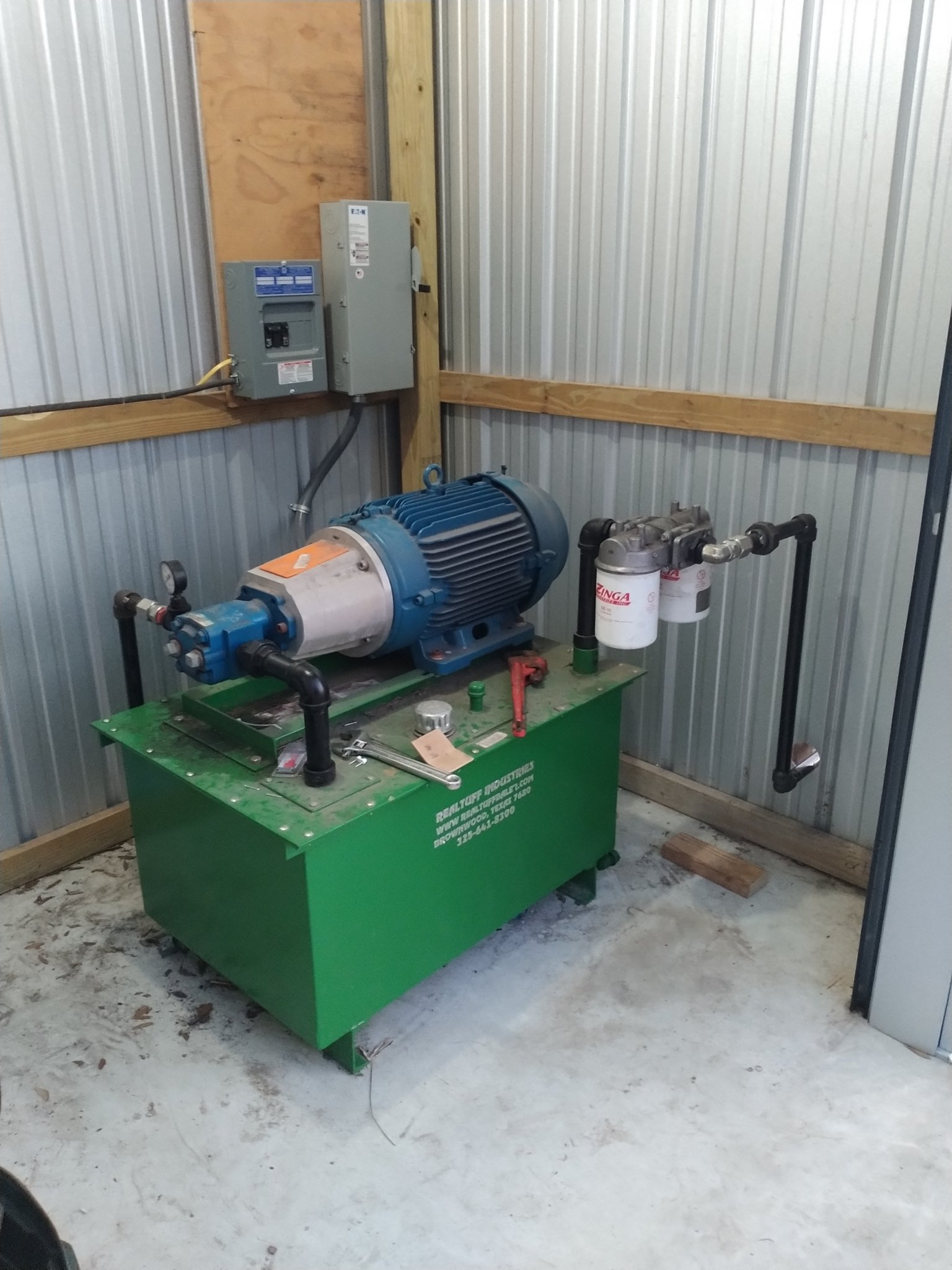

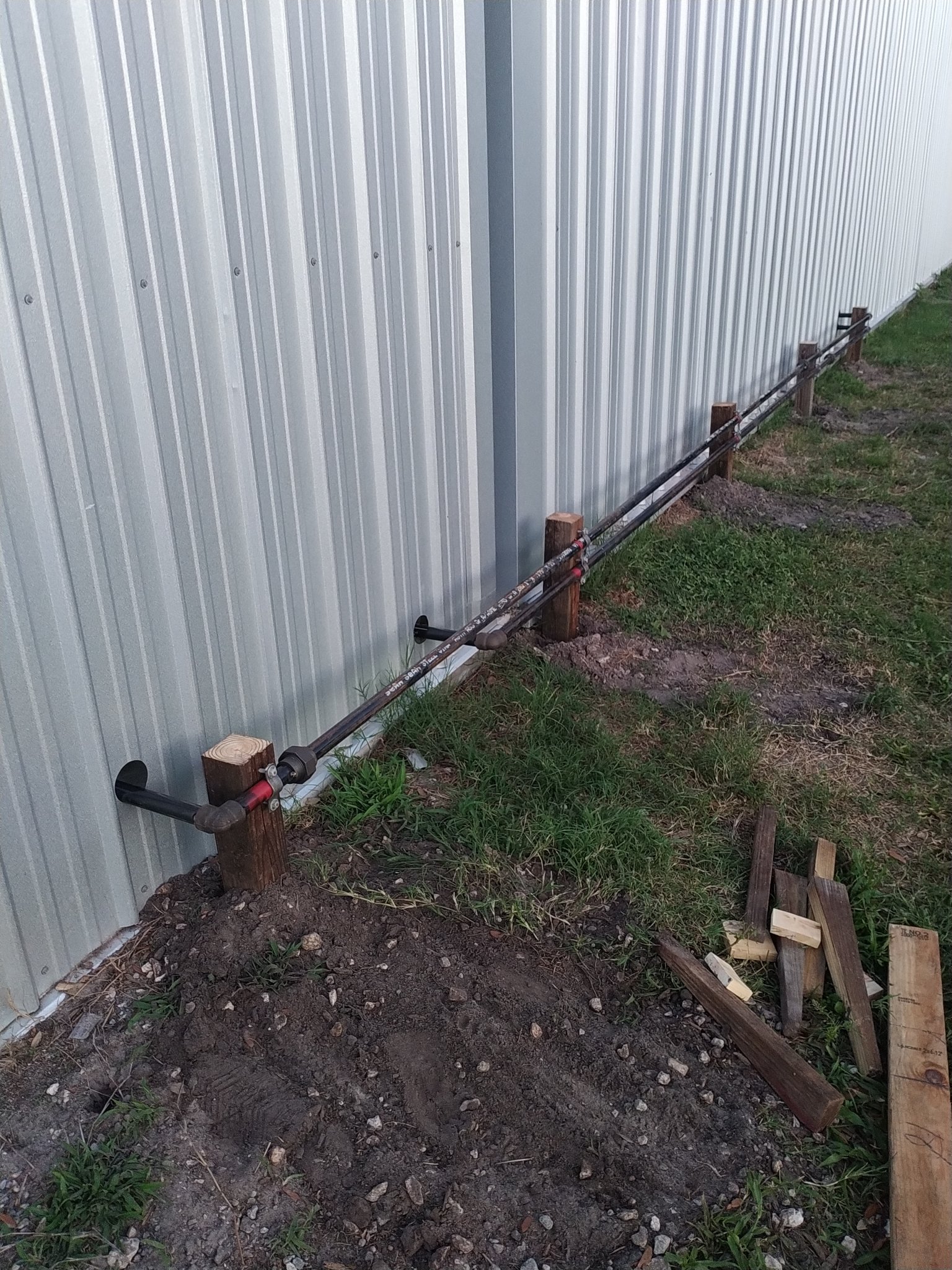

    Today I finished installing the steel sch 80 hydraulic lines. Only, the pipe and fittings are only tack welded together. I'll disassemble tomarrow and weld it completely.
    Side note, the west side of that building is murder to work next to.
    So after this welding thread opened, till now, me, mike the welder as I have gone by since the early 90s, has never shown any damn welding, lol...
    My hopper and delivery systems I start on next will be more dramatic looking vs these hyd lines.


    JRaven

    Sergeant of the Hide
    Full Member
    Minuteman
  • Mar 4, 2013
    144
    96
    ATX

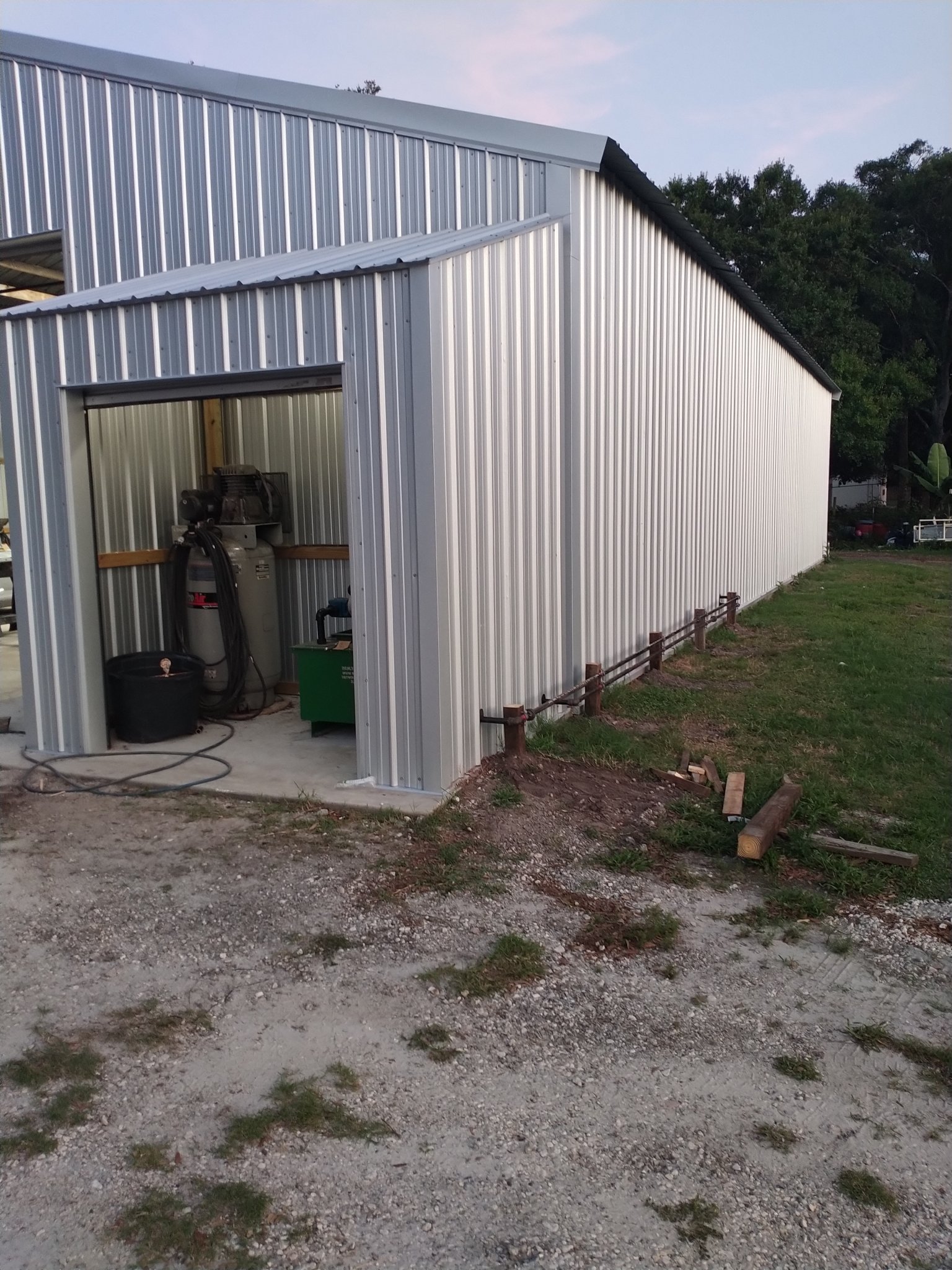

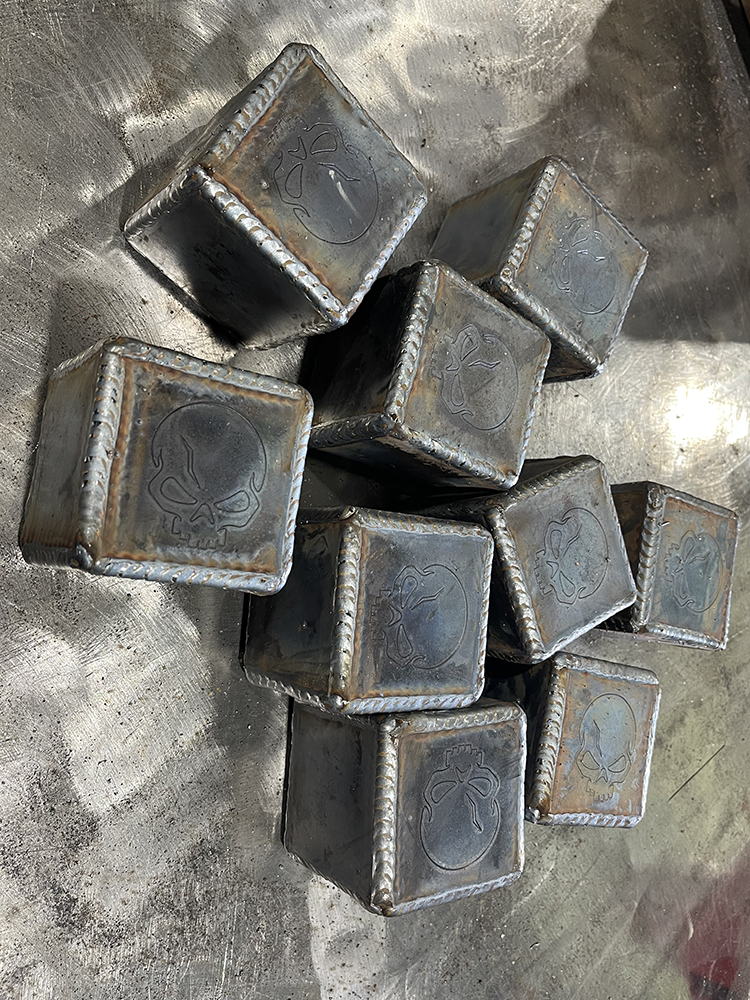

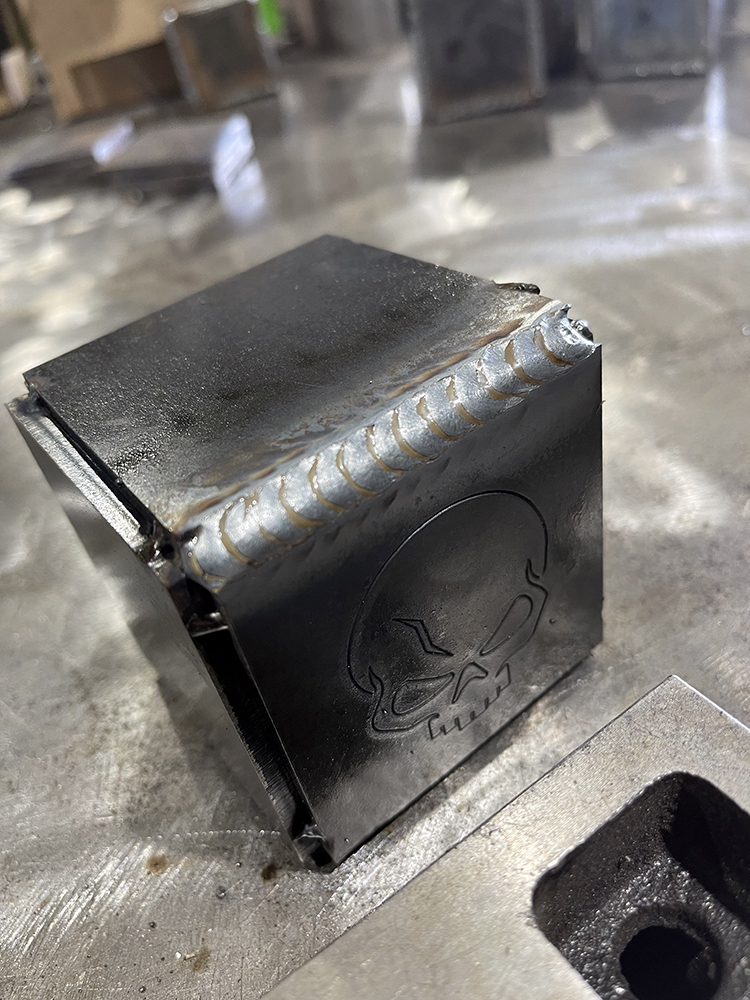

    When I built my building I should have built an additional structure for the air compressor as when that thing comes you cant think or hear the music. And a bathroom; figured we could walk down to the barn, but a bathroom in the building would have been clutch.

    I am not a welder by trade but decent enough pass off I know what I am doing.


    Attachments

    • IMG_2081.jpg
      536.9 KB · Views: 50
    • IMG_2084.jpg
      711.5 KB · Views: 46

    mcameron

    Two Star General
    Full Member
    Minuteman
  • Nov 17, 2011
    5,831
    14,453
    Question, have any of you guys run ballistol/water mix as a coolant?


    Were looking for new lathe coolant and our regular suppliers havent gotten back to us on quotes, and the quotes we've gotten so far have been astronomical.


    BullGear

    Huckleberry Dillinger
    Full Member
    Minuteman
  • Nov 29, 2017
    6,541
    11,566
    Hazzard County
    • Like
    Reactions: Jackjam

    JRaven

    Sergeant of the Hide
    Full Member
    Minuteman
  • Mar 4, 2013
    144
    96
    ATX

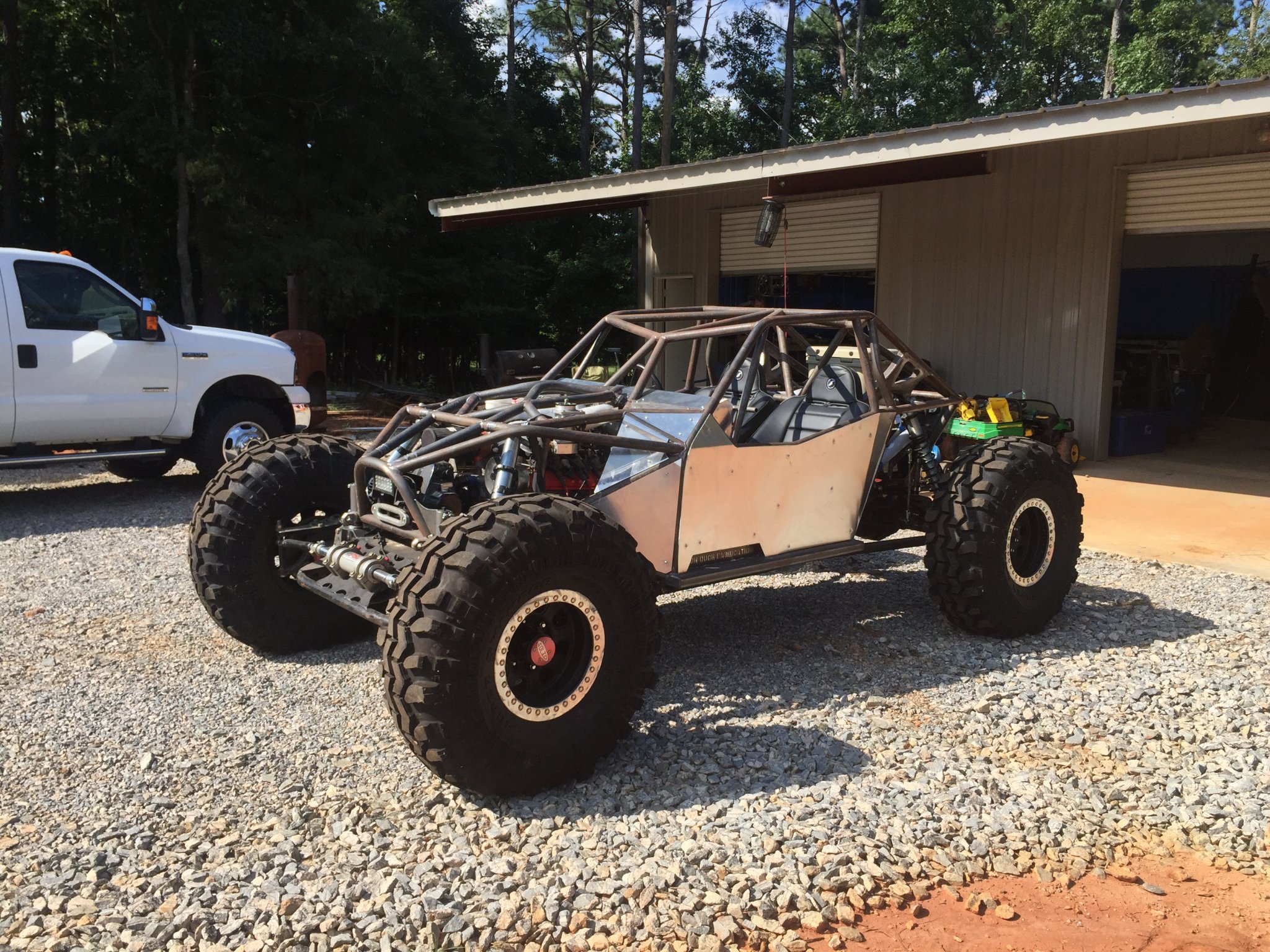

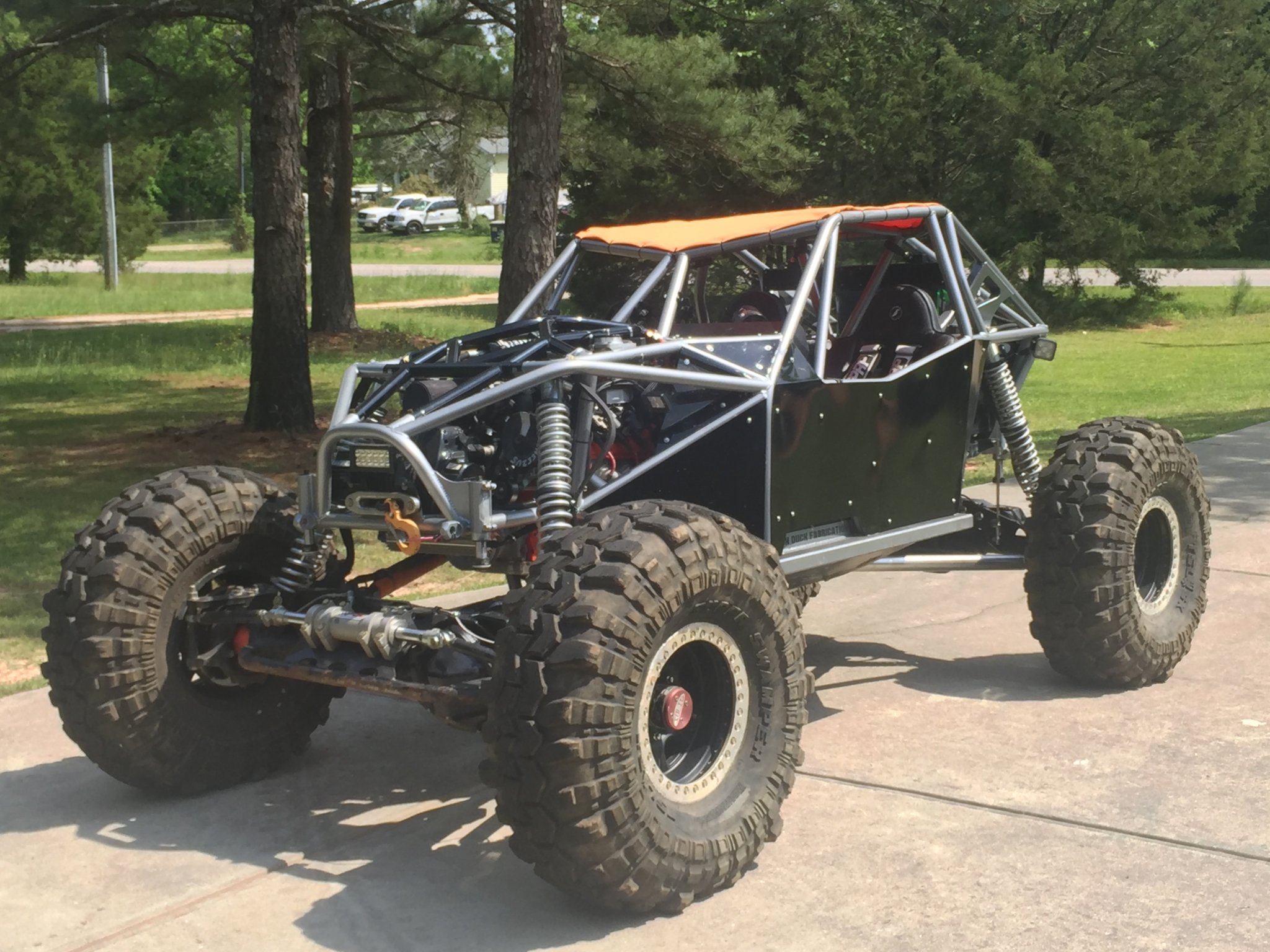

    Pretty badass. Kinda looks like a Wide Open buggy.

    What motor & trans you running? And there is no way you only used 12 sticks.


    Jackjam

    Private
    Minuteman
    Feb 14, 2021
    43
    85
    USA
    How did you bend the tubing and pipe.
    Very clean, nice job

    Rogue fab bender
    Very nice! Buggies are so nice on the trails. Never had the chance to build one and really we have nowhere within 4-5 hours to play anymore. Everything has been shut down years ago.

    Who did your suspension design? It looks like it's stout.

    Nice build, very nice.
    My friend who owns iron duck fab did it. I don’t ride anymore but it was fun to build. I wouldn’t do it again though, way cheaper to just buy something already done.

    Pretty badass. Kinda looks like a Wide Open buggy.

    What motor & trans you running? And there is no way you only used 12 sticks.
    a cammed lq9/ptc th350/atlas and 14bolts f/r. Wod makes nice stuff too.


    • Like
    Reactions: jolofree

    oneshot86

    Full Member
    Full Member
    Minuteman
    Jul 13, 2001
    8,041
    7,120
    citrus park ,fl
    Rogue fab bender

    My friend who owns iron duck fab did it. I don’t ride anymore but it was fun to build. I wouldn’t do it again though, way cheaper to just buy something already done.


    a cammed lq9/ptc th350/atlas and 14bolts f/r. Wod makes nice stuff too.

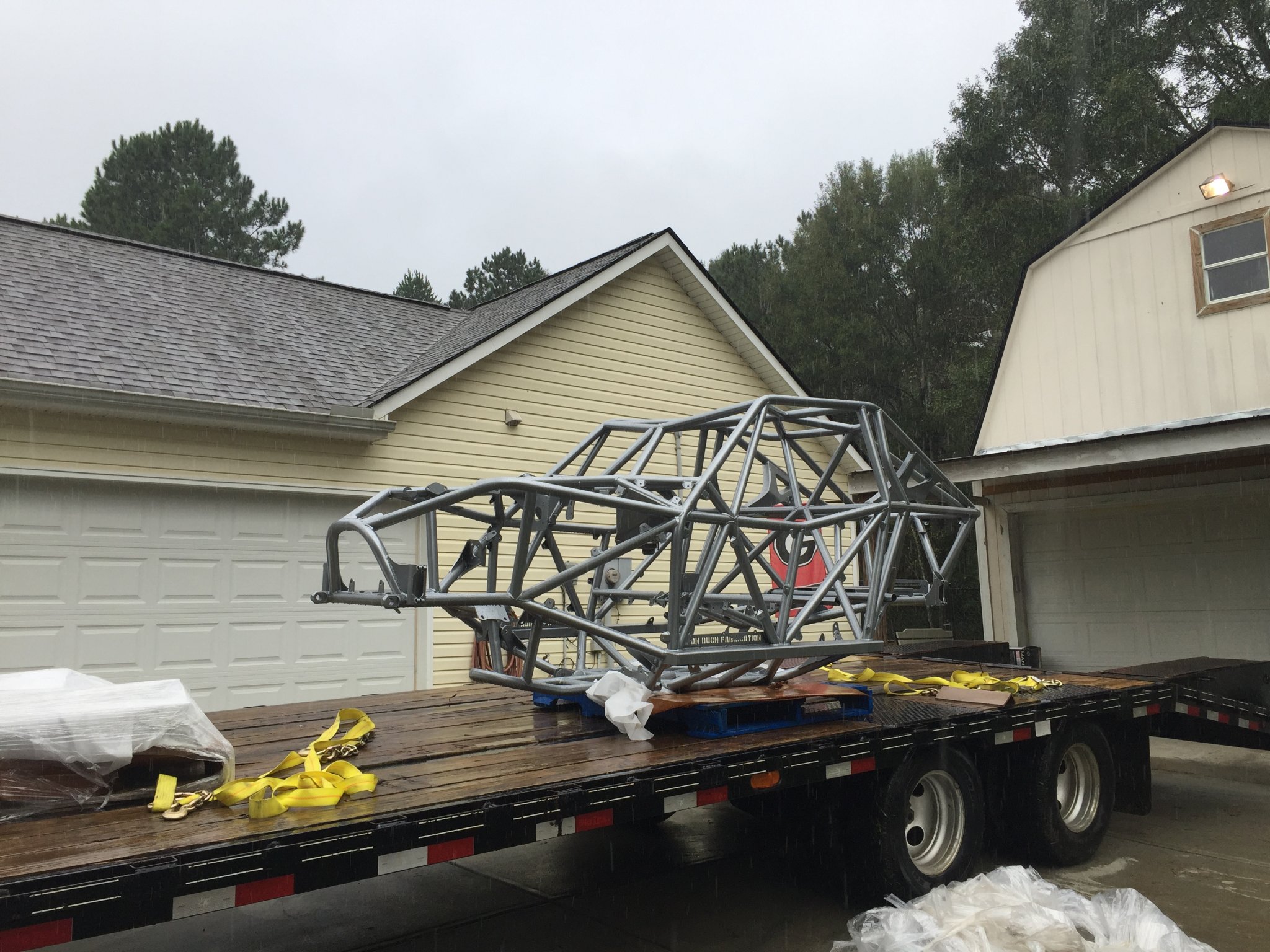

    View attachment 7654135
    Thanks alot buddy, lol...
    I went to the rouge website, super cool, cept, I saw their versi tubing cutter.
    Now I've got to buy it.

    • Like
    Reactions: Jackjam

    frankxtc

    Sergeant of the Hide
    Full Member
    Minuteman
    Aug 24, 2020
    131
    295
    This is a small metalworking project, I learned how to cut inside and outside threads!

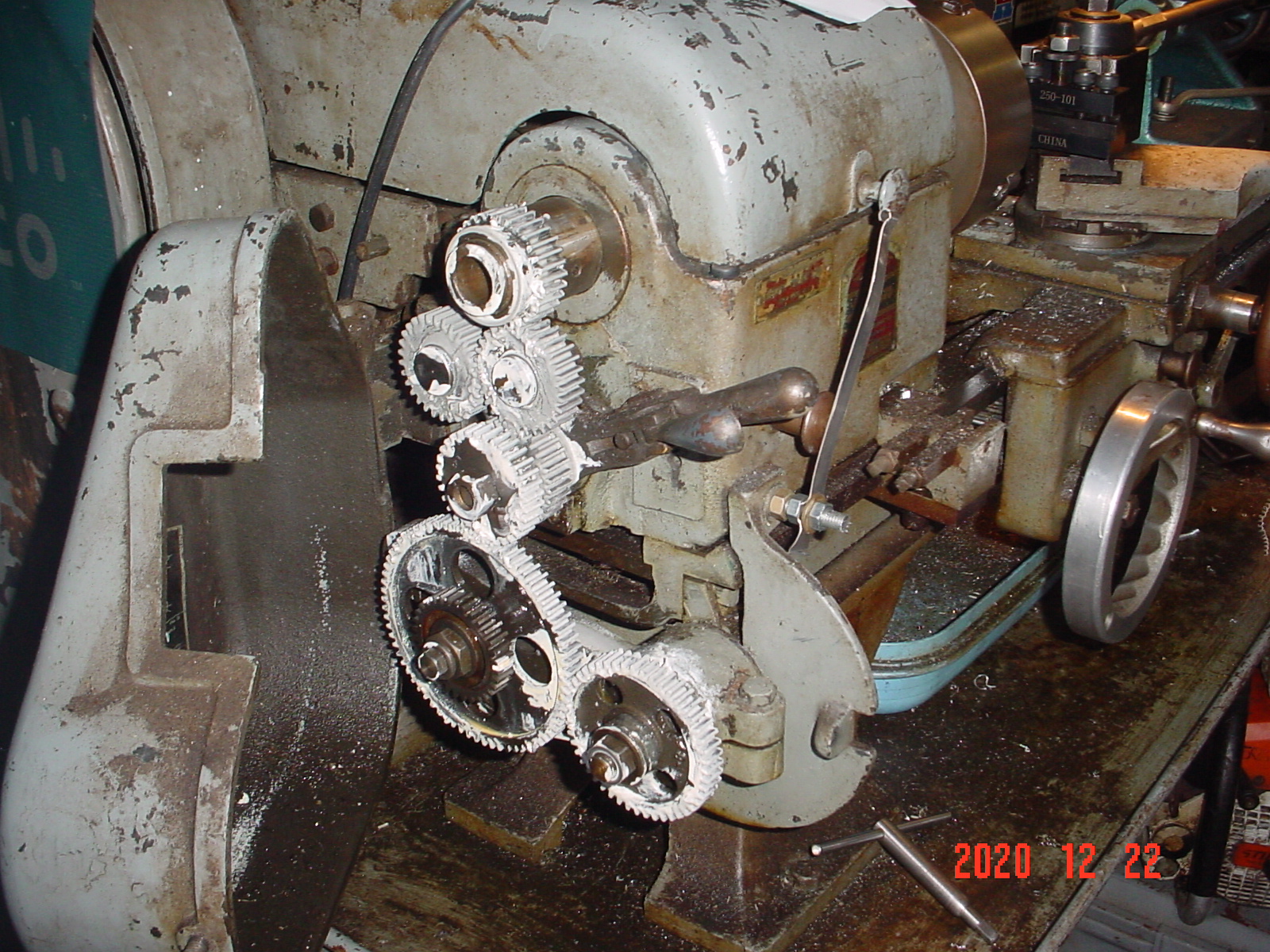

    The 1946 lathe has no gearbox. To cut threads, individual gears are selected from a chart, and installed in various positions in the gear train.
    Really primitive, but effective.
    In keeping with 1946, I lubricated the gear teeth with some White Lead, also an artifact of ancient times.
    gears_installed_lubricated copy.jpg

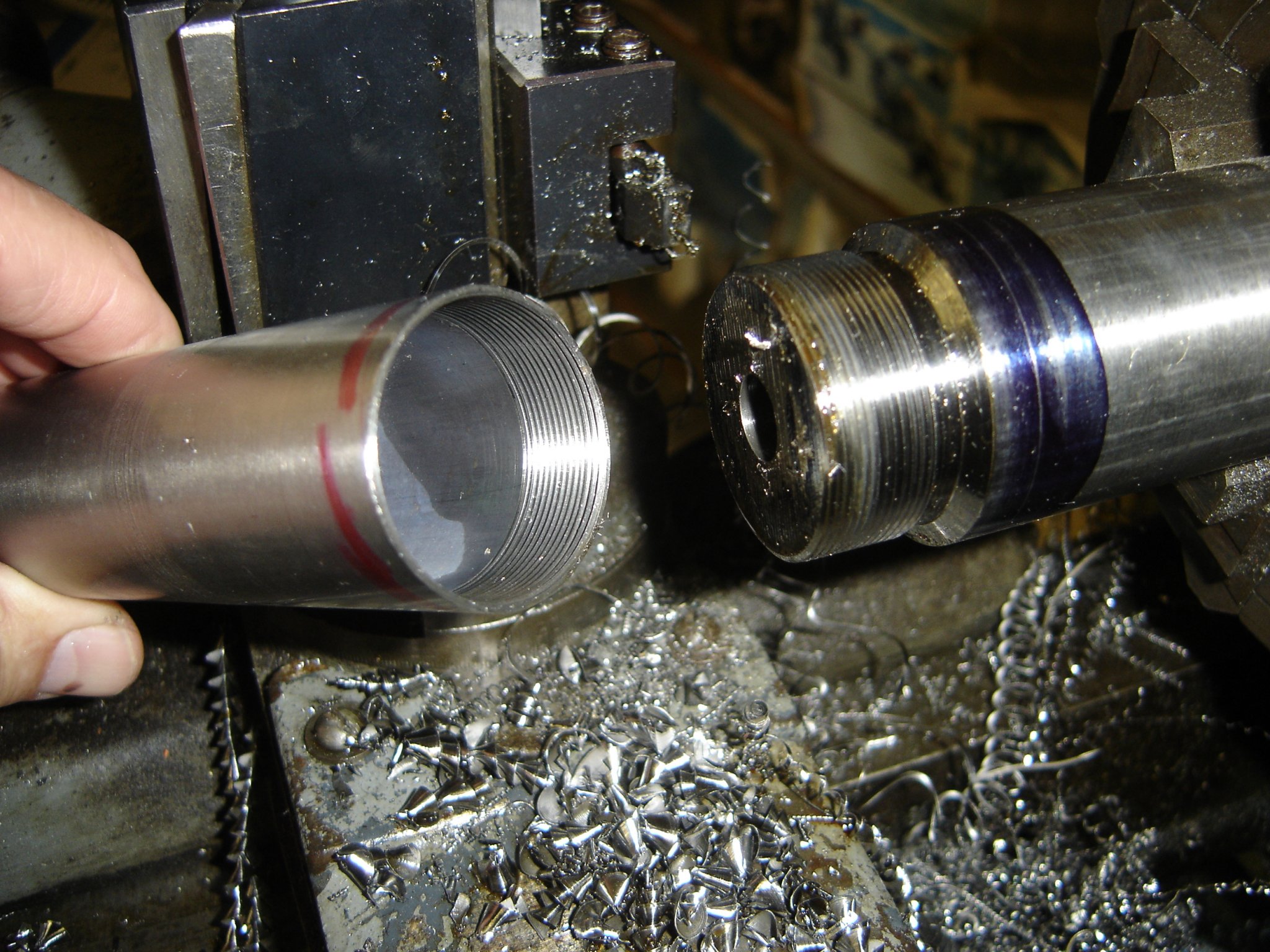

    The metal is Titanium, much more difficult to work with than I am accustomed to.
    titanium_lathe_threading copy.jpg
