If you have feeding issues with the Fix rifle first thing to do is purchase the Lancer L7AWM 10 round magazine or the KAC if you can find them. The Lancer mags are about $43.00 but they are worth it. The Pmags simply do not work reliably and should be given to a friend who has a use for them. Run the bolt with authority. If you have tried this and it still doesn't work then something else is wrong. One problem at a time.
The only time I have had heavy bolt lift is when my reloads are too hot. Again you must run the bolt with authority. YMMV

I've diagnosed this ad-nauseum including sending the rifle back to Q only to have the same issues. Asking people to run the bolt with authority works, but just covers up for a design / manufacturing flaw. Extract the rounds you slam in and inspect the tips of the bullets. The real issue is that when a 6.5mm bullet rides up the barrel extension, the centerline of the bullet barely misses the chamfer into the chamber and hits the perpendicular end of the barrel. The chamfer needs the be altered. I plated with the Lancer mag including bending feed lips - no luck.


Supersubes

Heathen
PX Member
Minuteman
  • Sep 6, 2006
    5,948
    5,206
    Rural Nevada
    I've diagnosed this ad-nauseum including sending the rifle back to Q only to have the same issues. Asking people to run the bolt with authority works, but just covers up for a design / manufacturing flaw. Extract the rounds you slam in and inspect the tips of the bullets. The real issue is that when a 6.5mm bullet rides up the barrel extension, the centerline of the bullet barely misses the chamfer into the chamber and hits the perpendicular end of the barrel. The chamfer needs the be altered. I plated with the Lancer mag including bending feed lips - no luck.
    When I chambered my barrel I found this out. Had to put it back into the lathe and make the chamfer much larger. Absolute butter now.


    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    105
    268
    West of the Rocky's
    When I chambered my barrel I found this out. Had to put it back into the lathe and make the chamfer much larger. Absolute butter now.
    Wow! That is interesting. This photo is my Q 308 barrel that Dave Tooley used for the barrel extension on my new Tooley 6.5 barrel. You can see the chamfer on this barrel is minor. Do you have any pictures of your barrel after you made the chamfer larger, before you put the extension back on? I would like to seeQ Fix 308.jpg how much larger you made the chamfer.


    Attachments

    • Q Fix LC 308.jpg
      Q Fix LC 308.jpg
      180.7 KB · Views: 28

    Supersubes

    Heathen
    PX Member
    Minuteman
  • Sep 6, 2006
    5,948
    5,206
    Rural Nevada
    Wow! That is interesting. This photo is my Q 308 barrel that Dave Tooley used for the barrel extension on my new Tooley 6.5 barrel. You can see the chamfer on this barrel is minor. Do you have any pictures of your barrel after you made the chamfer larger, before you put the extension back on? I would like to seeView attachment 7462041 how much larger you made the chamfer.
    I would call that a large chamfer, and larger than mine was initially. How does yours work? I think I have some before pics, but no after pics.


    Supersubes

    Heathen
    PX Member
    Minuteman
  • Sep 6, 2006
    5,948
    5,206
    Rural Nevada
    Before, long bullets would reach over the extension and touch the vertical portion of the breech face, just below the chamfer. If I seated the bullets deeper, the shoulder of the case would contact the extension and lift the tip of the bullet, and it would feed fine. The alteration was pretty easy, and I just cut two wider angles on the existing chamfer(going no deeper), and blended them. My gun never had issues with the factory creed barrel. This barrel is a 6.5x47, and showed the issue immediately. I’ll see if I can take an after pic. D75CBDCE-5A20-402C-8184-32C8C7A27FEB.jpeg135FE737-783D-443F-BDB1-F372BAB78366.jpeg

    factory chamfer below.

    Last edited:

    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    105
    268
    West of the Rocky's
    I didn't have any issues with feeding as soon as I switched to the Lancer magazines and run the bolt with authority. I wouldn't call it butter smooth but it does work. The 6.5 Tooley barrel looks about the same so maybe yours was not cut properly. I was thinking maybe I could improve mine with a larger chamfer but probably not. Your chamfer looks deeper than my 308 barrel but it's hard to say. Your pictures are great!

    Last edited:

    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    105
    268
    West of the Rocky's
    This is my Tooley 6.5 barrel. Sorry about the shadows. You can see where the bullets are hitting the chamfer. I'm shooting Hornady ELD bullets but they still leave a mark. My only complaint with the Fix is I wish cycling the bolt was smoother like a Tikka or AI.Tooley 6.5.jpg


    Supersubes

    Heathen
    PX Member
    Minuteman
  • Sep 6, 2006
    5,948
    5,206
    Rural Nevada
    I cut the chamfer depth based on the Internal shape of the case, hence the cross-sectioned case. I’ll try and take a pic of mine. It’s also assembled so it won’t be ideal.


    FMJ

    Lead Slinger
    PX Member
    Minuteman
    Dec 5, 2004
    105
    268
    West of the Rocky's
    It's really hard to tell from photos but your chamfer and my 6.5 look better to me than my factory Q 308 chamfer. Wish I had your knowledge and skill, your work looks beautiful.

    • Like
    Reactions: Supersubes

    Supersubes

    Heathen
    PX Member
    Minuteman
  • Sep 6, 2006
    5,948
    5,206
    Rural Nevada

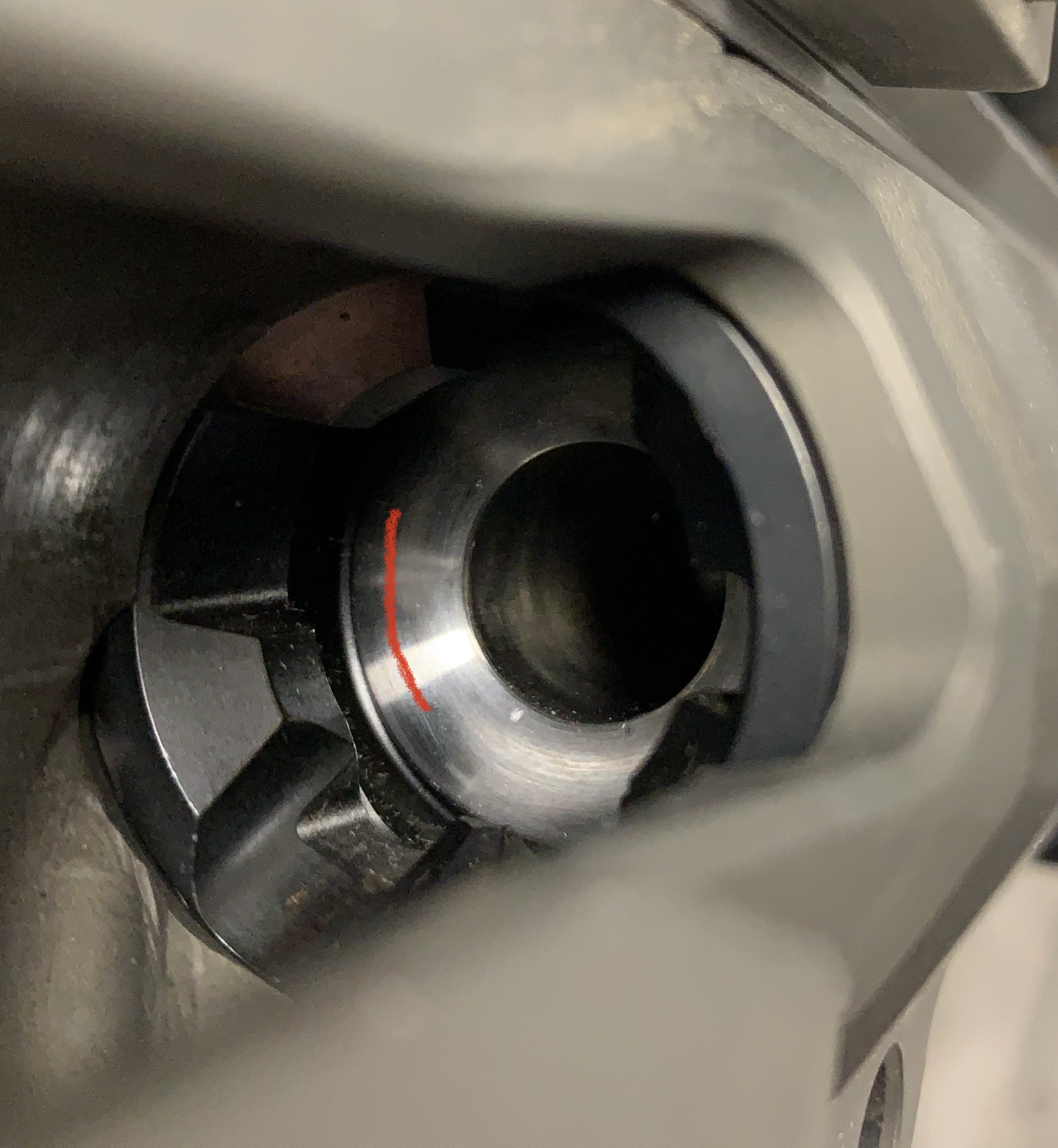

    It's really hard to tell from photos but your chamfer and my 6.5 look better to me than my factory Q 308 chamfer. Wish I had your knowledge and skill, your work looks beautiful.
    The red line is the end of the chamfer approximately.

    • Like
    Reactions: FMJ

    craigos

    craigos from Scout 2015
    PX Member
    Minuteman
  • Feb 11, 2017
    2,763
    909
    PNW
    i sent my fix back to Q - they were great about it, fitted me out with a bunch of the new items (trigger, safety) they chamfered my breech face to feed the bullets (mine is serial #xx000039) so one of the first ones, came with matching serial TP -- just got it back so will try a mag of reloads (6.5cm)

    Last edited:

    accurate_okie

    Private
    PX Member
    Minuteman
    Sep 28, 2017
    198
    74
    GA

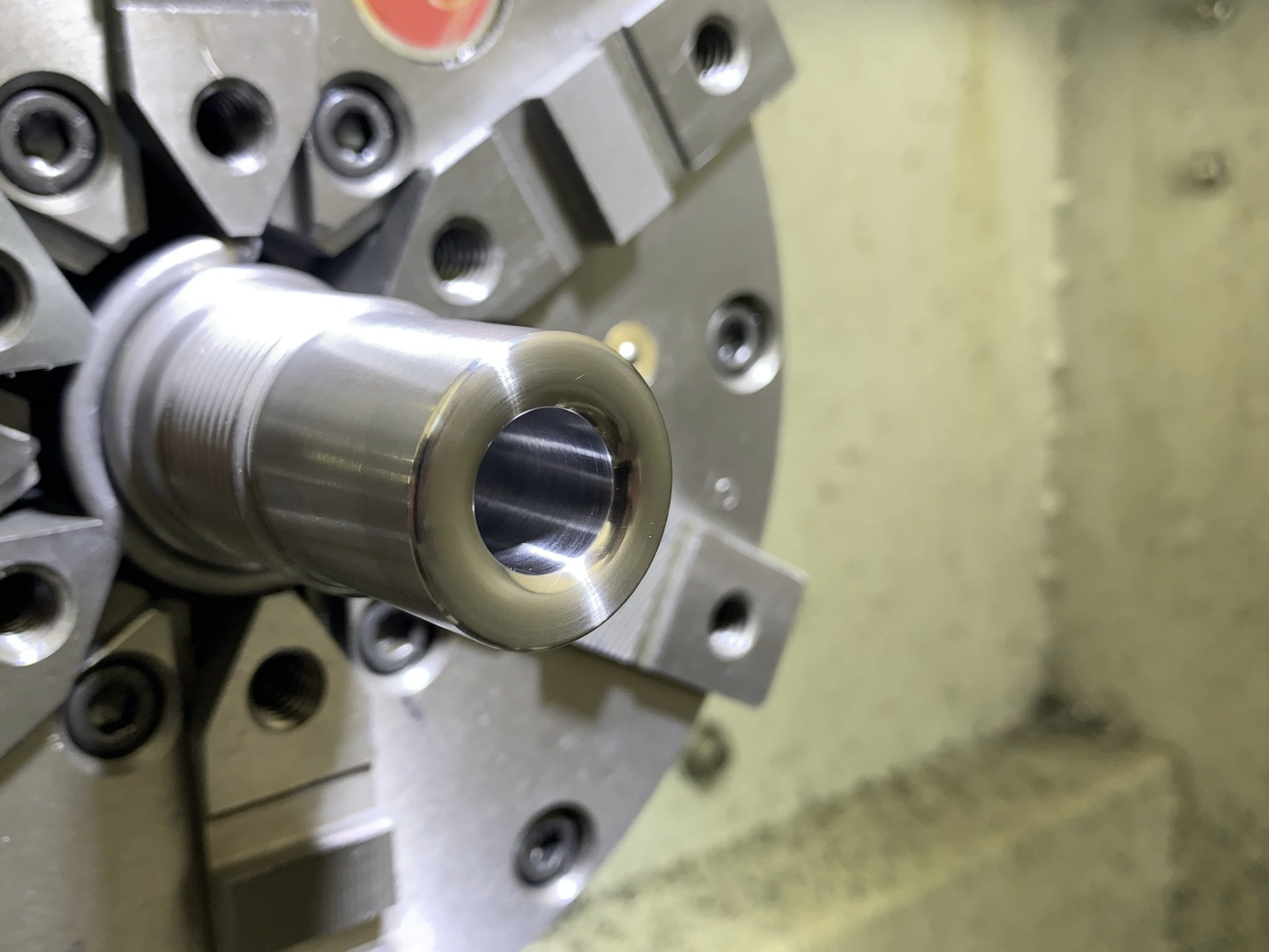

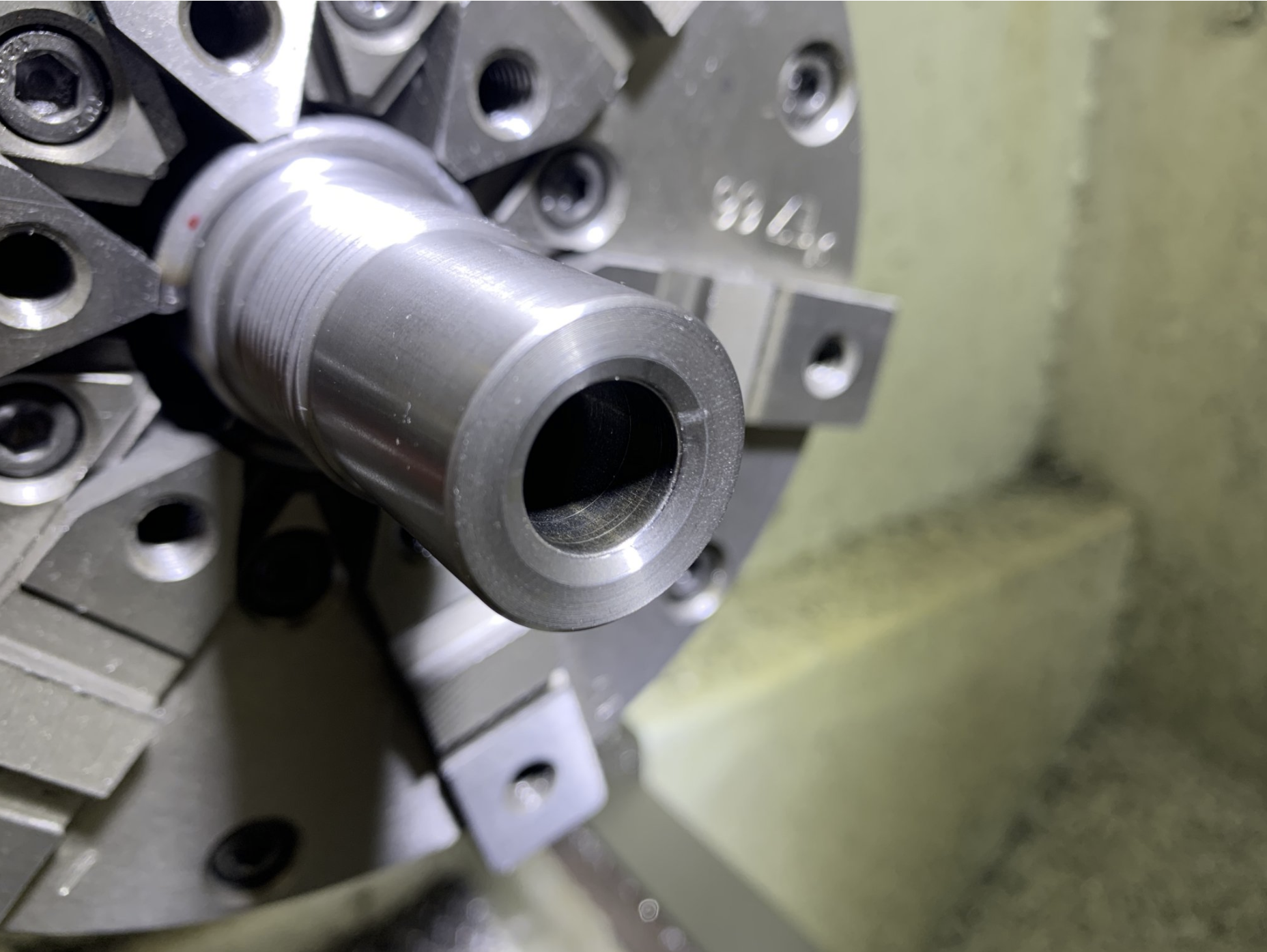

    I sent my 6.5 barrel to @Supersubes to fix the chamfer. He sent me the before and after pictures below. Damn that's beautiful! I have high confidence that this will solve the feed issues and will share a writeup after I get the barrel back.

    Thank you again @Supersubes for doing this for me and turning it around so fast.

    View attachment 7471572

    View attachment 7471573

    Sure is Perty!

    Let us know how it performs, I have a couple barrels that might need this, as well as, others.


    Rootshot

    Sergeant
    PX Member
    Minuteman
    Mar 28, 2006
    303
    139
    SF Bay Area
    I sent my 6.5 barrel to @Supersubes to fix the chamfer. He sent me the before and after pictures below. Damn that's beautiful! I have high confidence that this will solve the feed issues and will share a writeup after I get the barrel back.

    Thank you again @Supersubes for doing this for me and turning it around so fast.

    View attachment 7471572

    View attachment 7471573

    I received the barrel this evening and re-assembled everything. I'm happy to report that feeding is night & day better than before. Bullet tips slide along the polished chamfer into the chamber with no visible damage. Case closed on this issue!


    Supersubes

    Heathen
    PX Member
    Minuteman
  • Sep 6, 2006
    5,948
    5,206
    Rural Nevada
    I received the barrel this evening and re-assembled everything. I'm happy to report that feeding is night & day better than before. Bullet tips slide along the polished chamfer into the chamber with no visible damage. Case closed on this issue!
    Awesome! Glad to hear it!


    Buck Lawman

    Sergeant of the Hide
    PX Member
    Minuteman
    I just picked up a 16 inch 6.5 creed Fix. Haven't shot it yet but I have no feeding issues out of 10 round pmags with both hornady eld-m, eld-x or prime 130's. The bolt lift seems fine as well. This thread had me worried. It is a nice feeling rifle though at 10 lbs with an atlas bipod, trash panda, and ATACR 4-16x42. Hope she shoots!


    craigos

    craigos from Scout 2015
    PX Member
    Minuteman
  • Feb 11, 2017
    2,763
    909
    PNW
    I just picked up a 16 inch 6.5 creed Fix. Haven't shot it yet but I have no feeding issues out of 10 round pmags with both hornady eld-m, eld-x or prime 130's. The bolt lift seems fine as well. This thread had me worried. It is a nice feeling rifle though at 10 lbs with an atlas bipod, trash panda, and ATACR 4-16x42. Hope she shoots!

    they eat up elds ... try some reloads :)


    Desert_

    Private
    Minuteman
    Oct 18, 2019
    2
    0
    Will the newest rifles going to ship with a chamfer similar to what @Supersubes is doing (maybe not as nice)? Interested in a 6.5 rifle, but not if they've got feeding issues. Also know a handful of you have had several fixes from the initial run to current; any impressions on the revisions/latest rifles vs the first batch?


    Buck Lawman

    Sergeant of the Hide
    PX Member
    Minuteman
    Shoot it does not. Been out with it twice, best it’s done is a 1.2 inch group with Hornady factory 143 eldx’s. Shoots prime 130’s into 2.5-3 inch groups, shoots 140eldm into 2-2.5 inch groups. It’s got 100 rounds through it now and I did the whole break in, same as I’ve done with all my other bolt guns. I’ve got a 6.5 saum that weighs 9.5 lbs scoped and it shoots .2’s and .3’s regularly, so I don’t think it’s the weight causing issues. I find the stock to be quite comfortable to get behind actually, the adjustments are all excellent and doing repetitive dry firing with it the crosshairs don’t move at all. I’m going to check the scope out to make sure that’s not the culprit but I’m pretty sure that it’s not(atacr4-16x42). I’m gonna give it one more chance and then I’ll have to send it out to Q because this is pretty bad at the moment. I’ve tried 5 different “factory” loads from Hornady 140 and 143’s, prime 130’s, copper creek Berger 135 and 135atips. The Berger’s and the 143’s shoot the “best” at about 1.25 inches. Have any of you guys had accuracy issues like this? On a side note, feeds fine out of the supplied pmag.


    Buck Lawman

    Sergeant of the Hide
    PX Member
    Minuteman

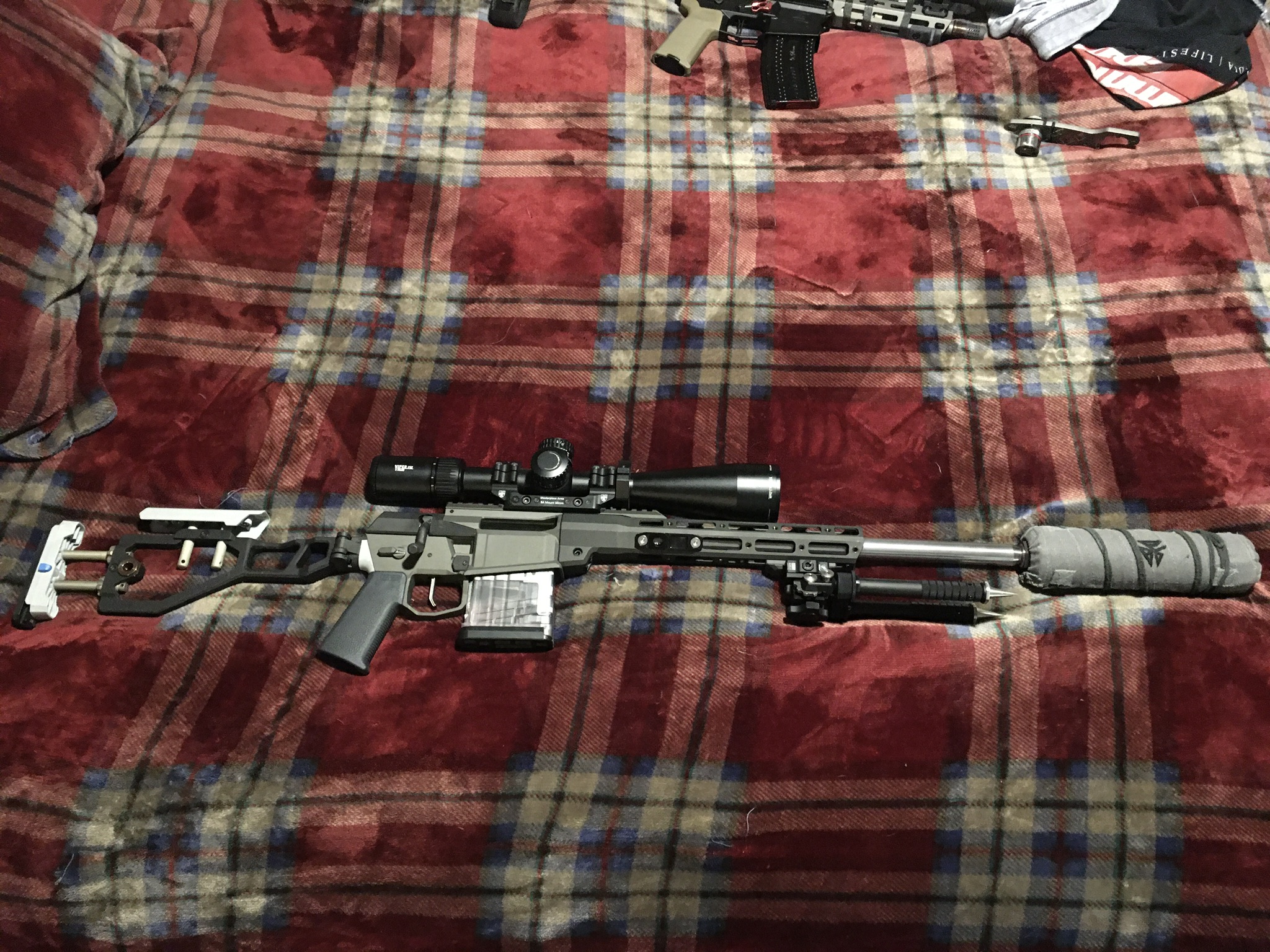

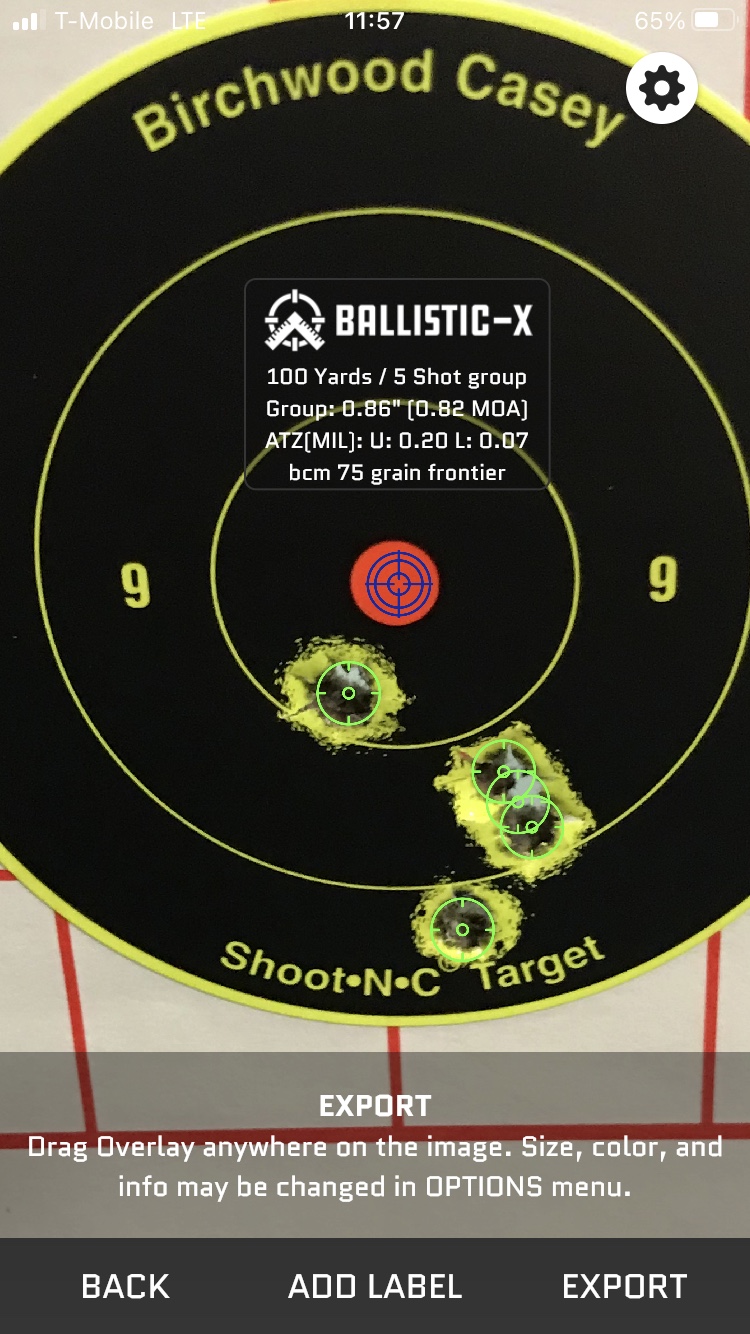

    took it out again today and shot 2 new loads through it, copper creek 130eldm and 153atip as well as the 140 eldm and prime 130 offerings. No bueno, emailed Q and will wait and see. I have had to send a honey badger in for repairs and it was hassle free and came back in tip top shape. Hopefully this goes the same way. I'll update when it's resolved. I pulled the scope and mount off as a unit and put it back on a 5.56 gasser that shoots in the .8's to 1 inch range and fired 1 shot at 50 adjusted the turrets and then sure as shit shot a 5 shot group at .82 MOA with 75 grain frontier. It even shoots 55 grain imi into an inch and a quarter. Threw the scope back on the fix and it was the same story 1.5-3 inch groups with everything. I can't make heads or tails out of it so hopefully the boys can take a look at it and get it running right. As previously stated though no feeding issues with hornady 140eldm, 143eldx, copper creek 130eldm, 135berger classic hunter, 135atip, 153atip, or prime 130's.


    Attachments

    • fullsizeoutput_2f35.jpeg
      312.9 KB · Views: 7
    • fullsizeoutput_2f37.jpeg
      309.9 KB · Views: 7
    • dImzzbWeQTmSKxkyd+4X%w.jpg
      338.7 KB · Views: 6
    • P4szp%d3SZyqCJ2AmxHHrA.jpg
      338.8 KB · Views: 5

    Barelstroker

    Sergeant of the Hide
    PX Member
    Minuteman
    Sep 11, 2019
    191
    55
    Garand Thumb did a review a while back. I took his take as .....it's fun, it's fancy, it's the latest & greatest, fixes some non issues & is expensive. I think I'd take a Howa 1500 in a dusty, sandy environment.
    I applaud Q for their efforts as I appreciate innovation & engineering improvements but, these days, many of the innovations have to be geared toward more affordability in the mass market.
    Anyone who can come up with a truly innovative design which, revolutionises cost of manufacture while, improving accuracy & keeping within the purview of aftermarket gear such as triggers, barrels, muzzle devices, stocks, chassis, magazines & the like, would be more the way to go IMHO.
    Regards............Barelstroker


    Texascbr

    Private
    Minuteman
    Nov 7, 2017
    56
    43
    Austin, Texas
    My Fix is a 16" 6.5 Creedmoor. Mine has always been an easy MOA rifle with various factory ammo. I did have an issue with loading but after sending it back to Q and having the receiver replaced under warranty everything has been great. The warranty issue was super easy and quick.

    Love this little contraption. Perfect hunting rig. My next step will be to get a carbon proof barrel in 6 Creed.


    newguy2k3v2

    Sergeant
    PX Member
    Minuteman
    Sep 16, 2009
    1,044
    288
    College Station, Tx
    @Buck Lawman you don't by chance have any of the rail sections installed in the spots closest to the receiver do you?

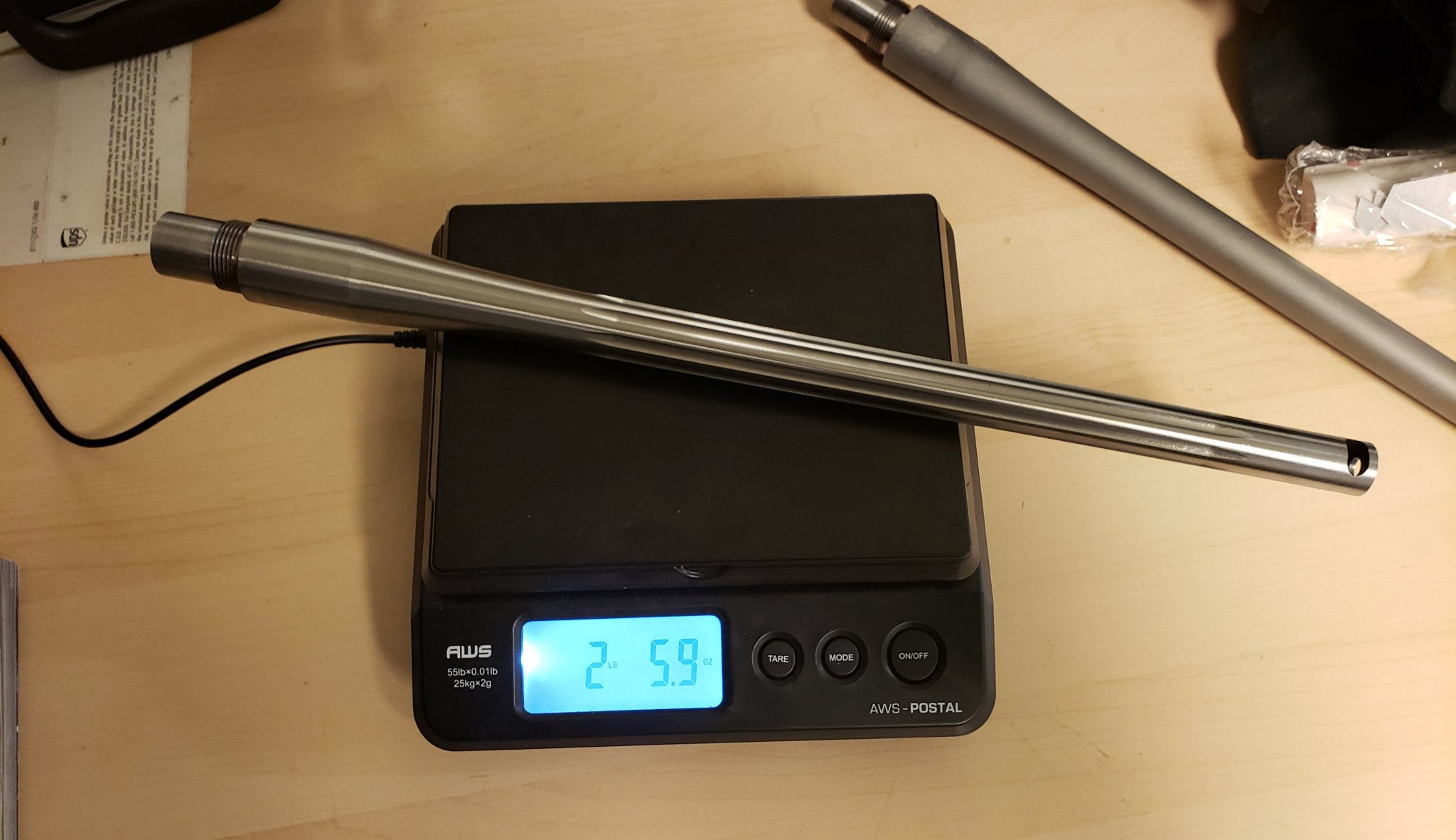

    Idk how light the contour is on the 16" 6.5 but on the 22" one of the screws made contact with the barrel and made mine shoot a little wonky.


    Barelstroker

    Sergeant of the Hide
    PX Member
    Minuteman
    Sep 11, 2019
    191
    55
    Sweet more opinions from someone who has never handled, seen, owned, or shot a Fix....

    But hey—he did see some other guy review one on youtube this one time!!!
    Well, I don't see anything particularly revolutionary.
    The barrel extension threaded on is definitely big plus.
    45 deg bolt lift,.............not an upgrade IMO.
    The sliding shroud at the rear of the bolt will foul with sand & grit just like the Blaser does but, although any rifle will foul, the Q will do it faster & shit itself harder.
    What were they thinking with the micro shoulder pad on a lightweight rifle?
    According to some reviewers, accuracy is nothing outstanding but, not bad either. Isn't that what the biggish $$ are for?
    Just my opinion so, don't go all Vanessa about it. I think the rifle has merit but, I think they've gone off on a tangent that will confine them to the niche end of the market.
    Bit of a shame really, it could have been something more than a "look at my cock rifle".
    Regards................Barelstroker.


    brazz04

    Sergeant of the Hide
    PX Member
    Minuteman
    Feb 10, 2018
    107
    103
    Well, I don't see anything particularly revolutionary.
    The barrel extension threaded on is definitely big plus.
    45 deg bolt lift,.............not an upgrade IMO.
    The sliding shroud at the rear of the bolt will foul with sand & grit just like the Blaser does but, although any rifle will foul, the Q will do it faster & shit itself harder.
    What were they thinking with the micro shoulder pad on a lightweight rifle?
    According to some reviewers, accuracy is nothing outstanding but, not bad either. Isn't that what the biggish $$ are for?
    Just my opinion so, don't go all Vanessa about it. I think the rifle has merit but, I think they've gone off on a tangent that will confine them to the niche end of the market.
    Bit of a shame really, it could have been something more than a "look at my cock rifle".
    Regards................Barelstroker.

    Cool, you don't have to be on page 90 of this thread then...

    • Like
    Reactions: Kevin Brittingham

    Barelstroker

    Sergeant of the Hide
    PX Member
    Minuteman
    Sep 11, 2019
    191
    55
    Cool, you don't have to be on page 90 of this thread then...
    If I'd have known you were a democrat, I would've been far more agreeable with my opinions.
    Don't want to risk being kicked off the hide for hate speech.


    redneckbmxer24

    Merica!
    PX Member
    Minuteman
  • Jan 15, 2005
    7,686
    3,458
    Gulf Coast, FL
    Well, I don't see anything particularly revolutionary.
    The barrel extension threaded on is definitely big plus.
    45 deg bolt lift,.............not an upgrade IMO.
    The sliding shroud at the rear of the bolt will foul with sand & grit just like the Blaser does but, although any rifle will foul, the Q will do it faster & shit itself harder.
    What were they thinking with the micro shoulder pad on a lightweight rifle?
    According to some reviewers, accuracy is nothing outstanding but, not bad either. Isn't that what the biggish $$ are for?
    Just my opinion so, don't go all Vanessa about it. I think the rifle has merit but, I think they've gone off on a tangent that will confine them to the niche end of the market.
    Bit of a shame really, it could have been something more than a "look at my cock rifle".
    Regards................Barelstroker.

    You’re speculating and don’t have a fucking clue. I’ve had two of the damn things and I can tell you that you are 100% off in your assessment. The Fix is undoubtedly one of the best bolt guns I’ve ever put my hands on. The only reason I say one of the best is because I couldn’t pick between it an an AI AX/AXMC even though they’re different animals.

    The Fix is a reliable rifle, it’s an accurate rifle, and it’s a phenomenal platform and the best critter stick I have ever used. Period.


    Barelstroker

    Sergeant of the Hide
    PX Member
    Minuteman
    Sep 11, 2019
    191
    55
    You’re speculating and don’t have a fucking clue. I’ve had two of the damn things and I can tell you that you are 100% off in your assessment. The Fix is undoubtedly one of the best bolt guns I’ve ever put my hands on. The only reason I say one of the best is because I couldn’t pick between it an an AI AX/AXMC even though they’re different animals.

    The Fix is a reliable rifle, it’s an accurate rifle, and it’s a phenomenal platform and the best critter stick I have ever used. Period.
    As long as you're happy with it cobba.

    • Like
    Reactions: Kevin Brittingham

    Buck Lawman

    Sergeant of the Hide
    PX Member
    Minuteman
    I think the Shanghai shivers got everybody a little snappy. I was simply sharing my experience, hoping someone could provide something helpful. Now the rifle is shipped (with a free label and everything) and I'll update with the results when it comes back.


    _308_

    Private
    Minuteman
    Mar 22, 2020
    20
    20
    Coldspring, Texas

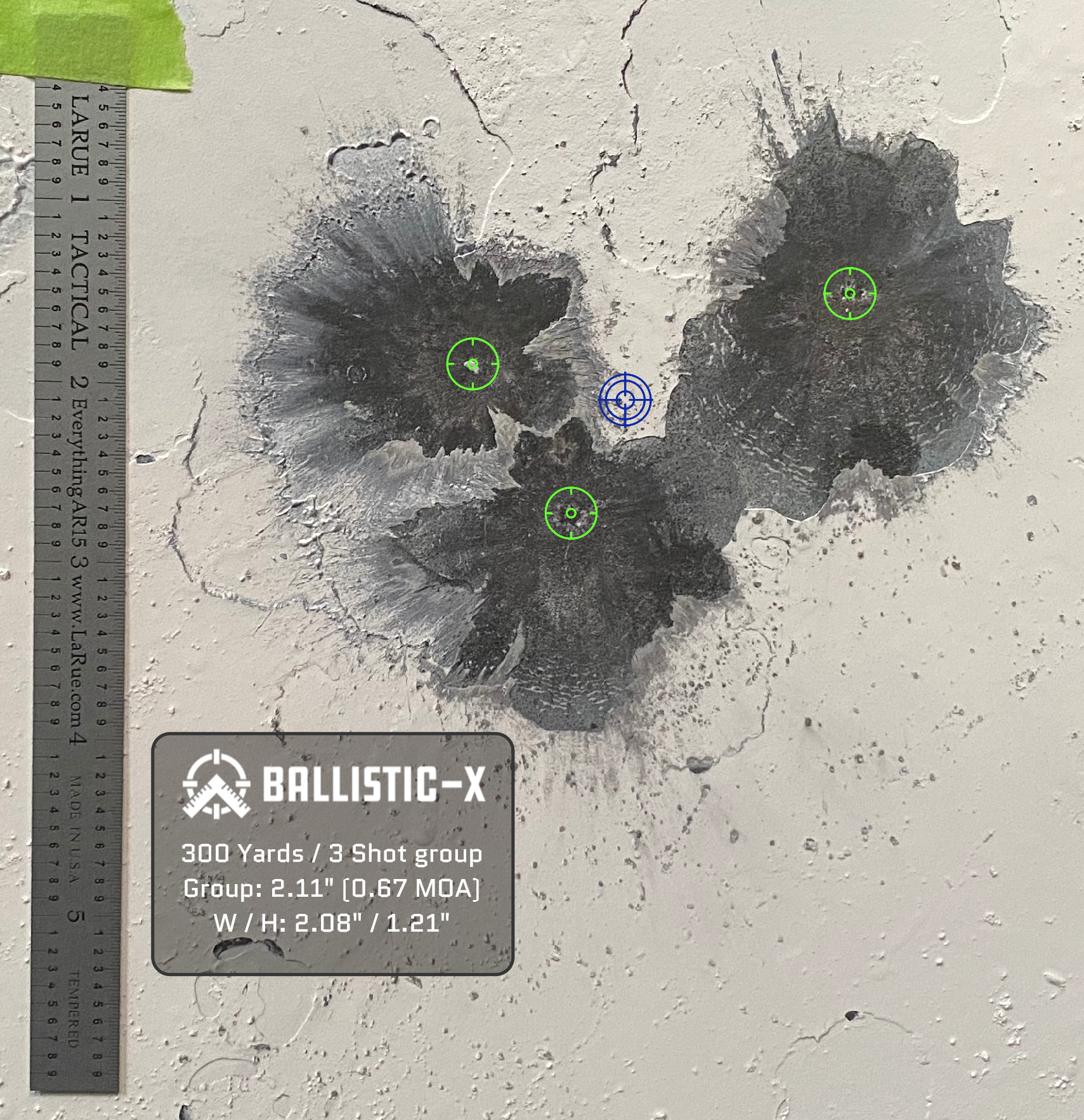

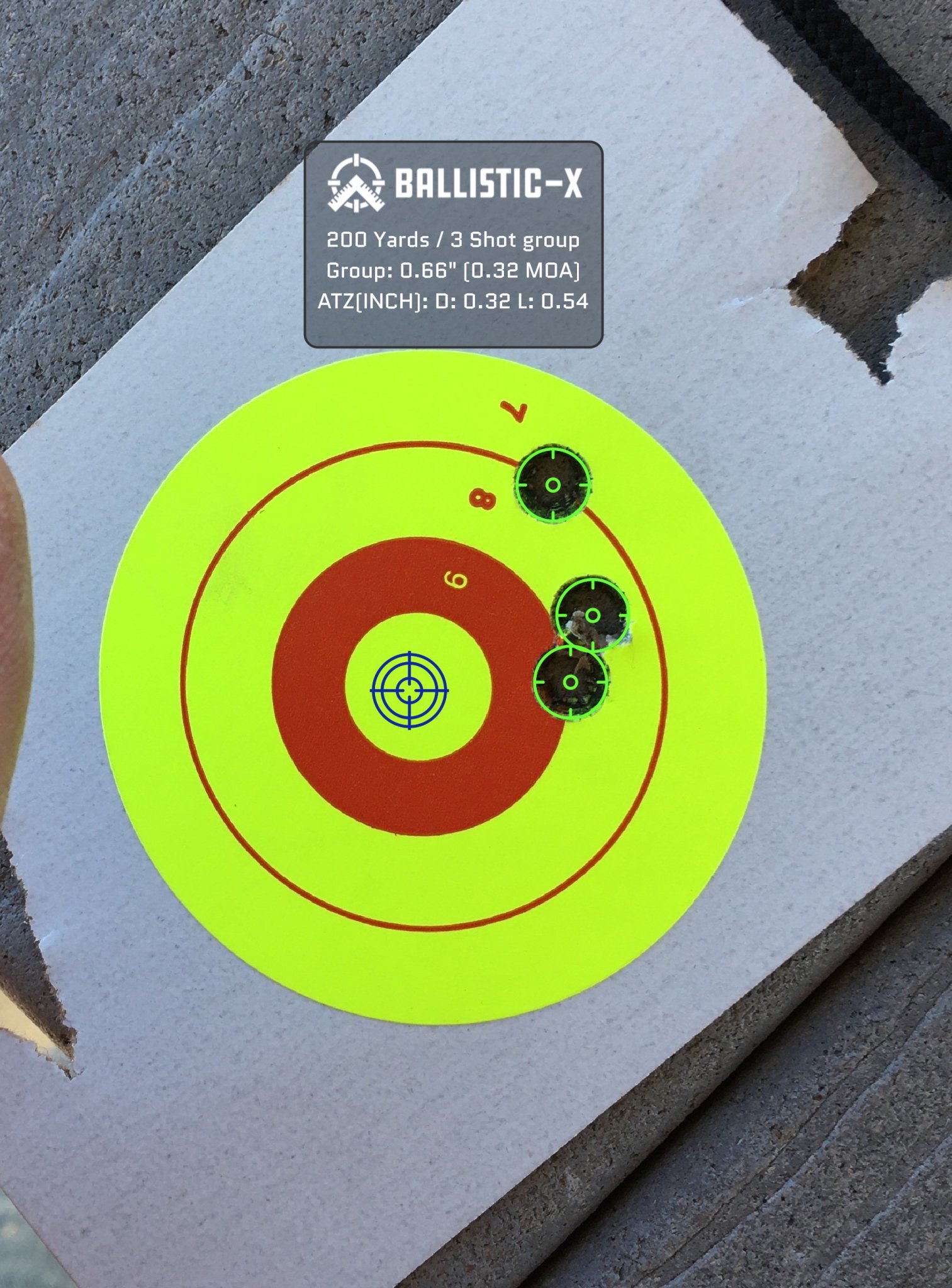

    took it out again today and shot 2 new loads through it, copper creek 130eldm and 153atip as well as the 140 eldm and prime 130 offerings. No bueno, emailed Q and will wait and see. I have had to send a honey badger in for repairs and it was hassle free and came back in tip top shape. Hopefully this goes the same way. I'll update when it's resolved. I pulled the scope and mount off as a unit and put it back on a 5.56 gasser that shoots in the .8's to 1 inch range and fired 1 shot at 50 adjusted the turrets and then sure as shit shot a 5 shot group at .82 MOA with 75 grain frontier. It even shoots 55 grain imi into an inch and a quarter. Threw the scope back on the fix and it was the same story 1.5-3 inch groups with everything. I can't make heads or tails out of it so hopefully the boys can take a look at it and get it running right. As previously stated though no feeding issues with hornady 140eldm, 143eldx, copper creek 130eldm, 135berger classic hunter, 135atip, 153atip, or prime 130's.

    Ask them for the targets from their test. A buddy of mine was having an issue and they sent the targets back of 1/2 moa groups. Never told him what the issue was, he was also having the same problem as you. Both of us are shooting .308.

    Mine was shit groups for maybe the first couple hundred rounds. Figured it was me not being used to the rifle and just powered through it. I was seeing the same results as you, now with no warranty work done it is easily grouping 1/2 moa if I do my part. Swapped in a 20" Proof Carbon barrel and seeing the same results. Maybe it was me that needed breaking in...

    I defiantly had buyers remorse after the first couple boxes of ammo. Now that I've had the rifle for a couple years I love it. Great hunting rifle!


    Attachments

    • Ballistic-X-Export-2020-08-07 212255.991570.PNG
      Ballistic-X-Export-2020-08-07 212255.991570.PNG
      3.7 MB · Views: 12
    • Ballistic-X-Export-2020-10-01 232813.755461.PNG
      Ballistic-X-Export-2020-10-01 232813.755461.PNG
      3.8 MB · Views: 13
    • Ballistic-X-Export-2020-11-03 183356.889771.PNG
      Ballistic-X-Export-2020-11-03 183356.889771.PNG
      1.3 MB · Views: 12
    • Ballistic-X-Export-2020-12-09 120448.885975.PNG
      Ballistic-X-Export-2020-12-09 120448.885975.PNG
      1.5 MB · Views: 10
    • Ballistic-X-Export-2020-12-09 120623.513494.PNG
      Ballistic-X-Export-2020-12-09 120623.513494.PNG
      1.2 MB · Views: 11
    • Like
    Reactions: esw004

    Buck Lawman

    Sergeant of the Hide
    PX Member
    Minuteman
    Thanks for the info!!! That is exactly the type of knowledge I was seeking. It's on it's way back to them now and I will definitely post with updates when it comes back. I'll check with them on the test targets. My OBR came with one and it was a spot on example of what the rifle was capable of. None of my GA Precisions did but, all three shoot very well. Thanks again for the input.

    • Like
    Reactions: _308_

    Sjc141

    Private
    Minuteman
    Nov 8, 2018
    31
    13
    Ask them for the targets from their test. A buddy of mine was having an issue and they sent the targets back of 1/2 moa groups. Never told him what the issue was, he was also having the same problem as you. Both of us are shooting .308.

    Mine was shit groups for maybe the first couple hundred rounds. Figured it was me not being used to the rifle and just powered through it. I was seeing the same results as you, now with no warranty work done it is easily grouping 1/2 moa if I do my part. Swapped in a 20" Proof Carbon barrel and seeing the same results. Maybe it was me that needed breaking in...

    I defiantly had buyers remorse after the first couple boxes of ammo. Now that I've had the rifle for a couple years I love it. Great hunting rifle!
    I had the exact results as you when I first started shooting mine. Shot 1” - 1-5” groups and was dissatisfied. Never sent it back but kept practicing, dry firing and watching a lot of training videos. Figured out it’s just a light gun with a medium weight trigger. It’s not a 20+ pound rifle with an 8 ounce trigger, it forces you to work on your fundamentals. As far as im concerned, I got more than my money’s worth. It was a 22” 6.5cm but with a suppressor, it was just too long to carry around for hunting. Chopped to 17.5” and still shoots sub .5 moa. Have a picture from this weekend checking zero. Got a new lot of 140 eldm and only had to correct with .1 mil from the last batch. It’s really a testament to Hornady factory ammo. Connected to 1k on the first shot just to see if I could. 4B6AA066-83AF-4AEB-9367-D61719DD7C58.jpeg9BA0B6C5-D041-4866-9570-2ADB498BEE98.jpeg
