Night Vision The Official: Steiner C35 Thermal Clip-on Review and User Thread!
- Thread starter TheHorta
- Start date

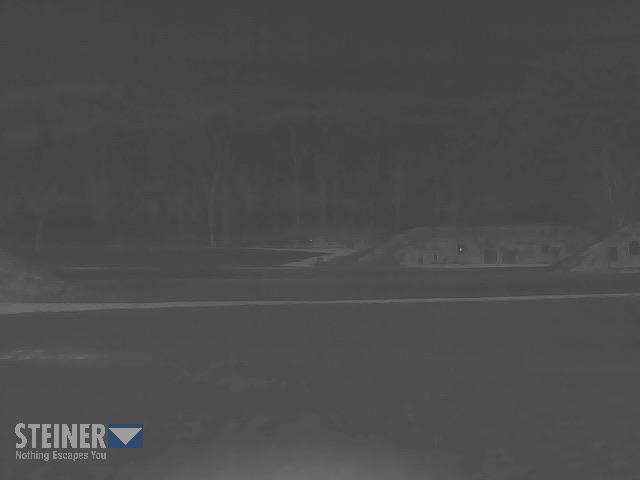

Took mine out to the range on Saturday night, and managed to get a couple of pics. You may have to zoom in on them since they are unmagnified straight from the unit. We were using Grabber sticky-backed handwarmers as thermal targets at 300 and 500 yards. They measure 4"x6". The white dots showing at 300 (right of center) and 500 yards (center) are the handwarmers. No problem targeting them at x4-x6 scope magnification.

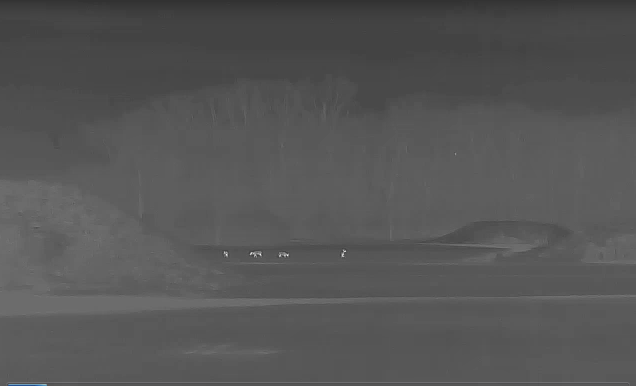

Second pic shows 4 deer around 350 yards out. If you look closely, you can see a bird in the trees above and behind the 500 yard berm.
Second pic shows 4 deer around 350 yards out. If you look closely, you can see a bird in the trees above and behind the 500 yard berm.
Got my S35 zeroed the other day. Least intuitive zeroing procedure I've ever undertaken, but I got it done.
Temps were in the mid-50s with some humidity, so less than ideal, but a black 6" shoot 'n see left in the on again/off again sun which was then stapled to a 14"x14" white target made for a hot enough spot to put the Steiner reticle on and get zeroed at 100yds.
I've read elsewhere that saving a zeroed profile only keeps it viable for the magnification level it was zeroed at. Ie: changing the zoom level on the scope will change the POI. Anyone able to confirm this is a thing? When I step through the zoom levels in the zeroing function, I see the X and Y numbers change, but haven't shot at distance across a number of zoom levels to see if there's any difference in impact. Think I'll try that next time out.
Temps were in the mid-50s with some humidity, so less than ideal, but a black 6" shoot 'n see left in the on again/off again sun which was then stapled to a 14"x14" white target made for a hot enough spot to put the Steiner reticle on and get zeroed at 100yds.
I've read elsewhere that saving a zeroed profile only keeps it viable for the magnification level it was zeroed at. Ie: changing the zoom level on the scope will change the POI. Anyone able to confirm this is a thing? When I step through the zoom levels in the zeroing function, I see the X and Y numbers change, but haven't shot at distance across a number of zoom levels to see if there's any difference in impact. Think I'll try that next time out.
Yes, you will have to zero for 1X 2X 4X and 8X.
When you are in the zero menu you should see the ZOOM option.
Yeah, the ZOOM function in the zeroing menu made me wonder if the zero would apply across multiple zoom levels once completed, but it doesn't look that way. Guess I'll do a few zeroes for the main rifle at say 1x and 4x and 8x. Or is it just easier to zero at 2x in the zeroing menu and then see what your POI is at 1x and other zoom settings once outside of the zeroing menu?
Is that applicable to only the S35 or does the C35 have to be zeroed at a certain magnification on the scope as well?
- Nov 3, 2010
- 8,632
- 17,474
C35 uses your host scope zero. You might have to make minor adjustments for each scope. It has 3 presets to account for that
C35 doesn't zoom. So this isn't necessary. One reason why this clip-on is superior to the S35
Thanks guys.
Anyone know the implications of using a day optic not mounted at 1.5"? Just a different zero location?
- Nov 3, 2010
- 8,632
- 17,474
I’m running the below and they worked for me
Badger unimount 1.40
JP flattop mount 1.47
hmmm.... it would be for my mk12mod0 gun, that sits in medium ARMS rings at 1.18".
it may not work out for that gun but the 2.5-10x32 NXS would be perfectly mated to the C35.
will swap over to the Sr-15 with an NXS 1-4 on it.
- Nov 3, 2010
- 8,632
- 17,474
I’m running it in front of a NXS1-4 on my 300BO SBR. Seems to be a good fit for it. I am like you and waiting to get a rail setup for using it in front of a Lupy 2.5-10 mk4. That one is on a bolt gun though and sits in some badger rings.
I am in the same thinking of a 2.5-20 being almost perfect for the c35 as well.
I've used mine with 1.063-1.95" heights and 0-30 MOA mounts including a 1.125" with 20 MOA, zero to minimal difference in adjustment necessary on the C35. Seems pretty tolerant so far.
I would look through the c35 with a 20x optic before buying one. I had not planned on buying an LPVO but I’m glad I did now.
My scope is 1-10x and at about 6x the imagine is pretty maxed out and pixelated. In my very limited experience with my c35 so far 20x would be absolutely worthless.
Hell, on 10x it’s worthless. Check it out before buying a 20x unless you just wanted the 20x for daytime.
I’m using a 2.5-10. At 10x I killed a coyote over 400 yards with it. Is it great at 10x? No. Is it worthless at 10x? No.
- Nov 3, 2010
- 8,632
- 17,474
Sorry that was a typo. I meant 2.5-10. I have found 8x to be the top end for me so far
Called in a bobcat last night and got a neat video of him through the c35 but I have no idea how to save the video to my phone.
Anyone figured out how to do that yet?
Anyone figured out how to do that yet?
- Nov 3, 2010
- 8,632
- 17,474

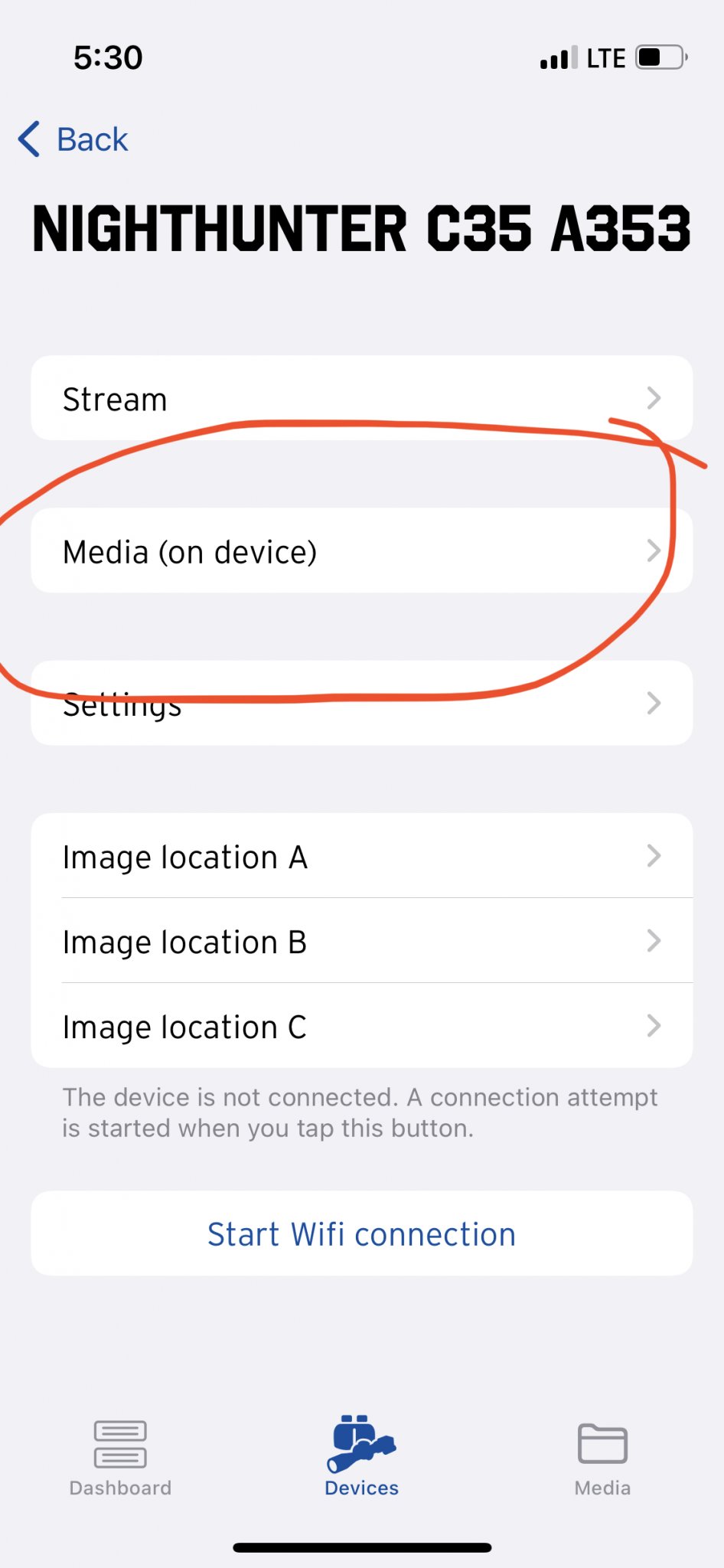

Turn your wifi on and you can share to your phone. Go to media on device and click the file you want. Save it to your device. My stuff is out in the shop, and I’ll too lazy to walk out and get it or I’d post some pics
- Nov 3, 2010
- 8,632
- 17,474
I did that. I can delete the media but can't save it. The little icon that looks like a rectangle with the arrow pointing up was where I thought I could save it but that didn't work. Gotta be something small Im missing.
When did you buy? Still waiting on mine been over 10 weeks now I think
Mine says pending still
- Nov 3, 2010
- 8,632
- 17,474
Got an email saying my rebate was mailed this morning
Try turning off the cell service on your phone while connecting via wifi on your phone and C35 (really bluetooth I think). I had some issues streaming from my S35 to my phone and turning off the cell service fixed that. I wonder if it'll help in this instance too. The directions in the manual are pretty poor for these things. Trial and error seems to be the way, though the S35 and C35 do have some differences even though they're the same general electronic guts.
I will definitely give that a try. Thank you sir.
Mine got delivered 10/4. I probably did the rebate submission the next day.
I just got an email saying my rebate was mailed this morning
Submitted my rebate on 10/15 and received my rebate check in yesterday's mail FYI (this was for C35 only)
Me too!
- Nov 3, 2010
- 8,632
- 17,474
Edit, mine was in the mailbox this afternoon so the email with notice was behind somewhat I believe
Texted my wife... mine was too. Downside... she opened it.
The text I got back "I don't even want to know how much you spent to get this big of a rebate." Need to order some more Christmas presents now...
Same here, I got an email last night saying they mailed it on the 12/15 and this afternoon I got my check in the mail.

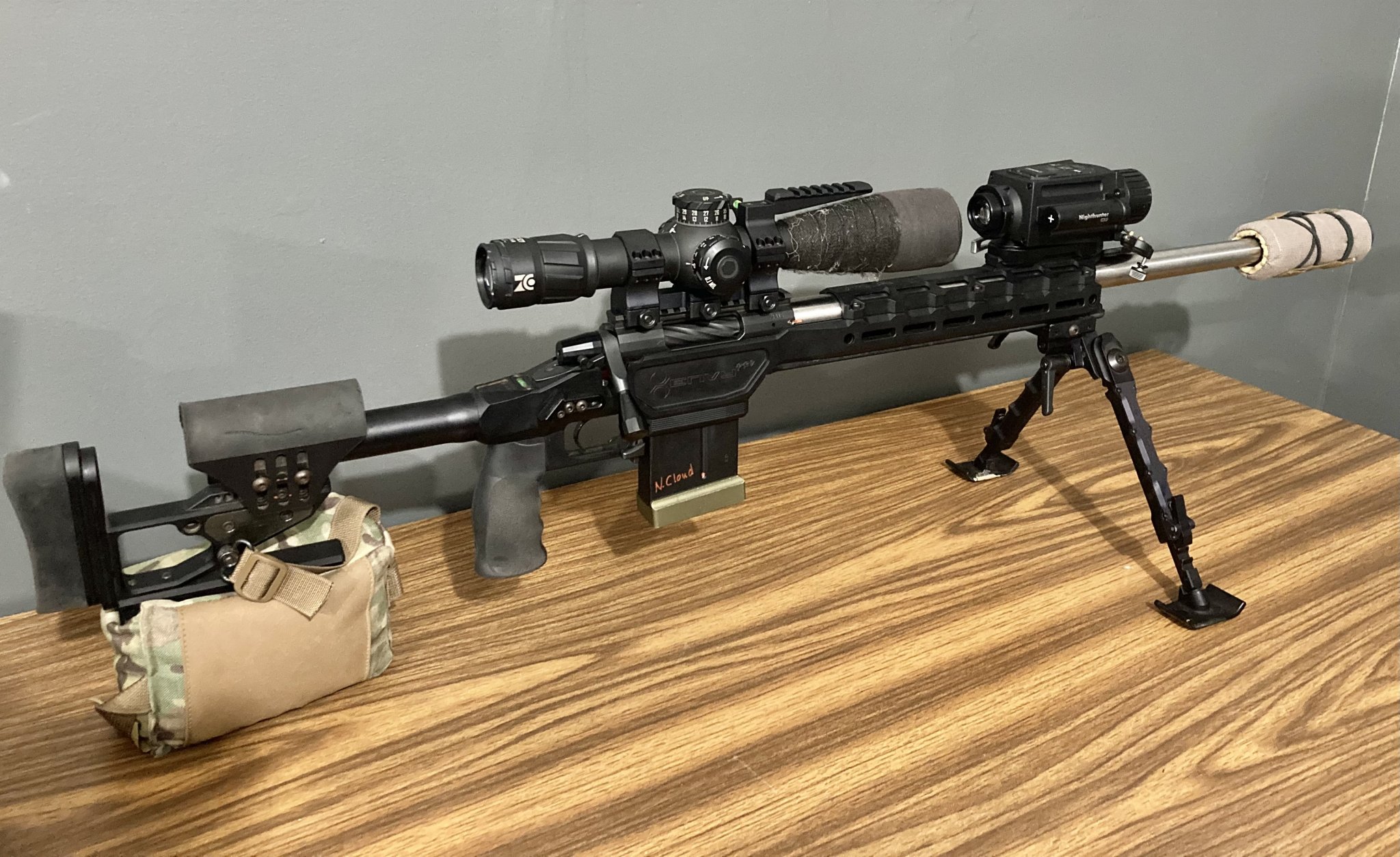

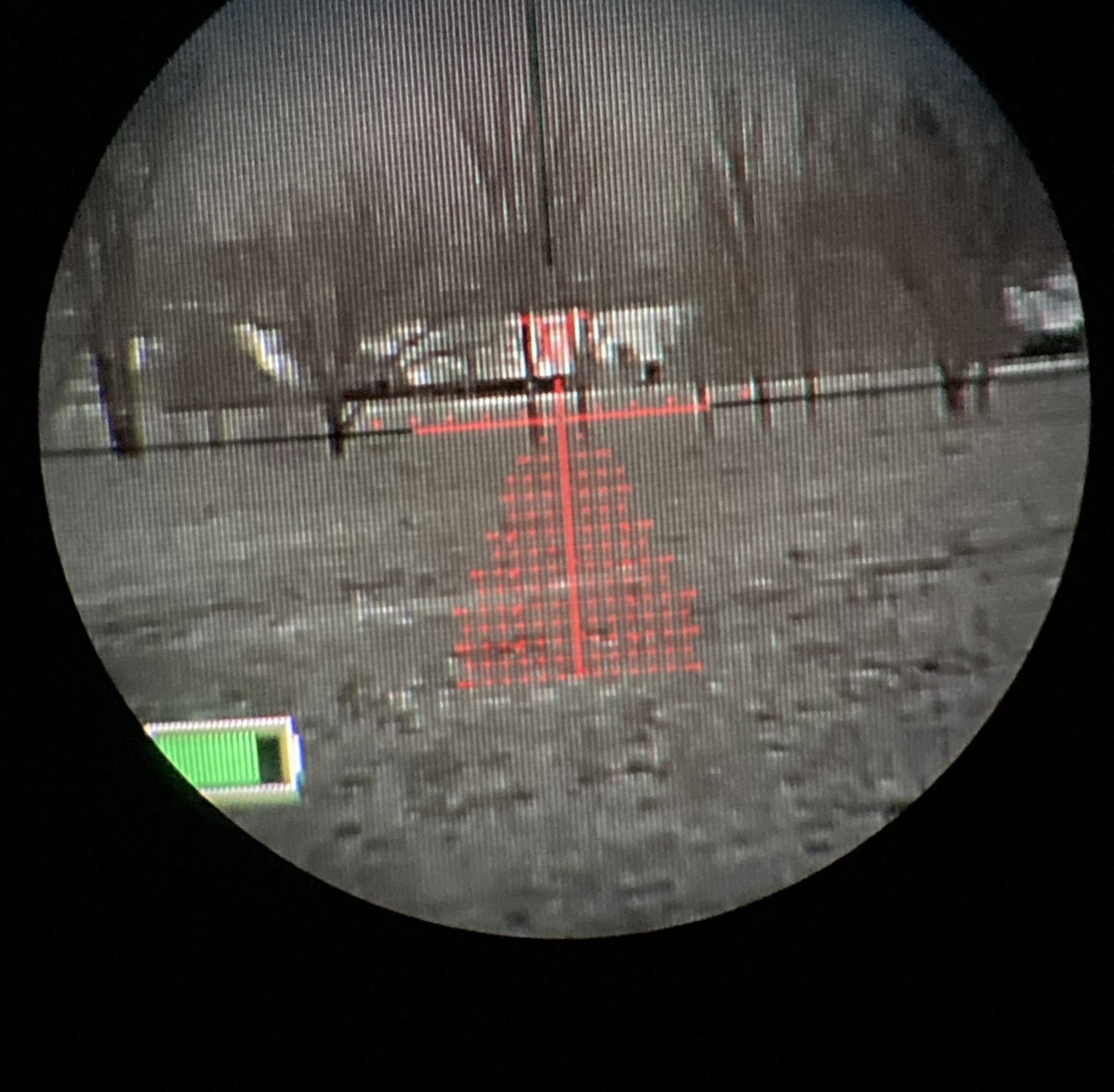

I’ve had some time with the C35 now and i feel that it’s a great value for the price.
Pros-
-Affordable
-Durable
-Easy to adjust settings
-Good picture quality
-easy to zero
-Returns to zero when taken off and put back on

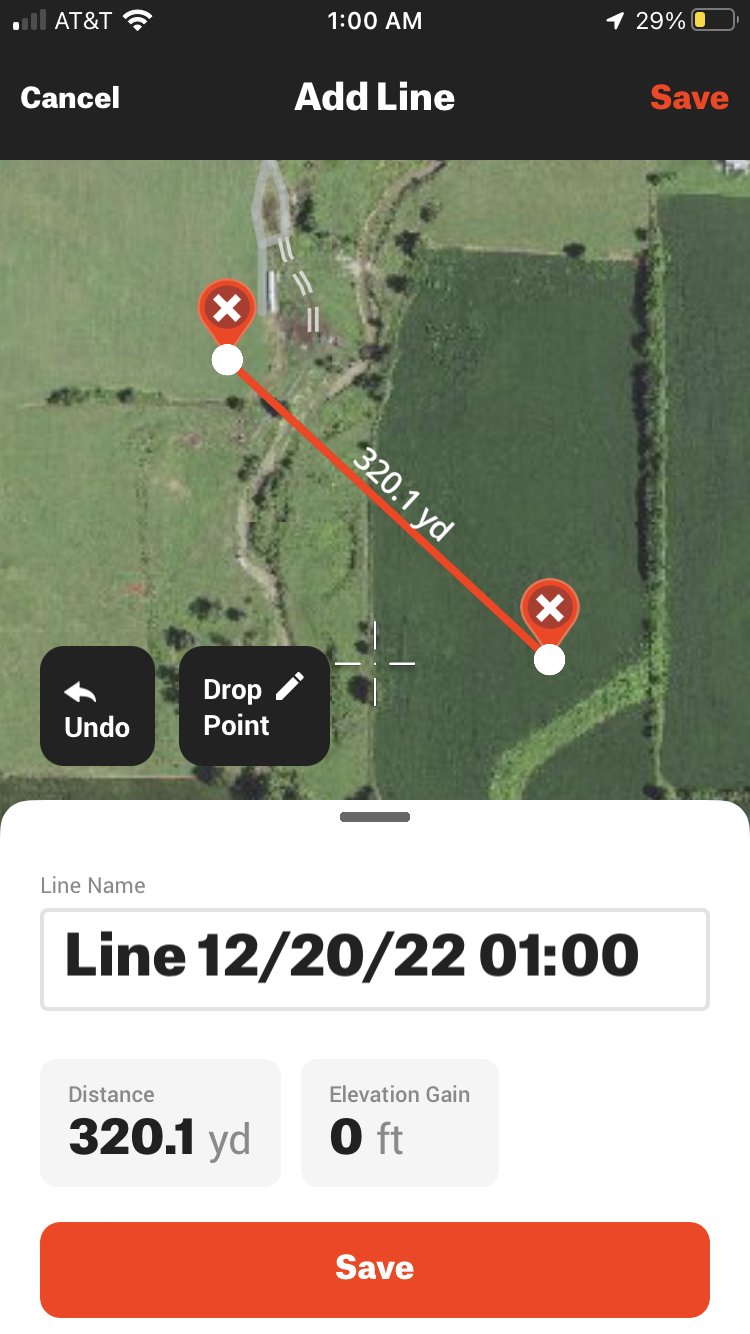

-Usable at mid to high magnification, if you have a positive ID on the target you can zoom in quite far on the scope and make shots. Longest shot so far is 320 yds on a coyote.
Cons-
-Heavy!
-Hard to adjust focus from behind the rifle
-Battery doesn’t last long. That’s ok because you can switch them out or run external pack.
Overall I would buy it again.
Pros-
-Affordable
-Durable
-Easy to adjust settings
-Good picture quality
-easy to zero
-Returns to zero when taken off and put back on
-Usable at mid to high magnification, if you have a positive ID on the target you can zoom in quite far on the scope and make shots. Longest shot so far is 320 yds on a coyote.
Cons-
-Heavy!
-Hard to adjust focus from behind the rifle
-Battery doesn’t last long. That’s ok because you can switch them out or run external pack.
Overall I would buy it again.
Attachments
Also got my rebate yesterday.

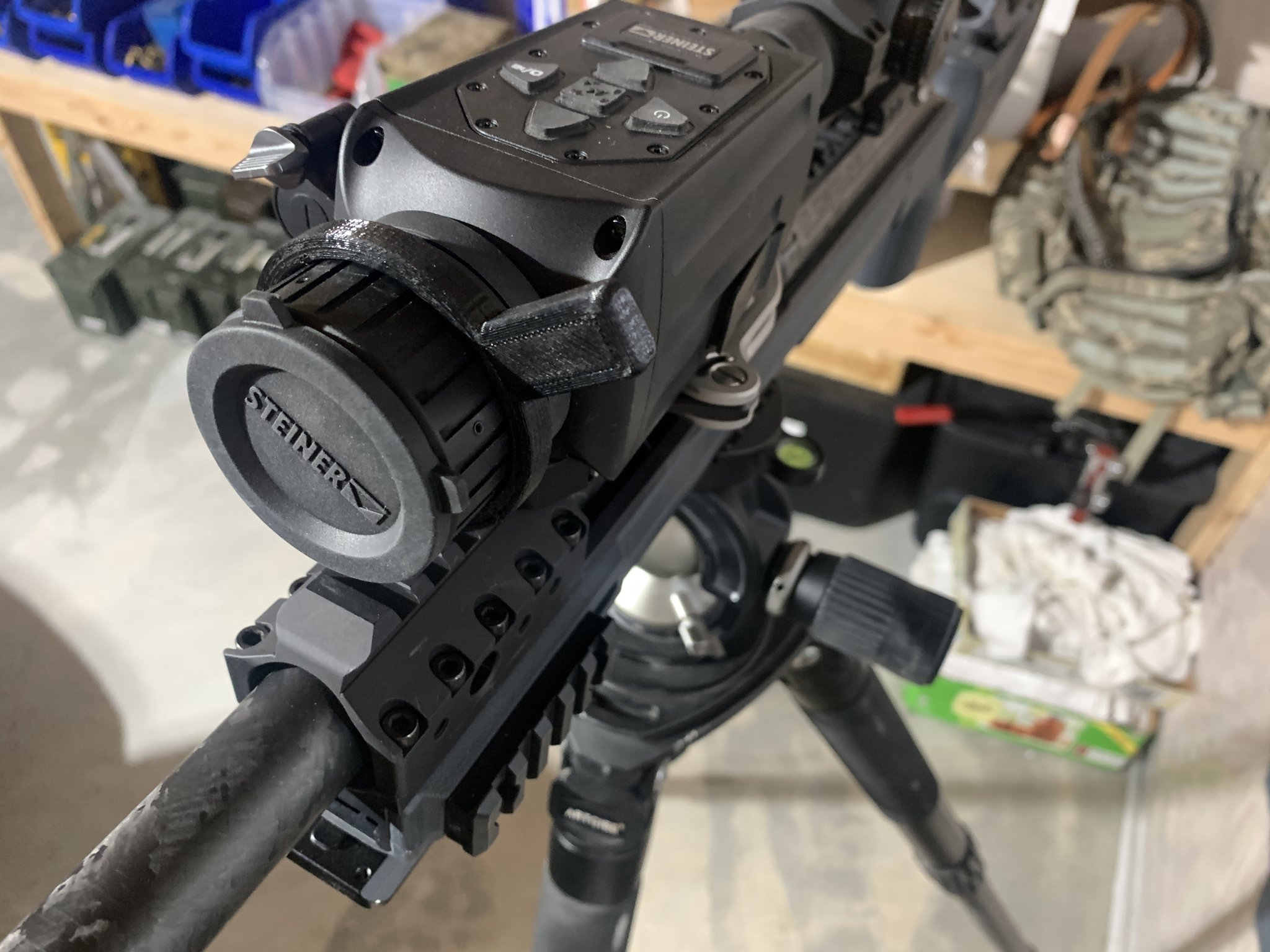

And 3D modeled/printed a quick and dirty press fit focus ‘switchview.’
Video
Imgur Vid
Thingiverse:
C35 3D File
And 3D modeled/printed a quick and dirty press fit focus ‘switchview.’
Video
Imgur Vid
Thingiverse:
C35 3D File
Throw Lever done
www.snipershide.com
Accessories - C35 Throw Levers
After a couple months of testing and design with MKMachining I am proud to announce we have finished the C35 Throw Lever. It is made using cerakoted laser cut aluminum levers with with PA11 plastic sections. Held together with included screws, nuts, and washers to ensure it is easy to secure...
www.snipershide.com I'll stick with a short scope and throw lever like Doogie provided, but that is an interesting solution for use with long scopesThrow Lever done
Accessories - C35 Throw Levers
After a couple months of testing and design with MKMachining I am proud to announce we have finished the C35 Throw Lever. It is made using cerakoted laser cut aluminum levers with with PA11 plastic sections. Held together with included screws, nuts, and washers to ensure it is easy to secure...
And ideas for a cap for the front ocular when not in use?
The Vortex Defender O-24 cap is a bit tight on the ocular, but on the good side once it's on it won't move.
The Defender 0-44 is good for the front objective, but it's just a hair looser than I'd like. I bought the 50mm Switchview lever and with longer screws it will fit over the Defender cap and as a bonus holds it in place.
The Defender 0-44 is good for the front objective, but it's just a hair looser than I'd like. I bought the 50mm Switchview lever and with longer screws it will fit over the Defender cap and as a bonus holds it in place.
I like pretty much everything about the S35 thermal I got over BF...except the mount. The bolts take forever to tighten all the way down and I question the (my) ability to get it back to the same specs on each bolt. So, what's the thinnest quality QD mount I can slap this thing on to make moving it between a couple of rifles with saved zeroes a trustworthy endeavor? I saw Larue makes a 5/8" riser with their QD mounts for $140, but wondering if there's anything out there that's a little cheaper.
On the flip side, is there an aftermarket QD mount that can replace the OEM mount? I haven't seen one mentioned in any of the forum posts I've seen about the S35 and C35, but perhaps there is one available.
On the flip side, is there an aftermarket QD mount that can replace the OEM mount? I haven't seen one mentioned in any of the forum posts I've seen about the S35 and C35, but perhaps there is one available.
There isn't and I've been looking for over a year as the Steiner matches the Burris BTS footprint. I reached out to ADM and Bobro about making one but neither were interested at the time because of current backlogs.
I have a set of these on a scope from 30 years ago
But I can't find them anymore. Would be perfect for it.
