308 AR10 Build Info/Picture Thread

Morfalaswen01

JD
Minuteman
Jan 9, 2021
24
9
Houston
My short barreled 308.


Attachments

  • 802EAFCC-B56C-4A65-99D8-93C17BBF7A9C.jpeg
    259.2 KB · Views: 21
  • C401D8CE-54EE-49D3-88FB-BB3027AE2F0C.jpeg
    287.7 KB · Views: 21
  • 196D5220-973C-49E0-B1C6-A40BB5B501EC.jpeg
    256.4 KB · Views: 24

Morfalaswen01

JD
Minuteman
Jan 9, 2021
24
9
Houston
SiCo Flash hider
BA Hansen 12.5” Barrel
Surefire duel fuel with trex arms extension
Cmmg 9” handguard
Superlative arms adjustable gas block
JP low mass bcg and high pressure bolt
Geissele g2s-e trigger
Geissele super charging handle
Tubbs flatwire spring
Custom weighted buffer from CTS trimmer
Sba4
Executive ordinance grip
Dragon scale rails panels
Trijicon credo 1-8 in ADM mount
Ariska 45 offset and T2
Custom black multicam by myself.


GhostFace

Sergeant
Full Member
Minuteman
  • Apr 1, 2003
    1,174
    372
    46
    Indiana


    I bought this Armalite A4 around election time because I though Hillary was going to win. I chopped the barrel down to 16 inches with the RLGS it's a very soft shooter. It also has a adjustable gas block, Tubbs spring. Also a Franklin Armory binary trigger. It runs like a top but it's a handful on binary...

    I killed a 200 lb hog with it last week in Tennessee. I have a YHM Resonator-K in jail for her...


    GhostFace

    Sergeant
    Full Member
    Minuteman
  • Apr 1, 2003
    1,174
    372
    46
    Indiana



    I bought this one NIB from a friend in 2006. It was your typical AR-10T with a 24 inch barrel. This thing was scary accurate with the original LW barrel. I finally burnt out the barrel and I put on a new 18 inch LW barrel but it's nitride. I have not had time to do proper testing for accuracy yet but from what little I have shot it, it shows promise.

    Last edited:

    edlin_79

    Private
    Minuteman
    Apr 1, 2017
    38
    10
    This was my first AR-10 build. I set out to build a battle rifle. It was a fairly expensive build (about 3k without optics). 16" BSF carbon, Smoke Composite handguard, Spikes Tactical NB BCG, WIlson Combat AGB, and PSA 3.5 match trigger are the notable additions. I was trying to make it as light as possible without sacrificing shootability and the ability to shoot it suppressed. It worked out to 7.8lbs without optics. I didn't take weight from the BCG which I could still do but they cost a pretty penny. WIth the optics I have on it presently it weighs in at 10.2lbs. It shot well it's firs time out. I put some old 175gr miltary ammo through it that was too hot and I was a little worried cause it blew a couple of primers. I switched up to some 168gr AMAX that I loaded with 43gr of 4064 in some LC brass and it shot under an inch with and without supressor. I was pretty happy. Does it look like a battle rifle?


    Attachments

    • IMG_2963.pdf
      23.3 MB · Views: 14
    Last edited:
    • Like
    Reactions: Jefe's Dope

    joey fox

    Private
    Full Member
    Minuteman
    Aug 7, 2011
    1
    1
    31
    SC
    Aero M5, Prs gen 3, MI 3.5lb single stage drop in trigger, Ballistic Advantage 308 16" mid gas, DD 7.62 lite 12.0" rail, Seekins adjustable gas block, Tbac ultra 9, Warne skyline 1.54 0moa mount with swfa 5-20x50. Plan is to shoot it, shorten it to 16" total with pin/weld brake for omega. Then custom barrel to the length I like out of that. Want to put a Mark 5hd scope on it also.


    • Like
    Reactions: LonewolfMcQuade

    Bigtrucknut

    Private
    Minuteman
    Dec 9, 2020
    30
    18
    NoVA
    New to the site, appreciate the membership and the wealth of knowledge. Retired Marine, live in Northern VA, and frequent the ranges at Quantico. Built three LR rifles - .243 Win, .308 Win, and 45 Raptor. All use Aero Precision receivers and handguards, Geissele triggers, and Magpul furniture.

    View attachment 7505209

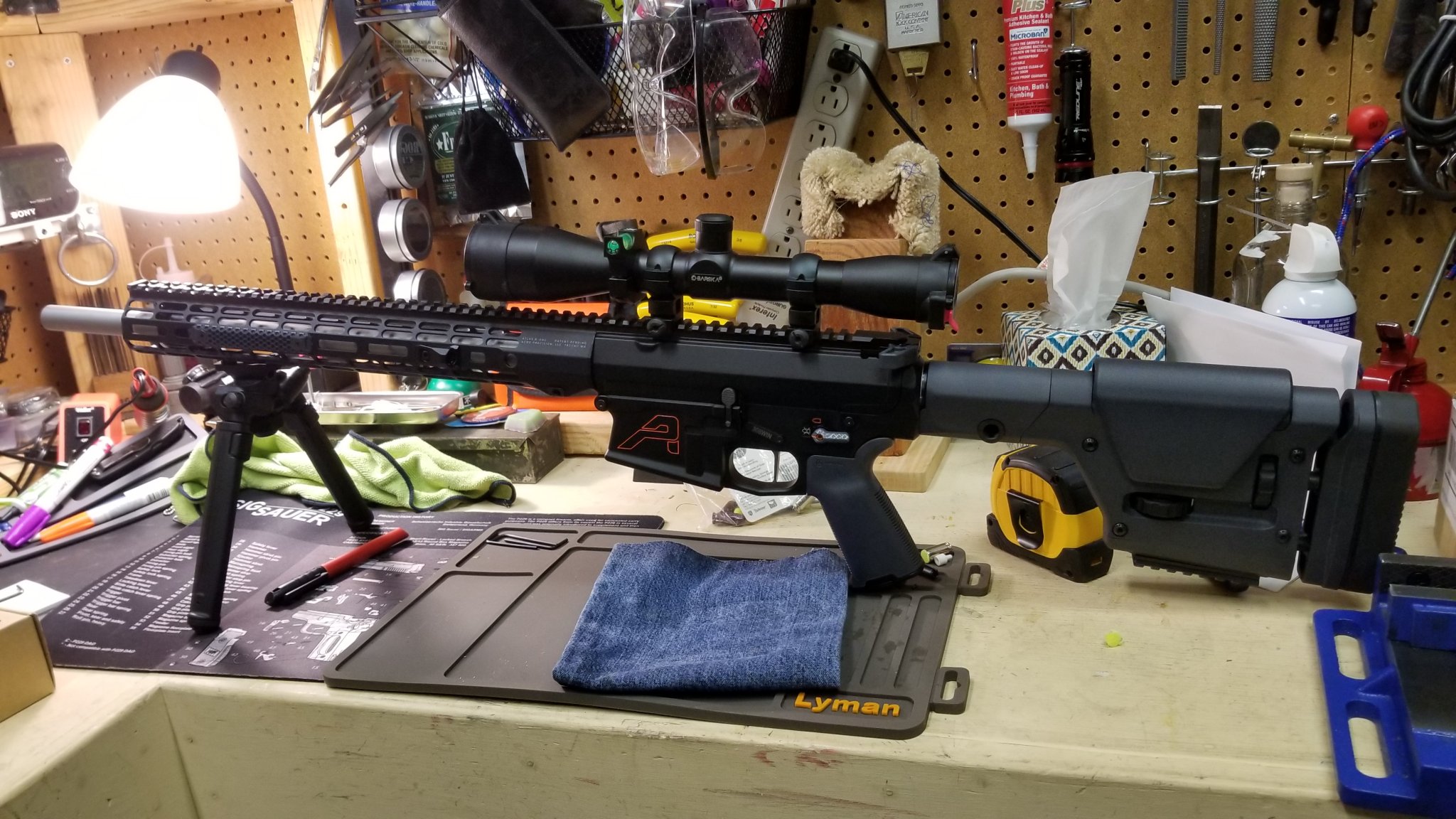

    LR243:
    -AP M5E upper and lower receivers
    -X-Caliber 24" chromoly barrel, .243 Win, 8:1 twist, AR-10 HBAR profile, rear fluting, .0935" gas port, rifle-length gas tube
    -AP BCG
    -SLR Rifleworks .750" steel adjustable gas block
    -Rifle length buffer with tungsten weights (8.85 oz)
    -Mil-spec charging handle with Badger Ordnance Tactical Latch installed
    -AR-Stoner Precision (3-port) muzzle brake, 5/8-24 thread
    -Geissele SSA-E trigger
    -Timney 45/90 ambidextrous safety
    -15" AP M5E Gen 2 M-Lok handguard
    -Magpul PRS 308 Gen 2 stock, MOE grip
    -Vortex PST 6-24X scope (MOA), Nightforce 20 MOA base/rings

    View attachment 7505210

    LR308:
    -AP M5E upper and lower receivers
    -Ballistic Advantage 18" chromoly barrel, .308 Win, 10:1 twist, low profile gas block, rifle-length gas tube, birdcage muzzle compensator
    -AP BCG
    -Carbine length buffer (3.80 oz) (intend to swap to heavier buffer)
    -Mil-spec charging handle with Badger Ordnance Tactical Latch installed
    -Geissele SSA trigger
    -Mil-spec safety
    -12" AP M5E Gen 2 M-Lok handguard
    -Magpul UBR Gen 2 stock, MOE grip
    -Nikon P-308 4-16X scope, Nightforce Ultralight rings
    -Magpul MBus Pro Offset steel sights

    View attachment 7505211

    LR45:
    -AP M5 upper and lower receivers
    -X-Caliber 16" stainless barrel, .45 Raptor, AR-10 Heavy profile, 20:1 twist, .0935" gas port, mid-length gas tube, thread protector
    -Brownells LR308 Nitride BCG
    -Carbine length buffer (3.80 oz) (intend to swap to heavier buffer)
    -Mil-spec charging handle with gun show tactical latch installed
    -SLR Rifleworks .875" titanium adjustable gas block
    -Geissele G2S trigger
    -Timney 45/90 ambidextrous safety
    -12" AP M5E Gen 2 M-Lok handguard
    -Magpul MOE Carbine stock, MOE grip
    -Vortex SPARC II red dot sight

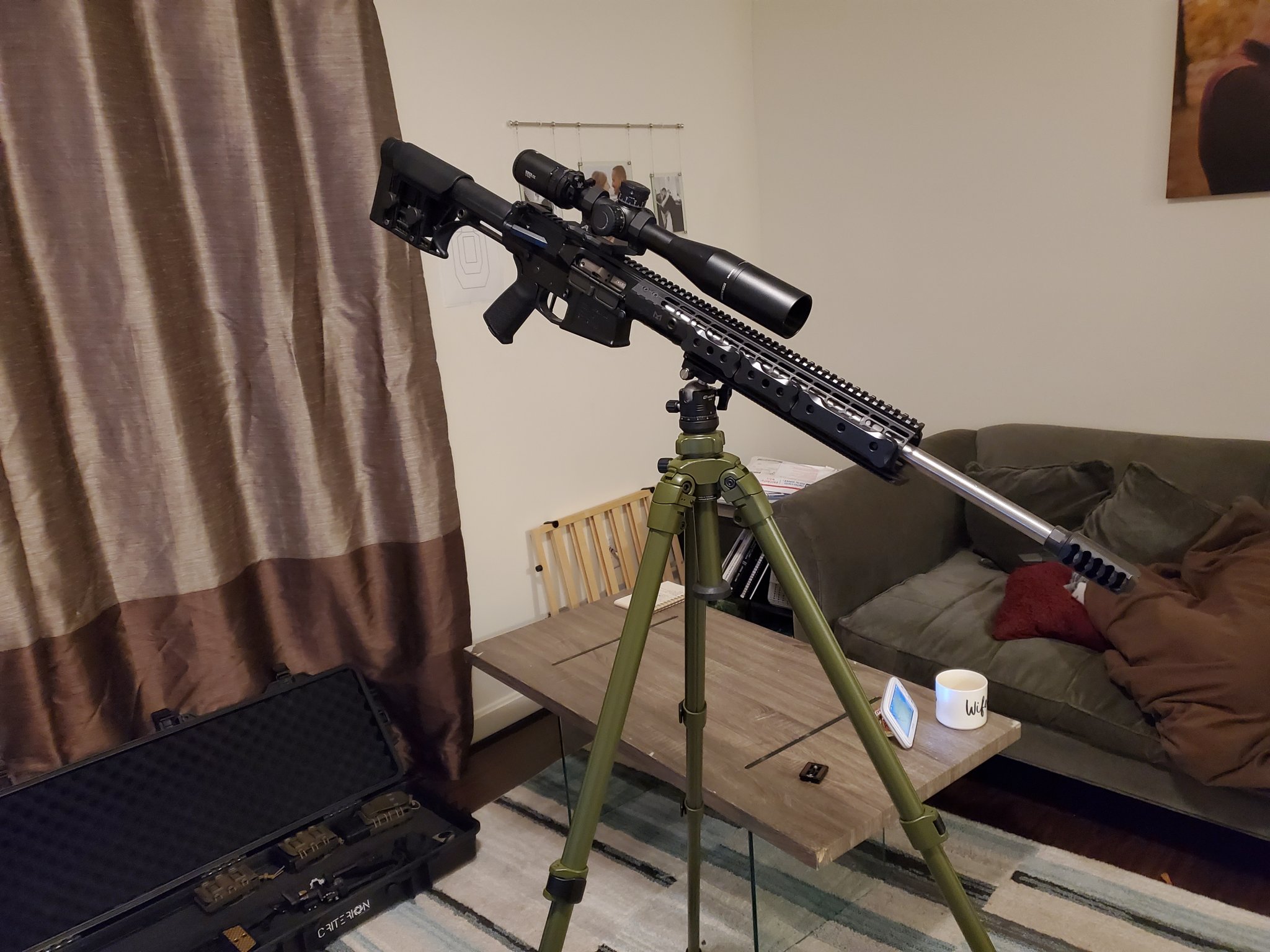

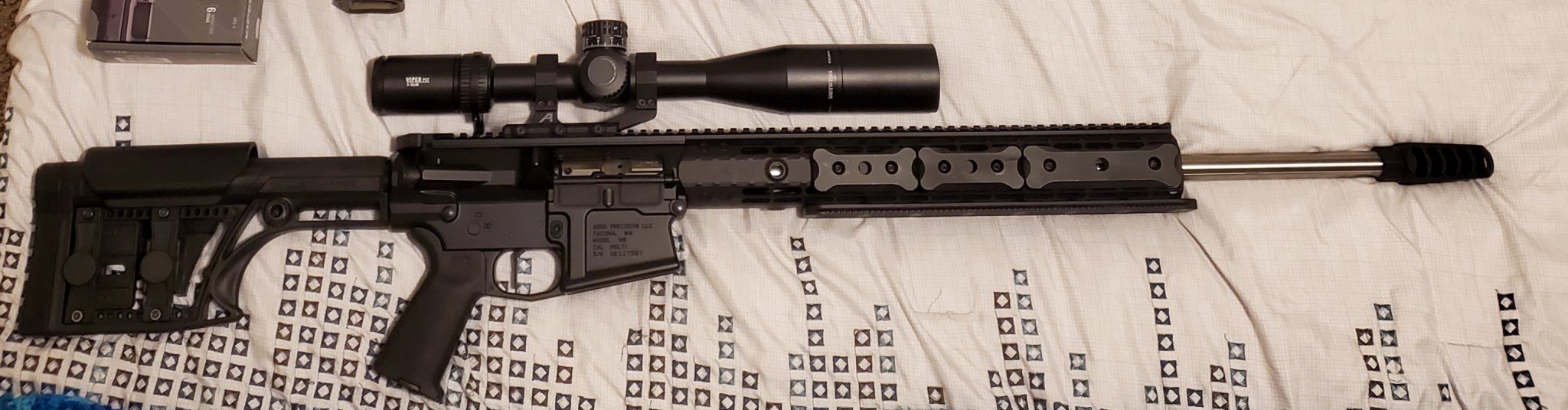

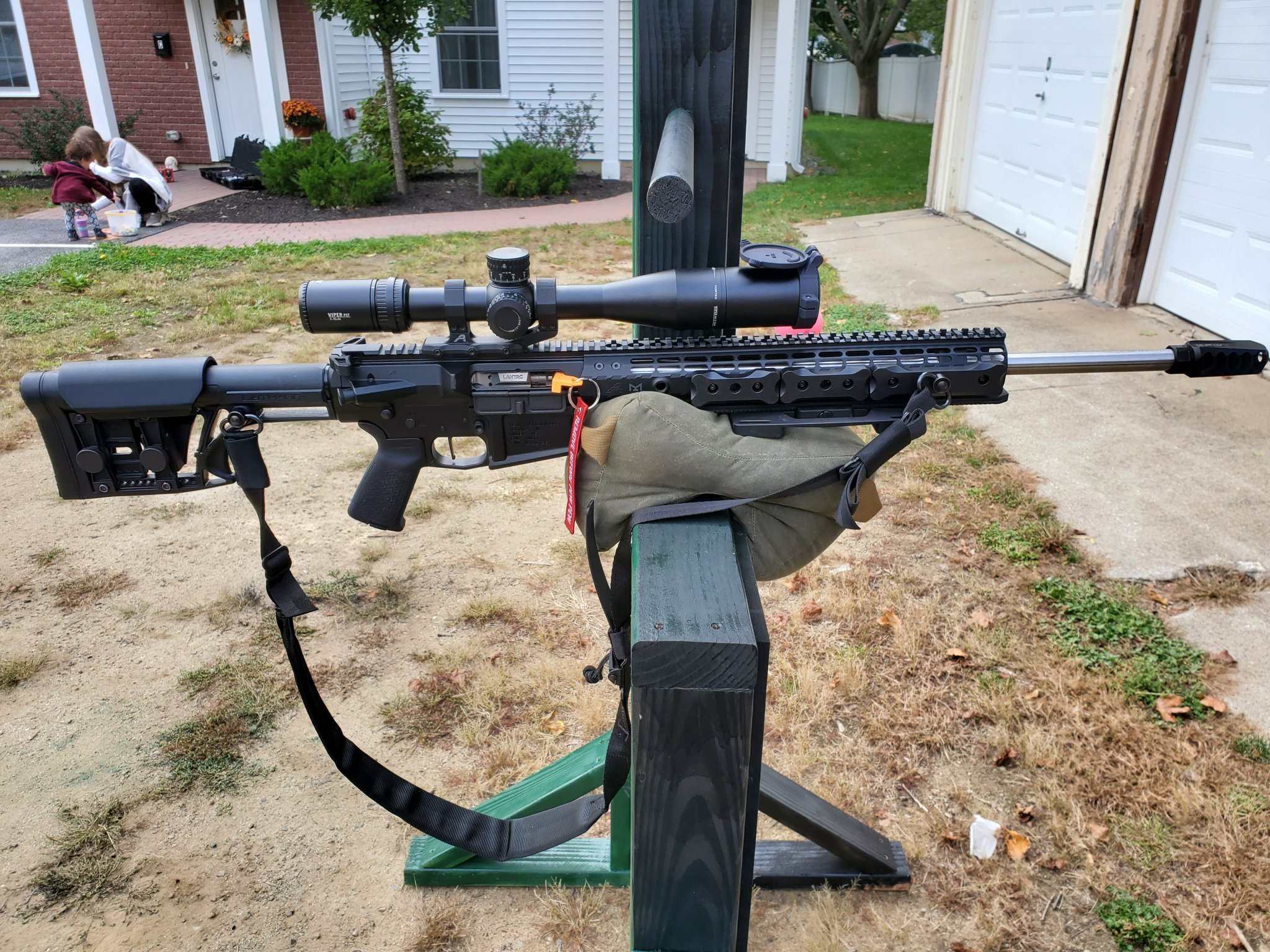

    Built a new rifle - Aero Precision LR308 with 24" barrel similar to my LR243 build. So far, SMK 168 and IMR 4895 handload development is going well - best 100 yard 3-shot group.

    Specs:
    -AP M5E upper and lower receivers
    -X-Caliber 24" stainless barrel, .308 Win, 11:1 twist, fluted AR-10 HBAR profile, .0935" gas port, rifle+2 length gas tube
    -Brownells bolt carrier, Rubber City Armory bolt
    -SLR Rifleworks .850" steel adjustable gas block

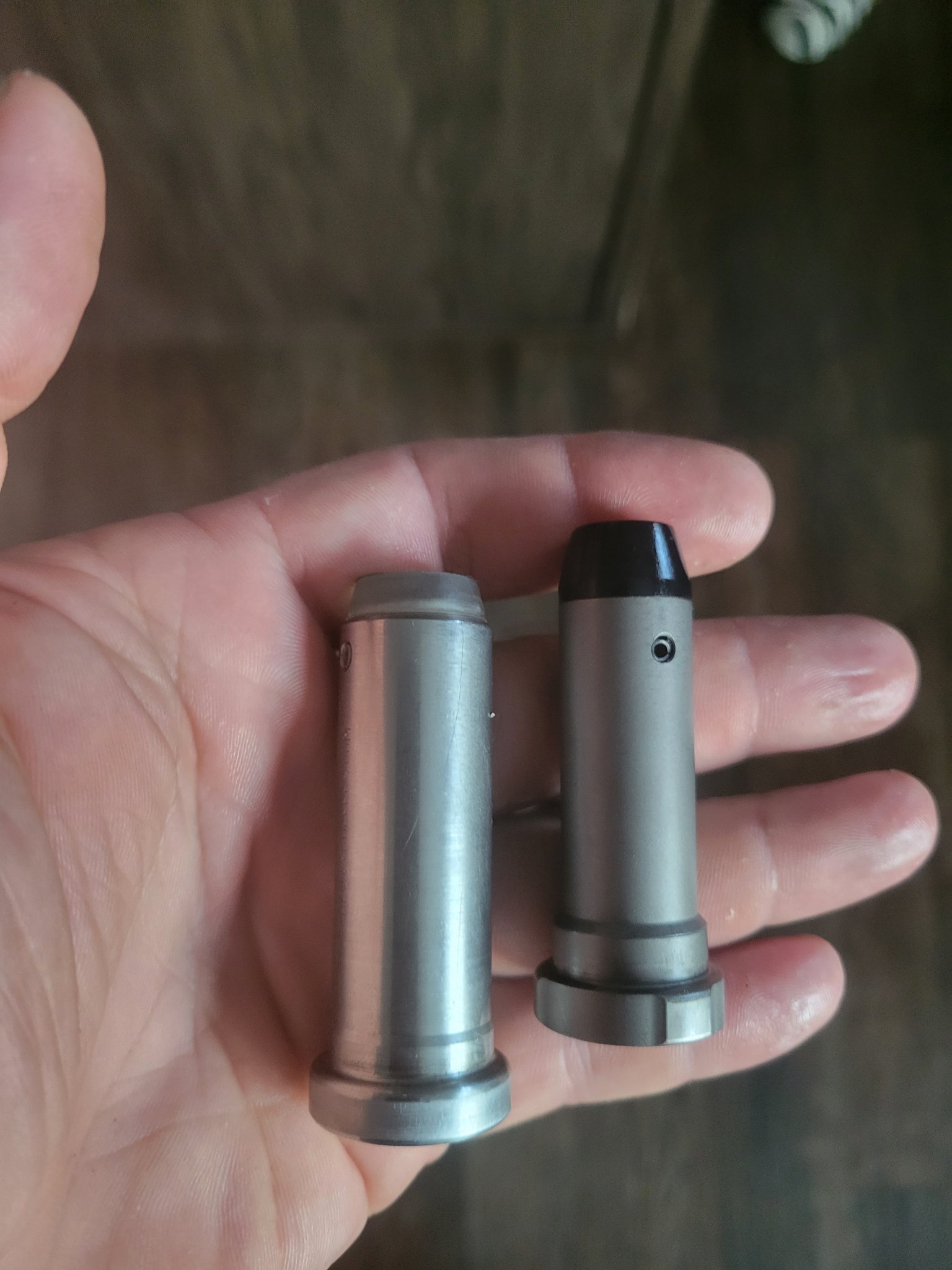

    -Home-turned stainless A5 length buffer with tungsten weights (9.1 oz), cut AR15 rifle buffer spring
    -AP Breach charging handle
    -AR-Stoner Precision (3-port) muzzle brake, 5/8-24 thread
    -Geissele SSA trigger
    -Timney 45/90 ambidextrous safety
    -15" AP M5E Gen 2 M-Lok handguard
    -Magpul UBR Gen2, MOE grip
    -Crimson Trace 4-16x FFP (MOA), Nightforce Ultralight rings


    Attachments

    • 20211114_120820.jpg
      812.3 KB · Views: 32
    • 20211114_120913.jpg
      213.7 KB · Views: 33

    Quiet6.8

    Private
    Full Member
    Minuteman
    May 20, 2017
    50
    41
    UT
    I finally got my 338FED upper mostly assembled, still waiting on WC to send their Intermediate gas tube, it measures 13.25”
    Upper build is as follows
    2aArmament Xanthos Upper Receiver
    16” WC 338FED
    RifleSpeed AGB
    WC gas tube
    SmokeComposites HG
    JP VMOS w/ JP HP Bolt
    SiCo Hybrid
    NF 4-14x40 SHV FFP in NF mount


    Attachments

    • 07ADB934-3184-4F68-941B-AB8E24C31A0C.jpeg
      651.5 KB · Views: 17
    • Like
    Reactions: Jefe's Dope

    HkPlinker

    Sergeant
    Full Member
    Minuteman
    Dec 24, 2007
    240
    446
    MiSS
    STOP ! OK, I've had enough. I want to sell some stuff I haven't shot for a few years and buy or build a AR-10.

    I want to replace my Sako TRG-22 I don't shoot anymore. Looking for help for a 16-18 inch barrel AR-10 build that can shoot 1/2 (ish) MOA with premium optics.
    I like my Hk MR556 gas piston rifle over my AR-15 DI guns only cause of the easier clean up and put up.

    Does Georga make a piston GAP 308?

    Sorry for the intrusion, but I need help on a build / buy


    rpoL98

    USA
    Full Member
    Minuteman
    Sep 27, 2017
    168
    73
    USA
    STOP ! OK, I've had enough. I want to sell some stuff I haven't shot for a few years and buy or build a AR-10.

    I want to replace my Sako TRG-22 I don't shoot anymore. Looking for help for a 16-18 inch barrel AR-10 build that can shoot 1/2 (ish) MOA with premium optics.
    I like my Hk MR556 gas piston rifle over my AR-15 DI guns only cause of the easier clean up and put up.

    Does Georga make a piston GAP 308?

    Sorry for the intrusion, but I need help on a build / buy
    wrong thread to be posting in. you really should start your own thread, or post in the GAP thread if you really want help or assistance. JMHO.


    edlin_79

    Private
    Minuteman
    Apr 1, 2017
    38
    10
    So this is my second .308 build. I wanted to see what a pistol version would do. Weighs in around 7 lbs without optics.

    Build sheet:

    PSA lower
    Gibbz Arms SIde Charger upper
    SSA-E trigger
    Ballistic Arms barrel
    JP Enterprises LMOS (Gosh these are expensive)
    SLR
    Solo handguard
    Superlative Arms adjustable gas block
    SBA-3 Brace
    5.6oz buffer with heavy spring
    Lantac Dragon SIlencerCO ASR (I'm hoping this tames the muzzle flip)

    I've limited experience in building these machines but this one flowed together after the AR15 experience and my first 308 build. Does anyone else have a 308 pistol? If anyone has any experience with the Saint Victor 308 (28" OAL) please PM me, I've got some questions.
    IMG_2982 2.jpg


    PBWalsh

    Preston Walsh Fitness
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,967
    1,060
    28
    Central AL
    Any experience with Faxon 308/6.5 barrels here? Friend of mine is trying to convince me to build a large frame gasser and I am intrigued by their lighter weight profiles that Faxon puts out.

    Is there a tested recipe for building large frames? It seems like a ton of trial and error compared to a small frame.


    White_Shark

    Private
    Full Member
    Minuteman
    Jan 23, 2013
    84
    78
    37
    Manitowoc, WI
    Any experience with Faxon 308/6.5 barrels here? Friend of mine is trying to convince me to build a large frame gasser and I am intrigued by their lighter weight profiles that Faxon puts out.

    Is there a tested recipe for building large frames? It seems like a ton of trial and error compared to a small frame.
    I had pretty good results with one of their 308 barrels, .75-1 moa with good ammo. I would not recommend their 6.5 barrels right now. The feed cone on their barrels is too small and a lot of the 6.5 projectiles I tried, especially secant ogives, will jam below the cone. 147 eld-m would chamber, but would damage the tips on the way in, 140 hybrid targets would completely jam up. I don’t know if they’ve done anything to fix this issue yet.

    • Like
    Reactions: PBWalsh

    PBWalsh

    Preston Walsh Fitness
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,967
    1,060
    28
    Central AL
    Thanks for the reply, slightly leaning to 308 anyways.

    Could one be reliably served with an Aero M5 set/Criterion or Faxon barrel/JP SCS/Aero BCG?

    Any other BCGs to recommend?


    White_Shark

    Private
    Full Member
    Minuteman
    Jan 23, 2013
    84
    78
    37
    Manitowoc, WI
    Those are all good options, Faxon also has contract overrun .308 BCGs on sale right now which I’ve heard are pretty good. I have one but am waiting on my barrel to show up before I can use it so can’t comment on how it performs.


    PBWalsh

    Preston Walsh Fitness
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,967
    1,060
    28
    Central AL
    How would that general list compare to a LMT/KAC?

    Obviously its not one of those, just trying to get a frame of reference. Kinda looking for a “BCM” grade large frame rifle.


    White_Shark

    Private
    Full Member
    Minuteman
    Jan 23, 2013
    84
    78
    37
    Manitowoc, WI
    What’s your intended use for it? Homebuilds can be finicky and require some tuning. If you want off the rack “BCM” grade, I would look at the Sig 716, Seekins SP10, SCAR 17S. Plenty of great rifles built off the Aero receivers though

    • Like
    Reactions: PBWalsh

    rpoL98

    USA
    Full Member
    Minuteman
    Sep 27, 2017
    168
    73
    USA
    I have a Faxon 6.5CM barrel in a Aero M5 receiver, have only been shooting factory ammo. No problems at all with feeding, with various types of factory ammo.

    pic thread:

    Last edited:

    PBWalsh

    Preston Walsh Fitness
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,967
    1,060
    28
    Central AL
    What’s your intended use for it? Homebuilds can be finicky and require some tuning. If you want off the rack “BCM” grade, I would look at the Sig 716, Seekins SP10, SCAR 17S. Plenty of great rifles built off the Aero receivers though
    General use carbine from 50-600 yards for when something a bit larger than a 12.5” 5.56 is needed. This is not an ”HD” or “truck” gun. Think large frame recce rifle and it may give a better image of what I’m wanting to do.

    The Seekins is a bit into the SPR type direction. The Scar 17 with some extras would fulfill the purpose quite well, but I’m cautious due to the seemingly lack of spare parts if something were to break. Not to mention the price tag.

    At the 17’s price point, I’d probably just get a KAC SR-25 CC.

    I don’t mind too much tuning, just want it to be able to run 147/150gr and 175/178gr class ammo reliably.


    rpoL98

    USA
    Full Member
    Minuteman
    Sep 27, 2017
    168
    73
    USA
    General use carbine from 50-600 yards for when something a bit larger than a 12.5” 5.56 is needed. This is not an ”HD” or “truck” gun. Think large frame recce rifle and it may give a better image of what I’m wanting to do.

    The Seekins is a bit into the SPR type direction. The Scar 17 with some extras would fulfill the purpose quite well, but I’m cautious due to the seemingly lack of spare parts if something were to break. Not to mention the price tag.

    At the 17’s price point, I’d probably just get a KAC SR-25 CC.

    I don’t mind too much tuning, just want it to be able to run 147/150gr and 175/178gr class ammo reliably.
    @PBWalsh just a suggestion, you should start a thread with all these questions and discussion. After you've completed your build, come back and post your masterpiece in this Pic & Build Info thread. JMHO, nothing more.

    Happy Thanksgiving! (y) (y) (y)


    ETA: pic thread
